Things used in this project Arduino pH Sensor

Calibration

Hardware components
Connecting Multiple
Sensors to One Arduino
Arduino UNO × 1 Uno Serial Port

View more related projects

Breadboard (generic) × 1

Inline Voltage Isolator × 1

LED (generic) × 2

Resistor 220 ohm × 2

Jumper Wires × 1

Atlas Scientific pH Sensor Kit × 1

Atlas Scientific Conductivity Sensor K1.0 Kit × 1

Atlas Scientific EZO™ Inline Voltage Isolator × 1

Software apps and online services

Arduino IDE

Story

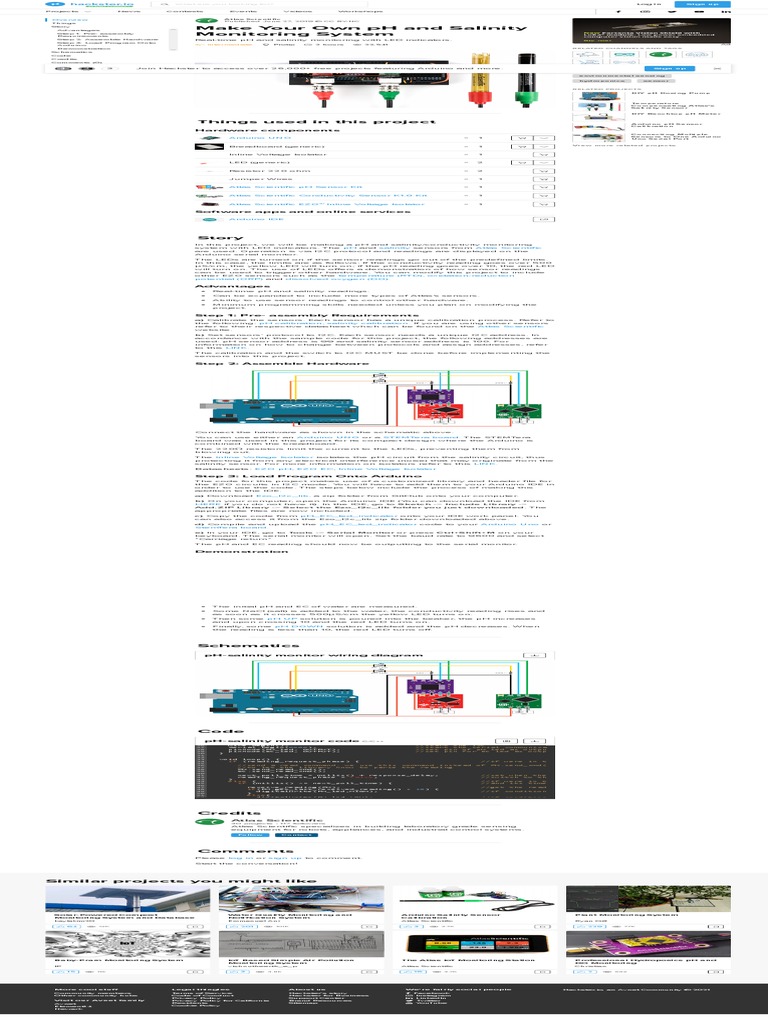

In this project, we will be making a pH and salinity/conductivity monitoring
system with LED indicators. The pH and salinity sensors from Atlas Scientific
are used. Operation is via I2C protocol and readings are displayed on the
Arduino serial monitor.

The LEDs are turned on if the sensor readings go out of the predefined limits.
In this case, the limits are as follows: If the conductivity reading goes over 500
μS/cm, the yellow LED will turn on; if the pH reading goes over 10, the red LED
will turn on. The use of LEDs offers a demonstration of how sensor readings
can be used to trigger other hardware. You can modify this project to include
other EZO sensors such as the temperature (RTD), oxidation-reduction
potential (ORP) and dissolved oxygen (DO).

Advantages
Real-time pH and salinity readings.
Can be expanded to include more types of Atlas's sensors.

Ability to use sensor readings to control other hardware.

Minimum programming skills needed unless you plan on modifying the

project.

Step 1: Pre- assembly Requirements

a) Calibrate the sensors. Each sensor has a unique calibration process. Refer to
the following: pH calibration, salinity calibration. If you are using other sensors
refer to their respective datasheet which can be found on the Atlas Scientific
website.

b) Set sensors' protocol to I2C. Each sensor needs a unique I2C address. In
accordance with the sample code for this project, the following addresses are
used: pH sensor address is 99 and salinity sensor address is 100. For
information on how to change between protocols and assign addresses, refer
to this LINK.

The calibration and the switch to I2C MUST be done before implementing the
sensors into this project.

Step 2: Assemble Hardware

Connect the hardware as shown in the schematic above.

You can use either an Arduino UNO or a STEMTera board. The STEMTera
board was used in this project for its compact design where the Arduino is
combined with the breadboard.

The 220Ω resistors limit the current to the LEDs, preventing them from
blowing out.

The Inline Voltage Isolator isolates the pH circuit from the salinity circuit, thus
protecting it from any electrical interference (noise) that may originate from the
salinity sensor. For more information on isolators refer to this LINK.

Datasheets: EZO pH, EZO EC, Inline Voltage Isolator

Step 3: Load Program Onto Arduino

The code for this project makes use of a customized library and header file for
the EZO circuits in I2C mode. You will have to add them to your Arduino IDE in
order to use the code. The steps below include the process of making this
addition to the IDE.

a) Download Ezo_I2c_lib, a zip folder from GitHub onto your computer.

b) On your computer, open the Arduino IDE (You can download the IDE from
HERE if you do not have it). In the IDE, go to Sketch -> Include Library ->
Add.ZIP Library -> Select the Ezo_I2c_lib folder you just downloaded. The
appropriate files are now included.

c) Copy the code from pH_EC_led_indicator onto your IDE work panel. You
can also access it from the Ezo_I2c_lib zip folder downloaded above.

d) Compile and upload the pH_EC_led_indicator code to your Arduino Uno or

StemTera board.

e) In your IDE, go to Tools -> Serial Monitor or press Ctrl+Shift+M on your

keyboard. The serial monitor will open. Set the baud rate to 9600 and select
"Carriage return"

The pH and EC reading should now be outputting to the serial monitor.

Demonstration

The initial pH and EC of water are measured.

Some NaCl (salt) is added to the water, the conductivity reading rises and
as soon as it crosses 500μS/cm the yellow LED turns on.

Then some pH UP solution is poured into the beaker, the pH increases

and upon crossing 10 and the red LED turns on.

Finally, some pH DOWN solution is added and the pH decreases. When

the reading is less than 10, the red LED turns off.

Schematics

pH-salinity monitor wiring diagram

Code

pH-salinity monitor code C/C++

26 Wire.begin(); //start the I2C
27 Serial.begin(9600); //start the serial communica
28 pinMode(PH_led, OUTPUT); //set pin of pH led as outpu
29 pinMode(EC_led, OUTPUT); //set pin for EC led as outp
30 }
31
32
33 void loop() {
34 if (reading_request_phase) { //if were in t
35
36 //send a read command. we use this command instead of PH.send_cmd(
37 //to let the library know to parse the reading
38 PH.send_read_cmd();
39 EC.send_read_cmd();
40
41 next_poll_time = millis() + response_delay; //set when the
42 reading_request_phase = false; //switch to th
43 }
44 else { //if were in t
45 if (millis() >= next_poll_time) { //and its time
46
47 receive_reading(PH); //get the read
48 if(PH.get_last_received_reading() > 10) {
49 digitalWrite(PH_led,HIGH); //if condition
50 }
51 else{
52 digitalWrite(PH led LOW); //if condition
