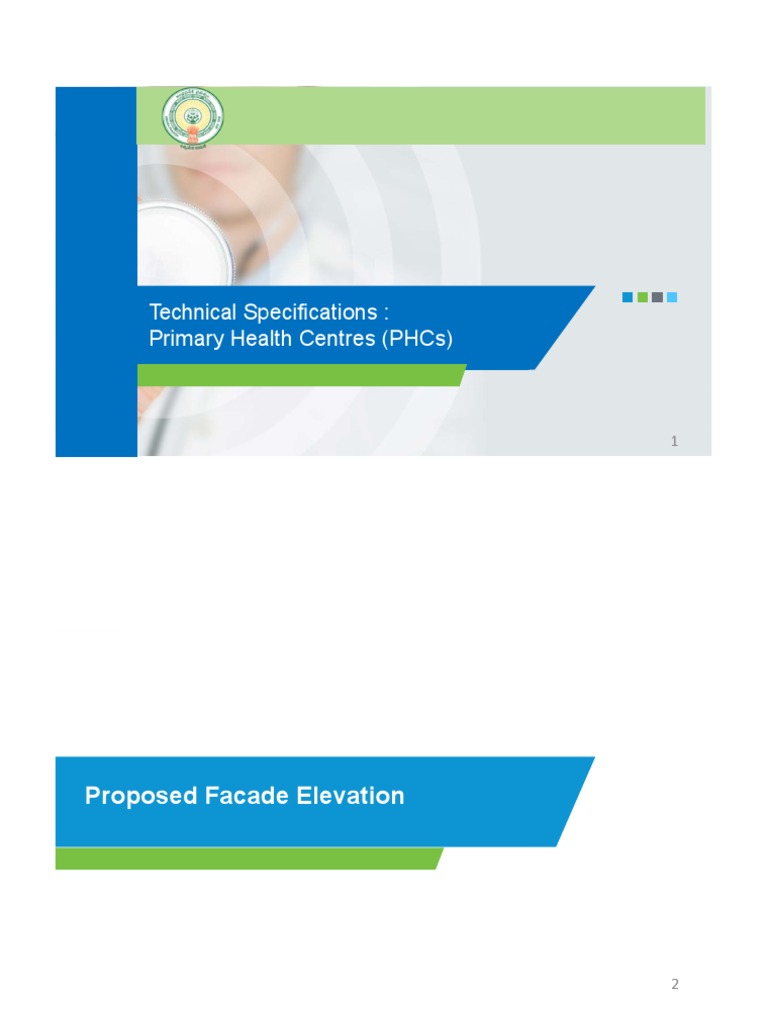

Technical Specifications :

Primary Health Centres (PHCs)

1
Proposed Facade Elevation

2
Proposed Facade Elevation

3
4
 External Painting

Asian Paints Berger Dulux

S.NO Room Name
Color Code Color Code Color Code
Ultima Exterior Long Life 7 2P0602 Weather Shield max
1 External Wall Sahara Dream L135 (Bajaj Berge) Prism white 30YY71/073

Ultima Exterior Long Life 7 1A0568 Weather Shield max

2 Parapet Wall Terracotta 0427 (Pueblo Pottery) Terracotta 26YR 18/404

Asian Chip Plaster Texture 2 to 2.5 mm Rustic Tex 94

3 Texture Paint Light Grey (R713) Long Life 7 8D3022 WS Ultra Clean 50BG 14/036

5
Internal Painting - PHC

6
PHCs : Internal Painting- Asian Paints

Reference shades

Note: Similar colors of Asian, Berger, Dulux

may be followed as approved in SOR

7
 PHCs : Internal Painting- Berger

Reference shades

Berger – White Isle 3P1848

Berger – Back Drop 7P0329

Southwest Magic 2T0612

Berger – sailors tune 4P2169

Berger – Garden Café 8T2661

Berger – Given Grace 8P2589

Berger – Antique Scroll 7P2472

Note: Similar colors of Asian, Berger, Dulux

may be followed as approved in SOR

8
 PHCs : Internal Painting- Dulux

Reference shades

Polar Heights – 654490/062

Powerful Peach – 784R74/155

Sweet Sandy – 904R55/566

Rain Song – 304475/111

Forest Flush – 154453/086

Burning Sky – 67RR64/044

Etern Beige- 104475/084

Note: Similar colors of Asian, Berger, Dulux

may be followed as approved in SOR

9
10
 Room Wise: Internal Painting Options
Asian Paints Berger Dulux
S.NO Room Name
Color Code Color Code Color Code
Asian Daylight 8026 & Garden café 8T2661 & Back Derop Forest Flush 154453/086 &
1 Operation Theatre
Asian Misty Harbour 8346 7P0329 Powerful Peach 784R74/155
Asian Oriental Hush 0747& Asian Oriental Given Grace 8P2589 & Silors Tune Burning Sky 67RR64/044 & Rain
2 Female Ward
Hush 0747 4P2169 song 304475/111
Asian Misty Harbour 8346 & Asian Antique Garden café 8T2661 & Antique Scroll Forest Flush 154453/086 & Etern
3 Male Ward
White 0940 7P2472 Beige 104475/084
Asian - Pale Sisal L155 & Asian Antique White isle 3P1848 & Antique Scroll Polar Heights 654490/062 &
4 Ayush Doctor Room
White 0940 7P2472 Etern Beige 104475/084
Asian - Pale Sisal L155 & Asian Antique White isle 3P1848 & Antique Scroll Polar Heights 654490/062 &
5 Office
White 0940 7P2472 Etern Beige 104475/084
6 Lab Asian - Pale Sisal L155 White isle 3P1848 Polar Heights 654490/062
7 Staff Nurse Room Asian Daylight 8026 Back Derop 7P0329 Powerful Peach 784R74/155
8 Toilet Asian Antique White 0940 Antique Scroll 7P2472 Etern Beige 104475/084
9 Medicine Store Asian - Pale Sisal L155 White isle 3P1848 Polar Heights 654490/062
Asian - Pale Sisal L155 & Asian Antique White isle 3P1848 & Antique Scroll Polar Heights 654490/062 &
10 M.O-1 Doctor Consultation
White 0940 7P2472 Etern Beige 104475/084
Entrance Lobby/Waiting
11 Asian Antique White 0940 Antique Scroll 7P2472
Registration Etern Beige 104475/084
12 Cold Chain & Immunization/FP Asian - Pale Sisal L155 White isle 3P1848 Polar Heights 654490/062
13 M.O-2 Consultation Asian - Pale Sisal L155 White isle 3P1848 Polar Heights 654490/062
14 Labour Room Asian Daylight 8026 Back Derop 7P0329 Powerful Peach 784R74/155
15 Dirty Utility Asian - Pale Sisal L155 White isle 3P1848 Polar Heights 654490/062
16 Sterilization Asian Antique White 0940 Antique Scroll 7P2472 Etern Beige 104475/084
17 Change Room Asian Antique White 0940 Antique Scroll 7P2472 Etern Beige 104475/084
18 Dirty Linen Room Asian - Pale Sisal L155 White isle 3P1848 11
Polar Heights 654490/062
FLOORING

12
OPTION 1 – ZEAL TOP

13
ZEAL TOP

ZEALTOP Baltimore Crema 600 x 600

ZEALTOP Baltimore Caliza 600 x 600

ZEALTOP Baltimore Crema 600 x 1200

PAVIT Westin PAVIT Westin

ZEALTOP Baltimore Caliza 600 x 1200 Blanco Plain 14
400 x 400 400 x 400
ZEAL TOP

ZEALTOP ZEALTOP
Baltimore Crema Baltimore Crema
600 x 600 600 x 1200

Flooring
Tiles
ZEALTOP ZEALTOP
Baltimore Caliza Baltimor Caliza
600 x 600 600 x 1200

PAVIT PAVIT
Parking Westin Westin
Tiles Blanco Plain
400 x 400 400 x 400

15
ZEAL TOP
Male & Female Washrooms

Balance
Height
ZEAL TOP –
Toilet Wall. 6307 M.
Floor 600x300 Size..

2 Tiles from
Floor ZEAL TOP –
Toilet Wall. 6307 D.
ZEAL TOP –
600x300 Size..
. Flooring Baltimore Caliza 600x600

16
OPTION 2 – RAK Ceramics

17
 RAK Ceramics - DOUBLE CHARGED MATT FINISH

GEM Ivory SG
600X600

Gem DGY SG
600X600

CUBIX NATURA 300 x 300

MAR IVORY
400 x 400
18
 RAK Ceramics - DOUBLE CHARGED POLISH FINISH IN ROOMS

GEM Ivory (POLISH)

600X600

Gem DGY (POLISH)

600X600

CUBIX NATURA 300 x 300

MAR IVORY
400 x 400
19
RAK Ceramics
Male Washroom Female Washroom

Balance Balance
Balance Balance
Height Height up to ceiling
up to ceiling
300X450 300X450

2 Tiles from 2 tiles

2 Tiles from from floor
Floor
2 tiles Floor
from floor 300X450
300X450

Floor FLOOR FLOOR

300X300 Floor 300X300

20
OPTION 3 - KAJARIA

21
KAJARIA – DOUBLE CHARGED MATT FINISH

K6813 SATIN MATT

600 x 600

K6818 SATIN MATT

600 x 600

400 x 400
22
400 x 400
KAJARIA – DOUBLE CHARGED GLOSSY FINISH IN ROOMS

K 6813
600X600

K 6818
600X600

400 x 400
23
400 x 400
KAJARIA
Male Washroom Female Washroom

Balance Electra
Balance Glory Bianca(Light) Height Beige (Light)
Height 300 x 450 300 x 450

Elecra Brown
2 Tiles from (Dark)
2 Tiles from Glory Griss (Dark)
Floor 300 x 450
Floor 300 x 450

Floor Glory Gris Floor Electra Brown

(Floor)- Nonskid (Floor) – Nonskid
300 x 300 300 x 300

24
Joinery Specifications

25
Technical Specifications : PHCs
Joinery
S. No. Joinery name Description
1 Main entrance Door cum window with best teak wood frame & planks, brass fixtures

Medium teak Wood frame, 30mm thick flush shutters fixed with 1mm thick laminated sheet both
2 Rooms doors
sides, Aluminium fixtures

3 Toilet doors PVC frame and PVC shutter with Aluminium fixtures

OT complex entrance Powder coated aluminium swing door

4 Fan light – 5mm thick plain glass
Shutters – 5mm thick ground glass & 12mm thick MDF board – interior both sides laminated
Operation theatres, labour
5 Galvanised steel scientific doors
room
1.Wards, RMO / Superintendent rooms - Pre-painted steel 3 track 3 sliding windows (one shutter
with mesh) / uPVC Three track three panels sliding window with fly proof SS wire mesh
2.Other areas & rooms – pre painted steel 2 track 2 sliding windows / uPVC two track two panels
Windows sliding window
6
3. In coastal areas – powder coated Aluminium / UPVC sliding windows
4. MS grill to be provided for Aluminium / uPVC windows
26
PHCs : Doors
Teak wood Main PVC Frame & PVC
door Shutter
Galvanized Steel Scientific door
for OTs

Powder coated Flush door with

Aluminum door laminates

27
PHCs : Windows

UPVC 3 track sliding Steel 2 track sliding UPVC 2 track sliding

window window
window

28
Electrical Specifications

29
PHC : Electrical Drawing

30
Standard heights of Electrical items

31
Standard heights of Electrical items
1. All Ceiling Fans should be Installed at 2.75 meter from floor level.
2. All Tube lights should be Installed at 2.50 meter from floor level.
3. All Distribution boards should be located at 1.80 meter from floor level.
4. All Switch boards should be located at 1.35 meter from floor level.
5. All 6Amps, 16 Amps & AC Sockets should be located at 0.75 meter from floor level.
6. Exhaust Fan control shall be located along with the switch board near the toilet door.
7. All Plug Points should be located 1.35 meter from FFL in the kitchen.
8. Tube Lights shall be located center of the Room I Center of the room as per the site
condition Aesthetically good.
Note:
a. All the levels Mentioned are to the Bottom of Switch Board/Distribution Board from FFL
b. All Fans are the located in a Straight Line.
c. All Tube lights are to be located in a Straight Line.
32
Room wise inventory of Electrical fixtures

33
List of Approved Makes
Sl No ITEM/ MATERIAL MAKES
1 P.V.C. pipes and accessories as per IS:9537 Sudhakar/GoldMedal /Million/ GM / Polycab
2 Flexible copper Wires. Finolex/RR kabel/ Havells/ Polycab
3 PVC Armoured Aluminium UG cables. Finolex/Havells /Gloster / Polycab
4 Ceiling roses and holders etc Anchor/ Million/GM/Gold Medal
All 6A/16A switches, sockets, fan regulators,
5 telephone & TV sockets etc., Legrand / Schneider / Crabtree /L&T
Hot Dip galvanized 20/18 SWG MS Boxes of reputed
6 M.S. Switch Boxes makes with earthing terminal
7 All MCBs, MCCBs/RCCBs, AC Legrand / Schneider /Seimens/L&T
Boxes and Distribution boards
8 Cable Glands & Lugs Dowels/Comet/SMI
9 All types of LED luminaires Phillips / Crompton / Bajaj / Havells
10 Ceiling fans Crompton / Havells /Orient
11 Ceiling fans - BLDC Atomberg/ Havells
12 Exhaust fans Crompton / Havells / Orient / Almonard
13 UPS Systems Numeric/APC/Consul Neowatt
14 Batteries Quanta / Exide
15 PVC Casing & Capping and Modi / GM / Sudhakar
accessories
16 All types of Motor Pump sets Kirloskar / Crompton / Texmo /KSB 34
Sanitary fixtures installation

35
PHCs : Sanitary works guidelines
Bathroom Toilet WC typical detail

36
PHCs : Sanitary works guidelines
Hand wash basin Urinals

37
