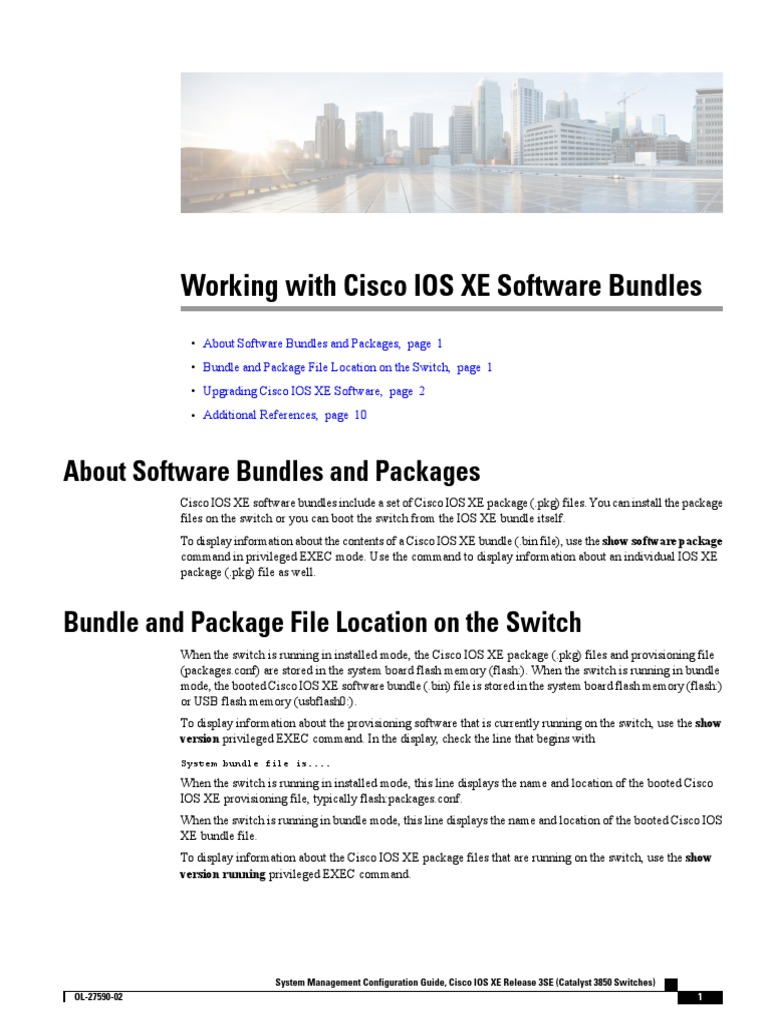

Working with Cisco IOS XE Software Bundles

• About Software Bundles and Packages, page 1

• Bundle and Package File Location on the Switch, page 1
• Upgrading Cisco IOS XE Software, page 2
• Additional References, page 10

About Software Bundles and Packages

Cisco IOS XE software bundles include a set of Cisco IOS XE package (.pkg) files. You can install the package
files on the switch or you can boot the switch from the IOS XE bundle itself.
To display information about the contents of a Cisco IOS XE bundle (.bin file), use the show software package
command in privileged EXEC mode. Use the command to display information about an individual IOS XE
package (.pkg) file as well.

Bundle and Package File Location on the Switch

When the switch is running in installed mode, the Cisco IOS XE package (.pkg) files and provisioning file
(packages.conf) are stored in the system board flash memory (flash:). When the switch is running in bundle
mode, the booted Cisco IOS XE software bundle (.bin) file is stored in the system board flash memory (flash:)
or USB flash memory (usbflash0:).
To display information about the provisioning software that is currently running on the switch, use the show
version privileged EXEC command. In the display, check the line that begins with
System bundle file is....
When the switch is running in installed mode, this line displays the name and location of the booted Cisco
IOS XE provisioning file, typically flash:packages.conf.
When the switch is running in bundle mode, this line displays the name and location of the booted Cisco IOS
XE bundle file.
To display information about the Cisco IOS XE package files that are running on the switch, use the show
version running privileged EXEC command.

System Management Configuration Guide, Cisco IOS XE Release 3SE (Catalyst 3850 Switches)
OL-27590-02 1
 Working with Cisco IOS XE Software Bundles
Upgrading Cisco IOS XE Software

When the switch is running in installed mode, this command displays information about the set of package
files contained in the booted provisioning file.
When the switch is running in bundle mode, this command displays information about the set of package files
contained in the booted Cisco IOS XE software bundle.

Note For usbflash0:, the default format is FAT16, while FAT32 format is also supported.

SwitchControllerDevice# format usbflash0: ?

FAT16 FAT16 filesystem type
FAT32 FAT32 filesystem type

Upgrading Cisco IOS XE Software

The method that you use to upgrade Cisco IOS XE software depends on whether the switch is running in
installed mode or in bundle mode.

Upgrading Cisco IOS XE Software: Install Mode

To upgrade the Cisco IOS XE software when the switch is running in installed mode, use the software install
privileged EXEC command to install the packages from a new software bundle file. The software bundle can
be installed from the local storage media or it can be installed over the network using TFTP or FTP.
The software install command expands the package files from the specified source bundle file and copies
them to the local flash: storage device. When the source bundle is specified as a tftp: or ftp: URL, the bundle
file is first downloaded into the switch's memory (RAM); the bundle file is not copied to local storage media.
After the package files are expanded and copied to flash: the running provisioning file (flash:packages.conf)
is updated to reflect the newly installed packages, and the switch displays a reload prompt.

Note The software install command is not supported when the switch is running in bundle mode. Use the
software expand privileged EXEC command to convert the switch from bundle mode to installed mode.

Upgrading Cisco IOS XE Software Install Mode Example

This example shows the software install file command being used to expand and copy the packages from a
Cisco IOS XE bundle located on a TFTP server in order to upgrade to a new image:
SwitchControllerDevice#
software install file
tftp://172.19.211.47/cat3k_caa-universalk9.SSA.03.12.02.EZP.150-12.02.EZP.150-12.02.EZP.bin
Preparing install operation ...
[1]: Downloading file
tftp://172.19.211.47/cat3k_caa-universalk9.SSA.03.12.02.EZP.150-12.02.EZP.150-12.02.EZP.bin
to active switch 1
[1]: Finished downloading file
tftp://172.19.211.47/cat3k_caa-universalk9.SSA.03.12.02.EZP.150-12.02.EZP.150-12.02.EZP.bin
to active switch 1
[1]: Starting install operation
[1]: Expanding bundle cat3k_caa-universalk9.SSA.03.12.02.EZP.150-12.02.EZP.150-12.02.EZP.bin
[1]: Copying package files

System Management Configuration Guide, Cisco IOS XE Release 3SE (Catalyst 3850 Switches)
2 OL-27590-02
 Working with Cisco IOS XE Software Bundles
Upgrading Cisco IOS XE Software: Bundle Mode

[1]: Package files copied

[1]: Finished expanding bundle
cat3k_caa-universalk9.SSA.03.12.02.EZP.150-12.02.EZP.150-12.02.EZP.bin
[1]: Verifying and copying expanded package files to flash:
[1]: Verified and copied expanded package files to flash:
[1]: Starting compatibility checks
[1]: Finished compatibility checks
[1]: Starting application pre-installation processing
[1]: Finished application pre-installation processing
[1]: Old files list:
Removed cat3k_caa-base.SSA.03.09.17.EMP.pkg
Removed cat3k_caa-drivers.SSA.03.09.17.EMP.pkg
Removed cat3k_caa-infra.SSA.03.09.17.EMP.pkg
Removed cat3k_caa-iosd-universalk9.SSA.150-9.17.EMP.pkg
Removed cat3k_caa-platform.SSA.03.09.17.EMP.pkg
Removed cat3k_caa-wcm.SSA.03.09.17.EMP.pkg
[1]: New files list:
Added cat3k_caa-base.SPA.03.02.00.SE.pkg
Added cat3k_caa-drivers.SPA.03.02.00.SE.pkg
Added cat3k_caa-infra.SPA.03.02.00SE.pkg
Added cat3k_caa-iosd-universalk9.SPA.150-1.EX.pkg
Added cat3k_caa-platform.SPA.03.02.00.SE.pkg
Added cat3k_caa-wcm.SPA.03.02.00.SE.pkg
[1]: Creating pending provisioning file
[1]: Finished installing software. New software will load on reboot.
[1]: Setting rollback timer to 45 minutes
[1]: Do you want to proceed with reload? [yes/no]:

Upgrading Cisco IOS XE Software: Bundle Mode

To upgrade the Cisco IOS XE software when the switch is running in bundle mode, follow these steps:
1 Download the bundle file to local storage media.
2 Configure the boot system global configuration command to point to the bundle file.
3 Reload the switch.

Upgrading Cisco IOS XE Software Bundle Mode Example

This example shows the steps to upgrade the Cisco IOS XE software on a switch that is running in bundle
mode. It shows using the copy command to copy the bundle file to flash:, configuring the boot system variable
to point to the bundle file, saving a copy of the running configuration, and finally, reloading the switch.

SwitchControllerDevice#
copy
tftp://172.19.211.47/cat3k_caa-universalk9.SSA.03.12.02.EZP.150-12.02.EZP.150-12.02.EZP.bin
flash:
Destination filename [cat3k_caa-universalk9.SSA.03.12.02.EZP.150-12.02.EZP.150-12.02.EZP.bin]?
Accessing
tftp://172.19.211.47/cat3k_caa-universalk9.SSA.03.12.02.EZP.150-12.02.EZP.150-12.02.EZP.bin...Loading
/tftpboot/cstohs/cat3k_caa-universalk9.SSA.03.12.02.EZP.150-12.02.EZP.150-12.02.EZP.bin
from 172.19.211.47 (via GigabitEthernet0/0):
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! [OK - 220766688 bytes]
220766688 bytes copied in 124.330 secs (1775651 bytes/sec)

SwitchControllerDevice#
SwitchControllerDevice#configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
SwitchControllerDevice(config)# boot system switch all
flash:cat3k_caa-universalk9.SSA.03.12.02.EZP.150-12.02.EZP.150-12.02.EZP.bin
SwitchControllerDevice(config)# end
SwitchControllerDevice#

System Management Configuration Guide, Cisco IOS XE Release 3SE (Catalyst 3850 Switches)
OL-27590-02 3
 Working with Cisco IOS XE Software Bundles
Converting from the Bundle Running Mode to the Install Running Mode

*Nov 19 14:02:42.441: %SYS-5-CONFIG_I: Configured from console by console

SwitchControllerDevice#
SwitchControllerDevice# write memory
Building configuration...
Compressed configuration from 4941 bytes to 2236 bytes[OK]

SwitchControllerDevice# reload
Reload command is being issued on Active unit, this will reload the whole stack
Proceed with reload? [confirm]

Converting from the Bundle Running Mode to the Install Running Mode
To convert the running mode of a switch from bundle mode to installed mode, use the software expand
running privileged EXEC command. This command expands the packages from the booted IOS XE software
bundle and copies them and the provisioning file to the specified to destination.
When you use the software expand running command to convert the switch from bundle mode to installed
mode, specify the to destination as flash:. After you execute the command, configure the boot system command
to point to the expanded provisioning file (flash:packages.conf), then reload the switch to boot in installed
mode.

Note The software expand running command is not supported when the switch is running in installed mode.

Converting from the Bundle Running Mode to the Install Running Mode Example

This example shows using the software expand running to command to convert the active switch in a switch
stack from the bundle running mode to the installed running mode:

SwitchControllerDevice# dir flash:

Directory of flash:/
7386 -rwx 2097152 Jan 23 2013 14:06:49 +00:00 nvram_config
7378 drwx 4096 Jan 23 2013 09:35:11 +00:00 mnt
7385 -rw- 221775876 Jan 23 2013 14:15:13 +00:00
cat3k_caa-universalk9.SSA.03.12.02.EZP.150-12.02.EZP.150-12.02.EZP.bin
7389 -rwx 556 Jan 21 2013 20:47:30 +00:00 vlan.dat
712413184 bytes total (445063168 bytes free)

SwitchControllerDevice#
SwitchControllerDevice# software expand running to flash:
Preparing expand operation ...
[2]: Expanding the running bundle
[2]: Copying package files
[2]: Package files copied
[2]: Finished expanding the running bundle
SwitchControllerDevice#
SwitchControllerDevice# dir flash:
Directory of flash:/
7386 -rwx 2097152 Jan 23 2013 14:06:49 +00:00 nvram_config
7378 drwx 4096 Jan 23 2013 09:35:11 +00:00 mnt
7385 -rw- 221775876 Jan 23 2013 14:15:13 +00:00
cat3k_caa-universalk9.SSA.03.12.02.EZP.150-12.02.EZP.150-12.02.EZP.bin
7391 -rw- 74410468 Jan 23 2013 14:16:57 +00:00 cat3k_caa-base.SPA.03.02.00SE.pkg
7392 -rw- 2773680 Jan 23 2013 14:16:57 +00:00 cat3k_caa-drivers.SPA.03.02.00.SE.pkg
7393 -rw- 32478044 Jan 23 2013 14:16:57 +00:00 cat3k_caa-infra.SPA.03.02.00SE.pkg
7394 -rw- 30393116 Jan 23 2013 14:16:57 +00:00 cat3k_caa-iosd-universalk9.SPA.150-1.EX.pkg

7389 -rwx 556 Jan 21 2013 20:47:30 +00:00 vlan.dat

System Management Configuration Guide, Cisco IOS XE Release 3SE (Catalyst 3850 Switches)
4 OL-27590-02
 Working with Cisco IOS XE Software Bundles
Copying IOS XE Package and Bundle Files from One Stack Member to Another

7395 -rw- 18313952 Jan 23 2013 14:16:57 +00:00 cat3k_caa-platform.SPA.03.02.00.SE.pkg

7396 -rw- 63402700 Jan 23 2013 14:16:57 +00:00 cat3k_caa-wcm.SPA.10.0.100.0.pkg
7388 -rw- 1218 Jan 23 2013 14:17:43 +00:00 packages.conf
712413184 bytes total (223019008 bytes free)

SwitchControllerDevice#
SwitchControllerDevice# configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
SwitchControllerDevice(config)# boot system switch all flash:packages.conf
SwitchControllerDevice(config)# end
SwitchControllerDevice#

*Jan 23 14:28:47.722: %SYS-5-CONFIG_I: Configured from console by console

SwitchControllerDevice# write memory

Building configuration...
Compressed configuration from 4851 bytes to 2187 bytes[OK]

SwitchControllerDevice#
SwitchControllerDevice# reload
Reload command is being issued on Active unit, this will reload the whole stack
Proceed with reload? [confirm]

Copying IOS XE Package and Bundle Files from One Stack Member to Another
For switch stacks running in installed mode, use the software install source switch privileged EXEC command
to install the running software packages from an existing stack member to one or more other stack members
that are running different (but compatible) software packages.

Copying IOS XE Package and Bundle Files from One Stack Member to Another Example
This example shows a 2-member stack where each switch is running a different (but compatible) software
package. The software install source switch command is used to install the packages that are currently
running on the standby switch (switch 1) onto the active switch (switch 2):

SwitchControllerDevice# show version running

Package: Base, version: 03.02.00SE, status: active
File: cat3k_caa-base.SPA.03.02.00SE.pkg, on: Switch1
Built: Wed Jan 09 21:59:52 PST 2013, by: gereddy

Package: Drivers, version: 03.02.00.SE, status: active

File: cat3k_caa-drivers.SPA.03.02.00.SE.pkg, on: Switch1
Built: Wed Jan 09 22:03:41 PST 2013, by: gereddy

Package: Infra, version: 03.02.00SE, status: active

File: cat3k_caa-infra.SPA.03.02.00SE.pkg, on: Switch1
Built: Wed Jan 09 22:00:56 PST 2013, by: gereddy

Package: IOS, version: 150-1.EX, status: active

File: cat3k_caa-iosd-universalk9.SPA.150-1.EX.pkg, on: Switch1
Built: Wed Jan 09 22:02:23 PST 2013, by: gereddy

Package: Platform, version: 03.02.00.SE, status: active

File: cat3k_caa-platform.SPA.03.02.00.SE.pkg, on: Switch1
Built: Wed Jan 09 22:01:46 PST 2013, by: gereddy

Package: WCM, version: 10.0.100.0, status: active

File: cat3k_caa-wcm.SPA.10.0.100.0.pkg, on: Switch1
Built: Wed Jan 09 22:03:05 PST 2013, by: gereddy

SwitchControllerDevice#
SwitchControllerDevice# software install source switch 1
Preparing install operation ...
[2]: Copying software from source switch 1 to switch 2
[2]: Finished copying software to switch 2

System Management Configuration Guide, Cisco IOS XE Release 3SE (Catalyst 3850 Switches)
OL-27590-02 5
 Working with Cisco IOS XE Software Bundles
Upgrading a SwitchControllerDevice Running Incompatible Software

[2]: Starting install operation

[2]: Starting compatibility checks
[2]: Finished compatibility checks
[2]: Starting application pre-installation processing
[2]: Finished application pre-installation processing
[2]: Old files list:
Removed cat3k_caa-base.SSA.03.09.17.EMP.pkg
Removed cat3k_caa-drivers.SSA.03.09.17.EMP.pkg
Removed cat3k_caa-infra.SSA.03.09.17.EMP.pkg
Removed cat3k_caa-iosd-universalk9.SSA.150-9.17.EMP.pkg
Removed cat3k_caa-platform.SSA.03.09.17.EMP.pkg
Removed cat3k_caa-wcm.SSA.03.09.17.EMP.pkg
[2]: New files list:
Added cat3k_caa-base.SPA.03.02.00.SE.pkg
Added cat3k_caa-drivers.SPA.03.02.00.SE.pkg
Added cat3k_caa-infra.SPA.03.02.00.SE.pkg
Added cat3k_caa-iosd-universalk9.SPA.150-1.EX.pkg
Added cat3k_caa-platform.SPA.03.02.00.SE.pkg
Added cat3k_caa-wcm.SPA.10.0.100.0.pkg
[2]: Creating pending provisioning file
[2]: Finished installing software. New software will load on reboot.
[2]: Committing provisioning file
[2]: Do you want to proceed with reload? [yes/no]:

For switch stacks running in bundle mode, follow these steps to copy the bundle file from one stack member
to another:
1 Use the copy privileged EXEC command to copy the running bundle from one switch in the stack to the
other.
2 Configure the boot system global configuration command to point to the bundle file.
3 Reload the switch.

This example shows a 2-member stack where each switch is running a different (but compatible) software
packages:

SwitchControllerDevice# copy
flash:cat3k_caa-universalk9.SSA.03.12.02.EZP.150-12.02.EZP.150-12.02.EZP.bin flash-1:
Destination filename [cat3k_caa-universalk9.SSA.03.12.02.EZP.150-12.02.EZP.150-12.02.EZP.bin]?
Copy in progress...
...
220766688 bytes copied in 181.700 secs (1215007 bytes/sec)
SwitchControllerDevice#
SwitchControllerDevice# configure terminal
Enter configuration commands, one per line. End with CNTL/Z.

SwitchControllerDevice(config)# boot system switch 1

flash:cat3k_caa-universalk9.SSA.03.12.02.EZP.150-12.02.EZP.150-12.02.EZP.bin
SwitchControllerDevice(config)# end
SwitchControllerDevice#

Upgrading a SwitchControllerDevice Running Incompatible Software

To upgrade a switch that is running in installed mode with software packages that are incompatible with the
switch stack (also running in installed mode), use the software auto-upgrade privileged EXEC command to
install the software packages from an existing stack member to the stack member that is running incompatible
software. Upon completion of the auto-upgrade installation, the incompatible switch automatically reloads
and joins the stack as a fully functioning member.

System Management Configuration Guide, Cisco IOS XE Release 3SE (Catalyst 3850 Switches)
6 OL-27590-02
 Working with Cisco IOS XE Software Bundles
Upgrading a SwitchControllerDevice Running Incompatible Software

Note If you configure the global software auto-upgrade enable command, the auto-upgrade functionality is
initiated automatically when a switch with incompatible software running in installed mode joins the stack
that is running in installed mode. For more information, see Cisco IOS Configuration Fundamentals
Command Reference, Cisco IOS XE Release 3SE (Catalyst 3850 Switches).

Upgrading a SwitchControllerDevice Running Incompatible Software Example

This example shows a 2-member switch stack; switch 2 is the active switch and switch 1 is running incompatible
software:

SwitchControllerDevice# show switch

Switch/Stack Mac Address : 6400.f125.1100 - Local Mac Address
Mac persistency wait time: Indefinite
H/W Current
Switch# Role Mac Address Priority Version State
------------------------------------------------------------
1 Member 6400.f125.1a00 1 0 V-Mismatch
*2 Active 6400.f125.1100 1 V01 Ready
SwitchControllerDevice#
SwitchControllerDevice# software auto-upgrade
% Auto upgrade has been initiated for the following incompatible switches: 1

INFO level system messages will be generated to provide status information during
the auto upgrade process

SwitchControllerDevice#
*Oct 19 06:59:14.521: %INSTALLER-6-AUTO_UPGRADE_SW_INITIATED: 2 installer: Auto upgrade
initiated for switch 1
*Oct 19 06:59:14.522: %INSTALLER-6-AUTO_UPGRADE_SW: 2 installer: Searching stack for software
to upgrade switch 1
*Oct 19 06:59:14.523: %INSTALLER-6-AUTO_UPGRADE_SW: 2 installer: Found donor switch 2 to
auto upgrade switch 1
*Oct 19 06:59:14.523: %INSTALLER-6-AUTO_UPGRADE_SW: 2 installer: Upgrading switch 1 with
software from switch 2
*Oct 19 07:00:47.829: %INSTALLER-6-AUTO_UPGRADE_SW: 2 installer: Finished installing software
on switch 1
*Oct 19 07:00:47.829: %INSTALLER-6-AUTO_UPGRADE_SW: 2 installer: Reloading switch 1 to
complete the auto upgrade

To upgrade a switch that is running in bundle mode with a software bundle that is incompatible with the switch
stack (also running in bundle mode), follow these steps:
1 Use the copy privileged EXEC command to copy the running bundle from one switch in the stack to the
other.
2 Configure the boot system global configuration command to point to the bundle file.
3 Reload the switch.

This example shows a 2-member switch stack running in bundle mode; switch 2 is the active switch and
switch 1 is running an incompatible bundle:

SwitchControllerDevice# show switch

Switch/Stack Mac Address : 6400.f125.1100 - Local Mac Address
Mac persistency wait time: Indefinite
H/W Current
Switch# Role Mac Address Priority Version State
------------------------------------------------------------
1 Member 6400.f125.1a00 1 0 V-Mismatch
*2 Active 6400.f125.1100 1 V01 Ready

System Management Configuration Guide, Cisco IOS XE Release 3SE (Catalyst 3850 Switches)
OL-27590-02 7
 Working with Cisco IOS XE Software Bundles
Upgrading a Switch Running in Incompatible Running Mode

SwitchControllerDevice#
SwitchControllerDevice# copy
flash:cat3k_caa-universalk9.SSA.03.12.02.EZP.150-12.02.EZP.150-12.02.EZP.bin flash-1:
Destination filename [cat3k_caa-universalk9.SSA.03.12.02.EZP.150-12.02.EZP.150-12.02.EZP.bin]?
Copy in progress...
...
220766688 bytes copied in 181.700 secs (1215007 bytes/sec)

SwitchControllerDevice#
SwitchControllerDevice# configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
SwitchControllerDevice(config)# boot system switch 1
flash:cat3k_caa-universalk9.SSA.03.12.02.EZP.150-12.02.EZP.150-12.02.EZP.bin
SwitchControllerDevice(config)# end
SwitchControllerDevice#
*Nov 19 16:08:14.857: %SYS-5-CONFIG_I: Configured from console by console
SwitchControllerDevice# reload slot 1
Stack is in Half ring setup; Reloading a switch might cause stack split
Proceed with reload? [confirm]

Upgrading a Switch Running in Incompatible Running Mode

When a switch running in bundle mode tries to join a stack running in installed mode, use the software
auto-upgrade privileged EXEC command to install the incompatible switch's running packages and convert
the switch to installed mode. Upon completion of the auto-upgrade running mode conversion, the incompatible
switch automatically reloads and attempts to join the stack in installed mode.

Note If you configure the global software auto-upgrade enable command, the auto-upgrade functionality is
initiated automatically when a switch with incompatible software running in installed mode joins the stack
that is running in installed mode. For more information, see Cisco IOS Configuration Fundamentals
Command Reference, Cisco IOS XE Release 3SE (Catalyst 3850 Switches).

Upgrading a SwitchControllerDevice Running in Incompatible Running Mode Example

This example shows a 2-member switch stack running in installed mode; switch 2 is the active switch and
switch1 is running in bundle mode:

SwitchControllerDevice# show switch

Switch/Stack Mac Address : 6400.f125.1100 - Local Mac Address
Mac persistency wait time: Indefinite
H/W Current
Switch# Role Mac Address Priority Version State
------------------------------------------------------------
1 Member 6400.f125.1a00 1 0 V-Mismatch
*2 Active 6400.f125.1100 1 V01 Ready

SwitchControllerDevice#
SwitchControllerDevice# software auto-upgrade
% Auto upgrade has been initiated for the following incompatible switches: 1

INFO level system messages will be generated to provide status information during the auto
upgrade process

SwitchControllerDevice#
*Oct 19 07:17:16.694: %INSTALLER-6-AUTO_UPGRADE_SW_INITIATED: 2 installer: Auto upgrade
initiated for switch 1
*Oct 19 07:17:16.694: %INSTALLER-6-AUTO_UPGRADE_SW: 2 installer: Converting switch 1 to
installed mode by
*Oct 19 07:17:16.694: %INSTALLER-6-AUTO_UPGRADE_SW: 2 installer: installing its running
software

System Management Configuration Guide, Cisco IOS XE Release 3SE (Catalyst 3850 Switches)
8 OL-27590-02
 Working with Cisco IOS XE Software Bundles
Upgrading a Switch Running in Incompatible Running Mode

*Oct 19 07:18:50.488: %INSTALLER-6-AUTO_UPGRADE_SW: 2 installer: Setting the boot var on

switch 1
*Oct 19 07:18:51.553: %INSTALLER-6-AUTO_UPGRADE_SW: 2 installer: Finished installing the
running software on switch 1
*Oct 19 07:18:51.553: %INSTALLER-6-AUTO_UPGRADE_SW: 2 installer: Reloading switch 1 to boot
in installed mode

Note When you use the software auto-upgrade command to convert an incompatible switch to installed mode,
the command installs the packages from the incompatible switch's running bundle. If, after you reload
and boot the incompatible switch in installed mode, the switch's installed packages are found to be
incompatible with the stack, you can use the software auto-upgrade command again. For more information,
see Cisco IOS Configuration Fundamentals Command Reference, Cisco IOS XE Release 3SE (Catalyst
3850 Switches).

To convert a switch that is running in installed mode and joining a stack that is running in bundle mode, follow
these steps:
1 Use the copy privileged EXEC command to copy the running bundle from one switch in the stack to the
other.
2 Configure the boot system global configuration command to point to the bundle file.
3 Reload the switch.

After reloading, the incompatible switch boots in bundle mode and joins the stack as a fully functioning
member.
This example shows a 2-member switch stack running in bundle mode; switch 2 is the active switch and
switch 1 is running in installed mode:

SwitchControllerDevice#
SwitchControllerDevice# copy
flash:cat3k_caa-universalk9.SSA.03.12.02.EZP.150-12.02.EZP.150-12.02.EZP.bin flash-1:
Destination filename [cat3k_caa-universalk9.SSA.03.12.02.EZP.150-12.02.EZP.150-12.02.EZP.bin]?
Copy in progress...
....
220766688 bytes copied in 181.700 secs (1215007 bytes/sec)
SwitchControllerDevice#
SwitchControllerDevice# configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
SwitchControllerDevice(config)# boot system switch 1
flash:cat3k_caa-universalk9.SSA.03.12.02.EZP.150-12.02.EZP.150-12.02.EZP.bin
SwitchControllerDevice(config)# end
SwitchControllerDevice#
*Nov 19 16:08:14.857: %SYS-5-CONFIG_I: Configured from console by console
SwitchControllerDevice# reload slot 1
Stack is in Half ring setup; Reloading a switch might cause stack split
Proceed with reload? [confirm]

System Management Configuration Guide, Cisco IOS XE Release 3SE (Catalyst 3850 Switches)
OL-27590-02 9
 Working with Cisco IOS XE Software Bundles
Additional References

Additional References
Related Documents

Related Topic Document Title

Commands for managing software bundles and Cisco IOS Configuration Fundamentals Command
packages Reference

Error Message Decoder

Description Link
To help you research and resolve system error https://www.cisco.com/cgi-bin/Support/Errordecoder/
messages in this release, use the Error Message index.cgi
Decoder tool.

Standards

Standards Title
No new or modified standards are supported by this --
feature, and support for existing standards has not
been modified by this feature.

MIBs

MIBs MIBs Link

No new or modified MIBs are supported by this To locate and download MIBs for selected platforms,
feature, and support for existing MIBs has not been Cisco IOS releases, and feature sets, use Cisco MIB
modified by this feature. Locator found at the following URL:
http://www.cisco.com/go/mibs

RFCs

RFCs Title
No new or modified RFCs are supported by this --
feature, and support for existing RFCs has not been
modified by this feature.

System Management Configuration Guide, Cisco IOS XE Release 3SE (Catalyst 3850 Switches)
10 OL-27590-02
 Working with Cisco IOS XE Software Bundles
Additional References

Technical Assistance

Description Link
The Cisco Support website provides extensive online http://www.cisco.com/cisco/web/support/index.html
resources, including documentation and tools for
troubleshooting and resolving technical issues with
Cisco products and technologies.
To receive security and technical information about
your products, you can subscribe to various services,
such as the Product Alert Tool (accessed from Field
Notices), the Cisco Technical Services Newsletter,
and Really Simple Syndication (RSS) Feeds.
Access to most tools on the Cisco Support website
requires a Cisco.com user ID and password.

System Management Configuration Guide, Cisco IOS XE Release 3SE (Catalyst 3850 Switches)
OL-27590-02 11
 Working with Cisco IOS XE Software Bundles
Additional References

System Management Configuration Guide, Cisco IOS XE Release 3SE (Catalyst 3850 Switches)
12 OL-27590-02
