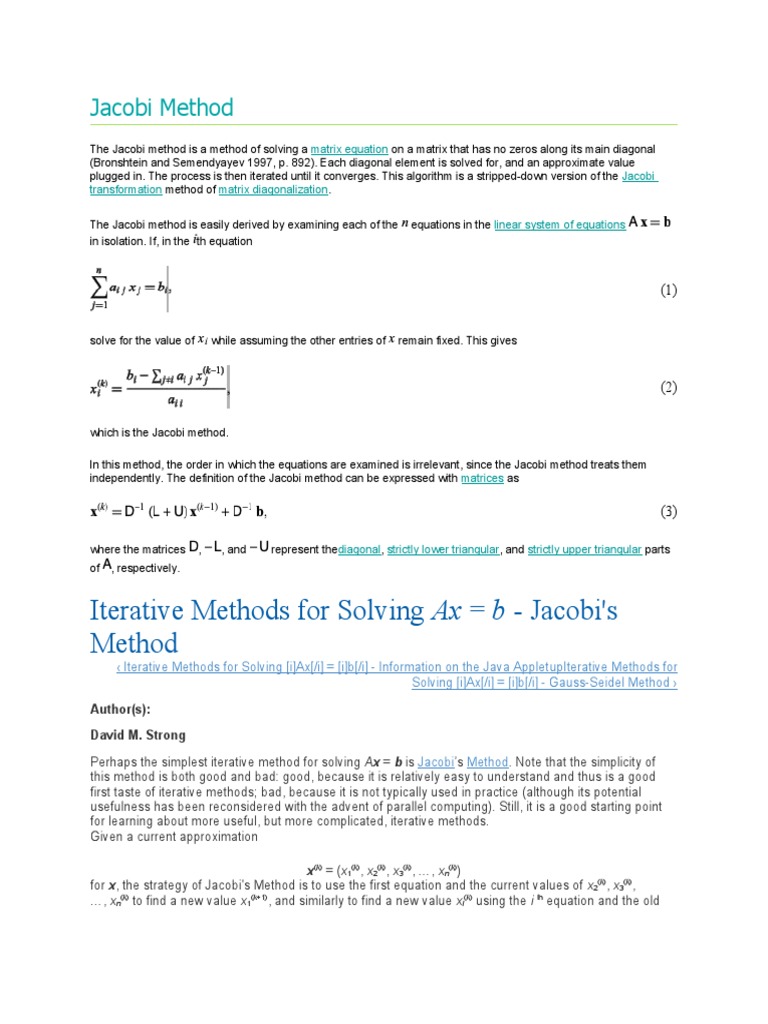

Jacobi Method

The Jacobi method is a method of solving a matrix equation on a matrix that has no zeros along its main diagonal
(Bronshtein and Semendyayev 1997, p. 892). Each diagonal element is solved for, and an approximate value
plugged in. The process is then iterated until it converges. This algorithm is a stripped-down version of the Jacobi
transformation method of matrix diagonalization.

The Jacobi method is easily derived by examining each of the   equations in the linear system of equations
in isolation. If, in the  th equation

(1)

solve for the value of   while assuming the other entries of   remain fixed. This gives

(2)

which is the Jacobi method.

In this method, the order in which the equations are examined is irrelevant, since the Jacobi method treats them
independently. The definition of the Jacobi method can be expressed with matrices as

(3)

where the matrices  ,  , and   represent thediagonal, strictly lower triangular, and strictly upper triangular parts
of  , respectively.

Iterative Methods for Solving Ax = b - Jacobi's

Method
‹ Iterative Methods for Solving [i]Ax[/i] = [i]b[/i] - Information on the Java Applet upIterative Methods for
Solving [i]Ax[/i] = [i]b[/i] - Gauss-Seidel Method ›

Author(s):

David M. Strong

Perhaps the simplest iterative method for solving Ax = b is Jacobi’s Method. Note that the simplicity of
this method is both good and bad: good, because it is relatively easy to understand and thus is a good
first taste of iterative methods; bad, because it is not typically used in practice (although its potential
usefulness has been reconsidered with the advent of parallel computing). Still, it is a good starting point
for learning about more useful, but more complicated, iterative methods.
Given a current approximation

x(k) = (x1(k), x2(k), x3(k), …, xn(k))

for x, the strategy of Jacobi's Method is to use the first equation and the current values of x2(k), x3(k),
…, xn(k) to find a new value x1(k+1), and similarly to find a new value xi(k) using the i th equation and the old
values of the other variables. That is, given current values x(k) = (x1(k), x2(k), …, xn(k)), find new values by
solving for
x(k+1) = (x1(k+1), x2(k+1), …, xn(k+1))
in

This system can also be written as

To be clear, the subscript i means that xi(k) is the i th element of vector

x(k) = (x1(k), x2(k), …, xi(k), …, xn(k) ),
and superscript k corresponds to the particular iteration (not the kth power of xi ).
If we write D, L, and U for the diagonal, strict lower triangular and strict upper triangular and parts of A,
respectively,

then Jacobi’s Method can be written in matrix-vector notation as

so that

Example 1
Let's apply Jacobi's Method to the system
  .

At each step, given the current values x1(k), x2(k), x3(k), we solve for x1(k+1), x2(k+1), and x3(k+1) in

 .

So, if our initial guess x(0) = (x1(0), x2(0), x3(0)) is the zero vector 0 = (0,0,0) — a common initial guess unless
we have some additional information that leads us to choose some other — then we find x(1) =
(x1(1), x2(1), x3(1) ) by solving

So x(1) = (x1(1), x2(1), x3(1)) = (3/4, 9/6, −6/7) ≈ (0.750, 1.500, −0.857). We iterate this process to find a
sequence of increasingly better approximations x(0), x(1), x(2), … . We show the results in the table below,
with all values rounded to 3 decimal places.
We are interested in the error e at each iteration between the true solution x and the
approximation x(k): e(k) = x − x(k) . Obviously, we don't usually know the true solution x. However, to better
understand the behavior of an iterative method, it is enlightening to use the method to solve a
system Ax = b for which we do know the true solution and analyze how quickly the approximations are
converging to the true solution. For this example, the true solution is x = (1, 2, −1).
The norm of a vector ||x|| tells us how big the vector is as a whole (as opposed to how large each element
of the vector is). The vector norm most commonly used in linear algebra is the l2 norm:

For example, if x = (1, 2, −1), then

In this module, we will always use the l2 norm (including for matrix norms in subsequent tutorials), so that
|| || always signifies || ||2.
For our purposes, we observe that ||x|| will be small exactly when each of the elements x1, x2, …, xn in x =
(x1, x2, …, xn ) is small. In the following table, the norm of the error becomes progressively smaller as the
error in each of the three elements x1, x2, x3 becomes smaller, or in other words, as the approximations
become progressively better.
 k  x(k) x(k) − x(k-1) e(k) = x − x(k) ||e(k)||

0 -0.000 -0.000 -0.000 − − − -0.000 -0.000 -1.000 2.449

1 0.750 1.500 -0.857 -0.000 -0.000 -0.857 0.250 0.500 -0.143 0.557
2 0.911 1.893 -0.964 0.161 0.393 -0.107 0.089 0.107 -0.036 0.144

3 0.982 1.964 -0.997 0.071 0.071 -0.033 0.018 0.036 -0.003 0.040

4 0.992 1.994 -0.997 0.010 0.029 0.000 0.008 0.006 -0.003 0.011

5 0.999 1.997 -1.000 0.007 0.003 -0.003 0.001 0.003 0.000 0.003

6 0.999 2.000 -1.000 0.000 0.003 0.001 0.000 0.001 0.000 0.001

7 1.000 2.000 -1.000 0.001 0.000 0.000 0.000 0.000 0.000 0.000

8 1.000 2.000 -1.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000

For this example, we stop iterating after all three ways of measuring the current error,

x(k) − x(k-1), e(k), and ||e(k)||,

equal 0 to three decimal places. In practice, you would normally choose a single measurement of error to
determine when to stop.
