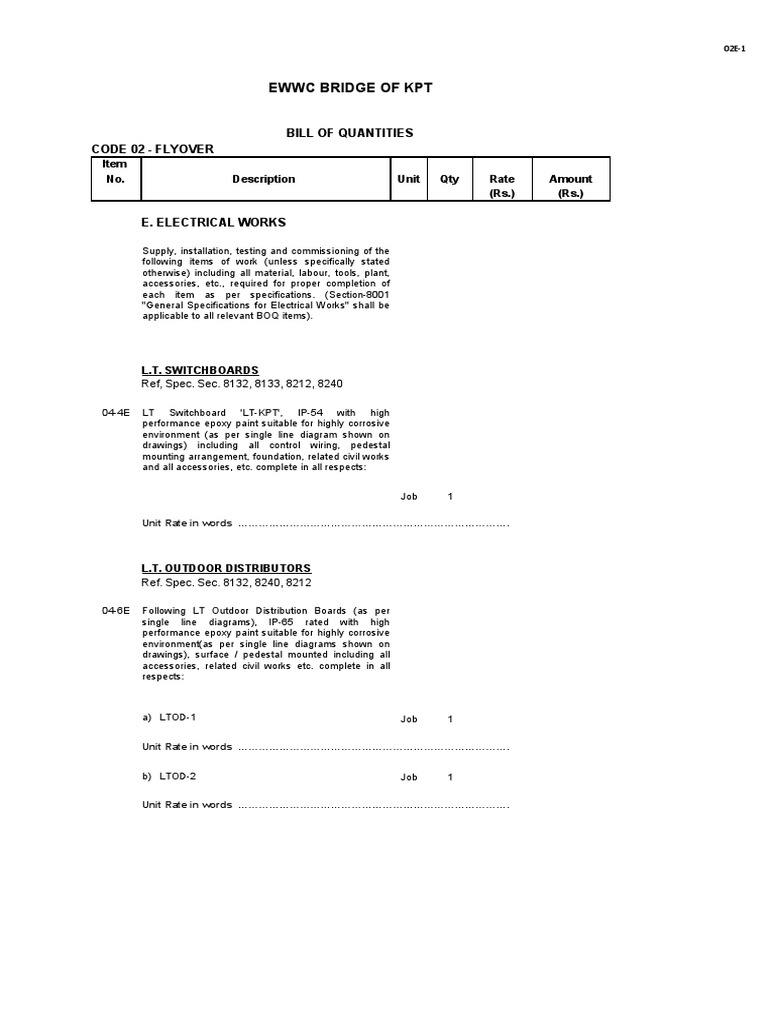

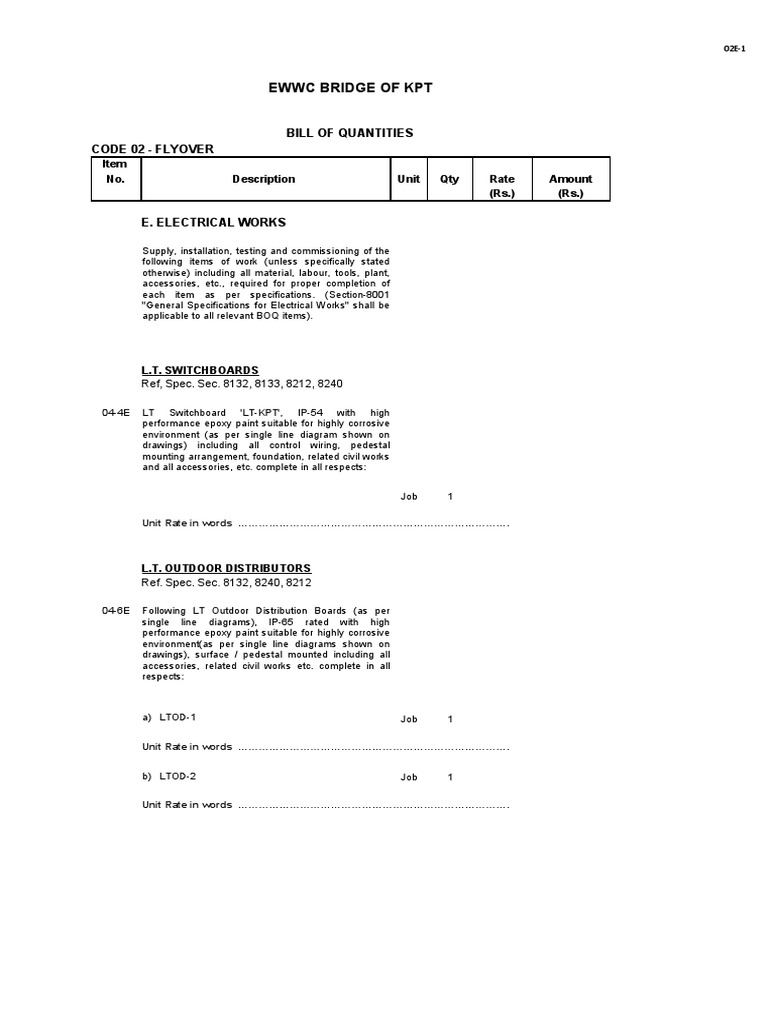

02E-1

EWWC BRIDGE OF KPT

BILL OF QUANTITIES
CODE 02 - FLYOVER
Item
No. Description Unit Qty Rate Amount
(Rs.) (Rs.)

E. ELECTRICAL WORKS

Supply, installation, testing and commissioning of the

following items of work (unless specifically stated
otherwise) including all material, labour, tools, plant,
accessories, etc., required for proper completion of
each item as per specifications. (Section-8001
"General Specifications for Electrical Works" shall be
applicable to all relevant BOQ items).

L.T. SWITCHBOARDS
Ref, Spec. Sec. 8132, 8133, 8212, 8240

04-4E LT Switchboard 'LT-KPT', IP-54 with high

performance epoxy paint suitable for highly corrosive
environment (as per single line diagram shown on
drawings) including all control wiring, pedestal
mounting arrangement, foundation, related civil works
and all accessories, etc. complete in all respects:

Job 1

Unit Rate in words …………………………………………………………………….

L.T. OUTDOOR DISTRIBUTORS

Ref. Spec. Sec. 8132, 8240, 8212

04-6E Following LT Outdoor Distribution Boards (as per

single line diagrams), IP-65 rated with high
performance epoxy paint suitable for highly corrosive
environment(as per single line diagrams shown on
drawings), surface / pedestal mounted including all
accessories, related civil works etc. complete in all
respects:

a) LTOD-1 Job 1

Unit Rate in words …………………………………………………………………….

b) LTOD-2 Job 1

Unit Rate in words …………………………………………………………………….

 02E-2

EWWC BRIDGE OF KPT

BILL OF QUANTITIES
CODE 02 - FLYOVER
Item
No. Description Unit Qty Rate Amount
(Rs.) (Rs.)

LIGHT FIXTURES
Ref. Spec. Sec. 8150, 8212, 8240

02-1E Following LED street / tunnel lighting fixtures,

installed on surface/ structure or columns/masts
complete with all accessories schedule shown on
drawing complete with all accessories such as LED,
housing, heat sink, PSU drivers, brackets, surge
protection etc. as applicable, including all relevant
installation material as required and approved by the
Engineer:

a) Type-ST1
Street light LED fixture (Corrosion Resistant)
having luminous flux of atleast 8890lm and
luminous efficacy of atleast 127 lumen / watt, with
non-corrosive high pressure die-cast aluminum
housing, heat resistant silicon rubber gasket,
tempered glass on the front cover, built-in
luminary surge protection level upto 15 kV
differential mode and 15 kV common mode,
useful life time of atleast 50,000 hours, IP-66
rated, CRI > 70, 4000k color temperature.

No.

Unit Rate in words …………………………………………………………………….

b) Type-ST2
Street light LED fixture (Corrosion Resistant)
having luminous flux of atleast 11430lm and
luminous efficacy of atleast 127 lumen / watt, with
non-corrosive high pressure die-cast aluminum
housing, heat resistant silicon rubber gasket,
tempered glass on the front cover, built-in
luminary surge protection level upto 15 kV
differential mode and 15 kV common mode,
useful life time of atleast 50,000 hours, IP-66
rated, CRI > 70, 4000k color temperature.

No.

Unit Rate in words …………………………………………………………………….

c) Type-F1
 02E-3

EWWC BRIDGE OF KPT

BILL OF QUANTITIES
CODE 02 - FLYOVER
Item
No. Description Unit Qty Rate Amount
(Rs.) (Rs.)

Wall mounted LED flood light (Corrosion

Resistant) having luminous flux of atleast 9900lm
and luminous efficacy of atleast 110 lumen / watt,
with non-corrosive high pressure aluminium die
cast material housing with polycarbonate frosted
finish optical cover, polycarbonate micro lens
optic, symmetrical wide beam optics, luminary
surge protection level upto 15 kV differential mode
and 15 kV common mode, adjustable mounting
bracket with steel fixation material, anti-corrosive
powder coating, being anti-dust exposed IP-66
rated, 4000k color temperature.

No.
.
Unit Rate in words …………………………………………………………………….

L.T. CABLES
Ref. Spec. Sec. 8212

02-2E Following sizes of single core / multi core PVC

insulated and PVC sheathed, armoured /
unarmoured, copper conductor, 600/1000 Volts grade
cables in already installed surface
mounted/concealed GI/PVC conduit or underground
PVC pipe or in already excavated trenches or
concrete trench or on cable trays, for power and
miscellaneous wiring including all accessories:

a) 4 core, 10 sq. mm. PVC/PVC RM

a) 4 core, 16 sq. mm. PVC/PVC RM

a) 4 core, 35 sq. mm. PVC/PVC RM

Unit Rate in words …………………………………………………………………….

WIRING
Ref. Spec. Sec. 8212, 8220, 8230,8240,8290

02-3E Wiring of the 10 meter high single / two arm street

lighting columns from cable connections box to light
fixture with 3 core 2.5 sq. mm PVC/PVC cable
through hollow of the column, including all
accessories, complete in all respects.
No.

Unit Rate in words …………………………………………………………………….

 02E-4

EWWC BRIDGE OF KPT

BILL OF QUANTITIES
CODE 02 - FLYOVER
Item
No. Description Unit Qty Rate Amount
(Rs.) (Rs.)

02-4E Wiring of Light Circuit from Outdoor LT Distributor to

first light point under bridge (Contactor controlled)
with 3 (1x10.0 sq. mm) single core copper conductor,
PVC Cable complete with appropriate size surface
medium duty GI conduits and all accessories, etc.,
including two coats of matching weather resistant
paint on entire length of surface GI conduits.

No.

Unit Rate in words …………………………………………………………………….

02-5E Wiring from light point to point (Contactor controlled)

with 3(1x10.0 sq. mm.) single core PVC Cable in
appropriate size surface medium duty GI conduit
including all accessories, etc. including two coats of
matching weather resistant paint on entire length of
surface GI conduits.

No.

Unit Rate in words …………………………………………………………………….

CONDUITS & PIPES

Ref. Spec. Sec. 8230

02-6E Following sizes ( Internal Diameter ) of underground

uPVC Class 'D' pipes including all accessories, pipe
range spacers, pull rope, sand bed, excavation &
selected backfilling from excavation, complete in all
respects.

a) 100 mm dia. RM

Unit Rate in words …………………………………………………………………….

b) 50 mm dia. RM

Unit Rate in words …………………………………………………………………….

02-7E Following sizes of surface mounted medium duty GI

conduits/pipes including clamps, saddles, supports, or
relevant accessories, etc., as required , complete with
2 coats of weather resistant paint on entire length.

a) 25 mm dia RM

Unit Rate in words …………………………………………………………………….

 02E-5

EWWC BRIDGE OF KPT

BILL OF QUANTITIES
CODE 02 - FLYOVER
Item
No. Description Unit Qty Rate Amount
(Rs.) (Rs.)

b) 50 mm dia RM

Unit Rate in words …………………………………………………………………….

EARTHING
Ref. Spec. Sec. 8212,8240

02-8E Following sizes of single core PVC insulated copper

conductor cable as earth continuity conductor (ECC)
installed on surface or on already installed cable tray
or on already installed pipes/conduits or in trench etc:

a) 16 sq. mm. RM

Unit Rate in words …………………………………………………………………….

a) 10 sq. mm. RM

Unit Rate in words …………………………………………………………………….

02-9E 19 mm dia, 3 meter long copper clad steel Rod type

earth electrode including 1x70 sq.mm bare bare
tinned copper conductor cable as earthing lead,
clamp with nuts and bolts, R.C.C. inspection chamber
with medium duty C.I cover, excavation, backfilling,
boring, and all accessories, etc., as shown on the
drawings, complete in all respects.

No.

Unit Rate in words …………………………………………………………………….

 02E-6

EWWC BRIDGE OF KPT

BILL OF QUANTITIES
CODE 02 - FLYOVER
Item
No. Description Unit Qty Rate Amount
(Rs.) (Rs.)

MISCELLANEOUS
Refer Spec. Sec. 8290

02-10E Following, Hot Dipped Galvanized, High Performance

Epoxy Painted galvanized steel lighting columns,
including pole cap, base plate, shim plates, clamps,
cable connection box with terminals, one mcb for
each light fixtures and all other accessories, RCC
foundation and all related civil works, numbering, etc.
complete in all respects:

a) 10 M high column with one arm. No.

Unit Rate in words …………………………………………………………………….

b) 10 M high column with two arm. No.

Unit Rate in words …………………………………………………………………….

03-9E Pull Box of appropriate size and space for incoming

cables with all installation accessories.
No.

Unit Rate in words …………………………………………………………………….

03-10E RCC Handhole of size 600mm (L) x 600mm (W) x

600mm (D) with heavy duty C.I cover of size 450mm
x 450mm including all civil works as required.

Job.

Unit Rate in words …………………………………………………………………….

03-10E RCC Manhole of size 1000mm (L) x 1000mm (W) x

1200mm (D) with heavy duty C.I cover including all
civil works as required.

Job.

Unit Rate in words …………………………………………………………………….

Total cost of Electrical Works of Flyover

Carried over to summary
