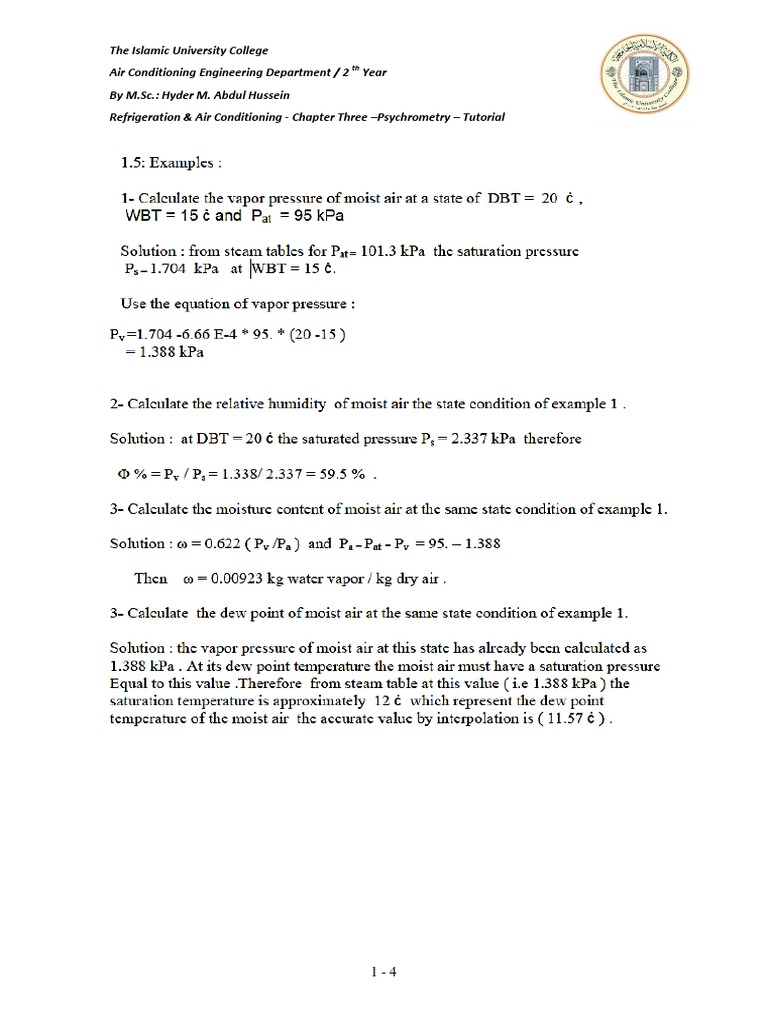

The Islamic University College

th
Air Conditioning Engineering Department / 2 Year
By M.Sc.: Hyder M. Abdul Hussein
Refrigeration & Air Conditioning - Chapter Three –Psychrometry – Tutorial

1-4
The Islamic University College
th
Air Conditioning Engineering Department / 2 Year
By M.Sc.: Hyder M. Abdul Hussein
Refrigeration & Air Conditioning - Chapter Three –Psychrometry – Tutorial

5-

2-4
The Islamic University College
th
Air Conditioning Engineering Department / 2 Year
By M.Sc.: Hyder M. Abdul Hussein
Refrigeration & Air Conditioning - Chapter Three –Psychrometry – Tutorial

3-4
The Islamic University College
th
Air Conditioning Engineering Department / 2 Year
By M.Sc.: Hyder M. Abdul Hussein
Refrigeration & Air Conditioning - Chapter Three –Psychrometry – Tutorial

6-

4-4
The Islamic University College
th
Air Conditioning Engineering Department / 2 Year
By M.Sc.: Hyder M. Abdul Hussein
Refrigeration & Air Conditioning - Chapter Three –Psychrometry – Tutorial

7- Determine the vapour pressure of moist air at:

a- DBT= 20 ˚C , WBT= 15 ˚C , Patm = 95 kPa

b- DBT= 20 ˚C , WBT= 18 ˚C , Patm = 95 kPa
c- DBT= 20 ˚C , WBT= 15 ˚C , Patm = 100 kPa
a- Form table (3.3) Pws = 1.7057 kPa at 15 ˚C
Pv = Pws - Patm A (DBT – WBT)
= 1.7057-95 ×6.66 ×10-4 (20-15) = 1.231175 kPa
b- Pws = 2.0647 kPa at 18 ˚C
Pv = Pws - Patm A (DBT – WBT)
= 2.0647-95 ×6.66 ×10-4 (20-18) = 1.93816 kPa
c- Pws = 1.7057 kPa at 15 ˚C
Pv = Pws - Patm A (DBT – WBT)
= 1.7057-100 ×6.66 ×10-4 (20-15) = 1.3727 kPa

5-4
