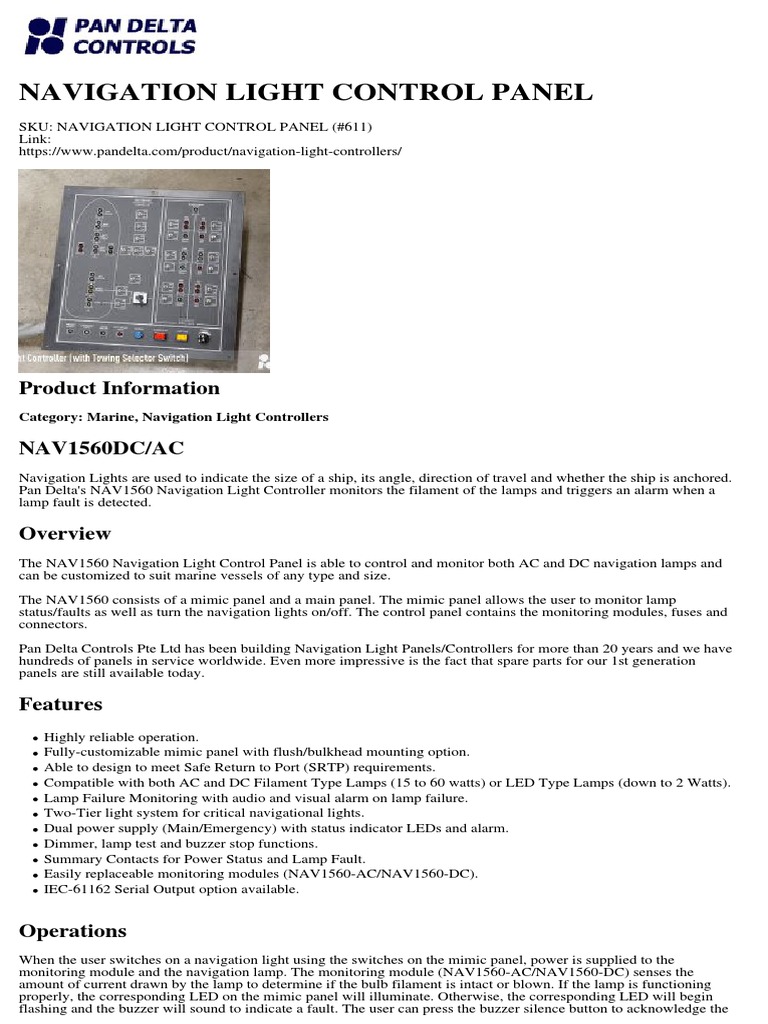

NAVIGATION LIGHT CONTROL PANEL

SKU: NAVIGATION LIGHT CONTROL PANEL (#611)

Link:
https://www.pandelta.com/product/navigation-light-controllers/

Product Information
Category: Marine, Navigation Light Controllers

NAV1560DC/AC
Navigation Lights are used to indicate the size of a ship, its angle, direction of travel and whether the ship is anchored.
Pan Delta's NAV1560 Navigation Light Controller monitors the filament of the lamps and triggers an alarm when a
lamp fault is detected.

Overview
The NAV1560 Navigation Light Control Panel is able to control and monitor both AC and DC navigation lamps and
can be customized to suit marine vessels of any type and size.

The NAV1560 consists of a mimic panel and a main panel. The mimic panel allows the user to monitor lamp
status/faults as well as turn the navigation lights on/off. The control panel contains the monitoring modules, fuses and
connectors.

Pan Delta Controls Pte Ltd has been building Navigation Light Panels/Controllers for more than 20 years and we have
hundreds of panels in service worldwide. Even more impressive is the fact that spare parts for our 1st generation
panels are still available today.

Features
Highly reliable operation.
Fully-customizable mimic panel with flush/bulkhead mounting option.
Able to design to meet Safe Return to Port (SRTP) requirements.
Compatible with both AC and DC Filament Type Lamps (15 to 60 watts) or LED Type Lamps (down to 2 Watts).
Lamp Failure Monitoring with audio and visual alarm on lamp failure.
Two-Tier light system for critical navigational lights.
Dual power supply (Main/Emergency) with status indicator LEDs and alarm.
Dimmer, lamp test and buzzer stop functions.
Summary Contacts for Power Status and Lamp Fault.
Easily replaceable monitoring modules (NAV1560-AC/NAV1560-DC).
IEC-61162 Serial Output option available.

Operations
When the user switches on a navigation light using the switches on the mimic panel, power is supplied to the
monitoring module and the navigation lamp. The monitoring module (NAV1560-AC/NAV1560-DC) senses the
amount of current drawn by the lamp to determine if the bulb filament is intact or blown. If the lamp is functioning
properly, the corresponding LED on the mimic panel will illuminate. Otherwise, the corresponding LED will begin
flashing and the buzzer will sound to indicate a fault. The user can press the buzzer silence button to acknowledge the
fault and mute the buzzer until the next fault is detected. The LED will continue flashing to indicate a fault until the
lamp has been replaced or turned off.

Specifications

Model NAV1560AC-NLP NAV1560DC-NLP

Descri Navigation Light System Navigation Light System with

ption with AC Lamp Monitoring DC Lamp Monitoring
Module(s)(5 channel per Module(s)(4 channel per
module) module)
Input Dual Input Dual Input SupplyTypically
Supply SupplyTypically 230 or 230 or 110 VAC for both
110 VAC for both Primary Primary and 24 VDC for
and Emergency Supply Emergency Supply
Sens Current Transformer Shunt Resistor (0.1 ohm)
or
Type
Lamp 2 to 60 Watts (Higher undefined
Rating wattage possible upon
request)Compatible with
both LED and Filament
Type Bulbs
Featur Navigation Lamp undefined
es Filament Monitoring with
Status Indication and
Failure AlarmSource
Failure AlarmAuto
Source
ChangeoverAlarm
StopLamp TestIndication
Lamp DimmerIEC
61162-1 Serial Data Out
(optional)
Conn DIN-rail mounted Fused undefined
ector Terminal (FDK4)* All
Type(T lights are fused at both
o poles.
Lights)
Wirin MX/M2X Marine Cables undefined
g (HFFR)
Visua Supply Indicator (Normal undefined
l Indic and
ators Emergency)Navigation
Light Filament Status
Alar Flashing LEDs (Steady = undefined
m Normal Operation,
Type Blinking = Fault)Buzzer
(with Alarm Stop)
Prote FusesRedundant / Dual undefined
ction Input Power Source
Model NAV1560AC-NLP NAV1560DC-NLP
Finishi2.5mm Aluminium Plate undefined
ng(Mi Powder Coated
mic) Matt-Black with Poly
Carbonate Laminate
(White Lettering on Black
Background)
Mounti Console Mounted Mimic undefined
ng with 2 metre umbilical
cables to base plate
panel (mounted under
console)Bulkhead
mounted panel with
Mimic on enclosure door

Spares Ordering Information

For AC Navigation Light Panels

NAV1560AC-V5.01 - 5 Channel AC Current Sensor Card for NLPs V5.01 (15-60W)

NAVRACK-04(AC) - 4-Way Rack for NLP Current Sensor Modules (AC)
NAVRACK-06(AC) - 6-Way Rack for NLP Current Sensor Modules (AC)
NAVRACK-08(AC) - 8-Way Rack for NLP Current Sensor Modules (AC)
NAVRACK-10(AC) - 10-Way Rack for NLP Current Sensor Modules (AC)

For DC Navigation Light Panels

NAV1560DC-V3.06 - 4 Channel DC Current Sensor Card for NLPs V3.06 (15-60W or 2W LED)
NAVRACK-04(DC) - 4-Way Rack for NLP Current Sensor Modules (DC)
NAVRACK-06(DC) - 6-Way Rack for NLP Current Sensor Modules (DC)
NAVRACK-08(DC) - 8-Way Rack for NLP Current Sensor Modules (DC)
NAVRACK-10(DC) - 10-Way Rack for NLP Current Sensor Modules (DC)

For AC and DC Navigation Light Panels

NAV2PFFL - Alarm / Flasher Card

NAV3PFFL - Alarm / Flasher Card
NAV4PFFLD - Alarm / Flasher Card with IEC61162-1 Output
DIM-50(NEG/PK) - 50W DC Lamp Dimmer (-ve Type) w/ 5k Pot

Older Products

NAV1560DC-V3.03 - 4 Channel DC Current Sensor Card for NLPs V3.03 (15-60W) *Replaced by V3.06*
NAV1560DC-V3.04 - 4 Channel DC Current Sensor Card for NLPs V3.04 (15-60W) *Replaced by V3.06*
NAV1560DC-V3.05 - 4 Channel DC Current Sensor Card for NLPs V3.05 (15-60W) *Replaced by V3.06*
DCNAV-AL(25)-V2.00 - 4 Channel DC Current Sensor Card for NLPs V2.00 (25W) *EOL - Replaced by
NAV1560DC-V3.03*
DCNAV-AL(40/60)-V2.00 - 4 Channel DC Current Sensor Card for NLPs V2.00 (40/60W) *EOL - Replaced by
NAV1560DC-V3.03*
NAV5V4 - 5 Channel AC Current Sensor Card for NLPs V4.00 *EOL - Replaced by NAV1560AC-V5.01*
NAV5V3_110 - 5 Channel AC Current Sensor Card for NLPs V3.00 (110) *EOL*
NAV5V3_230 - 5 Channel AC Current Sensor Card for NLPs V3.00 (230) *EOL*
DCNAVC(25) - 4 Channel DC Current Sensor Card for NLPs (25W)
DCNAVC(40/60) - 4 Channel DC Current Sensor Card for NLPs (40/60W)
