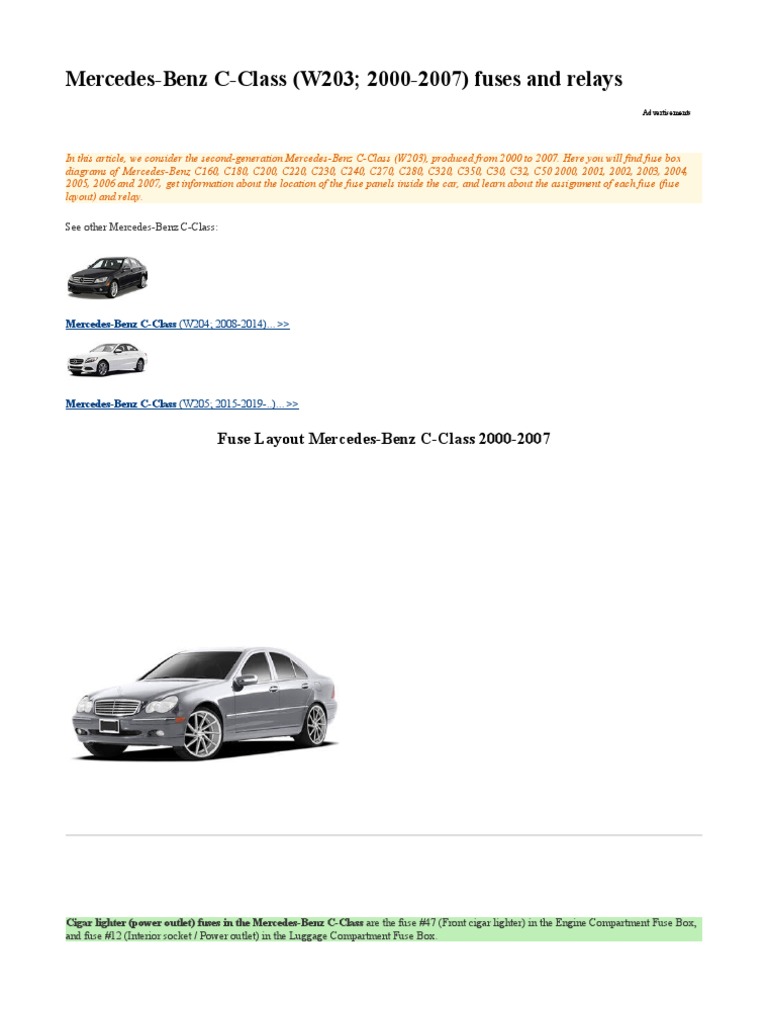

In this article, we consider the second-generation Mercedes-Benz C-Class (W203), produced from 2000 to 2007. Here you will find fuse box
diagrams of Mercedes-Benz C160, C180, C200, C220, C230, C240, C270, C280, C320, C350, C30, C32, C50 2000, 2001, 2002, 2003, 2004,
2005, 2006 and 2007, get information about the location of the fuse panels inside the car, and learn about the assignment of each fuse (fuse
layout) and relay.
26 Sound amplifier 25
28 Spare 30
34 up to 31.3.04: Front passenger front seat adjustment control unit with memory 15
as of 1.4.04: Passenger-side front seat adjustment control unit with memory
up to 31.5.03, Taxi: Special vehicle multifunction control unit
as of 1.6.03, Taxi: Special vehicle multifunction control unit
as of 1.6.01, Police: Special vehicle multifunction control unit
34 as of 1.4.04: Front passenger front seat adjustment control unit with memory 30
№ Circuit protected Amp
36 Valid for engine (612.990) (up to 29.2.04): Charge air cooler circulation pump 15
as of 1.4.04, Japan version: Audio gateway control unit
39 Spare 30
№ Circuit protected Amp
41 as of 1.6.01: 15
AAC [KLA] control and operating unit
Comfort AAC [KLA] control and operating unit
The fuse box is located in the engine compartment (left-side), under the cover.
Advertisements
Fuse box diagram
48 Valid for engine 612.990 (up to 31.3.04): Brake booster vacuum pump control unit 15
Valid for engine 112 and engine 113: Circuit 15 connector sleeve (fused)
Valid for engine 646, USA version (up to 31.3.04): Circuit 30 connector sleeve
Valid for engine 646 (as of 1.4.04): O 2 sensor upstream of TWC [kAt] connector
Instrument cluster
Valid for code (581) comfort automatic air conditioning: C-AAC [K-KLA] multifunction sensor, C-AAC [K-KLA] sun sensor (4 in
total), Left front lamp unit, Right front lamp unit
Valid for AMG vehicles: Charge air cooler circulation pump
Valid for model 203.0 (up to 31.7.01): SPS [PML] control unit
52 Starter 15
53 Starter relay 25
Rear SAM control unit with fuse and relay module
Valid for engine 611/612/642/646: CDI control unit
64 Radio 10
Radio and navigation unit
COMAND operating, display and control unit
Relay
№ Circuit protected Amp
N SEQ [ASG] pump control relay (with Sequentronic automated manual transmission (ASG))
P Terminal 15 relay
S Starter relay
Advertisements
Front Prefuse Box
6 Engine fusebox 60
5 Valid for engine 112.961 (up to 31.3.04): Charge air cooler circulation pump 20
6 Spare 25
11 Spare 20
12 Interior socket 15
Valid for model 203.0 USA version (up to 31.3.04): Power outlet
Relay
C Reserve relay 2
D Reserve relay 1
