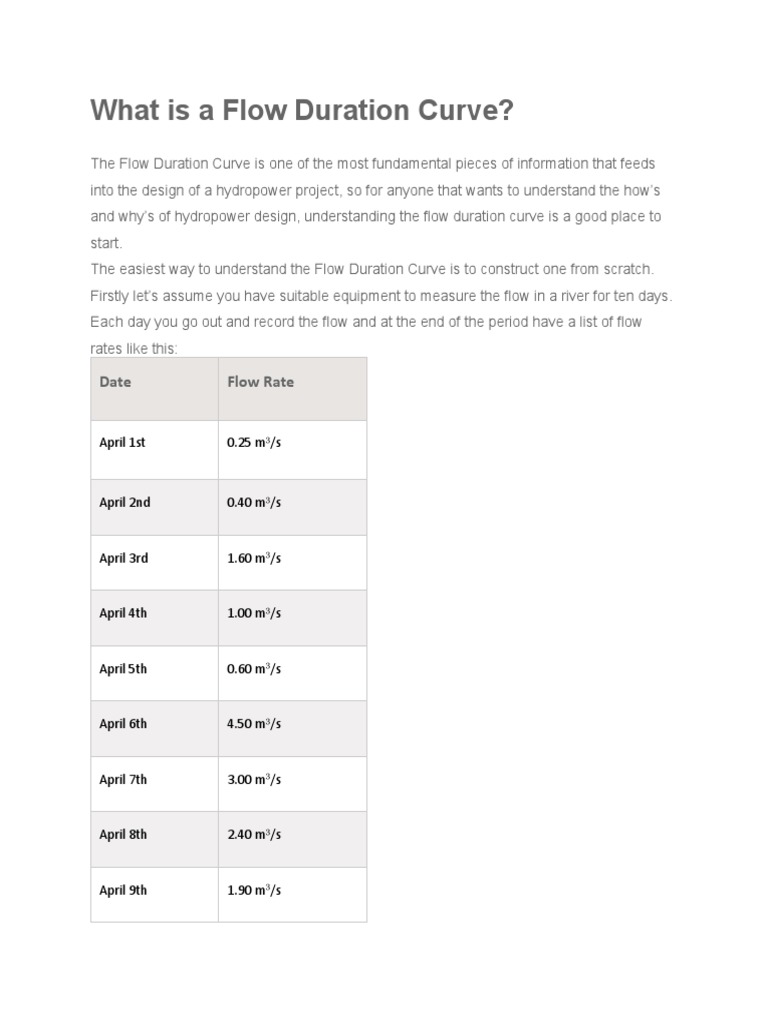

What is a Flow Duration Curve?

The Flow Duration Curve is one of the most fundamental pieces of information that feeds
into the design of a hydropower project, so for anyone that wants to understand the how’s
and why’s of hydropower design, understanding the flow duration curve is a good place to
start.
The easiest way to understand the Flow Duration Curve is to construct one from scratch.
Firstly let’s assume you have suitable equipment to measure the flow in a river for ten days.
Each day you go out and record the flow and at the end of the period have a list of flow
rates like this:

Date Flow Rate

April 1st 0.25 m3/s

April 2nd 0.40 m3/s

April 3rd 1.60 m3/s

April 4th 1.00 m3/s

April 5th 0.60 m3/s

April 6th 4.50 m3/s

April 7th 3.00 m3/s

April 8th 2.40 m3/s

April 9th 1.90 m3/s


April 10th 1.30 m3/s

Although useful, this doesn’t really help much, and with any table of data it is often better
represented as a graph. If the flow rates are plotted as a bar-chart, the result is called a
hydrograph and shows how the flow rate varied over a period of time, as shown below.

Hydrograph showing how flow rate varies over time

Although the hydrograph makes it easier to see the extremes of high and low flows, it is still
quite difficult to see what happened in-between. For this you need a Flow Duration Curve.
To construct a Flow Duration Curve, rather than list the data in date order it is listed in order
of the size of the flow rate, from highest to lowest. The data table would now look like this:
Date Flow Rate

April 6th 4.50 m3/s

April 7th 3.00 m3/s

April 8th 2.40 m3/s

April 9th 1.90 m3/s

April 3rd 1.60 m3/s

April 10th 1.30 m3/s

April 4th 1.00 m3/s

April 5th 0.60 m3/s

April 2nd 0.40 m3/s

April 1st 0.25 m3/s

Next, and one of the trickier concepts to grasp if this is the first time you’ve worked with a
Flow Duration Curve, is that rather than plotting the flow rates against a date, they are
plotted against a ‘percentage exceedence’ scale. In our example there are ten flow rates,
and the percentage exceedence scale will go from 0% to 100%, so each percentage
exceedence increment will be 100% divided by the number of data points, so in this case
100% divided by 10 = 10 percentage exceedence points. This can be added to the table
above to show at what percentage exceedence each flow rate occurred.
Flow Rate Percentage Exceedence

4.50 m3/s 10%

3.00 m3/s 20%

2.40 m3/s 30%

1.90 m3/s 40%

1.60 m3/s 50%

1.30 m3/s 60%

1.00 m3/s 70%

0.60 m3/s 80%

0.40 m3/s 90%

0.25 m3/s 100%

This data can then be plotted and a smoothed line drawn between each data point to
produce the Flow Duration Curve shown below.
Flow Duration Curve

This is now a Flow Duration Curve. If you look at the flow value at ‘60% exceedence’ you
will see that it is 1.3 m3/s. This does not mean that the flow rate is 1.3 m 3/s for 60% of the
time, but that the flow is equalled or exceeded for 60% of the time, so basically the flow is at
this flow or at a higher flow for 60% of the time. If you look at the flow at 20% exceedence it
is 3 m3/s; this is a higher flow rate, so the flow is only at or greater than this flow rate for a
smaller proportion of the year. If you look at 100% exceedence, it is 0.25 m 3/s, which is the
lowest flow rate recorded, so by definition the flow in the river is at this flow rate or more for
100% of the time.
It is a strange concept but an important one to grasp. Flow rate is often referred to as ‘Q’,
and the exceedence value as a subscript number, so Q95 means the flow rate equalled or
exceeded for 95% of the time. Qmean is often discussed, and this is the average or mean
flow rate, and is the arithmetic mean of all of the flow points in the data set (in our example
this is 1.695 m3/s) and normally occurs between Q20 and Q40 on the FDC, depending on
how ‘flashy’ or ‘steady’ the river being analysed is.
The example above is based on ten flow rates over a ten day period. In the ‘real world’ we
would construct a FDC using thousands of data points measured over many years or even
decades. It is important to use full-years of data to make sure you don’t have a wet winter
period included without the corresponding dryer summer to balance the resulting FDC.
Flow rates between Q0 and Q10 are considered high flow rates, and Q0 to Q1 would be
extreme flood events. It is important that hydropower systems are designed to cope with
such extreme flows. Flows from Q10 to Q70 would be the ‘medium’ range of flows and you
would want your hydropower system to operate efficiently right across these flow rates.
Flow rates from Q70 to Q100 are the ‘low flows’ when hydropower systems will just be
operating but at a low power output, and as you move further to the right on the FDC hydro
systems will begin to shut down due to low flow. As flow rates move from Q95 towards
Q100 you move into the low-flow draught flows
