PCB Diagram

9. PCB Diagram

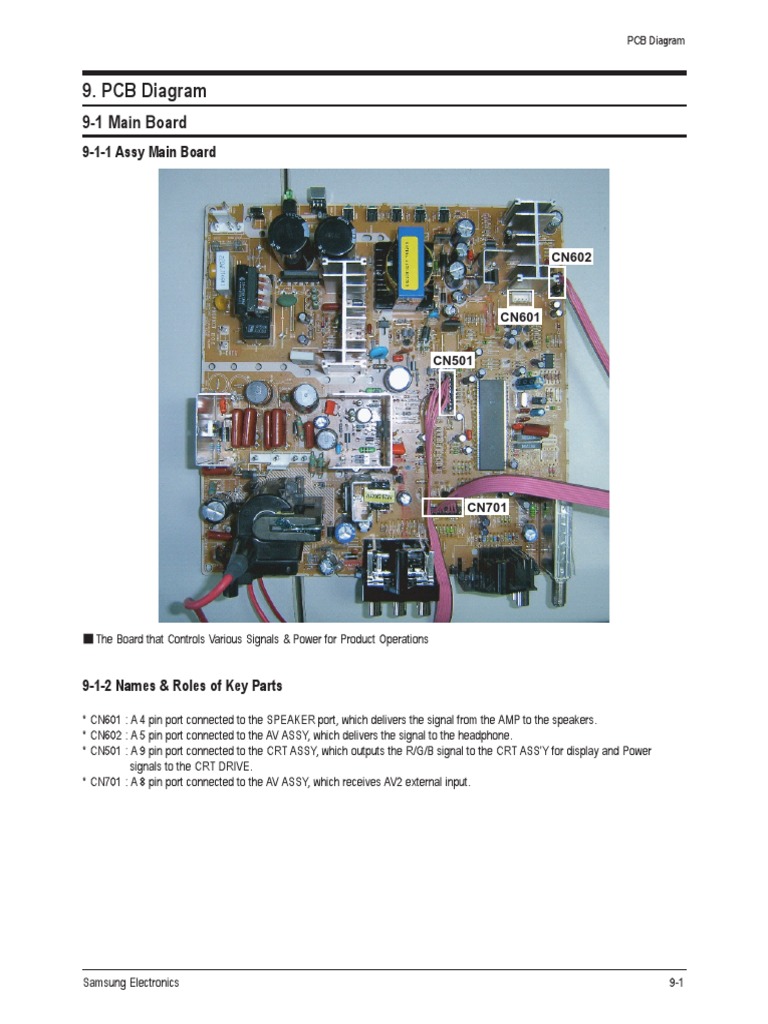

9-1 Main Board
9-1-1 Assy Main Board

CN602

CN601

CN501

CN701

■ The Board that Controls Various Signals & Power for Product Operations

9-1-2 Names & Roles of Key Parts

* CN601 : A 4 pin port connected to the SPEAKER port, which delivers the signal from the AMP to the speakers.
* CN602 : A 5 pin port connected to the AV ASSY, which delivers the signal to the headphone.
* CN501 : A 9 pin port connected to the CRT ASSY, which outputs the R/G/B signal to the CRT ASS'Y for display and Power
signals to the CRT DRIVE.
* CN701 : A 8 pin port connected to the AV ASSY, which receives AV2 external input.

Samsung Electronics 9-1

PCB Diagram

9-1-3 Main Board Connector Pin

CN601 CN602
Connected to the Speaker Connected to the AV ASS'y
PIN No. Pin Name PIN No. Pin Name
1 R+ 1 R+
2 R- 2 R-
3 L+ 3 GND
4 L- 4 L-
5 L+

CN501 CN701
Connected to the CRT ASS'y Connected to the AV Ass'y
PIN No. Pin Name PIN No. Pin Name
1 B+200V 1 L-IN
2 GND 2 R-IN
3 HEATER 3 L-OUT
4 GND 4 R-OUT
5 SENSE 5 GND
6 GND 6 V-IN
7 R-OUT 7 GND
8 G-OUT 8 V-OUT
9 B-OUT

9-2 Samsung Electronics

 PCB Diagram

9-2 CRT Board

9-2-1 Assy CRT Board

CN502

GT504

GT502
GT503 GT501

■ Through this port, the power from the DEFLECTION BLOCK & the R/G/B output signal from the UOC Module are supplied to
drive the CRT and AMP.

9-2-2 Names & Roles of Key Parts

* GT502 & GT503 : The TBC-WIRE connection port. This port plays the role of the CRT GROUND.
* CN502 : The R/G/B output signal from the UOC Module & the power, which is required to drive the CRT and the AMP, from the
DEFLECTION BLOCK is connected to this port.

9-2-3 CRT Board Connector Pin

CN502
Connects the R/G/B signal from the UOC Module.
PIN No. Pin NAME
1 B+200V
2 GND
3 HEATER
4 GND
5 SENSE
6 GND
7 R-OUT
8 G-OUT
9 B-OUT

Samsung Electronics 9-3
