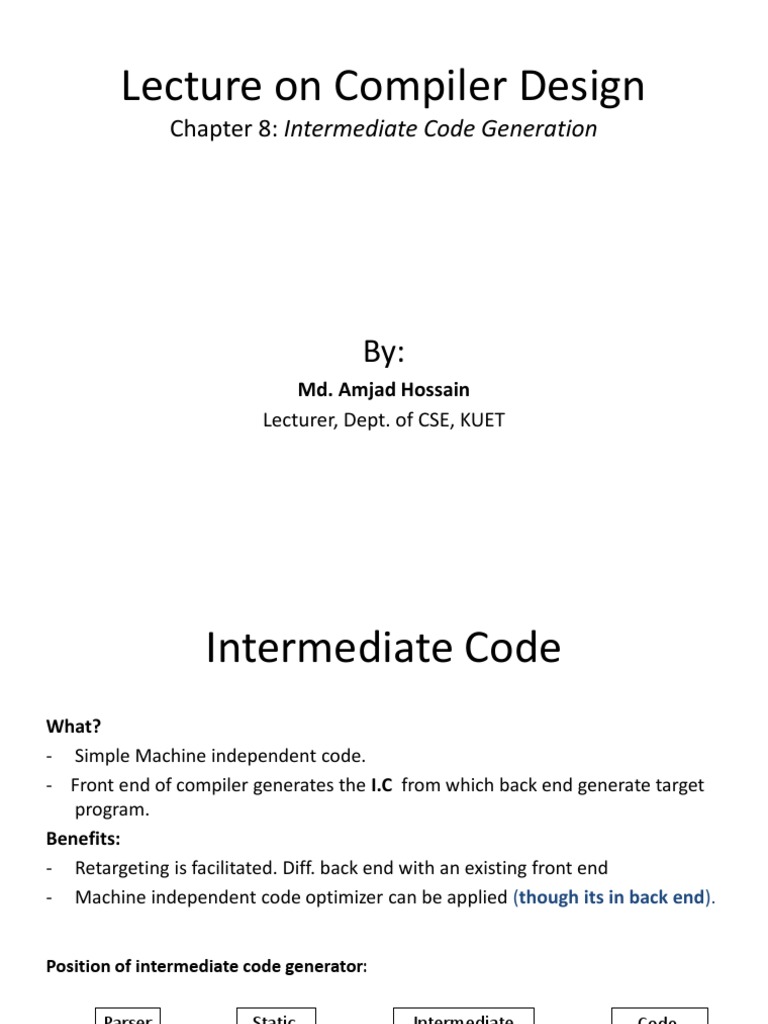

Lecture On Compiler Design: Chapter 8: Intermediate Code Generation
Lecture On Compiler Design: Chapter 8: Intermediate Code Generation
By:
Md. Amjad Hossain
Lecturer, Dept. of CSE, KUET
Intermediate Code
What?
- Simple Machine independent code.
- Front end of compiler generates the I.C from which back end generate target
program.
Benefits:
- Retargeting is facilitated. Diff. back end with an existing front end
- Machine independent code optimizer can be applied (though its in back end).
Intermediate representations: -
Syntax trees , postfix notation and three address code but semantic rules for all are similar.
1. Graphical representation:
- syntax tree and DAG – natural hierarchical structure of a source program.
- Example: a := b * - c + b * - c
assign assign
+
a + a
*
* *
b uminus uminus
uminus b
c c b c
E - E1 {E.nptr = mkunode(‘uminus’,E1.nptr) }
E ( E1 ) {E.nptr = E1.nptr }
assign
left right
0 id b
id a
1 id c
2 uminus 1
+
3 * 0 2
4 id b
* *
5 id c
6 uminus 5
id b id b
7 * 4 6
uminus uminus 8 + 3 7
9 id a
10 Assign 9 8
id c id c start
11 … … …
Three Address Code
Three address code:
• Each statement usually contains three address, two for operands and
another for the result.
• In fact three-address code is a linearization of the tree.
Example of 3-address code
Three address code from syntax tree/ DAG:
- Three address code is a linearized representation of syntax tree or DAG in
which the explicit names correspond to the interior nodes of the graph.
Three address code for the Syntax tree for Three address code for the DAG for
a := b * - c + b * - c
a := b * - c + b * - c
t1:=- c t1:=- c
t2:=b * t1
t2:=b * t1
t3:=- c
t4:=b * t3 t5:=t2 + t2
t5:=t2 + t4 a:=t5
a:=t5
Types of Three-Address Statements.
Assignment Statement: x:=y op z
Assignment Statement: x:=op z
Copy Statement: x:=z
Unconditional Jump: goto L
Conditional Jump: if x relop y goto L
Stack Operations: Push/pop
More Advanced:
Procedure:
param x1
param x2
…
param xn
call p,n
Index Assignments:
x:=y[i]
x[i]:=y
Address and Pointer Assignments:
x:=&y
x:=*y
*x:=y
Syntax-Directed Translation into 3-address code
e.g. a := b * - (c+d)
What about things that are not assignments?
• E.g. while statements of the form “while E do S”
(interpreted as while the value of E is not 0 do S)
- arg1, arg2 and results are pointers to the symbol table entries for the names represented by
these fields.
-temporary names must be entered into the symbol table as they are created.
Implementations of 3-address statements (contd…)
op arg1 arg2
Triples: (0) uminus c
t1:=- c
(1) * b (0)
t2:=b * t1
(2) uminus c
t3:=- c
(3) * b (2)
t4:=b * t3
(4) + (1) (3)
t5:=t2 + t4
(5) assign a (4)
a:=t5
(0) []= x i
op arg1 arg2
(0) []= y i
• Indirect Triples
statement op arg1 arg2
S call id
Semantic Rule
Look up symbol table to find procedure name. Find its begin label
called proc_begin
return = newlabel;
S.code = gen(‘push’return); gen(goto proc_begin) || gen(return “:”)
Declarations – computing the types and relative addresses
of declared name
offset – global variable , keep the next available relative address for the declarations
in the procedure. Initialized to 0 then incremented according to the size of
declared variable.
enter ( name, type, offset) - create symbol table entry for name,
gives type and relative address.
Example:
Flow of control statements
S -> if E then S1
| if E then S1 else S2
| while E do S1
Flow of control statements
Flow of control statements
