Volume 3 Chapter 3 Formulas
3 Formulas

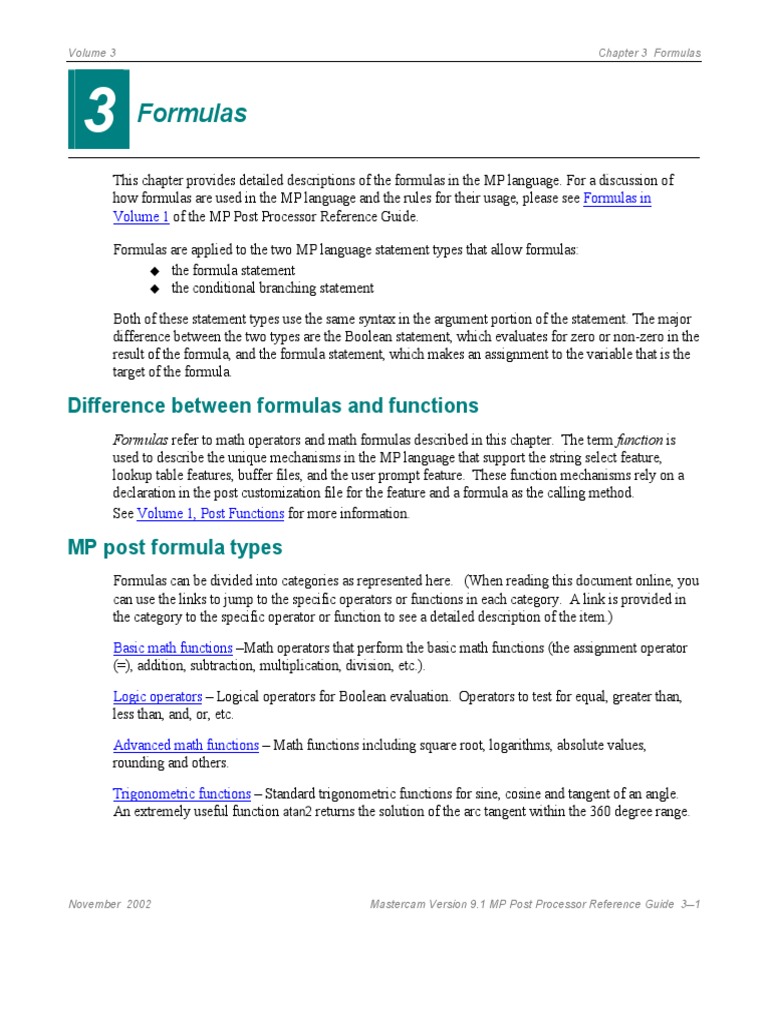

This chapter provides detailed descriptions of the formulas in the MP language. For a discussion of
how formulas are used in the MP language and the rules for their usage, please see Formulas in
Volume 1 of the MP Post Processor Reference Guide.
Formulas are applied to the two MP language statement types that allow formulas:
the formula statement
the conditional branching statement
Both of these statement types use the same syntax in the argument portion of the statement. The major
difference between the two types are the Boolean statement, which evaluates for zero or non-zero in the
result of the formula, and the formula statement, which makes an assignment to the variable that is the
target of the formula.
Difference between formulas and functions

Formulas refer to math operators and math formulas described in this chapter. The term function is
used to describe the unique mechanisms in the MP language that support the string select feature,
lookup table features, buffer files, and the user prompt feature. These function mechanisms rely on a
declaration in the post customization file for the feature and a formula as the calling method.
See Volume 1, Post Functions for more information.
MP post formula types

Formulas can be divided into categories as represented here. (When reading this document online, you
can use the links to jump to the specific operators or functions in each category. A link is provided in
the category to the specific operator or function to see a detailed description of the item.)
Basic math functions –Math operators that perform the basic math functions (the assignment operator
(=), addition, subtraction, multiplication, division, etc.).
Logic operators – Logical operators for Boolean evaluation. Operators to test for equal, greater than,
less than, and, or, etc.
Advanced math functions – Math functions including square root, logarithms, absolute values,
rounding and others.
Trigonometric functions – Standard trigonometric functions for sine, cosine and tangent of an angle.
An extremely useful function atan2 returns the solution of the arc tangent within the 360 degree range.
November 2002 Mastercam Version 9.1 MP Post Processor Reference Guide 3--1
Chapter 3 Formulas Volume 3
2D vector math – Single plane functions for vector addition and subtraction, and scaling. Even when
working in a single plane, it is recommended that you describe numeric variables as 3D positions. 2D
vector math functions are used less frequently because the 3D vector math functions are more
powerful.
3D vector math – 3D functions for vector addition and subtraction. Functions to rotate vectors and
points about an axis are also provided in this category.
Matrix math – Matrix functions allow for mapping within the matrix that defines a Cartesian coordinate
system. Other matrix manipulation functions such as matrix transpose are also available.
Special MP functions– Calls to the lookup table functions and buffer file function. Other unique
formulas to determine the negative, zero, or positive of a numeric variable are provided here.
Intersection functions – Planar intersection routines for line-line, arc-line and arc-arc.
String functions – String manipulation functions. String variables can be broken, values scanned from
a string, case changed, etc.
Conversion functions – Formulas to convert strings to numeric variables.
File functions – Powerful file manipulation functions to rename and remove files. File functions also
allow launching another program or Mastercam C-Hook.
Precedence functions – Parentheses are used to control the precedence in an assignment formula or a
Boolean formula.
Binary functions – Bit-wise functions.
Post formulas by type

Basic math functions
-
- (unary)
*
/
^
+
=
Logic operators
&
|
<
<=
<>
=
>
>=
3-2 Mastercam Version 9.1 MP Post Processor Reference Guide November 2002
not
Advanced math functions

abs
fmtrnd
frac
int
log
log10
round
sqrt
Trigonometric functions
acos
atan
atan2
cos
sin
tan
2D vector math
axb
dot
lng
rot
vad
veq
vlh
vnr
vrh
vsa
vsb
vsc
3D vector math
dot3
lng3
rotp
rotv
vadd
vaxb
vequ
vnrm
vsca
vscl
vsub
Matrix math
matt
mmap
mmul
mteq
vmap
Special MP functions
finc
flook
fprm
frange
fsg1
fsg2
fsg3
updgbl
rbuf
rpar
slin
slout
vlin
vlout
wbuf
Intersection functions
xaa
xla
xll
String functions
brksps
lcase
nwadrs
scan
strlen
strstr
ucase
updstr
Conversion functions
newfs
no2asc
no2str
plcval
File functions
dll
fclose
fexist
launch
mprint
remove
rename
Precedence functions
(
)
Binary functions
and
ger
good
ior
xor
Formula descriptions
= (assignment)
Formula Type Basic math functions
Description Assignment
Form result assignment argument
result assignment function argument
result assignment argument operator argument
Return Type Depends on formula
Formula Code Ex. x=y
x=y+z
c = atan2(x, y)
Boolean Code Ex. Not interpreted in conditional branching statement
Notes These are the basic assignment forms. They may be combined as
required.
+
Description Addition
Form argument operator argument
First Argument numeric variable, value (scalar)
string variable
Second Argument numeric variable, value (scalar)
string variable
Return Type numeric variable (scalar)
string variable
Formula Code Ex. x=y–z
string1 = string2 + string3
Boolean Code Ex. if (x + y) = 2, p_action
if (string1 + string2) = string3, p_action
Notes Argument types must match. A maximum of 10 string variables may
be added (concatenated) in a single formula.
-
Description Subtraction
Formula Code Ex. x=y–z
Boolean Code Ex. if (x – y) = 2, p_action
Notes
– (unary)
Description Unary minus
Form operator argument
First Argument numeric variable (scalar)
Second Argument numeric variable (scalar)
Formula Code Ex. x = –y
x = y * (–z)
Boolean Code Ex. if -x = 2, p_action
Notes Do not use multiple unary operators, for example, – – –x.
*
Description Multiplication
Formula Code Ex. x=y*z
Boolean Code Ex. if (x * y) = 2, p_action
Notes
/
Description Division
Formula Code Ex. x=y/z
Boolean Code Ex. if (x / y) = 2, p_action
Notes Avoid having a denominator of 0. This condition generates a fatal

error.
^
Description Power. Raises the first argument to the power of the second argument.
Formula Code Ex. x=y^z
Boolean Code Ex. if (x^ y) = 25, p_action
Notes
= (Boolean)
Formula Type Logic operators
Description Logical comparison. True if values are equal.
First Argumentnumeric variable, value (scalar)
string variable
string variable
Return Type numeric variable (Boolean result)
string variable
Formula Code Ex. real_result = x = y
real_result = string1 = string2
Boolean Code Ex. if x = y, p_action
if string1 = string2, p_action
Notes Argument types must match. The return is 0 if false and 1 if true.
Nested return values are stored internally to the post executable.
<
DescriptionLogical comparison. True if first argument is less than second
argument.
Formula Code Ex. real_result = x < y
Boolean Code Ex. if x < y, p_action
Notes The return is 0 if false and 1 if true. Nested return values are stored
internally to the post executable.
>
DescriptionLogical comparison. True if first argument is greater than second
argument.
Formula Code Ex. real_result = x > y
Boolean Code Ex. if x > y, p_action
<=
DescriptionLogical comparison. True if first argument is less than or equal to the
second argument.
Formula Code Ex. real_result = x <= y
Boolean Code Ex. if x <= y, p_action
>=
DescriptionLogical comparison. True if first argument is greater than or equal to
the second argument.
Formula Code Ex. real_result = x >= y
Boolean Code Ex. if x >= y, p_action
<>
Description Logical comparison. True if values are not equal.
string variable
string variable
Formula Code Ex. real_result = x <> y
real_result = string1 <>string2
Boolean Code Ex. if x <> y, p_action
if string1 <> string2, p_action
Notes Argument types must match. The return is 0 if false and 1 if true.
Nested return values are stored internally to the post executable.
&
Description Logical “and”.
Arg1 Arg2 Result
1 1 1
1 0 0
0 1 0
0 0 0
Formula Code Ex. real_result = x & y
Boolean Code Ex. if x & y, p_action
|
Description Logical “or”.
Arg1 Arg2 Result

1 1 1
1 0 1
0 1 1
0 0 0
Formula Code Ex. real_result = x | y
Boolean Code Ex. if x | y, p_action
Notes The return is 0 if false and 1 if true. This character is the pipe character
(ASCII decimal equivalent 124). Nested return values are stored
(, )
Formula Type Precedence function
Description Open and close parentheses are used to control the precedence of
operation. Depending on the nesting levels, the formulas nested
deepest are evaluated first.
Form operator argument operator
Formula Code Ex. real_result = (x * (2 + y)) ^ z / (x – y)
Boolean Code Ex. if (x > 2 & x <> 3) | (fmtrnd(y) & fmtrnd(z)), p_action
Notes Nesting parentheses must always match the open parenthesis to the
closing parenthesis. Do not confuse the parentheses used in the
formula functions (for example, abs(x)) with those used for precedence
nesting.
abs
Formula Type Advanced Math Functions
Description Returns the absolute value of the argument.
Form function argument
Argument numeric variable, value (scalar)
Return Type numeric variable (scalar) as a positive value
Formula Code Ex. real_result = abs(x)
Boolean Code Ex. if abs(x) < mtol, “THIS IS A SMALL NUMBER”
Notes Nested return values are stored internally to the post executable.
acos
Formula Type Trigonometric function
DescriptionArc cosine. Returns the ratio of the adjacent angle to the hypotenuse of
a right triangle.
Return Type numeric variable (angle)
Formula Code Ex. real_result = acos(x/y)
Boolean Code Ex. if acos(x/y) > 45, p_action
and
Formula Type Binary function
Description Bitwise and operation. Converts the two arguments to binary and then
performs the “and” comparison on the individual bits.
Bit Bit Result
1 1 1
1 0 0
0 1 0
0 0 0
The return value is the resulting value.

Form function argument, argument
Formula Code Ex. real_result = and(real_var1, real_var2)
Boolean Code Ex. if and(real_var1, real_var2) = 2, p_action
Notes Integer values are expected. Nested return values are stored internally
to the post executable. This form of “and” is rarely used.
asin
DescriptionArc sine. Returns the ratio of the opposite angle to the hypotenuse of a
right triangle.
Formula Code Ex. real_result = asin(x/y)
Boolean Code Ex. if asin(x/y) > 45, p_action
atan
DescriptionArc tangent. Returns the ratio of the opposite angle to the adjacent
angel of a right triangle.
Formula Code Ex. real_result = atan(x/y)
Boolean Code Ex. if atan(x/y) > 45, p_action
atan2
Description Arc tangent (two argument). Returns the angle (0 to 360 degrees) of the
arguments passed to the formula. The second argument axis indicates
the axis for the zero angle position. The first argument axis indicates
the direction from the second argument axis (which defines the zero
angle) is in the positive angle direction. These arguments are signed to
indicate
choice.

First Argument numeric variable, value (scalar), represents positive direction
Second Argument numeric variable, value (scalar), represents zero angle
Formula Code Ex. real_result = atan2(x, y)
Boolean Code Ex. if atan2(x, y) >180, p_action
axb
Formula Type 2D vector math function
DescriptionPlanar cross product. The formula takes the product of the arguments
(unitized vectors) and returns the sine of the angle between them.
First Argument numeric variable (3D vector, unitized)
Second Argument numeric variable (3D vector, unitized)
Formula Code Ex. real_result = axb(v3_x1, v3_x2)
Boolean Code Ex. Not allowed as a Boolean statement
Notes This is a 2D function. It is recommended that 3D vectors be used and

the last element in the implied array remain 0.
brksps
Formula Type String function
DescriptionBreaks a string variable before the index position (one-based) specified
by the value in the first argument. The original string variable (second
argument) holds the start of the broken string and the return string
variable holds the remainder of the string.
Second Argument string variable
Return Type string variable
Formula Code Ex. real_var1 : 8
string1 "one two three four"
string2
pblock # A postblock
string2 = brksps (real_var1, string1)
In this example, string1 = "one two" and string2 = " three four".
Notes
cos
DescriptionCosine. Returns the ratio of the adjacent angle to the hypotenuse of a
right triangle.
Argument numeric variable, value (angle)
Formula Code Ex. real_result = cos(angle)
Boolean Code Ex. if cos(angle) > .7071, p_action
dll
Formula Type File function
DescriptionLaunches a Mastercam C-Hook (DLL) from the post executable. This
function is only available in the DLL versions of the post executable.
The first argument is the DLL to be executed, the second argument is a
string that can pass up to three arguments to the C-Hook. These
arguments are passed to Mastercam using the exported string variable,
post_args[0], post_args[1] and post_args[2]. Refer to the C-Hook
development documentation.
First Argument string variable
Return Type numeric variable (scalar), always returns 1
Formula Code Ex. string1 "c:\mcam81\adll.dll"
string2 ' "first" "second" "third" '
real_result = dll(string1, string2)
Notes The second argument is parsed on the sets of double quotes. (Follow
the example when passing the parameters.) Do not attempt to launch
the post executable DLL from itself.
dot
DescriptionPlanar dot product. The formula takes the product of the arguments
(unitized vectors) and returns the cosine of the angle between them.
Formula Code Ex. real_result = dot(v3_x1, v3_x2)

dot3
DescriptionDot product. The formula takes the product of the arguments (unitized
vectors) and returns the cosine of the angle between them.
Formula Code Ex. real_result = dot3(v3_x1, v3_x2)
Notes
fclose
DescriptionCloses the NC output file, the alternate files (.sub, .aux, .ext), or the
buffer files. If the argument passed is a string variable that is the file
name and extension of the NC file or one of the alternate files, the file
with the matching name is closed. Passing a numeric variable or value
that is 1 to 10 to represent a buffer number will close the appropriate
buffer file. The returned value is 0 if the file was closed successfully or
1 if the function failed.
Argument numeric variable
string variable
Formula Code Ex. string1 "file.sub"
real_result = fclose (string1) # Close the matching filename
real_result = fclose (1) # Close buffer no. 1
Boolean Code Ex. pblock # A postblock
if fclose (string1), “FILE FAILED TO CLOSE”
Notes Use this formula when it is necessary to close a buffer file and reopen it
with a new name.
fexist
DescriptionDetermine if the file name exists. The argument is the full path name
of the file to check. The return value is 0 if the file was not found or 1
if the file is found.
Argument string variable
Formula Code Ex. string1 "c:\mcam81\file.txt"
real_result = fexist (string1)
if fexist (string1), “FILE FOUND”
Notes
finc
Formula Type Special MP function
DescriptionLookup table function to increment the count of the matching values
on each call to the table. The count is initialized in the lookup table in
the first column to the corresponding match value in column two. The
first argument in the formula is the table number (flktbl) to compare the
value in. The second argument is the value to match to the value in the
second column in the lookup table. The returned value is the current
count of the matched value.
Formula Code Ex. flktbl 1 3 # Lookup table 1 with 3 entries for tool usage
0 1 # Tool number
0 2
0 3
real_var = finc (1, t)
Notes This formula is the calling mechanism to the lookup table.

flook
DescriptionLookup table function to return the value in the first column of the
lookup table based on the closest match to the value in column two and
the value passed in the second argument of the formula. The first
argument in the formula is the table number (flktbl). The second
argument is the value to obtain the closest match to the value in the
second column in the lookup table. The returned value is the
corresponding value in column one.
flktbl 1 3 # Lookup table 1 with 3 entries
10 100
20 200
30 300
real_var = flook (1, real_var2)
In this example, real_var = 20


fmtrnd
DescriptionReturns the rounded value of the argument. The format statement (fs)
for the variable is used for rounding. If no format assignment was
given, the format statement one (fs 1) is used. This does not modify the
internal state of the argument value.
Formula Code Ex. real_result = fmtrnd(x)
Boolean Code Ex. if fmtrnd(x) <> prv_x, “CURRENT VALUE DOES NOT EQUAL PREVIOUS”
Notes Nested return values are stored internally to the post executable. This
formula is normally used to compare rounded values (updated variable)
to un-rounded values without disturbing the internal value of the un-
rounded value.
fprm
DescriptionThis formula provides access to a lookup table function (fprmtbl) to
provide a simpler method of capturing parameters passed from the NCI
file or operation parameter (.OPS) file. The first column of the lookup
table defines the parameter NCI Gcode 10000s prmcode to match. The
second column in the lookup table lists the target variables to place the
contents of the NCI Gcode parameter string sparameter in. The lookup
table number is normally defined as the operation code opcode for the
operation parameter set to capture. The argument passed in the
formula is the lookup table number. The returned value is 0 if the
lookup table was not found or 1 if the table is found.
Helper Variables prmcode, sparameter
Formula Code Ex. flktbl 1 3 # Lookup table 1 with 3 entries
10000 string1
10001 string2
10005 real_var
real_result = fprm (1)

See Volume 1, Post Functions and Volume 2, Parameter information
for more information.
frac
Description Returns the fractional part of a value.
Formula Code Ex. real_var : 1.23
real_result = frac(real_var)
In this example, real_result holds .23

Boolean Code Ex. if frac(x), “FRACTION IN VALUE”
frange
DescriptionLookup table function to return the value in the first column of the
lookup table based on the matching value in column two that is equal
or less than the value passed in the second argument of the formula.
The first argument in the formula is the table number (flktbl). The
second argument is the value to obtain the match to the value in the
second column in the lookup table. The returned value is the
corresponding value in column one.
flktbl 1 3 # Lookup table
10 100
20 200
30 300
real_var = frange (1, real_var2)
In this example, real_var = 10


fsg1
DescriptionReturns 0 for values less than 0, or 1 for values greater than or equal to
0.
Formula Code Ex. real_result = fsg1(x)
Boolean Code Ex. if fsg1(x), “THE VALUE IS LESS THAN ZERO”
fsg2
Description Return s0 for values equal to 0, of 1 for values not equal to 0.
Boolean Code Ex. if fsg2(x), “THE VALUE IS NOT ZERO”
fsg3
Description Returns 0 for negative values, 1 for zero, or 2 for positive values.
Boolean Code Ex. if fsg3(x) = 2, “THE VALUE IS POSITIVE”
Notes This formula is useful with the string select function. Nested return
values are stored internally to the post executable.
ger
DescriptionReturns the SIM version, level information from the C-Hook function
get_sim_ver_lev. This is a 12-element array, so each element must be
accessed with a separate call. The argument is offset by 6, so you must
add 6 to the desired element. (The array is zero-based.) This function
is only available in the DLL versions of the post executable.
Formula Code Ex. real_result = ger(7)
Boolean Code Ex. if ger(7) = 6, “YOU HAVE MILL LEVEL 3”
Notes Refer to the C-hook development documentation on the function

get_sim_ver_lev. Nested return values are stored internally to the post
executable.
good
Description Returns the argument.
Formula Code Ex. real_result = good(20)
Boolean Code Ex. if good(20) = 20, “THIS IS ALWAYS GOING TO BE TRUE”
Notes This is a pointless formula. Nested return values are stored internally
to the post executable.
int
DescriptionReturns the integer (whole number) portion of a value. The return
integer is the truncated integer from the argument.
real_result = int(real_var)
In this example, real_ result equals 1.

Boolean Code Ex. if int(x) <> 0, “THE VALUE IS -1 OR LESS, 1 OR GREATER”
ior
Description Bitwise inclusive or operation. Converts the two arguments to binary,
and then performs the “inclusive or” comparison on the individual bits.
Bit Bit Result

1 1 1
1 0 1
0 1 1
0 0 0
The return value is the resulting value.

Formula Code Ex. real_result = ior(real_var1, real_var2)
Boolean Code Ex. if ior(real_var1, real_var2) = 2, p_action
launch
DescriptionLaunches an executable file (.exe) from the post executable. The first
argument is the file name of the executable to be launched. The second
argument is a string that can pass parameters to the executable to be
launched. The post executable stops processing and waits for the
launched executable to finish. The return value is 0 if successful, or -1
if unsuccessful.
Formula Code Ex. string1 "c:\aprogram.exe"
string2 ' "first" "second" "third" '
real_result = launch(string1, string2)
Notes The second argument is normally parsed on the sets of double quotes,
but this depends on the program being launched.
lcase
Description Converts all characters in the argument to lower case.
Formula Code Ex. string2 = lcase (string1)
Boolean Code Ex. if lcase (string1) = lcase (string2), “THE STRINGS MATCH LOWER CASE”
lng
Description Returns the length of the argument (vector).
Argument numeric variable (3D vector)
Formula Code Ex. real_result = lng(v3_x1)

lng3
Description Returns the length of the argument (vector).
Formula Code Ex. real_result = lng3(v3_x1)
Notes
log
DescriptionReturns the natural log (base e) of the argument. The argument must be
greater than 0.
Formula Code Ex. real_result = log(x)
Boolean Code Ex. if log(x) > 1 – vtol & log(x) < 1 + vtol, “X MUST BE ABOUT 2.7183”
log10
DescriptionReturns the base 10 log of the argument. The argument must be greater
than 0.
Formula Code Ex. real_result = log10(x)
Boolean Code Ex. if log10(x) = 1, “X MUST EQUAL 10”
matt
Formula Type Matrix math
Description Transposes a matrix. The transposed matrix is returned.
Argument numeric variable (matrix)
Return Type numeric variable (matrix)
Formula Code Ex. m9_xx1 : 1 # Matrix definition
m9_xy1 : 0
m9_xz1 : 0
m9_yx1 : 0
m9_yy1 : 1
m9_yz1 : 0
m9_zx1 : 0
m9_zy1 : 0
m9_zz1 : 1
m9_resxx : 0
m9_resxy : 0
m9_resxz : 0
m9_resyx : 0
m9_resyy : 0
m9_resyz : 0
m9_reszx : 0
m9_reszy : 0
m9_reszz : 0
m9_resxx = matt(m9_xx1)
Notes
mmap
Notes This function is not completed.
mmul
DescriptionMultiplies a matrix by a second matrix. The resulting matrix is
returned.
First Argument numeric variable (matrix)
Second Argument numeric variable (matrix)
m9_xy1 : 1
m9_xz1 : 0
m9_yx1 : 0
m9_yy1 : 0
m9_yz1 : 1
m9_zx1 : 1
m9_zy1 : 0
m9_zz1 : 0
m9_xx2 : 0 # Matrix definition

m9_xy2 : 1
m9_xz2 : 0
m9_yx2 : 0
m9_yy2 : 0
m9_yz2 : 1
m9_zx2 : 1
m9_zy2 : 0
m9_zz2 : 0
m9_resxx : 0
m9_resxy : 0
m9_resxz : 0
m9_resyx : 0
m9_resyy : 0
m9_resyz : 0
m9_reszx : 0
m9_reszy : 0
m9_reszz : 0
m9_resxx = mmul(m9_xx1, m9_xx2)
Notes
mprint
DescriptionDisplays a message to the screen. The output message is not written to
the NC output. The return value is 0 if a numeric variable was passed,
or 1 if a string variable was passed to the function.
Argument numeric variable, value
string variable
Formula Code Ex. string1 “ERROR FOUND”
real_var : 100
real_result = mprint (string1)
real_result = mprint (real_var)
In this example, “ERROR FOUND” is displayed first, and then “100.”

Boolean Code Ex. if mprint (string1) = 0, “DISPLAY A STRING”
if mprint (real_var) = 1, “DISPLAY A VALUE”
Notes The user must press [Enter] in Mastercam to continue post processing.
Starting with Version 9, mprint is able to take two parameters. The
second parameter, if present and not zero, pops up a message box.
For example:
result = mprint (stringmsg, 2)
The possible second arguments are:
1 = MB_OK The message box contains one pushbutton: OK.
2 = MB_OKCANCEL Message box with: OK and Cancel buttons.
3 = MB_ABORTRETRYIGNORE Three buttons: Abort, Retry, and
Ignore.
4 = MB_YESNOCANCEL Three buttons: Yes, No, and Cancel.
5 = MB_YESNO Two buttons: Yes and No.
6 = MB_RETRYCANCEL Two buttons: Retry and Cancel.
If this message box format is used, mprint returns a number:
1 = IDOK The OK button was selected.
2 = IDCANCEL The Cancel button was selected.
3 = IDABORT The Abort button was selected.
4 = IDRETRY The Retry button was selected.
5 = IDIGNORE The Ignore button was selected.
6 = IDYES The Yes button was selected.
7 = IDNO The No button was selected.
mteq
DescriptionCopies a matrix. Copies the argument (matrix) to the result (matrix).
The term used for this formula is matrix equate.
Argument numeric variable (matrix)
m9_xy1 : 0
m9_xz1 : 0
m9_yx1 : 0
m9_yy1 : 1
m9_yz1 : 0
m9_zx1 : 0
m9_zy1 : 0
m9_zz1 : 1
m9_resxx : 0
m9_resxy : 0
m9_resxz : 0
m9_resyx : 0
m9_resyy : 0
m9_resyz : 0
m9_reszx : 0
m9_reszy : 0
m9_reszz : 0
m9_resxx = mteq(m9_xx1)
Notes The assignment operator (=) copies only the single variables in the
statement. This formula copies all the elements in the implied array.
newfs
Formula Type Conversion function
DescriptionReassigns a format statement. The first argument is the number of the
new format statement to be assigned The second argument is the
numeric variable to modify. The formula returns a 0 on failure or 1 on
success.
See Volume 3, Numeric Variables for more information.
Second Argument numeric variable
Formula Code Ex. fs2 1 3.3 3.3l # 3.3 format with leading zeros
fs2 2 3.3 3.3t # 3.3 format with trailing zeros
fmt X 1 real_var
real_var : 1.2
*real_var, e
real_result = newfs (2, real_var) # ssign ‘fs2’ formatting to ‘real_var’
*real_var, e
In this example, the first output is X001.2 and after reassignment is
X1.200.
Boolean Code Ex. if newfs (2, real_var) = 0, “THE NEW FORMAT WAS NOT APPLIED”
Notes
no2asc
DescriptionConverts the ASCII decimal equivalent (1-255) into the ASCII
character.
Formula Code Ex. string1 = no2asc(35)
In this example, string1 holds the pound “#” character.

Boolean Code Ex. if no2asc(32) = string2, “STRING2 IS A SPACE”
Notes For ASCII code information, see http://www.asciitable.com.
no2str
DescriptionConverts the value of a numeric variable and returns it to the result
string variable. The result string variable holds the result of the
numeric variable rounded to the format statement assigned to the
numeric variable. By default, format statement number 1 is used.
Formula Code Ex. string1 = no2str(real_var)
Boolean Code Ex. if no2str(real_var) = string2, p_action
not
DescriptionReturns the opposite result of conditional branching statement. If the
logical result of a statement was 0, then the return is 1. If the result is 1,
the return is 0.
Formula Code Ex. real_result = not(x=y)
Boolean Code Ex. if not(0), “CONVERTS THIS TO A TRUE STATEMENT”
nwadrs
DescriptionChanges the prefix string assigned with a format statement for a
numeric variable. The first argument is a string variable with the new
prefix. The second argument is the numeric variable to modify. The
formula returns 0 if the prefix string was truncated to 15 characters
(maximum characters for a prefix string), or 1 if not truncated.
string1 "NEWFS"
real_result = nwadrs(string1, real_var1)
In this example, real_var1 is output as NEWFS0.

Boolean Code Ex. if nwadrs(string1, real_var1) = 0, “THE NEW PREFIX WAS TRUNCATED”
Notes
plcval
DescriptionExtracts a value from a string variable that contains numbers. Based
on the position relative to the decimal location or the implied decimal
location, extracts the single place value integer. Positive positions are
from the decimal position to the left. Negative positions are to the right.
If the string variable is signed, the sign is applied to the leftmost digit
only when it is extracted. The first argument is the string variable
containing a number string. The second argument is the index position,
relative to the decimal position, of the place value to extract. A
position selected out of range returns 9999 to the result numeric
variable; otherwise the return value is the extracted integer.
Formula Code Ex. string1 : 123.4567
real_var = plcval (string1, 2)
real_var = plcval (string1, -2)
In this example, the first result is 2 and the second is 5.
Boolean Code Ex.
rbuf
Description Reads a record from a buffer file. This formula allows access to the
buffer file function fbuf to read records that are stored from a buffer
write function wbuf, or read from a file and stored in a buffer. The first
argument defines the buffer number (1 through 10). The second
number is the record number to be read. The returned variable is an
array that is filled in order, starting with the variable position of the
return variable name. If the buffer is a string buffer, only one element
is allowed.
Return Type numeric variable (array)
string variable
Formula Code Ex. rc1 : 1
real_var1 : 0 #User-defined numeric variables
real_var2 : 0
fbuf 1 0 2 0 # Create a buffer of real numbers
real_var1 = rbuf(1, rc1)
Notes The second argument is automatically incremented every time a buffer

read is performed. Do not use a constant value in this argument
position.
See Volume 2, How Buffer Files Work for more information.
remove
DescriptionRemoves (deletes) the file. The argument is the full path name of the
file to remove. The returned value is 0 if the file was removed, or -1 if
the formula failed.
Formula Code Ex. string1 "c:\mcam81\file.txt"
real_result = remove (string1)
if remove (string1) = -1, “THE FILE COULD NOT BE REMOVED”
Notes The files must be closed before they can be removed.
rename
DescriptionRenames a file. The first argument is the full path name of the file to
be renamed. The second argument is the full path name of the new file
name. The returned value is 0 if the file was renamed, or -1 if the
formula failed.
Formula Code Ex. string1 "c:\mcam81\old.nc"
string2 "c:\mcam81\new.nc"
real_result = rename (string1, string2)
if rename (string1, string2) = -1, “THE FILE COULD NOT BE RENAMED”
Notes The files must be closed before they can be renamed.
rot
DescriptionRotates a planar vector by a specified angle. Rotates the second
argument (vector) about the origin (0,0,0) by the specified angle in
degrees of the first argument. The resulting vector is returned.
First Argument numeric variable (angle)
Second Argument numeric variable (3D vector)
Return Type numeric variable (3D vector)
Formula Code Ex. v3_resx = rot(real_var, v3_x1)

that the last element in the implied array remain 0.
rotp
DescriptionRotates a point (defined as a 3D vector) by a specified angle about an
axis and a pivot point. Rotates the second argument (point) about the
pivot point defined by ptfixx, ptfixy, ptfixz and an axis defined by a vector
axisx, axisy, axisz. The first argument is the rotation angle specified in
degrees. The resulting vector is returned.
Helper Variables ptfixx, ptfixy, ptfixz, axisx, axisy, axisz
Formula Code Ex. caxisx : 0
caxisy : 0
caxisz : 1
axisx = vequ (caxisx)
v3_resx = rotp(real_var, v3_x1)
Notes You must set the vector axisx, axisy, axisz before you use this formula.
ptfixx, ptfixy, ptfixz is the origin by default.
rotv
DescriptionRotates a vector by a specified angle about an axis. Rotates the second
argument (point) about the origin (0,0,0) and an axis defined by a
vector axisx, axisy, axisz. The first argument is the rotation angle
specified in degrees. The resulting vector is returned.
Helper Variables axisx, axisy, axisz
Formula Code Ex. caxisx : 0
caxisx : 0
caxisx : 1
axisx = vequ (caxisx)
v3_resx = rotv(real_var, v3_x1)
Notes You must set the vector axisx, axisy, axisz before you use this formula.
round
DescriptionReturns the rounded integer (whole number) portion of a value.
The returned integer is the rounded value of the argument.
real_result = round (real_var)
In this example, real_ result equals 2

Boolean Code Ex. if round(x) <> 0, p_action
Notes Nested returned values are stored internally to the post executable.
rpar
DescriptionExtracts the numeric variables from a space-delimited string variable.
The first argument is a string variable with space-delimited values.
The second argument is the number of elements to be read from the
string. The string is converted and the result array is filled in order,
starting with the numeric variable position of the result numeric
variable name.
Formula Code Ex. real_var1 : 0 #User-defined numeric variables
real_var2 : 0
real_var3 : 0
real_var4 : 0
real_var5 : 0
string1 “1.1 2.2 3.3 4.4 5.5”
real_var1 = rpar(string1, 5)
In this example, real_ var1 = 1.1, real_var2 = 2.2, real_var3 = 3.3,
real_var4 = 4.4 and real_var5 = 5.5.
Notes This routine can be used to convert a string variable with a single
number in it to a numeric variable. Set the number of elements to read
to 1.
See Volume 2, Parameter Information for more information.
scan
Description Determines if one string is a sub string of a second string, and if the
sub string is found, scans for a number starting immediately after the
location where the sub string was matched. The second argument is
compared to the first argument to determine if the second argument is
a sub string of the first argument. The returned value is the number
scanned from the first argument, or -9999 if no sub string or no
number is found. The helper variables return the start index in st_str_ix
where the sub string match begins. The first character after the
scanned number is placed in end_str_ix.
Helper Variables st_str_ix, end_str_ix
Formula Code Ex. string1 “aluminum 0.625”
string2 “aluminum”
real_var = scan (string2, string1)
In this example, real_var equals 0.625, st_str_ix equals 1, and

end_str_ix would equal 15.
if scan(string1, string2) =-9999, “A NUMBER WAS NOT FOUND”
sin
DescriptionSine. Returns the ratio of the opposite angle to the hypotenuse of a right
triangle.
Formula Code Ex. real_result = sin(angle)
Boolean Code Ex. if sin(angle) > .7071, p_action
slin
DescriptionWrites a string to a string variable that is a specified offset from the
string variable passed as the second argument. The first parameter
indicates the position to offset from the base position, represented by
the second argument, relative to the database order of the string
variables.
Note the usual direction of this function. String1 is on the left side of
the equation (the “= “), but it is really the input string. The output of
this function is loaded into the string whose address is derived from the
address of string2 plus the offset (1 in the example below). The string
represented by the return variable is passed to the offset of the second
argument.
Formula Code Ex. string1 “HELLO” #User-defined string variables
string2 0
string3 0
string1 = slin(1, string2)
In this example, string3 is offset by 1 from string2 so string3 would
receive the string “HELLO” from string1.
Notes This function can be used in a “while” loop to assign a string to an

implied array or any database ordered variables.
slout
DescriptionReads a string from a string variable located at a specified offset from
the string variable passed as the second argument. The first parameter
the second argument, relative to the database order of the string
variables. The contents of the string variable at the offset from the
second argument is passed to the return variable.
Formula Code Ex. string1 0 #User-defined string variables
string2 0
string3 “HELLO”
string1 = slout(1, string2)
In this example, string1 would receive the string “HELLO” from
string3.
Notes This function can be used in a “while” loop to assign a string from the
database ordered variables.
sqrt
Description Returns the square root of the argument.
Formula Code Ex. real_result = sqrt(x)
Boolean Code Ex. if sqrt(x) = 2, “X MUST BE 4”
strlen
Description Gets the number of characters in a string variable.
Formula Code Ex. real_result = strlen(string1)
Boolean Code Ex. if strlen (string1) > 50, “THE STRING IS TOO LONG FOR THE CONTROL”
strstr
Description Determines if one string is a sub string of a second string. The first
argument is compared to the second argument to determine if the first
argument is a sub string of the second argument. The return value is
the start index of the first string variable in the second string variable,
or 0 if no match is found. The helper variables return the start index in
st_str_ix, and the first character after the sub string match in end_str_ix.
Helper Variables st_str_ix, end_str_ix
Formula Code Ex. string1 “M320”
string2 “Fanuc M320ABC”
real_result = strstr(string1, string2)
In this example, st_str_ix would equal 7, and end_str_ix would equal

11.
if strstr(string1, string2) = 0, “STRING1 WAS NOT A SUBSTRING”
tan
DescriptionTangent. Returns the ratio of the opposite angle to the adjacent of a
right triangle.
Formula Code Ex. real_result = tan(angle)
Boolean Code Ex. if tan(angle) > .7071, p_action
ucase
Description Converts all characters in the argument to upper case.
Formula Code Ex. string2 = ucase (string1)
Boolean Code Ex. if ucase (string1) = ucase (string2), “THE STRINGS MATCH UPPER CASE”
updgbl
Formula Type Special function
DescriptionUpdates simple global variables. A simple global variable is a variable
set equal to variable or variable set equal to variable with unary minus
updgbl changes the argument variable and/or unary minu.
Formula Code Ex. These global variable definitions:
global1 = x
global2 = -y
postblock #A postblock
result = updgbl (global1, y)
result = updgbl (global2, -x)
# The function now changes the global variables to behave as if they were
# originally defined as:
global1 = y
global2 = -x
Boolean Code Ex. if updgbl (global1, y), “THE GLOBAL FORMULA HAS CHANGED”
Notes These is an advanced functions and error checking is very limited.

Be certain to use only with a simple global formula.
updstr
DescriptionUpdates the target string variable in a string select function. Based on
the current value of the numeric variable selector in the string select
function, the target string variable is updated so that it holds the correct
string for the numeric variable selector. The argument is the target
string variable in the string select function. The result is 1 if the current
and previous of the numeric variable selector are not equal, or 0 if they
are equal.
Formula Code Ex. real_result = updstr(string1)
Boolean Code Ex. if updstr(string1), “THE STRING HAS CHANGED”
vad
Description Adds two planar vectors.
First Argument numeric variable (3D vector)
Formula Code Ex. v3_resx = vad(v3_x1, v3_x2)

vadd
Description Adds two vectors.
Formula Code Ex. v3_resx = vad(v3_x1, v3_x2)
Notes
vaxb
DescriptionCross product. Takes the product of the arguments (which are unitized
vectors) and returns a 3D vector whose direction is perpendicular to the
arguments, and whose magnitude is the sine of the angle between the
arguments. See “Right hand rule” in Volume 1, Formulas.
Formula Code Ex. v3_resx = vaxb(v3_x1, v3_x2)
Notes
veq
DescriptionCopies a planar vector. Copies the argument (vector) to the result
(vector). The term used for this formula is vector equate.
Formula Code Ex. v3_resx = veq(v3_x1)
Notes Whereas the assignment operator (=) copies only the single variables in
the statement, this formula copies all the elements in the implied array.
This is a 2D function. It is recommended that 3D vectors be used and
vequ
DescriptionCopies a vector. Copies the argument (vector) to the result (vector).
The term used for this formula is vector equate.
Formula Code Ex. v3_resx = vequ(v3_x1)
Notes Whereas the assignment operator (=) copies only the single variables in
the statement, this formula copies all the elements in the implied array.
vlh
DescriptionRotates a planar vector 90 degrees counterclockwise (LH). Rotates the
argument (vector) 90 degrees counterclockwise about the tail of the
vector (0,0,0). The resulting vector is returned.
Formula Code Ex. v3_resx = vrh(v3_x1)

vlin
DescriptionWrites a value to a numeric variable at specified offset from the
numeric variable passed as the second argument. The first parameter
the second argument, relative to the database order of the numeric
variables.
Note the usual direction of this function. Real_va1 is on the left side of
the equation (the “=” sign), but it is really the input variable. The output
of this function is loaded into the numeric variable whose address is
derived from the address of real_var2 plus the offset (1 in the example
below). The numeric variable represented by what would normally be
considered the return variable is passed to the offset of the second
argument. .
Return Type numeric variable
real_var2 : 0
real_var3 : 0
real_var1 = vlin(1, real_var2)
In this example, real_ var3 would receive the value 1 from real_var1.
Notes This function can be used in a “while” loop to assign a value to an

implied array or any database ordered variables.
vlout
DescriptionReads a value from a numeric variable located at a specified offset
from the numeric variable passed as the second argument. The first
parameter indicates the position to offset from the base position,
represented by the second argument, relative to the database order of
the numeric variables. The contents of the numeric variable at the
offset from the second argument is passed to the return variable
Return Type numeric variable
real_var2 : 0
real_var3 : 1
real_var1 = vlout(1, real_var2)
In this example, real_ var1 would receive the value 1 from real_var3.
Notes This function can be used in a “while” loop to assign a values from the
database ordered variables.
vmap
DescriptionMaps a point (vector) relative to the top view matrix to the specified
matrix. The resulting point (vector) is returned.
Second Argument numeric variable (matrix)
m9_xy1 : 1
m9_xz1 : 0
m9_yx1 : 0
m9_yy1 : 0
m9_yz1 : 1
m9_zx1 : 1
m9_zy1 : 0
m9_zz1 : 0
v3_x1 : 1 # Vector definition

v3_y1 : 0
v3_z1 : 0
v3_resx : 0 # Vector definition

v3_resy : 0
v3_resz : 0
v3_resx = vmap (v3_x1, m9_xx1)
Notes
vnr
DescriptionUnitizes a planar vector (that is, sets the length to 1 or unit length). The
planar vector is the argument. The return is the unitized vector.
Formula Code Ex. v3_resx = vnr(v3_x1)

vnrm
DescriptionUnitize (set the length to 1 or unit length) a vector. Unitize the
argument. The return is the unitized vector.
Formula Code Ex. v3_resx = vnrm(v3_x1)
Notes
vrh
DescriptionRotates a planar vector 90 degrees clockwise (right hand) by rotating
the argument (vector) 90 degrees clockwise about the tail of the vector
(0,0,0). The resulting vector is returned.
Formula Code Ex. v3_resx = vrh(v3_x1)

vsa
DescriptionUnitizes and scales a planar vector (that is, sets the length to 1 or unit
length then multiplies it). The first argument that is the scale factor.
The second argument is the planar vector. The return is the unitized
and scaled vector.
Formula Code Ex. v3_resx = vsa(real_var, v3_x1)

vsb
DescriptionSubtracts two planar vectors. The elements in the implied array are
subtracted: argument one – argument two.
Formula Code Ex. v3_resx = vsb(v3_x1, v3_x2)
Notes This is a 2D function. It is recommended that 3D vectors are used and

vsc
DescriptionScales a planar vector. Scales (multiplies) the second argument (which
is the vector) by the first argument (which is the scale factor). The
return is the scaled vector.
Formula Code Ex. v3_resx = vsc(real_var, v3_x1)
Notes This is a 2D function. It is recommended that 3D vectors are used and

vsca
DescriptionUnitizes (that is, sets the length to 1 or unit length) and scales
(multiples) a vector. The second argument is the vector. The first
argument is the scale factor. The return is the unitized and scaled
vector.
Formula Code Ex. v3_resx = vsca(real_var, v3_x1)
Notes
vscl
DescriptionScales (multiplies) a vector. The second argument is the vector. The
first argument is the scale factor. The return is the scaled vector.
Formula Code Ex. v3_resx = vscl(real_var, v3_x1)
Notes
vsub
DescriptionSubtracts two vectors. The elements in the implied array are
subtracted: argument one – argument two.
Formula Code Ex. v3_resx = vsub(v3_x1, v3_x2)
Notes
wbuf
Description Writes a record to a buffer file. Allows access to the buffer file
function fbuf to write records into a buffer. The first argument defines
the buffer number (1 through 10). The second number is the record
number to be write. The returned variable is an array of variables that
are read in order starting with the variable position of the return
variable name and flushed to the buffer file. If the buffer is a string
buffer, only one element (a string variable) is allowed.
Records need not be written in order. If a record is skipped, a blank
record is automatically inserted.
This function call reverses the directionin which return values are
passed. The values represented by the returned variable are passed to
the buffer file.
string variable
Formula Code Ex. wc1 : 1
real_var1 : 10 #User-defined numeric variables
real_var2 : 20
fbuf 1 0 2 0 # Create a buffer of real numbers
real_var1 = wbuf(1, wc1)
In this example, 10, 20 are written to the buffer file as a complete
record.
Notes The second argument is automatically incremented every time a buffer

read is performed. Do not use a constant variable in this argument
because it will be incremented.
See Volume 2, How Buffer Files Work for more information.
xaa
Formula Type Intersection function
DescriptionFinds the intersection of two planar arcs. The result is the two possible
intersection points (vector).
First Argument numeric variable (arc)
Second Argument numeric variable (arc)
Return Type numeric variable (two consecutive 3D vectors)
Helper Variables xresult, t1, t2, ptnearx, ptneary, ptnearz, xtol
Formula Code Ex. v3_resx1 = xaa(arc_x1, arc_x2)
Notes This is a 2D function.

See Volume 2, Intersection Function for more information.
xla
DescriptionFinds the intersection of a line and an arc in a plane. The result is the
two possible intersection points (vector).
First Argument numeric variable (line)
Second Argument numeric variable (arc)
Formula Code Ex. v3_resx1 = xla(line_p1_x, arc_x)
Notes This is a 2D function.

See Volume 2, Intersection Function for more information.
xll
DescriptionFinds the intersection of two planar lines. The result is the intersection
point (vector). The result is copied to the second intersection result
(required for xaa and xla).
First Argument numeric variable (line)
Second Argument numeric variable (line)
Formula Code Ex. v3_resx1 = vll(line_p1_x1, (line_p1_x2)
xor
Description Bitwise exclusive or operation. Converts the two arguments to binary
and then performs an “exclusive or” comparison on the individual bits.
Bit Bit Result

1 1 0
1 0 1
0 1 1
0 0 0
The returned value is the resulting value.

Formula Code Ex. real_result = xor(real_var1, real_var2)
Boolean Code Ex. if xor(real_var1, real_var2) = 2, p_action

303 Formulas

Uploaded by

Document Information

Original Description:

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

303 Formulas

Uploaded by

Copyright:

Available Formats

Volume 3 Chapter 3 Formulas

Difference between formulas and functions

MP post formula types

Post formulas by type

Advanced math functions

Boolean Code Ex. if (x – y) = 2, p_action

Notes Do not use multiple unary operators, for example, – – –x.

Boolean Code Ex. if (x * y) = 2, p_action

Boolean Code Ex. if (x / y) = 2, p_action

Notes Avoid having a denominator of 0. This condition generates a fatal

Boolean Code Ex. if (x^ y) = 25, p_action

Boolean Code Ex. if x < y, p_action

Boolean Code Ex. if x > y, p_action

Boolean Code Ex. if x <= y, p_action

Boolean Code Ex. if x >= y, p_action

Boolean Code Ex. if x & y, p_action

Arg1 Arg2 Result

Boolean Code Ex. if x | y, p_action

Boolean Code Ex. if abs(x) < mtol, “THIS IS A SMALL NUMBER”

Boolean Code Ex. if acos(x/y) > 45, p_action

The return value is the resulting value.

Boolean Code Ex. if and(real_var1, real_var2) = 2, p_action

Boolean Code Ex. if asin(x/y) > 45, p_action

Boolean Code Ex. if atan(x/y) > 45, p_action

Form function argument, argument

Boolean Code Ex. if atan2(x, y) >180, p_action

Boolean Code Ex. Not allowed as a Boolean statement

Notes This is a 2D function. It is recommended that 3D vectors be used and

Boolean Code Ex. if cos(angle) > .7071, p_action

Boolean Code Ex. Not allowed as a Boolean statement

Notes This is a 2D function. It is recommended that 3D vectors be used and

Boolean Code Ex. Not allowed as a Boolean statement

Notes This formula is the calling mechanism to the lookup table.

In this example, real_var = 20

Notes This formula is the calling mechanism to the lookup table.

Notes This formula is the calling mechanism to the lookup table.

In this example, real_result holds .23

In this example, real_var = 10

Notes This formula is the calling mechanism to the lookup table.

Boolean Code Ex. if fsg1(x), “THE VALUE IS LESS THAN ZERO”

Boolean Code Ex. if fsg2(x), “THE VALUE IS NOT ZERO”

Boolean Code Ex. if fsg3(x) = 2, “THE VALUE IS POSITIVE”

Boolean Code Ex. if ger(7) = 6, “YOU HAVE MILL LEVEL 3”

Notes Refer to the C-hook development documentation on the function

Boolean Code Ex. if good(20) = 20, “THIS IS ALWAYS GOING TO BE TRUE”

In this example, real_ result equals 1.

Bit Bit Result

The return value is the resulting value.

Boolean Code Ex. if ior(real_var1, real_var2) = 2, p_action

Boolean Code Ex. Not allowed as a Boolean statement

Notes This is a 2D function. It is recommended that 3D vectors be used and

Boolean Code Ex. Not allowed as a Boolean statement

Boolean Code Ex. if log10(x) = 1, “X MUST EQUAL 10”

m9_xx2 : 0 # Matrix definition

In this example, “ERROR FOUND” is displayed first, and then “100.”

In this example, string1 holds the pound “#” character.

Notes For ASCII code information, see http://www.asciitable.com.

Boolean Code Ex. if no2str(real_var) = string2, p_action

Boolean Code Ex. if not(0), “CONVERTS THIS TO A TRUE STATEMENT”

In this example, real_var1 is output as NEWFS0.

Notes The second argument is automatically incremented every time a buffer

Boolean Code Ex. Not allowed as a Boolean statement

Notes This is a 2D function. It is recommended that 3D vectors be used and
