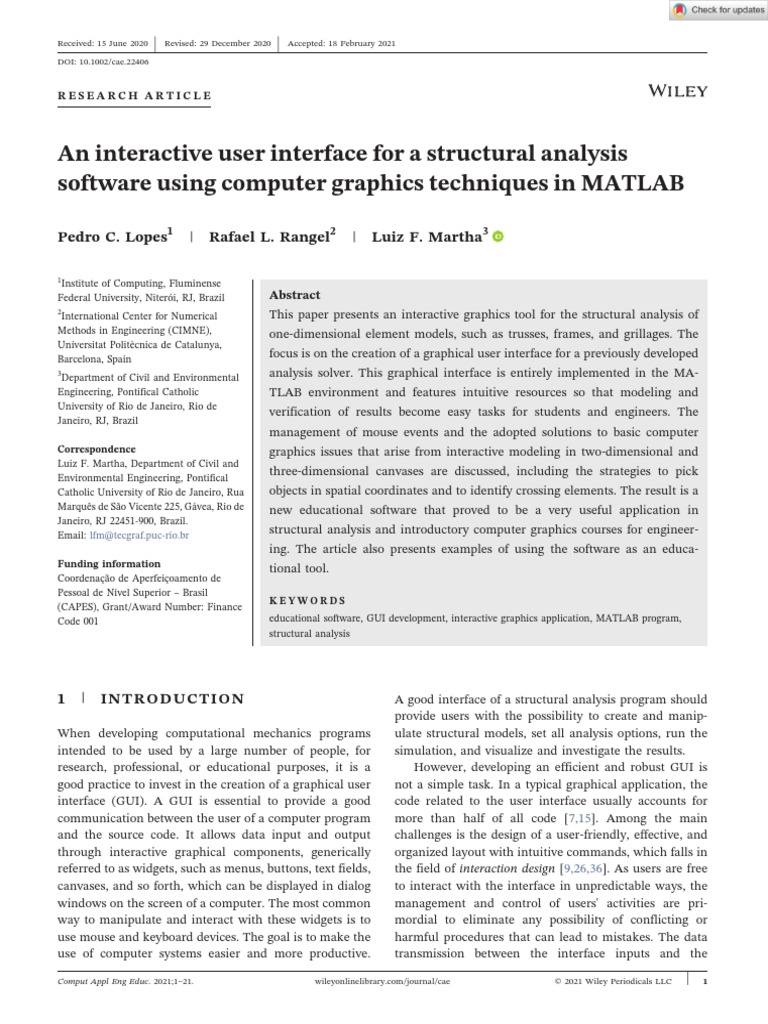

An interactive user interface for a structural analysis

software using computer graphics techniques in MATLAB

Pedro C. Lopes1 | Rafael L. Rangel2 | Luiz F. Martha3

1
Institute of Computing, Fluminense
Federal University, Niterói, RJ, Brazil Abstract
2
International Center for Numerical This paper presents an interactive graphics tool for the structural analysis of
Methods in Engineering (CIMNE), one‐dimensional element models, such as trusses, frames, and grillages. The
Universitat Politècnica de Catalunya,
Barcelona, Spain focus is on the creation of a graphical user interface for a previously developed
3
Department of Civil and Environmental analysis solver. This graphical interface is entirely implemented in the MA-
Engineering, Pontifical Catholic TLAB environment and features intuitive resources so that modeling and
University of Rio de Janeiro, Rio de
verification of results become easy tasks for students and engineers. The
Janeiro, RJ, Brazil
management of mouse events and the adopted solutions to basic computer
Correspondence graphics issues that arise from interactive modeling in two‐dimensional and
Luiz F. Martha, Department of Civil and
Environmental Engineering, Pontifical
three‐dimensional canvases are discussed, including the strategies to pick
Catholic University of Rio de Janeiro, Rua objects in spatial coordinates and to identify crossing elements. The result is a
Marquês de São Vicente 225, Gávea, Rio de new educational software that proved to be a very useful application in
Janeiro, RJ 22451‐900, Brazil.
Email: lfm@tecgraf.puc-rio.br structural analysis and introductory computer graphics courses for engineer-
ing. The article also presents examples of using the software as an educa-
Funding information
tional tool.
Coordenação de Aperfeiçoamento de
Pessoal de Nível Superior – Brasil
KEYWORDS
(CAPES), Grant/Award Number: Finance
Code 001 educational software, GUI development, interactive graphics application, MATLAB program,
structural analysis

1 | INTRODUCTION A good interface of a structural analysis program should

When developing computational mechanics programs
intended to be used by a large number of people, for
research, professional, or educational purposes, it is a
good practice to invest in the creation of a graphical user
interface (GUI). A GUI is essential to provide a good
communication between the user of a computer program
and the source code. It allows data input and output
through interactive graphical components, generically
referred to as widgets, such as menus, buttons, text fields,
canvases, and so forth, which can be displayed in dialog
windows on the screen of a computer. The most common
way to manipulate and interact with these widgets is to
use mouse and keyboard devices. The goal is to make the
use of computer systems easier and more productive.
provide users with the possibility to create and manip-
ulate structural models, set all analysis options, run the
simulation, and visualize and investigate the results.
However, developing an efficient and robust GUI is
not a simple task. In a typical graphical application, the
code related to the user interface usually accounts for
more than half of all code [7,15]. Among the main
challenges is the design of a user‐friendly, effective, and
organized layout with intuitive commands, which falls in
the field of interaction design [9,26,36]. As users are free
to interact with the interface in unpredictable ways, the
management and control of users' activities are pri-
mordial to eliminate any possibility of conflicting or
harmful procedures that can lead to mistakes. The data
transmission between the interface inputs and the

Comput Appl Eng Educ. 2021;1–21. wileyonlinelibrary.com/journal/cae © 2021 Wiley Periodicals LLC | 1
2 |
analysis solver must also be handled with care. Further-
more, modeling and visualization of structural mechan-
ical models on the computer screen requires techniques
of computer graphics [17,21,32,33], computational geo-
metry [11,13,27,29], and solid modeling [16,20].
In this regard, MATLAB proves to be very useful for
developing graphical applications, due to its practicality
provided by a high‐level programming language and an
extensive variety of powerful toolboxes and graphic
functionalities. Therefore, it is often used for developing
graphical tools for engineering modeling and simulations
focused on educational aspects [3,5,6,19]. There can be
also found GUI applications, and even more powerful
software, intended to perform structural analyses or
multiphysics simulations that make it possible for users
to interact with the program and visualize models and
results in efficient ways [2,14,24,34]. Studies have been
developed for assessing and comparing various other
tools that can be used for building GUIs [12] for the
growing trend of mobile applications [1,35].
This study presents a graphical version of the LESM
(Linear Elements Structure Model) program [31], devel-
oped at the Institute of Technical‐Scientific Software
Development of Pontifical Catholic University of Rio de
Janeiro (Tecgraf/PUC‐Rio). This program is fully open
source and was conceived as a nongraphic tool for linear
elastic analysis of one‐dimensional element models, such
as two‐/three‐dimensional (2D/3D) trusses and frames,
and grillages. The focus of the first version is to provide a
didactic and well‐documented source code to introduce
students to the computational implementation of struc-
tural analysis methods. It was the theme of a book on
matrix structural analysis [23], and it is currently being
used on related courses at PUC‐Rio. The main goal of the
present paper is to show important aspects of creating a
user interface, with a canvas and mouse modeling cap-
abilities. This is accomplished in an educational context,
where engineering students are encouraged to go through
some essential steps of building a graphical tool in
MATLAB.
The purpose of the new graphical version of LESM is
to allow the practical usage of the software. Therefore, an
easy‐to‐use GUI with multiple functionalities was devel-
oped in MATLAB. An important feature is the mouse
interaction with canvas to draw model geometry and
define topology, pick objects in a 3D space, and manip-
ulate camera visualization. This is done by using a gen-
eric object‐oriented programming (OOP) class that
manages mouse events [37], combined with the im-
plementation of computer graphics and computational
geometry algorithms that allow users to manipulate 2D
and 3D models. Another significant aspect of the pro-
gram is the use of an OOP class for canvas management,
C. LOPES ET AL.
idealized to have a similar behavior as the well‐known
OpenGL API used in graphical applications developed,
for example, with the Qt framework [30]. The idea is to
allow developers to bypass the idiosyncrasies of the
MATLAB Axes widget and work with a class that better
resembles a conventional GUI canvas. The sophisticated
plotting functions and graphic resources of MATLAB
made it possible to deal with these topics in a simple way.
As a consequence, the program has also been used in
basic computer graphics courses for engineering at PUC‐
Rio. The installer and the complete source code of the
program are available for free on its website.1
In summary, the main hypotheses considered in this
study are that the use of interactive graphics programs
and the exposure to their source code are efficient pro-
cedures for teaching structural mechanics and computer
graphics. Two types of students are considered: Under-
graduate students who act as end‐users to learn structural
analysis methodologies and graduate students in com-
puter graphics courses who are introduced to the devel-
opment of interactive graphical interfaces to simulate
structural mechanics problems. As mentioned in the
previous paragraphs, the assumptions are as follows:
• An active graphical interface is important for educa-
tional structural analysis programs.
• The development of a graphical interface is a challen-
ging task because it is multidisciplinary.
• The development environment provided by MATLAB
makes this task feasible, especially for engineering
students with little programming experience.
The article describes strategies for implementing the
interactive graphic interface of LESM and presents
feedback from the two student groups involved in the
educational methodology adopted.
Section 2 of this paper brings an overview of the
LESM program: Its structural analysis features and a
description of the developed GUI. Section 3 presents the
management of canvas functionalities using OOP classes
to handle the MATLAB Axes behavior and mouse inter-
actions. Section 4 depicts the important notions of com-
putational geometry used for modeling on LESM.
Section 5 shows examples of models and results achieved
with the program. Section 6 aims to discuss the educa-
tional scope under which the new version of LESM is
being used. Section 7 presents feedback from students
who used LESM in undergraduate and graduate courses
at PUC‐Rio. Finally, Section 8 gives some concluding
remarks and points toward future developments.
1
www.tecgraf.puc-rio.br/lesm
C. LOPES ET AL.
2 | THE LESM PROGRAM
The entire source code of LESM is written in the MA-
TLAB programming language. The code is divided into
two main parts, the analysis solver and GUI‐related files.
The analysis solver is the core of the software. It
consists of a set of files responsible for receiving model
information and computing the analysis results. In the
LESM program, the structural analysis is performed ac-
cording to the Direct Stiffness Method, a displacement‐
based Finite Element Method for bar and beam elements
[25]. Its implementation is fully based on the OOP para-
digm [10], exploring concepts of inheritance, abstraction,
and polymorphism to enhance the code modularity and
the educational aspect. A detailed description of the
analysis solver of the LESM program and the OOP class
architecture is presented in References [31] and [23].
The GUI‐related files are those responsible for any
graphical functionality: construction of dialogs, manage-
ment of interface behavior, drawing objects on canvas,
and control of mouse actions on canvas. These tasks are
the focus of this paper and they will be discussed in the
remainder of this section and in the following sections.
2.1 | Structural analysis features
To address the graphic characteristics of the LESM pro-
gram, it is important to briefly mention its analysis op-
tions and features first. They are summarized next, with
further details also found in References [31] and [23]:
• Analysis type: Linear elastic analysis considering static
behavior of structural models made of one‐dimensional
elements (prismatic bars and beams).
• Model types: Planar and spatial trusses made of bar
elements (axial behavior only); Planar and spatial
frames made of beam elements (axial and bending
behaviors in 2D, plus torsional behavior in 3D); Gril-
lages made of beam elements (bending in out‐of‐plane
direction and torsional behaviors).
• Beam types: Euler–Bernoulli and Timoshenko theories
can be assumed for the bending behavior of beam
elements in frame and grillage models.
• Materials: All properties are homogeneous and iso-
tropic and a linear elastic behavior is assumed with no
limit of resistance.
• Element connectivity: Truss elements are connected by
flexible joints (hinges); frame and grillage elements may
be connected by rigid, linear semi‐rigid, or flexible joints.
• Support conditions: Rigid or spring supports may be
assigned to each node in global degree‐of‐freedom di-
rections or in any arbitrary direction.
| 3
• Load types: Each load case may include concentrated
forces or moments applied to nodes, uniformly or linearly
distributed forces applied over the entire length of an
element, thermal gradient, and prescribed displacement
set to a degree‐of‐freedom fixed by rigid support. Multiple
load cases can be combined with multiplication factors.
2.2 | Graphical user interface
The toolkits for developing GUIs integrate the task of
laying out widgets with the task of programming their
behavior. The layout is usually built by visually placing
and editing the widgets in the dialogs, but it can also be
done programmatically, using only code lines to define
their position, attributes, and characteristics. The beha-
vior of widgets is programmed according to the concept
of event‐driven programming, in which a specific func-
tion, commonly named callback function, is written by
the developer and designated to be triggered upon the
occurrence of a certain event, which is essentially any
action taken by the user: Clicking on a button, selecting
an option from a menu, moving the cursor, and so forth.
The graphical interface of LESM was created using
the Graphical User Interface Development Environment
(GUIDE) of MATLAB [18], a drag‐and‐drop toolkit for
visually laying out widgets in dialog windows. The GUI
was designed to provide a simple and clear workflow for
the structural analysis process, with easily identified and
sequentially displayed widgets. Figure 1 presents the
main dialog window of the LESM program showing a 3D
frame model in the canvas.
On the left‐hand side of the GUI, below the program's
logo, there is a modeling panel, from which users can
create the structural model. First, it is requested to select
the model type and the current load case scenario, via
drop‐down lists. Next, all model input data can be pro-
vided in auxiliary dialog windows that are popped up
when clicking on the corresponding buttons. In these
auxiliary modeling dialogs (not shown here for practi-
cality), users are supposed to create materials and cross‐
sections, set the coordinates of each node, create
elements by setting their material, cross‐section, bending
theory, connectivity and nodal incidence, create and ap-
ply loads, and define support conditions. When using the
auxiliary modeling dialogs, all geometric and topological
information must be entered via the keyboard. As
the data are provided, the graphic representation of the
model is updated on canvas. The matter of drawing the
model on canvas is tackled in Section 3.1.
A button to process the input data, that is, run the
structural analysis, is positioned below the modeling panel.
It calls the analysis solver and if the model is stable and the
4 |
FIGURE 1 The main dialog window of the Linear Elements Structure Model (LESM) program with a three‐dimensional frame
model
analysis is successfully performed, the results become
available in the panel below. The displayed result options
include diagrams of deformed configuration and internal
forces (axial force, shear force, bending moment, or torsion
moment), which can have the scale adjusted, as well as
support reactions. To complement the left‐hand side menu,
two tables are placed right below the results panel, an in-
formation table, and an editing table. The former gives
general information about the whole model or about an
element or node picked from the model draw. The latter
allows users to edit some properties of the selected element
or node. Editing model properties can also be done in the
auxiliary modeling dialogs, which dispose editable lists of
the created materials, cross‐sections, nodes, elements, loads,
and so forth. After any change to the model, the results
become unavailable until the analysis is successfully per-
formed again.
At the top of the dialog, configuration menus are
available. The File menu allows users to save the current
model, load a model file, or open an empty model. The
View menu provides displaying options, such as enabling or
disabling the grid and ruler of the canvas, showing or
hiding the units of measure and the nodes/elements iden-
tification numbers, setting the visualization plane, and
so on.
C. LOPES ET AL.
Finally, a toolbar is located below the configuration
menus, with two groups of functionalities. The first group
consists of actions related to model visualization (mainly
camera manipulation), such as panning, zooming, rotat-
ing, and fitting model to screen. The second group con-
sists of mouse modeling options. These options allow
users to define the geometry and topology of the model
using the mouse on canvas, instead of entering input data
via keyboard in the auxiliary modeling dialogs. It is
possible to insert and delete nodes and elements, from 2D
and 3D models, through mouse actions. Some auxiliary
features are available to help users drawing the model:
Enable snap‐to‐grid behavior of the cursor, draw poly-
lines, and force elements to be orthogonal. The matter of
mouse interaction on canvas is discussed in Section 3.2.
The computer graphics strategies for picking objects in a
3D canvas and evaluating the intersection and colli-
nearity of elements in both 2D and 3D models are ad-
dressed in Section 4.
3 | THE CANVAS
The canvas of a structural analysis program is an area of
the GUI where the model is graphically represented and
C. LOPES ET AL.
users may have the opportunity to interact with it. In
MATLAB, a widget called Axes can be used as a canvas
for graphical applications. This component defines the
area where the graphics system of the computer can plot
geometric primitives, such as points, lines, and polygons,
which are used to display the structural model and the
analysis results. A great advantage of using the MATLAB
Axes is the natural treatment of three‐dimensional plots
and camera view, without the need to use low‐level
computer graphics techniques to create perspective ef-
fects. When set to 3D, the Axes takes the aspect of a
“plotting box,” instead of a plane area, which auto-
matically creates the perspective effects.
3.1 | Drawing models on Canvas
To draw the components of the graphical representation
of a structural model (nodes, elements, supports, and
loads) and its results (deformed configuration, diagrams,
and support reactions), a new superclass, in the context
of the OOP, was added to the program's architecture.
This superclass, called Draw class, declares abstract
methods that are implemented in its subclasses (one
subclass for each analysis model type). In the im-
plementation of the abstract methods, MATLAB plotting
functions are called to draw a model or result component
according to how this component is graphically re-
presented in the corresponding model type (e.g., a node is
represented as a small square in a 2D model and as a
small cube in a 3D model).
An important point to note is that the MATLAB Axes
widget was originally designed to draw graphs of differ-
ent types with coordinate axes to express how certain
parameters vary with others. It implies that the Axes
widget was not designed to draw arbitrary graphic pri-
mitives (lines, curves, polygons, meshes, etc.) as a generic
drawing area; however, this is possible. This brings some
disadvantages regarding the use of the Axes widget when
the objective is to have a canvas for generic design of
geometric models, as is the case of a structural model. For
example, the Axes widget has the natural behavior of
updating the drawing scale when its dimensions are
changed. This is not a natural behavior when the goal is
to draw graphic primitives on a generic canvas. The de-
sired behavior for a generic canvas can be achieved using
the Axes widget, but some specific procedures must be
performed. It should be noted that there is no other al-
ternative in the MATLAB environment: The widget clo-
sest to a generic canvas is the Axes.
An important contribution of this study is the devel-
opment of the Canvas class (in the context of OOP) in
MATLAB. The purpose of this class is to associate the
| 5
Axes widget with a natural behavior for drawing graphic
primitives in an arbitrary way. Most interface toolkits
feature a widget for this purpose. An example is the
QGLWidget widget from the Qt framework for creating a
canvas that uses the OpenGL graphics system. The
Canvas class is an abstract superclass whose intrinsic
property is an Axes widget. The Canvas superclass en-
capsulates all the procedures necessary to associate the
behavior of a generic canvas with the Axes widget. This
superclass declares abstract methods that associate call-
back functions with basic canvas actions: Resizing, re-
paint, and so forth. A client subclass must be inherited
from the Canvas class for implementing the abstract
methods according to the necessities of the client
application.
The Canvas class has a scope that goes beyond its use
in the LESM program. It was designed to be used inter-
changeably by any program developed in MATLAB that
needs a widget for arbitrary drawing of graphic primi-
tives. It is beyond the scope of this study to detail the
Canvas class. However, the source code and doc-
umentation for this class, including simple examples of
its use, are available in a repository on GitLab2 and on
MathWorks File Exchange.3
To manage canvas callback functions of the LESM
program, two subclasses were inherited from the Canvas
class, one for dealing with 2D models (Canvas_2D) and
another for dealing with 3D models (Canvas_3D).
3.2 | Mouse interactions on canvas
The processes of modeling and camera control on LESM
are aided by mouse interactions with the canvas. These
interactions are carried out through mouse events, such
as click, hoover, drag, and scroll, to perform the desired
tasks of modeling (insert and pick objects, for example)
and camera manipulation (panning, zooming, and ro-
tating). Although in the current MATLAB version, cam-
era control can be executed with mouse actions, it was
not possible in previous versions.
The program handles mouse events by using the
Emouse class [37], an OOP superclass developed to
manage mouse actions on a MATLAB canvas (Axes
widget), in a generic way. This superclass declares ab-
stract methods that associate callback functions with
basic mouse actions: Pressing a mouse button, releasing a
mouse button, moving the cursor, and so forth. Similar to
the use of the Canvas class, a client subclass must be
2
www.gitlab.com/cortezpedro/canvas
3
www.mathworks.com/matlabcentral/fileexchange/76872-canvas-tool
6 |
inherited from the Emouse class for implementing the
abstract methods according to the necessities of the client
application. Most of the complexity of handling mouse
events on canvas is dealt with by concrete methods of the
Emouse class. The client subclass only needs to address
what is specific to its application. The Emouse class is
included in the aforementioned Canvas class application.
To manage mouse events on the canvas of LESM, two
subclasses were inherited from the Emouse class, one for
dealing with 2D models (Emouse_2D) and another for
dealing with 3D models (Emouse_3D). In addition, two
auxiliary function files are attached to them (auxMou-
seFctn and auxModelFctn) to perform geometry checks
and implement common functions that may need to be
called multiple times when modeling. In summary, an
Emouse object recognizes that a mouse event has oc-
curred on the canvas and calls an abstract method, im-
plemented by the client subclass, which calls auxiliary
functions to do tasks according to the conditions of the
event (see Figure 2).
4 | COMP U TE R G RA PH ICS
T ECHNIQ U E S
Once interactive mouse modeling is enabled, computa-
tional geometry issues arise. All geometric input must be
tested to be sewn into the model without violating its
topological consistency. An important question faced is
how to evaluate the intersection and collinearity of ele-
ments. To deal with this issue, two techniques were
employed, both aiming to determine the relative position
between two elements. In 2D, verifications of this kind
are made by computing the signed area of triangles
formed by the endpoints of two line segments, as shown
in Section 4.1. In 3D, the shortest orthogonal distance
between two segments is evaluated in a process described
in Section 4.2. Picking objects in a 3D canvas and
FIGURE 2 Classes and files that manage the response to mouse events on canvas
C. LOPES ET AL.
modeling plane structures from an oblique view (the case
of grillage models) are some other issues to be addressed.
The adopted solution for these issues is based on a type of
the so‐called ray casting algorithm devised for volume
visualization [4], explained in Section 4.3.
4.1 | Signed area of triangles
Finding an intersection and evaluating a possible colli-
nearity between line segments in a 2D canvas are key
factors in any geometric modeling tool. Figure 3 shows
the case of a new element that intersects an existing
element, where the red dashed line, symbolizing the new
element, is being inserted by mouse clicks in the in-
dicated positions. In this case, users should have a clear
option to either place a node on the intersection or leave
it “unsolved” (useful when modeling the simplified 2D
behavior of actual 3D structures). If the user desires to
consider the intersection between crossing elements, the
intersection point must be identified, so that the model is
tessellated in a proper fashion. Figure 4 illustrates the
issue with collinear elements, in which a new element is
overlapping the existing elements with numbers 1 and 2.
To maintain consistency, two new elements, with num-
bers 3 and 4, must be created, as there can be no elements
superimposed to others. Therefore, the collinearity of the
geometric input with existing elements must also be
checked when adding elements to the model. These
verifications, in 2D, are made based on the signed area of
triangles [27].
The signed area of triangles, which consists of an area
value associated with its orientation, is used to evaluate
the position of a given point relative to a line segment. It
is computed with Equation (1), where ( Ax , Ay ) and (Bx ,B y )
are the endpoint coordinates of a line segment AB in the
XY plane and (Cx ,Cy ) are the coordinates of a given point
C in the same plane. The area value SABC is positive if C is
C. LOPES ET AL. | 7

F I G U R E 3 (a) Insertion of a new element intersecting an existing element. (b) Unsolved intersection between elements.
(c) Elements subdivision to consider the intersection point as a node

FIGURE 4 Insertion of a new element collinear to existing elements

on the left‐hand side of AB , negative if C is on the right‐
hand side of AB , and null if C is collinear to AB (see
Figure 5):
Ax Ay 1
1 (1)
SABC = Bx B y 1 .
2 simple if‐else structure based on the values of the signed
Cx Cy 1
The relative position between two line segments is
determined by analyzing the signed areas of the triangles
delimited by the endpoints, as presented in Figure 6: SABC
(in blue), SABD (in yellow), SCDA (in red), and SCDB (in
green). There are 10 possible cases regarding the relative
position of one segment to another. The segment CD can
be above, below, on the right‐hand side, on the left‐hand
side, collinear, or intersecting AB . The last case is split in
five: CD may be passing through point A or B ; AB may be
passing through point C or D; AB and CD may have an
intersection point P . These cases can be tested with a
areas, as described by the MATLAB function presented in
Appendix A that receives the endpoints of two line seg-
ments and returns the intersection point P or an empty
variable if segments do not intersect.
If it is identified that the signed areas are null, within
a numerical tolerance, collinearity must be checked by
verifying whether the endpoints of one segment are be-
tween the endpoints of the other, according to their co-
ordinates. If it is verified that AB and CD have an

F I G U R E 5 The signed area of a triangle delimited by a line

segment and a given point FIGURE 6 Intersection between two line segments
8 | C. LOPES ET AL.

intersection point P , its position is found by computing

the local parametric coordinate within AB , as in Equa-
tion (2), where tAB is limited to [0,1] and tAB = 0 means
that P = A, where as tAB = 1 yields P = B :

SCDA (2)
tAB = .
SCDA − SCDB

It is also necessary to determine if a given point is

located inside a line that composes the geometry of the
model within a numerical tolerance. This is used, for
example, to insert nodes that split existing elements and
to pick elements via mouse clicks on canvas. Using the
absolute value of the triangle area, the orthogonal dis-
tance of a certain point C from the line segment AB ,
FIGURE 7 Orthogonal distance between line segments in
denoted as dC , is computed with Equation (3). If the
space
distance is small enough and the projection of C in the
⎯⎯⎯⎯→
direction of AB is inside segment AB (as in Figure 5), it
is admitted that C is, in fact, located on AB : By rearranging the terms of Equation (6), it is possible
to write it as the linear system of equations in Equation
2 SABC (3) (7), whose unknowns are tAB , tCD , and L. This system is
dC = ⎯⎯⎯⎯→ .
‖ AB ‖ presented in a more intuitive form in Equation (8), where
each vector is expressed in terms of the components re-
4.2 | Orthogonal distance in space lative to Cartesian axes XYZ:

When modeling on a 3D canvas, the verifications of ⎯⎯⎯⎯→ ⎯⎯⎯→ → → (7)

tAB AB − tCD CD + Ld⊥ = AC ,
input geometry, to maintain the topological con-
sistency of the model, are the same as on 2D: No su- ⎡ ⎯⎯⎯⎯→ ⎯⎯⎯→ → ⎤ ⎡ ⎯⎯⎯⎯→ ⎤
⎢ ABx CDx d⊥ x ⎥⎡ t ⎤ ⎢ ACx ⎥
perimposed elements are allowed and all intersections ⎢ ⎯⎯⎯⎯→ ⎯⎯⎯→ → ⎥⎢ AB ⎥ ⎢ ⎯⎯⎯⎯→ ⎥ (8)
⎢ AB y CDy d⊥ y ⎥⎢−tCD ⎥ = ⎢ ACy ⎥ .
must be identified. These geometry checks are made
⎢ ⎯⎯⎯⎯→ ⎯⎯⎯→ → ⎥⎣ L ⎦ ⎢ ⎯⎯⎯⎯→ ⎥
based on the shortest orthogonal distance between ⎣ ABz CDz d⊥ z ⎦ ⎣ ACz ⎦
two line segments in space.
Considering two segments AB and CD in arbitrary If the absolute value of the minimum orthogonal
→
directions, as shown in Figure 7, the normalized vector d⊥ distance, L, between two line segments is small enough,
orthogonal to these segments is given by Equation (4), considering a numerical tolerance, it is admitted that the
where × stands for the cross‐product between vectors. segments intersect at the point given by the parametric
The endpoints of the segment that gives the shortest or- coordinates. If the cross‐product of Equation (4) results in
thogonal distance between AB and CD are E and F , a null vector, it means that AB and CD are parallel. In
and the local parametric coordinates of AB and CD that this case, the segments are collinear if they share any
map these points are tAB and tCD , which are limited to common point.
[0,1]. Points E and F are then expressed as in Equation
(5), and the direction of segment EF is given by Equation
(6), where L is the value of the minimum orthogonal 4.3 | The ray method
distance between AB and CD :
Obtaining the coordinates of a mouse click on canvas is
⎯⎯⎯⎯→ ⎯⎯⎯→ necessary to insert new nodes/elements or select existing
→ AB × CD (4)
d⊥ = ⎯⎯⎯⎯→ ⎯⎯⎯→ , ones to check their information and results and edit their
‖ AB × CD ‖ properties. In a 2D canvas, it is quite trivial to determine
⎧
⎪E = A + t
⎯⎯⎯⎯→ the coordinates of the clicked point and check if an object
AB AB , (5)
⎨ ⎯⎯⎯→ has been selected by computing the distance between the
⎪
⎩ F = C + tCD CD , clicked position and any model component (in case of an
⎯⎯⎯→ → ⎯⎯⎯→ ⎯⎯⎯⎯→ (6) element, the orthogonal distance is computed with
EF = Ld⊥ = (C + tCD CD ) − (A + tAB AB ).
Equation 3).
C. LOPES ET AL.
However, in a 3D canvas (MATLAB Axes widget that
delimits a “plotting box”), determining the coordinates of
the clicked point is not straightforward, as the cursor
moves on a plane screen and the depth of the clicked
point is, a priori, undetermined. The strategy used on
LESM is to establish a ray casting direction, defined as
the line that goes from the camera viewpoint, where it
enters the “plotting box,” to its projection on an opposite
face of the 3D canvas, where it exits the box. Both points
are provided by an attribute of the Axes widget, called
CurrentPoint. The shortest orthogonal distance between
the ray casting direction and the model components is
then calculated accordingly with the methodology de-
scribed in the previous section. The first model compo-
nent intersected by the ray casting direction, if any, is
taken as the selected one, as illustrated in Figure 8. It
should be noted that the image has been slightly rotated
so that it is possible to visualize the line used to define the
ray. On a frontal view, from the user's perspective, it
would not be possible to see the line, as it would be
represented by a point.
This technique allows users to pick existing objects in
a 3D canvas. However, it is not possible to insert nodes
with mouse clicks, as the depth of the click remains
unknown when it occurs in an empty region. For this
FIGURE 8 Model selection in a three‐dimensional canvas
| 9
reason, to build the 3D frame and truss models, it is still
necessary to enter the nodal coordinates via keyboard.
Once the nodes are added, elements can be created by
connecting the existing nodes with mouse clicks.
In the particular case of grillage models, all nodes and
elements are laid out in the same plane (global XY plane).
Therefore, it is possible to build the model with mouse
clicks from an oblique view by determining the co-
ordinates of the intersection between the ray direction
and the global XY plane. The oblique view is more ap-
propriate for analyzing grillages, as the model is plane
but all loads and displacements are in the global
Z‐direction, perpendicular to the model plane. Figure 9
exemplifies the creation of a grillage model in ob-
lique view.
The LESM program also allows grillage modeling in a
2D canvas, with an orthographic view of the model
pointing toward the global Z‐direction. In this case, some
graphical representations of model components, such as
forces and supports, are different from conventional 2D
truss and frame models to indicate the out‐of‐plane pro-
jection. However, the geometric modeling is analogous to
plane modeling and the subclass Emouse_2D is used to
manage mouse interactions when dealing with grillage
models in a 2D perspective.
10 | C. LOPES
FIGURE 9 Creating a grillage model in oblique view
5 | EXAMPLES
Four examples of models and analysis results obtained
with the graphical version of LESM are provided in this
section. The first one has its modeling process presented
with higher detailing to depict the advantages of using
the interactive interface of the program to create struc-
tures. The second model presents the capabilities of the
program to handle and combine different load cases,
whereas the two following examples briefly show some of
the capabilities of LESM to analyze 3D models.
In all examples, the elasticity and shear moduli of
elements material are 200 and 80 GPa, respectively; the
elements cross‐section area and moment of inertia (as-
suming the same inertia value for torsion and bending
about principal axes) are 104 mm2 and 108 mm4, respec-
tively. These physical and geometrical properties of ele-
ments can be set and changed with ease in the LESM
program, through the Materials and Sections auxiliary
GUIs called by pressing the homonymous pushbuttons
on the Modeling panel at the main GUI. Users may add
new materials and cross‐sections, or change values of
existing properties, which are automatically updated for
all respective elements.
The first example is the grillage model that was built
in the oblique view in the previous section. After defining
geometry via mouse interactions on a 3D canvas, other
necessary model parameters were set using the
ET AL.
interactive capabilities of the program. Support condi-
tions were provided for nodes 1 (completely fixed) and 4
(displacement is fixed in the global Z‐direction, but ro-
tations are free), through mouse clicks on such nodes,
followed by quick changes of its properties with the Edit
interactive panel, located on the main GUI. A con-
centrated load of 10 kN was applied to node 3 in an
analogous fashion to the setting of supports and a uni-
form distributed load of −10 kN/m was applied to ele-
ment 1 by picking the element with a mouse click and
changing its load properties on the aforementioned Edit
panel. It should be noted that these model parameters
(supports and loads) could also be set in the auxiliary
GUIs, instead of picking objects and using the Edit panel.
The model and the results of deformed configuration,
with a scale factor of 40, internal shear force diagram,
and internal bending moment diagram are shown in
Figure 10.
It is clear by the example that modeling the structures
of linear elements is a straightforward task with LESM.
The tools for providing all input data are made visible
and accessible at all times on the main GUI of the ap-
plication, granting an easy‐to‐grasp workflow that allows
users to focus their concerns on interpreting results and
evaluating the best model to represent a given physical
problem, rather than on the modeling process itself.
In the LESM program, it is also possible to create
multiple load patterns and combine them with specific
C. LOPES ET AL.
FIGURE 10 (a) Grillage model. (b) Deformed configuration. (c) Shear force diagram. (d) Bending moment diagram
multiplication factors. To exemplify this functionality,
the next model presents a 2D truss, where two different
load cases were set, as well as a combination of those,
with factors 1.2 for the first load case and 1.5 for the
second. The two distinct load cases, their respective in-
ternal axial force diagrams, and reaction values at sup-
ports are shown in Figure 11. In addition, analogous
results are presented for the load combination. One can
notice that this is a valuable tool for the teaching of the
superposition principle for linear structural analysis.
The third example is a 3D frame, previously shown in
Figure 1 to present the main dialog window. Here, the
results of a deformed configuration, with a scale factor of
200, and an internal bending moment diagram, relative to
the local y‐axis of each element, are displayed in
Figure 12. When a model has a large number of elements,
such that diagrams become polluted, the LESM program
allows users to select one specific element to check its
internal force diagram. Furthermore, using mouse clicks,
on 2D and 3D canvases, the program provides values of
displacements and internal forces at any given point
within an element, as well as nodal displacement, at the
Information panel, located on the main GUI.
For the last example, a 3D truss model of a trans-
mission tower is displayed in Figure 13, which shows the
result of the deformed configuration with a scale factor of
300. The hinges (flexible joints between elements) are
| 11
represented by small spheres in 3D truss elements. This
model was created by entering the nodal coordinates via
keyboard and inserting the elements via mouse clicks on
the created nodes. Although the mouse interaction is very
useful and intuitive for creating models, inserting all
nodes and elements with mouse clicks becomes a cum-
bersome task when dealing with very large models. To
overcome this difficulty, new implementations for
managing large models will be considered in the future,
including templates, parameterization, or the coupling of
LESM with modeling tools, such as the “Truss Builder”
[6], which should be a straightforward task, as LESM
code is object‐oriented and open‐source.
6 | E DU CA T I O NAL
METHODOLOGY
LESM has been effectively used at PUC‐Rio as an edu-
cational tool for basic structural analysis and computer
graphics courses. For the former, the software is very
useful for undergraduate students in Civil Engineering in
the process of learning the basic methods of structural
analysis (force method and displacement method).
Through homework assignments, students simulate the
procedures that occur in the solution processes of these
methods. The main benefit of this learning process is that
12 | C. LOPES ET AL.

F I G U R E 1 1 Two‐dimensional truss model: (a) Load case 1. (b) Internal axial forces for load case 1. (c) Load case 2. (d) Internal
axial forces for load case 2. (e) Internal axial forces for combination of load cases 1 and 2

students understand the physical meaning of the flex-
ibility and stiffness coefficients that appear in the solu-
tion processes. It has been observed that understanding
the physical meaning of these coefficients before learning
to calculate them really helps to understand the methods
of structural analysis. In addition, this methodology
motivates the student to learn the computational (cum-
bersome) aspects of the methods.
These homework assignments are done in-
dividually. Undergraduate students use LESM to
C. LOPES ET AL.
FIGURE 12 (a) Deformed configuration of three‐dimensional frame model. (b) Bending moment diagram
visualize the structure's response and calculate the
numerical values of the required coefficients. As the
program exports its main drawing area to the clip-
board, the student can import the images in a word
processor and write the task report.
F I G U R E 1 3 (a) Three‐dimensional truss model.
(b) Deformed configuration
| 13
To illustrate this educational methodology, Figure 14
shows a simulation of the solution of a simple frame by
the force method. These figures were extracted from one
of the students' reports on the Structural Analysis course
at PUC‐Rio. The student made notes in these figures,
with the values calculated by LESM, using a text editor/
drawing tool.
Figure 14a shows the original structure, statically
indeterminate, with its loading. It is assumed a linear
elastic behavior, with no shear deformation (Euler‐
Bernoulli theory). Material elasticity modulus of all
structure members is E = 2 × 108 kN/m2. All members
have a unique cross‐section with area A = 0.005 m2 and
moment of inertia I = 0.0005 m4. The degree of static in-
determinacy of this structure is two. The support reac-
tions (X1 and X2) that were chosen as unknowns (called
redundants) of the solution by the force method are also
indicated.
Figure 14b shows the statically determinate auxiliary
structure (called primary structure) that was obtained
from the original structure, releasing the restrictions as-
sociated with the chosen redundants. This figure shows
the deformed configuration of the primary structure for
the applied external loading and indicates the loading
coefficients (δ10 and δ20), that is, the rotation and dis-
placement in the directions of the released restrictions
associated with the redundants. From the deformed
configuration of the primary structure, the student can
easily interpret the physical meaning of these
coefficients.
Figure 14c shows the effects of the first redundant on
the primary structure. The corresponding flexibility
coefficients (δ11 and δ21) are easily interpreted: They are
rotation and displacement in the directions of the re-
leased restrictions associated with the redundants due to
14 | C. LOPES ET AL.

FIGURE 14 Two‐dimensional frame model for simulating the force method

the first redundant with a unit value. Likewise, also helping teachers to propose more complete and
Figure 14d shows the flexibility coefficients (δ12 and δ22) elaborated classwork and homework.
for the second redundant. In addition, LESM has been used in introductory
At the end of the task, the student assembles a set of courses of computer graphics and software development
compatibility equations resulting from the force method for engineering students at PUC‐Rio. The high‐level
(δ10 + δ11X1 + δ12X2 = 0 and δ20 + δ21X1 + δ22X2 = 0) using MATLAB programming language and all its built‐in
the values of the coefficients calculated by LESM. To
demonstrate that this system of equations is really cor-
rect, the student checks whether the values of the reac-
tions chosen as redundants in the original structure really
solve the compatibility equations.
A similar homework is assigned to the students for a
simulation of the displacement method. Figure 15 illus-
trates the interpretation of some stiffness coefficients Kij
resulting from the solution process of this method. In this
example, the student imposes a unitary rotation on
a node.
The use of the LESM program in structural design
courses at PUC‐Rio has also been increasing lately. Its
multiple analysis features, combined with a user‐friendly
and interactive graphical interface, allow students to si-
mulate the behavior of one‐dimensional element models
(e.g., very common models in the design courses of me- F I G U R E 1 5 Deformed configuration due to the imposition
tallic and reinforced concrete structures) with ease, of an isolated unitary nodal rotation and the corresponding
helping them to deliver high‐quality assignments and stiffness coefficients in the solution by the displacement method
C. LOPES ET AL.
functions and sophisticated graphics resources, combined
with an easy‐to‐use environment for developing GUIs,
provide the ideal mechanisms for presenting concepts on
how to create a graphical interactive program for stu-
dents who are not very familiar with computer science
topics. For example, in a previous article [31], the authors
have described an education methodology in which the
complete structure of the classes of the analysis solver of
LESM is provided, but the contents of the methods are
not presented completely, so that the students could fill
in the gaps, as individual works. In that article, this
strategy was exemplified for the implementation of a
computational procedure for structural analysis. In this
article, it is intended to explore students' understanding
of handling graphical interface events associated with
modeling a structure using the mouse. To illustrate this
methodology in the graduate course of fundamentals of
applied computer graphics of the Civil Engineering De-
partment of PUC‐Rio, which is also taken by senior un-
dergraduate students, the incomplete source code of the
class MyCanvas_2D of a test application4 of the afore-
mentioned Emouse class is shown in Appendix B.
The objective of class MyCanvas_2D, which is a sub-
class of class Canvas_2D mentioned previously, is to
handle typical mouse events in an interactive graphics
application. The three public methods of class My-
Canvas_2D correspond to callback functions that respond
to user mouse actions. These methods track mouse po-
sitions on canvas for button‐pressed, mouse‐motion, or
button‐released events. Learning how to handle these
events is very important in any interactive graphics ap-
plication that involves an active graphic interface that
responds to mouse events. The code shown is just an
example and several other parts of the program code have
to be complemented.
This learning methodology is interesting because the
student learns to program by studying a complete pro-
gram that has already been tested and has an organized
structure. The advantage of this methodology is that the
student does not start from a blank page, which is a very
difficult task for those who have no programming ex-
perience. Nevertheless, the student is forced to under-
stand the structure of the provided program to fill in the
gaps. Considering that the program executable is made
available to students, they are sure that what is developed
is feasible, in addition to understanding the overall be-
havior of the program.
In addition, integrated projects involving the knowl-
edge of structural analysis concepts and the improvement
of the LESM interface were assigned to the students of the
4
See mouse_events_app in www.gitlab.com/cortezpedro/canvas or in
www.mathworks.com/matlabcentral/fileexchange/76872-canvas-tool
| 15
same course. For example, in the second semester of 2019,
two final projects, developed by teams of three under-
graduate and/or graduate students, extended LESM to
consider 2D‐ and 3D‐inclined supports and linear‐elastic
rotational semirigid connections at one or two ends of an
element. For these projects, students needed to modify
both the analysis solver and the interface of the program.
7 | ACA DEM IC PE RFORMANC E
ASSESSMENT
To assess the results of the educational methodologies
described in the previous section, a survey was done with
the students of the last edition of the courses “Structural
Analysis” and “Fundamentals of Applied Computer
Graphics” of the Department of Civil Engineering of
PUC‐Rio, in the second semester of 2019 and in the
(online) first semester of 2020, in which LESM was pre-
sented in different contexts, as explained in the previous
section. The first is an obligatory course attended by
undergraduate students (22 in the surveyed class) and the
second is an elective course attended by advanced un-
dergraduate and graduate students (19 in the surveyed
class). In the undergraduate course, individual home-
work assignments that made use of the LESM program,
like the exercises described in the previous section and
shown in Figures 14 and 15, represent 15% of the total
grade. However, in the graduate course, programming
assignments (also individual), extending the source code
of the LESM program (both in terms of numerical ana-
lysis and in the development of the graphical interface),
represent the entire evaluation. Although the same sur-
vey was applied to the undergraduate and graduate
courses, some questions do not apply to students in both
disciplines. For this reason, the number of respondents
varies according to the question. This survey was based
on the one suggested by Bishay [5] and it was anonymous
and ungraded as informed to the students. When ap-
plicable, students were asked to evaluate their learning
benefits on the items listed below (A–O) using a scale of
1–5 (where 1 means “very low learning,” 2 means “little
learning,” 3 means “medium learning,” 4 means “very
good learning,” and 5 means “excellent learning”).
Table 1 shows the statistics of the research results.
A. Translation of a real problem in a computer code or
in a graphics application.
B. Program development in MATLAB.
C. Development of interactive graphics program (GUI).
D. Design of a friendly and robust graphic interface.
E. Development of several versions to improve your
project.
16 | C. LOPES ET AL.

TABLE 1 Statistics of the students' responses to the O. How was the overall experience in the discipline?
assessment survey questions

Item No. of respondents Mean Max Min Variance The survey was designed as a feedback metric on the
use of the LESM program in the context of the courses, so
A 41 4.56 5 3 0.402
there is a strong relationship between the results pre-
B 19 4.68 5 4 0.228 sented and the object of study of the article, thus attesting
C 19 4.68 5 3 0.339 to the survey's internal validity. A possible threat to this
validity would be a bias of the students, who want to
D 19 4.26 5 3 0.316
avoid bad evaluations, but it is not a high risk, as the
E 41 4.15 5 2 0.578 research was anonymous.
F 41 4.37 5 3 0.638 As both groups of students are reasonably similar,
G 41 4.80 5 3 0.211 civil engineering students with little programming ex-
perience, the results may not be representative in other
H 22 4.14 5 3 0.504
scopes. But for the present survey purposes, this is not a
I 22 4.59 5 4 0.253 problem, as this is the context in which it is intended to
J 22 4.45 5 3 0.545 use LESM as an educational tool.
K 41 4.80 5 4 0.161
There are quite a few methods in the literature to
interpret the 5‐point Likert scale and to obtain statistical
L 41 4.59 5 3 0.349
results. This study adopts the traditional way. The aver-
M 19 4.63 5 3 0.357 age is an indicator of how the groups think about a given
N 41 4.54 5 3 0.305 issue, but it may not be representative in case the var-
iance is high. Therefore, the idea of the article is to pre-
O 41 4.83 5 4 0.145
sent simple results, which give indications of how groups
see the use of the LESM program and whether there is an
F. Obtaining suggestions from others (teacher and agreement between individuals (the lower the variance,
colleagues) to improve your project. the better). The minimum and maximum metrics are
G. Review of some content and concepts of engineering complementary data.
and programming. From the students' responses to the survey, it is clear
H. Understanding the methodology of the force and that the adopted educational methodology is very pro-
displacement methods of structural analysis through mising. The results shown in Table 1 illustrate broadly
homework assignments using LESM. satisfactory feedback, but some specific points stand out.
I. Usage of LESM program to deliver high‐quality One can notice that questions E and H, though well‐
assignments. evaluated, received a bit poorer response than others. The
J. Usage of LESM program to help lecturer to propose former is related to versioning of projects, which is an
more complete and elaborated classwork and important part of software development that engineering
homework. students may not be so familiarized with. In this regard,
K. One of the objectives of the course is “to motivate it is intended to present version control tools, such as Git
and engage the student to acquire knowledge that [8] and SVN [28], to future students of the computer
will be used in the future.” How do you rate the graphics course. The latter is about better understanding
discipline on this aspect? topics approached in the structural analysis course
L. One of the objectives of the course is "to motivate through homework assignments involving LESM, so this
and engage the student to become innovative, de- is an indication that there is room for improvement on
velop their graphic applications and project the be- that, such as assigning the same homework on con-
havior of their applications." How do you rate the secutive weeks but with different models and increasing
discipline on this aspect? the difficulty level. However, the two questions with the
M. One of the objectives of the course is “to motivate most positive responses are K and O, pointing out that
and engage the student to make the programming students felt motivated and confident that they were
task enjoyable and fun.” How do you rate the dis- learning skills that will be useful in the future and that
cipline on this aspect? the overall experience in the course they took was good.
N. One of the objectives of the course is “to motivate the These are the first indicatives that the advent of LESM
student to advance his knowledge in the field of to heighten students' interest in the referred courses will
structural mechanics.” How do you evaluate the be a fruitful endeavor in terms of motivation and per-
discipline on this aspect? formance. The “Fundamentals of Applied Computer
C. LOPES ET AL.
Graphics” course has undergone a major reformulation
to include MATLAB as a programming language and the
LESM program as a working environment. It is inter-
esting to mention that although this course is offered by
the Graduate Program and is an optional subject for
undergraduate students, the number of undergraduate
students enrolling in this course has increased sig-
nificantly since the reformulation of the course began.
The “Structural Analysis” course already made use of
another interactive graphics tool for modeling and ana-
lyzing structures, Ftool [22], that is limited to 2D frame
models. However, LESM allows analysis of 3D models,
helping students visualize the spatial behavior of struc-
tures, especially for grillage models. Moreover, LESM is
an open‐source program. The inclusion of LESM in this
specific course serves the purpose of exposing students to
how structural analysis software is made, providing ac-
cess to a well‐structured and fully documented program.
The authors believe that this is a valuable addition to
motivate undergraduate students to make use of pro-
gramming in their future work as engineers. This notion
is strengthened by the positive feedback obtained on
questions B, C, G, K, L, M, N, and O in the survey pre-
sented above.
8 | CONCLUSIONS
The development of this study has shown that it is
possible to create a graphical program in MATLAB that
has advanced resources for modeling structures, with
relative ease when compared with other programming
languages and environments. Creating a GUI, managing
mouse actions on a canvas, manipulating the visuali-
zation of 3D models, and modeling topologically con-
sistent structures are not trivial tasks, but the
sophisticated plotting functions, graphic resources, and
high‐level programming language of MATLAB made it
possible to deal with these topics in a simple way. To
accomplish these tasks, auxiliary OOP classes (Canvas
and Emouse) were created to assist the management of
the Axes widget and the mouse events, and simple
computational geometry strategies were adopted to deal
with some modeling issues.
The price to be paid is that MATLAB is an interpreted
language that lacks efficiency. Therefore, it is important
to optimize the code to fully explore the advantages of
this high‐level programming language with effectiveness,
especially when it comes to graphical functions. For
example, it was observed that MATLAB works much
better when using matrix operations than iteration loops
to perform multiplications of a great amount of data.
| 17
The new graphical version of the LESM program
complements the first non‐graphic version of the
program [31], without losing the focus on the educa-
tional approach, which is the main purpose of the
project. This is verified by the use of the program in
some undergraduate and graduate courses at PUC‐
Rio. Since the release of the new version, the program
has been used in several ways for teaching structural
analysis theory, computational implementation of
structural analysis methods, and basic concepts of
software development and computer graphics for en-
gineering students.
The authors also expect that providing a GUI that
includes all phases of the analysis, from modeling to
postprocessing, the program will facilitate the work of
students and also engineers, by reducing the time re-
quired for modeling and interpreting the results and,
consequently, improving productivity. In fact, with
commercial FEA packages, users can do everything that
can be done in LESM and much more, however, not so
easily. Those packages have innumerable options for
several models and analysis types that make their inter-
face and usability challenging sometimes. On the other
hand, LESM deals only with one‐dimensional elements,
which are used for simulating many structural problems,
with an interface that was designed to be simple and
intuitive, counting on high modeling capabilities.
Some implementations that are underway for future
versions of the program include new types of analysis,
such as dynamic and nonlinear, with the possibility to
plot graphs of the time/frequency response of the struc-
ture and its equilibrium path. In addition, it is expected
that the program will also be able to execute steel
structure design, according to the technical standards of
different regions.
ACKN OWLEDGMENTS
The authors would like to thank the Technical‐Scientific
Software Development Institute of PUC‐Rio (Tecgraf/
PUC‐Rio) for the space and resources provided during
the development of this study. It was financed in part by
the Coordenação de Aperfeiçoamento de Pessoal de Nível
Superior—Brasil (CAPES)—Finance Code 001.
AUTHOR CONT RIBUTIONS
Investigation, formal analysis, software implementation,
writing (original draft), and writing (review and editing):
Pedro C. Lopes. Methodology, conceptualization, formal
analysis, software implementation, writing (original draft),
and writing (review and editing): Rafael L. Rangel.
Supervision, educational methodology, data curation, and
writing (review and editing): Luiz F. Martha.
18 | C. LOPES
DATA AVAILABILITY STATEMENT
The data that support the findings of this study are openly
available on the internet site of LESM—Linear Elements
Structure Model—at www.tecgraf.puc-rio.br/lesm. There are
three options for downloading the program:
• INSTALLER: Complete installation with MATLAB
runtime library, indicated for those who have not in-
stalled MATLAB: https://www.tecgraf.puc-rio.br/ftp_
pub/lfm/LESM_v2_0_1_Installer.exe
• SOURCE CODE: Source code to run the program in
the MATLAB environment: https://www.tecgraf.puc-
rio.br/ftp_pub/lfm/LESM_v2_0_1_source_code.zip
• MATLAB APP: Packaged application to be installed in
the MATLAB environment: https://www.mathworks.
com/matlabcentral/fileexchange/69801-lesm-linear-
elements-structure-model
ORCID
Luiz F. Martha http://orcid.org/0000-0002-5783-5151
REFERENCES
1. E. Abad, M. García, R. Blázquez, C. Castejon, and J. García‐
Prada, Effects of an android app on mechanical engineering
students, Comput. Appl. Eng. Educ. 26 (2018), 1050–1057.
https://doi.org/10.1002/cae.21955
2. U. D. Ahmad, Development of a structural analysis program
(SABSM) using MATLAB featuring graphical user interface.
MSc Thesis, City Univ. London, 2013.
3. A. Andreatos and A. Zagorianos, Matlab GUI Application for
Teaching Control Systems. EDUCATION'09: Proceedings of the
6th WSEAS Internat. Conf. Engineering Educ. (P. Dondon, O.
I. Martin, A. Zaharim, V. Mladenov, Z. Bojkovic, and D. Boj-
kovic, eds.), Rhodes, Greece, 2009, pp. 208–211.
4. F. F. Bernardon, C. A. Pagot, J. L. D. Comba, and C. T. Silva, GPU‐
based tiled ray casting using depth peeling, J. Graph. Tools 11 (2006),
no. 4, 1–16. https://doi.org/10.1080/2151237X.2006.10129227
5. P. L. Bishay, “FEApps”: Boosting students' enthusiasm for coding
and app designing, with a deeper learning experience in en-
gineering fundamentals, Comput. Appl. Eng. Educ. 24 (2016),
no. 3, 456–463. https://doi.org/10.1002/cae.21723
6. P. L. Bishay, Teaching the finite element method fundamentals
to undergraduate students through truss builder and truss ana-
lyzer computational tools and student‐generated assignments
mini‐projects, Comput. Appl. Eng. Educ. 28 (2020), no. 4,
1007–1027. https://doi.org/10.1002/cae.22281
7. J. Canny, The future of human‐computer interaction, ACM Queue
4 (2006), no. 6, 24–32. https://doi.org/10.1145/1147518.1147530
8. S. Chacon, and B. Straub, Pro Git, 2nd ed., Apress, New York,
NY, 2014.
9. A. Cooper, R. Reimann, D. Cronin, and C. Noessel, About face:
the essentials of interaction design, 4th ed., John Wiley & Sons,
Hoboken, NJ, 2014.
10. B. Cox, and A. Novobilski, Object‐oriented programming: an
evolutionary approach, Addison‐Wesley, Upper Saddle River,
NJ, 1991.
ET AL.
11. M. de Berg, M. van Kreveld, M. Overmars, and O. Schwarzkopf,
Computational geometry: algorithms and applications, 3rd ed.,
Springer, 2008.
12. C. Depcik and D. Assanis, Graphical user interfaces in an en-
gineering educational environment, Comput. Appl. Eng. Educ.
13 (2005), 48–59.
13. S. L. Devadoss, and J. O'Rourke, Discrete and computational
geometry, Princeton Univ. Press, Princeton, NJ, 2011.
14. FEATool Multiphysics, available at https://www.featool.com/
15. W. O. Galitz, The essential guide to user interface design: an
introduction to GUI design principles and techniques, 2nd ed.,
John Wiley & Sons, Hoboken, NJ, 2002.
16. C. M. Hoffmann, Geometric and solid modeling: an introduc-
tion, Morgan Kaufmann Publ., Burlington, MA, 1989.
17. J. F. Hughes, A. van Dam, M. McGuire, D. F. Sklar, J. D. Foley,
S. K. Feiner, and K. Akeley, Computer graphics: principles and
practice, 3rd ed., Addison‐Wesley Professional, Boston, MA, 2013.
18. C. S. Lent, Learning to program with MATLAB: building GUI
tools, John Wiley & Sons, Hoboken, NJ, 2013.
19. C. S. Lent, J. Brockman, V. Goodrich, and K. Meyers, Teaching
MATLAB in first‐year engineering: a GUI tool directed approach.
4th First‐Year Eng. Exp. (FYEE) Conf., Pittsburgh, PA, 2012.
http://fyee.asee.org/FYEE2012/papers/1010.pdf
20. M. Mantyla, An introduction to solid modeling, W H Freeman &
Co., New York, NY, 1988.
21. S. Marschner, and P. Shirley, Fundamentals of computer gra-
phics, 4th ed., A K Peters/CRC Press, Boca Raton, FL, 2015.
22. L. F. Martha, Ftool‐Two‐dimensional Frame Analysis Tool,
available at http://www.ftool.com.br
23. L. F. Martha, Análise matricial de estruturas com orientação a
objetos (Matrix structural analysis with object orientation),
GEN LTC, Rio de Janeiro, Brazil, 2018.
24. MASTAN2, available at http://www.mastan2.com
25. W. McGuire, R. H. Gallagher, and R. D. Ziemian, Matrix
structural analysis, John Wiley & Sons, New York, 2000.
26. E. N. McKay, UI is communication: how to design intuitive, user‐
centered interfaces by focusing on effective communication,
Morgan Kaufmann, Burlington, MA, 2013.
27. J. O'Rourke, Computational geometry in C, 2nd ed., Cambridge
University Press, Cambridge, UK, 1998.
28. C. M. Pilato, B. Collins‐Sussman, and B. W. Fitzpatrick, Version
control with subversion, 2nd ed., O'Reilly Media, Sebastopol,
CA, 2008.
29. F. P. Preparata, and M. I. Shamos, Computational geometry: an
introduction, Springer, New York, NY, 1985.
30. Qt Documentation (https://doc.qt.io/).
31. R. L. Rangel and L. F. Martha, LESM—An object‐oriented
MATLAB program for structural analysis of linear element
models, Comput. Appl. Eng. Educ. 27 (2019), no. 3, 553–571.
https://doi.org/10.1002/cae.22097
32. D. F. Rogers, Procedural elements for computer graphics,
McGraw‐Hill Int. Ed., Comp. Ser., 1985.
33. D. F. Rogers, and J. A. Adams, Mathematical elements for
computer graphics, 2nd ed., McGraw‐Hill Int. Ed., Comp.
Ser., 1990.
34. M. V. B. Santana and R. A. M. Silveira, Sistema computacional
gráfico interativo para problemas de instabilidade em pórticos planos
(Interactive graphic computer system for instability problems in
plane frames). XXXV CILAMCE—35th Iberian Latin‐Am. Congr.
C. LOPES ET AL.
Computational Methods Eng. (E. Parente Jr., ed.), Fortaleza, CE,
Brazil, 2014.
35. S. R. Subramanya and A. Farahani, Point‐of‐view article on: Design
of a Smartphone App for Learning Concepts in Mathematics and
Engineering, Int. J. Innov. Sc. 4 (2012), no. 3, 173–183.
36. J. Tidwel, Designing interfaces: patterns for effective interaction
design, 2nd ed., O'Reilly Media, 2011.
37. E. D. Torres and L. F. Martha, Development of a class in the
context of OOP for generic management of mouse events in a
canvas in the MATLAB environment. XXXVIII CILAMCE—
38th Iberian Latin‐Am. Congr. Computational Methods Eng.
(P. O. Faria, R. H. Lopez, L. F. F. Miguel, W. J. S. Gomes, and
M. Noronha, eds.), Florianópolis, SC, Brazil, 2017, p. 20. https://
web.tecgraf.puc‐rio.br/~lfm/papers/Torres‐Martha‐CILAMCE2017‐
0642_078082.PDF
AUTHOR BIOGRAPHIES
Pedro C. Lopes is an MSc student in the
Institute of Computing at the Flumi-
nense Federal University (UFF). He has
a BSc degree in Civil Engineering from
UFF (2019). He was an intern in the
Tecgraf Institute at PUC‐Rio (2018–2019), where he
worked on and became a co‐author of the LESM
program. His research interests include HPC applied
to numerical methods, computer graphics, computa-
tional solid modeling, and continuum mechanics.
Rafael L. Rangel is a PhD student at
the Polytechnic University of Catalonia
(UPC), working in the International
Center for Numerical Methods in En-
gineering (CIMNE), Spain. The focus of
his research is on the simulation of fluid flow and heat
| 19
transfer over granular materials using particle‐based
methods. He received his BSc and MSc degrees in
Civil Engineering, with emphasis on computational
solid mechanics, from the Pontifical Catholic Uni-
versity of Rio de Janeiro (PUC‐Rio), Brazil, where he
developed some works on nonlinear analysis of frame
structures.
Luiz F. Martha is an Associate Profes-
sor in Civil Engineering at Pontifical
Catholic University of Rio de Janeiro
(PUC‐Rio), Brazil, and member of the
Tecgraf Institute of Technical‐Scientific
Software Development of PUC‐Rio (Tecgraf/PUC‐
Rio). He received his PhD degree in Structural
Engineering in 1989 from Cornell University, working
in the Cornell Fracture Group and in the Cornell
Program of Computer Graphics. His research interests
include Structural Analysis, Computational Me-
chanics, Educational Software, Mesh Generation,
Geometric Modeling, and Computer Graphics. He is
the author of two textbooks related to structural
analysis and has published several articles in con-
gresses and peer review journals.
How to cite this article: P. C. Lopes, R. L. Rangel,
and L. F. Martha, An interactive user interface for a
structural analysis software using computer
graphics techniques in MATLAB, Comput. Appl.
Eng. Educ. (2021), 1–21.
https://doi.org/10.1002/cae.22406
20 | C. LOPES ET AL.

APPENDIX A

MATLAB function to check the relative position between two elements

C. LOPES ET AL. | 21

APPENDIX B

Example of template source code to be completed by students
