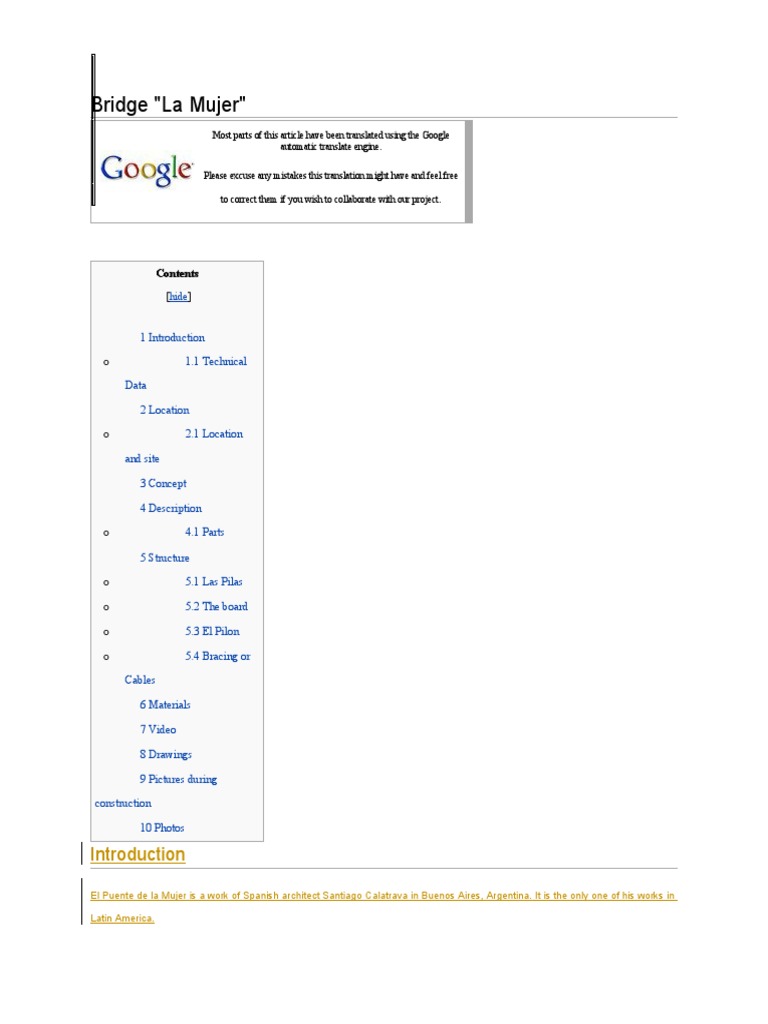

Bridge "La Mujer"
Most parts of this article have been translated using the Google
automatic translate engine.
Please excuse any mistakes this translation might have and feel free
Contents
[hide]
1 Introduction
o 1.1 Technical
Data
2 Location
o 2.1 Location
and site
3 Concept
4 Description
o 4.1 Parts
5 Structure
o 5.1 Las Pilas
o 5.2 The board
o 5.3 El Pilon
o 5.4 Bracing or
Cables
6 Materials
7 Video
8 Drawings
9 Pictures during
construction
10 Photos
Introduction
El Puente de la Mujer is a work of Spanish architect Santiago Calatrava in Buenos Aires, Argentina. It is the only one of his works in
Latin America.
The bridge components were manufactured by the company Urssa in the city of Vitoria in the Basque Country, because the steel
that was used is not manufactured in Argentina. All parts of the bridge were built in the city of Vitoria, south of Bilbao, and moved to
The cost of the work was about six million dollars that were donated by Alberto Gonzalez, who was a member of the Group and
Madero was opened December 20, 2001, at the peak of the economic and institutional crisis argentina. That is why its opening went
Technical Data
Total Length: 160 meters.
Location
It is located at Dock 3 in Puerto Madero, on the streets and Manuela Dealessi Pierina Gorriti.
His name is closely related to the area, since all the streets of Puerto Madero are named after famous women in a clear tribute that
Avenida Alicia Moreau de Justo, the commercial area to the east. Therefore presents an east-west orientation.
In its closed position, the hair is oriented toward the West, ranging south in its position of maximum aperture board.
Concept
Man, the architect, the tower and associated with women, drawn in a horizontal manner, as a partner while dancing tango.
And like most of the works are pure Calatrava structure here reflects the concept not only forms but also in the system that supports
it. So the man of the pair represents the vertically inclined arm, while the woman is represented by the horizontal board, supported
by man through a series of wires that represent the arms of the man. With all that one can almost see the couple ending their dance,
the classic moment when the woman is dropped and the man leans over her to bear all its weight to push again moments later
Description
Parts
center Needle
It is a pedestrian bridge, 160 m long and 6.20 m (5mts free) wide split into three sections: two fixed on both sides of a dam and that
rotates on a mobile pylon cone of white concrete and allows less two minutes of the passing vessels. This central section is
supported by a steel needle with the soul of cement of about 39 m in height. The needle is ready to hang it diagonally, like a
It weighs 800 tons. Has two fixed lateral sections 25 and 32.50 m and a central section and hung revolving 102.50 m. To operate
The inclined Pilon, a 34 m high with an angle of 39 degrees, it prints an original profile, and supports both the horizontal braces and
the board.
Structure
The pedestrian bridge from Dock 3, forms a kind of bridge atirantado. In parallel, thanks to its system of rotation, allowing the
shipping dock.
The width of the pedestrian bridge is 5 meters of free passage, and the central gauge is respected through a rotation mechanism
that allows rotation of the central section of approximately 100 meters at an angle of 90 °.
The distance to save is reduced by two approach bridges, located on both sides of the dam, working as the centerpiece atirantado
bridge and rotary. Through a concrete filler at the rear of the bridge, a structural balance between this area and the stretch
Las Pilas
Rotating the legs resting on a pile of white concrete central 9.40 meters in height, within which lie the mechanisms of rotation,
forming an inverted truncated cone shape of revolution, with a horizontal surface with listellos 7 inches tall supported directly on a
head 10 x 10 x 2 meters. It receives the steering head deep, composed of 8 pilot spot of 1.20 meters in diameter and 26 deep.
Both batteries have a lateral section of variable geometry formed by a ruled surface generated by a circle of 160 cm in diameter at
its base and an ellipse at its head. Were executed in white concrete, with the same solutions in terms of aesthetic listellos the
central stack. Each grounded through a triangular head and three piles of 1 meter in diameter and 26 deep.
The space between the lower level of the heads and the height of the terrain was filled with a concrete cap submerged.
The batteries have an elevation of the bridge needed for the remaining half of the board in the longitudinal direction on both sides of
The board
This element was projected straight guideline plant, capable of a light bridge between abutments of 160 meters and a maximum
height above the level of ± 0.00 to 19.50 meters, which appears to be a half from their longitudinal turning the handle up 3.5%, and a
cross slope waters of the two 1.5%, to enable optimum drainage of rainwater.
Structurally, the board was like a big metal box-beam cross section in the asymmetric rotating, helping to offset the efforts of the
tensile strained.
Fixed at the ends of approach to the revolving bridge, the board is composed of a steel box girder, forming symmetrical with respect
El Pilon
With an asymmetric variable section, the Pilon constitutes the key concept for understanding the structural and aesthetic of the
bridge.
El Pilon inclined forming an angle of 38.81 ° with respect to the horizontal, and booting from the battery 2 and a total height of 34.00
meters pylons, stands up to the crowning peak of the bridge of 35.00 m on the board.
Structurally, it consists of steel sheets with different thicknesses internal stiffeners, particularly in the shoulder straps and anchors at
its base. Along the shaft of this element, the 19 cables are available in galvanized steel 50 mm in diameter behind the board.
The anchor straps to the board is produced by the metal antepecho North, crossing each 3 meters and with a record at the bottom
of each brace for a possible change or retensado of them. At the bottom of the cables is designed protective sheath which is also
responsible for establishing the transition between the structure of the board and straps.
Finally, the stirrups are lined with white precast concrete panels from 2 meters in length and between 4 and 6 meters tall, with
header bracket listellos horizontal curve and every 27 centimeters. We included conical recesses to accommodate the lighting
systems.
Bracing or Cables
The suspenders of the bridge cables are made up of high-strength galvanized steel, of circular cross section and Z-section, showing
Materials
Pasarella Metal
All concrete elements that remain in contact with water, cement was materialized especially resistant to sulfates and sea salt in
Foundations and the three batteries that are of concrete and reinforced white. The footbridge, metal, and its rear end, concrete. The
The beam-drawer panel is made up of steel sheets of different thicknesses, both interior and plates in the longitudinal and
transverse stiffeners and the whole of the box girder, which is stagnant in the central area.
Cables and braces are of high strength galvanized steel complete the picture.
