Catalog HY14-3201/US Slip-in Cartridge Valve Covers

Technical Information Series C

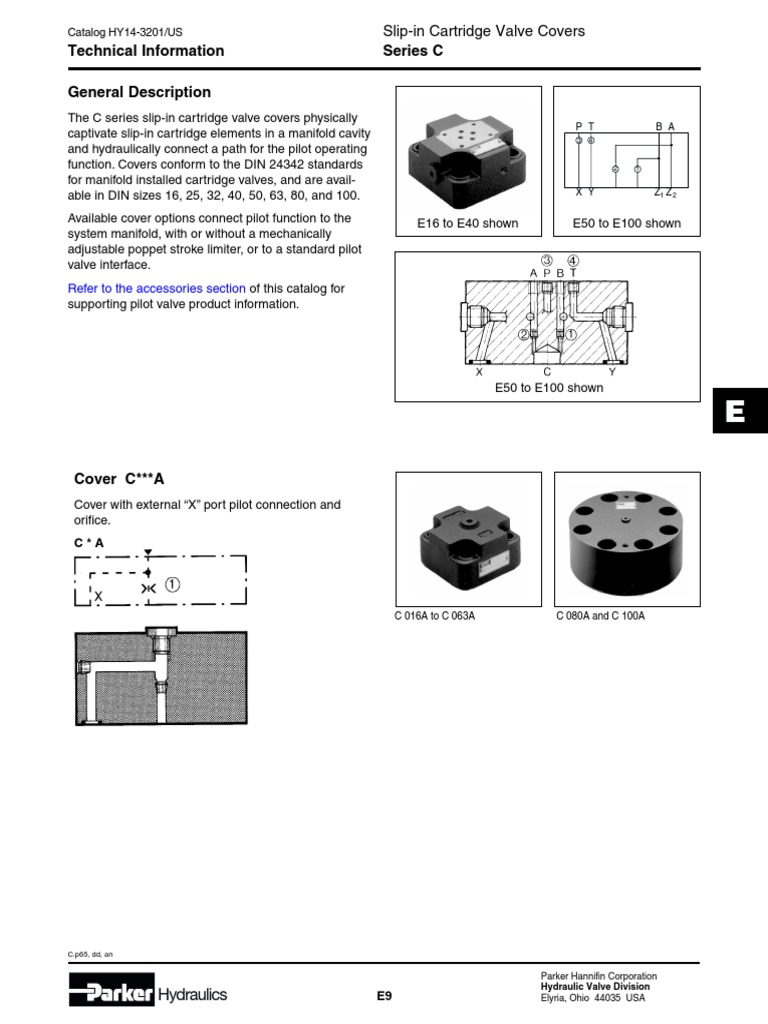

General Description
The C series slip-in cartridge valve covers physically
P T B A
captivate slip-in cartridge elements in a manifold cavity 3 4
and hydraulically connect a path for the pilot operating
function. Covers conform to the DIN 24342 standards 2 1
for manifold installed cartridge valves, and are avail-
able in DIN sizes 16, 25, 32, 40, 50, 63, 80, and 100. X Y Z1 Z 2

Available cover options connect pilot function to the E16 to E40 shown E50 to E100 shown
system manifold, with or without a mechanically
adjustable poppet stroke limiter, or to a standard pilot
valve interface.
Refer to the accessories section of this catalog for
supporting pilot valve product information.

E50 to E100 shown

Cover C***A
Cover with external “X” port pilot connection and
orifice.
C*A

C 016A to C 063A C 080A and C 100A

C.p65, dd, an

Parker Hannifin Corporation

Hydraulic Valve Division
Hydraulics E9 Elyria, Ohio 44035 USA
 Catalog HY14-3201/US Slip-in Cartridge Valve Covers
Technical Information Series C

Cover C***B
Cover with mechanically adjustable poppet stroke
limiter, external “X” port pilot connection and orifice.

1
X

C 016Bs and C 025Bs

E C 080B and C 100B C 032B to C 063B

Cover C***C
Cover interface for mounting a pilot valve with provision
for external “X” and “Y” pilot connections. Internal
provisions for fitting pilot plugs and orifices in “X”, “Y”,
“Z1”, and “Z2” passages.

C 016 to C 040
P T B A
3 4
1 2
X Y Z2 Z1

C 050 to C 100
P T B A
3 4
C 016C C 025C to C 040C
2 1
X Y Z1 Z2

C 050C and C 063C C 080C and C 100C

C.p65, dd, an

Parker Hannifin Corporation

Hydraulic Valve Division
Hydraulics E10 Elyria, Ohio 44035 USA
Catalog HY14-3201/US Slip-in Cartridge Valve Covers
Orifices and Plugs Series C

The following tables contain suggested orifice sizes for separate orifice). Select cover orifices and position by
typical applications. Both cover and cartridge element ordering code.
orifices, as well as the recommended poppet spring
Note that orifice codes refer to the actual orifice
are listed for convenience. Cover orifices are indicated
diameter in tenths of millimeters. For example, a code
in position (1), (2), (3), and (4) as shown in the sche-
“22” orifice is 2.2mm (0.086 in.) in diameter. Code “00”
matic of the cover (the poppet orifice indicated as
is a plug. Code “99” refers to no orifice installed.
position (1) in the schematic of the poppet and is a

Pressure Relief Function

Proportional solenoid operated
Nominal C*C CE CE
Size 1 2 3 4 1 Spring
CE 016 11 00 99 12 09 N
CE 025 13 00 99 14 11 N
CE 032 13 00 99 14 12 N
CE 040 14 00 99 15 13 N
CE 050 15 00 99 16 14 N
CE 063 15 00 99 16 14 N

By-Passing Function E
Nominal C*C CE CE
Pressure Relief Function Size 1 2 3 4 1 Spring
Nominal C*C CE CE CE 016 14 00 99 15 09 S
Size 1 2 3 4 1 Spring CE 025 15 00 99 16 11 S
CE 016 11 00 99 13 09 S CE 032 16 00 99 17 12 S
CE 025 13 00 99 15 11 S CE 040 17 00 99 18 13 S
CE 032 14 00 99 17 12 S CE 050 18 00 99 19 14 S
CE 040 15 00 99 18 13 S CE 063 19 00 99 20 15 S
CE 050 16 00 99 20 14 S
CE 063 17 00 99 22 15 S 3-Way Compensator Function
Nominal C*C CE CE
Sequence Function
Size 1 2 3 4 1 Spring
Nominal C*C CE CE CE 016 11 00 99 13 09 S
Size 1 2 3 4 1 Spring CE 025 13 00 99 15 11 S
CE 016 11 00 09 13 00 U CE 032 14 00 99 17 12 S
CE 025 13 00 11 15 00 U CE 040 15 00 99 18 13 S
CE 032 14 00 12 17 00 U CE 050 16 00 99 20 14 S
CE 040 15 00 13 18 00 U CE 063 17 00 99 22 15 S

C.p65, dd, an

Parker Hannifin Corporation

Hydraulic Valve Division
Hydraulics E11 Elyria, Ohio 44035 USA
 Catalog HY14-3201/US Slip-in Cartridge Valve Covers
Orifices and Plugs Series C

Performance Curves Selection of Orifice Diameters

Orifice Orifices with various diameters are available in order
inches 0.02 0.02 0.03 0.03 0.04 0.05 0.06 0.08 0.10 0.12 to obtain the required opening and closing speeds of
PSI Bar mm 0.5 0.6 0.7 0.8 1.0 1.2 1.5 2.0 2.5 3
5800 400 the cartridges.
4350 300
2900 200 The pilot flow, orifice diameter and pressure drop can
be determined on the table left.
Pressure Differential

1450 100

725 50 The values have been established at a viscosity of 40

580 40 cSt (40 mm2/s) and a temperature of 50°C (122°F).
435 30
290 20

145 10

73 5
58 4
44 3
LPM 1 2 3 4 5 10 15 20 30 40 50 100
GPM 0.3 0.5 0.8 1.1 1.3 2.6 4.0 5.3 7.9 10.6 13.2 26.5
Flow

Orifice Thread Sizes

Cover Orifice Orifice Threads
E Series
C*A
Position
1
NG 16
1/16 NPT
NG 25
1/16 NPT
NG 32
1/16 NPT
NG 40
1/8 NPT
NG 50
1/8 NPT
NG 63
1/8 NPT
NG 80
1/8 NPT
NG 100
1/8 NPT
C*B 1 M6 M6 1/16 NPT 1/16 NPT 1/16 NPT 1/8 NPT 1/8 NPT 1/8 NPT
C*C 1 M5 M5 M5 M5 M6 M6 1/16 NPT 1/16 NPT
C*C 2 M5 M5 M5 M5 M6 M6 1/16 NPT 1/16 NPT
C*C 3 M5 M6 M6 M6 M8 M8 M 10x1 M 10x1
C*C 4 M5 M6 M6 M6 M8 M8 M 10x1 M 10x1

Part Numbers vs. Thread Size and Orifice Diameters

Thread Orifice Dia. Part Thread Orifice Dia. Part Thread Orifice Dia. Part
Size mm (in.) Number Size mm (in.) Number Size mm (in.) Number
0.8 (0.03) 4 503 2199 0.8 (0.03) 4 503 2220
0.9 (0.04) 4 503 4764 0.9 (0.04) 4 503 4766 1.0 (0.04) 4 503 5533
1.0 (0.04) 4 503 2002 1.0 (0.04) 4 503 2416 1.2 (0.05) 4 503 5243
M5 1.1 (0.04) 4 503 4720 M6 1.1 (0.04) 4 503 4767 M8 1.5 (0.06) 4 503 5534
1.2 (0.05) 4 503 2238 1.2 (0.05) 4 503 2003 1.8 (0.07) 4 503 6615
1.3 (0.05) 4 503 2835 1.3 (0.05) 4 503 4768 2.0 (0.08) 4 503 5535
1.5 (0.06) 4 503 2999 1.5 (0.06) 4 503 3925 2.2 (0.09) 4 503 7411
2.0 (0.08) 4 503 2716 2.0 (0.08) 4 503 3926 2.5 (0.10) 4 503 5244

Thread Orifice Dia. Part Thread Orifice Dia. Part Thread Orifice Dia. Part
Size mm (in.) Number Size mm (in.) Number Size mm (in.) Number
0.8 (0.03) 4 503 2232
1.0 (0.04) 4 503 2001 0.9 (0.04) 4 503 3519 1.0 (0.04) 4 503 5238
1.2 (0.05) 4 503 2035 1.0 (0.04) 4 503 1042 1.2 (0.05) 4 503 2076
M10 x 1 1.5 (0.06) 4 503 5229 1/16 1.1 (0.04) 4 503 4721 1/8 1.5 (0.06) 4 503 4776
1.8 (0.07) 4 503 2693 NPT 1.2 (0.05) 4 503 1144 NPT 1.8 (0.07) 4 503 7237
2.0 (0.08) 4 503 5231 1.3 (0.05) 4 503 4769 2.0 (0.08) 4 503 2034
2.5 (0.10) 4 503 2517 1.5 (0.06) 4 503 3627 2.5 (0.10) 4 503 5235
3.0 (0.12) 4 503 2767 2.0 (0.08) 4 503 2725 3.0 (0.12) 4 503 2812

Plugs
Thread Size M5 M6 M8 M10 x 1 1/16 NPT 1/8 NPT
Part Number 500 0345 500 0348 500 0353 500 0449 102 X 1 102 X 2
C.p65, dd, an

Parker Hannifin Corporation

Hydraulic Valve Division
Hydraulics E12 Elyria, Ohio 44035 USA
Catalog HY14-3201/US Slip-in Cartridge Valve Covers
Dimensions Series C

Covers C 016A to C 100A

Inch equivalents for millimeter dimensions are shown in (**)

Gauge Port G 1/4 (1/4” BSPP)

Nominal Size C 016A C 025A C 032A C 040A C 050A C 063A C 080A C 100A
B, B Ø 65.0 (2.56) 85.0 (3.35) 102.0 (4.02) 125.0 (4.92) 140.0 (5.51) 180.0 (7.09) 250.0 (9.84) 300.0 (11.81)
L 36.0 (1.42) 45.0 (1.77) 50.0 (1.97) 60.0 (2.36) 70.0 (2.76) 85.0 (3.35) 105.0 (4.13) 120.0 (4.72)
Weight kg (lbs) 0.92 (2.0) 1.98 (4.4) 2.96 (6.6) 5.30 (11.7) 8.55 (18.9) 15.50 (34.2) 34.00 (75.0) 58.00 (127.9)
C.p65, dd, an

Parker Hannifin Corporation

Hydraulic Valve Division
Hydraulics E13 Elyria, Ohio 44035 USA
 Catalog HY14-3201/US Slip-in Cartridge Valve Covers
Dimensions Series C

Covers C 016B to C 050B

Inch equivalents for millimeter dimensions are shown in (**)

Stroke Adjustment N Stroke Adjustment S Stroke Adjustment Q and Y C 016B to C 025B

Nominal
25.0
(0.98) Size C016B C025B
B 65.0 85.0
(2.56) (3.35)
L1 36 45
(1.42) (1.77)
L2 max. 72 72
(2.83) (2.83)
L3 max. 72 72
(2.83) (2.83)
L4 max. Q=82.0 Y=100.0
(3.23) (3.94)
Weight kg 0.90 1.90
(lbs) (2.0) (4.2)
Gauge Port G 1/4"

4.0
(0.16)

Stroke Adjustment N Stroke Adjustment Y C 032B to C 050B

C 032B C 040B and C 050B Nominal
Size C 032B C 040B C 050B
25.0
(0.98)
B 102.0 125.0 140.0
(4.02) (4.92) (5.51)
L1 50.0 60.0 70.0
25.0 (1.97) (2.36) (2.76)
(0.98)
L2 48.0 50.0 50.0
(1.89) (1.97) (1.97)
L3 — 123.0 127.0
— (4.84) (5.00)
L4 141.0 — —
(5.55) — —
Weight kg 2.91 5.39 8.41
(lbs) (6.4) (11.9) (18.5)
4.0 Gauge Port G 1/4"
(0.16)

C.p65, dd, an

Parker Hannifin Corporation

Hydraulic Valve Division
Hydraulics E14 Elyria, Ohio 44035 USA
Catalog HY14-3201/US Slip-in Cartridge Valve Covers
Dimensions Series C

Covers C 63B to C 100B

Inch equivalents for millimeter dimensions are shown in (**)

65.0
(2.56)

C 063B
85.0
(3.35) Nominal
Size C 063B
Weight kg (lbs) 15.10 (33.3)
Gauge Port G 1/4 (1/4" BSPP)

180.0
(7.09)

E
4.0 180.0
(0.16) (7.09)

C 080B N C 100B N C 080B to C 100B

Normal
Size C 080B C 100B
L1 105.0 120.0
(4.13) (4.72)
L2 max. 95.0 120.0
(3.74) (4.72)
BØ 250.0 300.0
(9.84) (11.81)
Weight (kg) 34.00 60.00
(lbs) (74.8) (132.3)
Gauge Port G 1/4"

4.0
(0.16)

C.p65, dd, an

Parker Hannifin Corporation

Hydraulic Valve Division
Hydraulics E15 Elyria, Ohio 44035 USA
 Catalog HY14-3201/US Slip-in Cartridge Valve Covers
Dimensions Series C

Covers C 016C to C 040C

Inch equivalents for millimeter dimensions are shown in (**)

C 016C

40.0
(1.57)

65.0
(2.56)

E
79.0
Gauge Port M
(3.11)
Weight 1.0 kg (2.2 lbs)
C 025C, 023C, 040C

4.0
(0.16)

Nominal Size C 025C C 032C C 040C Nominal Size C 025C C 032C C 040C
B 85.0 (3.35) 102.0 (4.02) 125.0 (4.92) L 45.0 (1.77) 50.0 (1.97) 60.0 (2.36)
Gauge Port G 1/4" Weight kg (lbs) 1.90 (4.2) 2.90 (6.4) 5.30 (11.7)
C.p65, dd, an

Parker Hannifin Corporation

Hydraulic Valve Division
Hydraulics E16 Elyria, Ohio 44035 USA
Catalog HY14-3201/US Slip-in Cartridge Valve Covers
Dimensions Series C

Covers C 050C to C 100C

Inch equivalents for millimeter dimensions are shown in (**)

C 050C and C 063C

E
4.0
(0.16)

C 080C and C 100C

4.0
(0.16)

Nominal Size C 050C C 063C C 080C C 100C

Nominal Size C 050C C 063C C 080C C 100C L 70.0 85.0 105.0 120.0
B, B Ø 140.0 180.0 250.0 300.0 (2.76) (3.35) (4.13) (4.72)
(5.51) (7.09) (9.84) (11.81) Weight kg (lbs) 8.5 15.3 34.0 60.0
Gauge Port G 1/4" (18.7) (33.7) (75.0) (132.3)
C.p65, dd, an

Parker Hannifin Corporation

Hydraulic Valve Division
Hydraulics E17 Elyria, Ohio 44035 USA
 Catalog HY14-3201/US Slip-in Cartridge Valve Covers
Service Parts Series C

Spare Parts
Position Part Number
Nr. Description CE016 CE025 CE032 CE040 CE050 CE063 CE080 CE100
O-Ring Nitrile N 552-90 5000902 5000904 5000905 5000931 5000931 5000935 5000973 5000973
**16 Fluorocarbon V 747-90 5001012 5001014 5001015 5001035 5001035 5001039 5001068 5001068
2-010 2-012 2-013 2-112 2-112 2-116 2-215 2-215
O-Ring Fluorocarbon 5001036 5001036 5001033 5001037 5001037 5001041 5001048 5001090
34 2-213 2-113 2-110 2-114 2-114 2-118 2-125 2-129
backup ring N 300-90 5001135 5001135 5001143
35 8-113 8-113 — — — — — 8-129
O-Ring Nitrile N 552-90 5000943 5000943 5000943
36 Fluorocarbon V 747-90 5001047 5001047 5001047 — — — — —
2-124 2-124 2-124 — — — — —

37 Glyd Ring — — 5001262* — — — — —

O-Ring Nitrile N 552-90 5000932
38 Fluorocarbon V 747-90 — — 5001036 — — — — —
— — 2-113 — — — — —

* S 55043-0100-10
** Cover Code "A" – 1x, Code "B" – 1x, Code "C" – 4x

C.p65, dd, an

Parker Hannifin Corporation

Hydraulic Valve Division
Hydraulics E18 Elyria, Ohio 44035 USA
Catalog HY14-3201/US Slip-in Cartridge Valve Covers
Ordering Information Series C

Cover Unit Nominal Variation Stroke 1 2 3 4 Seals Design

Size Adjustment Series
Not
required
Orifices and Position for ordering

Code Description Code Description

016 NG16 A Without stroke adjustment Code Description Code Description

025 NG25 N Adjustment screw and locknut 00 Closed N Nitrile

Q* Knob with lock 99 Open
032 NG32 V Fluorocarbon
S** Knob with ratchet Code Orifice Diameter
040 NG40 Y Knob with ratchet and 10E lock 08* 0.8 mm (0.03 in.)
050 NG50 * Not for sizes 63 to 100. 20* 2.0 mm (0.08 in.)
** Not for sizes 32 to100.
063 NG63 * Note:
Orifice codes refer to the
Code Description
080 NG80 actual orifice diameter in
A With port "X" for external piloting tenths of millimeters. For
1001) NG100
1) Use 1 1/4-7 x 5.5
B
C
As "A" with stroke adjustment
For fitting of pilot function
example, a code “22”
orifice is 2.2 mm (0.086 E
in.) in diameter.
Mounting bolts
(BK90) Refer to the “Orifices and
Plugs” page of this section
for application guidelines
and available orifice sizes.

Accessories
Refer to the Accessories section for bolt kits.

C.p65, dd, an

Parker Hannifin Corporation

Hydraulic Valve Division
Hydraulics E19 Elyria, Ohio 44035 USA
