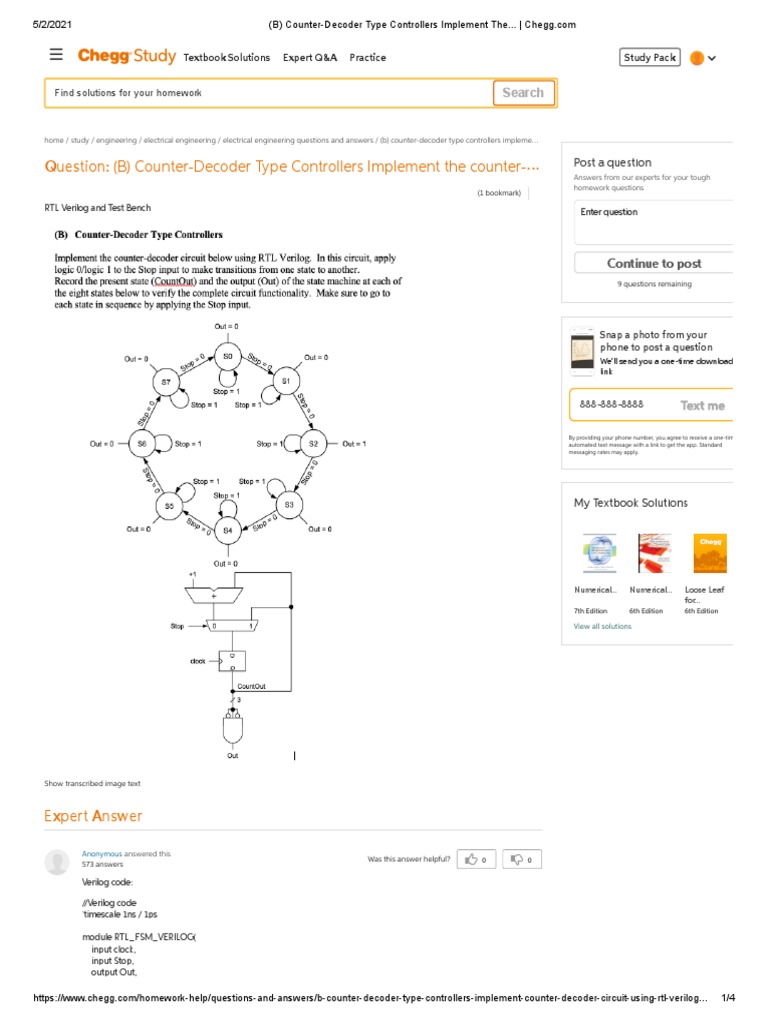

Question: (B) Counter-Decoder Type Controllers Implement the counter-… Post a question
Answers from our experts for your tough
homework questions
(1 bookmark)

RTL Verilog and Test Bench Enter question

Continue to post
9 questions remaining

Snap a photo from your

phone to post a question
We'll send you a one-time download
link

888-888-8888 Text me

By providing your phone number, you agree to receive a one-tim

automated text message with a link to get the app. Standard
messaging rates may apply.

My Textbook Solutions

Numerical... Numerical... Loose Leaf

for...
7th Edition 6th Edition 6th Edition

View all solutions

Show transcribed image text

Expert Answer

Anonymous answered this

Was this answer helpful? 0 0
573 answers

Verilog code:

//Verilog code
`timescale 1ns / 1ps

module RTL_FSM_VERILOG(
input clock,
input Stop,
output Out,

https://www.chegg.com/homework-help/questions-and-answers/b-counter-decoder-type-controllers-implement-counter-decoder-circuit-using-rtl-verilog… 1/4
5/2/2021 (B) Counter-Decoder Type Controllers Implement The... | Chegg.com
output [3:0] CountOut
 
); Textbook Solutions Expert Q&A Practice Study Pack 

//internal registers
//as we have 8 states , we need atleast 4 bits to store state value
reg [3:0] PS=4'd0; // PS => Present state, it is initialized to S0
wire [3:0] NS; //NS => Next

//D ip op for fsm

always @ (posedge clock)
PS <= NS;

//adder circuit => add's 1 to PS => PS1 = PS +1.

wire [3:0] PS1;
assign PS1 = PS + 4'd1;

//select NS based on Stop signal // 2 to 1 mux

assign NS = Stop ? PS : (PS == 4'd7) ? 4'd0: PS1;
// NS = PS when stop = 1
//else when stop = 0
// if PS = 7 then NS = 0.
// else NS = PS1

//output's
assign CountOut = PS; //state count
assign Out = ( PS == 4'b0010) ? 1'b1 : 1'b0; //Out = 1 only in state 2

endmodule
//code ends

test bench:

//Test bench
`timescale 1ns / 1ps

module TB_RTL_FSM_VERILOG();
reg clock;
reg Stop;
wire Out;
wire [3:0] CountOut;
//uut
RTL_FSM_VERILOG R1 (
.clock(clock),
.Stop(Stop),
.Out(Out),
.CountOut(CountOut)
);

//clock generation

initial begin
clock=1'b0; //50 MHz clock
forever #10 clock=!clock; //clock period=20ns
end

//stimulus

initial begin
Stop = 1;
#15 Stop = 0;
#25 Stop = 1;
#15 Stop = 0;
#25 Stop = 1;
#15 Stop = 0;
#25 Stop = 1;
#15 Stop = 0;
#25 Stop = 1;
#15 Stop = 0;
#25 Stop = 1;
#15 Stop = 0;
#25 Stop = 1;
#15 Stop = 0;
#25 Stop = 1;
#15 Stop = 0;
#25 Stop = 1;
#15 Stop = 0;
#25 Stop = 1;
#15 Stop = 0;
#25 Stop = 1;
#15 Stop = 0;
#25 Stop = 1;
https://www.chegg.com/homework-help/questions-and-answers/b-counter-decoder-type-controllers-implement-counter-decoder-circuit-using-rtl-verilog… 2/4
5/2/2021 (B) Counter-Decoder Type Controllers Implement The... | Chegg.com
#15 Stop = 0;
 
#25 Stop = 1;
#15 Stop = 0;
Textbook Solutions Expert Q&A Practice Study Pack 

#20 $ nish;
end
endmodule
//test bench ends

//OUTPUT WAVEFORMS

***END

Make a comment in comment's section if you have any doubt.

please upvote if you are satis ed with the answer.
