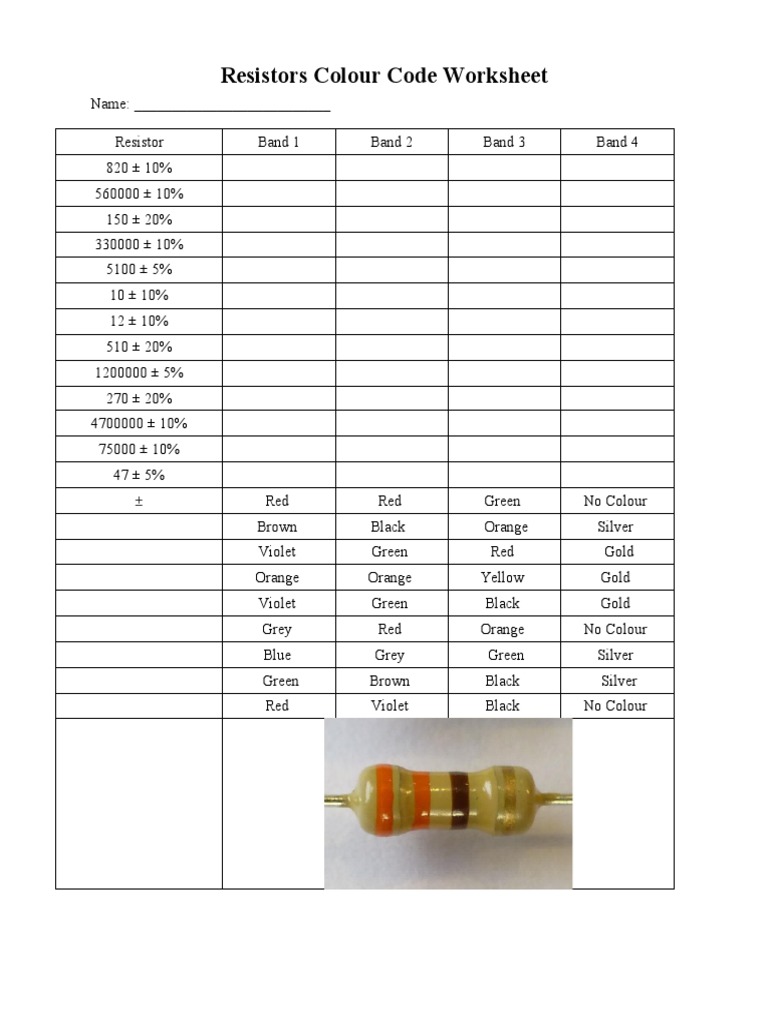

    Resistors Colour Code Worksheet

    Name: __________________________

    Resistor Band 1 Band 2 Band 3 Band 4


    820 ± 10%
    560000 ± 10%
    150 ± 20%
    330000 ± 10%
    5100 ± 5%
    10 ± 10%
    12 ± 10%
    510 ± 20%
    1200000 ± 5%
    270 ± 20%
    4700000 ± 10%
    75000 ± 10%
    47 ± 5%
    ± Red  Red  Green  No Colour
    Brown  Black    Orange Silver
    Violet  Green  Red   Gold
    Orange  Orange  Yellow  Gold
    Violet  Green  Black  Gold
    Grey  Red  Orange  No Colour
    Blue  Grey   Green Silver
     Green Brown  Black   Silver
    Red  Violet  Black  No Colour

    Resistor Colour Code Chart
    BAND 1 BAND 2 BAND 3 (Multiplier)
    BLACK 0 0 1 (100)
    BROWN 1 1 10 (101)
    RED 2 2 100 (102)
    ORANGE 3 3 1 000 (103)
    YELLOW 4 4 10 000 (104)
    GREEN 5 5 100 000 (105)
    BLUE 6 6 1 000 000 (106)
    VIOLET 7 7 10 000 000 (107)
    GRAY 8 8 100 000 000 (108)
    WHITE 9 9 1 000 000 000 (109)
    Tolerance: No colour 20%, Silver 10%, Gold 5%.
