WA600-1 S/N 10001-UP (Overseas Version)

@@41177@

Ref 2531 Page 060140

WA600-1 S/N 10001-UP (Overseas Version)

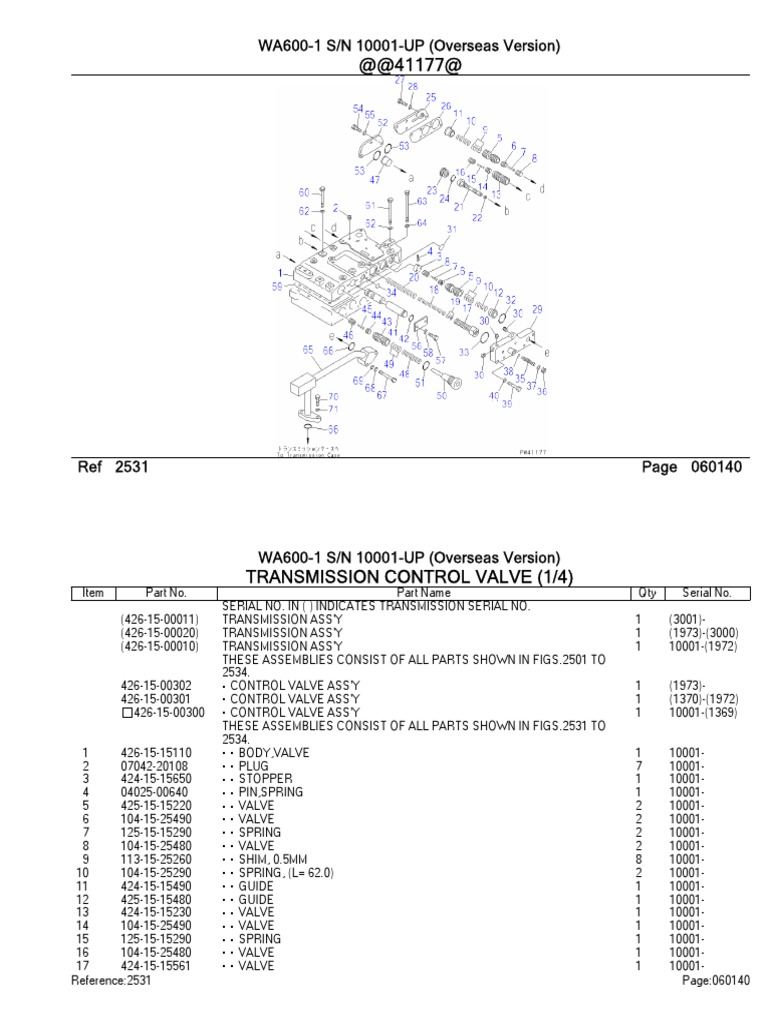

TRANSMISSION CONTROL VALVE (1/4)
Item Part No. Part Name Qty Serial No.
SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO.
(426-15-00011) TRANSMISSION ASS'Y 1 (3001)-
(426-15-00020) TRANSMISSION ASS'Y 1 (1973)-(3000)
(426-15-00010) TRANSMISSION ASS'Y 1 10001-(1972)
THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2501 TO
2534.
426-15-00302 CONTROL VALVE ASS'Y 1 (1973)-
426-15-00301 CONTROL VALVE ASS'Y 1 (1370)-(1972)
426-15-00300 CONTROL VALVE ASS'Y 1 10001-(1369)
THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2531 TO
2534.
1 426-15-15110 BODY,VALVE 1 10001-
2 07042-20108 PLUG 7 10001-
3 424-15-15650 STOPPER 1 10001-
4 04025-00640 PIN,SPRING 1 10001-
5 425-15-15220 VALVE 2 10001-
6 104-15-25490 VALVE 2 10001-
7 125-15-15290 SPRING 2 10001-
8 104-15-25480 VALVE 2 10001-
9 113-15-25260 SHIM, 0.5MM 8 10001-
10 104-15-25290 SPRING, (L= 62.0) 2 10001-
11 424-15-15490 GUIDE 1 10001-
12 425-15-15480 GUIDE 1 10001-
13 424-15-15230 VALVE 1 10001-
14 104-15-25490 VALVE 1 10001-
15 125-15-15290 SPRING 1 10001-
16 104-15-25480 VALVE 1 10001-
17 424-15-15561 VALVE 1 10001-
Reference:2531 Page:060140
 WA600-1 S/N 10001-UP (Overseas Version)
TRANSMISSION CONTROL VALVE (1/4)
Item Part No. Part Name Qty Serial No.
18 424-15-16170 SPRING, (L=118.0) 1 10001-
19 424-15-16410 SHIM, 0.5MM 6 10001-
20 424-15-16161 SPRING, (L=145.66) 1 10001-
425-15-00210 VALVE ASS'Y 1 10001-
21 VALVE 1 10001-
22 01310-00606 SCREW 1 (3342)-
125-15-11230 PLUG 1 10001-(3341)
23 424-15-15290 STOPPER 1 10001-
24 07000-72021 O-RING (K3) 1 10001-
25 424-15-15860 COVER 1 10001-
26 424-15-15931 GASKET (K3) 1 (3222)-
424-15-15930 GASKET (K3) 1 10001-(3221)
27 01010-50820 BOLT 5 10001-
28 01643-30823 WASHER 5 10001-
29 426-15-15870 COVER 1 10001-
30 07042-20108 PLUG 3 10001-
31 07000-72021 O-RING (K3) 1 10001-
32 07000-73030 O-RING (K3) 1 10001-
33 07000-73035 O-RING (K3) 1 10001-
34 07000-72015 O-RING (K3) 1 10001-
35 424-15-15840 PLUG 1 10001-
36 01580-11008 NUT 1 10001-
37 01643-31032 WASHER 1 10001-
38 07000-71009 O-RING (K3) 1 10001-
39 01010-50840 BOLT 5 10001-
40 01643-30823 WASHER 5 10001-
41 424-15-15711 SPACER 1 10001-
42 07000-72021 O-RING (K3) 1 10001-
43 424-15-15340 VALVE 1 10001-
44 104-15-25490 VALVE 1 10001-
45 125-15-15290 SPRING 1 10001-
46 104-15-25480 VALVE 1 10001-
47 425-15-15490 GUIDE 1 10001-
48 145-14-33731 SPRING, (L= 70.0) 1 10001-
49 113-15-25260 SHIM, 0.5MM 7 10001-
50 425-15-15510 PLUG 1 10001-
51 07002-03034 O-RING (K3) 1 10001-
52 424-15-15880 COVER 1 10001-
53 07000-73030 O-RING (K3) 2 10001-
54 01010-50820 BOLT 3 10001-
55 01602-20825 WASHER,SPRING 3 10001-
56 424-15-15870 PLATE 1 10001-
57 01010-50820 BOLT 2 10001-
58 01643-30823 WASHER 2 10001-
59 428-15-15980 GASKET (K3) 1 10001-
( 426-15-15980) GASKET (K3) 1 (10001-(1949))
60 01010-51070 BOLT 2 10001-
61 01011-51025 BOLT 3 10001-
62 01643-31032 WASHER 5 10001-
63 01011-51050 BOLT 8 10001-
64 01643-31032 WASHER 8 10001-
65 426-15-15950 TUBE 1 10001-
66 07000-73025 O-RING (K3) 2 10001-
67 01010-50875 BOLT 2 10001-
68 01602-20825 WASHER,SPRING 2 10001-
69 01643-30823 WASHER 2 10001-
70 01010-51030 BOLT 2 10001-
71 01602-21030 WASHER,SPRING 2 10001-

Reference:2531 Page:060140
