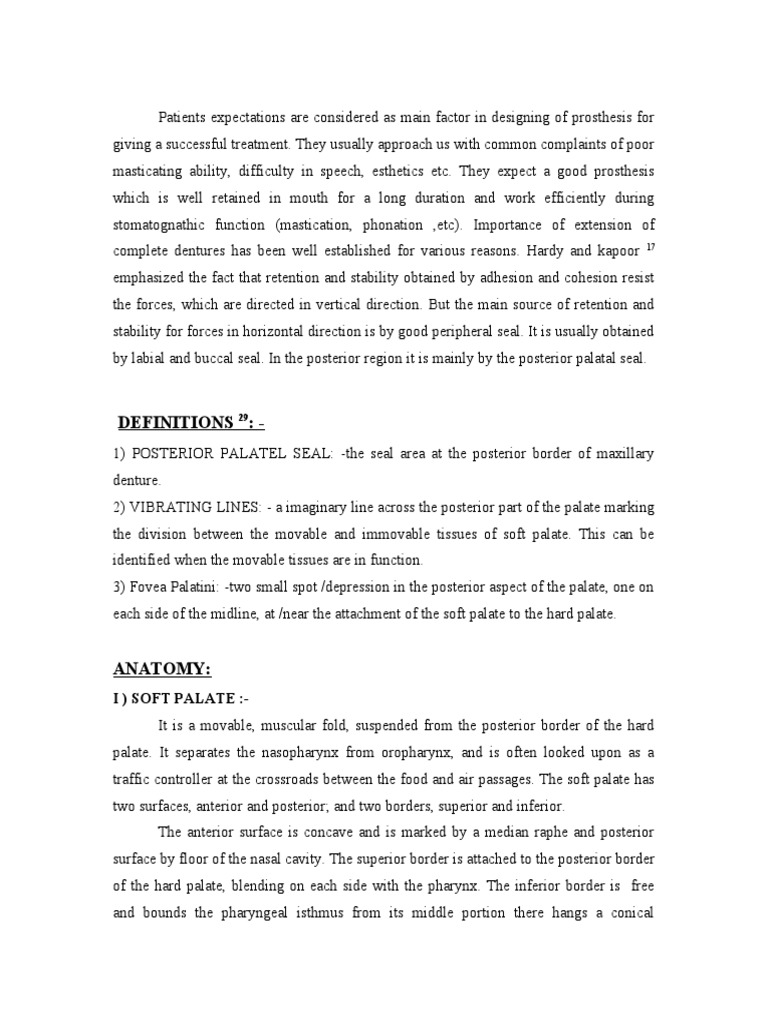

giving a successful treatment. They usually approach us with common complaints of poor
masticating ability, difficulty in speech, esthetics etc. They expect a good prosthesis
which is well retained in mouth for a long duration and work efficiently during
stomatognathic function (mastication, phonation ,etc). Importance of extension of
17
complete dentures has been well established for various reasons. Hardy and kapoor
emphasized the fact that retention and stability obtained by adhesion and cohesion resist
the forces, which are directed in vertical direction. But the main source of retention and
stability for forces in horizontal direction is by good peripheral seal. It is usually obtained
by labial and buccal seal. In the posterior region it is mainly by the posterior palatal seal.
DEFINITIONS 29: -
1) POSTERIOR PALATEL SEAL: -the seal area at the posterior border of maxillary
denture.
2) VIBRATING LINES: - a imaginary line across the posterior part of the palate marking
the division between the movable and immovable tissues of soft palate. This can be
identified when the movable tissues are in function.
3) Fovea Palatini: -two small spot /depression in the posterior aspect of the palate, one on
each side of the midline, at /near the attachment of the soft palate to the hard palate.
ANATOMY:
I ) SOFT PALATE :-
It is a movable, muscular fold, suspended from the posterior border of the hard
palate. It separates the nasopharynx from oropharynx, and is often looked upon as a
traffic controller at the crossroads between the food and air passages. The soft palate has
two surfaces, anterior and posterior; and two borders, superior and inferior.
The anterior surface is concave and is marked by a median raphe and posterior
surface by floor of the nasal cavity. The superior border is attached to the posterior border
of the hard palate, blending on each side with the pharynx. The inferior border is free
and bounds the pharyngeal isthmus from its middle portion there hangs a conical
projection ,called the uvula. From each side of the base of uvula, two curved folds of
mucous membrane extend laterally and downwards. The anterior fold is called the
Platoglassal arch (anterior pillar of fauces). It contains the Palatoglossus muscle and
reaches the side of tongue at the junction of its oral and pharyngeal parts. This fold forms
the lateral boundary of the Oropharyngeal isthmus (isthmus of fauces). The posterior fold
is called Palatopharyngeal arch (posterior polar of fauces).
The soft palate is a fold of mucous membrane containing the following parts.
Palatal aponeurosis
Muscles
Mucous glands
Taste buds
Muscles of soft palate: -
1) TENSOR VELI PALATINI: - it is a flat thin triangular muscle. It takes its origin from
scaphoid fossa, spine of sphenoid, lateral wall of auditory tube. It inserts into coil
around hamular notch and attach into palatine aponeurosis. It mainly helps in
tightening of soft palate.
2) LEVATO VELI PALATINE: - it is thick round muscle. Its origin is from petrous part
of temporal bone, medial aspect of auditory tube. It finally meets the muscle of the
opposite side and forms a sling .It helps in raising soft palate and closes oropharynx.
3) PALATOGLOSSUS: -it takes its origin from oral surface of palatine aponeurosis and
insets into tongue. It mainly assists in closing of isthmus facium during deglutition.
4) PALATOPHARYNGEUS: - arises as 2 fasciculus’s- posterior fasiculi arises from
palatine aponeurosis and anterior fasiculi from posterior border of hard palate. It
inserts into lamina of thyroid cartilage, wall of the pharynx and its median raphe. It
helps in pulling up the wall of pharynx shortens it during swallowing.
5) MUSCULUS UVULAE: -it is a bilateral structure. It arises from posterior nasal spine
of palatine bone, palatine aponeurosis. It inserts into mucosa of uvulae and helps in
pulling contracting uvulae upwards.
Nerve supply of soft palate:-
1) MOTOR .N:- all the muscles of soft palate are supplied by pharyngeal plexus of
accessory nerve except tensor veli palatine which is supplied by mandibular nerve.
2) GENRAL SENSORY :- by palatine nerve of maxillary nerve and glossopharyngeal.
3) SPECIAL SENSORY : - lesser palatine n(branch of facial nerve)
4) SECRETOMOTOR NERVE : - lesser palatine nerve (facial nerve )
Blood Supply: - soft palate is mainly supplied by maxillary a, facial a, ascending
pharyngeal a.
PTERYGOMAXILLARY SEAL
It extends through Pterygomaxillary notch continuing 3-4 mm anterolaterally,
approximating the mucogingival junction. It occupies entire width of hamular notch
(loose connective tissue lying between Pterygoid Hamulus of the sphenoid bone and
distal portion of maxillary tuberosity). The notch is covered by pterygomaxillary fold
(extend from posterior aspect of tuberosity to retromaolar pad). This fold influences the
posterior border seal if mouth is wide open during final impression procedure.
ANTOLINO COLON et al (1982) 15 performed analysis of PPS and the palatal form as
related to the retention of complete dentures. Retention of complete dentures is related to
–factors of impression surface, factors of occlusal surface, factors related to polished
surface.
The authors evaluated the retentive value of different types of PPS and the effect
of palatal form on retention of complete dentures. They evaluated the retention of
complete denture at 3 different points anterior, middle and posterior with 3 different
palatal seal from (no palatal seal, 0.5 mm scribed lines, scrapping of cast at vibrating
lines). The maximum forces applied was 17 lb. It was found that:-
Anterior attachment needed the greatest amount of force to dislodge the base, the
posterior attachment needed the least.
Middle attachment showed more variability of forces needed to dislodge the bases. It
was influenced by the form of the palate, the type of PPS and weight of the bases.
The middle location is the most reliable region for testing of c.d.
The form of palate has direct influence on retention of c.d and will aid in the selection
of type of PPS (as the base angle increases less force was required to dislodge the
base)
As the base angle increase less need for an extended PPS.
The difference in the force required to dislodge denture with and without PPS was
statistically significant in anterior region, which is most important because during
speech and mastication anterior teeth may come in contact.
PARAMETERS OF PPS
Posterior palatal seal has specific characteristics with different parameters viz:-
1) Size.
2) Shape
3) Location
4) Displacibility.
1)Size :- HARDY AND KAPOOR (1958) claimed that on an average, the dimension of
PPS was 2mm at the midpalatal region and hamular notch and 4mm at the greatest
curvature region of PPS. But wide range of variation was also found.
SILVERMAN23 performed a study on 92 patients evaluating the PPS clinically
radiographically, histologically and he found the following findings:-
The greatest mean anteroposterior width of PPS is 8.0 mm (with 5-12 mm of range).
The mean width was found to be different for right (8.2mm) and left side (8.1mm).
The interhamular notch was found to be 35.8 mm (25-48mm range)
The interhamular notch distance was found to be different for males (37.1mm) and
females (35.6mm)
24
2) Shape Of Pps: - ROGER WINLAND, JOHN .M. YOUNG (1975) performed a
survey to evaluate the forms of shapes of PPS used in various schools of United States in
1975. They found that five different forms of PPS were commonly used:
Single bead scribed on the posterior vibrating line.
Double line scribed in the anterior and posterior vibrating line.
Butterfly shaped PPS.
Butterfly shaped PPS with notching of posterior vibrating line.
Butterfly shaped PPS with notching of Hamular notch.
Variations used with different shaped soft palate based on the classification.
Class I –a butterfly shaped PPS with 3-4 mm wide.
Class II – PPS is narrow with 2-3 mm of width.
Class III – a single beading made on the posterior vibrating line.
3) Location :- location of PPS is not consistent and show lot of variation but on an
average anterior vibrating line is 1.31 mm distal to fovea palatini .
4) Displacement /Compressibility:-lot of variation has been found within the PPS . But
low compressibility has been observed in midpalatal raphe and hamular notch region.
High compressibility has been in the lateral part of cupids bow. It variation depends on
the form of palatal vault: -
Class I palate –shallow PPS.
Class II palate – medium PPS
Class III palate – deep PPS.
But how much is the question and remained unanswered?
GLAZIER (1980) established a definite relation between height of ridge and PPS.
Various other features of palate which may affect PPS are –taper of residual ridge, arch
shape, arch size, depth, breath and length.
JOHNSON (1987) 19: - evaluated the distortion of PPS in complete denture fabricated for
various palatal forms after processing. They found that
The increasing order of distortion due to processing error- v-shaped palate <u-shaped
palate <flat palates.
Opening of PPS after processing was from hamular notch to hamular notch in flat
palate. In case of u and v shaped palate the opening starts from the midpalatal suture
region to 2/3 rd the distance.
8
2) INVESTMENT MEDIUM: - SYKORA.O, SUTOW.E.J (1996) compared high
expansion dental stone with type III dental stone (buff stone ) with respect to
adaptation of PPS. High expansion dental stone produced a better adaptation of PPS
than Type III dental stone.
3) CURING METHOD: - the cause of dimensional change of PPS are:
Polymerization shrinkage (8 vol%).
Linear shrinkage during cooling (0.44%).
Differences in co-efficient of linear expansion of resin and gypsum lead to
formation of internal stress.
SULORE.O, SUTOW.E.J (1993) found that continuous injection technique exhibited
least opening at PPS as compared to conventional trial packing method.
GAYLE.A.L et al (2001):-33 advised use of anchored polymerization technique which
showed significant reduction in marginal gap (0.3- 0.1mm) at palatal region.
4) DENTURE BASE THICKNESS: - the effect of thickness of denture base on pps has
been interpreted with contradictory statements:-
WOELFEL (1960)- “ Thin maxillary dentures distort more than thick ones. It occurs
mainly due to inability of weaker denture bases to resist deformation”.
B. LEVIN -advices use of thin denture base for class I soft palate(pps is not deep but
wide-so thin denture base lead to more deformation) and thicker denture base for class III
soft palate(pps is deep but not wide so use of thick denture base is not critical), medium
thickness for class II soft palate.
5) EFFECT OF HEAD POSITION ON PPS: -
SILVERMANN (1971)- described the effect of head on the PPS recording. The
impression of soft palate should be in its most functionally depressed position. The
maximum depression (downward and forward position) of the soft palate will be recorded
when the FH plane is 300 below the horizontal plane and tongue is firmly positioned
against the mandibular anterior teeth. A properly positioned maxillary tray handle can
serve as a substitute for missing incisors. At no time should the patient protrude the
tongue beyond the approximated position of the incisal edges, as this will foreshorten the
posterior border of the final impression. The head and tongue position translate the
mandible anteriorly. The soft palate will then be passively brought downward and
forward due to the indirect attachments of the mandible and the insertion of the
palatoglossus muscle into the side of the tongue. Flexion of the head also contributes to
moving excess impression material and saliva out of the mouth, rather than progressively
down the pharynx, while maintaining the 300 flexion of the head and anterior tongue
position, the pt is asked to rotate the head so that all functional positions of the soft palate
are recorded.
I) CONVENTIONAL APPROACH: -
1. WINKLER – ask patient to have astringent mouthwash (to remove stringy saliva) &
keep his head upright. Dry the PPS area with gauge and palpate for Hamular process
using T-burnisher /mouth mirror. Mark them with indelible pencil and make sure denture
does not cover them. T-burnisher is passed along posterior angle of maxillary tuberosity
until it drops into pterygomaxillary notch (do not confuse with depression found on
residual ridge usually found at times). Extend the mark from pterygomaxillary notch 3-4
mm anterolateral to maxillary tuberosity approximating mucogingival junction. This
completes marking of pterygomaxillary seal. Ask patient to say “ ah” in short bursts, in
unexaggerated fashion. Observe movement of soft palate and mark posterior vibrating
line, and then connect it to pterygomaxillary seal. Advice patient not to close mouth (to
prevent smudging of markings). The resin /shellac tray is then inserted into the mouth
and seated firmly into tray and transfer markings on master cast by placing it into cast.
Later trim excess found on tray.
Mark anterior vibrating line using
a) T-burnisher (by checking the compressibility in width and depth) –usually
termination of glandular tissue usually coincides with anterior vibrating line
b) Valsalva meanuer: - place special tray in mouth and get the markings on tray which is
later transferred to master cast.
The area of cast before the anterior and posterior vibrating lines is usually narrow in
mid-palatal region due to the presence of posterior nasal spines.
Master cast is scored using a Kinsley scraper. Deepest area of seal is located on
either side of midline (1/3rd distance from posterior vibrating line). It is scrapped
approximately 0.5-1.0 mm (due to limited compressibility) within out line of cupids bow.
Scrape cast to a depth of about ½ the amount to which the palatal tissue in that area can
be compressed. Then add additional amount of resin on tray over scraped area and try-in
patients mouth asking him to say ‘ah’, then check for gap between tray and soft palate. If
gap is found then repeat scrapping till adequate seal is attained.
Advantage: -
a) Highly retentive trial bases give good jaw relation.
b) Give psychlogical confidence to patient that retention will not be a problem in final
denture.
c) Dentist is able to determine the retention of final denture.
d) Patient will be able to realize the posterior extent of denture, which may ease the
adjustment period.
Disadvantages: -
a) Not physiological technique and therefore depends upon accurate transfer of viability
line and careful scrapping.
b) Potential for over compression is great /high.
III) ULTRASOUND11: -
Ultrasound refers to sound with frequencies higher than the audible range (20-
20,000 Hz). Sound is a form of mechanical energy propagated in form of waves (series of
condensations and rarefactions) through a medium by motion of particles within the
medium. For medical applications 1 Mhz-20 Mzh are used for non-diagnostic medical
application <1 Mhz are used.
Parts of ultrasound apparatus: -
1. Ultrasound transducer (synthetic ceramic material with piezoelectric properties)
2. Couplant –medium for transmitting ultrasound, as air is poor conductor of sound.
3. Monitor-usually B-mode monitor is used (displays the amplitude of echoes from
anatomic cross section of patient).
Physical effects of ultrasound: -Ultrasonic effects are non-ionizing (do not have
sufficient energy to displace electrons from orbital shell. High-energy ultrasound can
cause burning of tissue (not commonly seen with range of medical use).
Indications:-
1. Patients with only class I, II type of palates as type III palate prevent complete
adaptation of transducer.
Contraindication: -
1. Patients with neuromuscular impairments.
2. Pronounced gag reflex.
Procedure: -
Miniature transducer (10 Mhz linear array) is used along with a real time B-mode
to view image of soft tissue. Mark PPS using conventional method. Place a thin rubber
rd
band on anterior 1/3 of transducer, which serves as an index that would appear in
monitor. Toothpaste is used as a couplant. The transducer is taken intro oral cavity &
initially moved posteriorly to the left of midline to locate hard and soft palate junction.
Once the rubber band is visualized on post vibrating line, there was no display and a
Polaroid picture was made. Then it was moved to right side of palate. The average
distance of posterior vibrating line from junction of hard and soft palate is 2-9mm with
4-6mm wide PPS.
MING SHEH CHEN ET AL (1985) 13: - conducted a survey to evaluate the concepts of
PPS being taught. They found that: -
1. A combination of clinical methods was most frequently taught for locating the
vibrating line.
2. The phonation of the “ah” sound was the most popular single method taught for
locating the vibrating line.
3. Seventy –five percent of the dental schools taught that there is one vibrating line per
person.
4. The posterior flexion line was related to the distal termination of the maxillary
denture by dental schools that teach the concept of two vibrating lines.
5. Most dental schools (teach students to carve the PPS on the maxillary master cast.
6. Most dental schools do not use the fovea palatini for locating the distal termination of
the maxillary denture.
7. Most dental schools take the compressibility of the palatal tissue into consideration
when carving the depth of PPS in maxillary master cast.
8. The butterfly pattern was most frequently described to carve the posterior palatal seal
in the maxillary master cast.
2) OVEREXTENTION:-
It mainly occurs due to overzealous extension of denture base for increased retention by
dentist cause physiological violation of soft palate musculature. It mainly shows with
symptoms of :-Mucosal ulcerations
Painful swallowing
Physiological violation of soft palate muscle
Sharp pain if pterygoid hamulus is covered.
It can be managed by selectively relieving the pressure areas and decrease the
distal length.
4) OVER POSTDAMMING:-
Commonly occur due to aggressive scraping of cast. If it occurs in
pterygomaxillary seal the denture is displace downward. If moderate over postdamming
is present then mild irritation is found. It can be overcome by selectively relieving
denture border with a carbide bur, followed by light pumicing.
5) MUCOUS RETENTION CYST: -ELLIS (1995)7 Described a clinical report of
mucous retention cyst occurred due to over extended denture border.
Clinical management:-
a) Surgical :- Lesslie reported a surgical technique to relieve gagging for the patients
unable to tolerate dentures .The basis for this technique stems from the observation that
persistent gagging results from an atonic and relaxed soft palate rests back on the
pharyngeal wall. This produces a tendency to gagging and nausea that often results in
vomiting. To correct this situation lesslie advocated a surgical intervention to shorten and
tighten the soft palate on healing. The surgery also involved the removal of the uvula;
which was a little longer than normal.
b) Prosthodontic:- to avoid substandard impressions because of gagging, borkin outlines
an impression technique for edentulous patients. It provides greater control of setting
time and discrepancies can be corrected easily. A primary impression is made by use of
stick tray and red modeling compound. The secondary impressions obtained by pouring
kerr impression wax (kerr mfg,co, romuus ,mich) in the tray. The pliable nature of the
wax allows reseating of the tray and border molding until desirable results are obtained.
A technique that employs ordinary marbles was reported by singer as an effective
approach to overcome a patient’s inability to tolerate complete dentures. At the first
appointment the patient is asked to place five marbles in the mouth continuously for one
week except when eating and sleeping. At the second appointment, after one week the
patients ability to tolerate the marbles is evaluated, and he is reassured that he would be
able to tolerate dentures. At the third visit, the primary impression is taken. At the fourth
visit, the lower tray is inserted along with the three marbles in the mouth and a training
bead is placed on the lingual aspect of the lower tray to maintain proper tongue positon.
During the fifth visit, the use of the marble is discontinued and at the sixth visit, jaw
relations are recorded , while the dentures are being constructed the patient continues to
wear the upper and lower base trays in lieu of carrying the marbles. The complete
dentures are inserted in the seventh visit. According to singers marble technique the
patient’s motivation is an indispensable component.
c) Radiographic:- to minimize problems in obtaining dental radiographs in gagging
patients, Richards suggested the use of fast speed film, present the timer, moisten the film
pack and the patients is advised to rinse the mouth with cold water.
d) Psyclologic:- effective method to reduce gagging is diverting the patients attention
from the gagging stimuli. When making impression, Linda recommended manipulating
the oral facial tissues more for psyclologic reasons than for border molding. He also
recommended talking to patient, explaining the critical nature of accurate impressions.
When inserting new dentures, landa suggested that the dentist-engage the patient
in conversation on some topic of special interest, (or) have the patient count rapidly up to
50-100 (or) have the patient read a loud.
Kovats reported a technique that has the patient breathe audible through the nose
and at the same time, rhythmically tap the right foot on the floor. By concentrating on
these activities the patients attention may be diverted away from the gagging stimuli.
A similar technique was described by krol. To divert attention, the patient
instructed to raise his/her muscles become increasingly fatigued, more and more
conscious effect is required to hold the leg up and the patient has difficulty carrying on
conversation, intraoral procedures may be attempted.
Faigenblum discussed that evidences exists that vomiting is impossible during
apnea. To control gagging patient is instructed to prolong the expiratory effort at the
expense of inspiration. This will produce a state of apnea and discourage gagging.
Faigenblum also proposed that a well-reseated and relaxed patient with an empty stomach
is less likely to gag.
Prosthodontic management:-
Prosthodontic approaches to the patient with the gagging problem involve
technical modification to render the prosthesis more acceptable to the patient . No
alteration, in fixed or removable partial prosthesis, has been reported in the literature to
solve a gagging problem. Excess thickness, over extension or inadequate post dam should
be corrected before more radical modifications in the prosthesis are made.
The smooth, shiny surface of a complete denture is objectable to some patients.
From his clinical experiences, jordan suggested that a matt finish dentures are more
acceptable to patients than a glossy surfaced/well polished dentures. In contrast to
Jordan’s recommendation, feintuch described a technique that after extractions, the
smoothly polished base tray was given to the patient to insert at home. After 2 weeks of
tolerating the toothless base tray, impressions are made. Subsequent appointments were
uneventful.
Krol had discussed the importance of freeway space (interocclusal distance) to the
gag reflex. He determined that the interocclusal distance was inadequate in more than 100
patients with serious gagging. Interocclusal distance was increased by dentures when the
discrepancy was gross. In all instances, an increase in the interocclusal distance restored
the gagging problem. In hypersensitive palate in prosthetic patient, bay combined a over
denture principle with a modification in the shape pf the denture base, soft reline material
was used to engage threaded post in the overlaid teeth. Additionally, the palatal section of
the upper denture remained open, bay claimed excellent retention, reduced bulk and
resolution of the patient-gagging problem.
Pharmacologic measures:-
When clinical and prosthodontic procedures are ineffective , a number of
pharmacological agents have been described as useful in controlling and limiting the
gagging reflex .The drugs used to control gagging may be classified as peripherally
acting or centrally acting drugs .
I) Peripherally acting dugs: -are topically and local anesthetics. They may be applied
in the form of spray, gels or lozenges or by injection. The effectiveness of these agents in
limited to use in those patients who demonstrate only a minor gagging problem. Success
in unlikely with the sever gaggers. The rationale for the use of these drugs is that if the
afferent impulses from sensitive oral tissues are eliminated, the reflex of gagging will not
take place. This procedure /approach may work well to help a gagging patient through a
particular procedure, such as radiograph or impressions .it must be recognized that the
use of these locally acting agents does not provide a long time solution.
Kavotas experienced success in making a maxillary impression by spraying the
entire palate with a topical anaesthetic lincoln injected 10 ml of 190 proof alcohol into
the soft tissue approximately 4mm distal to the lesser palatine foramen ,this causes a
slight sensation of fullness in the pharyngeal wall. The effect of the alcohol is reported to
wear off after a few months.
Appleby and day reported that common table salt can minimize the gag reflex. Salt is
placed on the tongue or in liberal amounts on the palatal region of the denture ,salt may
help gagging patients tolerate complete dentures.
II) Centrally acting drugs:-Centrally acting drugs which eliminate the gag reflex may be
categorized as antihistamines, sedatives and tranquilizer, parasymptholytics and central
nervous system depressants.
Saunder reported the use of intravenous Valium for the problem gaggers. Kramer and
braham recommended the intramuscular injection of jphenergan(wyeth lab’s
philedelphia) and nisentil (roche laboratories). The phenergan exerts a strong
antihistamine ,antisalivary and antiemetic effect. Nisentil provides a strong sedative
effect.
Only one clinical evaluation drug (tigan, beecham laboratories , bristol )as antigagging
agent was found in the dental literature. Prior research on this drug indicated successful
relief of nausea and vomiting in a number of conditions including pregnancy, motion
sickness and labyrinthitis.
Psycologic intervention:- some patient’s difficulty with gagging may be the result of
psychologic stimuli.
I) Hypnosis has been used as a tool to deal with the psychologic etiology of
gagging. Results are described as generally successful. One study states that a
patient (gagger) underwent nine hypnosis sessions before of the time involved,
hypnosis would not be considered a practical approach by many practioners of
patients.
II) Behavioral therapy /modification techniques have been used to treat and control a
variety of hysterical disorders including gagging.
