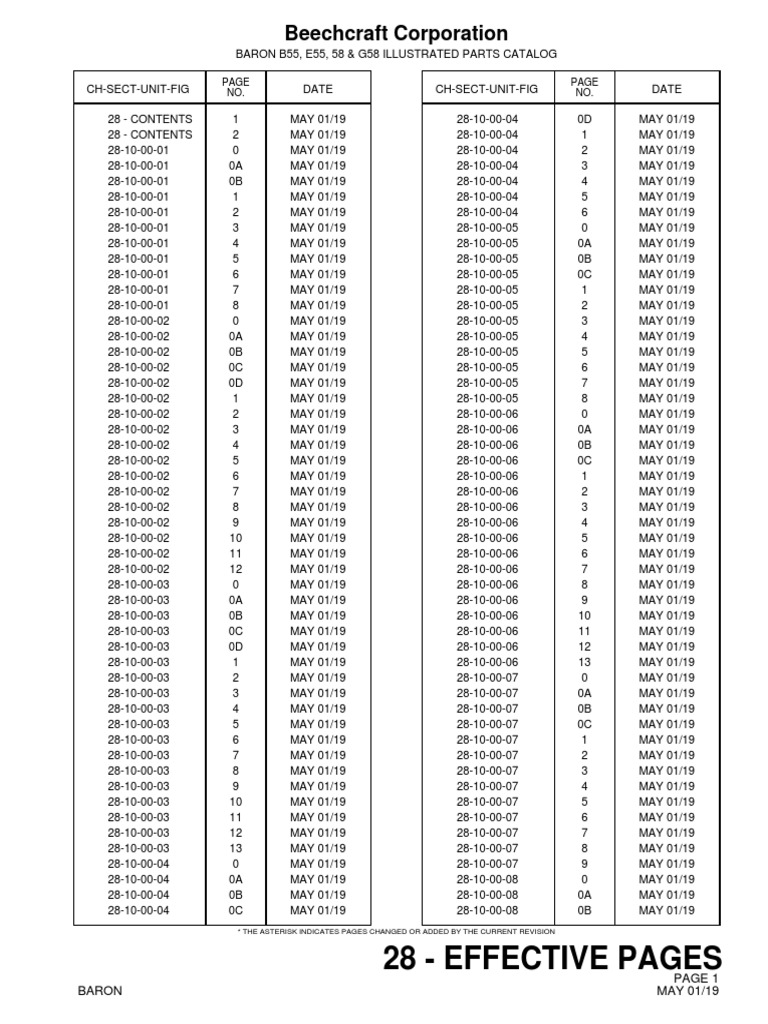

28 - Effective Pages: Beechcraft Corporation

Beechcraft Corporation
BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG
PAGE PAGE
CH-SECT-UNIT-FIG NO. DATE CH-SECT-UNIT-FIG NO. DATE
28 - CONTENTS 1 MAY 01/19 28-10-00-04 0D MAY 01/19

28 - CONTENTS 2 MAY 01/19 28-10-00-04 1 MAY 01/19
28-10-00-01 0 MAY 01/19 28-10-00-04 2 MAY 01/19
28-10-00-01 0A MAY 01/19 28-10-00-04 3 MAY 01/19
28-10-00-01 0B MAY 01/19 28-10-00-04 4 MAY 01/19
28-10-00-01 1 MAY 01/19 28-10-00-04 5 MAY 01/19
28-10-00-01 2 MAY 01/19 28-10-00-04 6 MAY 01/19
28-10-00-01 3 MAY 01/19 28-10-00-05 0 MAY 01/19
28-10-00-01 4 MAY 01/19 28-10-00-05 0A MAY 01/19
28-10-00-01 5 MAY 01/19 28-10-00-05 0B MAY 01/19
28-10-00-01 6 MAY 01/19 28-10-00-05 0C MAY 01/19
28-10-00-01 7 MAY 01/19 28-10-00-05 1 MAY 01/19
28-10-00-01 8 MAY 01/19 28-10-00-05 2 MAY 01/19
28-10-00-02 0 MAY 01/19 28-10-00-05 3 MAY 01/19
28-10-00-02 0A MAY 01/19 28-10-00-05 4 MAY 01/19
28-10-00-02 0B MAY 01/19 28-10-00-05 5 MAY 01/19
28-10-00-02 0C MAY 01/19 28-10-00-05 6 MAY 01/19
28-10-00-02 0D MAY 01/19 28-10-00-05 7 MAY 01/19
28-10-00-02 1 MAY 01/19 28-10-00-05 8 MAY 01/19
28-10-00-02 2 MAY 01/19 28-10-00-06 0 MAY 01/19
28-10-00-02 3 MAY 01/19 28-10-00-06 0A MAY 01/19
28-10-00-02 4 MAY 01/19 28-10-00-06 0B MAY 01/19
28-10-00-02 5 MAY 01/19 28-10-00-06 0C MAY 01/19
28-10-00-02 6 MAY 01/19 28-10-00-06 1 MAY 01/19
28-10-00-02 7 MAY 01/19 28-10-00-06 2 MAY 01/19
28-10-00-02 8 MAY 01/19 28-10-00-06 3 MAY 01/19
28-10-00-02 9 MAY 01/19 28-10-00-06 4 MAY 01/19
28-10-00-02 10 MAY 01/19 28-10-00-06 5 MAY 01/19
28-10-00-02 11 MAY 01/19 28-10-00-06 6 MAY 01/19
28-10-00-02 12 MAY 01/19 28-10-00-06 7 MAY 01/19
28-10-00-03 0 MAY 01/19 28-10-00-06 8 MAY 01/19
28-10-00-03 0A MAY 01/19 28-10-00-06 9 MAY 01/19
28-10-00-03 0B MAY 01/19 28-10-00-06 10 MAY 01/19
28-10-00-03 0C MAY 01/19 28-10-00-06 11 MAY 01/19
28-10-00-03 0D MAY 01/19 28-10-00-06 12 MAY 01/19
28-10-00-03 1 MAY 01/19 28-10-00-06 13 MAY 01/19
28-10-00-03 2 MAY 01/19 28-10-00-07 0 MAY 01/19
28-10-00-03 3 MAY 01/19 28-10-00-07 0A MAY 01/19
28-10-00-03 4 MAY 01/19 28-10-00-07 0B MAY 01/19
28-10-00-03 5 MAY 01/19 28-10-00-07 0C MAY 01/19
28-10-00-03 6 MAY 01/19 28-10-00-07 1 MAY 01/19
28-10-00-03 7 MAY 01/19 28-10-00-07 2 MAY 01/19
28-10-00-03 8 MAY 01/19 28-10-00-07 3 MAY 01/19
28-10-00-03 9 MAY 01/19 28-10-00-07 4 MAY 01/19
28-10-00-03 10 MAY 01/19 28-10-00-07 5 MAY 01/19
28-10-00-03 11 MAY 01/19 28-10-00-07 6 MAY 01/19
28-10-00-03 12 MAY 01/19 28-10-00-07 7 MAY 01/19
28-10-00-03 13 MAY 01/19 28-10-00-07 8 MAY 01/19
28-10-00-04 0 MAY 01/19 28-10-00-07 9 MAY 01/19
28-10-00-04 0A MAY 01/19 28-10-00-08 0 MAY 01/19
28-10-00-04 0B MAY 01/19 28-10-00-08 0A MAY 01/19
28-10-00-04 0C MAY 01/19 28-10-00-08 0B MAY 01/19
* THE ASTERISK INDICATES PAGES CHANGED OR ADDED BY THE CURRENT REVISION
28 - EFFECTIVE PAGES
PAGE 1
BARON MAY 01/19
PAGE PAGE
CH-SECT-UNIT-FIG NO. DATE CH-SECT-UNIT-FIG NO. DATE
28-10-00-08 1 MAY 01/19 28-20-00-03 5 MAY 01/19

28-10-00-08 2 MAY 01/19 28-20-00-03 6 MAY 01/19
28-10-00-08 3 MAY 01/19 28-20-00-03 7 MAY 01/19
28-10-00-08 4 MAY 01/19 28-20-00-03 8 MAY 01/19
28-10-00-08 5 MAY 01/19 28-20-00-03 9 MAY 01/19
28-10-00-08 6 MAY 01/19 28-20-00-04 0 MAY 01/19
28-10-00-08 7 MAY 01/19 28-20-00-04 0A MAY 01/19
28-10-00-09 0 MAY 01/19 28-20-00-04 0B MAY 01/19
28-10-00-09 0A MAY 01/19 28-20-00-04 0C MAY 01/19
28-10-00-09 1 MAY 01/19 28-20-00-04 0D MAY 01/19
28-10-00-09 2 MAY 01/19 28-20-00-04 1 MAY 01/19
28-10-00-09 3 MAY 01/19 28-20-00-04 2 MAY 01/19
28-10-00-10 0 MAY 01/19 28-20-00-04 3 MAY 01/19
28-10-00-10 1 MAY 01/19 28-20-00-04 4 MAY 01/19
28-20-00-01 0 MAY 01/19 28-20-00-04 5 MAY 01/19
28-20-00-01 0A MAY 01/19 28-20-00-04 6 MAY 01/19
28-20-00-01 0B MAY 01/19 28-20-00-04 7 MAY 01/19
28-20-00-01 0C MAY 01/19 28-20-00-05 0 MAY 01/19
28-20-00-01 1 MAY 01/19 28-20-00-05 0A MAY 01/19
28-20-00-01 2 MAY 01/19 28-20-00-05 0B MAY 01/19
28-20-00-01 3 MAY 01/19 28-20-00-05 0C MAY 01/19
28-20-00-01 4 MAY 01/19 28-20-00-05 0D MAY 01/19
28-20-00-01 5 MAY 01/19 28-20-00-05 1 MAY 01/19
28-20-00-01 6 MAY 01/19 28-20-00-05 2 MAY 01/19
28-20-00-01 7 MAY 01/19 28-20-00-05 3 MAY 01/19
28-20-00-01 8 MAY 01/19 28-20-00-05 4 MAY 01/19
28-20-00-01 9 MAY 01/19 28-20-00-05 5 MAY 01/19
28-20-00-01 10 MAY 01/19 28-20-00-05 6 MAY 01/19
28-20-00-01 11 MAY 01/19 28-20-00-05 7 MAY 01/19
28-20-00-02 0 MAY 01/19 28-20-00-05 8 MAY 01/19
28-20-00-02 0A MAY 01/19 28-20-00-06 0 MAY 01/19
28-20-00-02 0B MAY 01/19 28-20-00-06 1 MAY 01/19
28-20-00-02 0C MAY 01/19 28-25-00-01 0 MAY 01/19
28-20-00-02 1 MAY 01/19 28-25-00-01 1 MAY 01/19
28-20-00-02 2 MAY 01/19 28-25-00-01 2 MAY 01/19
28-20-00-02 3 MAY 01/19 28-25-00-01 3 MAY 01/19
28-20-00-02 4 MAY 01/19 28-25-00-02 0 MAY 01/19
28-20-00-02 5 MAY 01/19 28-25-00-02 1 MAY 01/19
28-20-00-02 6 MAY 01/19 28-25-00-02 2 MAY 01/19
28-20-00-02 7 MAY 01/19 28-25-00-02 3 MAY 01/19
28-20-00-02 8 MAY 01/19 28-25-00-02 4 MAY 01/19
28-20-00-02 9 MAY 01/19 28-25-00-03 0 MAY 01/19
28-20-00-02 10 MAY 01/19 28-25-00-03 1 MAY 01/19
28-20-00-03 0 MAY 01/19 28-25-00-03 2 MAY 01/19
28-20-00-03 0A MAY 01/19 28-25-00-03 3 MAY 01/19
28-20-00-03 0B MAY 01/19 28-25-00-03 4 MAY 01/19
28-20-00-03 0C MAY 01/19
28-20-00-03 0D MAY 01/19
28-20-00-03 1 MAY 01/19
28-20-00-03 2 MAY 01/19
28-20-00-03 3 MAY 01/19
28-20-00-03 4 MAY 01/19
* THE ASTERISK INDICATES PAGES CHANGED OR ADDED BY THE CURRENT REVISION
28 - EFFECTIVE PAGES
PAGE 2
BARON MAY 01/19
CHAPTER 28 - FUEL
TABLE OF CONTENTS
CHAPTER
SECTION
SUBJECT UNIT FIGURE EFFECT
STORAGE 28-10-00
FUEL STORAGE AND INTERCONNECT 28-10-00 01 H0001-H0384
FUEL STORAGE AND INTERCONNECT 28-10-00 02 C1608-C1969
C1971-C2002
E0938-E0938
E0943-E1080
E1082-E1083
H0385-H0765
H0767-H0772
FUEL STORAGE AND INTERCONNECT 28-10-00 03 C1970-C1970
C2003-C9999
E1081-E1081
E1084-E9999
H0766-H0766
H0773-H1468
FUEL STORAGE AND INTERCONNECT 28-10-00 04 H1469-H9999
FUEL STORAGE AND INTERCONNECT, WET WING TIP INSTL, 28-10-00 05 H0669-H0669
OPTIONAL H0680-H9999
FUEL STORAGE VENT SYSTEM 28-10-00 06 C1608-C9999
E0938-E0938
E0943-E9999
H0001-H1468
FUEL STORAGE VENT SYSTEM 28-10-00 07 H1469-H9999
FUEL STORAGE VENT, WET WING TIP 28-10-00 08 H0669-H0669
H0680-H9999
FUEL CAP AND ADAPTER 28-10-00 09 C1608-C9999
E0938-E0938
E0943-E1201
H0001-H1450
FUEL CAP AND ADAPTER 28-10-00 10 E1202-E9999
H1451-H9999
DISTRIBUTION 28-20-00
FUEL DISTRIBUTION 28-20-00 01 C1608-C1969
C1971-C2002
E0938-E0938
E0943-E1080
E1082-E1083
FUEL DISTRIBUTION 28-20-00 02 H0001-H0765
H0767-H0772
FUEL DISTRIBUTION 28-20-00 03 C1970-C1970
C2003-C9999
E1081-E1081
E1084-E9999
H0766-H0766
H0773-H9999
FUEL DISTRIBUTION, WET WING TIP 28-20-00 04 H0669-H0669
H0680-H9999
28 - CONTENTS
PAGE 1
BARON MAY 01/19
CHAPTER 28 - FUEL
TABLE OF CONTENTS
CHAPTER
SECTION
SUBJECT UNIT FIGURE EFFECT
FUEL VALVE ASSEMBLIES 28-20-00 05 C1608-C9999

E0938-E0938
E0943-E9999
H0001-H9999
FUEL FILTER 28-20-00 06 C1608-C9999
E0938-E0938
E0943-E9999
H0001-H9999
FUEL SELECTOR VALVE CONTROL 28-25-00 01 C1608-C1969
C1971-C2002
E0938-E0938
E0943-E1080
E1082-E1083
FUEL SELECTOR VALVE CONTROL 28-25-00 02 H0001-H0765
H0767-H0772
FUEL SELECTOR VALVE CONTROL 28-25-00 03 C1970-C1970
C2003-C9999
E1081-E1081
E1084-E9999
H0766-H0766
H0773-H9999
28 - CONTENTS
PAGE 2
BARON MAY 01/19
28-10-00-01
FUEL STORAGE AND INTERCONNECT
28-10-00-01
BARON MAY 01/19

SHEET 1 OF 3
28-10-00-01
PAGE 0
MAY 01/19

SHEET 2 OF 3
28-10-00-01
PAGE 0A
MAY 01/19

SHEET 3 OF 3
28-10-00-01
PAGE 0B
MAY 01/19
FIG UNITS
NOMENCLATURE USABLE PER
PART NUMBER ON CODE
ITEM 1234567 ASSY
01 FUEL STORAGE AND INTERCONNECT

-5 58-920000 FUEL SYSTEM INSTL-STANDARD, FE RF
142 GAL. CAPACITY
FOR OTHER SYS DETAILS SEE:
73-10-00-02
FOR ADDITIONAL DETAILS SEE:
28-10-00-06
28-20-00-02
-5 58-920000-1 FUEL SYSTEM INSTL-OPTIONAL, FE RF
172 GAL. CAPACITY
73-10-00-02
28-10-00-06
28-20-00-02
15 58-380030-7 . FUEL CELL-40 GAL. FE 1
CAPACITY, LH INBD 142
AND 172 GAL. SYSTEM
ALTERNATE SPARE:
58-380030-9
15 58-380030-9 . FUEL CELL-40 GAL. FE 1
AND 172 GAL. SYSTEM
SPARES REPLACEMENT FOR:
58-380030-1
ALTERNATE SPARE:
58-380030-7
-25 58-380030-8 . FUEL CELL-40 GAL. FE 1
CAPACITY, RH INBD 142
AND 172 GAL. SYSTEM
ALTERNATE SPARE:
58-380030-10
-25 58-380030-10 . FUEL CELL-40 GAL. FE 1
CAPACITY, RH INBD 142
AND 172 GAL. SYSTEM
58-380030-2
ALTERNATE SPARE:
58-380030-8
35 58-380003-1 . FUEL CELL-31 GAL. A 1
CAPACITY, LH WING BOX
SECT, 172 GAL. SYSTEM
ALTERNATE SPARE:
58-380003-9
FOR SPARES ORDER:
58-380003-5
35 58-380003-9 . FUEL CELL-31 GAL. A 1
ALTERNATE SPARE:
58-380003-1
FOR SPARES ORDER:
58-380003-5
MISSING ITEM NO. NOT APPLICABLE

- ITEM NOT ILLUSTRATED
28-10-00-01
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
35 58-380003-5 . FUEL CELL-31 GAL. FE 1
58-380003-1
58-380003-9
-45 58-380003-2 . FUEL CELL-31 GAL. A 1
CAPACITY, RH WING BOX
ALTERNATE SPARE:
58-380003-10
FOR SPARES ORDER:
58-380003-6
-45 58-380003-10 . FUEL CELL-31 GAL. A 1
ALTERNATE SPARE:
58-380003-2
FOR SPARES ORDER:
58-380003-6
-45 58-380003-6 . FUEL CELL-31 GAL. FE 1
58-380003-2
58-380003-10
55 58-380003-3 . FUEL CELL-31 GAL. A 1
ALTERNATE SPARE:
58-380003-11
FOR SPARES ORDER:
58-380003-7
55 58-380003-11 . FUEL CELL-31 GAL. A 1
ALTERNATE SPARE:
58-380003-3
FOR SPARES ORDER:
58-380003-7
55 58-380003-7 . FUEL CELL-31 GAL. FE 1
58-380003-3
58-380003-11
-65 58-380003-4 . FUEL CELL-31 GAL. A 1
ALTERNATE SPARE:
58-380003-12
FOR SPARES ORDER:
58-380003-8

28-10-00-01
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
-65 58-380003-12 . FUEL CELL-31 GAL. A 1
ALTERNATE SPARE:
58-380003-4
FOR SPARES ORDER:
58-380003-8
-65 58-380003-8 . FUEL CELL-31 GAL. FE 1
58-380003-4
58-380003-12
75 58-380004-1 . FUEL CELL-13 GAL. A 1
CAPACITY, LH OUTBD,
172 GAL. SYSTEM
ALTERNATE SPARE:
58-380004-5
FOR SPARES ORDER:
58-380004-3
75 58-380004-5 . FUEL CELL-13 GAL. A 1
CAPACITY, LH OUTBD,
172 GAL. SYSTEM
ALTERNATE SPARE:
58-380004-1
FOR SPARES ORDER:
58-380004-3
75 58-380004-3 . FUEL CELL-13 GAL. FE 1
CAPACITY, LH OUTBD,
172 GAL. SYSTEM
58-380004-1
58-380004-5
-85 58-380004-2 . FUEL CELL-13 GAL. A 1
CAPACITY, RH OUTBD,
172 GAL. SYSTEM
ALTERNATE SPARE:
58-380004-6
FOR SPARES ORDER:
58-380004-4
-85 58-380004-6 . FUEL CELL-13 GAL. A 1
CAPACITY, RH OUTBD
172 GAL. SYSTEM
ALTERNATE SPARE:
58-380004-2
FOR SPARES ORDER:
58-380004-4
-85 58-380004-4 . FUEL CELL-13 GAL. FE 1
CAPACITY, RH OUTBD,
172 GAL. SYSTEM
58-380004-2
58-380004-6
95 002-920012-53 . INTERCONNECT-INBD L.E. FE 2
CELL TO BOX SECT. CELL
28-10-00-01
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
-100 WWD82 . CLAMP FE 4
FOR SPARES ORDER:
9440
-100 9440 . CLAMP FE 4
WWD82
-105 MS21266-2N . GROMMET FE 2
110 002-920012-25 . VALVE ASSY-FUEL CHECK FE 2
FOR DETAILS SEE:
28-20-00-05
CELL TO BOX SECT. CELL
120 002-920012-53 . INTERCONNECT-OUTBD L.E. FE 2
CELL TO BOX SECT. CELL,
172 GAL. SYSTEM
125 96-100016-225 . TUBE ASSY-INDB L.E. CELL FE 4
TO OUTBD L.E. CELL
-130 AN737TW26-30 . CLAMP FE 12
135 106200G8-22 . HOSE FE 2
140 106200G8-12 . HOSE FE 2
145 58-920000-83 . PLUG-142 GAL. SYSTEM FE 2
150 58-920023-1 . TUBE-142 GAL. SYSTEM FE 2
-155 AN737TW22 . CLAMP-142 GAL. SYSTEM FE 2
FOR SPARES ORDER:
132742-22TL
-155 132742-22TL . CLAMP-142 GAL. SYSTEM FE 2
AN737TW22
160 60-920000-209 . HOSE-172 GAL. SYSTEM FE 2
165 96-920001-87 . TUBE ASSY-FUEL DRAIN, LH FE 1
BOX SECT. CELL
-170 96-920001-88 . TUBE ASSY-FUEL DRAIN, RH FE 1
BOX SECT. CELL
175 AN737TW22 . CLAMP FE 8
FOR SPARES ORDER:
132742-22TL
175 132742-22TL . CLAMP FE 8
AN737TW22
180 CCA4850 . VALVE-FUEL DRAIN, BOX FE 2
SECTION CELL
-185 CCA-1269 . . SEAL FE 1
-190 AN822-4D . ELBOW FE 2
FOR SPARES ORDER:
AS5195D0402
MS20822-4D
-190 MS20822-4D . ELBOW FE 2
FOR SPARES ORDER:
AS5195D0402
-190 AS5195D0402 . ELBOW FE 2
AN822-4D
MS20822-4D
-195 AN960-1D . COUPLING FE 2
200 60-920000-9 . TUBE ASSY-FUEL SUPPLY, LH FE 1
28-10-00-01
PAGE 4
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
-205 60-920000-10 . TUBE ASSY-FUEL SUPPLY, RH FE 1
210 60-921013 . CELL OUTLET-FUEL FE 2
ATTACHING PARTS
-215 AN509C10R6 . SCREW FE 10
-220 MS20073-03-02 . BOLT FE 4
-225 AN960-1CL . WASHER FE 4
-------*-------
230 60-921014 . GASKET-OUTLET FITTING FE 2
235 156587-8D0104 . HOSE ASSY-FUEL SUPPLY FE 2
240 AN816-8D . ADAPTER FE 2
ALTERNATE SPARE:
AS5194D0806
240 AS5194D0806 . ADAPTER FE 2
ALTERNATE SPARE:
AN816-8D
245 58-920020-23 . SUMP ASSY-FUEL FE 2
-250 35-921502-1 . GASKET FE 4
ATTACHING PARTS
-255 MS20073-04-07 . BOLT FE 24
-260 AN960-416L . WASHER FE 24
ALTERNATE SPARE:
NAS1149F0432P
-260 NAS1149F0432P . WASHER FE 24
ALTERNATE SPARE:
AN960-416L
-------*-------
265 CCA3400 . VALVE-FUEL DRAIN, INBD FE 2
LEADING EDGE CELL
-270 CCA-1319 . . SEAL FE 2
-275 36-920022-3 . SPACER FE 2
-280 35-921532 . WASHER FE 2
285 35-921533 . CLAMP FE 2
FOR SPARES ORDER:
4810SS305
285 4810SS305 . CLAMP FE 2
35-921533
290 58-380000-1 . TRANSMITTER-FUEL QUANTITY, FE 1
LH INBD L.E. CELL, 142
AND 172 GAL. SYSTEM
ALTERNATE SPARE:
58-380000-3
-290 58-380000-3 . TRANSMITTER-FUEL QUANTITY, FE 1
AND 172 GAL. SYSTEM
ALTERNATE SPARE:
58-380000-1
RH INBD L.E. CELL, 142
AND 172 GAL. SYSTEM
ALTERNATE SPARE:
58-380000-1

28-10-00-01
PAGE 5
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
AND 172 GAL. SYSTEM
ALTERNATE SPARE:
58-380000-3
AND 172 GAL. SYSTEM
AND 172 GAL. SYSTEM
GAL. SYSTEM
GAL. SYSTEM
320 35-921503 . GASKET FE 12
ATTACHING PARTS
-325 AN502-10 . SCREW FE 30
-330 AN960-10L . WASHER FE 30
ALTERNATE SPARE:
NAS1149F0332P
-330 NAS1149F0332P . WASHER FE 30
ALTERNATE SPARE:
AN960-10L
-------*-------
-335 MS21266-2A . GROMMET FE 6
340 60-369032 . INSULATOR-FUEL QUANTITY FE 4
TRANSMITTER
345 50-921509-9 . PLATE-INBD L.E. AND 172 FE 4
GAL. BOX SECTION CELL
350 60-921025 . PLATE-INBD L.E. CELL, OUTBD FE 2
ATTACHING PARTS
-355 130909B100 . BOLT FE AR
-360 130909B101 . BOLT FE AR
-365 AN960-416L . WASHER FE AR
ALTERNATE SPARE:
NAS1149F0432P
-365 NAS1149F0432P . WASHER FE AR
ALTERNATE SPARE:
AN960-416L
-------*-------
-370 35-921502 . GASKET FE 4
375 96-380035 . CAP ASSY-FILLER FE 2
FOR SPARES ORDER:
96-380035-1
FOR DETAILS SEE:
28-10-00-09
375 96-380035-1 . CAP ASSY-FILLER FE 2
ALTERNATE SPARE:
96-380035-3
96-380035

28-10-00-01
PAGE 6
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
ALTERNATE SPARE
96-380035-1
380 58-920029-1 . ADAPTER ASSY-FUEL FILLER, FE 2
172 GAL. SYSTEM
FOR SPARES ORDER:
96-380036-25
FOR DETAILS SEE:
28-10-00-09
172 GAL. SYSTEM
58-920029-1
ATTACHING PARTS
382 130909B101 . BOLT FE 24
-383 AN960-416L . WASHER FE 24
ALTERNATE SPARE:
NAS1149F0432P
-383 NAS1149F0432P . WASHER FE 24
ALTERNATE SPARE:
AN960-416L
384 AN509-10R9 . SCREW FE 24
ALTERNATE SPARE:
MS24694S51
384 MS24694S51 . SCREW FE 24
ALTERNATE SPARE:
AN509-10R9
-------*-------
142 GAL. SYSTEM
FOR DETAILS SEE:
28-10-00-09
ATTACHING PARTS
386 130909B101 . BOLT FE 24
-388 AN960-416L . WASHER FE 24
ALTERNATE SPARE:
NAS1149F0432P
-388 NAS1149F0432P . WASHER FE 24
ALTERNATE SPARE:
AN960-416L
389 AN509-1032R9 . SCREW FE 24
-------*-------
390 50-921520 . COVER-BOX SECTION FUEL FE 4
CELL
-395 50-921521 . GASKET FE 8
ATTACHING PARTS
-400 130909B101 . BOLT FE AR
-405 130909B101 . BOLT FE AR
-410 AN960-416L . WASHER FE AR
ALTERNATE SPARE:
NAS1149F0432P
-410 NAS1149F0432P . WASHER FE AR
ALTERNATE SPARE:
AN960-416L

28-10-00-01
PAGE 7
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
-415 AN960PD416L . WASHER FE AR
FOR SPARES ORDER:
NAS1149D0416K
-415 NAS1149D0416K . WASHER FE AR
AN960PD416L
-------*-------
420 50-921574-217 . COVER ASSY-BOX SECTION FE 2
CELL, 172 GAL. SYSTEM
425 58-920000-79 . CLIP ASSY-LH BOX SECT, FE 1
172 GAL. SYSTEM
-430 58-920000-81 . CLIP ASSY-RH BOX SECT, FE 1
172 GAL. SYSTEM
435 60-921041 . COVER-OUTBD L.E. CELL, FE 2
172 GAL. SYSTEM
-440 50-921521 . GASKET FE 2
ATTACHING PARTS
-445 NAS501-4A4A . BOLT FE 24
-450 AN960PD416L . WASHER FE 24
FOR SPARES ORDER:
NAS1149D0416K
-450 NAS1149D0416K . WASHER FE 24
AN960PD416L
-------*-------
H0001-H0233 A
H0001-H0384 FE

28-10-00-01
PAGE 8
BARON MAY 01/19
28-10-00-02
28-10-00-02
BARON MAY 01/19

SHEET 1 OF 5
28-10-00-02
PAGE 0
MAY 01/19

SHEET 2 OF 5
28-10-00-02
PAGE 0A
MAY 01/19

SHEET 3 OF 5
28-10-00-02
PAGE 0B
MAY 01/19

SHEET 4 OF 5
28-10-00-02
PAGE 0C
MAY 01/19

SHEET 5 OF 5
28-10-00-02
PAGE 0D
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY

-5 002-920000-119 FUEL SYSTEM INSTL-STANDARD, B RF
106 GAL. CAPACITY
73-10-00-01
28-10-00-06
28-20-00-01
-5 002-920000-121 FUEL SYSTEM INSTL-STANDARD, C RF
106 GAL. CAPACITY
73-10-00-01
28-10-00-06
28-20-00-01
-5 002-920000-1 FUEL SYSTEM INSTL-STANDARD, D RF
142 GAL. CAPACITY
73-10-00-01
28-10-00-06
28-20-00-02
-5 002-920000-5 FUEL SYSTEM INSTL-OPTIONAL, B RF
142 GAL. CAPACITY
73-10-00-01
28-10-00-06
28-20-00-01
-5 002-920000-7 FUEL SYSTEM INSTL-OPTIONAL, C RF
142 GAL. CAPACITY
73-10-00-01
28-10-00-06
28-20-00-01
-5 002-920000-3 FUEL SYSTEM INSTL-OPTIONAL, D RF
172 GAL. CAPACITY
73-10-00-01
28-10-00-06
172 GAL. CAPACITY
73-10-00-01
28-10-00-06
28-20-00-01
40 002-920033-5 . FUEL CELL-40 GAL. E 1
CAPACITY, LH INBD,
106 GAL. SYSTEM
ALTERNATE SPARE:
002-920033-7

28-10-00-02
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
40 002-920033-7 . FUEL CELL-40 GAL. E 1
CAPACITY, LH INBD,
106 GAL. SYSTEM
ALTERNATE SPARE:
002-920033-5
40 002-920033-1 . FUEL CELL-40 GAL. FE 1
AND 172 GAL. SYSTEM
ALTERNATE SPARE:
002-920033-3
40 002-920033-3 . FUEL CELL-40 GAL. FE 1
AND 172 GAL. SYSTEM
ALTERNATE SPARE:
002-920033-1
-60 002-920033-6 . FUEL CELL-40 GAL. E 1
CAPACITY, RH INBD,
106 GAL. SYSTEM
ALTERNATE SPARE:
002-920033-8
-60 002-920033-8 . FUEL CELL-40 GAL. E 1
CAPACITY, RH INBD,
106 GAL. SYSTEM
ALTERNATE SPARE:
002-920033-6
-60 002-920033-2 . FUEL CELL-40 GAL. FE 1
CAPACITY, RH INBD, 142
AND 172 GAL. SYSTEM
ALTERNATE SPARE:
002-920033-4
-60 002-920033-4 . FUEL CELL-40 GAL. FE 1
CAPACITY, RH INBD, 142
AND 172 GAL. SYSTEM
ALTERNATE SPARE:
002-920033-2
80 002-920013-5 . FUEL CELL-13 GAL. E 1
CAPACITY, LH OUTBD,
106 GAL. SYSTEM
ALTERNATE SPARE:
002-920033-7
80 002-920013-7 . FUEL CELL-13 GAL. E 1
CAPACITY, LH OUTBD,
106 GAL. SYSTEM
ALTERNATE SPARE:
002-920033-5
80 002-920013-1 . FUEL CELL-13 GAL. F 1
CAPACITY, LH OUTBD,
172 GAL. SYSTEM
ALTERNATE SPARE:
002-920033-3
80 002-920013-3 . FUEL CELL-13 GAL. F 1
CAPACITY, LH OUTBD,
172 GAL. SYSTEM
ALTERNATE SPARE:
002-920033-1
28-10-00-02
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
-100 002-920013-6 . FUEL CELL-13 GAL. E 1
CAPACITY, RH OUTBD,
106 GAL. SYSTEM
ALTERNATE SPARE:
002-920033-8
-100 002-920013-8 . FUEL CELL-13 GAL. E 1
CAPACITY, RH OUTBD,
106 GAL. SYSTEM
ALTERNATE SPARE:
002-920033-6
-100 002-920013-2 . FUEL CELL-13 GAL. F 1
CAPACITY, RH OUTBD,
172 GAL. SYSTEM
ALTERNATE SPARE:
002-920033-4
-100 002-920013-4 . FUEL CELL-13 GAL. F 1
CAPACITY, RH OUTBD,
172 GAL. SYSTEM
ALTERNATE SPARE:
002-920033-2
120 002-920000-137 . INTERCONNECT-INBD TO OUTBD E 2
L.E. FUEL CELL, 106 GAL. SYSTEM
125 002-920012-45 . INTERCONNECT-LOWER, INBD TO F 2
OUTBD L.E. CELLS, 172 GAL. SYSTEM
130 002-920012-47 . INTERCONNECT-UPPER, INBD TO F 2
OUTBD L.E. CELLS, 172 GAL. SYSTEM
135 AN737RM3 . CLAMP-106 GAL. SYSTEM E 6
-140 AN737TW26-30 . CLAMP-142 AND 172 GAL. F 8
SYSTEM
150 002-920000-135 . INTERCONNECT-FUEL CHECK E 2
VALVE, L.E. CELLS, 106 GAL.
SYSTEM
155 WWD-114 . CLAMP E 4
FOR SPARES ORDER:
9456
NAS1924-114
155 9456 . CLAMP E 4
WWD-114
155 NAS1924-114 . CLAMP E 4
WWD-114
ALTERNATE SPARE:
132742-114L
155 132742-114L . CLAMP E 4
ALTERNATE SPARE:
NAS1924-114
165 002-920000-123 . VALVE ASSY-FUEL CHECK, E 2
106 GAL. SYSTEM
FOR DETAILS SEE:
28-20-00-05

28-10-00-02
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
ATTACHING PARTS
-170 MS24665-449 . PIN-COTTER E 2
-------*-------
175 58-380003-7 . FUEL CELL-31 GAL. E 1
SECT, OPT FUEL SYS
ALTERNATE SPARE:
58-380003-11
175 58-380003-11 . FUEL CELL-31 GAL. E 1
SECT, OPT FUEL SYS
ALTERNATE SPARE:
58-380003-7
175 58-380003-5 . FUEL CELL-31 GAL. F 1
SECTION
ALTERNATE SPARE:
58-380003-9
175 58-380003-9 . FUEL CELL-31 GAL. F 1
SECTION
ALTERNATE SPARE:
58-380003-5
-195 58-380003-8 . FUEL CELL-31 GAL. E 1
SECTION, OPT FUEL SYS
ALTERNATE SPARE:
58-380003-12
-195 58-380003-12 . FUEL CELL-31 GAL. E 1
SECTION, OPT FUEL SYS
ALTERNATE SPARE:
58-380003-8
-195 58-380003-6 . FUEL CELL-31 GAL. F 1
SECTION
ALTERNATE SPARE:
58-380003-10
-195 58-380003-10 . FUEL CELL-31 GAL. F 1
SECTION
ALTERNATE SPARE:
58-380003-6
FUEL CELL TO BOX SECTION
CELL, 142 AND 172 GAL.
SYSTEMS
FOR SPARES ORDER:
002-920012-53
FUEL CELL TO BOX SECTION
SYSTEMS
002-920012-43
28-10-00-02
PAGE 4
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
220 WWD82 . CLAMP FE 8
FOR SPARES ORDER:
9440
220 9440 . CLAMP FE 8
WWD82
-225 MS21266-2N . GROMMET-1 PER INTERCONNECT FE 4
230 002-920012-25 . VALVE ASSY-FUEL CHECK, J 2
142 AND 172 GAL. SYSTEMS
FOR DETAILS SEE:
28-20-00-05
ATTACHING PARTS
-235 MS24665-311 . PIN-COTTER J 2
-------*-------
240 002-920012-41 . INTERCONNECT-OUTBD L.E. F 2
CELL TO BOX SECTION,
172 GAL. SYSTEM
-245 WWD-114 . CLAMP F 4
FOR SPARES ORDER:
9456
NAS1924-114
-245 9456 . CLAMP F 4
WWD-114
-245 NAS1924-114 . CLAMP F 4
WWD-114
ALTERNATE SPARE:
132742-114L
-245 132742-114L . CLAMP F 4
ALTERNATE SPARE:
NAS1924-114
-250 MS21266-3N . GROMMET-172 GAL. SYSTEM F 2
255 002-920000-91 . HOSE-INTERCONNECT, INBD F 2
TO OUTBD L.E. CELLS,
172 GAL. SYSTEM
-260 WWD26 . CLAMP F 2
FOR SPARES ORDER:
9406
NAS1924-26
-260 9406 . CLAMP F 2
WWD26
-260 NAS1924-26 . CLAMP F 2
WWD26
ALTERNATE SPARE:
132742-26L
-260 132742-26L . CLAMP F 2
ALTERNATE SPARE:
NAS1924-26
265 CCA3400 . VALVE-DRAIN INBD LEADING FE 2
EDGE FUEL CELL
-270 CCA1319 . . SEAL FE 1

28-10-00-02
PAGE 5
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
275 35-921533 . CLAMP-DRAIN VALVE FE 2
FOR SPARES ORDER:
4810SS305
275 4810SS305 . CLAMP-DRAIN VALVE FE 2
35-921533
280 36-920032-1 . SPACER-DRAIN VALVE FE 2
285 35-921532 . WASHER-DRAIN VALVE FE 2
290 36-920014-1 . CONNECTOR ASSY-FUEL FE 2
RESERVOIR
295 35-921533 . CLAMP FE 2
FOR SPARES ORDER:
4810SS305
295 4810SS305 . CLAMP FE 2
35-921533
300 96-380035 . CAP ASSY-FILLER FE 2
FOR SPARES ORDER:
96-380035-1
FOR DETAILS SEE:
28-10-00-09
ALTERNATE SPARE:
96-380035-3
96-380035
ALTERNATE SPARE:
96-380035-1
106 AND 172 GAL. SYS
FOR DETAILS SEE:
28-10-00-09
142 GAL. SYSTEM
FOR DETAILS SEE:
28-10-00-09
ATTACHING PARTS
-315 MS24694S51 . SCREW-ADAPTER TO SKIN FE 24
-320 130909B101 . BOLT FE 24
-325 AN960-416L . WASHER FE 24
ALTERNATE SPARE:
NAS1149F0432P
-325 NAS1149F0432P . WASHER FE 24
ALTERNATE SPARE:
AN960-416L
-------*-------
-330 35-921502 . GASKET FE 2
-335 36-920015-1 . RESERVOIR ASSY-FUEL FE 1
ANTI-SLOSH LH
FOR SPARES ORDER:
FCR57175-1

28-10-00-02
PAGE 6
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
-335 FCR57175-1 . RESERVOIR ASSY-FUEL FE 1
ANTI-SLOSH LH
36-920015-1
-340 36-920015-2 . RESERVOIR ASSY-FUEL FE 1
ANTI-SLOSH RH
FOR SPARES ORDER:
FCR57176-2
-340 FCR57176-2 . RESERVOIR ASSY-FUEL FE 1
ANTI-SLOSH RH
36-920015-2
-345 36-920015-17 . . PLATE E 1
ATTACHING PARTS
350 MS35206-246 . . SCREW E 4
-------*-------
355 28C112-3 . . . VALVE-CHECK E 1
ATTACHING PARTS
360 130909B14 . . . BOLT E 2
-365 130909N29 . . . NUT E 2
-------*-------
370 36-920015-19 . . . PLATE E 1
375 36-920015-15 . . GASKET E 1
-380 36-920015-3 . . BLADDER ASSY-LH E 1
-385 36-920015-4 . . BLADDER ASSY-RH E 1
390 36-920015-23 . . . PLATE E 1
ATTACHING PARTS
395 NAS1162-1 . . . SCREW E 4
-------*-------
400 36-920015-25 . . . GASKET E 1
-405 36-920015-5 . . . CORE ASSY-LH E 1
-410 36-920015-6 . . . CORE ASSY-RH E 1
415 36-920015-21 . . . . BOSS E 1
420 36-920015-11 . . . . FRAME ASSY E 1
425 36-920015-7 . . . . CORE-LH E 1
-430 36-920015-8 . . . . CORE-RH E 1
435 36-920015-27 . . . BLADDER-LH E 1
-440 36-920015-28 . . . BLADDER-RH E 1
-445 36-920015-9 . . . DOUBLER E 1
-450 36-920015-31 . . . PATCH E 2
455 000-110114-1 . COVER ASSY-LH, PART OF INBD E 1
LEADING EDGE, WING
-460 000-110114-2 . COVER ASSY-RH, PART OF INBD E 1
LEADING EDGE, WING
ATTACHING PARTS
465 MS24694S5 . SCREW E 32
-470 130289-1 . NUT-CLIP E 32
475 MS24694S48 . SCREW E 4
-------*-------
480 50-921509-9 . PLATE-INBD L.E. FUEL CELL E 2
COVER
ATTACHING PARTS
485 130909B100 . BOLT E 24

28-10-00-02
PAGE 7
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
-490 AN960PD416L . WASHER E 24
FOR SPARES ORDER:
NAS1149D0416K
-490 NAS1149D0416K . WASHER E 24
AN960PD416L
-------*-------
495 35-921502 . GASKET E 2
500 50-921509-37 . CLIP ASSY E 2
505 50-921509-9 . PLATE-INBD L.E. FUEL CELL, E 2
WS 70
ATTACHING PARTS
-510 130909B100 . BOLT FE 24
-515 AN960-416L . WASHER FE 24
ALTERNATE SPARE:
NAS1149F0432P
-515 NAS1149F0432P . WASHER FE 24
ALTERNATE SPARE:
AN960-416L
-------*-------
-520 002-381000-1 . TRANSMITTER-FUEL, LH OUTBD FE 1
LE
-525 002-381000-3 . TRANSMITTER-FUEL, RH OUTBD FE 1
LE, 106 AND 172 GALLON
SYSTEM
-530 35-380136-7 . TRANSMITTER-FUEL, LH AND RH E 2
INBD LE, INBD, 106 GALLON
SYSTEM
-530 58-380000-3 . TRANSMITTER-FUEL, LH AND RH FE 2
INBD LE, INBD, 142 AND 172
GALLON SYSTEM
-540 96-380042-1 . TRANSMITTER-FUEL, LH INBD E 1
LE, OUTBD
-545 96-380042-3 . TRANSMITTER-FUEL, RH INBD E 1
LE, OUTBD, 106 GALLON
SYSTEM
-550 58-380001-9 . TRANSMITTER-FUEL, LH INBD FE 1
LE, OUTBD
-555 58-380001-11 . TRANSMITTER-FUEL, RH INBD FE 1
LE, OUTBD, 142 AND 172
GALLON SYSTEM
-560 15-423 . GASKET-FUEL QUANTITY FE 2
TRANSMITTER, LH AND RH
565 000-110187-1 . COVER ASSY-LH WING,142 AND H 1
172 GAL. SYSTEM
565 000-110115-23 . COVER ASSY-LH WING, 142 G 1
AND 172 GAL. SYSTEM
-575 000-110187-2 . COVER ASSY-RH WING, 142 H 1
AND 172 GAL. SYSTEM
-575 000-110115-24 . COVER ASSY-RH WING, 142 G 1
AND 172 GAL. SYSTEM
ATTACHING PARTS
585 MS24694S5 . SCREW FE 28
-------*-------
-590 000-110187-7 . . LENS H 1
28-10-00-02
PAGE 8
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
595 002-381002-1 . GAGE-LH FUEL QTY SIGHT, FE 1
142 GAL. FUEL SYSTEM
595 002-381002-5 . GAGE-LH FUEL QTY SIGHT, F 1
-605 002-381002-3 . GAGE-RH FUEL QTY SIGHT, FE 1
-605 002-381002-7 . GAGE-RH FUEL QTY SIGHT, F 1
ATTACHING PARTS
615 MS35266-64 . SCREW FE 10
-620 AN935-10 . WASHER-LOCK FE 10
-------*-------
625 002-920000-105 . INSULATOR-142 AND 172 GAL. FE 4
SYSTEM
630 002-920020-9 . COVER ASSY-142 AND 172 GAL. FE 2
SYSTEM
ATTACHING PARTS
635 130909B100 . BOLT FE 24
-640 AN960D416L . WASHER FE 24
FOR SPARES ORDER:
NAS1149D0416H
-640 NAS1149D0416H . WASHER FE 24
AN960D416L
-------*-------
-645 DPN10-32SCL . . NUT FE 10
650 35-921502-1 . GASKET FE 2
660 000-110115-19 . COVER ASSY-LH WING, E 1
-665 000-110115-20 . COVER ASSY-RH WING, E 1
ATTACHING PARTS
670 MS24694S5 . SCREW E 28
675 MS24694S48 . SCREW E 4
-------*-------
680 50-921509-9 . PLATE-100 GAL. FUEL SYSTEM E 2
ATTACHING PARTS
685 130909B100 . BOLT E 24
-690 AN960D416L . WASHER E 24
FOR SPARES ORDER:
NAS1149D0416H
-690 NAS1149D0416H . WASHER E 24
AN960D416L
-------*-------
695 50-921509-37 . CLIP ASSY E 2
700 CCA4850 . VALVE-WING BOX SECT. FUEL FE 2
DRAIN
-705 CCA-1269 . . SEAL FE 2
710 AN822-4D . ELBOW-BOX SECTION FUEL FE 2
DRAIN
FOR SPARES ORDER:
MS20822-4D
AS5195D0402
28-10-00-02
PAGE 9
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
710 MS20822-4D . ELBOW-BOX SECTION FUEL FE 2
DRAIN
FOR SPARES ORDER:
AS5195D0402
710 AS5195D0402 . ELBOW-BOX SECTION FUEL FE 2
DRAIN
AN822-4D
MS20822-4D
715 AN910-1J . COUPLING FE 2
720 002-920000-93 . TUBE ASSY-BOX SECTION FUEL FE 1
DRAIN LH
-725 002-920000-94 . TUBE ASSY-BOX SECTION FUEL FE 1
DRAIN RH
-730 AN737TW22 . CLAMP FE 2
FOR SPARES ORDER:
132742-22TL
-730 132742-22TL . CLAMP FE 2
AN737TW22
735 002-920020-3 . COVER-BOX SECTION FUEL FE 4
CELL, 1 UPPER AND 1 LOWER
PER CELL
ATTACHING PARTS
-740 130909B101 . BOLT FE 48
-745 AN960-416L . WASHER FE 48
ALTERNATE SPARE:
NAS1149F0432P
-745 NAS1149F0432P . WASHER FE 48
ALTERNATE SPARE:
AN960-416L
-------*-------
-750 002-920020-1 . GASKET FE 4
755 50-921574-217 . COVER ASSY-BOX SECT. CELL, F 2
GAL. FUEL SYS
ATTACHING PARTS
760 MS24694S51 . SCREW F 28
-------*-------
765 50-921509-9 . PLATE-BOX SECTION FUEL F 2
CELL COVER
ATTACHING PARTS
770 130909B101 . BOLT F 24
-775 AN960-416L . WASHER F 24
ALTERNATE SPARE:
NAS1149F0432P
-775 NAS1149F0432P . WASHER F 24
ALTERNATE SPARE:
AN960-416L
-------*-------
780 002-920000-79 . CLIP ASSY F 2
-785 002-920000-81 . . CLIP F 1
790 35-921502 . GASKET F 2

28-10-00-02
PAGE 10
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
795 002-920020-5 . COVER ASSY-FUEL XMTR, BOX FE 2
SECT. 172 GAL. SYS OR
OUTBD L.E. CELLS 100
GAL. FUEL SYSTEM
ATTACHING PARTS
800 NAS501-4H4A . BOLT FE 24
-805 AN960PD416 . WASHER FE 24
FOR SPARES ORDER:
NAS1149D0463K
-805 NAS1149D0463K . WASHER FE 24
AN960PD416
-------*-------
-810 002-920020-1 . GASKET FE 2
815 002-920000-29 . BRACKET-OUTBD FUEL CELL FE 4
SUPPORT
ATTACHING PARTS
820 MS35206-243 . SCREW FE 4
-825 AN960-8L . WASHER FE 4
FOR SPARES ORDER:
NAS1149FN816P
-825 NAS1149FN816P . WASHER FE 4
AN960-8L
-830 130290-3 . NUT-CLIP FE 4
-------*-------
835 002-920020-3 . COVER-OUTBD L.E. FUEL CELL FE 2
BOTTOM, 106 AND 172 GAL.
SYSTEMS
ATTACHING PARTS
-840 NAS501-4H4A . BOLT FE 24
FOR SPARES ORDER:
NAS1149D0416K
-845 NAS1149D0416K . WASHER FE 24
AN960PD416L
-------*-------
-850 002-920020-1 . GASKET FE 2
-855 XS48197 . BUTTON-PLUG, 100 GAL. E 2
FUEL SYSTEM
-860 XS51171 . BUTTON-PLUG, 100 GAL. E 6
FUEL SYSTEM
-865 XS51171 . BUTTON-PLUG, 142 AND 172 FE 2
GAL. FUEL SYSTEM
C1608-C1969,C1971-C2002 B
E0938-E0938,E0943-E1080,E1082-E1083 C
H0385-H0765,H0767-H0772 D
C1608-C1969,C1971-C2002,E0938-E0938,E0943-E1080, E
E1082-E1083
E0938-E0938,E0943-E1080,E1082-E1083,H0385-H0765, F
H0767-H0772
C1608-C1711,E0938-E0938,E0943-E0986,H0385-H0485 G
(CONTINUED NEXT PAGE)
28-10-00-02
PAGE 11
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
(CONTINUED)
C1712-C1969,C1971-C2002,E0987-E1080,E1082-E1083, H
H0486-H0765,H0767-H0772
C1608-C1653,E0938-E0938,E0943-E0963,H0385-H0431 J
C1608-C1969,C1971-C2002,E0938-E0938,E0943-E1080, FE
E1082-E1083,H0385-H0765,H0767-H0772

28-10-00-02
PAGE 12
BARON MAY 01/19
28-10-00-03
28-10-00-03
BARON MAY 01/19

SHEET 1 OF 5
28-10-00-03
PAGE 0
MAY 01/19

SHEET 2 OF 5
28-10-00-03
PAGE 0A
MAY 01/19

SHEET 3 OF 5
28-10-00-03
PAGE 0B
MAY 01/19

SHEET 4 OF 5
28-10-00-03
PAGE 0C
MAY 01/19

SHEET 5 OF 5
28-10-00-03
PAGE 0D
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY

-5 002-920001-13 FUEL SYSTEM INSTL-STANDARD, A RF
100 GAL. CAPACITY
28-10-00-06
28-20-00-03
100 GAL. CAPACITY
28-10-00-06
28-20-00-03
136 GAL. CAPACITY
28-10-00-06
28-20-00-03
-5 002-920001-5 FUEL SYSTEM INSTL-OPTIONAL, A RF
136 GAL. CAPACITY
28-10-00-06
28-20-00-03
136 GAL. CAPACITY
28-10-00-06
28-20-00-03
-5 002-920001-3 FUEL SYSTEM INSTL-OPTIONAL, J RF
166 GAL. CAPACITY
28-10-00-06
28-20-00-03
194 GAL. CAPACITY
28-10-00-06
28-20-00-03
40 002-920034-5 . FUEL CELL-40 GAL. D 1
CAPACITY, LH INBD,
100 GAL. SYSTEM
ALTERNATE SPARE:
002-920034-7
40 002-920034-7 . FUEL CELL-40 GAL. D 1
CAPACITY, LH INBD,
100 GAL. SYSTEM
ALTERNATE SPARE:
002-920034-5
40 002-920034-1 . FUEL CELL-40 GAL. FE 1
CAPACITY, LH INBD, 136, 166
AND 194 GAL. SYSTEM
ALTERNATE SPARE:
002-920034-3
40 002-920034-3 . FUEL CELL-40 GAL. FE 1
CAPACITY, LH INBD,136, 166
AND 194 GAL. SYSTEM
ALTERNATE SPARE:
002-920034-1
28-10-00-03
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
-60 002-920034-6 . FUEL CELL-40 GAL. D 1
CAPACITY, RH INBD,
100 GAL. SYSTEM
ALTERNATE SPARE:
002-920034-8
-60 002-920034-8 . FUEL CELL-40 GAL. D 1
CAPACITY, RH INBD,
100 GAL. SYSTEM
ALTERNATE SPARE:
002-920034-6
-60 002-920034-2 . FUEL CELL-40 GAL. FE 1
CAPACITY, RH INBD, 136, 166
AND 194 GAL. SYSTEM
ALTERNATE SPARE:
002-920034-4
-60 002-920034-4 . FUEL CELL-40 GAL. FE 1
CAPACITY, RH INBD, 136, 166
AND 194 GAL. SYSTEM
ALTERNATE SPARE:
002-920034-2
80 002-920013-5 . FUEL CELL-13 GAL. D 1
CAPACITY, LH OUTBD,
100 GAL. SYSTEM
ALTERNATE SPARE:
002-920013-7
80 002-920013-7 . FUEL CELL-13 GAL. D 1
CAPACITY, LH OUTBD,
100 GAL. SYSTEM
ALTERNATE SPARE:
002-920013-5
80 002-920013-1 . FUEL CELL-13 GAL. F 1
CAPACITY, LH OUTBD, 166
AND 194 GAL. SYSTEM
ALTERNATE SPARE:
002-920013-3
80 002-920013-3 . FUEL CELL-13 GAL. F 1
CAPACITY, LH OUTBD, 166
AND 194 GAL. SYSTEM
ALTERNATE SPARE:
002-920013-1
-100 002-920013-6 . FUEL CELL-13 GAL. D 1
CAPACITY, RH OUTBD,
100 GAL. SYSTEM
ALTERNATE SPARE:
002-920013-8
-100 002-920013-8 . FUEL CELL-13 GAL. D 1
CAPACITY, RH OUTBD,
100 GAL. SYSTEM
ALTERNATE SPARE:
002-920013-6
-100 002-920013-2 . FUEL CELL-13 GAL. F 1
CAPACITY, RH OUTBD, 166
AND 194 GAL. SYSTEM
ALTERNATE SPARE:
002-920013-4
28-10-00-03
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
-100 002-920013-4 . FUEL CELL-13 GAL. F 1
CAPACITY, RH OUTBD, 166
AND 194 GAL. SYSTEM
ALTERNATE SPARE:
002-920013-2
120 002-920000-137 . INTERCONNECT-INBD TO OUTBD D 2
LE, 100 GAL. SYSTEM
125 AN737RM30 . CLAMP D 6
FOR SPARES ORDER:
132742-30L
125 132742-30L . CLAMP D 6
AN737RM30
130 NAS557-18A . GROMMET D 2
135 002-920000-133 . HOSE-100 GAL. SYSTEM D 2
140 002-920000-135 . INTERCONNECT-INBD TO OUTBD D 2
LE, 100 GAL. SYSTEM
145 WWD-114 . CLAMP D 4
FOR SPARES ORDER:
9456
NAS1924-114
145 9456 . CLAMP D 4
WWD-114
145 NAS1924-114 . CLAMP D 4
WWD-114
ALTERNATE SPARE:
132742-114L
145 132742-114L . CLAMP D 4
ALTERNATE SPARE:
NAS1924-114
150 MS21266-3N . GROMMET D 2
155 002-920000-123 . VALVE ASSY-FUEL CHECK D 2
-160 MS24665-449 . PIN-COTTER D 2
165 002-920012-47 . INTERCONNECT-INBD TO OUTBD F 2
LE, 166 AND 194 GAL. SYSTEM
170 002-920012-45 . INTERCONNECT-INBD TO OUTBD F 2
LE, 166 GAL. SYSTEM
175 WWD26 . CLAMP F 6
FOR SPARES ORDER:
9406
NAS1924-26
175 9406 . CLAMP F 6
WWD26
175 NAS1924-26 . CLAMP F 6
WWD26
ALTERNATE SPARE:
132742-26L
175 132742-26L . CLAMP F 6
ALTERNATE SPARE:
NAS1924-26
180 NAS557-8A . GROMMET F 2
28-10-00-03
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
185 002-920017-19 . TUBE-INBD L.E. CELL TO BOX FE 2
SECT. CELL, 136 GAL. SYSTEM
190 AN737TW22 . CLAMP FE 2
FOR SPARES ORDER:
132742-22TL
190 132742-22TL . CLAMP FE 2
AN737TW22
FOR SPARES ORDER:
9406
NAS1924-26
195 9406 . CLAMP FE 2
WWD26
195 NAS1924-26 . CLAMP FE 2
WWD26
ALTERNATE SPARE:
132742-26L
195 132742-26L . CLAMP FE 2
ALTERNATE SPARE:
NAS1924-26
200 NAS557-20C . GROMMET FE 2
205 NAS557-20C . GROMMET FE 2
210 58-380003-7 . FUEL CELL-31 GAL. FE 1
SECT., 136 GAL. SYSTEM
ALTERNATE SPARE:
58-380003-11
210 58-380003-11 . FUEL CELL-31 GAL. FE 1
ALTERNATE SPARE:
58-380003-7
210 58-380003-5 . FUEL CELL-31 GAL. F 1
SECT., 166 AND 194 GAL.
SYSTEM
ALTERNATE SPARE:
58-380003-9
210 58-380003-9 . FUEL CELL-31 GAL. F 1
SYSTEM
ALTERNATE SPARE:
58-380003-5
-230 58-380003-8 . FUEL CELL-31 GAL. FE 1
ALTERNATE SPARE:
58-380003-12

28-10-00-03
PAGE 4
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
-230 58-380003-6 . FUEL CELL-31 GAL. F 1
SYSTEM
ALTERNATE SPARE:
58-380003-10
-230 58-380003-10 . FUEL CELL-31 GAL. F 1
SYSTEM
ALTERNATE SPARE:
58-380003-6
136, 166 AND 194 GAL.
SYSTEM
FOR SPARES ORDER:
9440
255 9440 . CLAMP FE 8
WWD82
265 002-920012-51 . INTERCONNECT-OUTBD L.E. F 2
166 AND 194 GAL. SYSTEM
270 WWD-114 . CLAMP F 4
FOR SPARES ORDER:
9456
NAS1924-114
270 9456 . CLAMP F 4
WWD-114
270 NAS1924-114 . CLAMP F 4
WWD-114
ALTERNATE SPARE:
132742-114L
270 132742-114L . CLAMP F 4
ALTERNATE SPARE:
NAS1924-114
-275 MS21266-3N . GROMMET-1 PER INTERCONNECT F 2
280 CCA3400 . VALVE-DRAIN, INBD LE CELL FE 2
-285 CCA1319 . . SEAL FE 2
290 6KS3 . CLAMP-DRAIN VALVE FE 2
ALTERNATE SPARE:
4406
63006
FOR SPARES ORDER:
4808SS305
290 4406 . CLAMP-DRAIN VALVE FE 2
ALTERNATE SPARE:
6KS3
63006

28-10-00-03
PAGE 5
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
290 63006 . CLAMP-DRAIN VALVE: FE 2
ALTERNATE SPARE:
6KS3
4406
FOR SPARES ORDER:
4808SS305
290 4808SS305 . CLAMP-DRAIN VALVE FE 2
6KS3
63006
305 102-920011-1 . STRAINER ASSY-HEATER FUEL, LH FE 1
-310 35-921532 . WASHER-LH FE 1
-315 6KS3 . CLAMP-LH FE 1
ALTERNATE SPARE:
4406
63006
FOR SPARES ORDER:
4808SS305
-315 4406 . CLAMP-LH FE 1
ALTERNARE SPARE:
6KS3
63006
-315 63006 . CLAMP-LH FE 1
ALTERNATE SPARE:
6KS3
4406
FOR SPARES ORDER:
4808SS305
-315 4808SS305 . CLAMP-LH FE 1
6KS3
63006
320 96-380035 . CAP ASSY-FILLER G 2
FOR SPARES ORDER:
96-380035-1
FOR DETAILS SEE:
28-10-00-09
320 96-380035-1 . CAP ASSY-FILLER G 2
ALTERNATE SPARE:
96-380035-3
96-380035
320 96-380035-3 . CAP ASSY-FILLER G 2
ALTERNATE SPARE:
96-380035-1
320 36-380095-1 . CAP ASSY-FUEL FILLER H 2
FOR DETAILS SEE:
28-10-00-10
-330 557-003 . INSERT-ADAPTER H 2

28-10-00-03
PAGE 6
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
335 58-920029-1 . ADAPTER ASSY-FILLER CAP, G 2
100, 166 AND 194 GAL.
FUEL SYSTEM
MISCELLANEOUS DATA:
531-126 MAY BE FURNISHED
AS SPARES IF KIT
36-5013-1 HAS BEEN
INSTALLED
USED ON PART NUMBER:
002-920001-3
002-920001-9
002-920001-15
FOR SPARES ORDER:
96-380036-25
FOR DETAILS SEE:
28-10-00-09
335 96-380036-1 . ADAPTER ASSY-FILLER CAP, FE 2
002-920001-1
002-920001-5
002-920001-7
FOR DETAILS SEE:
28-10-00-09
335 58-920029-1 . ADAPTER ASSY-FILLER CAP, M 2
100, 166 AND 194 GAL.
FUEL SYSTEM
002-920001-3
002-920001-9
002-920001-13
002-920001-15
FOR SPARES ORDER:
96-380036-25
FOR DETAILS SEE:
28-10-00-09
335 58-920029-1 . ADAPTER ASSY-FILLER CAP, N 2
100, 166 AND 194 GAL.
FUEL SYSTEM
002-920001-3
FOR SPARES ORDER:
531-126
FOR DETAILS SEE:
28-10-00-09
ATTACHING PARTS
-350 130909B101 . BOLT FE 24
-355 AN960-416L . WASHER FE 24
ALTERNATE SPARE:
NAS1149F0432P
-355 NAS1149F0432P . WASHER FE 24
ALTERNATE SPARE:
AN960-416L
-------*-------
28-10-00-03
PAGE 7
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
-360 35-921502 . GASKET-FILLER CAP ADAPTER FE 2
365 000-110114-1 . COVER ASSY-LH FE 1
FOR DETAILS SEE:
57-20-00-04
-370 000-110114-2 . COVER ASSY-RH FE 1
FOR DETAILS SEE:
57-20-00-04
375 MS24694S5 . SCREW FE 16
-380 130289-1 . NUT-CLIP FE 16
385 MS24694S48 . SCREW FE 44
390 50-921509-9 . PLATE-INBD LE CELL COVER FE 2
395 130909B100 . BOLT FE 24
FOR SPARES ORDER:
NAS1149D0416H
-400 NAS1149D0416H . WASHER FE 24
AN960D416L
405 35-921502 . GASKET FE 2
410 50-921509-37 . CLIP ASSY FE 2
415 50-921509-9 . PLATE-INBD LE FUEL CELL FE 2
ATTACHING PARTS
-420 130909B100 . BOLT FE 24
-425 AN960-416L . WASHER FE 24
ALTERNATE SPARE:
NAS1149F0432P
-425 NAS1149F0432P . WASHER FE 24
ALTERNATE SPARE:
AN960-416L
-------*-------
-430 35-921502 . GASKET FE 2
435 000-110187-1 . COVER ASSY-LH, STA 94.113, FE 1
-440 000-110187-2 . COVER ASSY-RH, STA 94.113, FE 1
ATTACHING PARTS
445 MS24694S5 . SCREW FE 28
-------*-------
-450 000-110187-7 . . LENS FE 1
455 002-381002-1 . GAGE-LH SIGHT, FUEL FE 1
QUANTITY, 136 GAL. SYSTEM
455 002-381002-5 . GAGE-LH SIGHT, FUEL F 1
QUANTITY, 166 AND 194
GAL. SYSTEM
-465 002-381002-3 . GAGE-RH SIGHT, FUEL FE 1
QUANTITY, 136 GAL. SYSTEM
-465 002-381002-7 . GAGE-RH SIGHT, FUEL F 1
QUANTITY, 166 AND 194
GAL. SYSTEM
ATTACHING PARTS
475 MS35266-64 . SCREW FE 10
-------*-------
485 002-920000-197 . INSULATOR-136, 166 AND FE 4
194 GAL. SYSTEM
28-10-00-03
PAGE 8
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
ATTACHING PARTS
490 130909B14 . BOLT FE 4
-495 100951DD064VX . WASHER FE 4
-500 MS35335-34 . LOCKWASHER FE 4
-505 294618 . RETAINER-NUT FE 4
-------*-------
510 002-920020-15 . COVER ASSY-136, 166 AND FE 2
194 GAL. SYSTEM
ATTACHING PARTS
515 130909B101 . BOLT FE 12
-520 130909B100 . BOLT FE 12
FOR SPARES ORDER:
NAS1149D0416H
-525 NAS1149D0416H . WASHER FE 24
AN960D416L
-------*-------
530 35-921502-1 . GASKET FE 2
535 000-110115-19 . COVER ASSY-LH,STA 94.113, D 1
106 GAL. SYSTEM
-540 000-110115-20 . COVER ASSY-RH,STA 94.113, D 1
106 GAL SYSTEM
ATTACHING PARTS
545 MS24694S5 . SCREW D 28
550 MS24694S48 . SCREW D 4
-------*-------
555 50-921509-9 . PLATE-100 GAL. SYSTEM D 2
ATTACHING PARTS
560 130909B100 . BOLT D 24
-565 AN960D416L . WASHER D 24
FOR SPARES ORDER:
NAS1149D0416H
-565 NAS1149D0416H . WASHER D 24
AN960D416L
-------*-------
570 50-921509-37 . CLIP ASSY D 2
575 35-921502 . GASKET D 2
580 CCA4850 . VALVE-DRAIN, BOX SECTION L 2
CELL
-585 CCA-1269 . . SEAL L 1
590 AN822-4D . ELBOW-BOX SECTION FUEL L 2
DRAIN
FOR SPARES ORDER::
AS5195D0402
MS20822-4D
590 MS20822-4D . ELBOW-BOX SECTION FUEL L 2
DRAIN
FOR SPARES ORDER:
AS5195D0402

28-10-00-03
PAGE 9
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
590 AS5195D0402 . ELBOW-BOX SECTION FUEL L 2
DRAIN
AN822-4D
MS20822-4D
595 AN910-1J . COUPLING L 2
600 002-920000-93 . TUBE ASSY-BOX SECTION FUEL L 1
DRAIN LH
-605 002-920000-94 . TUBE ASSY-BOX SECTION FUEL L 1
DRAIN RH
ATTACHING PARTS
-610 AN737TW22 . CLAMP L 2
FOR SPARES ORDER:
132742-22TL
-610 132742-22TL . CLAMP L 2
AN737TW22
-------*-------
CELL
ATTACHING PARTS
-620 130909B101 . BOLT FE 48
-625 AN960-416L . WASHER FE 48
ALTERNATE SPARE:
NAS1149F0432P
-625 NAS1149F0432P . WASHER FE 48
ALTERNATE SPARE:
AN960-416L
-------*-------
-630 FCA25751 . GASKET-FUEL QUANTITY FE 2
-635 002-920020-1 . GASKET FE 4
FOR SPARES ORDER:
FCA25751
640 50-921574-217 . COVER ASSY-BOX SECTION F 2
SYSTEM
ATTACHING PARTS
645 MS24694S51 . SCREW F 28
-------*-------
650 50-921509-9 . PLATE-BOX SECTION CELL, F 2
ATTACHING PARTS
655 130909B101 . BOLT F 24
-660 AN960-416L . WASHER F 24
ALTERNATE SPARE:
NAS1149F0432P
-660 NAS1149F0432P . WASHER F 24
ALTERNATE SPARE:
AN960-416L
-------*-------
665 002-920000-79 . CLIP ASSY-166 AND 194 F 2
GAL. SYSTEM
670 35-921502 . GASKET F 2

28-10-00-03
PAGE 10
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
675 002-920020-5 . COVER ASSY-TRANSMITTER FE 2
MOUNTING, 100, 166 AND 194
GAL. SYSTEM
ATTACHING PARTS
680 130909B100 . BOLT FE 24
FOR SPARES ORDER:
NAS1149D0416K
-685 NAS1149D0416K . WASHER FE 24
AN960PD416L
-------*-------
-690 002-920020-1 . GASKET FE 2
FOR SPARES ORDER:
FCA25751
SUPPORT, 100, 166 AND 194
GAL. SYSTEM
ATTACHING PARTS
700 MS35206-243 . SCREW FE 4
FOR SPARES ORDER:
NAS1149FN816P
AN960-8L
-710 130290-3 . NUT FE 4
-------*-------
715 002-381000-1 . TRANSMITTER-FUEL, LH OUTBD FE 1
L.E. CELL 166 AND 194 GAL.
SYSTEM
L.E. CELL, 166 AND 194 GAL.
SYSTEM
ATTACHING PARTS
-725 MS35266-64 . SCREW FE 10
-730 AN960-10L . WASHER FE 10
ALTERNATE SPARE:
NAS1149F0332P
-730 NAS1149F0332P . WASHER FE 10
ALTERNATE SPARE:
AN960-10L
-------*-------
735 58-380000-3 . TRANSMITTER-INBD FUEL, INBD FE 2
L.E. CELL 136, 166 AND 194 GAL.
SYSTEM
735 35-380136-7 . TRANSMITTER-INBD FUEL, INBD D 2
L.E. CELL 100 GAL. SYSTEM
ATTACHING PARTS
-745 MS35266-64 . SCREW FE 10
-750 AN960-10L . WASHER FE 10
ALTERNATE SPARE:
NAS1149F0332P

28-10-00-03
PAGE 11
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
-750 NAS1149F0332P . WASHER FE 10
ALTERNATE SPARE:
AN960-10L
-------*-------
755 58-380001-9 . TRANSMITTER-OUTBD FUEL, LH FE 1
INBD L.E. CELL, 136, 166 AND
194 GAL. SYSTEM
-760 58-380001-11 . TRANSMITTER-OUTBD FUEL, RH FE 1
INBD L.E. CELL, 136, 166 AND
194 GAL. SYSTEM
-765 96-380042-1 . TRANSMITTER-OUTBD FUEL, D 1
LH INBD L.E. CELL, 100 GAL.
SYSTEM
-770 96-380042-3 . TRANSMITTER-OUTBD FUEL, D 1
LH INBD L.E. CELL, 100 GAL.
SYSTEM
ATTACHING PARTS
-775 MS35266-64 . SCREW FE 10
-780 AN960-10L . WASHER FE 10
ALTERNATE SPARE:
NAS1149F0332P
-780 NAS1149F0332P . WASHER FE 10
ALTERNATE SPARE:
AN960-10L
-------*-------
785 002-920020-3 . COVER-OUTBD L.E. CELL, FE 2
ATTACHING PARTS
-790 NAS501-4H4A . BOLT FE 24
FOR SPARES ORDER:
NAS1149D0416K
-795 NAS1149D0416K . WASHER FE 24
AN960PD416L
-------*-------
-800 002-920020-1 . GASKET FE 2
FOR SPARES ORDER:
FCA25751
-805 XS48197 . BUTTON-PLUG, 100 GAL. D 2
SYSTEM OUTBD CELL
-810 XS51171 . BUTTON-PLUG, 100 GAL. D 6
SYSTEM INBD CELL
C1970-C1970,C2003-C9999 A
E1081-E1081,E1084-E9999 B
H0766-H0766,H0773-H1468 C
C1970-C1970,C2003-C9999,E1081-E1081,E1084-E9999 D
E1081-E1081,E1084-E9999,H0766-H0766,H0773-H1468 F
E1081-E1081,E1084-E1201,H0766-H0766,H0773-H1450 G
E1202-E9999,H1451-H1468 H
H1389-H1389,H1396-H1468 J
C1970-C1970,C2003-C2071,E1081-E1081,E1084-E1102, L
H0766-H0766,H0773-H0844
28-10-00-03
PAGE 12
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
(CONTINUED)
C1970-C1970,C2003-C9999,E1081-E1081,E1084-E9999, M
H0766-H0766,H0773-H1450
H1451-H1468 N
C1970-C1970,C2003-C9999,E1081-E1081,E1084-E9999, FE
H0766-H0766,H0773-H1468

28-10-00-03
PAGE 13
BARON MAY 01/19
PAGE INTENTIONALLY LEFT BLANK

28-10-00-04
28-10-00-04
BARON MAY 01/19

SHEET 1 OF 5
28-10-00-04
PAGE 0
MAY 01/19

SHEET 2 OF 5
28-10-00-04
PAGE 0A
MAY 01/19

SHEET 3 OF 5
28-10-00-04
PAGE 0B
MAY 01/19

SHEET 4 OF 5
28-10-00-04
PAGE 0C
MAY 01/19

SHEET 5 OF 5
28-10-00-04
PAGE 0D
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY

172 GAL. CAPACITY
10 002-920034-1 . FUEL CELL-40 GAL. FE 1
CAPACITY, LH INBD
172 GAL. SYSTEM
ALTERNATE SPARE:
002-920034-3
10 002-920034-3 . FUEL CELL-40 GAL. FE 1
CAPACITY, LH INBD
172 GAL. SYSTEM
ALTERNATE SPARE:
002-920034-1
-20 002-920034-2 . FUEL CELL-40 GAL. FE 1
CAPACITY, RH INBD
172 GAL. SYSTEM
ALTERNATE SPARE:
002-920034-4
-20 002-920034-4 . FUEL CELL-40 GAL. FE 1
CAPACITY, RH INBD
172 GAL. SYSTEM
ALTERNATE SPARE:
002-920034-2
30 60-921046-1 . FUEL CELL-13 GAL. FE 1
CAPACITY, LH OUTBD
172 GAL. SYSTEM
ALTERNATE SPARE:
60-921046-3
30 60-921046-3 . FUEL CELL-13 GAL. FE 1
CAPACITY, LH OUTBD
172 GAL. SYSTEM
ALTERNATE SPARE:
60-921046-1
-40 60-921046-2 . FUEL CELL-13 GAL. FE 1
CAPACITY, RH OUTBD
172 GAL. SYSTEM
ALTERNATE SPARE:
60-921046-4
-40 60-921046-4 . FUEL CELL-13 GAL. FE 1
CAPACITY, RH OUTBD
172 GAL. SYSTEM
ALTERNATE SPARE:
60-921046-2
50 002-920012-47 . INTERCONNECT-INBD TO OUTBD FE 2
LE, 172 GAL. SYSTEM
55 002-920012-45 . INTERCONNECT-INBD TO OUTBD FE 2
LE, 172 GAL. SYSTEM
ATTACHING PARTS
60 9406 . CLAMP FE 6
-------*-------
65 NAS557-8A . GROMMET FE 2
70 58-380003-5 . FUEL CELL-31 GAL. FE 1
ALTERNATE SPARE:
58-380003-9
28-10-00-04
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04
70 58-380003-9 . FUEL CELL-31 GAL. FE 1
ALTERNATE SPARE:
58-380003-5
-80 58-380003-6 . FUEL CELL-31 GAL. FE 1
ALTERNATE SPARE:
58-380003-10
-80 58-380003-10 . FUEL CELL-31 GAL. FE 1
ALTERNATE SPARE:
58-380003-6
172 GAL. SYSTEM
95 9440 . CLAMP FE 8
105 002-920012-41 . INTERCONNECT-OUTBD L.E. FE 2
172 GAL. SYSTEM
110 9456 . CLAMP FE 4
120 CCA3400 . VALVE-DRAIN, INBD L.E. CELL FE 2
-125 CCA1319 . . SEAL FE 2
130 35-921533 . CLAMP-DRAIN VALVE FE 2
FOR SPARES ORDER:
4810SS305
130 4810SS305 . CLAMP FE 2
SPARES REPLACEMENT FORDER:
35-921533
145 60-921019 . STRAINER-HEATER FUEL FE 1
-150 35-921532 . WASHER FE 1
-155 35-921533 . CLAMP FE 1
FOR SPARES ORDER:
4810SS305
-155 4810SS305 . CLAMP FE 1
35-921533
160 36-380095-1 . CAP ASSY-FUEL FILLER FE 2
FOR DETAILS SEE:
28-10-00-10
165 557-003 . INSERT-ADAPTER D 2
-170 58-920029-1 . ADAPTER ASSY-FILLER CAP, A 2
FOR SPARES ORDER:
531-126
FOR DETAILS SEE:
28-10-00-09

28-10-00-04
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04
-170 96-380036-25 . ADAPTER ASSY-FILLER CAP, FE 2
FOR SPARES ORDER:
531-126
-170 531-126 . ADAPTER ASSY-FILLER CAP, FE 2
58-920029-1
96-380036-25
ATTACHING PARTS
-180 130909B101 . BOLT FE 24
-185 NAS1149F0432P . WASHER FE 24
-------*-------
-190 35-921502 . GASKET-FILLER CAP ADAPTER FE 2
195 000-110114-1 . COVER ASSY-LH FE 1
FOR DETAILS SEE:
57-20-00-04
-200 000-110114-2 . COVER ASSY-RH FE 1
FOR DETAILS SEE:
57-20-00-04
205 MS24694S5 . SCREW FE 16
-210 130289-1 . NUT-CLIP FE 16
215 MS24694S48 . SCREW FE 2
220 50-921509-9 . PLATE-INBD L.E. CELL COVER FE 2
ATTACHING PARTS
225 130909B100 . BOLT FE 24
-230 NAS1149D0416H . WASHER FE 24
-------*-------
235 35-921502 . GASKET FE 2
240 50-921509-37 . CLIP ASSY FE 2
245 50-921509-9 . PLATE-INBD L.E. FUEL CELL FE 2
ATTACHING PARTS
-250 130909B100 . BOLT FE 24
-255 NAS1149F0432P . WASHER FE 24
-------*-------
-260 35-921502 . GASKET FE 2
265 000-110187-1 . COVER ASSY-LH, STA 94.113, FE 1
172 GAL. SYSTEM
-270 000-110187-2 . COVER ASSY-RH, STA 94.113, FE 1
172 GAL. SYSTEM
ATTACHING PARTS
275 MS24694S5 . SCREW FE 28
-------*-------
-280 000-110187-7 . . LENS FE 1
285 002-381002-5 . GAGE-SIGHT, LH FUEL QUANITY FE 1
172 GAL. SYSTEM
-290 002-381002-7 . GAGE-SIGHT, RH FUEL QUANITY FE 1
172 GAL. SYSTEM
ATTACHING PARTS
295 MS35266-64 . SCREW FE 10
-------*-------
305 002-920000-197 . INSULATOR-172 GAL. SYSTEM FE 4

28-10-00-04
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04
ATTACHING PARTS
310 130909B14 . BOLT FE 4
-315 100951DD064VX . WASHER FE 4
-320 MS35335-34 . LOCKWASHER FE 4
-325 294618 . RETAINER-NUT FE 4
-------*-------
330 002-920020-15 . COVER ASSY-172 GAL. SYSTEM FE 2
ATTACHING PARTS
335 130909B101 . BOLT FE 12
-340 130909B100 . BOLT FE 12
-345 NAS1149D0416H . WASHER FE 24
-------*-------
350 35-921502-1 . GASKET FE 2
355 CCA4850 . VALVE-DRAIN, BOX SECTION FE 2
CELL
-360 CCA-1269 . . SEAL FE 1
365 MS20822-4D . ELBOW-BOX SECTION FUEL FE 2
DRAIN
FOR SPARES ORDER:
AS5195D0402
365 AS5195D0402 . ELBOW-BOX SECTION FUEL FE 2
DRAIN
MS20822-4D
375 002-920000-93 . TUBE ASSY-BOX SECTION FUEL FE 1
DRAIN LH
-380 002-920000-94 . TUBE ASSY-BOX SECTION FUEL FE 1
DRAIN RH
ATTACHING PARTS
-385 AN737TW22BLIN . CLAMP FE 2
-------*-------
CELL
ATTACHING PARTS
-395 130909B101 . BOLT FE 48
-400 NAS1149F0432P . WASHER FE 48
-------*-------
-405 002-920020-1 . GASKET FE 4
410 50-921574-217 . COVER ASSY-BOX SECTION C 2
CELL, 172 GAL. SYSTEM
ATTACHING PARTS
415 MS24694S51 . SCREW C 28
-------*-------
420 50-921509-9 . PLATE-BOX SECTION CELL, FE 2
172 GAL. SYSTEM
ATTACHING PARTS
425 130909B101 . BOLT FE 24
-430 NAS1149F0432P . WASHER FE 24
-------*-------
435 002-920000-79 . CLIP ASSY-172 GAL. SYSTEM FE 2
440 35-921502 . GASKET FE 2
445 002-920020-5 . COVER ASSY-TRANSMITTER FE 2
MOUNTING, 172 GAL. SYSTEM

28-10-00-04
PAGE 4
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04
ATTACHING PARTS
450 130909B100 . BOLT FE 24
-455 NAS1149D0416J . WASHER FE 24
-------*-------
-460 002-920020-1 . GASKET FE 2
SUPPORT, 172 GAL. SYSTEM
ATTACHING PARTS
470 MS35206-243 . SCREW FE 4
-480 130290-3 . NUT FE 4
-------*-------
485 002-381000-1 . TRANSMITTER-FUEL, LH OUTBD FE 1
L.E. CELL, 172 GAL. SYSTEM
ATTACHING PARTS
-495 MS35266-64 . SCREW FE 10
-500 NAS1149F0332P . WASHER FE 10
-------*-------
505 58-380000-3 . TRANSMITTER-INBD FUEL, INBD FE 2
ATTACHING PARTS
-510 MS35266-64 . SCREW FE 10
-515 NAS1149F0332P . WASHER FE 10
-------*-------
520 58-380001-9 . TRANSMITTER-OUTBD FUEL, LH E 1
INBD L.E. CELL, 172 GAL. SYSTEM
FOR SPARES ORDER:
58-380001-17
520 58-380001-17 . TRANSMITTER-OUTBD FUEL, LH FE 1
58-380001-9
-525 58-380001-11 . TRANSMITTER-OUTBD FUEL, RH F 1
FOR SPARES ORDER:
58-380001-21
-525 58-380001-21 . TRANSMITTER-OUTBD FUEL, RH FE 1
58-380001-11
ATTACHING PARTS
-530 MS35266-64 . SCREW FE 10
-535 NAS1149F0332P . WASHER FE 10
-------*-------
545 002-920020-3 . COVER-OUTBD L.E., 172 FE 2
GAL. SYSTEM
ATTACHING PARTS
-550 NAS501-4H4A . BOLT FE 24
-555 NAS1149D0416J . WASHER FE 24
-------*-------
-560 002-920020-1 . GASKET FE 2
28-10-00-04
PAGE 5
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04
565 60-921047-7 . TUBE ASSY FE 2
-570 4852SS305 CLAMP FE 2
H1469-H1832 A
H1469-H1801 C
H1469-H1997 D
H1469-H2122 E
H1469-H2135 F
H1469-H9999 FE

28-10-00-04
PAGE 6
BARON MAY 01/19
28-10-00-05
FUEL STORAGE AND INTERCONNECT, WET WING TIP INSTL, OPTIONAL
28-10-00-05
BARON MAY 01/19

SHEET 1 OF 4
28-10-00-05
PAGE 0
MAY 01/19

SHEET 2 OF 4
28-10-00-05
PAGE 0A
MAY 01/19

SHEET 3 OF 4
28-10-00-05
PAGE 0B
MAY 01/19

SHEET 4 OF 4
28-10-00-05
PAGE 0C
MAY 01/19

FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
05 FUEL STORAGE AND INTERCONNECT, WET WING TIP

INSTL, OPTIONAL
200 GAL. CAPACITY
28-10-00-08
28-20-00-04
200 GAL. CAPACITY
28-10-00-08
28-20-00-04
15 60-921046-1 . FUEL CELL-13 GAL. FE 1
CAPACITY, LH WING OUTBD
ALTERNATE SPARE:
60-921046-3
15 60-921046-3 . FUEL CELL-13 GAL. FE 1
CAPACITY, LH WING OUTBD
ALTERNATE SPARE:
60-921046-1
-25 60-921046-2 . FUEL CELL-13 GAL. FE 1
CAPACITY, RH WING OUTBD
ALTERNATE SPARE:
60-921046-4
-25 60-921046-4 . FUEL CELL-13 GAL. FE 1
CAPACITY, RH WING OUTBD
ALTERNATE SPARE:
60-921046-2
35 58-380003-5 . FUEL CELL-31 GAL. FE 1
SECT.
ALTERNATE SPARE:
58-380003-9
35 58-380003-9 . FUEL CELL-31 GAL. FE 1
SECT.
ALTERNATE SPARE:
58-380003-5
-45 58-380003-6 . FUEL CELL-31 GAL. FE 1
SECT.
ALTERNATE SPARE:
58-380003-10
-45 58-380003-10 . FUEL CELL-31 GAL. FE 1
SECT.
ALTERNATE SPARE:
58-380003-6
55 002-920034-1 . FUEL CELL-40 GAL. C 1
CAPACITY, LH WING INBD
ALTERNATE SPARE:
002-920034-3
55 002-920034-3 . FUEL CELL-40 GAL. C 1
ALTERNATE SPARE:
002-920034-1
28-10-00-05
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
05
55 002-920033-1 . FUEL CELL-40 GAL. B 1
ALTERNATE SPARE:
002-920033-3
55 002-920033-3 . FUEL CELL-40 GAL. B 1
ALTERNATE SPARE:
002-920033-1
-65 002-920034-2 . FUEL CELL-40 GAL. C 1
CAPACITY, RH WING INBD
ALTERNATE SPARE:
002-920034-4
-65 002-920034-4 . FUEL CELL-40 GAL. C 1
ALTERNATE SPARE:
002-920034-2
-65 002-920033-2 . FUEL CELL-40 GAL. B 1
ALTERNATE SPARE:
002-920033-4
-65 002-920033-4 . FUEL CELL-40 GAL. B 1
ALTERNATE SPARE:
002-920033-2
105 60-921047-7 . TUBE ASSY FE 2
-110 52KS3 . CLAMP FE 6
ALTERNATE SPARE:
4852SS305
-110 4852SS305 . CLAMP FE 6
ALTERNATE SPARE:
52KS3
-112 52KS3 . CLAMP W 4
ALTERNATE SPARE:
4852SS305
-112 4852SS305 . CLAMP W 4
ALTERNATE SPARE:
52KS3
115 MS21266-2N . GROMMET FE 2
120 2F1-3-41366 . HOSE FE 2
125 002-920012-41 . INTERCONNECT FE 2
-130 9456 . CLAMP FE 4
140 002-920012-47 . INTERCONNECT M 2
140 002-920012-59 . INTERCONNECT N 2
-145 9406 . CLAMP FE AR
-150 NAS557-20C . GROMMET FE 2
155 002-920012-45 . INTERCONNECT M 2
155 002-920012-59 . INTERCONNECT N 2
-160 NAS557-8A . GROMMET FE 2
165 002-920012-43 . INTERCONNECT FE 4
-170 9440 . CLAMP FE 8
175 MS21266-2N . GROMMET FE 4
180 CCA3400 . VALVE-DRAIN FE 2
-185 CCA1319 . . SEAL FE 1
-190 4810SS305 . CLAMP FE 2
28-10-00-05
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
05
-195 36-920022-1 . SPACER B 2
-195 36-920022-3 . SPACER C 2
-205 35-921532 . WASHER FE 2
210 36-920014-1 . CONNECTOR ASSY-FUEL B 2
RESERVOIR
-215 4810SS305 . CLAMP FE 2
-220 60-921019 . STRAINER-LH ONLY C 1
FOR HEATER FUEL
FOR SPARES ORDER:
102-920011-1
-220 102-920011-1 . STRAINER ASSY-LH ONLY C 1
FOR HEATER FUEL
60-921019
-225 35-921532 . WASHER FE 1
-230 4810SS305 . CLAMP FE 1
235 36-920015-1 . RESERVOIR ASSY-FUEL B 1
ANTI-SLOSH LH
FOR SPARES ORDER:
FCR57175-1
235 FCR57175-1 . RESERVOIR ASSY-FUEL B 1
ANTI-SLOSH LH
36-920015-1
-240 36-920015-2 . RESERVOIR ASSY-FUEL B 1
ANTI-SLOSH RH
FOR SPARES ORDER:
FCR57176-2
-240 FCR57176-2 . RESERVOIR ASSY-FUEL B 1
ANTI-SLOSH RH
36-920015-2
-245 36-920015-17 . . PLATE B 2
ATTACHING PARTS
250 MS35206-246 . . SCREW FE 4
-------*-------
255 28C112-3 . . . VALVE-CHECK B 2
ATTACHING PARTS
260 130909B14 . . . BOLT FE 2
-265 130909N29 . . . NUT FE 2
-------*-------
270 36-920015-19 . . . PLATE B 1
275 36-920015-15 . . GASKET B 1
-280 36-920015-3 . . BLADDER ASSY-LH B 1
-285 36-920015-4 . . BLADDER ASSY-RH B 1
290 36-920015-23 . . . PLATE B 1
ATTACHING PARTS
295 NAS1162-1 . . . SCREW B 4
-------*-------
300 36-920015-25 . . . GASKET B 1
-305 36-920015-5 . . . CORE ASSY-LH B 1
-310 36-920015-6 . . . CORE ASSY-RH B 1
315 36-920015-21 . . . . BOSS B 1
320 36-920015-11 . . . . FRAME ASSY B 1
-325 MS21075-08N . . . . . NUTPLATE B 4
28-10-00-05
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
05
330 36-920015-7 . . . . CORE-LH B 1
-335 36-920015-8 . . . . CORE-RH B 1
340 36-920015-27 . . . BLADDER-LH B 1
-345 36-920015-28 . . . BLADDER-RH B 1
-350 36-920015-9 . . . DOUBLER B 1
-355 36-920015-31 . . . PATCH B 2
360 58-380000-3 . TRANSMITTER FE 2
ATTACHING PARTS
-365 MS35266-64 . SCREW FE 10
-370 NAS1149F0332P . WASHER FE 10
-------*-------
380 35-921502 . GASKET FE 2
385 50-921509-37 . CLIP ASSY FE 2
ATTACHING PARTS
-390 MS24694S48 . SCREW FE 4
-------*-------
395 50-921509-9 . PLATE FE 2
ATTACHING PARTS
-400 130909B100 . BOLT FE 24
-405 NAS1149D0416H . WASHER FE 24
-------*-------
410 35-921502 . GASKET FE 2
-415 50-921509-9 . PLATE FE 2
ATTACHING PARTS
-420 130909B100 . BOLT FE 24
-425 NAS1149F0432P . WASHER FE 24
-------*-------
430 XS-51171 K2915 . BUTTON-PLUG FE 2
435 58-380001-9 . TRANSMITTER-LH R 1
FOR SPARES ORDER:
58-380001-17
435 58-380001-17 . TRANSMITTER-LH FE 1
58-380001-9
-440 58-380001-11 . TRANSMITTER-RH S 1
FOR SPARES ORDER:
58-380001-21
-440 58-380001-21 . TRANSMITTER-RH FE 1
58-380001-11
ATTACHING PARTS
-445 MS35266-64 . SCREW FE 10
-450 NAS1149F0332P . WASHER FE 10
-------*-------
460 002-381002-5 . GAGE-LH FE 1
-465 002-381002-7 . GAGE-RH FE 1
ATTACHING PARTS
-470 MS35266-64 . SCREW FE 10
-475 AN935-10 . WASHER FE 10
-------*-------
480 35-921502-1 . GASKET FE 2
28-10-00-05
PAGE 4
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
05
-485 002-920020-9 . COVER ASSY D 2
-485 002-920020-15 . COVER ASSY E 2
ATTACHING PARTS
-495 130909B100 . BOLT FE 24
-500 NAS1149D0416H . WASHER FE 24
-------*-------
505 002-920000-105 . INSULATOR D 4
505 002-920000-197 . INSULATOR E 4
ATTACHING PARTS
-515 130909B14 . BOLT E 4
-520 100951DD064-008-112 . WASHER E 4
-525 MS35335-34 . LOCKWASHER E 4
-530 294618 . RETAINER-NUT E 4
-------*-------
535 002-920020-5 . COVER ASSY FE 2
ATTACHING PARTS
-540 130909B100 . BOLT FE 24
-545 NAS1149D1490K . WASHER FE 24
-------*-------
-550 002-920000-29 . BRACKET FE 4
ATTACHING PARTS
-555 MS35206-243 . SCREW FE 4
-------*-------
-565 002-920020-1 . GASKET FE 2
570 002-381000-1 . TRANSMITTER-LH FE 1
-575 002-381000-3 . TRANSMITTER-RH FE 1
ATTACHING PARTS
-580 MS35266-64 . SCREW FE 10
-585 NAS1149F0332P . WASHER FE 10
-------*-------
595 002-920020-3 . COVER FE 2
ATTACHING PARTS
-600 NAS501-4H4A . BOLT FE 24
-605 NAS1149D0416J . WASHER FE 24
-------*-------
-610 002-920020-1 . GASKET FE 2
615 96-380035 . CAP ASSY F 2
FOR SPARES ORDER:
96-380035-1
FOR DETAILS SEE:
28-10-00-09
615 96-380035-1 . CAP ASSY F 2
ALTERNATE SPARE:
96-380035-3
96-380035
615 96-380035-3 . CAP ASSY F 2
ALTERNATE SPARE:
96-380035-1
615 36-380095-1 . CAP ASSY G 2
-625 557-003 . INSERT-ADAPTER K 2

28-10-00-05
PAGE 5
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
05
-630 58-920029-9 . FILLER ASSY L 2
FOR SPARES ORDER:
96-380036-25
-630 96-380036-25 . ADAPTER ASSY P 2
58-920029-9
-630 531-126 . ADAPTER ASSY Q 2
ATTACHING PARTS
-635 130909B101 . BOLT FE 24
-640 NAS1149F0432P . WASHER FE 24
-645 MS24694S51 . SCREW FE 24
-------*-------
-650 35-921502 . GASKET FE 2
655 002-920000-93 . TUBE ASSY-LH FE 1
-660 002-920000-94 . TUBE ASSY-RH FE 1
-665 AN737TW22BLIN . CLAMP FE 2
670 CCA4850 . VALVE FE 2
-675 CCA-1269 . . SEAL FE 2
-680 MS20822-4D . ELBOW FE 2
-685 AN910-1J . COUPLING FE 2
690 002-920020-3 . COVER FE 4
-695 130909B101 . BOLT FE 48
-700 NAS1149F0432P . WASHER FE 48
-705 002-920020-1 . GASKET FE 4
710 002-920000-23 . HANGER B 4
715 50-921574-217 . COVER ASSY A 2
-720 MS24694S51 . SCREW FE 28
725 002-920000-79 . CLIP ASSY FE 2
730 50-921509-9 . PLATE FE 2
-735 130909B101 . BOLT FE 24
-740 NAS1149F0432P . WASHER FE 24
-745 35-921502 . GASKET FE 2
750 60-921052-1 . INDICATOR-FUEL LEVEL H 2
750 58-920052-1 . INDICATOR-FUEL LEVEL J 2
760 96-380035 . CAP ASSY F 2
FOR SPARES ORDER:
96-380035-1
FOR DETAILS SEE:
28-10-00-09
760 96-380035-1 . CAP ASSY F 2
ALTERNATE SPARE:
96-380035-3
96-380035
760 96-380035-3 . CAP ASSY F 2
ALTERNATE SPARE:
96-380035-1
760 36-380095-1 . CAP ASSY G 2
-770 557-003 . INSERT-ADAPTER K 2
-780 60-170010-1 TIP ASSY-LH WING, WET T RF
FOR NHA SEE:
57-10-00-01
-780 60-170010-121 TIP ASSY-LH WING, WET V RF
FOR NHA SEE:
57-10-00-01
28-10-00-05
PAGE 6
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
05
-780 60-170010-125 TIP ASSY-LH WING, WET U RF
FOR NHA SEE:
57-10-00-01
-785 60-170010-2 TIP ASSY-RH WING, WET T RF
FOR NHA SEE:
57-10-00-01
-785 60-170010-122 TIP ASSY-RH WING, WET V RF
FOR NHA SEE:
57-10-00-01
-785 60-170010-126 TIP ASSY-RH WING, WET U RF
FOR NHA SEE:
57-10-00-01
790 96-380036-15 . ADAPTER ASSY F 1
MISCELLANEOUS DATA:
531-128 MAY BE FURNISHED
AS SPARES IF KIT
36-5013-1, FUEL FILLER
NECK RESTRICTOR, HAS
BEEN INSTALLED
60-170010-1
60-170010-2
790 96-380036-15 . ADAPTER ASSY K 1
FOR SPARES ORDER:
531-128
60-170010-1
60-170010-2
790 531-128 . ADAPTER ASSY FE 1
96-380036-15
60-170010-1
60-170010-2.
790 531-128 . ADAPTER ASSY FE 1
60-170010-121
60-170010-122
H0669-H0669,H0680-H1801 A
H0669-H0669,H0680-H0765,H0767-H0772 B
H0766-H0766,H0773-H9999 C
H0669-H0669,H0680-H0757 D
H0758-H9999 E
H0669-H0669,H0680-H1450 F
H1451-H9999 G
H0669-H0669,H0680-H1506 H
H1507-H9999 J
H1451-H1997 K
H0669-H0669,H0680-H1832 L
H0669-H0669,H0680-H1765 M
H1766-H9999 N
H0669-H0669,H0680-H1997 P
H1998-H9999 Q
28-10-00-05
PAGE 7
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
05
(CONTINUED)
H0669-H0669,H0680-H2122 R
H0669-H0669,H0680-H2135 S
H0669-H0699,H0680-H2163 T
H2278-H9999 U
H0669-H0699,H0680-H2277 V
H2402-H9999 W
H0669-H0669,H0680-H9999 FE

28-10-00-05
PAGE 8
BARON MAY 01/19
28-10-00-06
FUEL STORAGE VENT SYSTEM
28-10-00-06
BARON MAY 01/19

SHEET 1 OF 4
28-10-00-06
PAGE 0
MAY 01/19

SHEET 2 OF 4
28-10-00-06
PAGE 0A
MAY 01/19

SHEET 3 OF 4
28-10-00-06
PAGE 0B
MAY 01/19

SHEET 4 OF 4
28-10-00-06
PAGE 0C
MAY 01/19

FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
06 FUEL STORAGE VENT SYSTEM

106 GAL. CAPACITY
73-10-00-01
28-10-00-02
28-20-00-01
-5 002-920001-13 FUEL SYSTEM INSTL-STANDARD, F RF
100 GAL. CAPACITY
28-10-00-03
28-20-00-03
106 GAL. CAPACITY
73-10-00-01
28-10-00-02
28-20-00-01
-5 002-920001-15 FUEL SYSTEM INSTL-STANDARD, G RF
100 GAL. CAPACITY
28-10-00-03
28-20-00-03
-5 58-920000 FUEL SYSTEM INSTL-STANDARD, L RF
142 GAL. CAPACITY
73-10-00-02
28-10-00-01
28-20-00-02
142 GAL. CAPACITY
73-10-00-01
28-10-00-02
28-20-00-02
-5 002-920001-1 FUEL SYSTEM INSTL-STANDARD, H RF
136 GAL. CAPACITY
28-10-00-03
28-20-00-03
142 GAL. CAPACITY
73-10-00-01
28-10-00-02
28-20-00-01
-5 002-920001-5 FUEL SYSTEM INSTL-OPTIONAL, F RF
136 GAL. CAPACITY
28-10-00-03
28-20-00-03
28-10-00-06
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
06
142 GAL. CAPACITY
73-10-00-01
28-10-00-02
28-20-00-01
-5 002-920001-7 FUEL SYSTEM INSTL-OPTIONAL, G RF
142 GAL. CAPACITY
28-10-00-03
28-20-00-03
-5 58-920000-1 FUEL SYSTEM INSTL-OPTIONAL, L RF
172 GAL. CAPACITY
73-10-00-02
28-10-00-01
28-20-00-02
172 GAL. CAPACITY
73-10-00-01
28-10-00-02
-5 002-920001-3 FUEL SYSTEM INSTL-OPTIONAL, H RF
166 GAL. CAPACITY
28-10-00-03
28-20-00-03
172 GAL. CAPACITY
73-10-00-01
28-10-00-02
28-20-00-01
-5 002-920001-9 FUEL SYSTEM INSTL-OPTIONAL, G RF
194 GAL. CAPACITY
28-10-00-03
28-20-00-03
85 106200G8-11 . HOSE FE 2
-90 8KS3 . CLAMP FE 4
ALTERNATE SPARE:
63008
FOR SPARES ORDER:
4808SS305
-90 63008 . CLAMP FE 4
ALTERNATE SPARE:
8KS3
FOR SPARES ORDER:
4808SS305

28-10-00-06
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
06
-90 4808SS305 . CLAMP FE 4
8KS3
63008
95 106200G6-11 . HOSE FE 2
ALTERNATE SPARE:
63008
FOR SPARES ORDER:
4808SS305
-100 63008 . CLAMP FE 4
ALTERNATE SPARE:
8KS3
FOR SPARES ORDER:
4808SS305
-100 4808SS305 . CLAMP FE 4
8KS3
63008
105 MS21919DG14 . CLAMP-HOSE SUPPORT FE 2
ALTERNATE SPARE:
AN742D16C
105 AN742D16C . CLAMP-HOSE SUPPORT FE 2
ALTERNATE SPARE:
MS21919DG14
ATTACHING PARTS
-110 AN3DD3A . BOLT FE 2
FOR SPARES ORDER:
NAS1149D0316K
-115 NAS1149D0316K . WASHER FE 2
AN960PD10L
-120 MS21083D3 . NUT FE 2
-------*-------
125 MS21919DG8 . CLAMP-TUBE SUPPORT FE 4
FOR SPARES ORDER:
AS21919WDG8
125 AS21919WDG8 . CLAMP-TUBE SUPPORT FE 4
MS21919DG8
ATTACHING PARTS
FOR SPARES ORDER:
NAS1149D0316K
AN960PD10L
-140 MS21083D3 . NUT FE 4
-------*-------
-145 AN743-12 . BRACKET-CLAMP SUPPORT FE 6
ATTACHING PARTS

28-10-00-06
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
06
FOR SPARES ORDER:
NAS1149D0316K
AN960PD10L
-160 MS21083D3 . NUT FE 6
-------*-------
165 106200G8-40 . HOSE FE 2
ALTERNATE SPARE:
63008
FOR SPARES ORDER:
4808SS305
-170 63008 . CLAMP FE 4
ALTERNATE SPARE:
8KS3
FOR SPARES ORDER:
4808SS305
-170 4808SS305 . CLAMP FE 4
8KS3
63008
175 002-920019-1 . VALVE ASSY-FUEL VENT FE 2
FOR DETAILS SEE:
28-20-00-05
180 48KS3 . CLAMP FE 2
ALTERNATE SPARE:
63048
FOR SPARES ORDER:
4848SS305
180 63048 . CLAMP FE 2
ALTERNATE SPARE:
48KS3
FOR SPARES ORDER:
4848SS305
180 4848SS305 . CLAMP FE 2
48KS3
63048
185 000-170029-1 . BRACKET-FUEL VENT VALVE FE 2
FOR DETAILS SEE:
57-20-00-11
190 002-920000-53 . TUBE-FUEL VENT N 2
190 60-920000-179 . TUBE-FUEL VENT L 2
200 106200G8-11 . HOSE FE 2
ALTERNATE SPARE:
63008
FOR SPARES ORDER:
4808SS305

28-10-00-06
PAGE 4
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
06
-205 63008 . CLAMP FE 4
ALTERNATE SPARE:
8KS3
FOR SPARES ORDER:
4808SS305
-205 4808SS305 . CLAMP FE 4
8KS3
63008
210 002-920000-47 . TUBE-FUEL VENT N 2
210 60-920000-177 . TUBE-FUEL VENT L 2
220 MS21919DG8 . CLAMP-VENT TUBE SUPPORT FE 2
FOR SPARES ORDER:
AS21919WDG8
220 AS21919WDG8 . CLAMP-VENT TUBE SUPPORT FE 2
MS21919DG8
-225 AN743-13 . BRACKET-SUPPORT CLAMP FE 2
ATTACHING PARTS
-230 130909B15 . BOLT-OPTIONAL FE 2
-235 AN520-10R . SCREW FE 2
-240 AN960-10L . WASHER FE 2
ALTERNATE SPARE:
NAS1149F0332P
-240 NAS1149F0332P . WASHER FE 2
ALTERNATE SPARE:
AN960-10L
-245 130909N29 . NUT FE 2
-------*-------
250 MS35489-14 . GROMMET-VENT LINE FE 8
255 60-920000-203 . SUPPORT-VENT TUBE FE 2
270 106200G8-11 . HOSE FE 4
-275 AN737-TW30 . CLAMP FE 8
280 002-920000-45 . TUBE-LH N 1
280 60-920000-173 . TUBE-LH L 1
-290 002-920000-46 . TUBE-RH N 1
-290 60-920000-174 . TUBE-RH L 1
300 002-920000-33 . TUBE-VENT N 2
305 106200G8-12 . HOSE FE 2
-310 58-920000-33 . TUBE-VENT L 2
-315 AN737-TW30 . CLAMP FE 4
-320 106200G8-12 . HOSE-VENT TUBE FE 2
325 MS21919DG8 . CLAMP FE 2
FOR SPARES ORDER:
AS21919WDG8
325 AS21919WDG8 . CLAMP FE 2
MS21919DG8
ATTACHING PARTS
-330 MS35207-270 . SCREW FE 2
-335 100696DZL108 . SPACER FE 2

28-10-00-06
PAGE 5
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
06
-340 AN960D10 . WASHER FE 2
FOR SPARES ORDER:
NAS1149D0363H
-340 NAS1149D0363H . WASHER FE 2
AN960D10
-345 130909N29 . NUT FE 2
-------*-------
350 60-381002 . TUBE ASSY-HEATED FUEL VENT FE 2
-355 NMC557-8A . GROMMET-FUEL VENT THRU FE 2
WING SKIN
360 106200G12-16 . HOSE FE 2
-365 12KS3 . CLAMP FE 4
ALTERNATE SPARE:
63012
FOR SPARES ORDER:
4812SS305
-365 63012 . CLAMP FE 4
ALTERNATE SPARE:
12KS3
FOR SPARES ORDER:
4812SS305
-365 4812SS305 . CLAMP FE 4
12KS3
63012
370 106200H4-11 . HOSE FE 2
ATTACHING PARTS
-375 6 . CLAMP L 4
-375 6KS3 . CLAMP J 4
ALTERNATE SPARE:
4406
63006
FOR SPARES ORDER:
4808SS305
-375 4406 . CLAMP J 4
ALTERNATE SPARE:
6KS3
63006
-375 63006 . CLAMP J 4
ALTERNATE SPARE:
6KS3
4406
FOR SPARES ORDER:
4808SS305
-375 4808SS305 . CLAMP J 4
6KS3
63006
-375 62606 . CLAMP K 4
ALTERNATE SPARE:
6208
M5S

28-10-00-06
PAGE 6
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
06
-375 6208 . CLAMP K 4
ALTERNATE SPARE:
62606
M5S
-375 M5S . CLAMP K 4
ALTERNATE SPARE:
62606
6208
-------*-------
380 106200G12-10 . HOSE N 2
-385 12KS3 . CLAMP N 4
ALTERNATE SPARE:
63012
FOR SPARES ORDER:
4812SS305
-385 63012 . CLAMP N 4
ALTERNATE SPARE:
12KS3
FOR SPARES ORDER:
4812SS305
-385 4812SS305 . CLAMP N 4
12KS3
63012
390 002-920017-29 . TUBE ASSY-VENT, 106 AND 172 N 2
GAL. SYSTEM
-395 60-921036-1 . TUBE ASSY-LH VENT, 172 GAL. L 1
SYSTEM
-400 60-921036-2 . TUBE ASSY-RH VENT, 172 GAL. L 1
SYSTEM
-405 002-920017-13 . TUBE ASSY-VENT, 142 GAL. N 2
SYSTEM
-410 60-921036-9 . TUBE ASSY-LH VENT, L 1
142 GAL. SYSTEM
-415 60-921036-10 . TUBE ASSY-RH VENT, L 1
142 GAL. SYSTEM
420 002-920000-175 . TUBE-CONNECTING, 106 AND N 2
172 GAL. SYSTEM
-425 AN737-RM30 . CLAMP N 2
430 MS21266-1N . GROMMET-106 AND 172 GAL. FE 2
SYSTEM
435 002-920000-139 . TUBE ASSY-106 GAL. SYSTEM D 2
-440 AN737-RM30 . CLAMP D 2
445 002-920000-179 . TUBE-172 GAL. SYSTEM E 2
-450 60-920000-189 . TUBE-172 GAL. SYSTEM L 2
455 106200G6-10 . HOSE-172 GAL. SYSTEM E 2
-460 6KS3 . CLAMP E 4
ALTERNATE SPARE:
4406
63006
FOR SPARES ORDER:
4808SS305

28-10-00-06
PAGE 7
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
06
-460 4406 . CLAMP E 4
ALTERNATE SPARE:
6KS3
63006
-460 63006 . CLAMP E 4
ALTERNATE SPARE:
6KS3
4406
FOR SPARES ORDER:
4808SS305
-460 4808SS305 . CLAMP E 4
6KS3
63006
465 002-920000-177 . TUBE-172 GAL. SYSTEM E 2
-470 AN737-RM26 . CLAMP E 2
475 MS21266-1N . GROMMET-106 AND 172 GAL. FE 2
SYSTEM
480 002-920000-21 . TUBE ASSY-142 GAL. SYSTEM N 2
480 58-920000-21 . TUBE ASSY-142 GAL. SYSTEM L 2
ALTERNATE SPARE:
4406
63006
FOR SPARES ORDER:
4808SS305
-490 4406 . CLAMP FE 2
ALTERNATRE SPARE:
6KS3
63006
-490 63006 . CLAMP FE 2
ALTERNATE SPARE:
6KS3
4406
FOR SPARES ORDER:
4808SS305
-490 4808SS305 . CLAMP FE 2
6KS3
63006
495 002-920000-55 . TUBE-PRESSURE RELIEF N 2
495 60-920000-181 . TUBE-PRESSURE RELIEF L 2
505 3217-00-11 . VALVE-PRESSURE RELIEF P 2
FOR DETAILS SEE:
28-20-00-05
505 60-380003-5 . VALVE-PRESSURE RELIEF Q 2
-510 MS21919DG11 . CLAMP-RELIEF VALVE SUPPORT FE 2
FOR SPARES ORDER:
AS21919WDG11
-510 AS21919WDG11 . CLAMP-RELIEF VALVE SUPPORT FE 2
MS21919DG11
ATTACHING PARTS
-515 AN3A4 . BOLT FE 2

28-10-00-06
PAGE 8
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
06
FOR SPARES ORDER:
NAS1149D0316K
AN960PD10L
-525 130909N29 . NUT FE 2
-------*-------
-530 58-920000-59 . TUBE ASSY-SIPHON BREAK LH L 1
535 106200H4-11 . HOSE-PRESSURE RELIEF FE 2
-540 58-920000-73 . TUBE ASSY-SIPHON BREAK RH L 1
ATTACHING PARTS
-545 6 . CLAMP L 4
-545 6KS3 . CLAMP J 4
ALTERNATE SPARE:
4406
63006
FOR SPARES ORDER:
4808SS305
-545 4406 . CLAMP J 4
ALTERNATE SPARE:
6KS3
63006
-545 63006 . CLAMP J 4
ALTERNATE SPARE:
6KS3
4406
FOR SPARES ORDER:
4808SS305
-545 4808SS305 . CLAMP J 4
6KS3
63006
-545 62606 . CLAMP K 4
ALTERNATE SPARE:
6208
M5S
-545 6208 . CLAMP K 4
ALTERNATE SPARE:
62606
M5S
ALTERNATE SPARE:
62606
6208
-------*-------
550 002-920000-75 . TUBE ASSY-PRESSURE RELIEF, N 1
LH
550 60-920000-185 . TUBE-PRESSURE RELIEF LH L 1
-560 002-920000-76 . TUBE ASSY-PRESSURE RELIEF, N 1
RH
-560 60-920000-186 . TUBE-PRESSURE RELIEF RH L 1

28-10-00-06
PAGE 9
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
06
570 MS21919DG4 . CLAMP-PRESSURE RELIEF TUBE FE 2
SUPPORT
FOR SPARES ORDER:
AS21919WDG4
570 AS21919WDG4 . CLAMP-PRESSURE RELIEF TUBE FE 2
SUPPORT
MS21919DG4
ATTACHING PARTS
FOR SPARES ORDER:
NAS1149D0316K
AN960PD10L
-585 MS21083D3 . NUT FE 2
-------*-------
590 MS21919DG12 . CLAMP FE 4
FOR SPARES ORDER:
AS21919WDG12
MS21919DG12
ATTACHING PARTS
FOR SPARES ORDER:
NAS1149D0316K
AN960PD10L
-605 MS21083D3 . NUT FE 4
-------*-------
610 AN743-12 . BRACKET-CLAMP SUPPORT FE 2
ATTACHING PARTS
FOR SPARES ORDER:
NAS1149D0316K
AN960PD10L
-625 MS21083D3 . NUT FE 2
-------*-------
630 106200H4-10 . HOSE-SIPHON BREAK FE 2
CONNECTION
ATTACHING PARTS
-635 6 . CLAMP L 4
-635 6KS3 . CLAMP J 4
ALTERNATE SPARE:
4406
63006
FOR SPARES ORDER:
4808SS305
28-10-00-06
PAGE 10
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
06
-635 4406 . CLAMP J 4
ALTERNATE SPARE:
6KS3
63006
-635 63006 . CLAMP J 4
ALTERNATE SPARE:
6KS3
4406
FOR SPARES ORDER:
4808SS305
-635 4808SS305 . CLAMP J 4
6KS3
63006
-635 62606 . CLAMP K 4
ALTERNATE SPARE:
6208
M5S
-635 6208 . CLAMP K 4
ALTERNATE SPARE:
62606
M5S
ALTERNATE SPARE:
62606
6208
-------*-------
640 002-920017-1 . TUBE ASSY-VENT AND SIPHON N 2
BREAK, 142 AND 172 GAL.
SYSTEM
640 58-920025 . TUBE ASSY-VENT AND SIPHON L 2
BREAK, 142 AND 172 GAL.
SYSTEM
-650 12KS3 . CLAMP-SURETITE, 302 SS FE 2
NON-MAGNETIC
ALTERNATE SPARE:
63012
FOR SPARES ORDER:
4812SS305
-650 63012 . CLAMP-SURETITE, 302 SS FE 2
NON-MAGNETIC
ALTERNATE SPARE:
12KS3
FOR SPARES ORDER:
4812SS305
-650 4812SS305 . CLAMP-SURETITE, 302 SS FE 2
NON-MAGNETIC
12KS3
63012
-655 002-920000-143 . TUBE ASSY-VENT AND SIPHON D 2
BREAK, 100 GAL. SYSTEM
660 102-920001-47 . TUBE ASSY-SIPHON BREAK D 2
660 002-920000-183 . TUBE ASSY-SIPHON BREAK M 2
-670 58-920000-57 . TUBE ASSY-SIPHON BREAK LH L 1
28-10-00-06
PAGE 11
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
06
-675 58-920000-71 . TUBE ASSY-SIPHON BREAK RH L 1
680 50-380170-11 . VALVE-SIPHON BREAK FE 2
FOR DETAILS SEE:
28-20-00-05
-685 MS21919DG17 . CLAMP-SIPHON BREAK VALVE FE 2
SUPPORT
FOR SPARES ORDER:
AS21919WDG17
-685 AS21919WDG17 . CLAMP-SIPHON BREAK VALVE FE 2
SUPPORT
MS21919DG17
ATTACHING PARTS
-695 NAS43DD4-19 . SPACER FE 2
FOR SPARES ORDER:
NAS1149D0316K
AN960PD10L
-705 MS21083D3 . NUT FE 2
-------*-------
710 002-920000-181 . TUBE ASSY-SIPHON BREAK LH J 1
710 002-920000-195 . TUBE ASSY-SIPHON BREAK LH K 1
-720 002-920000-182 . TUBE ASSY-SIPHON BREAK RH J 1
-720 002-920000-196 . TUBE ASSY-SIPHON BREAK RH K 1
ALTERNATE SPARE:
4406
63006
FOR SPARES ORDER:
4808SS305
-735 4406 . CLAMP FE 4
ALTERNATE SPARE:
6KS3
63006
-735 63006 . CLAMP FE 4
ALTERNATE SPARE:
6KS3
4406
FOR SPARES ORDER:
4808SS305
-735 4808SS305 . CLAMP 4
6KS3
63006
740 000-920012-11 . FLANGE ASSY-SIPHON BREAK N 2
740 50-920077-1 . FLANGE ASSY-SIPHON BREAK L 2
750 002-920017-19 . TUBE-INBD L.E. CELL TO BOX N 2
SECTION FUEL CELL VENT,
142 GAL. SYSTEM

28-10-00-06
PAGE 12
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
06
750 58-920023-1 . TUBE-INBD L.E. CELL TO BOX L 2
SECTION FUEL CELL VENT,
142 GAL. SYSTEM
FOR SPARES ORDER:
132742-22TL
-760 132742-22TL . CLAMP FE 2
AN737TW22
FOR SPARES ORDER:
9406
NAS1924-26
-765 9406 . CLAMP FE 2
WWD-26
-765 NAS1924-26 . CLAMP FE 2
WWD26
ALTERNATE SPARE:
132742-26L
-765 132742-26L . CLAMP FE 2
ALTERNATE SPARE:
NAS1924-26
770 NAS557-200 . GROMMET FE 2
C1608-C1969,C1971-C2002 A
E0938-E0938,E0943-E1080,E1082-E1083 B
H0385-H0765,H0767-H0772 C
C1608-C9999,E0938-E0938,E0943-E9999 D
E0938-E0938,E0943-E9999,H0385-H1468 E
C1970-C1970,C2003-C9999 F
E1081-E1081,E1084-E9999 G
H0766-H0766,H0773-H1468 H
C1608-C1969,C1971-C2002,E0938-E0938,E0943-E1080, J
E1082-E1083,H0385-H0765,H0767-H0772
C1970-C1970,C2003-C9999,E1081-E1081,E1084-E9999, K
H0766-H0766,H0773-H1468
H0001-H0384 L
H0385-H1468 M
C1608-C9999,E0938-E0938,E0943-E9999,H0385-H1468 N
C1608-C1969,C1971-C2002,E0938-E0938,E0943-E1080, P
E1082-E1083,H0001-H0765,H0767-H0772
C1970-C1970,C2003-C9999,E1081-E1081,E1084-E9999, Q
H0766-H0766,H0773-H1468
C1608-C9999,E0938-E0938,E0943-E9999,H0001-H1468 FE

28-10-00-06
PAGE 13
BARON MAY 01/19

28-10-00-07
28-10-00-07
BARON MAY 01/19

SHEET 1 OF 4
28-10-00-07
PAGE 0
MAY 01/19

SHEET 2 OF 4
28-10-00-07
PAGE 0A
MAY 01/19

SHEET 3 OF 4
28-10-00-07
PAGE 0B
MAY 01/19

SHEET 4 OF 4
28-10-00-07
PAGE 0C
MAY 01/19

FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
07 FUEL STORAGE VENT SYSTEM

172 GAL. CAPACITY
10 106200G8-11 . HOSE FE 2
ATTACHING PARTS
ALTERNATE SPARE:
63008
FOR SPARES ORDER:
4808SS305
-15 63008 . CLAMP FE 2
ALTERNATE SPARE:
8KS3
FOR SPARES ORDER:
4808SS305
-15 4808SS305 . CLAMP FE 2
8KS3
63008
-------*-------
20 106200G6-11 . HOSE FE 2
ATTACHING PARTS
ALTERNATE SPARE:
63008
FOR SPARES ORDER:
4848SS305
-25 63008 . CLAMP FE 2
ALTERNATE SPARE:
8KS3
FOR SPARES ORDER:
4808SS305
-25 4808SS305 . CLAMP FE 2
8KS3
63008
-------*-------
30 MS21919DG14 . CLAMP-HOSE SUPPORT FE 2
ALTERNATE SPARE:
AN742D16C
30 AN742D16C . CLAMP-HOSE SUPPORT FE 2
ALTERNATE SPARE:
MS21919DG14
ATTACHING PARTS
FOR SPARES ORDER:
NAS1149D0316K
AN960PD10L
-45 MS21083D3 . NUT FE 1
-------*-------
50 MS21919DG8 . CLAMP-TUBE SUPPORT FE 4
FOR SPARES ORDER:
AS21919WDG8
28-10-00-07
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
07
50 AS21919WDG8 . CLAMP-TUBE SUPPORT FE 4
MS21919DG8
ATTACHING PARTS
FOR SPARES ORDER:
NAS1149D0316K
AN960PD10L
-65 MS21083D3 . NUT FE 1
-------*-------
ATTACHING PARTS
FOR SPARES ORDER:
NAS1149D0316K
AN960PD10L
-85 MS21083D3 . NUT FE 1
-------*-------
90 106200G8-40 . HOSE FE 2
ATTACHING PARTS
ALTERNATE SPARE:
63008
FOR SPARES ORDER:
4808SS305
-95 63008 . CLAMP FE 2
ALTERNATE SPARE:
8KS3
FOR SPARES ORDER:
4808SS305
-95 4808SS305 . CLAMP FE 2
8KS3
63008
-------*-------
100 002-920019-1 . VALVE ASSY-FUEL VENT FE 2
FOR DETAILS SEE:
28-20-00-05
ATTACHING PARTS
105 48KS3 . CLAMP FE 1
ALTERNATE SPARE:
63048
FOR SPARES ORDER:
4848SS305
105 63048 . CLAMP FE 1
ALTERNATE SPARE:
48KS3
FOR SPARES ORDER:
4848SS305
28-10-00-07
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
07
105 4848SS305 . CLAMP FE 1
48KS3
63048
-------*-------
110 000-170029-1 . BRACKET-VALVE FE 2
115 002-920000-53 . TUBE-FUEL VENT FE 2
120 106200G8-11 . HOSE FE 2
ATTACHING PARTS
ALTERNATE SPARE:
63008
FOR SPARES ORDER:
4808SS305
-125 63008 . CLAMP FE 2
ALTERNATE SPARE:
8KS3
FOR SPARES ORDER:
4808SS305
-125 4808SS305 . CLAMP FE 2
8KS3
63008
-------*-------
130 002-920000-47 . TUBE-FUEL VENT FE 2
135 MS21919DG8 . CLAMP-VENT TUBE SUPPORT FE 2
FOR SPARES ORDER:
AS21919WDG8
135 AS21919WDG8 . CLAMP-VENT TUBE SUPPORT FE 2
MS21919DG8
-140 AN743-13 . BRACKET-SUPPORT CLAMP FE 2
ATTACHING PARTS
-150 AN520-10R . SCREW FE 1
-155 AN960-10L . WASHER FE 1
ALTERNATE SPARE:
NAS1149F0332P
ALTERNATE SPARE:
AN960-10L
-160 130909N29 . NUT FE 1
-------*-------
165 MS35489-14 . GROMMET-VENT LINE FE 8
185 106200G8-11 . HOSE FE 4
ATTACHING PARTS
-190 AN737-TW30 . CLAMP FE 4
-------*-------
195 002-920000-45 . TUBE-LH FE 1
-200 002-920000-46 . TUBE-RH FE 1
205 002-920000-33 . TUBE-VENT FE 2
210 106200G8-12 . HOSE FE 2
28-10-00-07
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
07
ATTACHING PARTS
-215 AN737-TW30 . CLAMP FE 4
-------*-------
-220 106200G8-12 . HOSE-VENT TUBE FE 2
FOR SPARES ORDER:
AS21919WDG8
MS21919DG8
ATTACHING PARTS
-230 MS35207-270 . SCREW FE 1
-235 100696DZL108 . SPACER FE 1
FOR SPARES ORDER:
NAS1149D0363H
AN960D10
-245 130909N29 . NUT FE 1
-------*-------
250 60-381002 . TUBE ASSY-HEATED FUEL VENT FE 2
-255 NMC557-8A . GROMMET-FUEL VENT THRU FE 2
WING SKIN
260 106200G12-16 . HOSE FE 2
-265 12KS3 . CLAMP FE 2
ALTERNATE SPARE:
63012
FOR SPARES ORDER:
4812SS305
-265 63012 . CLAMP FE 2
ALTERNATE SPARE:
12KS3
FOR SPARES ORDER:
4812SS305
-265 4812SS305 . CLAMP FE 2
12KS3
63012
270 106200H4-11 . HOSE FE 2
ATTACHING PARTS
-275 62606 . CLAMP FE 4
ALTERNATE SPARE:
6208
M5S
-275 6208 . CLAMP FE 4
ALTERNATE SPARE:
62606
M5S
-275 M5S . CLAMP FE 4
ALTERNATE SPARE:
62606
6208
-------*-------
280 106200G12-10 . HOSE-172 GAL. SYSTEM FE 2
28-10-00-07
PAGE 4
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
07
-285 12KS3 . CLAMP FE 2
ALTERNATE SPARE:
63012
FOR SPARES ORDER:
4812SS305
-285 63012 . CLAMP FE 2
ALTERNATE SPARE:
12KS3
FOR SPARES ORDER:
4812SS305
-285 4812SS305 . CLAMP FE 2
12KS3
63012
290 002-920017-29 . TUBE ASSY-VENT, 172 GAL. FE 2
SYSTEM
295 002-920000-175 . TUBE-CONNECTING, 172 GAL. FE 2
SYSTEM
ATTACHING PARTS
-300 AN737-RM30 . CLAMP FE 1
-------*-------
305 MS21266-1N . GROMMET-172 GAL. SYSTEM FE 2
ATTACHING PARTS
-310 AN737-RM26 . CLAMP FE 1
ALTERNATE SPARE:
4406
63006
FOR SPARES ORDER:
4808SS305
-315 4406 . CLAMP FE 2
ALTERNATE SPARE:
6KS3
63006
-315 63006 . CLAMP FE 2
ALTERNATE SPARE:
6KS3
4406
FOR SPARES ORDER:
4808SS305
-315 4808SS305 . CLAMP FE 2
6KS3
63006
-------*-------
320 6204 . CLAMP FE 1
325 60-920002-5 . TUBE-172 GAL. SYSTEM FE 2
ATTACHING PARTS
-330 AN737-RM26 . CLAMP FE 1
-------*-------
335 MS21266-1N . GROMMET-172 GAL. SYSTEM FE 2

28-10-00-07
PAGE 5
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
07
ATTACHING PARTS
ALTERNATE SPARE:
4406
63006
FOR SPARES ORDER:
4808SS305
-340 4406 . CLAMP FE 1
ALTERNATE SPARE:
6KS3
63006
-340 63006 . CLAMP FE 1
ALTERNATE SPARE:
6KS3
4406
FOR SPARES ORDER:
4808SS305
-340 4808SS305 . CLAMP FE 1
6KS3
63006
-------*-------
345 002-920000-55 . TUBE-PRESSURE RELIEF FE 2
350 60-380003-5 . VALVE-PRESSURE RELIEF FE 2
-355 MS21919DG11 . CLAMP-RELIEF VALVE SUPPORT FE 2
FOR SPARES ORDER:
AS21919WDG11
-355 AS21919WDG11 . CLAMP-RELIEF VALVE SUPPORT FE 2
MS21919DG11
ATTACHING PARTS
FOR SPARES ORDER:
NAS1149D0316J
-365 NAS1149D0316J . WASHER FE 1
AN960PD10L
-370 130909N29 . NUT FE 1
-------*-------
375 106200H4-11 . HOSE-PRESSURE RELIEF FE 2
ATTACHING PARTS
-380 62606 . CLAMP FE 4
ALTERNATE SPARE:
6208
M5S
-380 6208 . CLAMP FE 4
ALTERNATE SPARE:
62606
M5S
ALTERNATE SPARE:
62606
6208
-------*-------
28-10-00-07
PAGE 6
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
07
385 002-920000-75 . TUBE ASSY-PRESSURE RELIEF, FE 1
LH
-390 002-920000-76 . TUBE ASSY-PRESSURE RELIEF, FE 1
RH
395 MS21919DG4 . CLAMP-PRESSURE RELIEF TUBE FE 2
SUPPORT
FOR SPARES ORDER:
AS21919WDG4
395 AS21919WDG4 . CLAMP-PRESSURE RELIEF TUBE FE 2
SUPPORT
MS21919DG4
ATTACHING PARTS
FOR SPARES ORDER:
NAS1149D0316J
AN960PD10L
-410 MS21083D3 . NUT FE 1
-------*-------
415 MS21919DG12 . CLAMP FE 4
FOR SPARES ORDER:
AS21919WDG12
MS21919DG12
ATTACHING PARTS
FOR SPARES ORDER:
NAS1149D0316K
AN960PD10L
-430 MS21083D3 . NUT FE 1
-------*-------
ATTACHING PARTS
FOR SPARES ORDER:
NAS1149D0316K
AN960PD10L
-450 MS21083D3 . NUT FE 1
-------*-------
CONNECTION

28-10-00-07
PAGE 7
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
07
ATTACHING PARTS
-460 62606 . CLAMP FE 4
ALTERNATE SPARE:
6208
M5S
-460 6208 . CLAMP FE 4
ALTERNATE SPARE:
62606
M5S
ALTERNATE SPARE:
62606
6208
-------*-------
465 002-920017-1 . TUBE ASSY-VENT AND SIPHON FE 2
BREAK, 172 GAL. SYSTEM
NON-MAGNETIC
ALTERNATE SPARE:
63012
FOR SPARES ORDER:
4812SS305
NON-MAGNETIC
ALTERNATE SPARE:
12KS3
FOR SPARES ORDER:
4812SS305
NON-MAGNETIC
12KS3
63012
475 002-920000-183 . TUBE ASSY-SIPHON BREAK FE 2
480 50-380170-11 . VALVE-SIPHON BREAK FE 2
FOR DETAILS SEE:
28-20-00-05
-485 MS21919DG17 . CLAMP-SIPHON BREAK VALVE FE 2
SUPPORT
FOR SPARES ORDER:
AS21919WDG17
-485 AS21919WDG17 . CLAMP-SIPHON BREAK VALVE FE 2
SUPPORT
MS21919DG17
ATTACHING PARTS
FOR SPARES ORDER:
NAS1149D0316K
AN960PD10L

28-10-00-07
PAGE 8
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
07
-505 MS21083D3 . NUT FE 1
-------*-------
510 002-920000-195 . TUBE ASSY-SIPHON BREAK LH FE 1
-515 002-920000-196 . TUBE ASSY-SIPHON BREAK RH FE 1
ATTACHING PARTS
-525 62606 . CLAMP FE 4
ALTERNATE SPARE:
6208
M5S
-525 6208 . CLAMP FE 4
ALTERNATE SPARE:
62606
M5S
ALTERNATE SPARE:
62606
6208
-------*-------
530 000-920012-11 . FLANGE ASSY-SIPHON BREAK FE 2
ATTACHING PARTS
FOR SPARES ORDER:
132742-22TL
-535 132742-22TL . CLAMP FE 1
AN737TW22
-------*-------
FOR SPARES ORDER:
9406
NAS1924-26
-540 9406 . CLAMP FE 1
WWD26
-540 NAS1924-26 . CLAMP FE 1
WWD26
ALTERNATE SPARE:
132742-26L
-540 132742-26L . CLAMP FE 1
ALTERNATE SPARE:
NAS1924-26
H1469-H9999 FE

28-10-00-07
PAGE 9
BARON MAY 01/19

28-10-00-08
FUEL STORAGE VENT, WET WING TIP
28-10-00-08
BARON MAY 01/19

SHEET 1 OF 3
28-10-00-08
PAGE 0
MAY 01/19

SHEET 2 OF 3
28-10-00-08
PAGE 0A
MAY 01/19

SHEET 3 OF 3
28-10-00-08
PAGE 0B
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
08 FUEL STORAGE VENT, WET WING TIP

-5 002-920000-193 FUEL SYSTEM INSTL-200 GAL. B RF
CAPACITY, WET WING TIP
28-10-00-05
28-20-00-04
-5 002-920001-11 FUEL SYSTEM INSTL-200 GAL. C RF
28-10-00-05
28-20-00-04
15 60-920016-11 . VALVE ASSY FE 2
FOR DETAILS SEE:
28-20-00-05
ATTACHING PARTS
-20 130909B17 . BOLT FE 4
FOR SPARES ORDER:
NAS1149D0363K
AN960PD10
-------*-------
-30 100-920048-17 . GASKET-VALVE ASSY FE 2
35 106200G8-11 . HOSE FE 4
ATTACHING PARTS
ALTERNATE SPARE:
63008
FOR SPARES ORDER:
4808SS305
-40 63008 . CLAMP FE 4
ALTERNATE SPARE:
8KS3
FOR SPARES ORDER:
4808SS305
-40 4808SS305 . CLAMP FE 4
8KS3
63008
-------*-------
45 60-920002-7 . TUBE FE 2
50 002-920000-47 . TUBE FE 2
55 002-920000-45 . TUBE-LH FE 1
-60 002-920000-46 . TUBE-RH FE 1
65 002-920000-33 . TUBE FE 2
70 60-381002 . TUBE ASSY-HEATED FE 2
ATTACHING PARTS
-75 MS21919DG8 . CLAMP FE 1
FOR SPARES ORDER:
AS21919WDG8
-75 AS21919WDG8 . CLAMP FE 1
MS21919DG8
-80 MS35207-270 . SCREW FE 1
-85 100696DZL108 . SPACER FE 1
28-10-00-08
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
08
FOR SPARES ORDER:
NAS1149D0363H
AN960D10
-95 130909N29 . NUT FE 1
-------*-------
100 NMC557-8A . GROMMET FE 2
105 106200G8-11 . HOSE FE 4
ATTACHING PARTS
-110 AN737-TW30 . CLAMP FE 8
-------*-------
115 106200G8-12 . HOSE FE 2
ATTACHING PARTS
-120 AN737-TW30 . CLAMP FE 4
-------*-------
125 60-920000-199 . SUPPORT-TUBE FE 2
130 MS35489-14 . GROMMET FE 2
135 60-920000-201 . SUPPORT-TUBE FE 2
-140 MS35489-14 . GROMMET FE 2
145 60-920000-203 . SUPPORT-TUBE FE 2
-150 MS35489-14 . GROMMET FE 2
155 AN743-13 . BRACKET FE 2
-160 MS21919DG8 . CLAMP FE 2
FOR SPARES ORDER:
AS21919WDG8
MS21919DG8
ATTACHING PARTS
-165 AN520-10R . SCREW FE 1
-170 AN960-10L . WASHER FE 1
ALTERNATE SPARE:
NAS1149F0332P
ALTERNATE SPARE:
AN960-10L
-175 130909N29 . NUT FE 1
-------*-------
185 106200G12-10 . HOSE FE 2
ATTACHING PARTS
-190 12KS3 . CLAMP FE 2
ALTERNATE SPARE:
63012
FOR SPARES OREDER:
4812SS305
-190 63012 . CLAMP FE 2
ALTERNATE SPARE:
12KS3
FOR SPARES ORDER:
4812SS305

28-10-00-08
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
08
-190 4812SS305 . CLAMP FE 2
12KS3
63012
-190 67004-0016 . CLAMP H 3
-------*-------
195 60-921049-9 . MANIFOLD ASSY-LH FE 1
-200 60-921049-10 . MANIFOLD ASSY-RH FE 1
205 106200G8-8 . HOSE FE 2
ATTACHING PARTS
ALTERNATE SPARE:
63008
FOR SPARES ORDER:
4808SS305
-210 63008 . CLAMP FE 2
ALTERNATE SPARE:
8KS3
FOR SPARES ORDER:
4808SS305
-210 4808SS305 . CLAMP FE 2
8KS3
63008
-------*-------
220 60-920002-9 . TUBE FE 2
225 106200G12-16 . HOSE FE 2
ATTACHING PARTS
-230 12KS3 . CLAMP FE 2
ALTERNATE SPARE:
63012
FOR SPARES OREDER:
4812SS305
-230 63012 . CLAMP FE 2
ALTERNATE SPARE:
12KS3
FOR SPARES ORDER:
4812SS305
-230 4812SS305 . CLAMP FE 2
12KS3
63012
-------*-------
235 002-920017-1 . TUBE ASSY D 2
237 002-920017-33 . TUBE-VENT E 2
240 106200H4-10 . HOSE D 2
ATTACHING PARTS
-245 6KS3 . CLAMP B 4
ALTERNATE SPARE:
63006
4406
FOR SPARES ORDER:
4808S305

28-10-00-08
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
08
-245 4406 . CLAMP B 4
ALTERNATE SPARE:
6KS3
63006
-245 63006 . CLAMP B 4
ALTERNATE SPARE:
6KS3
4406
FOR SPARES ORDER:
4808SS305
-245 4808SS305 . CLAMP B 4
6KS3
63006
-245 62606 . CLAMP G 4
ALTERNATE SPARE:
6208
M5S
-245 6208 . CLAMP G 4
ALTERNATE SPARE:
62606
M5S
-245 M5S . CLAMP G 4
ALTERNATE SPARE:
62606
6208
-------*-------
250 002-920000-183 . TUBE ASSY B 2
255 102-920001-47 . TUBE ASSY F 2
257 58-920059-0001 . TUBE ASSY E 2
-258 58-920059-0002 . TUBE ASSY E 2
260 50-380170-11 . VALVE FE 2
FOR DETAILS SEE:
28-20-00-05
ATTACHING PARTS
-265 MS21919DG17 . CLAMP FE 1
FOR SPARES ORDER:
AS21919WDG17
MS21919DG17
FOR SPARES ORDER:
NAS1149D0316K
AN960PD10L
-285 MS21083D3 . NUT FE 1
-------*-------
290 002-920000-181 . TUBE ASSY-LH B 1
-295 002-920000-182 . TUBE ASSY-RH B 1
300 002-920000-195 . TUBE ASSY-LH C 1
-305 002-920000-196 . TUBE ASSY-RH C 1
28-10-00-08
PAGE 4
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
08
310 106200H4-10 . HOSE FE 2
ATTACHING PARTS
-315 6KS3 . CLAMP B 4
ALTERNATE SPARE:
4406
63006
FOR SPARES ORDER:
4808SS305
-315 4406 . CLAMP B 4
ALTERNATE SPARE:
6KS3
63006
-315 63006 . CLAMP B 4
ALTERNATE SPARE:
6KS3
4406
FOR SPARES ORDER:
4808SS305
-315 4808SS305 . CLAMP B 4
6KS3
63006
-315 62606 . CLAMP C 4
ALTERNATE SPARE:
6208
M5S
-315 6208 . CLAMP C 4
ALTERNATE SPARE:
62606
M5S
-315 M5S . CLAMP C 4
ALTERNATE SPARE:
62606
6208
-------*-------
320 000-920012-11 . FLANGE ASSY FE 2
325 106200H4-11 . HOSE FE 2
ATTACHING PARTS
-330 6KS3 . CLAMP B 4
ALTERNATE SPARE:
4406
63006
FOR SPARES ORDER:
4808SS305
-330 4406 . CLAMP B 4
ALTERNATE SPARE:
6KS3
63006
-330 63006 . CLAMP B 4
ALTERNATE SPARE:
6KS3
4406
FOR SPARES ORDER:
4808SS305

28-10-00-08
PAGE 5
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
08
-330 4808SS305 . CLAMP B 4
6KS3
63006
-330 62606 . CLAMP C 4
ALTERNATE SPARE:
6208
M5S
-330 6208 . CLAMP C 4
ALTERNATE SPARE:
62606
M5S
ALTERNATE SPARE:
62606
6208
-------*-------
335 002-920000-209 . TUBE ASSY D 2
337 58-920058-0001 . TUBE ASSY E 2
-338 58-920058-0002 . TUBE ASSY E 2
339 MS51523B4 . TEE-SWIVEL E 2
340 3217-00-11 . VALVE-RELIEF D 2
FOR DETAILS SEE:
28-20-00-05
342 60-380003-5 . VALVE-RELIEF E 2
ATTACHING PARTS
-345 MS21919DG11 . CLAMP FE 1
FOR SPARES ORDER:
AS21919WDG11
MS21919DG11
FOR SPARES ORDER:
NAS1149D0316K
AN960PD10L
-360 130909N29 . NUT FE 1
-------*-------
365 002-920000-75 . TUBE ASSY-LH FE 1
-370 002-920000-76 . TUBE ASSY-RH FE 1
375 106200H4-11 . HOSE FE 2
ATTACHING PARTS
-380 6KS3 . CLAMP B 4
ALTERNATE SPARE:
4406
63006
FOR SPARES ORDER:
4808SS305
-380 4406 . CLAMP B 4
ALTERNATE SPARE:
6KS3
63006
28-10-00-08
PAGE 6
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
08
-380 63006 . CLAMP B 4
ALTERNATE SPARE:
6KS3
4406
FOR SPARES ORDER:
4808SS305
-380 4808SS305 . CLAMP B 4
6KS3
63006
-380 62606 . CLAMP C 4
ALTERNATE SPARE:
6208
M5S
-380 6208 . CLAMP C 4
ALTERNATE SPARE:
62606
M5S
ALTERNATE SPARE:
62606
6208
-------*-------
H0669-H0669,H0680-H0765,H0767-H0772 B
H0766-H0766,H0773-H9999 C
H0669-H0669,H0680-H2119 D
H2120-H9999 E
H0766-H0766,H0773-H2119 F
H0766-H0766,H0773-H2119 G
H2125-H9999 H
H0669-H0669,H0680-H9999 FE

28-10-00-08
PAGE 7
BARON MAY 01/19

28-10-00-09
FUEL CAP AND ADAPTER
28-10-00-09
BARON MAY 01/19

SHEET 1 OF 2
28-10-00-09
PAGE 0
MAY 01/19

SHEET 2 OF 2
28-10-00-09
PAGE 0A
MAY 01/19

FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
09 FUEL CAP AND ADAPTER

-5 96-380035 CAP ASSY-FUEL TANK FILLER FE RF
FOR SPARES ORDER:
96-380035-1
FOR NHA SEE:
28-10-00-01
28-10-00-02
28-10-00-03
28-10-00-05
-5 96-380035-1 CAP ASSY-FUEL TANK FILLER FE RF
ALTERNATE SPARE
96-380035-3
96-380035
-7 431-40 . CAP ASSY FE 1
8 416-13 . . HOOK FE 1
-10 431-9 . . BODY ASSY FE 1
15 431-14 . . . BASE FE 1
20 431-11 . . . PAWL FE 1
25 431-13 . . . SPRING FE 1
30 416-16 . . . AXLE FE 1
40 MS29513-10 . . . PACKING FE 1
FOR SPARES ORDER:
MS29513-010
40 MS29513-010 . . . PACKING FE 1
MS29513-10
45 MS29513-338 . . . PACKING FE 1
50 431-18 . . . PLATE-BEARING FE 1
55 130909N7 . . . NUT FE 1
-60 431-140 . . . WASHER FE 1
-65 MS24665-151 . . . PIN FE 1
70 431-15 . . . HANDLE FE 1
ATTACHING PARTS
75 416-9-1 . . . PIN FE 1
-------*-------
-80 96-380035-3 CAP ASSY-FUEL TANK FILLER FE RF
ALTERNATE SPARE:
96-380035-1
-82 37810-1 . CAP ASSY FE 1
85 37685-2 . . BASE FE 1
90 37693 . . SPRING FE 1
95 37691 . . RETAINER FE 1
100 37617-339 . . RING FE 1
105 37117 . . PLATE-BEARING FE 1
110 MS9021-110 . . RING FE 1
FOR SPARES ORDER:
AS3578-110
110 AS3578-110 . . PACKING FE 1
MS9021-110
115 38038 . . LOCK FE 1
120 C37656-41 . . HANDLE FE 1
ATTACHING PARTS
125 38061 . . PIN-HANDLE FE 1
-------*-------
28-10-00-09
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
09
130 38104 . . COUPLING FE 1
135 AN381-3-8 . . PIN-COTTER FE 1
-140 58-920029-1 ADAPTER ASSY-FILLER FE RF
CAP,OUTBD LEADING EDGE
FOR NHA SEE:
28-10-00-01
28-10-00-02
28-10-00-03
28-10-00-04
160 58-920029-7 . PLATE FE 1
170 96-380036-11 . ADAPTER ASSY FE 1
170 HE651-11 . . ADAPTER ASSY FE 1
ALTERNATE SPARE:
38478
-175 K1000-3 . . . NUTPLATE FE 1
FOR SPARES ORDER:
MS21047L3
130909N33
-175 MS21047L3 . . . NUTPLATE FE 1
K1000-3
-175 130909N33 . . . NUTPLATE FE 1
K1000-3
180 NAS1201B1C . . . CHAIN FE 1
185 HE1414 . . . PIN-SAFETY FE 1
190 38478 . . ADAPTER ASSY FE 1
ALTERNATE SPARE:
HE651-11
-195 37827 . . . NUT-ANCHOR FE 1
200 38105-5 . . . CHAIN FE 1
205 39A4240 . . . HOOK FE 1
FOR SPARES ORDER:
MS29523-1
205 MS29523-1 . . . HOOK FE 1
39A4240
-210 36-5013-1S ADAPTER ASSY-FUEL FILLER FE RF
CAP-BOX SECTION
96-380036-1
37-825
HE651-1
-210 96-380036-1 ADAPTER ASSY-FUEL FILLER FE RF
CAP-BOX SECTION
FOR SPARES ORDER:
36-5013-1S
FOR NHA SEE:
28-10-00-01
28-10-00-02
28-10-00-03

28-10-00-09
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
09
230 37825 . ADAPTER ASSY FE RF
ALTERNATE SPARE:
HE651-1
FOR SPARES ORDER:
36-5013-1S
-235 AN366-F1032 . . NUTPLATE FE 12
FOR SPARES ORDER:
MS21078-3
MS21047L3
130909N33
-235 MS21078-3 . . NUTPLATE FE 12
AN366-F1032
-235 MS21047L3 . . NUTPLATE FE 12
AN366-F1032
-235 130909N33 . . NUTPLATE FE 12
AN366-F1032
240 38105-5 . . CHAIN-BEAD FE 1
245 39A4240 . . HOOK FE 1
FOR SPARES ORDER:
MS29523-1
245 MS29523-1 . . HOOK FE 1
39A4240
250 HE651-1 . ADAPTER ASSY FE RF
ALTERNATE SPARE:
37825
FOR SPARES ORDER:
36-5013-1S
-255 K1000-3 . . NUTPLATE FE 12
FOR SPARES ORDER:
MS21047L3
130909N33
-255 MS21047L3 . . NUTPLATE FE 12
K1000-3
-255 130909N33 . . NUTPLATE FE 12
K1000-3
260 NAS1201B1C . . CHAIN FE RF
-265 10A167 . . COUPLING FE 1
270 HE1414 . . PIN-SAFETY FE RF
C1608-C9999,E0938-E0938,E0943-E1201,H0001-H1450 FE

28-10-00-09
PAGE 3
BARON MAY 01/19

28-10-00-10
28-10-00-10
BARON MAY 01/19
28-10-00-10
PAGE 0
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
10 FUEL CAP AND ADAPTER

-5 36-380095-1 CAP ASSY-FUEL FE RF
REF DRAWING 531-046
FOR NHA SEE:
28-10-00-03
28-10-00-04
10 531-033 . BASE-FUEL CAP FE 1
-15 MS24665-1013 . PIN-COTTER FE 1
20 MS29513-338 . PACKING FE 1
25 130909N7 . NUT FE 1
30 416-13 . HOOK FE 1
35 10A167 . COUPLING-BEAD CHAIN FE 1
40 431-140 . WASHER-LANYARD TAB FE 1
45 531-032 . DISK-ANCHOR FE 1
50 431-13 . SPRING FE 1
55 MS29513-010 . PACKING FE 1
60 416-9-1 . PIN FE 1
65 431-370 . HANDLE ASSY FE 1
70 431-368 . PLATE-BEARING FE 1
75 431-16-2 . AXLE FE 1
E1202-E9999,H1451-H9999 FE

28-10-00-10
PAGE 1
BARON MAY 01/19

28-20-00-01
FUEL DISTRIBUTION
28-20-00-01
BARON MAY 01/19
FUEL DISTRIBUTION
SHEET 1 OF 4
28-20-00-01
PAGE 0
MAY 01/19
FUEL DISTRIBUTION
SHEET 2 OF 4
28-20-00-01
PAGE 0A
MAY 01/19
FUEL DISTRIBUTION
SHEET 3 OF 4
28-20-00-01
PAGE 0B
MAY 01/19
FUEL DISTRIBUTION
SHEET 4 OF 4
28-20-00-01
PAGE 0C
MAY 01/19

FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01 FUEL DISTRIBUTION
106 GAL. CAPACITY
MISCELLANEOUS DATA:
FOR FIREWALL FITTINGS
AND FUEL PLUMBING FWD OF
FIREWALL SEE CHAPTER 73.
73-10-00-01
28-10-00-02
28-10-00-06
106 GAL. CAPACITY
MISCELLANEOUS DATA:
73-10-00-01
28-10-00-02
28-10-00-06
142 GAL. CAPACITY
MISCELLANEOUS DATA:
73-10-00-01
28-10-00-02
28-10-00-06
142 GAL. CAPACITY
MISCELLANEOUS DATA:
73-10-00-01
28-10-00-02
28-10-00-06
172 GAL. CAPACITY
MISCELLANEOUS DATA:
73-10-00-01
28-10-00-02
28-10-00-06
28-20-00-01
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
30 002-920000-37 . TUBE-FUEL RETURN LINE, 142 FE 2
AND 172 GAL. SYSTEMS
NON-MAGNETIC
ALTERNATE SPARE:
4406
63006
FOR SPARES ORDER:
4808SS305
NON-MAGNETIC
ALTERNATE SPARE:
6KS3
63006
NON-MAGNETIC
ALTERNATE SPARE:
6KS3
4406
FOR SPARES ORDER:
4808SS305
NON-MAGNETIC
6KS3
63006
-40 106200H4-11 . HOSE-100 GAL. SYSTEM FE 2
NON-MAGNETIC
ALTERNATE SPARE:
4406
63006
FOR SPARES ORDER:
4808SS305
NON-MAGNETIC
ALTERNATE SPARE:
6KS3
63006
NON-MAGNETIC
ALTERNATE SPARE:
6KS3
4406
FOR SPARES ORDER:
4808SS305
NON-MAGNETIC
6KS3
63006
-50 002-920000-141 . TUBE-FUEL RETURN LINE, FE 2
106 GAL. SYSTEM
55 106200H4-12 . HOSE-FUEL RETURN LINE FE 2

28-20-00-01
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
NON-MAGNETIC
ALTERNATE SPARE:
4406
63006
FOR SPARES ORDER:
4808SS305
NON-MAGNETIC
ALTERNATE SPARE:
6KS3
63006
NON-MAGNETIC
ALTERNATE SPARE:
6KS3
4406
FOR SPARES ORDER:
4808SS305
NON-MAGNETIC
6KS3
63006
65 002-920000-83 . TUBE-FUEL RETURN FE 2
70 AN931-4-7 . GROMMET FE 18
ALTERNATE SPARE:
MS35489-6
70 MS35489-6 . GROMMET FE 18
ALTERNATE SPARE:
AN931-4-7
75 106200G4-12 . HOSE-FUEL RETURN LINE FE 2
FOR SPARES ORDER:
132742-22TL
-80 132742-22TL . CLAMP FE 4
AN737TW22
85 002-920000-67 . TUBE ASSY-LH FUEL RETURN FE 1
LINE
-90 002-920000-69 . TUBE ASSY-RH FUEL RETURN FE 1
LINE
95 50-380170-11 . VALVE-CHECK FE 2
FOR DETAILS SEE:
28-20-00-05
100 MS21919WDG19 . CLAMP-CHECK VALVE SUPPORT FE 2
FOR SPARES ORDER:
AS21919WDG19
100 AS21919WDG19 . CLAMP-CHECK VALVE SUPPORT FE 2
MS21919WDG19
ATTACHING PARTS
-105 AN3C4A . BOLT FE 2

28-20-00-01
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
-110 AN960-10L . WASHER FE 2
ALTERNATE SPARE:
NAS1149F0332P
ALTERNATE SPARE:
AN960-10L
-115 130909N29 . NUT FE 2
-------*-------
ATTACHING PARTS
-130 AN960-10L . WASHER FE 2
ALTERNATE SPARE:
NAS1149F0332P
ALTERNATE SPARE:
AN960-10L
-135 130909N29 . NUT FE 2
-------*-------
140 002-920000-61 . TUBE ASSY-FUEL RETURN FE 2
145 AN833-4D . ELBOW FE 2
FOR SPARES ORDER:
MS24394D4
145 MS24394D4 . ELBOW FE 2
AN833-4D
ATTACHING PARTS
-150 AN924-4D . NUT FE 2
ALTERNATE SPARE:
AS5178D04
-150 AS5178D04 . NUT FE 2
ALTERNATE SPARE:
AN924-4D
-155 AN960-716L . WASHER FE 2
FOR SPARES ORDER:
NAS1149F0732P
AN960-716L
-------*-------
160 002-920000-63 . TUBE ASSY-FUEL RETURN LINE B 1
LH
160 002-920000-25 . TUBE ASSY-FUEL RETURN LINE A 1
LH
-170 002-920000-65 . TUBE ASSY-FUEL RETURN LINE B 1
RH
-170 002-920000-71 . TUBE ASSY-FUEL RETURN LINE A 1
RH
180 002-381000-1 . TRANSMITTER-FUEL QUANTITY FE 1
LH OUTBD L.E. CELL, 106
-185 002-381000-3 . TRANSMITTER-FUEL QUANTITY FE 1
RH OUTBD L.E. CELL, 106

28-20-00-01
PAGE 4
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
ATTACHING PARTS
-190 MS35266-64 . SCREW FE 10
-195 AN960-10L . WASHER FE 10
ALTERNATE SPARE:
NAS1149F0332P
-195 NAS1149F0332P . WASHER FE 10
ALTERNATE SPARE:
AN960-10L
-200 AN340-B8 . NUT-TERMINAL FE 4
-------*-------
LH INBD L.E. FUEL CELL, OUTBD,
LH INBD L.E. FUEL CELL, OUTBD,
106 GAL. SYSTEM
RH INBD L.E. FUEL CELL, OUTBD,
RH INBD L.E. FUEL CELL, OUTBD,
106 GAL. SYSTEM
ATTACHING PARTS
-235 MS35266-64 . SCREW FE 10
-240 AN960-10L . WASHER FE 10
ALTERNATE SPARE:
NAS1149F0332P
-240 NAS1149F0332P . WASHER FE 10
ALTERNATE SPARE:
AN960-10L
-245 AN340-B8 . NUT-TERMINAL ATTACH FE 4
-------*-------
INBD L.E. FUEL CELL, INBD,
INBD L.E. FUEL CELL, INBD,
106 GAL. SYSTEM
ATTACHING PARTS
-265 MS35266-64 . SCREW FE 10
-270 AN960-10L . WASHER FE 10
ALTERNATE SPARE:
NAS1149F0332P
-270 NAS1149F0332P . WASHER FE 10
ALTERNATE SPARE:
AN960-10L
-275 AN340-B8 . NUT-TERMINAL ATTACH FE 4
-------*-------
28-20-00-01
PAGE 5
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
290 002-920000-107 . TUBE ASSY-INBD FUEL CELL FE 1
LH
-295 002-920000-113 . TUBE ASSY-INBD FUEL CELL FE 1
RH
300 AN783-6D . TEE-HEATER FUEL LINE FE 1
305 MS29512-06 . PACKING-PREFORMED FE 1
310 AN919-6D . REDUCER FE 1
FOR SPARES ORDER:
AS5174D0604
310 AS5174D0604 . REDUCER FE 1
AN919-6D
315 002-920000-109 . TUBE ASSY-LH INBD CELL TO FE 1
SELECTOR VALVE
320 755-6-2-6 . CLAMP-TUBE SUPPORT FE 4
ATTACHING PARTS
-325 MS35206-245 . SCREW FE 2
-330 MS21044B08 . NUT FE 2
-------*-------
335 002-920023-3 . VALVE ASSY-FUEL SELECTOR FE 2
FOR DETAILS SEE:
28-25-00-01
340 52-028-125-0625 . PIN-SELECTOR VALVE HANDLE FE 2
345 002-920023-17 . PANEL ASSY-142 GAL. SYSTEM A 1
FOR DETAILS SEE:
28-25-00-01
345 002-920023-19 . PANEL ASSY-172 GAL. SYSTEM B 1
FOR DETAILS SEE:
28-25-00-01
345 002-920023-43 . PANEL ASSY-106 GAL. SYSTEM A 1
FOR DETAILS SEE:
28-25-00-01
ATTACHING PARTS
-360 AN525-10R6 . SCREW FE 4
-365 SL211-3-1 . NUT-CLIP FE 4
-------*-------
370 96-924029-1 . PLACARD-FUEL QUANTITY, FE 1
TAKEOFF INSTRUCTIONS
ATTACHING PARTS
-375 NAS384-6 . SCREW FE 2
-380 NAS391-6 . WASHER FE 2
-385 NAS446-4-1 . NUT FE 2
ALTERNATE SPARE:
A1778-8Z-1D
-385 A1778-8Z-1D . NUT FE 2
ALTERNATE SPARE:
NAS446-4-1
-------*-------
390 002-920000-111 . TUBE ASSY FE 2
395 MS35489-20 . GROMMET FE 4
405 AN815-6D . UNION FE 2
ALTERNATE SPARE:
AS5174D0606
MS24392D6
28-20-00-01
PAGE 6
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
405 AS5174D0606 . UNION FE 2
ALTERNATE SPARE:
AN815-6D
MS24392D6
405 MS24392D6 . UNION FE 2
ALTERNATE SPARE:
AN815-6D
AS5174D0606
410 002-920000-115 . TUBE ASSY-CROSSFEED FE 2
415 AN938-6D . TEE FE 2
FOR SPARES ORDER:
AS5174D0806
AN919-12D
ALTERNATE SPARE:
AS5174D0606
MS24392D6
425 AS5174D0606 . UNION FE 2
ALTERNATE SPARE:
AN815-6D
MS24392D6
425 MS24392D6 . UNION FE 2
ALTERNATE SPARE:
AN815-6D
AS5174D0606
FOR SPARES ORDER:
AS5174D0604
AN919-6D
435 MS29512-06 . PACKING-PREFORMED, FE 6
3 REQUIRED PER TEE
440 002-920000-173 . TUBE ASSY-CROSSFEED TEE FE 2
DRAIN
ALTERNATE SPARE:
AS5194D0402
ALTERNATE SPARE:
AN816-4D
455 CCA-4850 . VALVE-DRAIN FE 2
-460 CCA-1269 . . SEAL FE 2
465 755-8-2-8 . CLAMP FE 2
ATTACHING PARTS
470 MS27039-1-16 . SCREW FE 2
-475 100696D-ZF016 . SPACER FE 2
FOR SPARES ORDER:
NAS1149D0363K

28-20-00-01
PAGE 7
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
-480 NAS1149D0363K WASHER FE 2
AN960PD10
-485 130909N31 . NUT FE 2
-------*-------
490 002-920000-117 . TUBE ASSY FE 2
495 755-8-2-8 . CLAMP FE 2
ATTACHING PARTS
-500 130909B12 . BOLT FE 2
-505 AN960-10L . WASHER FE 2
ALTERNATE SPARE:
NAS1149F0332P
ALTERNATE SPARE:
AN960-10L
-510 130909N31 . NUT FE 2
-------*-------
ATTACHING PARTS
-520 130909B12 . BOLT FE 2
-525 AN960-10L . WASHER FE 2
ALTERNATE SPARE:
NAS1149F0332P
ALTERNATE SPARE:
AN960-10L
-530 130909N31 . NUT FE 2
-------*-------
535 33-199-105-3 . STRAINER FE 2
FOR DETAILS SEE:
28-20-00-06
ATTACHING PARTS
-540 130909B45 . BOLT FE 4
-545 AN960-416L . WASHER FE 4
ALTERNATE SPARE:
NAS1149F0432P
ALTERNATE SPARE:
AN960-416L
-550 130909N32 . NUT FE 4
-------*-------
555 MS20823-4D . ELBOW-STRAINER DRAIN FE 2
560 002-920000-95 . TUBE ASSY-DRAIN FE 2
FOR SPARES ORDER:
MS20822-4D
AS5195D0402
565 MS20822-4D . ELBOW FE 2
FOR SPARES ORDER:
AS5195D0402
565 AS5195D0402 . ELBOW FE 2
AN822-4D
MS20822-4D
28-20-00-01
PAGE 8
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
-575 MS21919WDG10 . CLAMP FE 2
FOR SPARES ORDER:
AS21919WDG10
MS21919WDG10
ATTACHING PARTS
-580 MS35206-245 . SCREW FE 2
-585 AN960-8 . WASHER FE 2
FOR SPARES ORDER:
NAS1149FN832P
AN960-8
-590 130909N28 . NUT FE 2
-------*-------
-600 CCA-1269 . . SEAL FE 2
-605 95-920001-151 . CLIP-DRAIN SUPPORT FE 2
610 MS20823-8D . ELBOW FE 2
615 002-920000-103 . TUBE ASSY-LH FE 1
-620 002-920000-104 . TUBE ASSY-RH FE 1
625 106200G-4-28 . HOSE-BOOST PUMP DRAIN FE 2
FOR SPARES ORDER:
132742-22TL
-630 132742-22TL . CLAMP FE 4
AN737TW22
635 000-920012-7 . FLANGE-BOOST PUMP DRAIN FE 2
640 2140-53 . ELBOW FE 2
645 002-920000-99 . ELBOW FE 2
ATTACHING PARTS
-650 AN924-8D . NUT FE 2
ALTERNATE SPARE:
AS5178D08
-650 AS5178D08 . NUT FE 2
ALTERNATE SPARE:
AN924-8D
-------*-------
-655 MS29512-08 . PACKING-PREFORMED FE 2
660 4404-00-1 . PUMP-FUEL BOOST FE 2
FOR SPARES ORDER:
4404-00-7NV
660 4404-00-7NV . PUMP-FUEL BOOST FE 2
4404-00-1
ATTACHING PARTS
670 AN3-8A . BOLT FE 2
-675 AN960-10L . WASHER FE 2
ALTERNATE SPARE:
NAS1149F0332P
ALTERNATE SPARE:
AN960-10L
28-20-00-01
PAGE 9
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
-680 130909N29 . NUT FE 2
-------*-------
685 35-921255 . BRACKET ASSY-BOOST PUMP FE 2
SUPPORT
ATTACHING PARTS
-690 AN4-16A . BOLT FE 8
-695 100696SZH110 . SPACER FE 8
-------*-------
FOR SPARES ORDER:
MS24487D8
700 MS24487D8 . UNION FE 2
AN920-8D
715 002-920000-27 . TUBE ASSY-LH A 1
715 002-920000-35 . TUBE ASSY-LH B 1
-725 002-920000-17 . TUBE ASSY-RH B 1
-725 002-920000-73 . TUBE ASSY-RH A 1
730 MS35490-15 . GROMMET FE 2
735 AN815-8D . UNION-LH ONLY B 1
ALTERNATE SPARE:
AS5174D0808
MS24392D8
735 AS5174D0808 . UNION-LH ONLY B 1
ALTERNATE SPARE:
AN815-8D
MS24392D8
735 MS24392D8 . UNION-LH ONLY B 1
ALTERNATE SPARE:
AN815-8D
AS5174D0808
740 002-920000-39 . TUBE ASSY-LH ONLY D 1
740 002-920000-189 . TUBE ASSY-LH ONLY E 1
750 MS21919WDG8 . CLAMP-LH TUBE SUPPORT B 1
ATTACHING PARTS
-755 130909B19 . BOLT B 1
-760 102933-D4ZJ0375 . SPACER B 1
-765 AN960PD10L . WASHER B 1
ALTERNATE SPARE:
NAS1149D0316K
-765 NAS1149D0316K . WASHER B 1
ALTERNATE SPARE:
AN960PD10L
-770 130909N29 . NUT B 1
-------*-------
-775 AN743-12 . BRACKET-CLAMP SUPPORT B 1
ATTACHING PARTS
-780 130909B14 . BOLT B 1
-785 AN960PD10L . WASHER B 1
ALTERNATE SPARE:
NAS1149D0316K
-785 NAS1149D0316K . WASHER B 1
ALTERNATE SPARE:
AN960PD10L
28-20-00-01
PAGE 10
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
-790 130909N29 . NUT B 1
-------*-------
C1608-C1969,C1971-C2002 A
E0938-E0938,E0943-E1080,E1082-E1083 B
E0938-E0938,E0943-E0984 D
E0985-E1080,E1082-E1083 E
C1608-C1969,C1971-C2002,E0938-E0938,E0943-E1080, FE
E1082-E1083

28-20-00-01
PAGE 11
BARON MAY 01/19

28-20-00-02
FUEL DISTRIBUTION
28-20-00-02
BARON MAY 01/19
FUEL DISTRIBUTION
SHEET 1 OF 4
28-20-00-02
PAGE 0
MAY 01/19
FUEL DISTRIBUTION
SHEET 2 OF 4
28-20-00-02
PAGE 0A
MAY 01/19
FUEL DISTRIBUTION
SHEET 3 OF 4
28-20-00-02
PAGE 0B
MAY 01/19
FUEL DISTRIBUTION
SHEET 4 OF 4
28-20-00-02
PAGE 0C
MAY 01/19

FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
-5 58-920000 FUEL SYSTEM INSTL-STANDARD, B RF
142 GAL. CAPACITY
MISCELLANEOUS DATA:
73-10-00-02
28-10-00-01
28-10-00-06
142 GAL. CAPACITY
MISCELLANEOUS DATA:
172 GAL. CAPACITY
MISCELLANEOUS DATA:
73-10-00-02
28-10-00-01
28-10-00-06
172 GAL. CAPACITY
MISCELLANEOUS DATA:
25 002-920000-37 . TUBE-FUEL RETURN LINE C 2
25 58-920000-37 . TUBE-FUEL RETURN LINE B 2
NON-MAGNETIC
50 AN931-4-7 . GROMMET FE 18
ALTERNATE SPARE:
MS35489-6
50 MS35489-6 . GROMMET FE 18
ALTERNATE SPARE:
AN931-4-7
55 106200G-4-12 . HOSE-FUEL RETURN LINE FE 2
FOR SPARES ORDER:
132742-22TL
-60 132742-22TL . CLAMP FE 4
AN737TW22
65 002-920000-67 . TUBE ASSY-LH FUEL RETURN C 1
LINE
28-20-00-02
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
65 58-920000-67 . TUBE-LH FUEL RETURN LINE B 1
-75 002-920000-69 . TUBE ASSY-RH FUEL RETURN C 1
LINE
-75 58-920000-97 . TUBE-RH FUEL RETURN LINE B 1
85 50-380170-11 . VALVE-CHECK FE 2
FOR DETAILS SEE:
28-20-00-05
90 MS21919WDG19 . CLAMP-VALVE SUPPORT FE 2
FOR SPARES ORDER:
AS21919WDG19
90 AS21919WDG19 . CLAMP-VALVE SUPPORT FE 2
MS21919WDG19
ATTACHING PARTS
-100 AN960-10L . WASHER FE 2
ALTERNATE SPARE:
NAS1149F0332P
ALTERNATE SPARE:
AN960-10L
-105 130909N29 . NUT FE 2
-------*-------
ATTACHING PARTS
-120 AN960-10L . WASHER FE 2
ALTERNATE SPARE:
NAS1149F0332P
ALTERNATE SPARE:
AN960-10L
-125 130909N29 . NUT FE 2
-------*-------
130 002-920000-61 . TUBE ASSY-FUEL RETURN C 2
LH
RH
FOR SPARES ORDER:
MS24394D4
145 MS24394D4 . ELBOW FE 2
AN833-4D
ATTACHING PARTS
-150 AN924-4D . NUT FE 2
ALTERNATE SPARE:
AS5178D04
-150 AS5178D04 . NUT FE 2
ALTERNATE SPARE:
AN924-4D
-155 AN960-716L . WASHER FE 2
FOR SPARES ORDER:
NAS1149F0732P
28-20-00-02
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
AN960-716L
-------*-------
160 002-920000-63 . TUBE ASSY-FUEL RETURN LINE C 1
LH
160 58-920000-63 . TUBE ASSY-FUEL RETURN LINE B 1
LH
-170 002-920000-65 . TUBE ASSY-FUEL RETURN LINE C 1
RH
RH
180 002-381000-1 . TRANSMITTER-FUEL QUANTITY, C 1
LH OUTBD L.E.CELL, 172 GAL.
SYSTEM
180 58-380002-5 . TRANSMITTER-FUEL QUANTITY, B 1
LH OUTBD L.E. CELL, 172 GAL.
SYSTEM
ALTERNATE SPARE:
58-380002-1
180 58-380002-1 . TRANSMITTER-FUEL QUANTITY B 1
LH OUTBD L.E. CELL, 172 GAL.
SYSTEM
ALTERNATE SPARE:
58-380002-1
-190 002-381000-3 . TRANSMITTER-FUEL QUANTITY, C 1
RH OUTBD L.E. CELL, 172 GAL.
SYSTEM
-190 58-380002-3 . TRANSMITTER-FUEL QUANTITY, B 1
RH OUTBD L.E. CELL, 172 GAL.
SYSTEM
ATTACHING PARTS
-200 MS35266-64 . SCREW FE 10
-205 AN960-10L . WASHER FE 10
ALTERNATE SPARE:
NAS1149F0332P
-205 NAS1149F0332P . WASHER FE 10
ALTERNATE SPARE:
AN960-10L
-215 AN340-B8 . NUT-TERMINAL FE 4
-------*-------
LH INBD L.E. FUEL CELL, OUTBD
RH INBD L.E. FUEL CELL, OUTBD
ATTACHING PARTS
-235 MS35266-64 . SCREW FE 10
-240 AN960-10L . WASHER FE 10
ALTERNATE SPARE:
NAS1149F0332P

28-20-00-02
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
-240 NAS1149F0332P . WASHER FE 10
ALTERNATE SPARE:
AN960-10L
-245 MS25082-2 . NUT-TERMINAL ATTACHING FE 2
-250 AN340-B8 . NUT FE 2
-------*-------
INBD L.E. FUEL CELL, INBD
ALTERNATE SPARE:
58-380000-1
INBD L.E. FUEL CELL, INBD
ALTERNATE SPARE:
58-380000-3
ATTACHING PARTS
-265 MS35266-64 . SCREW FE 10
-270 AN960-10L . WASHER FE 10
ALTERNATE SPARE:
NAS1149F0332P
-270 NAS1149F0332P . WASHER FE 10
ALTERNATE SPARE:
AN960-10L
-275 AN340-B8 . NUT-TERMINAL ATTACHING FE 4
-------*-------
290 002-920024-1 . TUBE ASSY-LH, INBD CELL TO C 1
SELECTOR VALVE
-295 002-920000-87 . TUBE ASSY-RH, INBD CELL TO C 1
SELECTOR VALVE
300 MS35489-20 . GROMMET C 2
-305 MS21266-2N . GROMMET C 2
310 AN919-12D . REDUCER C 2
FOR SPARES ORDER:
AS5174D0806
310 AS5174D0806 . REDUCER C 2
AN919-12D
315 002-920000-85 . TUBE ASSY-LH, TO FUEL C 1
SELECTOR VALVE
315 60-920000-9 . TUBE ASSY-LH, TO FUEL B 1
SELECTOR VALVE
-325 002-920000-86 . TUBE ASSY-RH, TO FUEL C 1
SELECTOR VALVE
-325 60-920000-10 . TUBE ASSY-RH, TO FUEL B 1
SELECTOR VALVE
335 AN804-8D . TEE FE 2
FOR SPARES ORDER:
AN833-8D

28-20-00-02
PAGE 4
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
AN921-8D
350 AN924-8D . NUT FE 6
ALTERNATE SPARE:
AS5178D08
350 AS5178D08 . NUT FE 6
ALTERNATE SPARE:
AN924-8D
360 HE780-1 . VALVE-FUEL SELECTOR LH FE 1
FOR SPARES ORDER:
HE780-5
FOR DETAILS SEE:
28-20-00-05
360 HE780-5 . VALVE-FUEL SELECTOR LH FE 1
HE780-1
FOR DETAILS SEE:
28-20-00-05
365 HE780-3 . VALVE-FUEL SELECTOR RH FE 1
FOR SPARES ORDER:
HE780-7
FOR DETAILS SEE:
28-20-00-05
-365 HE780-7 . VALVE-FUEL SELECTOR RH FE 1
HE780-3
FOR DETAILS SEE:
28-20-00-05
370 002-920018-1 . BRACKET-SELECTOR VALVE C 1
MOUNTING LH
370 60-921018-1 . BRACKET-SELECTOR VALVE B 1
MOUNTING LH
-380 002-920018-2 . BRACKET-SELECTOR VALVE C 1
MOUNTING RH
-380 60-921018-2 . BRACKET-SELECTOR VALVE B 1
MOUNTING RH
ATTACHING PARTS
-390 130909B13 . BOLT FE 8
-395 AN960-10L . WASHER FE 8
ALTERNATE SPARE:
NAS1149F0332P
ALTERNATE SPARE:
AN960-10L
-400 130909N29 . NUT FE 8
-------*-------
405 002-920000-31 . TUBE ASSY-CROSS FEED C 2
405 58-920000-31 . TUBE ASSY-CROSS FEED B 2
415 AN821-8D . ELBOW-CROSS FEED FE 2
FOR SPARES ORDER:
132754-24

28-20-00-02
PAGE 5
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
415 132754-24 . ELBOW-CROSS FEED FE 2
AN821-8D
430 3142-00 . VALVE-CHECK FE 2
435 AN742D19 . CLAMP-VALVE SUPPORT FE 2
FOR SPARES ORDER:
AS5587D19
435 AS5587D19 . CLAMP-VALVE SUPPORT FE 2
AN742D19
ATTACHING PARTS
-440 130909B13 . BOLT FE 2
-445 AN960-10L . WASHER FE 2
ALTERNATE SPARE:
NAS1149F0332P
ALTERNATE SPARE:
AN960-10L
-450 130909N29 . NUT FE 2
-------*-------
ATTACHING PARTS
-460 MS35206-243 . SCREW FE 2
-465 AN960-8 . WASHER FE 2
FOR SPARES ORDER:
NAS1149FN832P
AN960-8
-470 130909N28 . NUT FE 2
-------*-------
475 002-920000-77 . TUBE ASSY-CROSS FEED LH FE 1
ALTERNATE SPARE:
58-920000-9
ALTERNATE SPARE:
002-92000-77
485 002-920000-51 . TUBE ASSY-CROSS FEED RH FE 1
ALTERNATE SPARE:
58-920000-51
ALTERNATE SPARE:
002-920000-51
FOR SPARES ORDER:
132754-24
495 132754-24 . ELBOW FE 4
AN821-8D
500 MS21919WDG8 . CLAMP-TUBE SUPPORT TO FE 2
CONTROL
505 AN742-4 . CLAMP-CONTROL TO TUBE FE 2

28-20-00-02
PAGE 6
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
ATTACHING PARTS
510 MS35207-262 . SCREW FE 2
-515 AN960-10 . WASHER FE 2
ALTERNATE SPARE:
NAS1149F0363P
ALTERNATE SPARE:
AN960-10
-520 130909N29 . NUT FE 2
-520 MS21042L3 . NUT FE 2
-522 PLT4S-M76 . CABLE TIE F 2
-------*-------
545 002-920000-101 . SPACER C 3
545 58-920000-85 . SPACER B 3
555 002-920000-97 . CLIP C 3
-560 58-920000-49 . TUBE ASSY B 3
ATTACHING PARTS
565 MS35206-246 . SCREW FE 3
FOR SPARES ORDER:
NAS1149FN816P
AN960-8L
-575 130909N28 . NUT FE 3
-------*-------
580 002-920000-19 . SLEEVE C 6
580 58-920000-19 . SLEEVE B 6
ALTERNATE SPARE:
58-920000-11
ALTERNATE SPARE:
002-920000-11
ALTERNATE SPARE:
58-920000-49
ALTERNATE SPARE:
002-920000-49
610 58-920014 . VALVE INSTL-CONTROL, FUEL FE RF
SELECTOR, 142 GAL. SYSTEM
FOR DETAILS SEE:
28-25-00-02
-615 58-920014-1 . SELECTOR INSTL-FUEL, FE RF
172 GAL. SYSTEM
FOR DETAILS SEE:
28-25-00-02
620 002-920000-43 . TUBE ASSY-LH, SELECTOR C 1
VALVE TO STRAINER

28-20-00-02
PAGE 7
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
620 60-920000-237 . TUBE ASSY-LH, SELECTOR B 1
VALVE TO STRAINER
-630 002-920000-44 . TUBE ASSY-RH, SELECTOR C 1
VALVE TO STRAINER
-630 60-920000-238 . TUBE ASSY-RH, SELECTOR B 1
VALVE TO STRAINER
640 33-199-105-3 . STRAINER FE 2
FOR DETAILS SEE:
28-20-00-06
ATTACHING PARTS
-645 130909B45 . BOLT FE 4
-650 AN960-416L . WASHER FE 4
ALTERNATE SPARE:
NAS1149F0432P
ALTERNATE SPARE:
AN960-416L
-655 130909N32 . NUT FE 4
-------*-------
665 002-920000-95 . TUBE ASSY-STRAINER DRAIN C 2
665 96-920001-235 . TUBE ASSY-STRAINER DRAIN B 2
FOR SPARES ORDER:
MS20822-4D
AS5195D0402
675 MS20822-4D . ELBOW FE 2
FOR SPARES ORDER:
AS5195D0402
675 AS5195D0402 . ELBOW FE 2
AN822-4D
MS20822-4D
-685 MS21919WDG10 . CLAMP FE 2
FOR SPARES ORDER:
AS21919WDG10
MS21919WDG10
ATTACHING PARTS
-690 MS35206-245 . SCREW FE 2
-695 AN960-8 . WASHER FE 2
FOR SPARES ORDER:
NAS1149FN832P
AN960-8
-700 130909N28 . NUT FE 2
-------*-------
-710 CCA-1269 . . SEAL FE 2
-715 95-920001-151 . CLIP-DRAIN SUPPORT FE 2
720 MS20823-8D . ELBOW FE 2
725 002-920000-103 . TUBE ASSY-LH C 1
28-20-00-02
PAGE 8
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
725 58-920000-7 . TUBE ASSY-LH B 1
-735 002-920000-104 . TUBE ASSY-RH C 1
-735 58-920000-8 . TUBE ASSY-RH B 1
745 106200G4-28 . HOSE-BOOST PUMP DRAIN FE 2
FOR SPARES ORDER:
132742-22TL
-750 132742-22TL . CLAMP FE 4
AN737TW22
755 000-920012-7 . FLANGE-BOOST PUMP DRAIN C 2
755 50-920077-5 . FLANGE-BOOST PUMP DRAIN B 2
765 2140-53 . ELBOW-45 DEGREE FE 2
770 002-920000-99 . ELBOW C 2
770 58-920024 . ELBOW B 2
ATTACHING PARTS
-780 AN924-8D . NUT FE 2
ALTERNATE SPARE:
AS5178D08
-780 AS5178D08 . NUT FE 2
ALTERNATE SPARE:
AN924-8D
-------*-------
790 4404-00-1 . PUMP-FUEL BOOST FE 2
FOR SPARES ORDER:
4404-00-7NV
4404-00-1
ATTACHING PARTS
800 AN3 . BOLT FE 2
-805 AN960-10L . WASHER FE 2
ALTERNATE SPARE:
NAS1149F0332P
ALTERNATE SPARE:
AN960-10L
-810 130909N29 . NUT FE 2
-------*-------
815 35-921255 . BRACKET ASSY-PUMP SUPPORT FE 2
ATTACHING PARTS
-820 AN4-16A . BOLT FE 8
-825 100696SZH110 . SPACER FE 8
-------*-------
830 002-920000-35 . TUBE ASSY-LH C 1
830 58-920000-5 . TUBE ASSY-LH B 1
-840 002-920000-17 . TUBE ASSY-RH C 1
-840 58-920000-17 . TUBE ASSY-RH B 1
850 MS35490-15 . GROMMET FE 2
855 AN815-8D . UNION-LH ONLY FE 1
ALTERNATE SPARE:
AS5174D0808
MS24392D8

28-20-00-02
PAGE 9
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
855 AS5174D0808 . UNION-LH ONLY FE 1
ALTERNATE SPARE:
AN815-8D
MS24392D8
855 MS24392D8 . UNION-LH ONLY FE 1
ALTERNATE SPARE:
AN815-8D
AS5174D0808
860 002-920000-39 . TUBE ASSY-LH ONLY D 1
860 002-920000-189 . TUBE ASSY-LH ONLY E 1
860 58-920000-3 . TUBE ASSY-LH ONLY B 1
875 MS21919WDG8 . CLAMP-TUBE SUPPORT LH FE 1
ATTACHING PARTS
-880 130909B19 . BOLT FE 1
-885 102933-D4ZJ0375 . SPACER FE 1
ALTERNATE SPARE:
NAS1149D0316K
ALTERNATE SPARE:
AN960PD10L
-895 130909N29 . NUT FE 1
-------*-------
ATTACHING PARTS
-905 130909B14 . BOLT FE 1
ALTERNATE SPARE:
NAS1149D0316K
ALTERNATE SPARE:
AN960PD10L
-915 130909N29 . NUT FE 1
-------*-------
H0001-H0384 B
H0385-H0765,H0767-H0772 C
H0385-H0472,H0474-H0481 D
H0473-H0473,H0482-H0765,H0767-H0772 E
H2480-H9999 F
H0001-H0765,H0767-H0772 FE

28-20-00-02
PAGE 10
BARON MAY 01/19
28-20-00-03
FUEL DISTRIBUTION
28-20-00-03
BARON MAY 01/19
FUEL DISTRIBUTION
SHEET 1 OF 5
28-20-00-03
PAGE 0
MAY 01/19
FUEL DISTRIBUTION
SHEET 2 OF 5
28-20-00-03
PAGE 0A
MAY 01/19
FUEL DISTRIBUTION
SHEET 3 OF 5
28-20-00-03
PAGE 0B
MAY 01/19
FUEL DISTRIBUTION
SHEET 4 OF 5
28-20-00-03
PAGE 0C
MAY 01/19
FUEL DISTRIBUTION
SHEET 5 OF 5
28-20-00-03
PAGE 0D
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
100 GAL. CAPACITY
28-10-00-03
28-10-00-06
136 GAL. CAPACITY
28-10-00-03
28-10-00-06
142 GAL. CAPACITY
28-10-00-03
28-10-00-06
194 GAL. CAPACITY
28-10-00-03
28-10-00-06
100 GAL. CAPACITY
28-10-00-03
28-10-00-06
136 GAL. CAPACITY
28-10-00-03
28-10-00-06
-5 002-920001-3 FUEL SYSTEM INSTL-OPTIONAL, N RF
166 GAL. CAPACITY
28-10-00-03
28-10-00-06
-5 002-920001-41 FUEL SYSTEM INSTL-OPTIONAL, P RF
172 GAL. CAPACITY
45 002-920000-37 . TUBE-FUEL RETURN LINE, FE 2
-50 4406 . CLAMP FE 2
55 106200H4-11 . HOSE-106 GAL. SYSTEM E 2
-60 4406 . CLAMP FE 2
65 002-920000-141 . TUBE-FUEL RETURN LINE, E 2
106 GAL. SYSTEM
ATTACHING PARTS
-75 62606 . CLAMP FE 4
ALTERNATE SPARE:
6208
M5S
-75 6208 . CLAMP FE 4
ALTERNATE SPARE:
62606
M5S

28-20-00-03
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
ALTERNATE SPARE:
62606
6208
-------*-------
85 MS35489-6 . GROMMET FE 18
90 106200G-4-12 . HOSE-FUEL RETURN LINE FE 2
-95 132742-22T . CLAMP FE 4
100 002-920000-67 . TUBE ASSY-FUEL RETURN LINE FE 1
-105 002-920000-69 . TUBE ASSY-FUEL RETURN LINE FE 1
RH
115 MS21919WDG19 . CLAMP-CHECK VALVE SUPPORT FE 2
FOR SPARES ORDER:
AS21919WDG19
115 AS21919WDG19 . CLAMP-CHECK VALVE SUPPORT FE 2
MS21919DG19
ATTACHING PARTS
-130 130909N29 . NUT FE 2
-------*-------
ATTACHING PARTS
-150 130909N29 . NUT FE 2
-------*-------
155 002-920000-61 . TUBE ASSY-FUEL RETURN, LH Q 1
155 002-920001-29 . TUBE ASSY-FUEL RETURN, LH R 1
-165 002-920000-61 . TUBE ASSY-FUEL RETURN, RH FE 1
170 MS24394D4 . ELBOW FE 2
ATTACHING PARTS
-175 132754-78 . NUT FE 2
-------*-------
185 002-920000-63 . TUBE ASSY-FUEL RETURN LINE Q 1
LH
185 002-920001-27 . TUBE ASSY-FUEL RETURN LINE R 1
LH
185 002-920000-25 . TUBE ASSY-FUEL RETURN LINE A 1
LH
-200 002-920000-65 . TUBE ASSY-FUEL RETURN LINE F 1
RH
-200 002-920000-71 . TUBE ASSY-FUEL RETURN LINE A 1
RH
210 AN833-4 . ELBOW F 2
-215 132754-78 . NUT F 2
-220 NAS1149F0763P . WASHER F 2
-225 AN833-4 . ELBOW-LH A 1
-230 AN837-4 . ELBOW-RH A 1
-235 132754-78 . NUT A 2
-240 NAS1149F0763P . WASHER A 4
28-20-00-03
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
245 MS28741-4-0160 . HOSE ASSY-FUEL RETURN LH U 1
245 330995F4-0160 . HOSE ASSY-FUEL RETURN LH V 1
-255 MS28741-4-0250 . HOSE ASSY-FUEL RETURN RH F 1
-260 MS28741-4-0222 . HOSE ASSY-FUEL RETURN A 2
265 MS21266-2N . GROMMET-LH FE 1
270 60-920000-9 . TUBE ASSY-LH AD 1
FOR SPARES ORDER:
002-920001-43
270 002-920001-43 . TUBE ASSY-FUEL,LH FE 1
60-920000-9
-275 60-920000-10 . TUBE ASSY-RH AD 1
FOR SPARES ORDER:
002-920001-44
-275 002-920001-44 . TUBE ASSY-FUEL, RH FE 1
60-920000-10
-285 132754-81 . NUT FE 2
295 60-921013 . CELL OUTLET-FUEL G 2
FOR SPARES ORDER:
60-921013-3
295 60-921013-3 . FUEL CELL OUTLET FE 2
60-921013
-305 60-921014 . GASKET FE 2
ATTACHING PARTS
-310 MS24694-S48 . SCREW FE 10
-315 MS24694-S50 . SCREW FE 10
-320 AN3H4A . BOLT FE 4
-------*-------
330 156587-8D-0104 . HOSE ASSY FE 2
335 AN816-8 . NIPPLE FE 2
ALTERNATE SPARE:
AS5194-0806
335 AS5194-0806 . NIPPLE FE 2
ALTERNATE SPARE:
AN816-8
340 58-920020-23 . SUMP ASSY-FUEL CELL FE 2
345 35-921502-1 . GASKET FE 4
-350 MS20073-04-06 . BOLT FE 24
-355 NAS1149F0432P . WASHER FE 24
360 AN804-8D . TEE FE 2
365 132754-81 . NUT FE 2
375 HE780-5 . VALVE-FUEL SELECTOR LH Y 1
HE780-1
FOR DETAILS SEE:
28-20-00-05

28-20-00-03
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
375 HE-780-1 . VALVE-FUEL SELECTOR LH Y 1
FOR SPARES ORDER:
HE780-5
FOR DETAILS SEE:
28-20-00-05
375 58-380109-1 . VALVE-FUEL SELECTOR LH Z 1
380 710C5X . VALVE-DRAIN, LH Z 1
-385 HE780-7 . VALVE-FUEL SELECTOR RH Y 1
HE780-3
FOR DETAILS SEE:
28-20-00-05
-385 HE-780-3 . VALVE-FUEL SELECTOR RH Y 1
HE780-7
FOR DETAILS SEE:
28-20-00-05
-385 58-380109-3 . VALVE-FUEL SELECTOR RH Z 1
-390 710C5X . VALVE-DRAIN, RH Z 1
395 002-920018-1 . BRACKET-SELECTOR VALVE W 1
MOUNTING LH
395 002-920018-3 . BRACKET-SELECTOR VALVE X 1
MOUNTING LH
-405 002-920018-2 . BRACKET-SELECTOR VALVE W 1
MOUNTING RH
-405 002-920018-4 . BRACKET-SELECTOR VALVE X 1
MOUNTING RH
-415 130909B13 . BOLT FE 8
-425 130909N29 . NUT FE 8
430 002-920000-191 . TUBE ASSY L 2
-435 002-920001-39 . TUBE ASSY-LH ONLY M 1
445 AS5587D19 . CLAMP-VALVE SUPPORT FE 2
-450 130909B13 . BOLT FE 2
-460 130909N29 . NUT FE 2
465 96-920001-261 . ANGLE-VALVE SUPPORT FE 2
470 60-920000-5 . TUBE ASSY-CROSSFEED LH AB 1
FOR SPARES ORDER:
002-920000-77
470 002-920000-77 . TUBE ASSY-CROSSFEED LH FE 1
60-920000-5
470 002-920001-37 . TUBE ASSY-CROSSFEED LH M 1
-485 60-920000-6 . TUBE ASSY-CROSSFEED RH E 1
FOR SPARES ORDER:
002-920000-51
-485 002-920000-51 . TUBE ASSY-CROSSFEED RH FE 1
60-920000-6
495 132754-24 . ELBOW FE 4
500 AS21919WDG8 . CLAMP-TUBE SUPPORT TO FE 2
CONTROL
505 AN742-4 . CLAMP-CONTROL TO TUBE FE 2
28-20-00-03
PAGE 4
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
-510 MS35207-262 . SCREW FE 2
-520 130909N29 . NUT FE 2
525 60-920000-1 . TUBE ASSY-CROSSFEED E 1
525 002-920000-15 . TUBE ASSY-CROSSFEED C 1
535 60-920000-3 . TUBE ASSY-CROSSFEED E 1
535 002-920000-13 . TUBE ASSY-CROSSFEED C 1
545 60-920000-7 . TUBE ASSY-CROSSFEED LH E 1
545 002-920000-11 . TUBE ASSY-CROSSFEED LH C 1
-555 60-920000-8 . TUBE ASSY-CROSSFEED RH E 1
-555 002-920000-49 . TUBE ASSY-CROSSFEED RH C 1
565 60-924011-7 . FAIRLEAD SET E 3
-570 002-920001-25 . SPACER-RH FE 1
-575 130909B21 . BOLT-LH AND CENTER FE 2
-580 130909B24 . BOLT-RH FE 1
585 002-920000-101 . SPACER C 1
590 002-920000-97 . CLIP C 3
ATTACHING PARTS
595 MS35206-333 . SCREW FE 3
-605 130909N28 . NUT FE 2
-------*-------
610 002-920000-19 . SLEEVE C 6
615 002-920035-1 . VALVE INSTL-SELECTOR, FUEL E RF
CTR, 100 GAL. SYSTEM,
STANDARD
615 002-920035-3 . VALVE INSTL-SELECTOR, FUEL E RF
OPTIONAL
615 002-920035-5 . VALVE INSTL-SELECTOR, FUEL B RF
OPTIONAL
615 002-920035-7 . VALVE INSTL-SELECTOR, FUEL Z RF
STANDARD
FOR DETAILS SEE:
28-25-00-03
OPTIONAL
FOR DETAILS SEE:
28-25-00-03
OPTIONAL
FOR DETAILS SEE:
28-25-00-03
615 002-920035-23 . VALVE INSTL-SELECTOR, FUEL AC RF
STANDARD
FOR DETAILS SEE:
28-25-00-03

28-20-00-03
PAGE 5
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
OPTIONAL
FOR DETAILS SEE:
28-25-00-03
OPTIONAL
FOR DETAILS SEE:
28-25-00-03
640 002-920000-43 . TUBE ASSY-LH SELECTOR Y 1
VALVE TO STRAINER
640 102-920001-95 . TUBE ASSY-LH SELECTOR Z 1
VALVE TO STRAINER
-650 002-920000-44 . TUBE ASSY-RH SELECTOR Y 1
VALVE TO STRAINER
-650 102-920001-96 . TUBE ASSY-RH SELECTOR Z 1
VALVE TO STRAINER
660 33-199-105-3 . STRAINER FE 2
FOR DETAILS SEE:
28-20-00-06
ATTACHING PARTS
-665 130909B45 . BOLT FE 4
-675 130909N32 . NUT FE 4
-------*-------
685 002-920000-95 . TUBE ASSY-STRAINER DRAIN J 2
690 MS20822-4D . ELBOW J 2
FOR SPARES ORDER:
AS5195D0402
690 AS5195D0402 . ELBOW J 2
MS20822-4D
695 AN910-1J . COUPLING J 2
-705 AN515R8 . SCREW FE 2
-715 130909N28 . NUT FE 2
720 CCA-4850 . VALVE-DRAIN J 2
-725 CCA-1269 . . SEAL J 2
-730 95-920001-151 . CLIP-DRAIN SUPPORT J 2
735 002-920001-19 . TUBE ASSY-STRAINER DRAIN D 2
735 60-920002-17 . TUBE ASSY-STRAINER DRAIN H 2
740 132754-81 . NUT K 2
745 AN936A1216 . WASHER-LOCK K 2
FOR SPARES ORDER:
MS35333-47
745 MS35333-47 . WASHER-LOCK K 2
AN936A1216
750 58-920040-1 . BRACKET K 2
755 710C4X . VALVE-DRAIN K 2
ALTERNATE SPARE:
100-0140-01
440200
28-20-00-03
PAGE 6
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
755 100-0140-01 . VALVE-DRAIN K 2
ALTERNATE SPARE:
440200
710C4X
755 440200 . VALVE-DRAIN K 2
ALTERNATE SPARE:
100-0140-01
710C4X
760 MS20823-8D . ELBOW FE 2
ALTERNATE SPARE:
AS5194D0806
ALTERNATE SPARE:
AN816-8D
770 002-920000-103 . TUBE ASSY-LH FE 1
-775 002-920000-104 . TUBE ASSY-RH FE 1
780 106200G-4-28 . HOSE-BOOST PUMP DRAIN FE 2
ATTACHING PARTS
-785 132742-22T . CLAMP FE 4
-------*-------
790 000-920012-7 . FLANGE-BOOST PUMP DRAIN FE 2
795 2140-53 . ELBOW-45 DEGREE FE 2
ALTERNATE SPARE:
2340-53
795 2340-53 . ELBOW-45 DEGREE FE 2
ALTERNATE SPARE:
2140-53
800 002-920000-99 . ELBOW FE 2
ATTACHING PARTS
-805 132754-81 . NUT FE 4
-------*-------
815 4404-00-7 . PUMP-FUEL BOOST S 2
FOR SPARES ORDER:
4404-00-7NV
4404-00-7
ATTACHING PARTS
825 130909B12 . BOLT FE 2
-835 130909N29 . NUT FE 2
-------*-------
840 35-921255 . BRACKET ASSY-PUMP SUPPORT FE 2
ATTACHING PARTS
-845 AN4-16A . BOLT FE 8
-850 100696S-ZH-110 . SPACER FE 8
-------*-------
855 002-920000-35 . TUBE ASSY-LH Q 1
855 002-920001-33 . TUBE ASSY-LH R 1
-865 002-920000-17 . TUBE ASSY-RH F 1
-865 002-920000-73 . TUBE ASSY-RH A 1
875 MS35490-15 . GROMMET FE 2
880 AS5174D0808 . UNION-LH ONLY Q 1
28-20-00-03
PAGE 7
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
-885 132754-38 . ELBOW-LH ONLY R 1
-890 132754-81 . NUT-LH ONLY R 1
-895 NAS1149F1232P . WASHER-LH ONLY R 1
900 002-920000-189 . TUBE ASSY-LH ONLY Q 1
900 002-920001-31 . TUBE ASSY-LH ONLY R 1
900 002-920000-27 . TUBE ASSY-LH ONLY A 1
915 MS21919WDG8 . CLAMP-TUBE SUPPORT LH FE 1
ATTACHING PARTS
-920 130909B19 . BOLT FE 1
-925 102933D4ZJ0375 . SPACER FE 1
-935 130909N29 . NUT FE 1
-------*-------
ATTACHING PARTS
-945 130909B14 . BOLT FE 1
-955 130909N29 . NUT FE 1
-------*-------
960 330996F8-0080 . HOSE ASSY-LH, TO ENIGINE F 1
PUMP
-965 58-920035-1 . HOSE ASSY-RH, TO ENGINE F 1
PUMP
-970 MS28741-8-0184 . HOSE ASSY-TO ENGINE PUMP A 2
975 AN837-8 . ELBOW FE 2
-980 132754-81 . NUT FE 2
-985 NAS1149F1232P . WASHER F 2
-987 NAS1149F1232P . WASHER-LH A 2
-989 NAS1149F1290P . WASHER-RH A 2
C1970-C1970,C2003-C9999 A
E1081-E1081,E1084-E9999 B
H0766-H0766,H0773-H9999 C
C2061-C9999,E1099-E1101,E1103-E9999,H0830-H0873, D
H0875-H9999
C1970-C1970,C2003-C9999,E1081-E1081,E1084-E9999 E
E1081-E1081,E1084-E9999,H0766-H0766,H0773-H9999 F
C1970-C1970,C2003-C2072,E1081-E1081,E1084-E1093, G
H0766-H0766,H0773-H0831
TE1102-E1102,H0874-H0874 H
C1970-C1970,C2003-C2060,E1081-E1081,E1084-E1098, J
H0766-H0766,H0773-H0829
C2061-C9999,E1099-E9999,H0830-H9999 K
C1970-C1970,C2003-C2331,E1081-E1081,E1084-E1178, L
H0766-H0766,H0773-H1146
C2332-C9999,E1179-E9999,H1147-H9999 M
H0766-H0766,H0773-H1468 N
H1469-H9999 P
C1970-C1970,C2003-C9999,E1081-E1081,E1084-E1118, Q
E1120-E1124,H0766-H0766,H0773-H0872,H0874-H0894
E1119-E1119,E1125-E9999,H0873-H0873,H0895-H9999 R
C1970-C1970,C2003-C9999,E1081-E1081,E1084-E9999, S
H0766-H0766,H0773-H1535
E1081-E1081,E1084-E9999,H0766-H0766,H0773-H1179 U
28-20-00-03
PAGE 8
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
(CONTINUED)
H1180-H9999 V
C1970-C1970,C2003-C9999,E1081-E1081,E1084-E9999, W
H0766-H0766,H0773-H1656
H1657-H9999 X
C1970-C1970,C2003-C9999,E1081-E1081,E1084-E1084, Y
H0766-H0766,H0773-H1487,H1489-H1599,H1601-H1612
H1488-H1488,H1600-H1600,H1613-H9999 Z
C1970-C1970,C2003-C2153,E1081-E1081,E1084-E1133 AB
H0766-H0766,H0773-H1487,H1489-H1599,H1601-H1612 AC
C1970-C1970,C2003-C9999,E1081-E1081,E1084-E9999, AD
H0766-H0766,H0773-H2146
C1970-C1970,C2003-C9999,E1081-E1081,E1084-E9999, FE
H0766-H0766,H0773-H9999

28-20-00-03
PAGE 9
BARON MAY 01/19

28-20-00-04
FUEL DISTRIBUTION, WET WING TIP
28-20-00-04
BARON MAY 01/19

SHEET 1 OF 5
28-20-00-04
PAGE 0
MAY 01/19

SHEET 2 OF 5
28-20-00-04
PAGE 0A
MAY 01/19

SHEET 3 OF 5
28-20-00-04
PAGE 0B
MAY 01/19

SHEET 4 OF 5
28-20-00-04
PAGE 0C
MAY 01/19

SHEET 5 OF 5
28-20-00-04
PAGE 0D
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04 FUEL DISTRIBUTION, WET WING TIP

-5 002-920000-193 FUEL SYSTEM INSTL-200 GAL. B RF
28-10-00-05
28-10-00-08
-5 002-920001-11 FUEL SYSTEM INSTL-200 GAL. C RF
28-10-00-05
28-10-00-08
15 002-920000-37 . TUBE-FUEL RETURN LINE FE 2
ATTACHING PARTS
-20 4406 . CLAMP FE 1
-------*-------
25 106200H4-12 . HOSE FE 2
ATTACHING PARTS
-30 6KS3 . CLAMP B 4
ALTERNATE SPARE:
63006
4406
FOR SPARES ORDER:
4808S305
-30 4406 . CLAMP B 4
ALTERNATE SPARE:
6KS3
63006
-30 63006 . CLAMP B 4
ALTERNATE SPARE:
6KS3
4406
FOR SPARES ORDER:
4808SS305
-30 4808SS305 . CLAMP B 4
6KS3
63006
-30 62606 . CLAMP C 4
ALTERNATE SPARE:
6208
M5S
-30 6208 . CLAMP C 4
ALTERNATE SPARE:
62606
M5S
-30 M5S . CLAMP C 4
ALTERNATE SPARE:
62606
6208
-------*-------
40 AN931-4-7 . GROMMET FE 18
ALTERNATE SPARE:
MS35489-6

28-20-00-04
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04
40 MS35489-6 . GROMMET FE 18
ALTERNATE SPARE:
AN931-4-7
45 106200G4-12 . HOSE FE 2
ATTACHING PARTS
FOR SPARES ORDER:
132742-22TL
-50 132742-22T . CLAMP FE 2
AN737TW22
-------*-------
55 002-920000-67 . TUBE ASSY-LH FUEL RETURN FE 1
65 50-380170-11 . VALVE-CHECK FE 2
FOR DETAILS SEE:
28-20-00-05
70 AS21919WDG19 . CLAMP-VALVE SUPPORT FE 2
ATTACHING PARTS
-85 130909N29 . NUT FE 1
-------*-------
ATTACHING PARTS
-105 130909N29 . NUT FE 1
-------*-------
110 002-920000-61 . TUBE ASSY-FUEL RETURN FE 2
115 MS24394D4 . ELBOW FE 2
ATTACHING PARTS
-120 132754-78 . NUT FE 1
-------*-------
130 002-920000-201 . TUBE ASSY-LH FUEL RETURN E 1
-135 002-920000-63 . TUBE ASSY-LH FUEL RETURN D 1
145 MS35490-7 . GROMMET-LH E 1
150 AN833-4 . ELBOW FE 2
-155 132754-78 . NUT FE 2
165 MS28741-4-0160 . HOSE ASSY-LH, FUEL RETURN FE 1
-170 MS28741-4-0250 . HOSE ASSY-RH, FUEL RETURN FE 1
175 002-920024-1 . TUBE ASSY-LH, INBD CELL TO B 1
SELECTOR VALVE
-180 002-920000-87 . TUBE ASSY-RH, INBD CELL TO B 1
SELECTOR VALVE
185 MS21266-2N . GROMMET B 2
190 MS35489-20 . GROMMET B 2
195 AS5174D0806 . REDUCER B 2
200 002-920000-85 . TUBE ASSY-LH, TO FUEL B 1
SELECTOR VALVE
-205 002-920000-86 . TUBE ASSY-RH, TO FUEL B 1
SELECTOR VALVE
28-20-00-04
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04
210 60-920000-9 . TUBE ASSY-FUEL, LH K 1
FOR SPARES ORDER:
002-920001-43
210 002-920001-43 . TUBE ASSY-FUEL, LH C 1
60-920000-9
-215 60-920000-10 . TUBE ASSY-RH K 1
FOR SPARES ORDER:
002-920001-44
-215 002-920001-44 . TUBE ASSY-FUEL, RH C 1
60-920000-10
220 AN833-8D . ELBOW C 2
-225 132754-81 . NUT C 2
-230 MS29512-08 . PACKING C 2
235 60-921013 . CELL OUTLET-FUEL C 2
-240 60-921014 . GASKET C 2
ATTACHING PARTS
-245 MS24694-S48 . SCREW C 5
-250 MS24694-S50 . SCREW C 5
-255 AN3H4A . BOLT C 2
-260 NAS1149F0332P . WASHER C 2
-------*-------
265 156587-8D0104 . HOSE ASSY C 2
270 AN816-8 . NIPPLE C 2
ALTERNATE SPARE:
AS5194-0806
270 AS5194-0806 . NIPPLE C 2
ALTERNATE SPARE:
AN816-8
275 58-920020 . SUMP ASSY-FUEL CELL C 2
280 35-921502-1 . GASKET C 4
ATTACHING PARTS
-285 MS20073-04-06 . BOLT C 12
-290 NAS1149F0432P . WASHER C 12
-------*-------
295 AN804-D8 . TEE FE 2
300 132754-81 . NUT FE 2
-305 MS29512-08 . PACKING FE 2
310 HE780-1 . VALVE-LH F 1
FOR SPARES ORDER:
HE780-5
FOR DETAILS SEE:
28-20-00-05
310 HE780-5 . VALVE-LH F 1
HE780-1
FOR DETAILS SEE:
28-20-00-05
315 HE780-3 . VALVE-RH F 1
FOR SPARES ORDER:
HE780-7
FOR DETAILS SEE:
28-20-00-05

28-20-00-04
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04
-315 HE780-7 . VALVE-RH F 1
HE780-3
FOR DETAILS SEE:
28-20-00-05
ATTACHING PARTS
-320 130909B15 . BOLT F 3
-325 NAS1149F0332P . WASHER F 6
-330 130909N29 . NUT F 3
-------*-------
335 002-920018-1 . BRACKET-LH FE 1
-340 002-920018-2 . BRACKET-RH FE 1
ATTACHING PARTS
-345 130909B13 . BOLT FE 4
-355 130909N29 . NUT FE 4
-------*-------
360 002-920000-191 . TUBE ASSY H 2
-365 002-920001-39 . TUBE ASSY-LH ONLY J 1
375 AS5587D19 . CLAMP FE 2
ATTACHING PARTS
-380 130909B14 . BOLT FE 1
-390 130909N29 . NUT FE 1
-------*-------
395 96-920001-261 . ANGLE FE 2
400 002-920000-77 . TUBE ASSY-CROSS FEED, LH H 1
-405 002-920001-37 . TUBE ASSY-CROSS FEED, LH J 1
-410 002-920000-51 . TUBE ASSY-CROSS FEED, RH FE 1
ATTACHING PARTS
-420 AN742-4 . CLAMP FE 1
-425 MS35207-262 . SCREW FE 1
-435 130909N29 . NUT FE 1
-------*-------
440 132754-24 . ELBOW FE 4
445 115005-10 . GROMMET FE 4
450 002-920000-15 . TUBE ASSY FE 1
-460 002-920000-49 . TUBE ASSY-CROSS FEED RH FE 1
ATTACHING PARTS
-465 755-8 . CLAMP-LH L 1
-470 755-8 . CLAMP-RH L AR
-472 755-8-2-8 . CLAMP M 1
-475 AN743-12 . BRACKET-LH L 1
-480 AN743-12 . BRACKET-RH L AR
-482 AN743-12 . BRACKET M 1
-485 AN515R8 . SCREW-LH L 2
-490 AN515R8 . SCREW-RH L AR
-492 MS35207-267 . SCREW M 2
-495 NAS1149FN832P . WASHER-LH L 2
-500 NAS1149FN832P . WASHER-RH L AR
-502 NAS1149-F0316P . WASHER M 2
28-20-00-04
PAGE 4
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04
-503 NAS43HT3-24 . SPACER M 1
-505 130909N28 . NUT-LH L 2
-510 130909N28 . NUT-RH L AR
-512 130909N29 . NUT M 2
-------*-------
-520 MS29512-08 . PACKING FE 2
-525 132754-81 . NUT FE 2
530 002-920000-13 . TUBE ASSY FE 1
535 002-920000-97 . CLIP FE 3
ATTACHING PARTS
-540 MS35206-333 . SCREW FE 1
-550 130909N28 . NUT FE 1
-------*-------
555 002-920000-101 . SPACER FE 3
560 002-920000-19 . SLEEVE FE 6
565 002-920000-43 . TUBE ASSY-LH F 1
-570 002-920000-207 . TUBE ASSY-LH G 1
-575 002-920000-44 . TUBE ASSY-RH F 1
-580 002-920000-208 . TUBE ASSY-RH G 1
-590 MS29512-08 . PACKING FE 2
-595 132754-81 . NUT FE 2
600 33-199-105-3 . STRAINER FE 2
FOR DETAILS SEE:
28-20-00-06
ATTACHING PARTS
-605 130909B45 . BOLT FE 2
-615 130909N32 . NUT FE 2
-------*-------
620 MS20823-8D . ELBOW FE 2
625 MS20823-4D . ELBOW FE 2
630 002-920000-95 . TUBE ASSY FE 2
635 CCA-4850 . VALVE FE 2
-640 CCA-1269 . . SEAL FE 2
-645 AN910-1J . COUPLING FE 2
-650 MS20822-4D . ELBOW FE 2
FOR SPARES ORDER:
AS5195D0402
-650 AS5195D0402 . ELBOW FE 2
MS20822-4D
-655 95-920001-151 . CLIP FE 2
ATTACHING PARTS
-665 AN515R8 . SCREW FE 1
-675 130909N28 . NUT FE 1
-------*-------
ALTERNATE SPARE:
AS5194D0806

28-20-00-04
PAGE 5
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04
ALTERNATE SPARE:
AN816-8D
685 002-920000-103 . TUBE ASSY-LH FE 1
-690 002-920000-104 . TUBE ASSY-RH FE 1
695 002-920000-99 . ELBOW FE 2
-700 MS29512-08 . PACKING FE 2
-705 132754-81 . NUT FE 2
710 2140-53 . ELBOW FE 2
ALTERNATE SPARE:
35-924291-1
710 35-924291-1 . ELBOW FE 2
ALTERNATE SPARE:
2140-53
715 106200G4-28 . HOSE FE 2
ATTACHING PARTS
FOR SPARES ORDER:
132742-22T
-720 132742-22T . CLAMP FE 2
AN737TW22
-------*-------
725 000-920012-7 . FLANGE FE 2
730 4404-00-1 . PUMP FE 2
FOR SPARES ORDER:
4404-00-7NV
730 4404-00-7NV . PUMP FE 2
4404-00-1
735 35-921255 . BRACKET ASSY-FUEL PUMP FE 2
ATTACHING PARTS
-740 AN4-16A . BOLT FE 4
-745 100696S2H110 . SPACER FE 4
-750 130909B12 . BOLT FE 1
-760 130909N29 . NUT FE 1
-------*-------
765 MS24487D8 . UNION FE 2
-770 MS29512-08 . PACKING FE 2
775 MS35490-15 . GROMMET FE 2
780 002-920000-31 . TUBE ASSY-LH C 1
-785 002-920000-35 . TUBE ASSY-LH B 1
-790 002-920000-17 . TUBE ASSY-RH FE 1
795 AS5174D0808 . UNION-LH FE 1
800 002-920000-211 . TUBE ASSY-LH C 1
-805 002-920000-189 . TUBE ASSY-LH B 1
ATTACHING PARTS
-810 AN743-12 . BRACKET FE 1
-820 102933-D4ZJ0375 . SPACER FE 1
-825 130909B14 . BOLT FE 1
-830 130909B19 . BOLT FE 1

28-20-00-04
PAGE 6
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
04
-840 130909N29 . NUT FE 2
-------*-------
845 MS35490-19 . GROMMET-LH C 1
H0669-H0669,H0680-H0765,H0767-H0772 B
H0766-H0766,H0773-H9999 C
H0669-H0669,H0680-H0750 D
H0751-H9999 E
H0669-H0669,H0680-H0741,H0746-H0765,H0767-H0772 F
H0742-H0745,H0766-H0766,H0773-H9999 G
H0669-H0669,H0680-H1146 H
H1147-H9999 J
H0766-H0766,H0773-H2146 K
H0669-H0669,H0680-H2479 L
H2480-H9999 M
H0669-H0669,H0680-H9999 FE

28-20-00-04
PAGE 7
BARON MAY 01/19

28-20-00-05
FUEL VALVE ASSEMBLIES
28-20-00-05
BARON MAY 01/19

SHEET 1 OF 5
28-20-00-05
PAGE 0
MAY 01/19

SHEET 2 OF 5
28-20-00-05
PAGE 0A
MAY 01/19

SHEET 3 OF 5
28-20-00-05
PAGE 0B
MAY 01/19

SHEET 4 OF 5
28-20-00-05
PAGE 0C
MAY 01/19

SHEET 5 OF 5
28-20-00-05
PAGE 0D
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
05 FUEL VALVE ASSEMBLIES

-5 002-920000-123 VALVE ASSY-FUEL A 2
FOR NHA SEE:
28-10-00-02
10 002-920000-125 . VALVE ASSY-FUEL A 1
ATTACHING PARTS
15 AN525-10R . SCREW A 1
20 AN365-1032 . NUT A 1
ALTERNATE SPARE:
MS21044N3
MS21042-3
MS20365-1032
FOR SPARES ORDER:
130909N29
20 MS21044N3 . NUT A 1
ALTERNATE SPARE:
AN365-1032
MS21042-3
MS20365-1032
FOR SPARES ORDER:
130909N29
20 MS21042-3 . NUT A 1
ALTERNATE SPARE:
AN365-1032
MS21044N3
MS20365-1032
FOR SPARES ORDER:
130909N29
20 MS20365-1032 . NUT A 1
ALTERNATE SPARE:
AN365-1032
MS21044N3
MS21042-3
FOR SPARES ORDER:
130909N29
20 130909N29 . NUT A 1
AN365-1032
MS21044N3
MS21042-3
MS20365-1032
25 10069A-ZF-006 . SPACER A 1
-------*-------
30 002-920000-127 . . VALVE A 1
35 002-920000-129 . . ARM A 1
40 002-920000-131 . CLAMP A 1
-45 002-920012-25 VALVE ASSY-FUEL CHECK B 1
FOR NHA SEE:
28-20-00-01
28-20-00-02
50 002-920012-27 . VALVE ASSY B 1
ATTACHING PARTS
55 AN525-10R . SCREW B 1

28-20-00-05
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
05
60 AN365-1032 . NUT B 1
ALTERNATE SPARE:
MS21044N3
MS21042-3
MS20365-1032
FOR SPARES ORDER:
130909N29
60 MS21044N3 . NUT B 1
ALTERNATE SPARE:
AN365-1032
MS21042-3
MS20365-1032
FOR SPARES ORDER:
130909N29
60 MS21042-3 . NUT B 1
ALTERNATE SPARE:
AN365-1032
MS21044N3
MS20365-1032
FOR SPARES ORDER:
130909N29
60 MS20365-1032 . NUT B 1
ALTERNATE SPARE:
AN365-1032
MS21044N3
MS21042-3
FOR SPARES ORDER:
130909N29
60 130909N29 . NUT B 1
AN365-1032
MS21044N3
MS21042-3
MS20365-1032
65 10069A-ZF-006 . SPACER B 1
-------*-------
70 002-920012-31 . . ARM B 1
75 002-920012-33 . CLAMP B 1
-80 002-920019-1 VALVE ASSY-FLOAT, FUEL VENT FE 1
FOR NHA SEE:
28-10-00-07
85 002-920019-3 . HOUSING ASSY FE 1
ATTACHING PARTS
-90 AN3H5A . BOLT FE 6
ALTERNATE SPARE:
NAS1149F0332P
ALTERNATE SPARE:
AN960-10L
-------*-------
-100 RPN10-32SMLM . . NUT-PRESS FE 6
105 002-920019-15 . PIN FE 1
110 002-920019-17 . WELD ASSY FE 1
115 002-920019-23 . WELD ASSY FE 1
28-20-00-05
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
05
120 002-920019-33 . GASKET FE 1
125 5343-15 . ARM-FLAPPER FE 1
130 5343-8-5 . FLAPPER FE 1
135 0006-00440 . FLOAT FE 1
ALTERNATE SPARE:
0006-0622
135 0006-0622 . FLOAT FE 1
ALTERNATE SPARE:
0006-00440
140 AN364-1032 . NUT FE 1
145 NAS43DD3-8 . SPACER FE 1
-150 3217-00-5 VALVE-RELIEF L 1
ALTERNATE SPARE:
4P10-05
-150 3217-00-11 VALVE-RELIEF L 1
ALTERNATE SPARE:
4P10-5
FOR NHA SEE:
28-10-00-06
28-10-00-08
160 3217-05-1 . CAP L 1
165 2217-10 . PACKING-PREFORMED L 1
170 3217-06 . BODY L 1
175 2217-09 . SPRING L 1
180 2217-07-3 . POPPET L 1
185 2217-08 . PACKING-PREFORMED L 1
-190 4P10-05 VALVE-RELIEF L 1
ALTERNATE SPARE:
3217-00-5
-190 4P10-5 VALVE-RELIEF L 1
ALTERNATE SPARE:
3217-00-11
200 4P10-5C1 . BODY-VALVE L 1
205 4P12 . CAP-VALVE L 1
210 6P113A4 . PISTON-VALVE L 1
215 4P10-05C4 . SPRING-COMPRESSION L 1
-220 4P10-5C4 . SPRING-COMPRESSION L 1
225 MS29513-110 . PACKING-PREFORMED L 1
-230 50-380170-11 VALVE-SWING FE 1
235 366-14 . CAP FE 1
FOR SPARES ORDER:
MS29513-019
MS29513-19
245 366-08 . BODY-VALVE FE 1
250 166-06-1 . GASKET FE 1
255 266-13-1 . SWING SUB ASSY FE 1
260 166-07 . PIN-HINGE FE 1
265 266-05 . SPRING FE 1
-270 50-380170-1 VALVE-SWING CHECK C 1
FOR SPARES ORDER:
50-380170-39

28-20-00-05
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
05
-270 50-380170-39 VALVE-SWING CHECK H 1
50-380170-1
280 353-11 . CAP H 1
285 MS29513-21 . PACKING-PREFORMED H 1
FOR SPARES ORDER:
MS29513-021
285 MS29513-021 . PACKING-PREFORMED H 1
MS29513-21
290 166-07 . PIN-HINGE H 1
295 253-05 . SPRING H 1
300 253-10 . SWING SUB ASSY H 1
305 2142-05 . BODY H 1
-310 HE7001-5 BOX-CONTROL, RH G 1
FOR NHA SEE:
28-25-00-02
28-25-00-03
-315 HE7001-7 BOX-CONTROL, LH G 1
FOR NHA SEE:
28-25-00-02
28-25-00-03
320 HE1728-3 . COVER G 1
ATTACHING PARTS
325 AN507-10-6 . SCREW G 3
-330 AN936D10 . WASHER-LOCK G 3
-------*-------
335 HE1730-15 . BOX-GEAR G 1
HE7001-5
-340 HE1730-11 . BOX-GEAR G 1
HE7001-7
345 HE1880 . SLIDER G 1
350 1-4DIAX5-8 . PIN-DOWEL G 1
355 HE1921 . SHIM G AR
360 SSRI8516ZZ . BEARING G 2
365 HE1833-15 . GEAR-DRIVE G 1
HE7001-5
370 HE1833-17 . GEAR-DRIVE G 1
HE7001-7
-375 002-384001-1 VALVE ASSY E 1
FOR NHA SEE:
28-25-00-01
-380 84D36-1 . VALVE E 1
385 85D26-1 . . BODY E 1
390 85D27-1 . . YOKE E 1
395 MS171529 . . PIN-SPRING E 1
400 HE-193 . . WASHER E 1
405 HE-189 . . SPRING E 2
410 75D88-6 . . BALL-CARBON STEEL E 2
415 HE1291 . . PLATE-DETENT E 1

28-20-00-05
PAGE 4
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
05
420 MS29513-11 . . PACKING E 1
FOR SPARES ORDER:
MS29513-011
420 MS29513-011 . . PACKING E 1
MS29513-11
425 HE-1251 . . SPRING E 1
430 HE1285 . . WASHER E 1
435 MS29513-14 . . PACKING E 1
FOR SPARES ORDER:
MS29513-014
435 MS29513-014 . . PACKING E 1
MS29513-14
440 HE-1286 . . SEAL E 1
445 HE1375 . . ROTOR ASSY E 1
-450 002-384001-7 VALVE ASSY-LH F 1
ALTERNATE SPARE:
002-384001-49
FOR NHA SEE:
28-25-00-01
-450 002-384001-49 VALVE ASSY-LH F 1
ALTERNATE SPARE:
002-384001-7
FOR NHA SEE:
28-25-00-01
-455 002-384001-9 VALVE ASSY-RH F 1
ALTERNATE SPARE:
002-384001-51
FOR NHA SEE:
28-25-00-01
-455 002-384001-51 VALVE ASSY-RH F 1
ALTERNATE SPARE:
002-384001-9
FOR NHA SEE:
28-25-00-01
-460 73D9L . VALVE-LH F 1
-465 73D9R . VALVE-RH F 1
470 73B93 . . WASHER F 1
475 LC-059H-1 . . SPRING F 3
480 MS29513-014 . . PACKING F 3
485 73B92 . . SEAL F 3
490 GP50-093X437-5 . . PIN-GROOVE F 1
495 73B91 . . DISK-VALVE SEAL F 1
500 MS171536 . . PIN-SPRING F 1
APPLY LOCTITE ON ASSEMBLING
505 73B94 . . COUPLING-ACTUATOR F 1
510 205AS . . SPRING F 2
515 MS9461-04 . . BALL F 2
520 73B96 . . PLATE-INDEX F 1
525 73B95 . . SHAFT F 1
530 MS29513-010 . . PACKING F 1
535 73D961 . . BODY-VALVE F 1

28-20-00-05
PAGE 5
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
05
-540 HE-780-1 VALVE-FUEL SELECTOR, LH G 1
FOR SPARES ORDER:
HE780-5
FOR NHA SEE:
28-20-00-02
28-20-00-03
28-20-00-04
-540 HE780-5 VALVE-FUEL SELECTOR, LH G 1
HE780-1
FOR NHA SEE:
28-20-00-02
28-20-00-03
28-20-00-04
-540 58-380109-1 VALVE-FUEL SELECTOR, LH K 1
-555 HE-780-3 VALVE-FUEL SELECTOR, RH G 1
FOR SPARES ORDER:
HE780-7
FOR NHA SEE:
28-20-00-02
28-20-00-03
28-20-00-04
-555 HE780-7 VALVE-FUEL SELECTOR, RH G 1
HE780-3
FOR NHA SEE:
28-20-00-02
28-20-00-03
28-20-00-04
-555 58-380109-3 VALVE-FUEL SELECTOR, RH K 1
570 HE1805-1 . SUMP-LH FUEL SELECTOR G 1
-575 HE1805-3 . SUMP-RH FUEL SELECTOR G 1
ATTACHING PARTS
580 AN500-A10-10 . SCREW G 3
585 AN935-10 . WASHER G 3
-------*-------
590 MS20913-1S . PLUG G 1
595 HE1728-2 . COVER G 1
ATTACHING PARTS
600 AN501-A10-8 . SCREW G 3
-------*-------
605 HE1863 . GASKET G 1
610 76D47-1 . SCREW-STOP G 1
615 HE2035 . PIN G 1
620 HE1880 . SLIDER G 1
625 75D88-5 . BALL-STEEL G 1
630 HE2022 . SPRING G 1
635 HE1811 . SCREW G 1
640 MS16624-1025 . RING-RETAINING G 1
645 97D75-1 . SEAL-QUAD RING G 1
650 HE1803 . BOX-GEAR G 1
ATTACHING PARTS
655 AN500-10-10 . SCREW G 4
-660 AN935-10 . WASHER G 4
-------*-------
28-20-00-05
PAGE 6
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
05
665 P33C32 . BEARING G 2
HE780-1
HE780-3
-670 AA33C32 . BEARING G 2
675 MS29513-23 . PACKING-PREFORMED G 1
FOR SPARES ORDER:
MS29513-023
MS29513-23
680 HE1806 . ROTOR G 1
HE780-1
HE780-3
-685 93D80-1 . ROTOR G 1
FOR SPARES ORDER:
MS29513-025
MS29513-25
695 HE1810 . GLAND G 1
700 HE-1251 . SPRING G 2
-705 HE1373 . WASHER G 2
710 HE1372-1 . SEAL-TEFLON G 2
715 HE-1809 . GEAR G 1
FOR SPARES ORDER:
MS29513-013
MS29513-13
725 HE1804 . BODY G 1
-730 NAS815-8A . PLUG-SHIPPING G 3
-735 NAS815-4A . PLUG-SHIPPING G 2
-740 81554 . NAMEPLATE G 1
-745 60-920016-11 VALVE ASSY-FLOAT FUEL VENT D 2
-750 60-920016-3 . FLANGE ASSY D 2
755 100-920048-15 . . FLANGE D 2
760 002-920019-29 . . BRACKET D 2
765 60-920016-13 . FLOAT ASSY D 2
-770 60-920016-15 . . ARM D 2
-775 60-920016-17 . . FLOAT D 2
780 5343-8-5 . FLAPPER D 2
785 5343-15 . ARM-FLAPPER D 2
ATTACHING PARTS
-790 MS21083C . NUT D 1
-795 AN416-1 . PIN D 1
FOR SPARES ORDER:
AA55488-1
-795 AA55488-1 . PIN D 1
AN416-1

28-20-00-05
PAGE 7
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
05
-800 NAS43DD3-8 . SPACER D 1
-------*-------
C1608-C9999,E0938-E0938,E0943-E9999 A
C1608-C1653,E0938-E0938,E0943-E0963,H0001-H0431 B
H0001-H1662 C
H0669-H0669,H0680-H9999 D
C1608-C1788,E0938-E0938,E0943-E1011 E
C1789-C9999,E1012-E9999 F
C1970-C1970,C2003-C9999,E1081-E1081,E1084-E9999, G
H0001-H1487,H1489-H1599,H1601-H1612
H0001-H9999 H
H1488-H1488,H1600-H1600,H1613-H9999 K
C1608-C1969,C1971-C2002,E0938-E0938,E0943-E1080, L
E1082-E1083,H0001-H2119
C1608-C9999,E0938-E0938,E0943-E9999,H0001-H9999 FE

28-20-00-05
PAGE 8
BARON MAY 01/19
28-20-00-06
FUEL FILTER
28-20-00-06
BARON MAY 01/19
FUEL FILTER
28-20-00-06
PAGE 0
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
06 FUEL FILTER
-5 33-199-105-3 STRAINER-FUEL FE 1
FOR NHA SEE:
28-20-00-01
28-20-00-02
28-20-00-03
28-20-00-04
10 33-199-913 . CAP ASSY FE 1
15 AN932-C2 . PLUG FE 1
FOR SPARES ORDER:
MS27769-C2
15 MS27769-C2 . PLUG FE 1
AN932-C2
20 33-199-6 . GASKET FE 2
25 60B095-001 . BOWL-FUEL STRAINER FE 1
30 33-199-909 . SCREEN ASSY FE 1
35 33-199-1 . BOTTOM-FUEL STRAINER FE 1
40 33-199-8 . NUT FE 1
45 33-199-7 . BOLT FE 1
50 33-199-36 . CLIP-SPRING FE 1
-55 21-199-35 . PLATE-IDENTIFICATION FE 1
C1608-C9999,E0938-E0938,E0943-E9999,H0001-H9999 FE

28-20-00-06
PAGE 1
BARON MAY 01/19

28-25-00-01
FUEL SELECTOR VALVE CONTROL
28-25-00-01
BARON MAY 01/19
28-25-00-01
PAGE 0
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01 FUEL SELECTOR VALVE CONTROL

-5 002-920023-43 PANEL ASSY-106 GAL. SYSTEM E 1
FOR NHA SEE:
28-20-00-01
-10 002-920023-17 PANEL ASSY-142 GAL. SYSTEM E 1
FOR NHA SEE:
28-20-00-01
-15 002-920023-19 PANEL ASSY-172 GAL. SYSTEM B 1
FOR NHA SEE:
28-20-00-01
20 002-920021-5 . PLATE-SELECTOR VALVE ID, E 1
106 GAL. SYSTEM
-25 002-920021-1 . PLATE-SELECTOR VALVE ID, E 1
142 GAL. SYSTEM
-30 002-920021-3 . PLATE-SELECTOR VALVE ID, B 1
172 GAL. SYSTEM
35 FF520-15 . BEARING FE 2
40 A8970B1-327 . LIGHT-POST FE 2
-45 AN960-8 . WASHER FE 6
FOR SPARES ORDER:
NAS1149FN832P
AN960-8
-50 002-920023-1 VALVE INSTL-FUEL SELECTOR FE RF
-55 002-920023-3 . VALVE ASSY-FUEL SELECTOR FE 1
-60 002-920023-5 . . BRACKET ASSY FE 1
65 002-920023-7 . . BRACKET FE 1
70 002-920023-9 . . ANGLE FE 4
75 002-920023-45 . . STOP-VALVE FE 2
80 002-920023-47 . . STOP-VALVE FE 2
ATTACHING PARTS
-82 MS35206-263 . . SCREW FE 4
-83 AN935-10 . . WASHER FE 4
-------*-------
-85 002-920023-21 . . SHAFT ASSY-LH FE 1
-90 002-920023-22 . . SHAFT ASSY-RH FE 1
95 002-920023-29 . . . HANDLE FE 1
100 52-028-125-0625 . . . PIN FE 1
105 002-920023-41 . . . BRAZE ASSY FE 1
110 AN381-2-20 . . PIN-COTTER FE 4
-115 002-920023-31 . . VALVE ASSY-LH FE 1
-120 002-920023-33 . . VALVE ASSY-RH FE 1
ATTACHING PARTS
-125 AN503-10-8 . . SCREW FE 2
-130 AN935-10 . . WASHER-LOCK FE 2
-------*-------
-135 002-920023-49 . . . VALVE ASSY-LH C 1
-140 002-920023-51 . . . VALVE ASSY-RH C 1
145 002-384001-1 . . . . VALVE ASSY C 1
FOR DETAILS SEE:
28-20-00-05
150 MS171536 . . . . PIN-ROLL C 1

28-25-00-01
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
-155 002-384001-7 . . . VALVE ASSY-LH D 1
ALTERNATE SPARE:
002-920023-49
FOR DETAILS SEE:
28-20-00-05
-155 002-384001-49 . . . VALVE ASSY-LH D 1
ALTERNATE SPARE:
002-384001-7
FOR DETAILS SEE:
28-20-00-05
-160 002-384001-9 . . . VALVE ASSY-RH D 1
ALTERNATE SPARE:
002-920023-51
FOR DETAILS SEE:
28-20-00-05
-160 002-384001-51 . . . VALVE ASSY-RH D 1
ALTERNATE SPARE:
002-384001-9
FOR DETAILS SEE:
28-20-00-05
165 002-920026-1 . . . OUTLET-FUEL FE 1
ATTACHING PARTS
170 NAS1352-3H10 . . . SCREW FE 4
-175 AN935-10 . . . WASHER FE 4
-------*-------
180 50-920030-4 . . . GASKET FE 1
-185 MS29512-06 . . . PACKING FE 1
190 AN815-6D . . . UNION FE 1
ALTERNATE SPARE:
AS5174D0606
MS24392D6
190 AS5174D0606 . . . UNION FE 1
ALTERNATE SPARE:
AN815-6D
MS24392D6
190 MS24392D6 . . . UNION FE 1
ALTERNATE SPARE:
AN815-6D
AS5174D0606
195 AN822-8D . . . ELBOW FE 2
FOR SPARES ORDER:
MS20822-8D
AS5195D0806
195 MS20822-8D . . . ELBOW FE 2
AN822-8D
FOR SPARES ORDER:
AS5195D0806
195 AS5195D0806 . . . ELBOW FE 2
AN822-8D
MS20822-8D
200 AN913-3 . . . PLUG FE 1
205 002-920023-35 . . TUBE ASSY FE 2
210 002-920023-37 . . TUBE ASSY FE 1
28-25-00-01
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
01
215 002-920023-39 . . TUBE ASSY FE 1
220 AN824-8D . . TEE FE 2
225 8-6TRTX-D . . REDUCER FE 2
230 AN818-8D . . NUT FE 2
E0938-E0938,E0943-E1080,E1082-E1083 B
C1608-C1788,E0938-E0938,E0943-E1011 C
C1789-C1969,C1971-C2002,E1012-E1080,E1082-E1083 D
C1608-C1969,C1971-C2002 E
C1608-C1969,C1971-C2002,E0938-E0938,E0943-E1080, FE
E1082-E1083

28-25-00-01
PAGE 3
BARON MAY 01/19

28-25-00-02
28-25-00-02
BARON MAY 01/19
28-25-00-02
PAGE 0
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY

-5 58-920014 VALVE INSTL-CONTROL, FUEL FE RF
SELECTOR, 142 GAL. SYSTEM
-10 58-920014-1 SELECTOR INSTL-FUEL CTR, FE RF
172 GAL. SYSTEM
-15 58-920014-5 SELECTOR VALVE INSTL-FUEL B RF
CTR, 200 GAL. SYSTEM
20 58-920032-7 . PLATE-FUEL SELECTOR ID, FE 1
136 GAL. SYSTEM
-25 58-920032-9 . PLATE-FUEL SELECTOR ID, FE 1
172 GAL. SYSTEM
-30 58-920036-1 . PLATE-FUEL SELECTOR ID, B 1
200 GAL. SYSTEM
ATTACHING PARTS
35 NAS387-1032-20P . SCREW FE 4
-------*-------
40 58-920026-5 . ESCUTCHEON FE 1
-45 58-920013-9 . COVER ASSY FE 1
ATTACHING PARTS
50 AN507-1032-R6 . SCREW FE 4
-------*-------
55 58-920013-11 . . COVER FE 1
60 MS21069L3 . . NUTPLATE FE 4
65 60-924017-7 . HANDLE-SELECTOR VALVE, LH FE 1
-70 60-924017-5 . HANDLE-SELECTOR VALVE, RH FE 1
ATTACHING PARTS
75 MS9048-104 . PIN FE 2
-------*-------
80 HE7001-5 . BOX FE 1
FOR DETAILS SEE:
28-20-00-05
ATTACHING PARTS
85 AN509-10R42 . SCREW FE 4
90 AN960-10L . WASHER FE 4
ALTERNATE SPARE:
NAS1149F0332P
90 NAS1149F0332P . WASHER FE 4
ALTERNATE SPARE:
AN960-10L
95 130909N29 . NUT FE 4
100 NAS43DD3-72 . SPACER FE 3
-------*-------
105 HE7001-7 . BOX FE 1
FOR DETAILS SEE:
28-20-00-05
ATTACHING PARTS
110 AN3-13 . BOLT FE 3
115 AN960-10L . WASHER FE 3
ALTERNATE SPARE:
NAS1149F0332P
115 NAS1149F0332P . WASHER FE 3
ALTERNATE SPARE:
AN960-10L
120 130909N29 . NUT FE 3
-------*-------
28-25-00-02
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
130 58-920012-3 . BRACKET ASSY FE 1
ATTACHING PARTS
-135 AN525-10R . SCREW FE 4
-140 AN960-10L . WASHER FE 2
ALTERNATE SPARE:
NAS1149F0332P
ALTERNATE SPARE:
AN960-10L
-145 130909N29 . NUT FE 2
-150 MK-1000-1032 . NUTPLATE FE 2
-------*-------
155 002-920025-1 . TUBE ASSY FE 2
ATTACHING PARTS
160 HE172-4 . NUT FE 4
-------*-------
165 A830-1 . HOUSING ASSY FE 2
ALTERNATE SPARE:
54-2566-2047
165 54-2566-2047 . HOUSING ASSY FE 2
ALTERNATE SPARE:
A830-1
175 HE-1031-590 . CABLE ASSY FE 2
180 AN743-12 . BRACKET FE 2
ATTACHING PARTS
-185 AN520-10 . SCREW FE 2
-190 AN960-10L . WASHER FE 2
ALTERNATE SPARE:
NAS1149F0332P
ALTERNATE SPARE:
AN960-10L
-195 AN365-1032 . NUT FE 2
ALTERNATE SPARE:
MS21042-3
MS21044N3
MS20365-1032
FOR SPARES ORDER:
130909N29
-195 MS21042-3 . NUT FE 2
ALTERNATE SPARE:
AN365-1032
MS21044N3
MS20365-1032
FOR SPARES ORDER:
130909N29
-195 MS21044N3 . NUT FE 2
ALTERNATE SPARE:
AN365-1032
MS21042-3
MS20365-1032
FOR SPARES ORDER:
130909N29

28-25-00-02
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
-195 MS20365-1032 . NUT FE 2
ALTERNATE SPARE:
AN365-1032
MS21042-3
MS21044N3
FOR SPARES ORDER:
130909N29
-195 130909N29 . NUT FE 2
AN365-1032
MS21042-3
MS21044N3
MS20365-1032
-------*-------
FOR SPARES ORDER:
AS21919WDG8
MS21919DG8
ATTACHING PARTS
-205 AN520-10 . SCREW FE 2
-210 AN960-10L . WASHER FE 2
ALTERNATE SPARE:
NAS1149F0332P
ALTERNATE SPARE:
AN960-10L
-215 AN365-1032 . NUT FE 2
ALTERNATE SPARE:
MS21044N3
MS21042-3
MS20365-1032
FOR SPARES ORDER:
130909N29
-215 MS21044N3 . NUT FE 2
ALTERNATE SPARE:
AN365-1032
MS21042-3
MS20365-1032
FOR SPARES ORDER:
130909N29
-215 MS21042-3 . NUT FE 2
ALTERNATE SPARE:
AN365-1032
MS21044N3
MS20365-1032
FOR SPARES ORDER:
130909N29

28-25-00-02
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
02
-215 MS20365-1032 . NUT FE 2
ALTERNATE SPARE:
AN365-1032
MS21044N3
MS21042-3
FOR SPARES ORDER:
130909N29
-215 130909N29 . NUT FE 2
AN365-1032
MS21044N3
MS21042-3
MS20365-1032
-------*-------
H0669-H0669,H0680-H0741,H0746-H0765,H0767-H0772 B
H0001-H0765,H0767-H0772 FE

28-25-00-02
PAGE 4
BARON MAY 01/19
28-25-00-03
28-25-00-03
BARON MAY 01/19
28-25-00-03
PAGE 0
MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY

-5 002-920035-17 VALVE INSTL-SELECTOR, FUEL A RF
-5 002-920035-19 VALVE INSTL-SELECTOR, FUEL A RF
-5 002-920035-21 VALVE INSTL-SELECTOR, FUEL B RF
-5 002-920035-23 VALVE INSTL-SELECTOR, FUEL C RF
FOR NHA SEE:
28-20-00-03
FOR NHA SEE:
28-20-00-03
FOR NHA SEE:
28-20-00-03
-5 002-920035-7 VALVE INSTL-SELECTOR, FUEL J RF
FOR NHA SEE:
28-20-00-03
FOR NHA SEE:
28-20-00-03
FOR NHA SEE:
28-20-00-03
35 96-924033-1 . PLATE-FUEL SELECTOR ID, A 1
100 GAL. SYSTEM
35 58-920032-7 . PLATE-FUEL SELECTOR ID, F 1
136 GAL. SYSTEM
FOR SPARES ORDER:
58-920056-1
35 58-920056-1 . PLATE-FUEL SELECTOR ID, FE 1
136 GAL. SYSTEM
58-920032-7
35 58-920032-9 . PLATE-FUEL SELECTOR ID, G 1
166 GAL. SYSTEM
FOR SPARES ORDER:
58-920056-3
35 58-920056-3 . PLATE-FUEL SELECTOR ID, E 1
166 GAL. SYSTEM
58-920032-9
35 58-920036-1 . PLATE-FUEL SELECTOR ID, H 1
194 GAL. SYSTEM
FOR SPARES ORDER:
58-920056-5

28-25-00-03
PAGE 1
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
35 58-920056-5 . PLATE-FUEL SELECTOR ID, H 1
194 GAL. SYSTEM
58-920036-1
ATTACHING PARTS
55 NAS387-1032-18P . SCREW FE 3
-60 NAS387-1032-12P . SCREW FE 1
-------*-------
65 58-920026-5 . ESCUTCHEON FE 1
-70 002-920036-1 . COVER ASSY K 1
-70 002-920036-5 . COVER ASSY J 1
ATTACHING PARTS
75 MS35207-263 . SCREW FE 4
-------*-------
80 002-920036-3 . . COVER K 1
80 002-920036-7 . . COVER J 1
85 MS21069L3 . . NUTPLATE FE 4
-90 NAS1329S3K80 . . RIVNUT FE 1
95 60-924017-5 . HANDLE-SELECTOR VALVE, LH FE 1
-100 60-924017-7 . HANDLE-SELECTOR VALVE, RH FE 1
ATTACHING PARTS
105 MS9048-104 . PIN FE 2
FOR SPARES ORDER:
MS171530
105 MS171530 . PIN FE 2
MS9048-104
-------*-------
-110 002-920035-29 . CONTROL ASSY K 1
-110 002-920035-13 . CONTROL ASSY J 1
115 HE7001-7 . . BOX-CONTROL, LH K 1
FOR DETAILS SEE:
28-20-00-05
115 58-380110-1 . . GEARBOX ASSY-LH J 1
ATTACHING PARTS
120 AN3-14A . . BOLT FE 3
125 AN960-10 . . WASHER FE 12
ALTERNATE SPARE:
NAS1149F0363P
125 NAS1149F0363P . . WASHER FE 12
ALTERNATE SPARE:
AN960-10
130 130909N29 . . NUT FE 3
-------*-------
-135 HE172-4 . . NUT K 4
-140 002-920025-1 . . TUBE ASSY K 4
145 HE7001-5 . . BOX-CONTROL, RH K 1
FOR DETAILS SEE:
28-20-00-05
145 58-380110-3 . . GEARBOX ASSY-RH J 1
ATTACHING PARTS
150 MS24694-81 . . SCREW FE 4
155 100696DZF102 . . SPACER FE 3

28-25-00-03
PAGE 2
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
160 AN960-10 . . WASHER FE 7
ALTERNATE SPARE:
NAS1149F0363P
160 NAS1149F0363P . . WASHER FE 7
ALTERNATE SPARE:
AN960-10
165 130909N29 . . NUT FE 4
-------*-------
170 002-920037-1 . . BRACKET ASSY FE 1
ATTACHING PARTS
-175 MS35207-264 . . SCREW FE 4
-180 MS21069L3 . . NUTPLATE FE 4
-------*-------
185 54-2566-2071 . HOUSING ASSY-FUEL SELECTOR A 2
CONTROL CABLE
185 54-2566-2047 . HOUSING ASSY-FUEL SELECTOR C 2
CONTROL CABLE
-195 HE1431-506 . CABLE ASSY-FUEL SELECTOR A 2
CONTROL
-195 HE1431-590 . CABLE ASSY-FUEL SELECTOR C 2
CONTROL
-195 58-380111-5 . CABLE ASSY-FUEL SELECTOR J 2
CONTROL
205 MS21266-1 . GROMMET-WING CLOSURE RIB FE 2
-210 115005-5 . GROMMET-CABIN SKIN FE 2
215 MS21919DG5 . CLAMP-CABLE SUPPORT FE 2
FOR SPARES ORDER:
MS21919WDG5
AS21919WD5
215 MS21919WDG5 . CLAMP-CABLE SUPPORT FE 2
MS21919DG5
215 AS21919WDG5 . CLAMP-CABLE SUPPORT FE 2
MS21919DG5
217 MS21919DG8 . CLAMP-CABLE SUPPORT FE 2
ATTACHING PARTS
-225 MS35207-263 . SCREW FE 4
-230 AN960-10L . WASHER FE 4
ALTERNATE SPARE:
NAS1149F0332P
ALTERNATE SPARE:
AN960-10L
-235 130909N29 . NUT FE 4
-------*-------
C1970-C1970,C2003-C9999,E1081-E1081,E1084-E9999 A
E1081-E1081,E1084-E9999 B
H0766-H0766,H0773-H1487,H1489-H1599,H1601-H1612 C
E1081-E1081,E1084-E9999,H0766-H0766,H0773-H9999 E
C1970-C1970,C2003-C9999,E1081-E1081,E1084-E9999, F
H0766-H0766,H0773-H1798
28-25-00-03
PAGE 3
BARON MAY 01/19
FIG UNITS
PART NUMBER ON CODE
ITEM 1234567 ASSY
03
(CONTINUED)
E1081-E1081,E1084-E9999,H0766-H0766,H0773-H1798 G
H0766-H0766,H0773-H9999 H
H1488-H1488,H1600-H1600,H1613-H9999 J
C1970-C1970,C2003-C9999,E1081-E1081,E1084-E9999, K
H0766-H0766,H0773-H1487,H1489-H1599,H1601-H1612
C1970-C1970,C2003-C9999,E1081-E1081,E1084-E9999, FE
H0766-H0766,H0773-H9999

28-25-00-03
PAGE 4
BARON MAY 01/19

28 - Effective Pages: Beechcraft Corporation

Uploaded by

Copyright:

Available Formats

You might also like

28 - Effective Pages: Beechcraft Corporation

Uploaded by

Document Information

Original Description:

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

28 - Effective Pages: Beechcraft Corporation

Uploaded by

Copyright:

Available Formats

Beechcraft Corporation

BARON B55, E55, 58 & G58 ILLUSTRATED PARTS CATALOG

28 - CONTENTS 1 MAY 01/19 28-10-00-04 0D MAY 01/19

28-10-00-08 1 MAY 01/19 28-20-00-03 5 MAY 01/19

FUEL VALVE ASSEMBLIES 28-20-00 05 C1608-C9999

FUEL STORAGE AND INTERCONNECT

FUEL STORAGE AND INTERCONNECT

FUEL STORAGE AND INTERCONNECT

FUEL STORAGE AND INTERCONNECT

01 FUEL STORAGE AND INTERCONNECT

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

FUEL STORAGE AND INTERCONNECT

FUEL STORAGE AND INTERCONNECT

FUEL STORAGE AND INTERCONNECT

FUEL STORAGE AND INTERCONNECT

FUEL STORAGE AND INTERCONNECT

FUEL STORAGE AND INTERCONNECT

02 FUEL STORAGE AND INTERCONNECT

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

FUEL STORAGE AND INTERCONNECT

FUEL STORAGE AND INTERCONNECT

FUEL STORAGE AND INTERCONNECT

FUEL STORAGE AND INTERCONNECT

FUEL STORAGE AND INTERCONNECT

FUEL STORAGE AND INTERCONNECT

03 FUEL STORAGE AND INTERCONNECT

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

PAGE INTENTIONALLY LEFT BLANK

FUEL STORAGE AND INTERCONNECT

FUEL STORAGE AND INTERCONNECT

FUEL STORAGE AND INTERCONNECT

FUEL STORAGE AND INTERCONNECT

FUEL STORAGE AND INTERCONNECT

FUEL STORAGE AND INTERCONNECT

04 FUEL STORAGE AND INTERCONNECT

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

MISSING ITEM NO. NOT APPLICABLE

FUEL STORAGE AND INTERCONNECT, WET WING TIP INSTL, OPTIONAL
