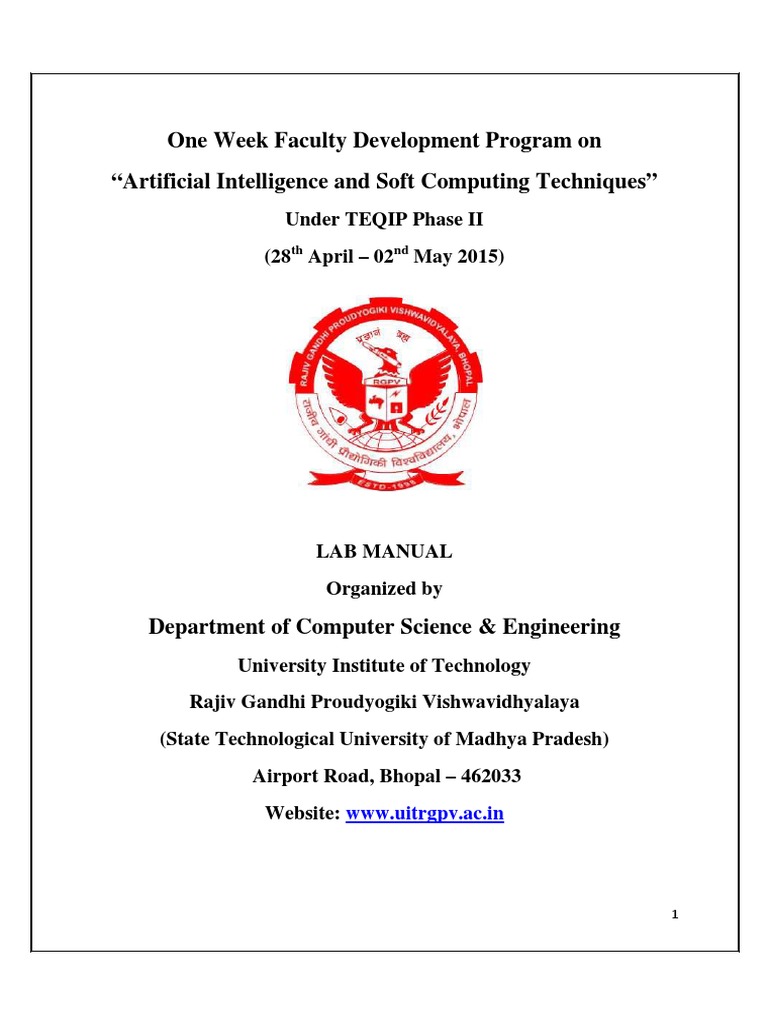

One Week Faculty Development Program on

“Artificial Intelligence and Soft Computing Techniques”

Under TEQIP Phase II
(28th April – 02nd May 2015)

LAB MANUAL
Organized by

Department of Computer Science & Engineering

University Institute of Technology
Rajiv Gandhi Proudyogiki Vishwavidhyalaya
(State Technological University of Madhya Pradesh)
Airport Road, Bhopal – 462033
Website: www.uitrgpv.ac.in

1
 INDEX
SNO. LIST OF EXPERIMENTS PAGE NO.

1. WAP to implement Artificial Neural Network 2

2. WAP to implement Activation Functions 3

3. WAP to implement Adaptive prediction in ADALINE NN 5

4. WAP to implement LMS and Perceptron Learning Rule 7

5. WAP to implement ART NN 12

6. WAP to implement BAM Network 14

7. WAP to implement Full CPN with input pair 15

8. WAP to implement discrete Hopfield Network 17

9. WAP to implement Hebb Network 18

10. WAP to implement Hetro associate neural net for mapping input vectors 19
to output vectors

11. WAP to implement Delta Learning Rule 20

12. WAP to implement XOR function in MADALINE NN 22

13. WAP to implement AND function in Perceptron NN 24

14. WAP to implement Perceptron Network 26

15. WAP to implement Feed Forward Network 32

16. WAP to implement Instar learning Rule 38

17. WAP to implement Weight vector Matrix 43

2
 Experiment No. 1

AIM: WAP to implement Artificial Neural Network in MATLAB

CODE:
%Autoassociative net to store the vector
clc;
clear;
x=[1 1 -1 -1];
w=zeros(4,4);
w=x'*x;
yin=x*w;
for i=1:4
if yin(i)>0
y(i)=1;
else
y(i)=-1;
end
end
disp('wieght matrix');
disp(w);
if x==y
disp('The vector is a known vector');
else
disp('The vector is a unknown vector');
end

OUTPUT:

Weight matrix

1 1 -1 -1

1 1 -1 -1

-1 -1 1 1

-1 -1 1 1

The vector is a known vector

3
 Experiment No. 2

AIM: WAP to implement Activation Function in MATLAB

CODE:

>> % Illustration of various activation functions used in NN's

x=-10:0.1:10;

tmp=exp(-x);

y1=1./(1+tmp);

y2=(1-tmp)./(1+tmp);

y3=x;

subplot(231); plot(x,y1); grid on;

axis([min(x) max(x) -2 2]);

title('Logistic Function');

xlabel('(a)');

axis('square')

subplot(232);plot(x,y2); grid on;

axis([min(x) max(x) -2 2]);

title('Hyperbolic Tangent Function');qw

xlabel('(b)');

axis('square');

subplot(233);plot(x,y3); grid on;

axis([min(x) max(x) min(x) max(x)]);

title('Identity Function');

xlabel('(c)');

axis('square');

4
OUTPUT:

Logistic Function Hyperbolic Tangent Function Identity Function

2 2 10

1 1 5

0 0 0

-1 -1 -5

-2 -2 -10
-10 0 10 -10 0 10 -10 0 10
(a) (b) (c)

5
 Experiment No. 3

AIM: WAP to implement Adaptive Prediction in ADALINE Network

CODE:

% Adaptive Prediction with Adaline

clear;
clc;
%Input signal x(t)
f1=2; %kHz
ts=1/(40*f1); % 12.5 usec -- sampling time
N=100;
t1=(0:N)*4*ts;
t2=(0:2*N)*ts+4*(N+1)*ts;
t=[t1 t2]; %0 to 7.5 sec
N=size(t,2); % N = 302
xt=[sin(2*pi*f1*t1) sin(2*pi*2*f1*t2)];
plot(t, xt), grid, title('Signal to be predicted')
p=4; % Number of synapses
% formation of the input matrix X of size p by N
%use the convolution matrix. Try convmtx(1:8, 5)
X = convmtx(xt, p) ; X=X(:,1:N);
d=xt; % The target signal is equal to the input signal
y=zeros(size(d)); % memory allocation for y
eps=zeros(size(d)); % memory allocation for eps
eta=0.4 ; %learning rate/gain
w=rand(1, p) ; % Initialisation of weight vector
for n=1:N % learning loop
y(n)=w*X(:,n); %predicted output signal
eps(n)=d(n)-y(n); %error signal
w=w+eta*eps(n)*X(:,n)';
end
figure(1)
plot(t, d, 'b',t,y, '-r'), grid, ...
title('target and predicted signals'), xlabel('time[sec]')
figure(2)
plot(t, eps), grid, title('prediction error'), xlabel('time[sec]')

6
OUTPUT:

target and predicted signals

2

1.5

0.5

-0.5

-1

-1.5
0 1 2 3 4 5 6 7 8
time[sec]

prediction error
0.4

0.2

-0.2

-0.4

-0.6

-0.8

-1
0 1 2 3 4 5 6 7 8
time[sec]

7
 Experiment No. 4

AIM: WAP to implement LMS and Perceptron Learning rule

CODE:

%For the following 2-class problem determine the decision boundaries

%obtained by LMS and perceptron learning laws.
% Class C1 : [-2 2]', [-2 3]', [-1 1]', [-1 4]', [0 0]', [0 1]', [0 2]',
% [0 3]' and [1 1]'
% Class C2 : [ 1 0]', [2 1]', [3 -1]', [3 1]', [3 2]', [4 -2]', [4 1]',
% [5 -1]' and [5 0]'

clear;
inp=[-2 -2 -1 -1 0 0 0 0 1 1 2 3 3 3 4 4 5 5;2 3 1 4 0 1 2 3 1 0 1 -1 1 2 -2 1 -1 0];
out=[1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0];
choice=input('1: Perceptron Learning Law\n2: LMS Learning Law\n Enter your choice :');
switch choice
case 1
network=newp([-2 5;-2 4],1);
network=init(network);
y=sim(network,inp);
figure,plot(inp,out,inp,y,'o'),title('Before Training');
axis([-10 20 -2.0 2.0]);
network.trainParam.epochs = 20;
network=train(network,inp,out);
y=sim(network,inp);
figure,plot(inp,out,inp,y,'o'),title('After Training');
axis([-10 20 -2.0 2.0]);
display('Final weight vector and bias values : \n');
Weights=network.iw{1};
Bias=network.b{1};
Weights
Bias
Actual_Desired=[y' out'];
Actual_Desired
case 2
network=newlin([-2 5;-2 4],1);
network=init(network);
y=sim(network,inp);
network=adapt(network,inp,out);
y=sim(network,inp);
display('Final weight vector and bias values : \n');
Weights=network.iw{1};
Bias=network.b{1};

8
 Weights
Bias
Actual_Desired=[y' out'];
Actual_Desired
otherwise
error('Wrong Choice');
end

OUTPUT:

1: Perceptron Learning Law

2: LMS Learning Law

Enter your choice :1

Final weight vector and bias values : \n

Weights =

-1 1

Bias =

Actual_Desired =

1 1

9
1 1

1 1

1 1

1 1

1 1

1 1

1 1

1 1

0 0

0 0

0 0

0 0

0 0

0 0

0 0

0 0

0 0

10
 Before Training
2

1.5

0.5

-0.5

-1

-1.5

-2
-10 -5 0 5 10 15 20

After Training
2

1.5

0.5

-0.5

-1

-1.5

-2
-10 -5 0 5 10 15 20

11
 Best Training Performance is 0.5 at epoch 0
0 Train
10
Best
Mean Absolute Error (mae)

-0.1
10

-0.2
10

-0.3
10

-0.4
10

-0.5
10

0 0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 2

2 Epochs

12
 Experiment No. 5

AIM: WAP to implement ART Neural Network

CODE:

%ART Neural Net

clc;
clear;
b=[0.57 0.0 0.3;0.0 0.0 0.3;0.0 0.57 0.3;0.0 0.47 0.3];
t=[1 1 0 0;1 0 0 1;1 1 1 1];
vp=0.4;
L=2;
x=[1 0 1 1];
s=x;
ns=sum(s);
y=x*b;
con=1;
while con
for i=1:3
if y(i)==max(y)
J=i;
end
end
x=s.*t(J,:);
nx=sum(x);
if nx/ns >= vp
b(:,J)=L*x(:)/(L-1+nx);
t(J,:)=x(1,:);
con=0;
else
y(J)=-1;
con=1;
end
if y+1==0
con=0;
end
end
disp('Top Down Weights');
disp(t);
disp('Bottom up Weights');
disp(b);

13
OUTPUT:

Top Down Weights

1 1 0 0
1 0 0 1
1 1 1 1

Bottom up Weights
0.5700 0.6667 0.3000
0 0 0.3000
0 0 0.3000
0 0.6667 0.3000

14
 Experiment No. 6

AIM: WAP to implement BAM Network

CODE:

%Bidirectional Associative Memory neural net

clc;
clear;
s=[1 1 0;1 0 1];
t=[1 0;0 1];
x=2*s-1
y=2*t-1
w=zeros(3,2);
for i=1:2
w=w+x(i,:)'*y(i,:);
end
disp('the calculated weight matrix');
disp(w);

OUTPUT:

x=

1 1 -1
1 -1 1

y=

1 -1
-1 1

the calculated weight matrix

0 0
2 -2
-2 2

15
 Experiment No. 7

AIM: WAP to implement Full Counter Propagation Network with input pair

CODE:

%Full Counter Propagation Network for given input pair

clc;
clear;
%set initial weights
v=[0.6 0.2;0.6 0.2;0.2 0.6;0.2 0.6];
w=[0.4 0.3;0.4 0.3;];
x=[0 1 1 0];
y=[1 0];
alpha=0.3;
for j=1:2
D(j)=0;
for i=1:4
D(j)=D(j)+(x(i)-v(i,j))^2;
end
for k=1:2
D(j)=D(j)+(y(k)-w(k,j))^2;
end
end
for j=1:2
if D(j)==min(D)
J=j;
end
end
disp('After one step the weight matrix are');
v(:,J)=v(:,J)+alpha*(x'-v(:,J))
w(:,J)=w(:,J)+alpha*(y'-w(:,J))

16
OUTPUT:

After one step the weight matrix are

v=

0.4200 0.2000

0.7200 0.2000

0.4400 0.6000

0.1400 0.6000

w=

0.5800 0.3000

0.2800 0.3000

17
 Experiment No. 8

AIM: WAP to implement Discrete Hopfield Network

CODE:

% discrete hopfield net

clc;
clear;
x=[1 1 1 0];
tx=[0 0 1 0];
w=(2*x'-1)*(2*x-1);
for i=1:4
w(i,i)=0;
end
con=1;
y=[0 0 1 0]
while con
up=[4 2 1 3];
for i= 1:4
yin(up(i))=tx(up(i))+y*w(1:4,up(i));
if yin(up(i))>0
y(up(i))=1;
end
end
if y==x
disp('convergence has been obtained');
disp('the convergence output');
disp(y);
con=0;
end
end

OUTPUT:

y=

0 0 1 0

convergence has been obtained

the convergence output

1 1 1 0

18
 Experiment No. 9

AIM: WAP to implement Hebb Network

CODE:

%Hebb Net to classify two dimensional inputs patterns

clear;
clc;
%Input Patterns
E=[1 1 1 1 1 -1 -1 -1 1 1 1 1 1 -1 -1 -1 1 1 1 1];
F=[1 1 1 1 1 -1 -1 -1 1 1 1 1 1 -1 -1 -1 1 -1 -1 -1];
x(1,1:20)=E;
x(2,1:20)=F;
w(1:20)=0;
t=[1 -1];
b=0;
for i=1:2
w=w+x(i,1:20)*t(i);
b=b+t(i);
end
disp('Weight matrix');
disp(w);
disp('Bias');
disp(b);

OUTPUT:

Weight matrix

Columns 1 through 12

0 0 0 0 0 0 0 0 0 0 0 0

Columns 13 through 20

0 0 0 0 0 2 2 2

Bias

19
 Experiment No.10

AIM: WAP to implement Hetro associate neural net for mapping input vectors to output
vectors

CODE:

%Hetro associate neural net for mapping input vectors to output vectors
clc;
clear;
x=[1 1 0 0;1 0 1 0;1 1 1 0;0 1 1 0];
t=[1 0;1 0;0 1;0 1];
w=zeros(4,2);
for i=1:4
w=w+x(i,1:4)'*t(i,1:2);
end
disp('weight matrix');
disp(w);

OUTPUT:

weight matrix

2 1

1 2

1 2

0 0

20
 Experiment No. 11

AIM: WAP to implement Delta Learning Rule

CODE:

% Determine the weights of a network with 4 input and 2 output units using
% Delta Learning Law with f(x)=1/(1+exp(-x)) for the following input-output
% pairs:
%
% Input: [1100]' [1001]' [0011]' [0110]'
% output: [11]' [10]' [01]' [00]'
% Discuss your results for different choices of the learning rate parameters.
% Use suitable values for the initial weights.

in=[1 1 0 0 -1;1 0 0 1 -1; 0 0 1 1 -1; 0 1 1 0 -1];

out=[1 1; 1 0; 0 1; 0 0];
eta=input('Enter the learning rate value = ');
it=input('Enter the number of iterations required = ');
wgt=input('Enter the weights,2 by 5 matrix(including weight for bias):\n');
for x=1:it
for i=1:4
s1=0;
s2=0;
for j=1:5
s1=s1+in(i,j)*wgt(1,j);
s2=s2+in(i,j)*wgt(2,j);
end
wi=eta*(out(i,1)-logsig(s1))*dlogsig(s1,logsig(s1))*in(i,:);
wgt(1,:)=wgt(1,:)+wi;
wi=eta*(out(i,2)-logsig(s2))*dlogsig(s2,logsig(s2))*in(i,:);
wgt(2,:)=wgt(2,:)+wi;
end
end
wgt

21
OUTPUT:

Enter the learning rate value = 0.6

Enter the number of iterations required = 1

Enter the weights,2 by 5 matrix(including weight for bias):

[1 2 1 3 1;1 0 1 0 2]

wgt =

1.0088 1.9508 0.9177 2.9757 1.0736

1.0476 0.0418 1.0420 0.0478 1.9104

22
 Experiment No. 12

AIM: WAP to implement XOR function for MADALINE NN

CODE:

%Madaline for XOR function

clc;
clear;
%Input and Target
x=[1 1 -1 -1;1 -1 1 -1];
t=[-1 1 1 -1];
%Assume initial weight matrix and bias
w=[0.05 0.1;0.2 0.2];
b1=[0.3 0.15];
v=[0.5 0.5];
b2=0.5;
con=1;
alpha=0.5;
epoch=0;
while con
con=0;
for i=1:4
for j=1:2
zin(j)=b1(j)+x(1,i)+x(1,i)*w(1,j)+x(2,i)*w(2,j);
if zin(j)>=0
z(j)=1;
else
z(j)=-1;
end
end
yin=b2+z(1)*v(1)+z(2)*v(2);
if yin>=0
y=1;
else
y=-1;
end
if y~=t(i)
con=1;
if t(i)==1
if abs(zin(1))>abs(zin(2))
k=2;
else
k=1;
end
b1(k)=b1(k)+alpha*(1-zin(k));
w(1:2,k)=w(1:2,k)+alpha*(1-zin(k))*x(1:2,i);else

23
 for k=1:2
if zin(k)>0;
b1(k)=b1(k)+alpha*(-1-zin(k));
w(1:2,k)=w(1:2,k)+alpha*(-1-zin(k))*x(1:2,i);
end
end
end
end
end
epoch=epoch+1;
end
disp('weight matrix of hidden layer');
disp(w);
disp('Bias of hidden layer');
disp(b1);
disp('Total Epoch');
disp(epoch);

OUTPUT:

weight matrix of hidden layer

0.2812 -2.1031

-0.6937 0.9719

Bias of hidden layer

-1.3562 -1.6406

Total Epoch

24
 Experiment No. 13

AIM: WAP to implement AND function in Perceptron NN

CODE:

%Perceptron for AND function

clear;
clc;
x=[1 1 -1 -1;1 -1 1 -1];
t=[1 -1 -1 -1];
w=[0 0];
b=0;
alpha=input('Enter Learning rate=');
theta=input('Enter Threshold value');
con=1;
epoch=0;
while con
con=0;
for i=1:4
yin=b+x(1,i)*w(1)+x(2,i)*w(2);
if yin>theta;
y=1;
end
if yin<=theta & yin>=-theta
y=0;
end
if yin<-theta
y=-1;
end
if y-t(i)
con=1;
for j=1:2
w(j)=w(j)+alpha*t(i)*x(j,i);
end
b=b+alpha*t(i);
end
end
epoch=epoch+1;
end
disp('Perceptron for AND function');
disp('Final weight matrix');
disp(w);
disp('Final Bias');
disp(b);

25
OUTPUT:

Enter Learning rate=0.6

Enter Threshold value0.8

Perceptron for AND function

Final weight matrix

1.2000 1.2000

Final Bias

-1.2000

26
 Experiment No. 14

AIM: WAP to implement Perceptron Network

CODE:

clear;
clc;
p1=[1 1]';p2=[1 2]';
p3=[-2 -1]';p4=[2 -2]';
p5=[-1 2]';p6=[-2 -1]';
p7=[-1 -1]';p8=[-2 -2]';
% define the input matrix , which is also a target matrix for auto
% association
P=[p1 p2 p3 p4 p5 p6 p7 p8];
%we will initialize the network to zero initial weights
net= newlin([min(min(P)) max(max(P)); min(min(P)) max(max(P))],2);
weights = net.iw{1,1}
%set training goal (zero error)
net.trainParam.goal=0.0;
%number of epochs
net.trainParam.epochs=400;
[net, tr]= train(net,P,P);
%target matrix T=P
%default training function is Widrow-Hoff Learning for newlin defined
%weights and bias after the training
W=net.iw{1,1}
B=net.b{1}
Y=sim(net,P);
%Haming like distance criterion
criterion=sum(sum(abs(P-Y)')')
%calculate and plot the errors
rs=Y-P; legend(['criterion=' num2str(criterion)])
figure
plot(rs(1,:),rs(2,:),'k*')
test=P+rand(size(P))/10;
%let's add some noise in the input and test the networkagain
Ytest=sim(net,test);
criteriontest=sum(sum(abs(P-Ytest)')')
figure
output=Ytest-P
%plot errors in the output
plot(output(1,:),output(2,:),'k*')

27
OUTPUT:

weights =

0 0

0 0

W=

1.0000 -0.0000

-0.0000 1.0000

B=

1.0e-12 *

-0.1682

-0.0100

criterion =

1.2085e-12

Warning: Plot empty.

> In legend at 287

criteriontest =

0.9751

output =

Columns 1 through 7

0.0815 0.0127 0.0632 0.0278 0.0958 0.0158 0.0957

0.0906 0.0913 0.0098 0.0547 0.0965 0.0971 0.0485

Column 8

0.0800

0.0142

28
 1

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0
0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1

-15
x 10
-2

-4

-6

-8

-10

-12

-14

-16
-3 -2.5 -2 -1.5 -1 -0.5
-13
x 10

29
 0.1

0.09

0.08

0.07

0.06

0.05

0.04

0.03

0.02

0.01

0
0.01 0.02 0.03 0.04 0.05 0.06 0.07 0.08 0.09 0.1

Best Training Performance is 1.3086e-26 at epoch 400

0
10 Train
Best

-5
10
Mean Squared Error (mse)

-10
10

-15
10

-20
10

-25
10
0 50 100 150 200 250 300 350 400
400 Epochs

30
 Validation Checks = 0, at epoch 400
1

0.8

0.6

0.4

0.2
val fail

-0.2

-0.4

-0.6

-0.8

-1
0 50 100 150 200 250 300 350 400
400 Epochs

31
 Training: R=0.97897 Validation: R=0.92226
50 50
Data Data

O u tp u t ~ = 0 .9 5 * T a r g e t + 1 .1

O u tp u t ~ = 0 .9 1 * T a r g e t + 1 .4
Fit Fit
40 Y=T 40 Y=T

30 30

20 20

10 10

10 20 30 40 50 10 20 30 40 50
Target Target

Test: R=0.90828 All: R=0.96404

50 50
Data Data
O u tp u t ~ = 0 .9 1 * T a r g e t + 1 .5

O u tp u t ~ = 0 .9 4 * T a r g e t + 1 .1
Fit Fit
40 Y=T 40 Y=T

30 30

20 20

10 10

10 20 30 40 50 10 20 30 40 50
Target Target

32
 Experiment No.15

AIM: WAP to implement feed forward network

CODE:

% a)Design and Train a feedforward network for the following problem:

% Parity: Consider a 4-input and 1-output problem, where the output should be
% 'one' if there are odd number of 1s in the input pattern and 'zero'
% other-wise.

clear
inp=[0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1;0 0 0 0 1 1 1 1 0 0 0 0 1 1 1 1;...
0 0 1 1 0 0 1 1 0 0 1 1 0 0 1 1;0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1];
out=[0 1 1 0 1 0 0 1 1 0 0 1 0 1 1 0];
network=newff([0 1;0 1; 0 1; 0 1],[6 1],{'logsig','logsig'});
network=init(network);
y=sim(network,inp);
figure,plot(inp,out,inp,y,'o'),title('Before Training');
axis([-5 5 -2.0 2.0]);
network.trainParam.epochs = 500;
network=train(network,inp,out);
y=sim(network,inp);
figure,plot(inp,out,inp,y,'o'),title('After Training');
axis([-5 5 -2.0 2.0]);
Layer1_Weights=network.iw{1};
Layer1_Bias=network.b{1};
Layer2_Weights=network.lw{2};
Layer2_Bias=network.b{2};
Layer1_Weights
Layer1_Bias
Layer2_Weights
Layer2_Bias
Actual_Desired=[y' out'];
Actual_Desired

OUTPUT:

Layer1_Weights =

1.0765 2.1119 2.6920 2.3388

-10.4592 -10.9392 10.0824 10.9071

6.0739 9.4600 -5.3666 -5.9492

33
 -6.0494 -18.5892 -5.9393 5.6923

-2.5863 -1.7445 -11.6903 3.7168

10.7251 -10.5659 9.8250 -10.4745

Layer1_Bias =

-16.0634

5.4848

9.5144

9.6231

7.4340

5.7091

Layer2_Weights =

-2.5967 -23.3294 15.7618 23.4261 -22.5208 -23.3569

Layer2_Bias =

18.4268

34
Actual_Desired =

0.0000 0

1.0000 1.0000

0.9999 1.0000

0.0000 0

1.0000 1.0000

0.0000 0

0.0000 0

0.9998 1.0000

1.0000 1.0000

0.0000 0

0.0000 0

0.9999 1.0000

0.0000 0

1.0000 1.0000

1.0000 1.0000

0.0000 0

35
 Before Training
2

1.5

0.5

-0.5

-1

-1.5

-2
-5 -4 -3 -2 -1 0 1 2 3 4 5

After Training
2

1.5

0.5

-0.5

-1

-1.5

-2
-5 -4 -3 -2 -1 0 1 2 3 4 5

36
 0
Best Training Performance is 3.3016e-09 at epoch 26
10
Train
Best

-2
10
Mean Squared Error (mse)

-4
10

-6
10

-8
10

0 5 10 15 20 25
26 Epochs

37
 Gradient = 1.9837e-08, at epoch 26
0
10
gradient

-5
10

-10
10

Mu = 1e-13, at epoch 26
0
10

-10
mu

10

-20
10

Validation Checks = 0, at epoch 26

1
val fail

-1
0 5 10 15 20 25
26 Epochs

Training: R=1
1
Data
0.9 Fit
Y = T
0.8
Output ~= 1*Target + 1.6e-05

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0
0 0.2 0.4 0.6 0.8 1
Target

38
 Experiment No. 16

AIM: WAP to implement Instar learning Rule

CODE:

% Using the Instar learning law, group all the sixteen possible binary
% vectors of length 4 into four different groups. Use suitable values for
% the initial weights and for the learning rate parameter. Use a 4-unit
% input and 4-unit output network. Select random initial weights in the
% range [0,1]

in=[0 0 0 0;0 0 0 1;0 0 1 0;0 0 1 1;0 1 0 0;0 1 0 1;0 1 1 0;0 1 1 1;1 0 0 0;1 0 0 1;1 0 1 0;1 0 1 1;1
1 0 0;1 1 0 1;1 1 1 0;1 1 1 1];
wgt=[0.4 0.1 0.2 0.7; 0.9 0.7 0.4 0.7; 0.1 0.2 0.9 0.8 ; 0.5 0.6 0.7 0.6];
eta=0.5;
it=3000;

for t=1:it
for i=1:16
for j=1:4
w(j)=in(i,:)*wgt(j,:)';
end
[v c]=max(w);
wgt(c,:)=wgt(c,:)+eta*(in(i,:)-wgt(c,:));
k=power(wgt(c,:),2);
f=sqrt(sum(k));
wgt(c,:)=wgt(c,:)/f;
end
end
for i=1:16
for j=1:4
w(j)=in(i,:)*wgt(j,:)';
end
[v c]=max(w);
if(v==0)
c=4;
end
s=['Input= ' int2str(in(i,:)) ' Group= ' int2str(c)];
display(s);
end
wgt

39
OUTPUT:

s=

Input= 0 0 0 0 Group= 4

s=

Input= 0 0 0 1 Group= 1

s=

Input= 0 0 1 0 Group= 3

s=

Input= 0 0 1 1 Group= 3

s=

Input= 0 1 0 0 Group= 2

40
s=

Input= 0 1 0 1 Group= 4

s=

Input= 0 1 1 0 Group= 2

s=

Input= 0 1 1 1 Group= 4

s=

Input= 1 0 0 0 Group= 1

s=

Input= 1 0 0 1 Group= 1

41
s=

Input= 1 0 1 0 Group= 3

s=

Input= 1 0 1 1 Group= 3

s=

Input= 1 1 0 0 Group= 2

s=

Input= 1 1 0 1 Group= 1

s=

Input= 1 1 1 0 Group= 2

42
s=

Input= 1 1 1 1 Group= 4

wgt =

0.6548 0.4318 0.0000 0.6203

0.5646 0.6819 0.4651 0.0000

0.5646 0.0000 0.6819 0.4651

0.3877 0.5322 0.5322 0.5322

43
 Experiment No.17

AIM: WAP to implement weight vector matrix

CODE:

clc;
clear;
x= [-1 -1 -1 -1; -1 -1 1 1 ];
t= [1 1 1 1];
w= zeros(4,4);
for i=1:2
w= w+x(i,1:4)'*x(i,1:4);
end
yin= t*w;
for i= 1:4
if yin(i)>0
y(i)=1;
else
y(i)= -1;
end
end
disp('The Calculated Weight Matrix');
disp(w);
if x(1,1:4)==y(1:4)| x(2,1:4)==y(1:4)
disp('the vector is a known vector');
else
disp('the vector is a unknown vector');
end

OUTPUT:

The Calculated Weight Matrix

2 2 0 0

2 2 0 0

0 0 2 2

0 0 2 2

the vector is a unknown vector

44
