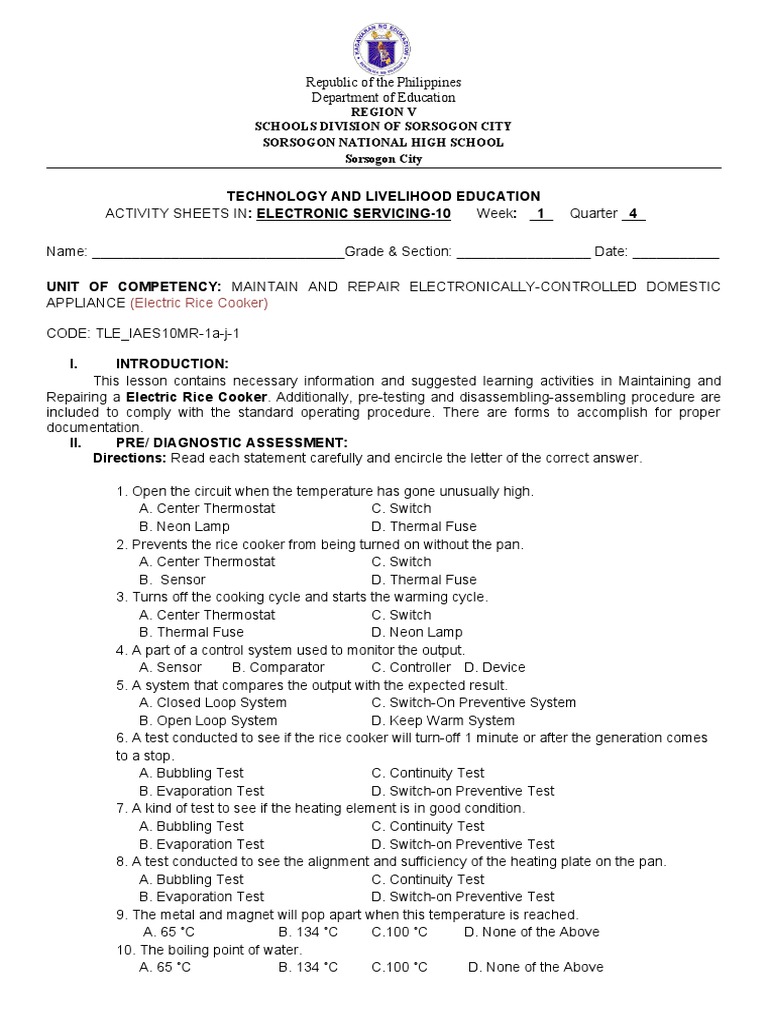

TECHNOLOGY AND LIVELIHOOD EDUCATION

ACTIVITY SHEETS IN: ELECTRONIC SERVICING-10 Week: _1_ Quarter _4_

Name: ________________________________Grade & Section: _________________ Date: ___________

UNIT OF COMPETENCY: MAINTAIN AND REPAIR ELECTRONICALLY-CONTROLLED DOMESTIC

APPLIANCE (Electric Rice Cooker)

CODE: TLE_IAES10MR-1a-j-1

I. INTRODUCTION:
This lesson contains necessary information and suggested learning activities in Maintaining and
Repairing a Electric Rice Cooker. Additionally, pre-testing and disassembling-assembling procedure are
included to comply with the standard operating procedure. There are forms to accomplish for proper
documentation.
II. PRE/ DIAGNOSTIC ASSESSMENT:
Directions: Read each statement carefully and encircle the letter of the correct answer.

1. Open the circuit when the temperature has gone unusually high.
A. Center Thermostat C. Switch
B. Neon Lamp D. Thermal Fuse
2. Prevents the rice cooker from being turned on without the pan.
A. Center Thermostat C. Switch
B. Sensor D. Thermal Fuse
3. Turns off the cooking cycle and starts the warming cycle.
A. Center Thermostat C. Switch
B. Thermal Fuse D. Neon Lamp
4. A part of a control system used to monitor the output.
A. Sensor B. Comparator C. Controller D. Device
5. A system that compares the output with the expected result.
A. Closed Loop System C. Switch-On Preventive System
B. Open Loop System D. Keep Warm System
6. A test conducted to see if the rice cooker will turn-off 1 minute or after the generation comes
to a stop.
A. Bubbling Test C. Continuity Test
B. Evaporation Test D. Switch-on Preventive Test
7. A kind of test to see if the heating element is in good condition.
A. Bubbling Test C. Continuity Test
B. Evaporation Test D. Switch-on Preventive Test
8. A test conducted to see the alignment and sufficiency of the heating plate on the pan.
A. Bubbling Test C. Continuity Test
B. Evaporation Test D. Switch-on Preventive Test
9. The metal and magnet will pop apart when this temperature is reached.
A. 65 ˚C B. 134 ˚C C.100 ˚C D. None of the Above
10. The boiling point of water.
A. 65 ˚C B. 134 ˚C C.100 ˚C D. None of the Above
III. LO 1: TOOLS AND MATERIALS IN MAINTAINING ELECTRONICALLY-CONTROLLED
DOMESTIC APPLIANCE (Electric Rice Cooker)

In every electronic work, it is a must to prepare first the necessary tools, materials, and
equipment needed as well as the information.
A. Practice Exercises 1.1A Write the name of the following tools, materials, and equipment
needed in maintaining and repairing an electric rice cooker in the space provided below.

2._____________ 4.______________
3. _____________
1.______________

7.
__
__
__
__
5.______________ ____
6._____________ 8. ______________

9.______________
11. __________
10.____________ 12. ________________

B. Practice Exercises 1.1B: IDENTIFICATION: Directions: Give at least three (3) examples of
the following classification of tools and equipment’s in the table below.

Soldering tools Splicing tools Driving tools Personal Protective

Equipment (PPE)
1. 1. 1. 1.
2. 2. 2. 2.
3. 3. 3. 3.
 INFORMATION SHEET 1.2 OPERATION OF AN ELECTRIC RICE COOKER

A rice cooker is a kitchen appliance dedicated to cooking rice. Rice is cooked by heating
in boiling water and steam, or a combination (boiling until water evaporates, and then continuing in
steam generated by continued heating). It absorbs a great deal of water in the process, expanding
its volume and using up the cooking water. For the modern home rice cookers, the smallest single-
person model cooks 1 rice cup (180 ml) whereas the largest cooks 10 rice cups (1.8 liter). The
typical lower price models use electric heaters to heat the inner cooking bowl controlled by
thermostat assembly or built-in electronic control, whereas the high-end models feature various
ideas of improved and better cooking methods. Electric rice cookers automate the process by
mechanically or electronically controlling heat and timing. Although the rice cooker does not
necessarily speed up the cooking process, with an electric rice cooker the cook's involvement in
cooking rice is reduced to simply measuring the rice, preparing the rice properly and using the
correct amount of water. Once the rice cooker is set to cook, the rice will be cooked with no further
attention.

Principle of operation (basic electric rice cooker models)

The bowl in the rice cooker is usually removable, to which rice and water are in place. A
heater and thermostat are beneath the bowl. A spring pushes the thermostat
against the bottom of the bowl for good thermal contact. During
cooking, the rice/water mixture is heated at full power. The
water reaches a temperature of 100 °C (212 °F); it cannot get
hotter than its boiling point.
By the end of cooking there will be no free water left;
most will have been absorbed by the rice, and some
boiled off. As heating continues, the temperature can now
rise above boiling point; this makes the thermostat trip.
Some cookers switch to low-power or "warming" mode,
keeping the rice at a safe temperature of
approximately 65 °C (150 °F); other models simply switch
off.
IV: Evaluation:: IDENTIFICATION: Directions: Identify the specific principle of operation of an
electric rice cooker based on the question below. Write your answer/s on space provided.
1. What are the three (3) basic principle of operation of the electric rice cooker that it can cook
rice?
a) ______________________ b) ____________________ c) ______________________
2. What is the amount of water in liters required for a cup of rice to test the normal function of the
rice cooker? __________________.
3. Which part of the electric rice cooker that controls its heating process? ___________________.
4. What is the boiling point temperature of the electric rice cooker? ________________________.
5. What is the temperature if the electric rice had reach to a warning mode? _________________.

ESSAY: Directions: Explain briefly the operation of the electric rice cooker (2-3 sentences). Write
your answer in the space provided.
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
CRITERIA/ RUBRICS:
5 Sequence and transition of ideas were highly effective.
3 Some ideas and sequence may be improved to be highly effective.
2 Some signs of and/or abrupt change of ideas.
1 Very little or unclear flow of ideas.
0 No idea.

V. Assignment:

Name at least five (5) common brands and model number of electric rice cooker.
Example: Panasonic – P-1021RC (10 pts.)
1.
2.
3.
4.
5.

_______________________________________________________________________________________________
Address: Brgy. Almendras-Cogon, Magsaysay St., Sorsogon City “Reach, Shine, Build a LEGACY”
Telephone No. (056)3114862
E-mail Address: 302279@deped.gov.ph/sorsogonnhs.shs@gmail.com.

Republic of the Philippines

Department of Education
 REGION V
SCHOOLS DIVISION OF SORSOGON CITY
SORSOGON NATIONAL HIGH SCHOOL
Sorsogon City

TECHNOLOGY AND LIVELIHOOD EDUCATION

ACTIVITY SHEETS IN: ELECTRONICS SERVICING-10 Week: _2_ Quarter _4_

Name: ________________________________Grade & Section: _________________ Date: ___________

LO 1.2 Prepare unit, tools, equipment and workplace for maintenance/repair

CODE: TLE_IAES10MR-1a-j-1
I. Objectives:
1. Identify the basic parts of the Electric Rice Cooker.
2. Describe the uses and function of the parts of Electric Rice Cooker.
3. Draw the schematic diagram of simple Electric Rice Cooker.

II - Basic Parts of Electric Rice Cooker

It is best to acquire Service Manual and Diagrams specific for different models, design
might vary from one manufacturer and/or model to another.

Figure 1: Exploded Views of Parts of a simple Electric Rice Cooker

\

11 Switch Assembly

12 Switch Panel

13 Decorative Panel

14 Lamp Board Assembly

15 Switch Lever 1 Lid

In simple models, a mechanical thermostat is used

to turn off the cooker when the rice is ready. Since 1980s, higher-end electric rice cookers
have used electronic components such microprocessors to control the cooking process,
often incorporating a memory and electronic timer that can be used to set the desired "ready
time". Some models can be used as steamers to cook food.

Figure 2: Sample Schematic Diagram of Electric Rice Cooker

 The different parts and function of an electric rice cooker:
1. Lid assembly – this composed of Lid and Lid handle used to cover the aluminum pan.
2. Aluminum pan – a container where rice and water are placed for the purpose of
cooking.
3. Thermostat assembly – Once the rice has absorbed all the water, the temperature will
begin to rise past 212 degrees (the boiling point of water). When the thermal sensor
senses this, the system turns off the heat and switches to the “keep warm” cycle.
4. Cast heater assembly - are normally custom made. Quite often it is a formed tubular
 heater or coil casted into aluminum or bronze.
5. Body & handle – it is the external metal & plastic coating of the electric rice cooker.
6. Mica heater - thermistor. This type of heater is covered by some sort of paper (mica)
that function at the time of warming. This heater also serves as a thermistor, the greater
the resistance when the heat increases.
7. Wiring terminal assembly - The electric rice cooker heating plate wire connection
mechanism comprises a wire connection male terminal and a wire connection female
terminal used for being connected with a power supply line.
8. Power cord – connects the unit to the power (AC) source.
9. Switch assembly - This happens when all the water inside the pot has evaporated, now
heating the inside of the pot and the rice, further increasing temperatures above 100° C.
When this happens, the magnet releases the switch and turns the rice cooker into a
warming state or shuts off entirely.
10. Thermal Fuse - is a safety device that cuts off the appliance from source when there is
an excessive heat which is beyond the operation limit of the appliance. In short, it is a
protection to every appliance. It melts itself just to be sure the appliance will not be
damaged by the uncontrolled heat.

III - Practice Exercises IIA: IDENTIFICATION: Directions: Give at least three (3) examples
of the following assembly in the table below.

Lid Assembly Switch Assembly Terminal Wiring Assembly

1. 1. 1.
2. 2. 2.
3. 3. 3.
 Practice Exercises IIB: FILLING THE BLANKS: Directions: Write the word or phrase in the
blank to complete the statement below.

1. The heater also serves as a ___________________, the greater the (2) ____________
________________when the heat (3) __________________________.
4. mechanism comprises a wire connection ____________________________and a wire
connection (5) ___________________________.

IV – Evaluation: MATCHING TYPE: Match the parts of the Electric Rice Cooker in
Column A, to the description in Column B. Write the letter of your answer to the space
provide before the number.

A B

_______1. Thermal fuse A. the switch and turns the rice cooker into a

warming state or shuts off entirely

_______2. Mica heater B. often it is a formed tubular heater or coil

  casted into aluminum or bronze.

_______3. Thermostat Assembly C. It melts itself just to be sure the appliance will
not be damaged by the uncontrolled heat.

_______4. Switch Assembly D. this heater also serves as a thermistor…

_______5. Cast Heater Assembly E. the system turns off the heat and switches to
the “keep warm” cycle.

Draw the schematic diagram of an Electric Rice Cooker and label its parts in the space
provided below.

V. Assignment: Explain briefly the statement below. Use a separate sheet of paper for
your answer.
“higher-end electric rice cookers have used electronic components such
microprocessors to control the cooking process, often incorporating a memory and
electronic timer that can be used to set the desired "ready time"
