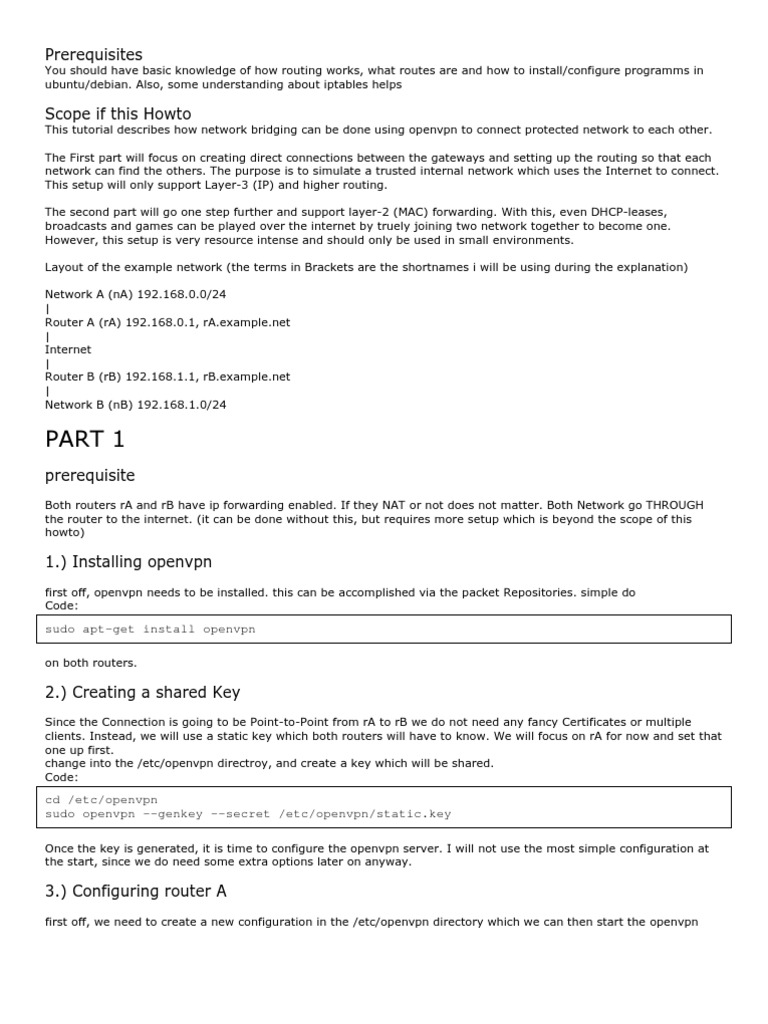

Prerequisites

You should have basic knowledge of how routing works, what routes are and how to install/configure programms in
ubuntu/debian. Also, some understanding about iptables helps

Scope if this Howto

This tutorial describes how network bridging can be done using openvpn to connect protected network to each other.

The First part will focus on creating direct connections between the gateways and setting up the routing so that each
network can find the others. The purpose is to simulate a trusted internal network which uses the Internet to connect.
This setup will only support Layer-3 (IP) and higher routing.

The second part will go one step further and support layer-2 (MAC) forwarding. With this, even DHCP-leases,
broadcasts and games can be played over the internet by truely joining two network together to become one.
However, this setup is very resource intense and should only be used in small environments.

Layout of the example network (the terms in Brackets are the shortnames i will be using during the explanation)

Network A (nA) 192.168.0.0/24

|
Router A (rA) 192.168.0.1, rA.example.net
|
Internet
|
Router B (rB) 192.168.1.1, rB.example.net
|
Network B (nB) 192.168.1.0/24

PART 1
prerequisite
Both routers rA and rB have ip forwarding enabled. If they NAT or not does not matter. Both Network go THROUGH
the router to the internet. (it can be done without this, but requires more setup which is beyond the scope of this
howto)

1.) Installing openvpn

first off, openvpn needs to be installed. this can be accomplished via the packet Repositories. simple do
Code:
sudo apt-get install openvpn

on both routers.

2.) Creating a shared Key

Since the Connection is going to be Point-to-Point from rA to rB we do not need any fancy Certificates or multiple
clients. Instead, we will use a static key which both routers will have to know. We will focus on rA for now and set that
one up first.
change into the /etc/openvpn directroy, and create a key which will be shared.
Code:
cd /etc/openvpn
sudo openvpn --genkey --secret /etc/openvpn/static.key

Once the key is generated, it is time to configure the openvpn server. I will not use the most simple configuration at
the start, since we do need some extra options later on anyway.

3.) Configuring router A

first off, we need to create a new configuration in the /etc/openvpn directory which we can then start the openvpn
server on. Create the file (and open an editor) with this command (i always name the files after what they are
connected to. Since this is a static link to one host, i will name it after the host that the connection it to go to):
Code:
sudo nano /etc/openvpn/rB.example.net.conf

into this file, copy the following configuration:

Code:
dev tun0
remote rB.example.net
ifconfig 10.0.0.1 10.0.1.1
secret /etc/openvpn/static.key
daemon

lport 15000
rport 1194

user nobody
group nogroup
persist-key
persist-tun

status /var/log/openvpn/rB.example.net-status.log
log-append /var/log/openvpn/rB.example.net.log

ping-restart 60
ping 20

The bold bits need to be changed to your acctual setting, the rest can stay the same for now. anything below the
daemon can be ommited (for now) as it is tweaks, security enhanchement and setting we will need later on, but i
would suggest you leave it in anyway.
This config in short does not following (line by line):
* it will create a new network device tun0
* it will connect to the host rB.example.net
* tun0 will have the IP address of 10.0.0.1 - the remote partner is expected to have the IP addres 10.0.1.1
* there is a static key to be used, found in /etc/openvpn/static.key
* openvpn shall run as a daemon - i.e. go into the background after the connection is established
* locally, openvpn will bind to port 15000
* the remote server is bound to port 1194
* openvpn shall drop its privilegdes to the user nobody
* openvpn shall drop its group to nogroup
* keep the static key in the memory, even upon reconnect
* keep the tun device open, even upon reconnect
* log status of the connetion to the given file
* log messages to the given file
* assume the connection to be dead if no ping was recheived for 60 seconds (trigger reconnect)
* try to ping the remote host every 20 seconds

This was almost it for the openvpn, just a few minor things remain. First, the directory for the log files does not yet
exist. create it and then change it's owner to nobody and group nogroup so the openvpn process can write to it
Code:
sudo mkdir /var/log/openvpn
sudo chown nobody.nogroup /var/log/openvpn

4.) configuring rB
This is going to be almost exactly the same as rA for the config file. There are just three changes to the file.
1.) the remote statement has to be changed to hold the fqdn of rA instead of rB
2.) the ifconfig statement needs to be reversed, as the local IP of rA is the remote IP of rB and vice versa
3.) the ports in rport and lport need to be swapped for the same reason the ifconfig has to be swapped.

open file for editing on rB

Code:
sudo nano /etc/openvpn/rA.example.net.conf

and put this content in:

Code:
dev tun0
remote rA.example.net
ifconfig 10.0.1.1 10.0.0.1
secret /etc/openvpn/static.key
daemon

lport 1194
rport 15000

user nobody
group nogroup
persist-key
persist-tun

status /var/log/openvpn/rA.example.net-status.log
log-append /var/log/openvpn/rA.example.net.log

ping-restart 60
ping 20

remember to change the bold bit to the real name, the rest can be copied if you want to keep as close to the tutorial
as possible

now, create the logging directory again and all is set for a first testrun.
Code:
sudo mkdir /var/log/openvpn
sudo chown nobody.nogroup /var/log/openvpn

Lastly, copy the static.key file from rA to rB. it has to be the same one. I would suggest you use ssh/sftp to copy this
file, but how does not matter. What does matter is that you cannot, by any circumstance ever, transmit this file over
an unprotected line.

Do not use email, ftp, http, telnet or any other unencryped channel to transfer that file. If need be, copy it
to a usb drive, carry it over to rB, copy it back and format the usb drive a million times afterwards (ok, i
am overreacting)

If anyone ever get their hands onto this key, they can listen in on anything passing over the protected line - or do
worse things to it. Since the VPN connection is assumed to be secure, it would pose a huge security risk if that key
ever go out to anyone with less than honorable intent.

5.) getting the firewall right

If you have your own scripts for the filewall or any programm running that manages your firewall, DO NOT RUN
THESE COMMANDS. I cannot take into account any configuration that was made previsouly. In that case, try to
understand what i am doing, and configure your script/programm accordingly.

As for plain iptables, there are two things we need to do. First off, we need to allow connections to the ports specified
in the configuration of the openvpn files. Which means, opening port 15000 (udp) on rA and 1194 (udp) on rB.

sample command for this would look like this on rA:

Code:
sudo su
iptables -A INPUT -p udp --sport 1194 --dport 15000 -j ACCEPT
iptables -A OUTPUT -p udp --sport 15000 --dport 1194 -j ACCEPT
likewise, the command would like the following on rB
Code:
sudo su
iptables -A INPUT -p udp --sport 15000 --dport 1194 -j ACCEPT
iptables -A OUTPUT -p udp --sport 1194 --dport 15000 -j ACCEPT

With these, you are able to connect the openvpn processes. However, it does not yet allow any connections to utilize
this link from the attached networks.
NOTE: i have chosen the stateless approach as they are easier to understand. Even though the kernel can handle the
Openvpn Connection statefull (despite the fact that we utilize udp at the moment) i thought it to be less confusing.

6.)firing up the connection

on Both hosts, issue this command to start the openvpn connection
Code:
sudo /etc/init.d/openvpn start

in the logs, you should now see how the connection is being established. A sample log (on rA) would look like this
after the connection is up:
Quote:

Thu Apr 10 11:27:35 2008 OpenVPN 2.0.9 i486-pc-linux-gnu [SSL] [LZO] [EPOLL] bui
lt on Sep 20 2007
Thu Apr 10 11:27:35 2008 TUN/TAP device tun0 opened
Thu Apr 10 11:27:35 2008 ifconfig tun0 10.0.0.1 pointopoint 10.0.1.1 mtu 1500
Thu Apr 10 11:27:35 2008 GID set to nogroup
Thu Apr 10 11:27:35 2008 UID set to nobody
Thu Apr 10 11:27:35 2008 UDPv4 link local (bound): [undef]:15000
Thu Apr 10 11:27:35 2008 UDPv4 link remote: x.x.x.x:1194
Thu Apr 10 11:27:45 2008 Peer Connection Initiated with x.x.x.x:1194
Thu Apr 10 11:27:46 2008 Initialization Sequence Completed
using ifconfig, there should be a device called tun0 now which would look like this
Quote:

someone@server:# ifconfig tun0

tun0 Protokoll:UNSPEC Hardware Adresse 00-00-00-00-00-00-00-00-00-00-00-00-00-00-00-00
inet Adresse:10.0.0.1 P-z-P:10.0.1.1 Maske:255.255.255.255
UP PUNKTZUPUNKT RUNNING NOARP MULTICAST MTU:1500 Metric:1
RX packets:167 errors:0 dropped:0 overruns:0 frame:0
TX packets:175 errors:0 dropped:0 overruns:0 carrier:0
Kollisionen:0 Sendewarteschlangenlänge:100
RX bytes:14740 (14.3 KiB) TX bytes:10705 (10.4 KiB)
also, from rA you should now be able to ping rB by it's internal ip address - 10.0.1.1. from rB. the same going the
other direction.

it is essential that this connection is up and running. Anything that follows now will need to reachability
over this connection now. So make sure you can ping with the internal IP addresses

7.) Setting the Routes

The Routers can now reach each other, but have yet no clue where what network lie behing them. So we need to
supply some more information. This means, telling rA that the network 192.168.1.0/24 is now to be found behind the
tun0 device, at the ip 10.0.1.1.
Also, we need to tell rB that the 192.168.0.0/24 network is also found on tun0 but at the ip 10.0.0.1

forteunatly, openvpn brings a nice feature for this. You only have to add the routes to the config and they will be
generated upon creating the device.

on rA, add this line to the rB.example.net

Quote:

route 192.168.1.0 255.255.255.0

it tells openvpn that this connection holds connectivity to the specified network. Openvpn will worry about the rest
and set it up correctly.

similarly, add this line to the rA.example.net.conf on rB

Quote:

route 192.168.0.0 255.255.255.0

Now, tell the openvpn processes on Both routers to restart.
Code:
sudo /etc/init.d/openvpn restart

8.) Allowing traffic to pass from an internal network to the other

Depending on your firewall configuration, this step might not even be neccesassry. However, i'd like to point out the
iptables rules needed to explicitly allow traffic to pass between the two network over the vpn connection. Again, if you
have self written scripts of a programm running manageing this for you, adapt these commands to your need, and do
not run them.

These commands are run on rA and rB. in both cases, it is assumed that your internal network is attached to eth0.
adapt this if needed
Code:
sudo su
iptables -A FORWARD -i tun0 -o eth0 -j ACCEPT
iptables -A FORWARD -i eth0 -o tun0 -j ACCEPT

you should now be able to ping and access any host on nB from nA and vice versa. The Bridge us up and running, the
networks have been joined via a virtual direct link between the routers.

Part 2
Most of what has been done in Part One is unsuable in the setting we are after now. We will join the two Networks, nA
and nB together to use a single IP Range. Clients on either network will not be able to distinguish anymore if the
remote computer is on their physical Network or on the other side of the VPN. Naturally, only one default gateway can
be set in this scenario, resulting in ALL traffic going over the VPN from one to the network. Only apply these
settings if there is no other way and you understand what it means to join two networks on MAC
layer! Consider yourself warned
Also i must warn you - again - that this setup is only to be used with caution as it can produce a lot of unneccessary
traffic between the networks. If you have already done Part 1, you can ommit step two, but must turn off the bridge
setup done in part 1. it will be in the way and confuse the routing.

Only Step 2 can be taken from Part 1. All other steps have changed or they do something completly different now...
so, i will start at point 1, skip point 2 and work my my way from three onwards.

1.) Installing the neccessary tools

In order to get everything working smoothly, there are a few packets which need to be installed. In Part 1, we only
needed openvpn. This time, we also need the bridge-utils as well as iproute for configuring the network cards during
boot.

Code:
sudo apt-get install openvpn bridge-utils iproute
2.) Creating the Shared Key
see Part 1, step 2

3.) Bridgeing the Interfaces

NOTE: doing this step can break your entire internet connecton ! Be sure you know what you are doing and you know
how to UNDO the changes if neccessary. Also i would strongly suggest you test them in a non-critical environment
first!!!

for now, i will assume that your internal network is bound to the network card eth1. Thus, your network card (eth1)
should have the IP address 192.168.1.1. In order to get this bridge setup working, we will use the bridge control to
create a device container (br0) to join a physical network card (eth1) with the the tap device of your openvpn
connection (tap0). So, open then file /etc/network/interfaces and search for a configuration of the device eth1. it
should look like something similar to this
Quote:

auto eth1
iface eth1 inet static
address 192.168.1.1
netmask 255.255.255.0
broadcast 192.168.1.255
network 192.168.1.0
now, change where you see the eth1 into a br0. This will case a bridge to come up at boot time with the configruation
of your previous configuration of eth1. After that is done, you also need to tell the bridge that it should contain the
device eth1 - this can be done with the line
Quote:

bridge_ports eth1
so, when you are done with changeing the entries, your full entry for br0 should look like this
Quote:

auto br0
iface br0 inet static
address 192.168.1.1
netmask 255.255.255.0
broadcast 192.168.1.255
network 192.168.1.0
bridge_ports eth1
make sure you have chosen the right interface. If your internal network is not bount to eth1, change any
apperance of eth1 into the appropriate device

The last thing to do is to also configure eth1 upon boot to not have any ip, but to use promisc mode and to come up
so we can see/hear anything that comes in on that device. So, right after configuration of br0 we will define a new
block for eth1, looking like this:
Quote:

auto eth1
iface eth1 inet manual
up ifconfig $IFACE 0.0.0.0 up
up ip link set $IFACE promisc on
down ip link set $IFACE promisc off
down ifconfig $IFACE down
the network configuration should be done now. To really check if these settings worked you will need to reboot your
machine. so, lets do exactly that.
Once the reboot is done, first check your network devices with ifconfig - your output should now look like this
Code:
test:~# ifconfig
br0 Protokoll:Ethernet Hardware Adresse 00:0C:29:77:B1:6A
inet Adresse:192.168.1.1 Bcast:172.16.64.255 Maske:255.255.255.0
inet6 Adresse: fe80::20c:29ff:fe77:b16a/64 Gültigkeitsbereich:Verbindung
UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
RX packets:155 errors:0 dropped:0 overruns:0 frame:0
TX packets:128 errors:0 dropped:0 overruns:0 carrier:0
Kollisionen:0 Sendewarteschlangenlänge:0
RX bytes:14239 (13.9 KiB) TX bytes:18581 (18.1 KiB)

eth1 Protokoll:Ethernet Hardware Adresse 00:0C:29:77:B1:6A

inet6 Adresse: fe80::20c:29ff:fe77:b16a/64 Gültigkeitsbereich:Verbindung
UP BROADCAST RUNNING PROMISC MULTICAST MTU:1500 Metric:1
RX packets:155 errors:0 dropped:0 overruns:0 frame:0
TX packets:134 errors:0 dropped:0 overruns:0 carrier:0
Kollisionen:0 Sendewarteschlangenlänge:1000
RX bytes:16409 (16.0 KiB) TX bytes:19049 (18.6 KiB)
Interrupt:177 Basisadresse:0x1400

lo Protokoll:Lokale Schleife
inet Adresse:127.0.0.1 Maske:255.0.0.0
inet6 Adresse: ::1/128 Gültigkeitsbereich:Maschine
UP LOOPBACK RUNNING MTU:16436 Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
Kollisionen:0 Sendewarteschlangenlänge:0
RX bytes:0 (0.0 b) TX bytes:0 (0.0 b)

the bold bits mark the crucial settings. br0 now has your ip address, while eth1 is unconfigured (as no ip) and is in
promisc mode. Both networkcards should be marked as up. The last thing to check is if eth1 really got added to br0.
This can be checked via brctl show br0 - the output should look like the following:
Code:
test:~# brctl show br0
bridge name bridge id STP enabled interfaces
br0 8000.000c2977b16a no eth0

if all the settings are correct, and you run into trouble with the network connectivity, check your iptables/firestarter
configuration if it is still expecting pakets on eth1 and change those rules to br0 as this is now your internal network
card.

4.) needed scripts for openvpn

NOTE: part of these scripts have been taken from here and here. I also got my idea on how to make the persistant
settings from those pages. Thanks goes to the original posters

When the openvpn connection comes up, we will need to add the newly created tap device to the bridge. unfortenualy
openvpn does not bring any automated commands for that (as far as i know, at least), so we will need to do out own
little scripts and make sure they are run when openvpn starts/stops.

first, we will create a file called up.sh which will handle the adding of the created tap device to the bridge. i think it
goo to place it into the /etc/openvpn folder. so, create the file, and fill it with the following script
Code:
#! /bin/sh

BR=$1
DEV=$2
MTU=$3
/sbin/ifconfig $DEV mtu $MTU promisc up
/usr/sbin/brctl addif $BR $DEV
next is the file which will remove the tap device from the bridge. i'll call it down.sh, and it should also be placed into
the /etc/openvpn folder. Content of it reads as follows:
Code:
#! /bin/sh

BR=$1
DEV=$2

/usr/sbin/brctl delif $BR $DEV

/sbin/ifconfig $DEV down

lastly, make both files exectuable with these commands (adding the +x bit)
Code:
sudo chmod +x /etc/openvpn/up.sh
sudo chmod +x /etc/openvpn/down.sh

5.) Configuring openvpn

This configuration of openvpn is very much similar to steps 3 and 4 of Part 1. There are only a few minor changed to
the files. Since it was already explain what happened, i will only paste the config files for the two routes here. Again,
make sure that both routers have the same static.key file and that it is transmitted securly between them:

confiuration for rA
Quote:

dev tap0
remote rB.example.net
secret /etc/openvpn/static.key
daemon

up "/etc/openvpn/up.sh br0"
down "/etc/openvpn/down.sh br0"

lport 15000
rport 1194

user nobody
group nogroup
persist-key
persist-tun

status /var/log/openvpn/rB.example.net-status.log
log-append /var/log/openvpn/rB.example.net.log

ping-restart 60
ping 20
configuration for rB
Quote:

dev tap0
remote rA.example.net
secret /etc/openvpn/static.key
daemon
up "/etc/openvpn/up.sh br0"
down "/etc/openvpn/down.sh br0"

lport 1194
rport 15000

user nobody
group nogroup
persist-key
persist-tun

status /var/log/openvpn/rA.example.net-status.log
log-append /var/log/openvpn/rA.example.net.log

ping-restart 60
ping 20
note that the main difference is the missing of the ifconfig statement. Since we now forward on layer 2, we don't need
explicit ip addresses for the tap devices anymore. Otherwise, the config files are pretty much the same. Again,
anything after the daemon can be ommited. Also, make sure to change the bold bits to th fqdn of the servers to
connect to.
Lastly, note the up and down commands supplied in the config. These entires will run the scripts we created in step 4
and make sure that the tap device is added to the bridge properly. if you chose a different name than br0 for your
bridge, you will need to change these commands. Otherwise, leave them untouched.

6.) starting the connection

If you now start the openvpn connection, nothing should happen (except the thing loading. Check step 6 in Part 1 to
see what the log output looks like).

start the connection with (on rA and rB)

Code:
sudo /etc/init.d/openvpn start

first check (on both routers) if the tap0 device got added to your bridge. Do this with the brctl show br0 command.
The otuput should now look like this:
Quote:

test:~# brctl show br0

bridge name bridge id STP enabled interfaces
br0 8000.000c2977b16a no eth0
tap0
If both bridges look like that your networks are now joined. If you place a host in nB with an address of nA , you can
reach it from anywhere as if it were in nA.

Another way of testing it would mean placing a computer with the IP 192.168.2.1 in nB , placing a computer with the
IP 192.168.2.2 in nA and then try to ping each other. (the IP's can of course be freely chosen).
I have chosen IP's that do not match either network (nA or nB) to show the power of the bridge. Even tho neither rA
nor rB know about any 192.168.2.0/24 network, the two hosts which are in two seperate networks can ping each
other over the bridge. If this works, your basic setup is complete and the bridge is working normally.

7.) Gotchas with the bridge

In general, your setup is finished here. However, i would like to point out a few gotchas that you might run into:

a) if both, nA and nB have a working DHCP server which considers itself to be authoritive you must shut down one of
them, or block any dhcp-request/lease from passing the bridge. Otherwise you might run into some very strange
results, possibly not know anymore where one network ends and the other starts. ONLY have one dhcp server per
network - ever

b) if you wish to block pakets in uptables, you must now use the br0 device. This means you will have rules for pakets
that come in and go out on the br0 device. This may sound silly, but sooner or later you will run into this problem

c) if you have joined the network together, and you chose to have one ip-range over both networks, be aware that
this will put a lot of stress on the other router. So, if you chose that nB should now go into the ip-range of nA, it would
mean that any paket to the internet from nB would first travel to rA and then go to the net from there. With fast
internet connection this might be possible, but especially with adsl links this i NOT a desired behaviour.
