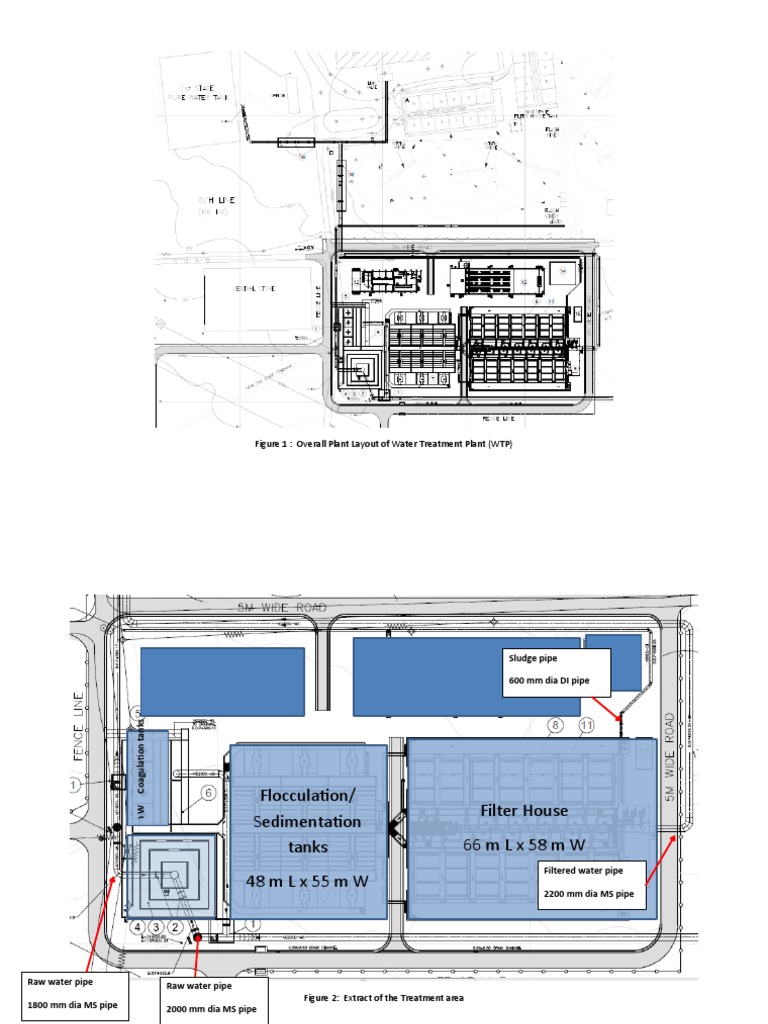

Figure 1 : Overall Plant Layout of Water Treatment Plant (WTP)

Sludge pipe

Coagulation tanks 600 mm dia DI pipe

Flocculation/
Filter House
111m L x 25 m W

Sedimentation
tanks 66 m L x 58 m W
Filtered water pipe
48 m L x 55 m W
2200 mm dia MS pipe

Raw water pipe Raw water pipe

Figure 2: Extract of the Treatment area
1800 mm dia MS pipe 2000 mm dia MS pipe
 Flowmeter chamber B

25 m L x 6 m W

Filtered water Pipe

Filtered water Pipe 1600 mm dia MS pipe

to Stage 2 reservoir
1600 mm dia MS pipe
Flowmeter chamber A

to Stage 1 reservoir
Filtered water Pipe
Raw water Pipe 2200 mm dia MS pipe
1800 mm dia MS pipe

Sludge pipe
Figure 3: Pipe routing of Filtered water pipe
600 mm dia DI pipe
Filtered water pipe

2200 mm dia MS pipe

Plan of
Flowmeter Chamber A - Plan

Figure 4: Plan and Section of Flowmeter Chamber A

Flowmeter Chamber B Plan

Figure 5: Plan and Section of Flowmeter Chamber B

27th January 2017

Project No. 3
The enclosed figures show the plan of a Water Treatment Plant in general and extract of areas related to
pipe routing of Inlet raw water pipes of 1800 mm and 2000 mm diameter, Filtered water pipe of 2200 mm
diameter, sludge pipe of 600 mm diameter. The filtered water pipe of 2200 mm, is further split into 2
pipes, each of 1600 mm diameter routed to Stage 1 and Stage 2 filtered water reservoirs.

Other details:
Main road width: 5 m
Branch road width: 3 m
For bends, assume radius of bend = 1.5 x diameter of pipe
Assume 2 m distance between the road and the building and 5 m distance between the buildings.

Prepare the pipe routing of the raw water pipes, Filtered water pipes and sludge pipe including the plan
and sections of flowmeter chambers. For treatment buildings, show as a block with dimensions given.

Due date for submission: 3rd February 2017
