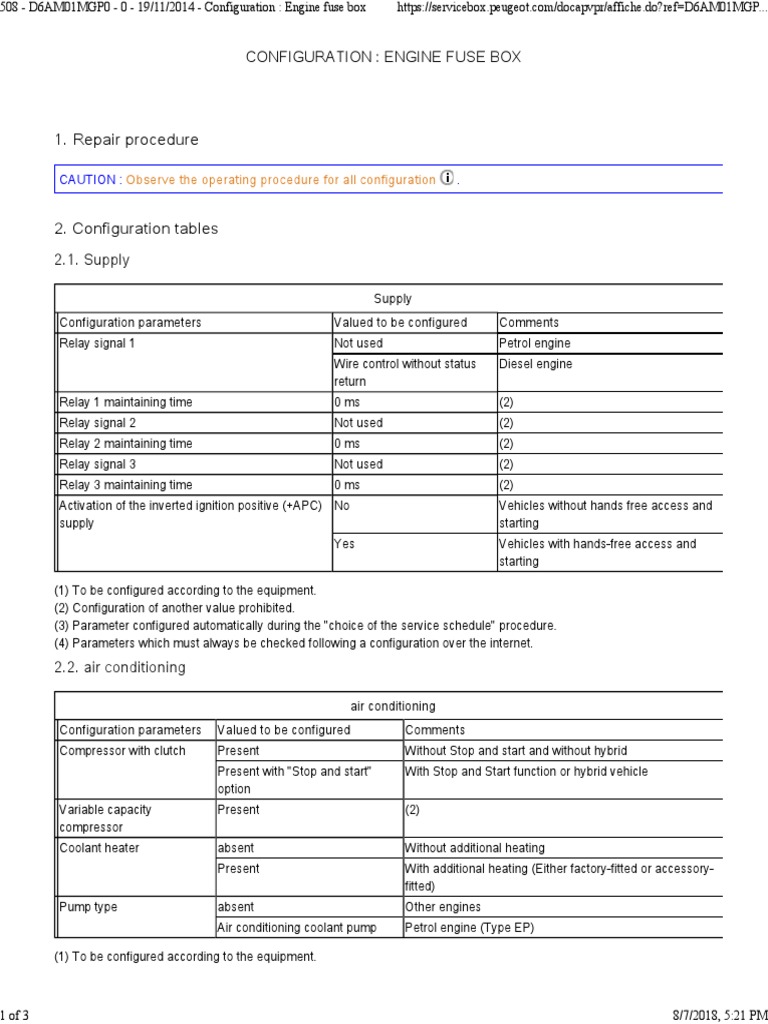

CONFIGURATION : ENGINE FUSE BOX

1. Repair procedure

CAUTION : Observe the operating procedure for all configuration .

2. Configuration tables
2.1. Supply

Supply
Configuration parameters Valued to be configured Comments
Relay signal 1 Not used Petrol engine
Wire control without status Diesel engine
return
Relay 1 maintaining time 0 ms (2)
Relay signal 2 Not used (2)
Relay 2 maintaining time 0 ms (2)
Relay signal 3 Not used (2)
Relay 3 maintaining time 0 ms (2)
Activation of the inverted ignition positive (+APC) No Vehicles without hands free access and
supply starting
Yes Vehicles with hands-free access and
starting

(1) To be configured according to the equipment.

(2) Configuration of another value prohibited.
(3) Parameter configured automatically during the "choice of the service schedule" procedure.
(4) Parameters which must always be checked following a configuration over the internet.
2.2. air conditioning

air conditioning
Configuration parameters Valued to be configured Comments
Compressor with clutch Present Without Stop and start and without hybrid
Present with "Stop and start" With Stop and Start function or hybrid vehicle
option
Variable capacity Present (2)
compressor
Coolant heater absent Without additional heating
Present With additional heating (Either factory-fitted or accessory-
fitted)
Pump type absent Other engines
Air conditioning coolant pump Petrol engine (Type EP)

(1) To be configured according to the equipment.

1 of 3 8/7/2018, 5:21 PM
508 - D6AM01MGP0 - 0 - 19/11/2014 - Configuration : Engine fuse box https://servicebox.peugeot.com/docapvpr/affiche.do?ref=D6AM01MGP...

(2) Configuration of another value prohibited.

(3) Parameter configured automatically during the "choice of the service schedule" procedure.
(4) Parameters which must always be checked following a configuration over the internet.
2.3. Lighting - Signalling

Lighting - Signalling
Configuration parameters Values to be configured Comments
Type of front lighting Halogen lamp with a single (2)
filament
Type of dipped headlamps Halogen bulbs (2)
Type of dipped headlamps supply All or nothing With LED headlamps
Variable cyclic ratio With halogen headlamps
(Filament bulb)
Dipped beams diagnosis threshold Threshold 2 (2)
Type of main beam headlamps Halogen bulbs (2)
Main beam headlamps diagnostics threshold Threshold 2 (2)
Presence of day running lamps Day running lamps with (2)
LED
Type of supply of the day running lamps All or nothing (2)
Presence of front foglamps absent (1)
Front foglamp with LED
Front foglamps diagnostics threshold Threshold 1 (2)
Presence of static front lamps absent With halogen headlamps
(Filament bulb)
Static lamp with LED With LED headlamps
Static headlamps diagnosis threshold Threshold 2 (2)
Taking into account of information about a fault on the discharge No (2)
bulbs or LED lamps input

(1) To be configured according to the equipment.

(2) Configuration of another value prohibited.
(3) Parameter configured automatically during the "choice of the service schedule" procedure.
(4) Parameters which must always be checked following a configuration over the internet.
2.4. Engine compartment

Engine compartment
Configuration parameters Values to be configured Comments
actuators diversity1 Air pump presence Petrol engine
Presence of the diesel fuel and oil vapour heater Diesel engine
Type of alternator OTHERS (2)
Type of oil temperature acquisition Other (2)
Type of oil pressure acquisition Other (2)
Type of oil level acquisition Other (2)
2 actuators diversity absent Other engines
Variable valve lift motor EP6C (5FH-5FJ-5FL-5FS) engine

(1) To be configured according to the equipment.

2 of 3 8/7/2018, 5:21 PM
508 - D6AM01MGP0 - 0 - 19/11/2014 - Configuration : Engine fuse box https://servicebox.peugeot.com/docapvpr/affiche.do?ref=D6AM01MGP...

(2) Configuration of another value prohibited.

(3) Parameter configured automatically during the "choice of the service schedule" procedure.
(4) Parameters which must always be checked following a configuration over the internet.
2.5. VISIBILITY

Visibility
Configuration parameters Values to be configured Comments
Headlamp wash option Absent (1)
Present
Windscreen wiper motor absent (2)

(1) To be configured according to the equipment.

(2) Configuration of another value prohibited.
(3) Parameter configured automatically during the "choice of the service schedule" procedure.
(4) Parameters which must always be checked following a configuration over the internet.
2.6. OTHERS

OTHERS
Configuration parameters Values to be configured Comments
LIN Inhibited (2)
Options present None (2)

(1) To be configured according to the equipment.

(2) Configuration of another value prohibited.
(3) Parameter configured automatically during the "choice of the service schedule" procedure.
(4) Parameters which must always be checked following a configuration over the internet.
