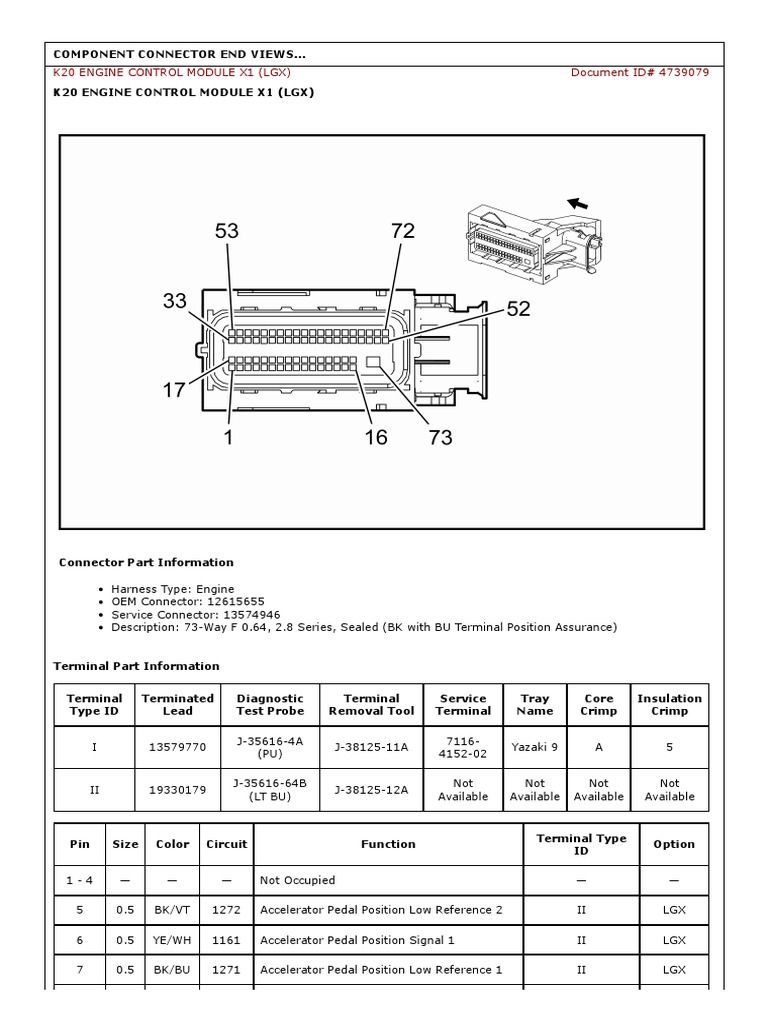

COMPONENT CONNECTOR END VIEWS...

K20 ENGINE CONTROL MODULE X1 (LGX) Document ID# 4739079

K20 ENGINE CONTROL MODULE X1 (LGX)

Connector Part Information

Harness Type: Engine

OEM Connector: 12615655
Service Connector: 13574946
Description: 73-Way F 0.64, 2.8 Series, Sealed (BK with BU Terminal Position Assurance)

Terminal Part Information

Terminal Terminated Diagnostic Terminal Service Tray Core Insulation

Type ID Lead Test Probe Removal Tool Terminal Name Crimp Crimp

J-35616-4A 7116-
I 13579770 J-38125-11A Yazaki 9 A 5
(PU) 4152-02

J-35616-64B Not Not Not Not

II 19330179 J-38125-12A
(LT BU) Available Available Available Available

Terminal Type
Pin Size Color Circuit Function Option
ID

1-4 — — — Not Occupied — —

5 0.5 BK/VT 1272 Accelerator Pedal Position Low Reference 2 II LGX

6 0.5 YE/WH 1161 Accelerator Pedal Position Signal 1 II LGX

7 0.5 BK/BU 1271 Accelerator Pedal Position Low Reference 1 II LGX

 8 0.5 WH 7494 High Speed GMLAN Serial Data (-)3 II LGX

9 0.5 BK/YE 5382 Brake Position Sensor Low Reference II LGX+M5T

10 0.5 YE 6111 Clutch Apply Sensor Signal II LGX+M13

11 0.5 BK/GY 6110 Clutch Apply Sensor Low Reference II LGX+M13

12 0.5 WH 2501 High Speed GMLAN Serial Data (-) 1 II —

13 0.5 WH/BU 6311 Cruise/ETC/TCC Brake Signal II LGX

14 0.5 WH/GY 459 A/C Compressor Clutch Relay Control II LGX

15 0.5 YE 5991 Powertrain Relay Coil Control II LGX

16 0.5 BN/WH 419 Check Engine Indicator Control II LGX

17 0.5 WH/BK 2366 Cooling Fan Control Relay Speed Signal II LGX

18 -
— — — Not Occupied — —
20

21 0.5 BN/RD 1274 Accelerator Pedal Position 5V Reference 2 II LGX

22 0.5 GN/WH 1162 Accelerator Pedal Position Signal 2 II LGX

23 0.5 WH/RD 1164 Accelerator Pedal Position 5V Reference 1 II LGX

24 0.5 BU/BK 7493 High Speed GMLAN Serial Data (+)3 II LGX

25 0.5 WH/RD 5381 Brake Position Sensor 5V Reference II LGX+M5T

26 0.5 WH/GN 5380 Brake Position Sensor Signal II LGX+M5T

27 0.5 GY/RD 6109 Clutch Apply Sensor 5V Reference II LGX+M13

28 0.5 BU 2500 High Speed GMLAN Serial Data (+) 1 II —

29 0.5 WH/GY 1786 Transmission Park/Neutral Signal 1 II LGX+M5T

30 0.5 GN/WH 492 Mass Air Flow Sensor Signal II LGX

31 -
— — — Not Occupied — —
37

38 0.5 BU/WH 890 Fuel Tank Pressure Sensor Signal II LGX

39 0.5 BN/GY 4008 Humidity Sensor Signal II LGX

40 -
— — — Not Occupied — —
43

44 0.5 BK/WH 2151 Signal Ground II LGX

45 — — — Not Occupied — —

46 0.5 GY 4109 Driver Mode Switch 5V Reference II LGX

47 0.5 BN/RD 2700 A/C Pressure Sensor 5V Reference II LGX

48 — — — Not Occupied — —

49 0.5 VT/BU 5292 Powertrain Main Relay Fused Supply 3 II LGX

 50 0.5 VT/BU 5291 Powertrain Main Relay Fused Supply 2 II LGX

51 0.5 VT/YE 5985 Accessory Wakeup Serial Data II —

52 0.5 RD/BN 440 Battery Positive Voltage II LGX

53 — — — Not Occupied — —

54 0.5 WH 1310 EVAP Canister Vent Solenoid Control II LGX

55 -
— — — Not Occupied — —
63

Outside Ambient Air Temperature Sensor

64 0.5 BU/GY 636 II LGX
Signal

65 — — — Not Occupied — —

66 0.5 WH/VT 4108 Driver Mode Switch Signal II LGX

67 0.5 GN 380 A/C Refrigerant Pressure Sensor Signal II LGX

68 — — — Not Occupied — —

69 0.5 GN/GY 465 Fuel Pump Primary Relay Control II LGX+NPP

70 0.5 VT/GY 6386 Starter Enable Relay (PPEI 3) Control II LGX

71 0.5 VT/GN 439 Run/Crank Ignition 1 Voltage II LGX

72 0.5 VT/BU 5290 Powertrain Main Relay Fused Supply 1 II LGX

73 2.5 VT/BU 5290 Powertrain Main Relay Fused Supply 1 I LGX
