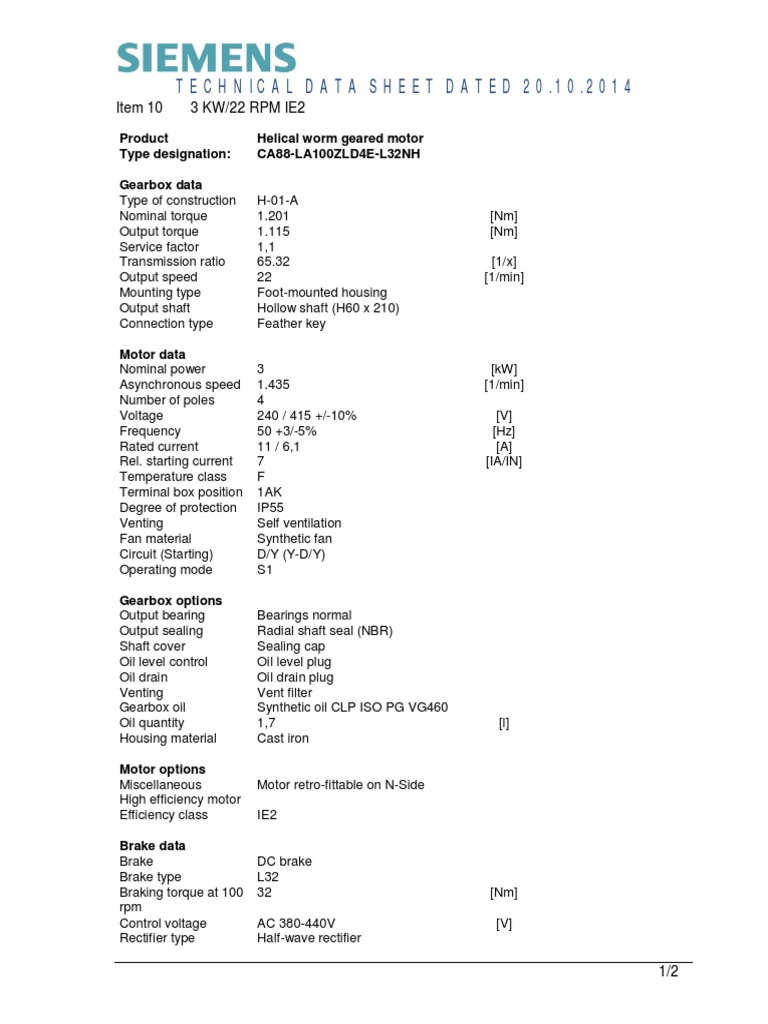

TECHNICAL DATA SHEET DATED 20.10.

2014
Item 10 3 KW/22 RPM IE2

Product Helical worm geared motor

Type designation: CA88-LA100ZLD4E-L32NH

Gearbox data
Type of construction H-01-A
Nominal torque 1.201 [Nm]
Output torque 1.115 [Nm]
Service factor 1,1
Transmission ratio 65.32 [1/x]
Output speed 22 [1/min]
Mounting type Foot-mounted housing
Output shaft Hollow shaft (H60 x 210)
Connection type Feather key

Motor data
Nominal power 3 [kW]
Asynchronous speed 1.435 [1/min]
Number of poles 4
Voltage 240 / 415 +/-10% [V]
Frequency 50 +3/-5% [Hz]
Rated current 11 / 6,1 [A]
Rel. starting current 7 [IA/IN]
Temperature class F
Terminal box position 1AK
Degree of protection IP55
Venting Self ventilation
Fan material Synthetic fan
Circuit (Starting) D/Y (Y-D/Y)
Operating mode S1

Gearbox options
Output bearing Bearings normal
Output sealing Radial shaft seal (NBR)
Shaft cover Sealing cap
Oil level control Oil level plug
Oil drain Oil drain plug
Venting Vent filter
Gearbox oil Synthetic oil CLP ISO PG VG460
Oil quantity 1,7 [l]
Housing material Cast iron

Motor options
Miscellaneous Motor retro-fittable on N-Side
High efficiency motor
Efficiency class IE2

Brake data
Brake DC brake
Brake type L32
Braking torque at 100 32 [Nm]
rpm
Control voltage AC 380-440V [V]
Rectifier type Half-wave rectifier

1/2
 TECHNICAL DATA SHEET DATED 20.10.2014
design Standard
Manual brake release Manual release
Brake release lever 2
position

General data
Painting Finish C1
Color Sky blue RAL 5015
Weight approx. 96 [kg]

2/2
For your information only

CA88-LA100ZLD4E-L32NH
For drawing of selected mounting position, refer to 2D/3D-file
Drawing not true to scale, all dimensions in mm; ATTENTION: Not all options are shown. Motox 7.4.047
* Longer dimension for motors with optional brake, forced ventilation, backstop, encoder, canopy or 2nd shaft end!
