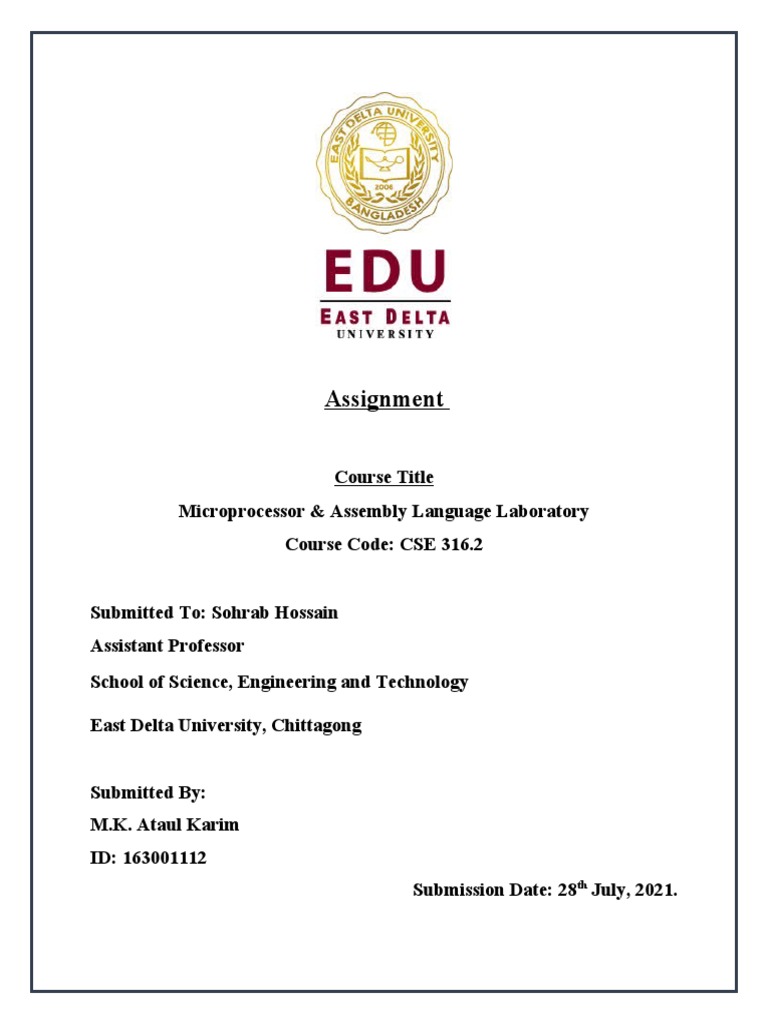

    Assignment

    Course Title
    Microprocessor & Assembly Language Laboratory
    Course Code: CSE 316.2

    Submitted To: Sohrab Hossain


    Assistant Professor
    School of Science, Engineering and Technology

    East Delta University, Chittagong

    Submitted By:
    M.K. Ataul Karim
    ID: 163001112
    Submission Date: 28th July, 2021.
    1. Suppose ADD AX, BX is executed. In each of the following parts, the first number being
    added is the contents of AX, and the second number is the contents of BX. Give the resulting
    value of AX and tell whether signed or unsigned overflow occurred.
    a. 512Ch + 4185h
    b. FE12h + 1ACBh
    c. EIE4h + DAB3h
    d. 7132h + 7000h
    e. 6389h + 1176h

    Answer:

    a) 512Ch + 4185h
    0101 0001 0010 1100
    + 0100 0001 1000 0101
    1001 0010 1011 0001
    AX=92B1
    Flow Set/clear Reason
    Signed 1 Carry in but no carry out
    Unsigned 0 CF=0

    b) FE12h + 1ACBh
    1111 1110 0001 0010
    + 0001 1010 1100 1011
    1 0001 1000 1101 1101
    AX= 118DDh
    Flow Set/clear Reason
    Signed 0 carry in and carry out
    Unsigned 1 CF=1

    Page | 1
    c) E1E4h + DAB3h
    1110 0001 1110 0100
    + 1101 1010 1011 0011
    1 1011 1100 1001 0111
    AX= BC97h; 1 will be in CF
    Flow Set/clear Reason
    Signed 0 carry in and borrow out
    Unsigned 1 CF=1

    d) 7132h + 7000h
    0111 0001 0011 0010
    + 0111 0000 0000 0000
    1110 0001 0011 0010
    AX= E132h
    Flow Set/clear Reason
    Signed 1 Carry in but no carry out
    Unsigned 0 CF=0

    e) 6389h + 1176h
    0110 0011 1000 1001
    + 0001 0001 0111 0110
    0111 0100 1111 1111
    AX= 74FFh
    Flow Set/clear Reason
    Signed 0 No carry in, no carry out
    Unsigned 0 CF=0

    Page | 2
    2. Suppose SUB AX, BX is executed. In each of the following parts, the first number is the
    initial contents of AX and the second number is the contents of BX. Give the resulting value of
    AX and tell whether signed or unsigned overflow occurred.
    a. 2143h - 1986h
    b. 81FEh - 1986h
    c. 19BCh - 81FfEh
    d. 0002h – FE0Fh
    e. 8BCDh - 71Abh
    Answer:
    a) 2143h - 1986h
    0010 0001 0100 0011
    - 0001 1001 1000 1101
    0000 0111 1011 1101
    AX= 7BDh
    Flow Set/clear Reason
    Signed 0 No borrow in, no borrow out
    Unsigned 0 CF=0

    b) 81FEh-1986h
    1000 0001 1111 1110
    - 0001 1001 1000 0110
    0110 1000 0111 1000
    AX= 6878h
    Flow Set/clear Reason
    Signed 0 Borrow out but no borrow in
    Unsigned 0 CF=0

    Page | 3
    c) 19BCh-81Feh
    0001 1001 1011 110
    - 1000 0001 1111 1110
    1001 0111 1011 1110
    AX= 97Beh
    Flow Set/clear Reason
    Signed 1 Borrow in but no borrow out
    Unsigned 1 CF=1

    d) 0002h-FE0Fh
    0000 0000 0000 0010
    - 1111 1110 0000 1111
    0000 0001 1111 0011
    AX= 01F3h
    Flow Set/clear Reason
    Signed 0 Borrow in and borrow out
    Unsigned 1 CF=1

    d) 8BCDh-71Abh
    1000 1011 1100 1101
    - 0111 0001 1010 1011
    0001 1010 0010 0010
    AX= 1A22h
    Flow Set/clear Reason
    Signed 1 Borrow out but no borrow in
    Unsigned 0 CF=0

    Page | 4
