6 Exploded View & Parts List

5 Exploded View and Parts List

-You can search for updated part codes through ITSELF web site.
URL : http://itself. sec. samsung.co.kr

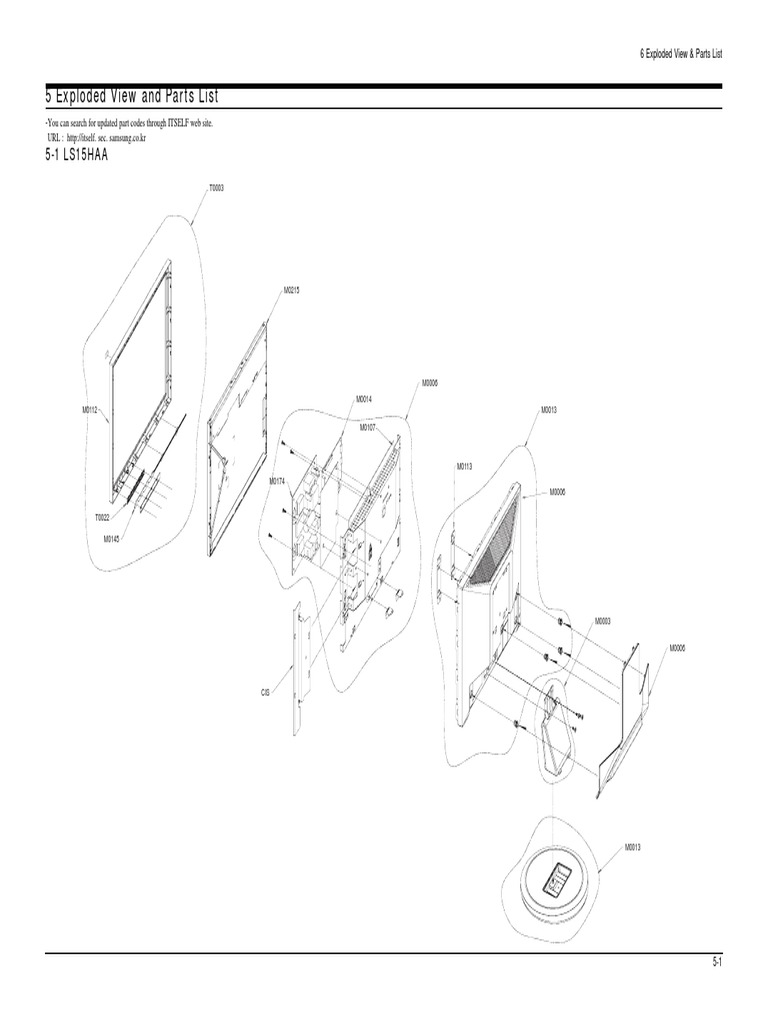

5-1 LS15HAA
T0003

M0215

M0006
M0014
M0112 M0013
M0107

M0113
M0174
M0006

T0022

M0145

M0003

M0006

CIS

M0013

5-1
5 Exploded View & Parts List

Location Code.No Item & Specification Q'ty SA/SNA Remark

T0003 BN96-02387C ASSY COVER P-FRONT;HA15AS,ABS HB,GR70,SI 1

M0112 BN63-01993B COVER-FRONT;HA15AS_BS,ABS,T2.5,338,272,H 1 S.N.A

T0022 BN64-00377B KNOB CONTROL;HA17TS,PC CLEAR,T2.1,9,112, 1 S.N.A

M0145 BN96-02474A ASSY BOARD P-FUNCTION;HAYDN,YWP-HAYDN,FU 1

M0215 BN07-00236A LCD-PANEL;CLAA150XP01F,Matisses,6BIT FRC 1

M0006 BN96-02440A ASSY SHIELD P-COVER;HA15AS,SECC,328.5*23 1 S.N.A

M0107 BN63-02003A SHIELD-COVER;HA15AS,SECC,T0.8,325,165,AN 1 S.N.A

M0014 BN94-00735N ASSY PCB MAIN-PTZ,TCO99;LS15HAAK*,W/W,CP 1

M0174 BN44-00130A IP BOARD;FSP025-2PI02,BI15VS,4.5mA,8.0mA 1

CIS BN63-02004A SHIELD-LAMP;HA15AS,SECC,T0.8,100,150 1 S.N.A

M0013 BN96-02388A ASSY COVER P-REAR;HA15AS,HIPS HB,BK24,AN 1

M0113 BN61-01581A BRACKET-VESA;BI17/19BS,SECC,T1.0 2 S.N.A

M0006 BN63-01994A COVER-REAR;HA15AS,HIPS,T2.5,338,272,HB,B 1

M0003 BN96-01947C ASSY STAND P;HA17AS/BS,HIPS,BK24,STAND/B 1

M0013 BN96-02331D ASSY STAND P-BASE;HA17AS/BS,HIPS,GR70 & 1

M0006 BN63-01995A COVER-REAR SUB;HA15AS,HIPS,T2.5,209,290, 1 S.N.A

5-2
 6 Exploded View & Parts List

5-2 LS15HAB

T0003

M0215

M0006
M0014
M0112 M0013
M0107

M0113
M0174
M0006

T0022

M0415

M0045
M0952

CIS

5-3
5 Exploded View & Parts List

Location Code.No Item & Specification Q'ty SA/SNA Remark

T0003 BN96-02387D ASSY COVER P-FRONT;HA15BS,ABS HB,GR70,SI 1 S.N.A

M0112 BN63-01993B COVER-FRONT;HA15AS_BS,ABS,T2.5,338,272,H 1 S.N.A

T0022 BN64-00377B KNOB CONTROL;HA17TS,PC CLEAR,T2.1,9,112, 1 S.N.A

M0145 BN96-02474A ASSY BOARD P-FUNCTION;HAYDN,YWP-HAYDN,FU 1

M0215 BN07-00229A LCD-PANEL;LTM150XO-L21,Haydn,6BIT,326.5* 1

M0006 BN96-02440B ASSY SHIELD P-COVER;HA15BS,SECC T0.8,DUA 1 S.N.A

M0107 BN63-02003B SHIELD-COVER;HA15BS,SECC,T0.8,325,165,DU 1 S.N.A

M0014 BN94-00735F ASSY PCB MAIN-STZ;LS15HABT*,W/W,TCO99,AM 1

M0174 BN44-00122A IP BOARD;IP-19125A,BI15VS,4.5mA,8.0mA,50 1

CIS BN63-02004A SHIELD-LAMP;HA15AS,SECC,T0.8,100,150 1 S.N.A

M0013 BN96-02388D ASSY COVER P-REAR;HA15BS,HIPS HB,BK24,HA 1

M0113 BN61-01581A BRACKET-VESA;BI17/19BS,SECC,T1.0 2 S.N.A

M0006 BN63-01994D COVER-REAR;HA15BS,HIPS,T2.5,338,272,HB,B 1 S.N.A

M0952 BN63-02075A COVER-DUCT;HA17BS,HIPS,T1.5,13.5,13.5,HB 4 S.N.A

M0045 BN96-02389B ASSY STAND P-SET;HA15BS,HIPS HB,GR70,SIL 1

5-4
 6 Exploded View & Parts List

5-3 LS17HAA
T0003

M0215

M0006

M0014 M0013
M0112

M0107

M0113

M0174 M0006

T0022

M0020

M0003

M0006

CIS

M0013

5-5
5 Exploded View & Parts List

Location Code.No Item & Specification Q'ty SA/SNA Remark

T0003 BN96-02383C ASSY COVER P-FRONT;HA17AS,TCO03,ABS HB,G 1

M0112 BN63-01975B COVER-FRONT;HA17AS_BS,ABS,T2.5,365.5,301 1 S.N.A

T0022 BN64-00377B KNOB CONTROL;HA17TS,PC CLEAR,T2.1,9,112, 1 S.N.A

M0020 BN96-02474B ASSY BOARD P;HAYDN,YWP-HAYDN,17 FUNCTION 1

M0215 BN07-00206A LCD-PANEL;LTM170EX-L21,Bizet,6BIT FRC,35 1

M0006 BN96-01949C ASSY SHIELD P-COVER;BI17BS,SECC,T0.8,COR 1 S.N.A

M0107 BN63-01767B SHIELD-COVER;BI17BS,SECC,T0.8,AMLCD,TYPE 1 S.N.A

M0014 BN94-00723Z ASSY PCB MAIN-STZ;LS17HAAK*,W/W,AMLCD 1

M0174 BN44-00124A IP BOARD;IP-35135B,BI17VS,3.0 ~4.0mA,6.8 1

CIS BN63-01769A SHIELD-LAMP;BI17BS,SPTE,T0.3 1 S.N.A

M0013 BN96-02384A ASSY COVER P-REAR;HA17AS,HIPS HB,BK24,AN 1

M0113 BN61-01581A BRACKET-VESA;BI17/19BS,SECC,T1.0 2 S.N.A

M0006 BN63-01976A COVER-REAR;HA17AS,HIPS,T2.5,365.5,301.3, 1 S.N.A

M0003 BN96-01947C ASSY STAND P;HA17AS/BS,HIPS,BK24,STAND/B 1

M0013 BN96-02331D ASSY STAND P-BASE;HA17AS/BS,HIPS,GR70 & 1

M0006 BN63-01977A COVER-REAR SUB;HA17AS_BS,HIPS,T2.5,209,2 1 S.N.A

5-6
 6 Exploded View & Parts List

5-4 LS17HAB

T0003

M0215

M0006

M0014 M0013
M0112

M0107

M0113

M0174 M0006

T0022

M0145
M0045

CIS

5-7
5 Exploded View & Parts List

Location Code.No Item & Specification Q'ty SA/SNA Remark

T0003 BN96-02383D ASSY COVER P-FRONT;HA17BS,TCO03,ABS HB,G 1 S.N.A

M0112 BN63-01975B COVER-FRONT;HA17AS_BS,ABS,T2.5,365.5,301 1 S.A

T0022 BN64-00377B KNOB CONTROL;HA17TS,PC CLEAR,T2.1,9,112, 1 S.N.A

M0145 BN96-02474A ASSY BOARD P-FUNCTION;HAYDN,YWP-HAYDN,FU 1 S.N.A

M0215 BN07-00206A LCD-PANEL;LTM170EX-L21,Bizet,6BIT FRC,35 1 S.A

M0006 BN96-01949D ASSY SHIELD P-COVER;BI17BS,SECC,T0.8,COR 1 S.N.A

M0107 BN63-01767C SHIELD-COVER;BI17BS,SECC,T0.8,AMLCD,TYPE 1 S.N.A

M0014 BN94-00723Y ASSY PCB MAIN-STZ;LS17HABT*,W/W,TCO03,AM 1 S.N.A

M0174 BN44-00124C IP BOARD;IP-35135B (H),BI17VS,3.0 ~4.0mA 1 S.N.A

CIS BN63-01769A SHIELD-LAMP;BI17BS,SPTE,T0.3 1 S.N.A

M0013 BN96-02384D ASSY COVER P-REAR;HA17BS,HIPS HB,BK24,HA 1 S.N.A

M0113 BN61-01581A BRACKET-VESA;BI17/19BS,SECC,T1.0 2 S.N.A

M0006 BN63-01976D COVER-REAR;HA17BS,HIPS,T2.5,365.5,301.3, 1 S.A

M0045 BN96-02237B ASSY STAND P-SET;HA17TS,HIPS HB,GR70,SIL 1 S.N.A

5-8
 6 Exploded View & Parts List

5-5 LS17HAT

M0112

M0014
M0107
M0174

M0113

T0022
M0020

T0003
M0215

M0006
M0006

M0013
CIS

M0045

5-9
5 Exploded View & Parts List

Location Code.No Item & Specification Q'ty SA/SNA Remark

T0003 BN96-02234B ASSY COVER P-FRONT;HA17TS,ABS HB,GR70,SI 1

M0112 BN63-01965B COVER-FRONT;HA17TS,ABS,T1.5,362.1,298.2, 1 S.N.A

T0022 BN64-00377B KNOB CONTROL;HA17TS,PC CLEAR,T2.1,9,112, 1 S.N.A

M0020 BN96-02474B ASSY BOARD P;HAYDN,YWP-HAYDN,17 FUNCTION 1

M0215 BN07-00218A LCD-PANEL;LTM170E8-L21,Dali2,6BIT FRC,35 1

M0006 BN96-02236B ASSY SHIELD P-COVER;HA17TS,SECC T0.8,MEC 1 S.N.A

M0107 BN63-01973B SHIELD-COVER;HA17TS,SECC,T0.8,356.9,185. 1 S.N.A

M0014 BN94-00735D ASSY PCB MAIN-SPZ;LS17HATT*,W/W,AMLCD,M/ 1

M0174 BN44-00124C IP BOARD;IP-35135B (H),BI17VS,3.0 ~4.0mA 1

CIS BN63-01769A SHIELD-LAMP;BI17BS,SPTE,T0.3 1 S.N.A

M0013 BN96-02235A ASSY COVER P-REAR;HA17TS,HIPS HB,BK24,DU 1

M0006 BN63-01966A COVER-REAR;HA17TS,HIPS,T2.0,362.1,298.2, 1 S.N.A

M0113 BN61-01581A BRACKET-VESA;BI17/19BS,SECC,T1.0 2 S.N.A

M0045 BN96-02237B ASSY STAND P-SET;HA17TS,HIPS HB,GR70,SIL 1

5-10
 6 Exploded View & Parts List

5-6 LS19HAB

5-7 LS19HAA
T0003

M0215

M0006

M0014

M0107
M0112

M0174 M0113

M0006

T0022
M0013
M0145

M0952 M0045

CIS

5-11
5 Exploded View & Parts List

Location Code.No Item & Specification Q'ty SA/SNA Remark

T0003 BN96-02385B ASSY COVER P-FRONT;HA19BS,TCO03,ABS HB,G 1

M0112 BN63-01978B COVER-FRONT;HA19BS,ABS,T2.5,407.6,335,HB 1 S.N.A

T0022 BN64-00377B KNOB CONTROL;HA17TS,PC CLEAR,T2.1,9,112, 1 S.N.A

M0145 BN96-02474C ASSY BOARD P-FUNCTION;HAYDN,YWP-VD-05-05 1

M0215 BN07-00203A LCD-PANEL;M190EN04,GY,6BIT FRC,396*324*1 1

M0006 BN96-01951C ASSY SHIELD P-COVER;BI19BS,SECC,T0.8,DUA 1 S.N.A

M0107 BN63-01780C SHIELD-COVER;BI19BS,SECC,T1.0,CHANGE COR 1 S.N.A

M0014 BN94-00735B ASSY PCB MAIN-ATZ;LS19HAB*,W/W,AU 1

M0174 BN44-00124C IP BOARD;IP-35135B (H),BI17VS,3.0 ~4.0mA 1

CIS BN63-01781A SHIELD-LAMP;BI19BS,SPTE,T0.3 1 S.N.A

M0013 BN96-02386D ASSY COVER P-REAR;HA19BS,HISP HB,BK24,HA 1

M0113 BN61-01581A BRACKET-VESA;BI17/19BS,SECC,T1.0 2 S.N.A

M0006 BN63-01979B COVER-REAR;HA19BS,HIPS,T2.5,407.6,335,HB 1 S.N.A

M0952 BN63-02075A COVER-DUCT;HA17BS,HIPS,T1.5,13.5,13.5,HB 4 S.N.A

M0045 BN96-02242B ASSY STAND P-SET;HA19TS,HIPS HB,GR70,SIL 1

5-12
 6 Exploded View & Parts List

5-7 LS19HAT

M0112

M0014
M0107
M0174

T0022

T0145

T0003
M0215

M0006
M0006

M0013
CIS

M0045

5-13
5 Exploded View & Parts List

Location Code.No Item & Specification Q'ty SA/SNA Remark

T0003 BN96-02239B ASSY COVER P-FRONT;HA19TS,ABS HB,GR70,SI 1

M0112 BN63-01967B COVER-FRONT;HA19TS,ABS,T1.5,403.2,331.9, 1 S.N.A

T0022 BN64-00377B KNOB CONTROL;HA17TS,PC CLEAR,T2.1,9,112, 1 S.N.A

M0145 BN96-02474C ASSY BOARD P-FUNCTION;HAYDN,YWP-VD-05-05 1

M0215 BN07-00223A LCD-PANEL;LTM190E4-L21,Haydn,8BIT,396*32 1

M0006 BN96-02241B ASSY SHIELD P-COVER;HA19TS,SECC T0.8,MEC 1 S.N.A

M0107 BN63-01974B SHIELD-COVER;HA19TS,SECC,T0.8,398,222,M/ 1 S.N.A

M0014 BN94-00735E ASSY PCB MAIN-SPZ;LS19HATT*,W/W,M/SWICH( 1

M0174 BN44-00123B IP BOARD;SSIP-1719-HD-A,HAYDN17,3.0 ~5.0 1

CIS BN63-01781A SHIELD-LAMP;BI19BS,SPTE,T0.3 1 S.N.A

M0013 BN96-02240A ASSY COVER P-REAR;HA19TS,HIPS HB,BK24,DU 1

M0006 BN63-01968A COVER-REAR;HA19TS,HIPS,T2.0,403.2,331.9, 1 S.N.A

M0045 BN96-02242B ASSY STAND P-SET;HA19TS,HIPS HB,GR70,SIL 1

5-14
