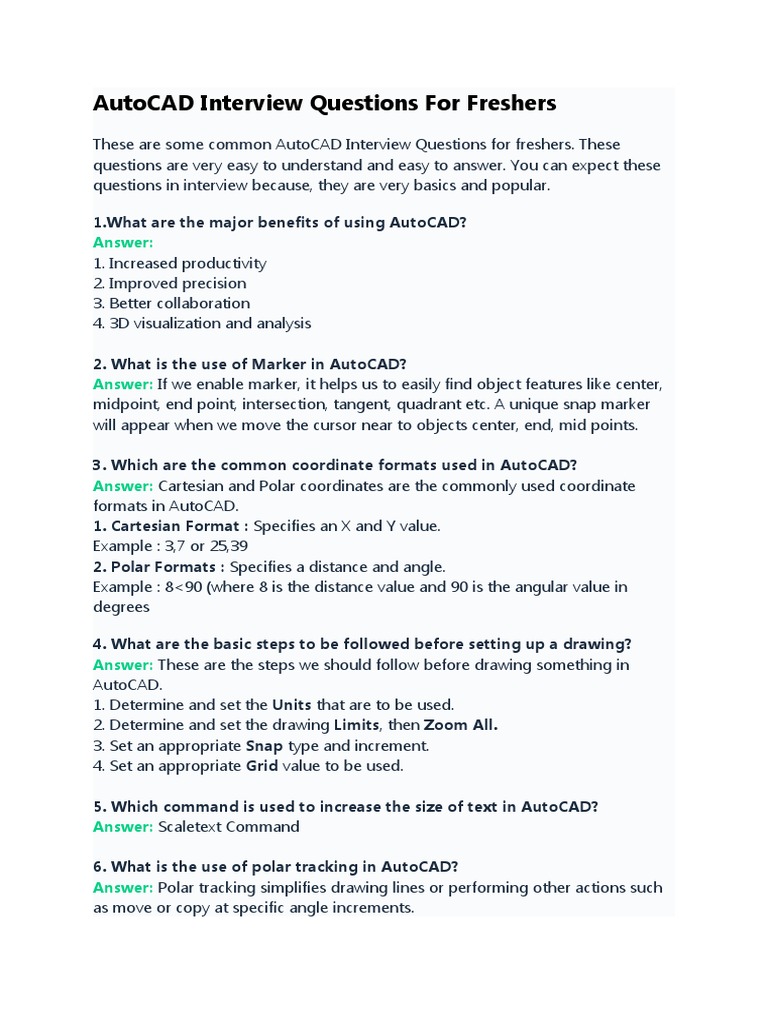

Autocad Interview Questions For Freshers: Answer
Autocad Interview Questions For Freshers: Answer
These are some common AutoCAD Interview Questions for freshers. These
questions are very easy to understand and easy to answer. You can expect these
questions in interview because, they are very basics and popular.
14. What do you mean by Polyline. How it is different from normal line?
Answer: The Polyline command draws a series of connected lines or arcs that
AutoCAD treats as a single line.
15. Which command creates a new object parallel to the original object?
Answer: Offset Command.
19. What are the six different options for creating a circle?
Answer:
1. Center Radius
2. Center Diameter
3. 2 Point
4. 3 Point
5. Tangent Tangent Radius
6. Tangent Tangent Tangent
29. Which command is used to convert 3D solid and surface into NURBS
surface?
Answer: CONVTONURBS Command
30. Which command is used to add control vertices to NURBS surfaces and
splines?
Answer: CVADD Command
32. How do you make a viewpoint active? How can you tell that a viewpoint
is active?
Answer: To make a viewpoint active, place the cursor in the viewpoint and select
the left button on the mouse (LMB). An active viewpoint will have a slightly bolder
border around it, and will show the cursor crosshairs in it.
39. How can you make a text clearly visible in a crowed background?
Answer: We can use TEXTMASK command to mask the text which will make
texts clearly visible against the crowded background.
40. What is the use of LAYMRG command in AutoCAD? How will you use
that?
Answer: It is commonly used when we need to merge layers of multiple objects.
And it can be done like this, Type LAYMRG press enter key then select the objects
whose layers you want to change then press enter again. Select any object of
target layer on which you want to transfer the selected objects and press enter
again. All the objects of the selected layer will be transferred to the end layer and
also the selected layer will be removed.
45. How will you configure a default output device in AutoCAD? How will
you check whether it is specified or not?
Answer:
Step 1 : Invoke the Option dialog box by right-clicking in the drawing area and
selecting Options.. from the bottom of the shortcut menu, or selecting Options..
from the bottom of Application Menu.
Step 2 : In the Plot and Publish tab, locate the Default plot settings for new
drawings cluster near the top-left corner of the dialog box. Select the desired
plot device from the list (such as a laser printer), then select the Use as default
output device button.
Step 3 : Select OK.
47. How can you apply the same properties of an object to another object in
AutoCAD?
Answer: Using Match Properties. (Matchprop)
48. Which AutoCAD command helps you to transfer selected objects from
Paper Space to another?
Answer: Chspace command.
49. What are the guidelines for plotting layouts to scale? Assuming that you
are using one viewport that fills all of the printable area.?
Answer:
These are the steps to be followed when plotting layouts to scale.
1. Set Units ( Decimal, Architectural, Engineering, etc) and Precision to be used in
the drawing.
2. Set model space Limits and create the geometry in model space. Use the DSF
to determine values for line type scale, text size, dimension scale, hatch scale, etc.
Complete the drawing geometry in model space.
3. Activate a layout to begin setting up the layout. You can also use the Layouts
Wizard to create a new layout and complete steps 2 through 5.
4. Use Page Setup to select the desired Plot Device and Paper Size.
5. Create, Insert, or Xref the title block and border in the layout. If you are using
one of AutoCAD’s template drawings or another template, the title block and
border may already exist.
6. Create a viewport using Vports.
7. Click inside the viewport to set the viewport scale. You can set the scale using
the Viewport Scale pop-up list, Viewports toolbar, the Properties palette, or
use Zoom and enter an XP factor. Use 1/DSF as the viewport scale.
8. Activate the Plot dialog box and ensure the scale in the Scale drop-down list is
1:1. Make a plot Preview, then make the plot or make the needed adjustments.
These are the Core AutoCAD Interview questions for experienced professionals.
Prepare well.
