    Page 1 of 2

    Product Catalog\BACKHOE LOADER 1CX, 208\1CX 00751600-00752999,00806000-00807552 9802/6220\L ENGINES 104.22, KR


    BUILD TO M807552\L01 ENGINE BLOCK & SUB-ASSEMBLIES\L1-1-1 ENGINE, COMPLETE KR BUILD

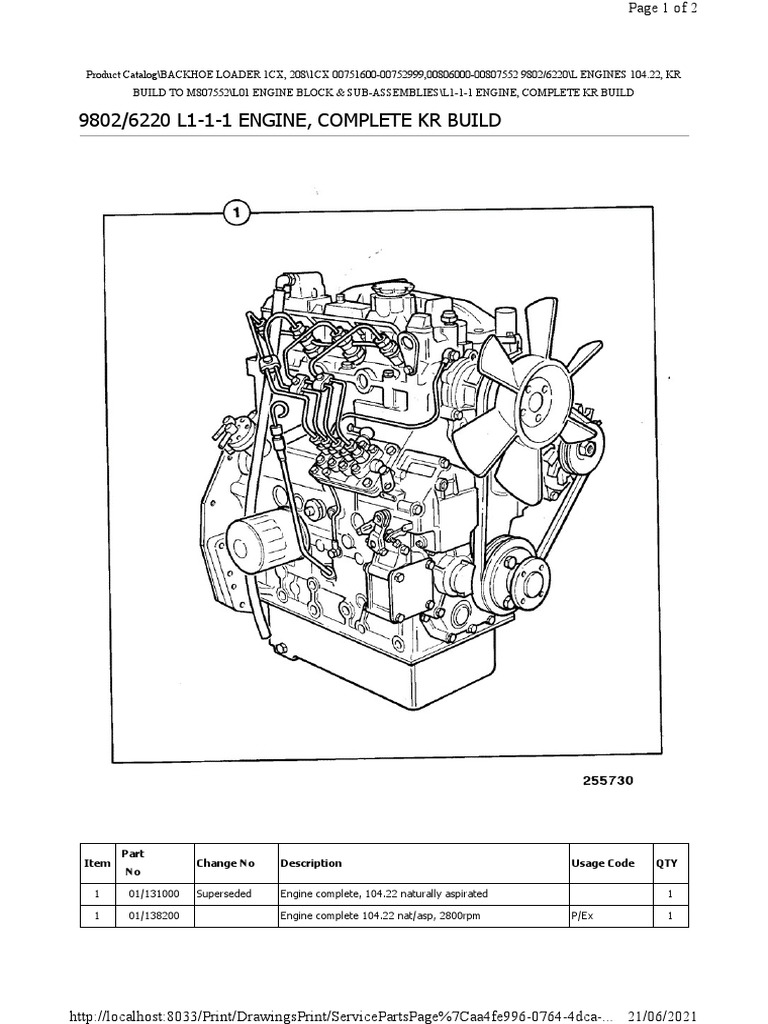

    9802/6220 L1-1-1 ENGINE, COMPLETE KR BUILD

    Part
    Item Change No Description Usage Code QTY
    No

    1 01/131000 Superseded Engine complete, 104.22 naturally aspirated 1

    1 01/138200 Engine complete 104.22 nat/asp, 2800rpm P/Ex 1

    http://localhost:8033/Print/DrawingsPrint/ServicePartsPage%7Caa4fe996-0764-4dca-... 21/06/2021
    Page 2 of 2

    Applicability Date Ranges:


    From: , To:

    http://localhost:8033/Print/DrawingsPrint/ServicePartsPage%7Caa4fe996-0764-4dca-... 21/06/2021
    Page 1 of 2

    Product Catalog\BACKHOE LOADER 1CX, 208\1CX 00751600-00752999,00806000-00807552 9802/6220\L ENGINES 104.22, KR


    BUILD TO M807552\L01 ENGINE BLOCK & SUB-ASSEMBLIES\L1-1-2 ENGINE, COMPLETE KR BUILD

    9802/6220 L1-1-2 ENGINE, COMPLETE KR BUILD

    Part
    Item Change No Description Usage Code QTY
    No

    1 01/138200 Engine complete 104.22 nat/asp, 2800rpm P/Ex 1

    http://localhost:8033/Print/DrawingsPrint/ServicePartsPage%7C8d00e957-975c-438c... 21/06/2021
    Page 2 of 2

    Applicability Date Ranges:


    From: , To:

    http://localhost:8033/Print/DrawingsPrint/ServicePartsPage%7C8d00e957-975c-438c... 21/06/2021
    Page 1 of 2

    Product Catalog\BACKHOE LOADER 1CX, 208\1CX 00751600-00752999,00806000-00807552 9802/6220\L ENGINES 104.22, KR


    BUILD TO M807552\L01 ENGINE BLOCK & SUB-ASSEMBLIES\L1-2-1 ENGINE, SHORT KR BUILD

    9802/6220 L1-2-1 ENGINE, SHORT KR BUILD

    Part
    Item Change No Description Usage Code QTY
    No

    1 02/634100 Engine short 1

    http://localhost:8033/Print/DrawingsPrint/ServicePartsPage%7Cb8c279a4-f4a9-497b-... 21/06/2021
    Page 2 of 2

    Applicability Date Ranges:


    From: , To: EU965455J

    http://localhost:8033/Print/DrawingsPrint/ServicePartsPage%7Cb8c279a4-f4a9-497b-... 21/06/2021
    Page 1 of 3

    Product Catalog\BACKHOE LOADER 1CX, 208\1CX 00751600-00752999,00806000-00807552 9802/6220\L ENGINES 104.22, KR


    BUILD TO M807552\L01 ENGINE BLOCK & SUB-ASSEMBLIES\L1-3-1 BLOCK ASSEMBLY KR BUILD

    9802/6220 L1-3-1 BLOCK ASSEMBLY KR BUILD

    Part
    Item Change No Description Usage Code QTY
    No

    1 02/634000 Block cylinder assembly 1

    2 :02/630002 Plug D=25 2

    http://localhost:8033/Print/DrawingsPrint/ServicePartsPage%7C664d8b09-7ce1-49a4... 21/06/2021
    Page 2 of 3

    3 :02/630004 Plug D=40mm 1

    4 :02/630004 Plug D=40mm 3

    5 :02/630004 Plug D=40mm 1

    6 :02/630007 Plug 8.4mm 3

    7 :02/630702 Plug 10.4mm 4

    8 :02/630006 Plug 6.5mm 4

    9 02/630021 Stud 1

    10 02/630022 Stud 1

    11 02/630019 Pin 2

    12 02/630024 Dowel 2

    13 02/630017 Dowel 2

    14 02/630018 Dowel 2

    15 02/630013 Bearing 1

    16 02/634002 Bearing needle 1

    17 02/634001 Bearing needle 1

    18 02/634013 Seal rear oil 1

    19 02/630014 Plug core D=45mm 1

    20 02/630703 Hub 1

    21 02/630704 Bush 1

    21 02/630705 Bush oversize - 0.25mm 0

    21 02/630706 Bush oversize - 0.50mm 0

    22 02/634004 Cap bearing assembly 1

    23 **** None serviced part 1

    24 **** None serviced part 1

    25 :02/630024 Dowel 2

    26 :02/634005 Screw 2

    27 02/634006 Screw 1

    28 02/634007 Cap bearing assembly 1

    29 **** None serviced part 1

    30 **** None serviced part 1

    31 :02/630024 Dowel 2

    32 :02/634005 Screw 2

    33 02/634006 Screw 1

    34 02/634008 Cap bearing assembly 1

    35 **** None serviced part 1

    36 **** None serviced part 1

    37 :02/630024 Dowel 2

    38 :02/634005 Screw 2

    39 02/634006 Screw 1

    http://localhost:8033/Print/DrawingsPrint/ServicePartsPage%7C664d8b09-7ce1-49a4... 21/06/2021
    Page 3 of 3

    40 02/634009 Cap bearing assembly 1

    41 **** None serviced part 1

    42 **** None serviced part 1

    43 :02/630024 Dowel 2

    44 :02/634005 Screw 2

    45 02/630714 Screw 2

    46 02/630031 Tap drain 1

    47 02/634010 Plate 1

    48 02/634011 Screw 10

    49 02/634012 Screw 2

    Applicability Date Ranges:


    From: , To:

    http://localhost:8033/Print/DrawingsPrint/ServicePartsPage%7C664d8b09-7ce1-49a4... 21/06/2021
    Page 1 of 2

    Product Catalog\BACKHOE LOADER 1CX, 208\1CX 00751600-00752999,00806000-00807552 9802/6220\L ENGINES 104.22, KR


    BUILD TO M807552\L01 ENGINE BLOCK & SUB-ASSEMBLIES\L1-4-1 CRANKSHAFT, BEARINGS PISTONS & CON-RODS KR
    BUILD

    9802/6220 L1-4-1 CRANKSHAFT, BEARINGS PISTONS & CON-RODS


    KR BUILD

    Part
    Item Change No Description Usage Code QTY
    No

    1 02/634020 Crankshaft assembly 1

    http://localhost:8033/Print/DrawingsPrint/ServicePartsPage%7C21ab48da-6724-4a51... 21/06/2021
    Page 2 of 2

    2 **** None serviced part 1

    3 :02/630716 Gear 1

    4 :02/630042 Key 1

    5 02/634019 Kit-bearing main standard 1

    5 02/634018 Kit-bearing main undersize - 0.25mm 1

    5 02/634017 Kit-bearing main undersize - 0.50mm 1

    6 02/634016 Kit-bearing big end standard 1

    6 02/634015 Kit-bearing big end undersize - 0.25mm 1

    6 02/634014 Kit-bearing big end undersize - 0.50mm 1

    7 02/634021 Washer thrust 1

    8 02/630723 Washer thrust 2

    9 02/634022 Conrod assembly 4

    10 **** None serviced part 1

    11 **** None serviced part 1

    12 :02/630725 Bush small end 1

    13 :02/630726 Screw 2

    14 :02/630727 Nut 2

    15 02/634101 Piston assembly standard 4

    15 02/634102 Piston assembly oversize - 0.5mm 0

    15 02/634103 Piston assembly oversize - 1.0mm 0

    16 **** None serviced part 1

    17 :02/630733 Kit-piston ring 1

    17 02/630734 Kit-piston ring oversize - 0.50mm 0

    17 02/631262 Kit-piston ring oversize - 1.0mm 0

    18 02/630731 Pin gudgeon 1

    19 02/630732 Circlip 2

    Applicability Date Ranges:


    From: , To: U965456J

    http://localhost:8033/Print/DrawingsPrint/ServicePartsPage%7C21ab48da-6724-4a51... 21/06/2021
    Page 1 of 2

    Product Catalog\BACKHOE LOADER 1CX, 208\1CX 00751600-00752999,00806000-00807552 9802/6220\L ENGINES 104.22, KR


    BUILD TO M807552\L01 ENGINE BLOCK & SUB-ASSEMBLIES\L1-4-10 CRANKSHAFT, BEARINGS PISTONS & CON-RODS

    9802/6220 L1-4-10 CRANKSHAFT, BEARINGS PISTONS & CON-RODS

    Part
    Item Change No Description Usage Code QTY
    No

    1 02/634020 Crankshaft assembly 1

    2 **** None serviced part 1

    http://localhost:8033/Print/DrawingsPrint/ServicePartsPage%7C90213dc0-9f1e-4616-... 21/06/2021
    Page 2 of 2

    3 :02/630716 Gear 1

    4 :02/630042 Key 1

    5 02/634019 Kit-bearing main standard 1

    5 02/634018 Kit-bearing main undersize - 0.25mm 1

    5 02/634017 Kit-bearing main undersize - 0.50mm 1

    6 02/634016 Kit-bearing big end standard 1

    6 02/634015 Kit-bearing big end undersize - 0.25mm 1

    6 02/634014 Kit-bearing big end undersize - 0.50mm 1

    7 02/634021 Washer thrust 1

    8 02/630723 Washer thrust 2

    9 02/634022 Conrod assembly 4

    10 **** None serviced part 1

    11 **** None serviced part 1

    12 :02/630725 Bush small end 1

    13 :02/630726 Screw 2

    14 :02/630727 Nut 2

    15 02/634135 Piston assembly 4

    16 **** None serviced part 1

    17 :02/634136 Kit-piston ring 1

    18 02/630731 Pin gudgeon 1

    19 02/630732 Circlip 2

    Applicability Date Ranges:


    From: U965457J , To:

    http://localhost:8033/Print/DrawingsPrint/ServicePartsPage%7C90213dc0-9f1e-4616-... 21/06/2021
    Page 1 of 2

    Product Catalog\BACKHOE LOADER 1CX, 208\1CX 00751600-00752999,00806000-00807552 9802/6220\L ENGINES 104.22, KR


    BUILD TO M807552\L01 ENGINE BLOCK & SUB-ASSEMBLIES\L1-5-1 FANS, PULLEYS & FAN BELT KR BUILD

    9802/6220 L1-5-1 FANS, PULLEYS & FAN BELT KR BUILD

    Part
    Item Change No Description Usage Code QTY
    No

    1 02/634088 Pulley crankshaft 1

    2 02/630778 Nut 1

    http://localhost:8033/Print/DrawingsPrint/ServicePartsPage%7C6fe84e32-bcb0-4fa1-... 21/06/2021
    Page 2 of 2

    3 02/630779 Washer 1

    4 02/630068 Key 1

    5 290/01141 Spacer fan 1

    6 1315/0505Z Bolt M12x20 3

    7 1425/0009Z Washer Spring M12 3

    8 246/01068 Fan cooling 16" pusher 1

    9 02/634075 Plate 1

    10 1315/0205Z Setscrew M6 x 20mm 4

    10A 1425/0006Z Washer Spring (M6) 4

    11 02/630835 Pulley water pump 1

    12 02/634076 Screw 4

    13 02/634154 Belt fan L=1010mm 1

    14 02/102012 Pulley single D=83mm 1

    15 02/201382 Spacer alternator pulley 1

    16 714/10812 Fan alternator 1

    17 714/20405 Kit-sundry parts 1

    Applicability Date Ranges:


    From: , To:

    http://localhost:8033/Print/DrawingsPrint/ServicePartsPage%7C6fe84e32-bcb0-4fa1-... 21/06/2021
    Page 1 of 2

    Product Catalog\BACKHOE LOADER 1CX, 208\1CX 00751600-00752999,00806000-00807552 9802/6220\L ENGINES 104.22, KR


    BUILD TO M807552\L01 ENGINE BLOCK & SUB-ASSEMBLIES\L1-6-1 TIMING CASE CAMSHAFT & GEARS KR BUILD

    9802/6220 L1-6-1 TIMING CASE CAMSHAFT & GEARS KR BUILD

    Part
    Item Change No Description Usage Code QTY
    No

    1 02/634033 Camshaft 1

    2 02/630068 Key 1

    http://localhost:8033/Print/DrawingsPrint/ServicePartsPage%7C5f7ec5cb-6a06-4992-... 21/06/2021
    Page 2 of 2

    3 02/634032 Bearing 1

    4 02/630082 Spacer 1

    5 02/630083 Gear 1

    6 02/630768 Gear 1

    7 02/630085 Tappet 1

    8 02/630767 Plate 1

    9 02/630766 Gasket 1

    10 02/630172 Bolt 2

    11 02/634031 Casing timing 1

    12 02/630089 Pin 1

    13 02/630764 Gasket 1

    14 02/630763 Seal front oil 1

    15 02/630762 Screw 6

    16 02/630093 Screw 2

    17 02/630095 Screw 5

    18 02/630096 Nut 1

    'See Remark'
    19 **** 1
    SEE OIL PUMP, L5-2-1

    20 02/634087 Plate 1

    21 02/630102 Screw 2

    22 02/630097 Plate 2

    23 02/630079 O Ring 1

    24 02/630099 Screw 4

    25 02/630098 Gasket 1

    26 02/630078 Nut 4

    Applicability Date Ranges:


    From: , To:

    http://localhost:8033/Print/DrawingsPrint/ServicePartsPage%7C5f7ec5cb-6a06-4992-... 21/06/2021
    Page 1 of 2

    Product Catalog\BACKHOE LOADER 1CX, 208\1CX 00751600-00752999,00806000-00807552 9802/6220\L ENGINES 104.22, KR


    BUILD TO M807552\L01 ENGINE BLOCK & SUB-ASSEMBLIES\L1-6-2 TIMING LEVERS ARMS & SPRINGS KR BUILD

    9802/6220 L1-6-2 TIMING LEVERS ARMS & SPRINGS KR BUILD

    Part
    Item Change No Description Usage Code QTY
    No

    1 02/634050 Lever 1

    2 **** None serviced part 1

    http://localhost:8033/Print/DrawingsPrint/ServicePartsPage%7C807dba12-0790-42f3-... 21/06/2021
    Page 2 of 2

    3 02/630107 Circlip 1

    4 :02/630108 Washer 1

    5 :02/630781 Lever 1

    7 02/630113 Arm 1

    8 02/634090 Spring 1

    9 02/630114 O Ring 1

    10 02/630107 Circlip 1

    11 02/634052 Lever 1

    12 02/630784 Screw 1

    13 02/630123 Screw 1

    14 02/630096 Nut 1

    15 02/630126 Washer 1

    16 02/630785 Shaft 1

    17 02/630119 O Ring 1

    18 02/630120 Circlip 1

    19 02/630121 Stay 1

    20 02/630122 Screw 2

    21 02/630131 Screw 2

    22 02/630096 Nut 2

    23 02/630124 Lever 1

    24 02/630125 Spring 1

    25 02/630126 Washer 1

    26 02/634053 Nut 2

    27 02/630128 Arm 1

    28 02/630129 O Ring 1

    29 02/630130 Circlip 1

    30 02/630111 Pin 1

    31 02/630112 Spring 1

    Applicability Date Ranges:


    From: , To:

    http://localhost:8033/Print/DrawingsPrint/ServicePartsPage%7C807dba12-0790-42f3-... 21/06/2021
    Page 1 of 2

    Product Catalog\BACKHOE LOADER 1CX, 208\1CX 00751600-00752999,00806000-00807552 9802/6220\L ENGINES 104.22, KR


    BUILD TO M807552\L01 ENGINE BLOCK & SUB-ASSEMBLIES\L1-7-1 FLYWHEEL & HOUSING KR BUILD

    9802/6220 L1-7-1 FLYWHEEL & HOUSING KR BUILD

    Part
    Item Change No Description Usage Code QTY
    No

    1 246/01075 Housing flywheel 1

    2 1315/0508Z Setscrew M12 X 30 2

    http://localhost:8033/Print/DrawingsPrint/ServicePartsPage%7C4369acd1-3260-43fc-... 21/06/2021
    Page 2 of 2

    3 1425/0009Z Washer Spring M12 2

    4 1420/0009Z Washer (M12) 2

    5 02/630018 Dowel 2

    6 1315/0407Z Setscrew M10 x 25 mm 2

    7 1315/3412Z Bolt M10x50 4

    8 1425/0008Z Spring Washer 6

    9 1420/0008Z Washer (M10) 6

    10 1315/3414Z Bolt M10x60 2

    11 1315/0408Z Setscrew M10 x 30 4

    12 1420/0008Z Washer (M10) 6

    13 1370/0303Z Nut lock M10 6

    14 1315/3411Z Bolt M10 x 45mm 1

    15 1315/0409Z Setscrew M10 x 35 1

    16 1425/0008Z Spring Washer 1

    17 1420/0008Z Washer (M10) 2

    18 1370/0303Z Nut lock M10 1

    19 02/634048 Flywheel assembly 1

    20 :02/634049 Gear flywheel ring 1

    21 02/630775 Bolt 6

    Applicability Date Ranges:


    From: , To:

    http://localhost:8033/Print/DrawingsPrint/ServicePartsPage%7C4369acd1-3260-43fc-... 21/06/2021
    Page 1 of 2

    Product Catalog\BACKHOE LOADER 1CX, 208\1CX 00751600-00752999,00806000-00807552 9802/6220\L ENGINES 104.22, KR


    BUILD TO M807552\L01 ENGINE BLOCK & SUB-ASSEMBLIES\L1-8-1 ENGINE MOUNTINGS KR BUILD

    9802/6220 L1-8-1 ENGINE MOUNTINGS KR BUILD

    Part
    Item Change No Description Usage Code QTY
    No

    1 246/01106 Mounting metalastik 2

    2 1315/3721Z Bolt M16 x 110 2

    http://localhost:8033/Print/DrawingsPrint/ServicePartsPage%7C625664c4-5b4c-4cdc-... 21/06/2021
    Page 2 of 2

    3 1420/0011Z Washer (M16) 2

    4 120/16902 Plate Rebound 2

    5 1370/0603Z Nut lock M16 2

    6 290/01112 Bracket engine mountings left hand 1

    7 290/01113 Bracket engine mounting right hand 1

    8 826/01288 Bolt M14 x 30 4

    9 1425/0010Z Washer 4

    10 1420/0010Z Washer Plain 4

    11 246/01107 Mounting metalastik 2

    12 1315/3518Z Bolt M12 x 80mm 2

    13 1420/0009Z Washer (M12) 2

    14 111/15709 Superseded Washer 2

    14 123/02453 Washer Rebound (13.5mm x 65mm x 5mm) 2

    15 1370/0403Z Nut Lock, M12 2

    Applicability Date Ranges:


    From: , To:

    http://localhost:8033/Print/DrawingsPrint/ServicePartsPage%7C625664c4-5b4c-4cdc-... 21/06/2021
    Page 1 of 2

    Product Catalog\BACKHOE LOADER 1CX, 208\1CX 00751600-00752999,00806000-00807552 9802/6220\L ENGINES 104.22, KR


    BUILD TO M807552\L02 CYLINDER HEAD & SUB-ASSEMBLIES\L2-1-1 CYLINDER HEAD KR BUILD

    9802/6220 L2-1-1 CYLINDER HEAD KR BUILD

    Part
    Item Change No Description Usage Code QTY
    No

    1 02/634030 Head cylinder 1

    2 **** None serviced part 1

    http://localhost:8033/Print/DrawingsPrint/ServicePartsPage%7C0636d6d6-8dc1-4261... 21/06/2021
    Page 2 of 2

    3 :02/630744 Plug D=10mm 3

    4 :02/630148 Plug D=18mm 7

    5 :02/630002 Plug D=25 3

    6 :02/630002 Plug D=25 3

    7 :02/630149 Plug D=30mm 1

    8 :02/630149 Plug D=30mm 1

    9 :02/634029 Valve inlet 4

    10 :02/634028 Valve exhaust 4

    11 :02/634027 Insert 4

    12 :02/630142 Seal inlet valve 4

    13 :02/630147 Seal exhaust valve 4

    14 :02/630143 Spring valve 8

    15 :02/630145 Collet 8

    16 :02/630144 Cap 8

    17 02/630151 Cap 8

    18 02/630742 Screw 4

    19 02/630741 Screw 14

    20 02/634026 Gasket cylinder head 4

    21 02/634085 Rail heater connector 1

    22 717/11700 Thermostart 4

    Applicability Date Ranges:


    From: , To:

    http://localhost:8033/Print/DrawingsPrint/ServicePartsPage%7C0636d6d6-8dc1-4261... 21/06/2021
    Page 1 of 2

    Product Catalog\BACKHOE LOADER 1CX, 208\1CX 00751600-00752999,00806000-00807552 9802/6220\L ENGINES 104.22, KR


    BUILD TO M807552\L02 CYLINDER HEAD & SUB-ASSEMBLIES\L2-2-1 ROCKER ASSEMBLY PUSH RODS & TAPPETS KR
    BUILD

    9802/6220 L2-2-1 ROCKER ASSEMBLY PUSH RODS & TAPPETS KR


    BUILD

    Part
    Item Change No Description Usage Code QTY
    No

    1 02/634040 Shaft rocker assembly 1

    http://localhost:8033/Print/DrawingsPrint/ServicePartsPage%7Ce4767745-743b-4abe... 21/06/2021
    Page 2 of 2

    2 :02/634039 Shaft rocker 1

    3 :02/634038 Box rocker 1

    4 :02/634037 Lever rocker right hand 4

    5 :02/634036 Lever rocker left hand 1

    6 :02/634035 Spring 3

    7 :02/630167 Screw adjusting 8

    8 :02/630168 Nut 8

    9 02/634024 Washer 6

    10 02/630753 Screw 1

    11 02/630347 Screw 1

    12 02/630202 O Ring 1

    13 02/634023 Stud 4

    14 02/630307 Nut 4

    15 02/634034 Rod push 8

    16 02/630171 Tappet 8

    17 02/634025 Seal rocker box 1

    18 02/630156 Switch oil pressure 1

    Applicability Date Ranges:


    From: , To:

    http://localhost:8033/Print/DrawingsPrint/ServicePartsPage%7Ce4767745-743b-4abe... 21/06/2021
    Page 1 of 2

    Product Catalog\BACKHOE LOADER 1CX, 208\1CX 00751600-00752999,00806000-00807552 9802/6220\L ENGINES 104.22, KR


    BUILD TO M807552\L02 CYLINDER HEAD & SUB-ASSEMBLIES\L2-3-1 ROCKER COVER KR BUILD

    9802/6220 L2-3-1 ROCKER COVER KR BUILD

    Part
    Item Change No Description Usage Code QTY
    No

    1 02/634070 Cover rocker 1

    2 02/630179 Cap oil filler 1

    http://localhost:8033/Print/DrawingsPrint/ServicePartsPage%7C32fb09e1-934b-44da-... 21/06/2021
    Page 2 of 2

    3 02/630178 Seal 1

    4 02/634069 Nut Dome 4

    5 02/634068 Washer fibre sealing 4

    6 02/630174 Plate 1

    7 02/630794 Breather gauze 1

    8 02/630172 Bolt 2

    9 02/634067 Seal rocker cover 1

    10 02/630792 Pipe breather 1

    11 02/630793 Hose oil breather 1

    Applicability Date Ranges:


    From: , To:

    http://localhost:8033/Print/DrawingsPrint/ServicePartsPage%7C32fb09e1-934b-44da-... 21/06/2021
    Page 1 of 2

    Product Catalog\BACKHOE LOADER 1CX, 208\1CX 00751600-00752999,00806000-00807552 9802/6220\L ENGINES 104.22, KR


    BUILD TO M807552\L02 CYLINDER HEAD & SUB-ASSEMBLIES\L2-4-1 LIFTING PLATES ENGINE KR BUILD

    9802/6220 L2-4-1 LIFTING PLATES ENGINE KR BUILD

    Part
    Item Change No Description Usage Code QTY
    No

    1 02/634086 Plate engine lifting 2

    2 02/630187 Screw 2

    http://localhost:8033/Print/DrawingsPrint/ServicePartsPage%7C3d6e91fd-11a8-455b-... 21/06/2021
    Page 2 of 2

    Applicability Date Ranges:


    From: , To:

    http://localhost:8033/Print/DrawingsPrint/ServicePartsPage%7C3d6e91fd-11a8-455b-... 21/06/2021
    Page 1 of 2

    Product Catalog\BACKHOE LOADER 1CX, 208\1CX 00751600-00752999,00806000-00807552 9802/6220\L ENGINES 104.22, KR


    BUILD TO M807552\L03 INDUCTION & EXHAUST SYSTEMS\L3-1-1 MANIFOLD, INDUCTION KR BUILD

    9802/6220 L3-1-1 MANIFOLD, INDUCTION KR BUILD

    Part
    Item Change No Description Usage Code QTY
    No

    1 02/634071 Manifold induction 1

    2 02/634072 Gasket induction manifold 1

    http://localhost:8033/Print/DrawingsPrint/ServicePartsPage%7Ccbcd0858-2434-45f3-... 21/06/2021
    Page 2 of 2

    3 02/634073 Spacer 1

    4 02/634074 Gasket 1

    5 02/630089 Pin 2

    6 02/630095 Screw 8

    7 02/630787 Washer 2

    Applicability Date Ranges:


    From: , To:

    http://localhost:8033/Print/DrawingsPrint/ServicePartsPage%7Ccbcd0858-2434-45f3-... 21/06/2021
    Page 1 of 2

    Product Catalog\BACKHOE LOADER 1CX, 208\1CX 00751600-00752999,00806000-00807552 9802/6220\L ENGINES 104.22, KR


    BUILD TO M807552\L03 INDUCTION & EXHAUST SYSTEMS\L3-2-1 MANIFOLD, EXHAUST KR BUILD

    9802/6220 L3-2-1 MANIFOLD, EXHAUST KR BUILD

    Part
    Item Change No Description Usage Code QTY
    No

    1 02/634081 Manifold exhaust 1

    2 02/634082 Gasket exhaust manifold 1

    http://localhost:8033/Print/DrawingsPrint/ServicePartsPage%7C78b1df43-d523-4c3b-... 21/06/2021
    Page 2 of 2

    3 02/634083 Stud 2

    4 02/630078 Nut 2

    5 02/634084 Screw 6

    Applicability Date Ranges:


    From: , To:

    http://localhost:8033/Print/DrawingsPrint/ServicePartsPage%7C78b1df43-d523-4c3b-... 21/06/2021
    Page 1 of 2

    Product Catalog\BACKHOE LOADER 1CX, 208\1CX 00751600-00752999,00806000-00807552 9802/6220\L ENGINES 104.22, KR


    BUILD TO M807552\L03 INDUCTION & EXHAUST SYSTEMS\L3-3-1 FILTER, AIR

    9802/6220 L3-3-1 FILTER, AIR

    Part
    Item Change No Description Usage Code QTY
    No

    1 32/916400 Filter air 1

    2 :32/905001 Element air primary 1

    http://localhost:8033/Print/DrawingsPrint/ServicePartsPage%7C405ef7c5-7f24-4930-... 21/06/2021
    Page 2 of 2

    3 :32/905002 Element air safety 1

    4 :32/905303 Nut wing 1

    5 :32/911101 Seal moisture 1

    6 :32/905304 Valve safety 1

    7 701/36500 Switch Vacuum Sensor 1

    8 1315/0308Z Setscrew M8 x 30 2

    9 1425/0007Z Washer Washer 2

    10 823/00326 Washer M10 X 30mm 2

    11 141/00936 Mounting Resilient 2

    12 834/00625 Hose air induction 1

    13 2201/0014 Clip Worm Drive 1

    14 2201/0011 Clip Worm Drive 40/64mm 1

    Duct air
    15 647/04104 0
    100mm Length required

    16 2201/0012 Clip Jubilee, 46/70mm 2

    17 32/916300 Cap rain 1

    Filter pre-cleaner
    18 32/910300 1
    OPTIONAL EQUIPMENT

    19 :32/910301 Cover & wing nut 1

    20 ::32/910302 Nut wing 1

    21 :32/910303 Bowl 1

    22 :32/910304 Tube deflector 1

    Applicability Date Ranges:


    From: , To: M752691

    http://localhost:8033/Print/DrawingsPrint/ServicePartsPage%7C405ef7c5-7f24-4930-... 21/06/2021
    Page 1 of 2

    Product Catalog\BACKHOE LOADER 1CX, 208\1CX 00751600-00752999,00806000-00807552 9802/6220\L ENGINES 104.22, KR


    BUILD TO M807552\L03 INDUCTION & EXHAUST SYSTEMS\L3-3-2 FILTER, AIR

    9802/6220 L3-3-2 FILTER, AIR

    Part
    Item Change No Description Usage Code QTY
    No

    http://localhost:8033/Print/DrawingsPrint/ServicePartsPage%7C2ada4eb5-af21-46bd-... 21/06/2021
    Page 2 of 2

    1 32/916400 Filter air 1

    2 :32/905001 Element air primary 1

    3 :32/905002 Element air safety 1

    4 :32/905303 Nut wing 1

    5 :32/911101 Seal moisture 1

    6 :32/905304 Valve safety 1

    7 701/36500 Switch Vacuum Sensor 1

    8 1315/0308Z Setscrew M8 x 30 2

    9 1425/0007Z Washer Washer 2

    10 823/00326 Washer M10 X 30mm 2

    11 141/00936 Mounting Resilient 2

    12 834/00625 Hose air induction 1

    13 2201/0014 Clip Worm Drive 1

    14 2201/0012 Clip Jubilee, 46/70mm 1

    15 290/01304 Hose air induction 1

    16 2201/0013 Clip Jubilee 2

    17 290/71100 Tube air induction 1

    18 1315/0308Z Setscrew M8 x 30 2

    19 1425/0007Z Washer Washer 2

    20 1420/0007Z Washer (M8) 2

    21 826/01102 Nut M8 2

    22 32/916300 Cap rain 1

    Filter pre-cleaner
    23 32/910300 1
    OPTIONAL EQUIPMENT

    24 :32/910301 Cover & wing nut 1

    25 ::32/910302 Nut wing 1

    26 :32/910303 Bowl 1

    27 :32/910304 Tube deflector 1

    Applicability Date Ranges:


    From: M752692 , To:

    http://localhost:8033/Print/DrawingsPrint/ServicePartsPage%7C2ada4eb5-af21-46bd-... 21/06/2021
    Page 1 of 2

    Product Catalog\BACKHOE LOADER 1CX, 208\1CX 00751600-00752999,00806000-00807552 9802/6220\L ENGINES 104.22, KR


    BUILD TO M807552\L03 INDUCTION & EXHAUST SYSTEMS\L3-4-1 EXHAUST SYSTEM

    9802/6220 L3-4-1 EXHAUST SYSTEM

    Part
    Item Change No Description Usage Code QTY
    No

    1 290/01114 Pipe exhaust 1

    2 1315/0307Z Setscrew M8 X 25 4

    http://localhost:8033/Print/DrawingsPrint/ServicePartsPage%7C2c8466f9-b5dc-4ed5-... 21/06/2021
    Page 2 of 2

    3 1425/0007Z Washer Washer 4

    4 1420/0007Z Washer (M8) 4

    5 02/630338 Gasket 1

    6 246/01194 Tube exhaust expansion 1

    7 821/00476 Clamp sealing 2

    8 290/01115 Silencer exhaust 1

    9 246/01208 Band mounting 1

    12 1370/0203Z Nut Nut M8 2

    13 1420/0007Z Washer (M8) 2

    14 290/01116 Pipe exhaust extension 1

    15 261/00202 Clamp 'U' 1

    15A :1420/0007Z Washer (M8) 2

    15B :1425/0007Z Washer Washer 2

    Nut 5/16" UNF


    15C :1340/0103Z 2
    self lock nut

    16 1315/0305Z Setscrew M8 x 20 4

    17 1420/0007Z Washer (M8) 4

    Applicability Date Ranges:


    From: , To: M752691

    http://localhost:8033/Print/DrawingsPrint/ServicePartsPage%7C2c8466f9-b5dc-4ed5-... 21/06/2021

    You might also like
