45 Days Long Virtual Internship on Oil & Gas Industrial Practices

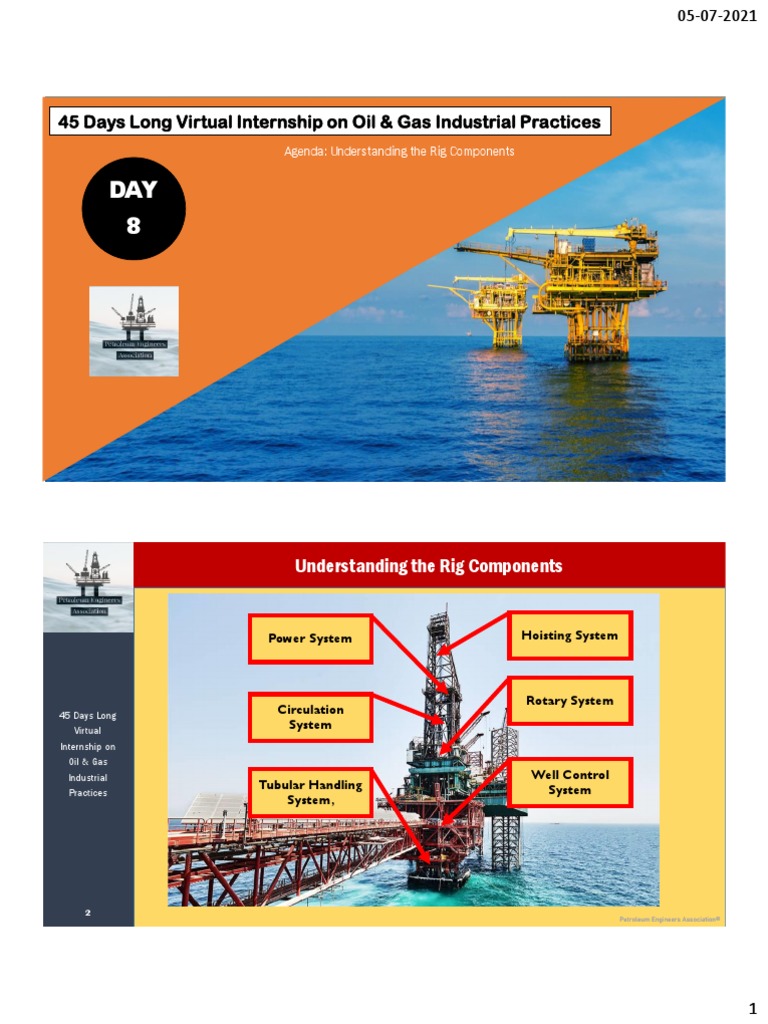

Agenda: Understanding the Rig Components

DAY
8

Understanding the Rig Components

Power System Hoisting System

Rotary System
45 Days Long Circulation
Virtual
System
Internship on
Oil & Gas
Industrial Well Control
Tubular Handling System
Practices
System,

2
Petroleum Engineers Association©

1
 05-07-2021

Derrick or Mast and Substructure

◊ DERRICK is a large load bearing structure, usually of bolted construction. The standard derrick has
four legs standing at the corners of the substructure.

45 Days Long
Virtual
Internship on
Oil & Gas
Industrial
Practices

3
Petroleum Engineers Association©

Derrick or Mast and Substructure

◊ MAST is a portable derrick that can be raised as unit. For transporting by land, the mast can be
divided into two or more section.

45 Days Long
Virtual
Internship on
Oil & Gas
Industrial
Practices

4
Petroleum Engineers Association©

2
 05-07-2021

Derrick or Mast and Substructure

◊ SUBSTRUCTURE is the foundation in which the derrick or mast and usually the Drawworks sit. It
contains space for storage and well control equipment.

45 Days Long
Virtual
Internship on
Oil & Gas
Industrial
Practices

5
Petroleum Engineers Association©

Prime Movers are a Source of Power

45 Days Long
Virtual
Internship on
Oil & Gas
Industrial
Practices

6
Petroleum Engineers Association©

3
 05-07-2021

Power System – Prime Movers

45 Days Long
Virtual
Internship on
Oil & Gas
Industrial
Practices

7
Petroleum Engineers Association©

Hoisting System

45 Days Long
Virtual
Internship on
Oil & Gas
Industrial
Practices

8
Petroleum Engineers Association©

4
 05-07-2021

Rotating System - Swivel

◊ The rotary tool that is hung from the hook of the traveling block to suspend the drillstring and permit
it to rotate freely.

◊ It also provides connection for the rotary hose and provide passageway for the flow of drilling fluid into
the drillstem.

45 Days Long
Virtual
Internship on
Oil & Gas
Industrial
Practices

9
Petroleum Engineers Association©

Rotating System - Kelly Spinner

◊ A pneumatically controlled device mounted below the Swivel that when actuated causes the Kelly to
spin.

45 Days Long
Virtual
Internship on
Oil & Gas
Industrial
Practices

10
Petroleum Engineers Association©

5
 05-07-2021

Rotating System - Kelly

◊ The heavy steel member, usually four or six-sided that is suspended from the Swivel through the Rotary
Table and connected to the topmost joint of drillpipe to turn the drill stem as the rotary table turns.

◊ It has a bored passageway that permits fluid to be circulated into the drill stem and up the annulus or
vise versa.

45 Days Long
Virtual
Internship on
Oil & Gas
Industrial
Practices

11
Petroleum Engineers Association©

Rotating System – Rotary Table

◊ Equipment used to turn the drill stem and support the drilling assembly.

◊ It has a beveled gear arrangement to create the rotational motion and opening into which bushings are
fitted to drive and support the drilling assembly.

45 Days Long
Virtual
Internship on
Oil & Gas
Industrial
Practices

12
Petroleum Engineers Association©

6
 05-07-2021

Circulating System

45 Days Long
Virtual
Internship on
Oil & Gas
Industrial
Practices

13
Petroleum Engineers Association©

Circulating System

45 Days Long
Virtual
Internship on
Oil & Gas
Industrial
Practices

14
Petroleum Engineers Association©

7
 05-07-2021

Circulating System – Solids Control System

45 Days Long
Virtual
Internship on
Oil & Gas
Industrial
Practices

15
Petroleum Engineers Association©

Tubular and Tubular Handling Equipment

◊ Tubular are made of the following equipment:

1. Drill Pipe

2. Drill Collar

3. Heavy Weight Drill Pipe (HWDP)

45 Days Long
Virtual
4. Kelly
Internship on
Oil & Gas
5. Subs
Industrial
Practices

16
Petroleum Engineers Association©

8
 05-07-2021

Tubular and Tubular Handling Equipment

45 Days Long
Virtual
Internship on
Oil & Gas
Industrial
Practices

17
Petroleum Engineers Association©

Tubulus handling at the Rig Floor

45 Days Long
Virtual
Internship on
Oil & Gas
Industrial
Practices

18
Petroleum Engineers Association©

9
 05-07-2021

Drill Bit

45 Days Long
Virtual
Internship on
Oil & Gas
Industrial
Practices

19
Petroleum Engineers Association©

Drilling Progress Chart
