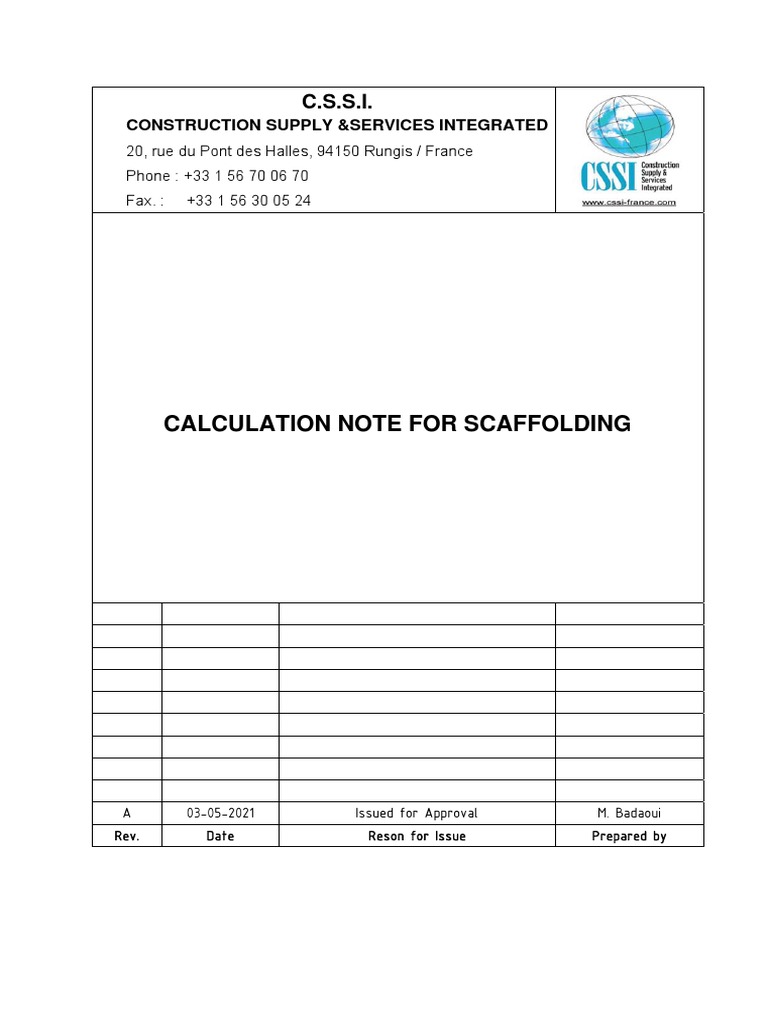

C.S.S.I.
CONSTRUCTION SUPPLY &SERVICES INTEGRATED

20, rue du Pont des Halles, 94150 Rungis / France
Phone : +33 1 56 70 06 70
Fax. : +33 1 56 30 05 24
CALCULATION NOTE FOR SCAFFOLDING
A 03-05-2021 Issued for Approval M. Badaoui

Rev. Date Reson for Issue Prepared by
Company : Construction Supply & Services Integrated (CSSI) Document :
Calculation Note for Scaffolding
Adress : 20, rue du Pont des Halles, 94150 Rungis / France
Phone : +33 156700670 Date : Rev. :
Fax : +33 156300524 03/05/2021 A
Project : CSSI Scaffolding Prepared by : Pages :
Client : Petrofac M. Badaoui 2/8
____________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
Table of Contents
1. Introduction ............................................................................................................ 3
2. Reference documents .................................................................................................. 3
3. Materials ............................................................................................................... 3
3. Loads definition ....................................................................................................... 4
3.1. Dead load ........................................................................................................... 4
3.2. Live load ............................................................................................................ 4
3.3. Wind load ........................................................................................................... 4
3.4. Load Combinations .................................................................................................. 4
4. Analysis ................................................................................................................ 5
4.1. Introduction ......................................................................................................... 5
4.2. Section class ....................................................................................................... 6
4.3. Combined : LIVE + WIND ............................................................................................ 6
4.4. Vertical tube : DEAD + LIVE ....................................................................................... 7
4.5. Horizontal tube : DEAD + LIVE .................................................................................... 8
4.6. Tiling moment ....................................................................................................... 8
Phone : +33 156700670 Date : Rev. :
Fax : +33 156300524 03/05/2021 A
____________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
1. Introduction
The scope of this documents is the determination of loads applied at scaffolding system and the
checking of its stability.
2. Reference documents
g). Certificate of Declaration of Conforrnity Steel pipe Ø48.6 x t2.2mm.
h). Compare the strength of the BS and KS Scaffold tube.

g). DTR-C-2-47 Règlement Neige et Vent (RNV 2013), Algeria.
3. Materials
The characteristics of the pipe Ø48.6 x t2.2mm are given as below :
External diameter : D= 48.60 mm

Thickness : t= 2.20 mm
Area : A= 320.69 mm2
Moment of inertia : I= 86499.13 mm4
Elastic section modulus : Wel = 3559.63 mm3
Plastic section modulus : Wpl = 4740.06 mm3
Radius of gyration : i := 16.42 mm
Younf modulus : E= 210.00 Gpa
Yield stress : fy = 365.00 MPa
Phone : +33 156700670 Date : Rev. :
Fax : +33 156300524 03/05/2021 A
____________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
3. Loads definition
3.1. Dead load

The dead load is constituted by the weights of the scaffoldi,ng pipes and circulation panels (DL).
3.2. Live load

Is constituted by working circulation and tools (LL). It’s considered here as distributed load over the
circulation panels. The valuie is 0.20 kN/m2.
3.3. Wind load

Two (02) cases of wind loads (WL) are considered :
- working wind depends of the wind zone from RNV 2013 :
Ouargla - zone 3 : qref = 0.50 kN/m2.
- Maximum wind condition : qmax = 0.77 kN/m2.
3.4. Load Combinations

Two (02) states are considered :
- Service Load State (SLS) (Unfactored Loads);
- Ultimate Load State (ULS) (Factored Loads).
SLS (Unfactored Loads):
1.00 * DL + 1.00 * FL + 1.00 * LL
ULS (Factored Loads):
1.35 * DL + 1.5 * WL
1.35 * DL + 1.50 * LL
1.35 * DL + 1.5 * LL + 1.5 * WL
Phone : +33 156700670 Date : Rev. :
Fax : +33 156300524 03/05/2021 A
____________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
4. Analysis
4.1. Introduction
The configuration of the formwork is described in the following figure.
Figure 1 : Scaffolding configuration.

Three (03) types of scaffolds are used :
Phone : +33 156700670 Date : Rev. :
Fax : +33 156300524 03/05/2021 A
____________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
(a). Type 00. (b). Type 01. (c). Type 02.

Figure 2 : Scaffold types.
4.2. Section class
/ 48.6/2.2 = 22.09
= 0.80 D/t < 50ε => Class 1
50 ε = 40.12
4.3. Combined : LIVE + WIND

Moment capacity : ,
with 1.1
and , 1572.84 .
Design moment : /8
with 0.9
with wind pression
and 2 ∗ 1.80 is length between façade ties.
Designation Type 00 Type 01 Type 02

Mc,Rd (N.m) 1572.84 1572.84 1572.84
Maximum wind conditions MEd (N.m) 505.20 505.20 505.20
Phone : +33 156700670 Date : Rev. :
Fax : +33 156300524 03/05/2021 A
____________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
0.32 0.32 0.32

Ratio 1 = MEd/MEd
OK OK OK
Working conditions MEd (N.m) 328.05 328.05 328.05
0.21 0.21 0.21
Ratio 1 = MEd/MEd
OK OK OK

Permissible normal load : ,
with 1.1
and , 58.53
Design normal load: 1.35 ∗ : Dead load for maximum wind condition.
1.35 ∗ 1.5 ∗ : Dead load + Live load for working condition.
For Live load in working condition, we consider 100% of LL of 1 level and 50% of the second level.

Nc,Rd (N.m) 58.53 58.53 58.53
Maximum wind conditions NEd (N.m) 19.05 29.66 28.99
0.33 0.51 0.50
Ratio 2 = NEd/NEd
OK OK OK
Working conditions NEd (N.m) 20.06 30.68 30.01
Ratio 2 = NEd/NEd 0.34 0.52 0.51
OK OK OK
The total ratio MEd/MEd + NEd/NEd is given by :

Maximum wind conditions 0.65 0.83 0.82
Ratio 1 + Ratio 2
OK OK OK
Working conditions 0.55 0.73 0.72
Ratio 1 + Ratio 2
OK OK OK
4.4. Vertical tube : DEAD + LIVE

Nc,Rd (N.m) 58.53 58.53 58.53
NEd (N.m) 19.95 30.56 29.89
Ratio = NEd/NEd 0.34 0.52 0.51
Phone : +33 156700670 Date : Rev. :
Fax : +33 156300524 03/05/2021 A
____________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
OK OK OK
4.5. Horizontal tube : DEAD + LIVE

For bending moment :

Mc,Rd (N.m) 1572.84 1572.84 1572.84
MEd (N.m) 400.36 400.36 400.36
0.25 0.25 0.25
Ratio = MEd/MEd
OK OK OK
For deflection :
The deflection is calculated by :

δ and EC3 chap. 6.3

and the results are exposed below :

δlim (mm) 3.33 3.33 3.33
δ (mm) 0.46 0.46 0.46
δ < δlim OK OK OK
4.6. Tiling moment

Moment due to dead load (favourable) is compared to moment due to maximum wind load (unfavorable).
Moment due to Dead load MDL (kN.m) 14.11
Moment due to maximum wind MWL (kN.m) 8.01
MDL > MWL OK
To ensure stability against wind, the scaffolding must be braced top adjacent wall.
