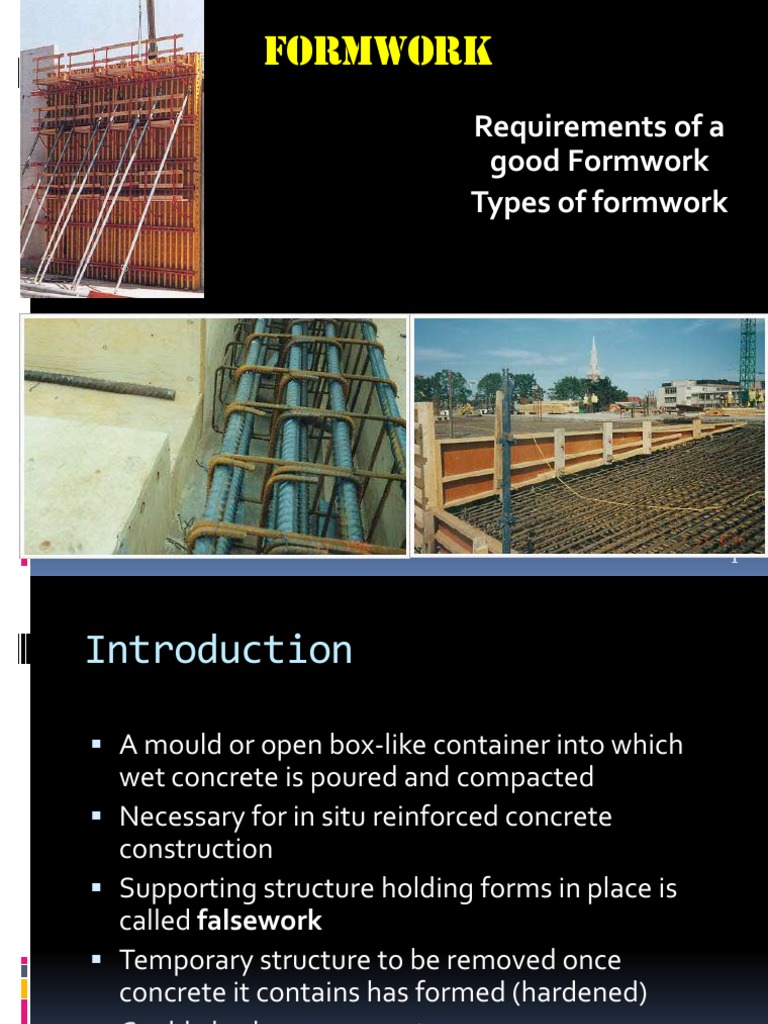

Formwork

Requirements of a
good Formwork
Types of formwork

1
Introduction

 A mould or open box-like container into which

wet concrete is poured and compacted
 Necessary for in situ reinforced concrete
construction
 Supporting structure holding forms in place is
called falsework
 Temporary structure to be removed once
concrete it contains has formed (hardened)
 Could also be permanent

2
In-situ Reinforced Concrete Process

Lumber

Plywood sheet

3
In-situ Reinforced Concrete Process

Form Components

4
In-situ Reinforced Concrete Process

Ground level

5
 In-situ Reinforced Concrete Process

Base form

6
 In-situ Reinforced Concrete Process

Concreting
of base

7
In-situ Reinforced Concrete Process

Stump form

8
 In-situ Reinforced Concrete Process

Concreting of
stump

9
 In-situ Reinforced Concrete Process

Ground
beam form

10
 In-situ Reinforced Concrete Process

Concreting of
ground beam

11
In-situ Reinforced Concrete Process

Column form

12
In-situ Reinforced Concrete Process

Concreting
of column

13
 In-situ Reinforced Concrete Process
Slab/beam formwork

14
In-situ Reinforced Concrete Process

15
16
Basic requirements of formwork

 Quality
 Safety
 Economy

17
Quality

 Accuracy
 Produce accurate shape, size and
alignment of structure
 Designer should specify allowable
dimensional tolerance

18
Quality

 Rigidity
 Resist any distortion during concreting
therefore formwork should be
supported, tied, braced

19
Quality

 Watertight joints
 loss of water, cement and fines affect
final strength of concrete
 affect appearance, honeycombs, uneven
colour
 Less rectification costs

20
Quality

 Good surface finish

 formwork surface in contact with
concrete should be even
 no screws, nails
 To achieve good surface application
apply mould oils called release agents

21
Safety

 Withstand load of wet concrete, operatives

and equipments
 An unsafe formwork create insecure working
conditions thus resulting in inefficiency of
workers and reduce output

22
Safety

 Provide adequate foundations – place

mudsills under all shoring
 Check surrounding excavations to ensure
that formwork does not fail due to
embankment failure
 Provide adequate bracings

23
Safety

24
Safety

26
Safety

27
Economy

 Of three elements in concrete structures –

concrete, reinforcement, formwork
 Formwork generally the most expensive

 Formwork – high % of labour

28
Economy

Formwork:Labour and
Concrete:Labour and equip(39%) material
equip(8%):material (10%)
(24%) 49%
32%

Reinforcemet:Labour
andequip(7%):material
(12%)
19%

29
Economy

 Factors influencing cost

 Material
 Labour
 Time

30
Economy

Factors to achieve economy

 Standardisation
 Simplification
 Less labour
 Less time
 Reusability

31
Economy

 Standardisation (Designing stage)

 Identical bay spacing
 Standardise column and beam sizes

32
Economy

 Simplification
 Easy installation and removal of
formwork and all joints and supports
therefore less labour and time
 Easy handling size therefore less labour

33
Economy

 Reusability
 Durable material
 Design for ease of striking without
damage therefore more number of times
of uses

34
Types of Formwork

Categorised by material
 Timber
 Metal eg. steel and aluminium
 Plastic (PVC) and GRP (glass reinforced plastics)
 Laminated paper products (cardboards)
 Fiber cement materials moulded to shape
 Pre-cast concrete units used as permanent
formwork

35
Timber Formwork

 Most common material

 plywood and boards
 Versatile
 Readily available

36
Timber Formwork

 Advantage
 Custom manufactured in large panel
sizes
 Curved for special shapes
 Reuse many times

37
Timber Formwork

 Disadvantage
 Liable to damage at corners and edges
 Wear out quicker
 Greater chance of leakage for boards
 Variability of absorbency

38
Plywood

 Varies in thickness from 12 to 20 mm

 Common sheet sizes – 2400×1200 mm,
1800×900 mm
 Produce smooth concrete surface
 Coated in each face with phenolic resin film
or has a face layer of resin impregnated
paper
 Does not absorb water from wet concrete

39
Timber Formwork

Timber boards

 Sawn timber boards – thickness 25 to 65 mm,

widths 70 to 250 mm

 Commonly used as edge boarding for concrete

cast on ground, road pavement, kerbs
foothpaths, fllor slabs and footing beams

40
Metal Formwork

 Mainly proprietary system, consists of stiff metal

sheets and edges, mechanically handled and self
climbing formwork
 Use where high stresses occur
 Steel sections as a frame for plywood sheeting
 Steel plate may be used to replace plywood
sheeting for repeated number of uses
 Panels are made in a range of sizes and shapes
for the convenience of other combinations

41
Metal Formwork

Advantage:
 Stiff and durable thus advantageous for reuse
 Closer tolerance
 Aluminium- for light weight construction

Disadvantage:
 Chemical reaction with fresh concrete which
may cause adverse effect to concrete properties

42
Types of Formwork

Categorised by shape
 Column formwork
 Beam formwork
 Floor slab formwork
 Wall formwork

45
Column Form

Bracing

46
Column Form

47
Beam and Slab Form

48
Forms for Elevated Slab

51
Mudsills

52
Staircase Form

53
Typical Wall Form

Double wales used and ties

inserted in between

Bracing to prevent form

movement

54
Formwork Ties

56
Formwork Ties

57
Formwork Ties

58
Formwork Ties

Tie Rods

59
 Formwork Systems

 A special formwork constructed as a system

 System is usually proprietary
 Usually made of metal
 Need machinery for handling

60
Formwork Systems

 Selecting forming systems is critical because

it affects
 speed of construction
 building cost
 Some prefabricated forming systems can
improve construction efficiency by saving
time and money

61
Column Formwork System

63
Column Formwork System

64
Column Formwork System

Slacken off column spanner

and open first column frame

65
Column Formwork System

Release second frame

from concrete

66
Column Formwork System

Suspend formwork from crane

and shift to the next point of
use

67
Column Formwork System

Frames can be
adjusted to required
size of formwork

68
Column Formwork System

69
Climbing Formworks

70
Climbing Formworks

The retracted bracket allow

you to work safely within the
protection of the formwork –
finishing platform

71
Selection of Types of Formworks

Factors to be considered
 Cost of construction (materials and labour)
 Easy installation and removal
 Reusability
 Safety
 Requirements of decorative finishes
 Availability of materials, instruments (lifting) and
labour

75
Permanent Formwork

 A structural element used to mould concrete

and left in place for the life of the structure
 Contribute to strengthening of structure
 Provide additional benefits eg. improved
durability, finish or insulation property
 Improve safety by reducing hazards during
construction

76
 General Safety Measures
 Used only materials approved (specifications/no
defect).
 Form - strong, properly supported (shores, braces).
 Pre-casting inspection - to check strength and stability
of forms.
 Install perimeter barriers (no visitors/vehicles).
 Inside surfaces of forms - oiled to ease strippings.
 No other unnecessary materials or equipment.
 Safety precautions signboards must be installed.
