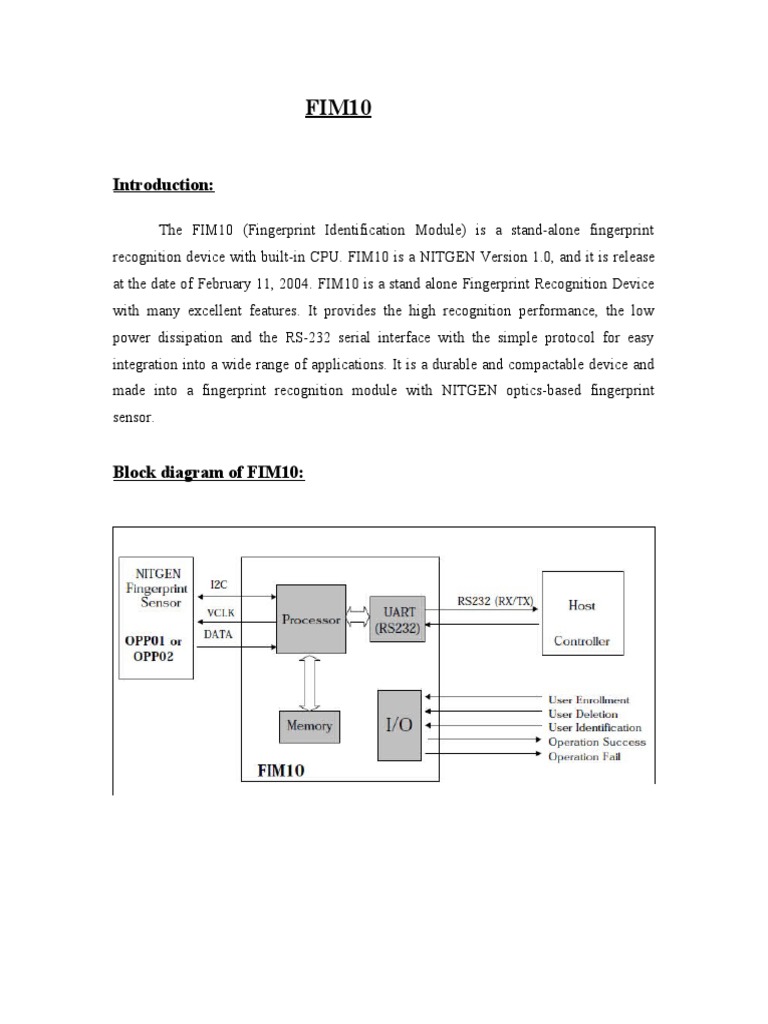

FIM10

Introduction:

The FIM10 (Fingerprint Identification Module) is a stand-alone fingerprint

recognition device with built-in CPU. FIM10 is a NITGEN Version 1.0, and it is release
at the date of February 11, 2004. FIM10 is a stand alone Fingerprint Recognition Device
with many excellent features. It provides the high recognition performance, the low
power dissipation and the RS-232 serial interface with the simple protocol for easy
integration into a wide range of applications. It is a durable and compactable device and
made into a fingerprint recognition module with NITGEN optics-based fingerprint
sensor.

Block diagram of FIM10:

 Here we have two FIM10 series; those are FIM10-HV and FIM10-LV.

FIM10-HV:

Features and specifications:

Board Spec : S3C2410 (ARM9), 8MB SDRAM, 1MB Flash

Dimension : 43 x 60mm

Sensor : NITGEN OPP01MM2

Supply Voltage : 5V DC ± 200mV

Current Consumption : 60mA (Idle) ~ 210mA (Operation)

Operating Temperature : -20degree centigrade to ~ 60degree centigrade

Humidity : 5%~95%

ESD Tolerance : > ± 10KV

Communication Speed : 9600 ~ 115200bps

External I/O : 3 input port, 2 output port

Reserved user port (Option)

Captured Image Size : 356 x 292

Capture Speed : 0.4(normal) / 0.7(secure) sec

Verification Speed : 1.2 sec (Capture + Extract + Match)

Data Encryption Method : AES in flash memory

Special Function : Fast identification, Cancel, Adaptive Capture

for dry, wet, small finger
FIM10-HV External Port:

JTAG Connector (JP1)

JP1 (JTAG connector) is used only for development or emergency recovery. So FIM10
having no JP1 connector is delivered.

OPP01 9Pin Connection (JP2)

9-Pin External Connector (JP3)

I/O port operation Condition

Reserved Port for future use (JP4)

This port is having 9 pins. The first pin is for 5V Vcc and the 9th pin is for GROUND.
This connector is reserved for future use.

Cable for Sensor:

It is a 9 pin connector. All pins must be connected according to signal name and line
color.
FIM10-LV:

Features and specifications:

Board Spec : S3C2410 (ARM9), 8MB SDRAM, 1MB Flash

Dimension : 43 x 60mm

Sensor : NITGEN OPP02MM1

Supply Voltage : 3.3V

Current Consumption : 60mA (Idle) ~ 200mA (Operation)

Operating Temperature : -20degree centigrade ~ 60degree centigrade

Humidity : 5%~95%

ESD Tolerance : > ± 10KV

Communication Speed : 9600 ~ 115200bps External I/O 3 input port, 2 output

Reserved user port (Option)

Captured Image Size : 398 x 300

Capture Speed : 0.4(normal) / 0.7(secure) sec

Verification Speed : 1.2 sec (Capture + Extract + Match)

Boot Up Time : 0.34 sec

Data Encryption Method : AES in flash memory

Special Function : Fast identification, Cancel, Adaptive Capture

for dry, wet, small finger

FIM10-LV External Port:

 JTAG Connector (JP1)
JP1 (JTAG connector) is used only for development or emergency recovery. So FIM10
having no JP1 connector is delivered

OPP02 Connector – J2 (9pins)

9-Pin External Connector (JP3)

I/O port operation Condition

Reserved Port for future use (JP4)

This port is having 9 pins. The first pin is for 3.3V Vcc and the 9th pin is for GROUND.
This connector is reserved for future use.

Cable for Sensor:

The cable of FIM10-LV is identical with the cable of FIM10-HV

Applications:

 Door-Lock System
 Safe Box
 Simple Access Controller
 Vehicle Control
 ATM, POS, and more
