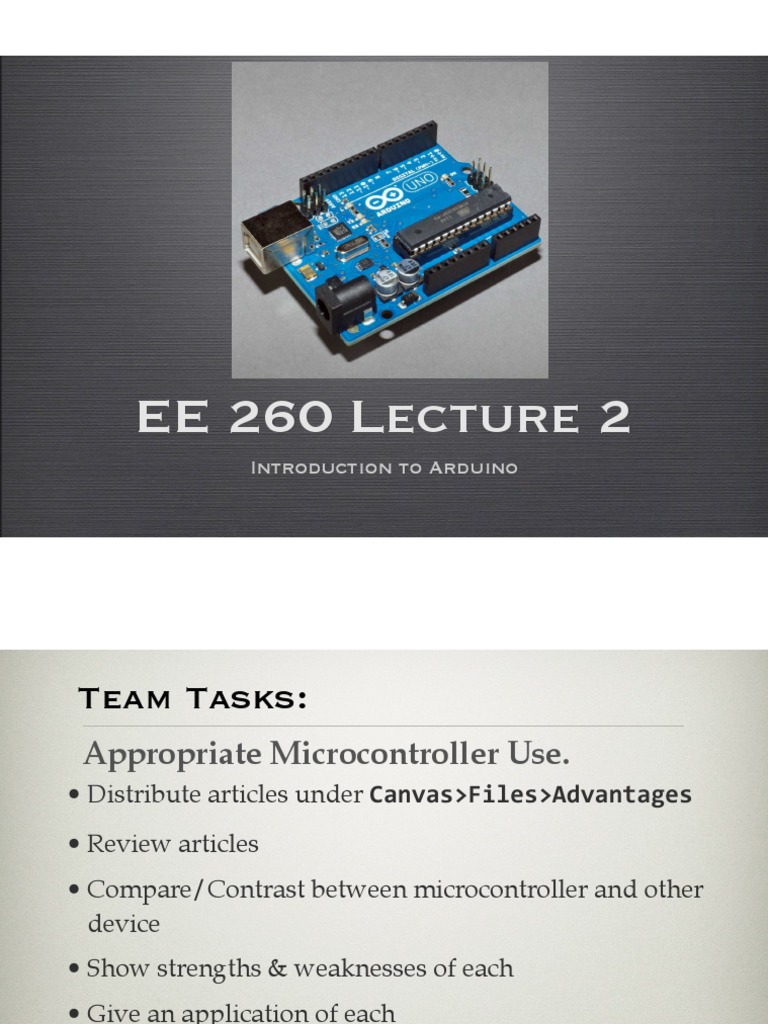

    EE 260 Lecture 2

    Introduction to Arduino
    Team Tasks:
    Appropriate Microcontroller Use.
    • Distribute articles under Canvas>Files>Advantages!
    • Review articles!
    • Compare/Contrast between microcontroller and other
    device!
    • Show strengths & weaknesses of each!
    • Give an application of each!
    • Prepare for a Presentation on the scheduled date.
    EE 260 Lecture 2: Introduction to Arduino
    Possible Applications
    Would either be able to control…?
    • OBD II (On Board Diagnostics) reader/controller!
    • Whole Home Automation (with appropriate light
    switches/plugs)!
    • MIDI device!
    • MP3 playing!
    • Dishwasher!
    • Password Cracker
    EE 260 Lecture 2: Introduction to Arduino
    Examples
    • What is an application for which the device is
    OVERKILL?!
    • What is an application for which the device is
    inadequate?

    EE 260 Lecture 2: Introduction to Arduino


    Team Tasks:
    Appropriate Microcontroller Use.
    Comparison
    µC vs. ASIC
    µC vs. CPLD
    µC vs. DSP
    µC vs. FPGA
    µC vs. PLC
    µC vs. µP

    EE 260 Lecture 2: Introduction to Arduino


    Team Tasks:
    Compare/Contrast at least 5 of the following:
    1. Computational 5. Ease of 9. Communication
    Power! Interfacing with other
    2. Ease of (analog & dig.)! devices!
    Programming! 6. Overall system 10.Timer/Counter
    3. Speed of cost! Functions!
    Operation! 7. Reconfiguration! 11. Handling media!
    4. Interrupts! 8. Versatility! 12.Overall time
    required

    EE 260 Lecture 2: Introduction to Arduino


    Arduino
    Overview
    Arduino Uno

    EE 260 Lecture 2: Introduction to Arduino


    Arduino Uno

    EE 260 Lecture 2: Introduction to Arduino


    Compatibles

    EE 260 Lecture 2: Introduction to Arduino


    Shields

    EE 260 Lecture 2: Introduction to Arduino


    GPIO
    • General Purpose Input/Output!
    • Can be used as digital input or output!
    • Each pin uniquely assignable.!
    • “Analog” (PWM) output on digital pins
    3,5,6,9,10,11!
    • Analog pins 0-5 can also be used as GPIO.

    EE 260 Lecture 2: Introduction to Arduino


    Digital Inputs

    Discrete!
    Inputs

    EE 260 Lecture 2: Introduction to Arduino


    Digital Inputs: I2C

    SDA

    SCL

    EE 260 Lecture 2: Introduction to Arduino


    Digital Inputs: SPI

    EE 260 Lecture 2: Introduction to Arduino


    Digital Inputs: SPI

    Arduino Device

    EE 260 Lecture 2: Introduction to Arduino


    Analog Inputs
    • Takes a continuous-valued input signal from 0-5v!
    • Assigns the input a value from 0-­‐1027
    INPUT inside
    Arduino

    5v 1027

    EE 260 Lecture 2: Introduction to Arduino


    “Analog” Outputs: PWM
    • PWM is defined in terms of its period and its duty
    cycle.

    ton
    period – T
    ton
    Duty Cycle: = 100 ⇥ (%)
    T
    EE 260 Lecture 2: Introduction to Arduino
    “Analog” Outputs: PWM

    PWM Signal LED

    EE 260 Lecture 2: Introduction to Arduino


    Hardware & Software

    Software

    • Arduino IDE!
    • C/C++!
    • ASM

    EE 260 Lecture 2: Introduction to Arduino


    Software Comparison

    Arduino IDE C/C++ ASM

    Ease of
    Easy Moderate Challenging
    Development

    Libraries Many Many None

    Speed SLOW Fast FAST as Possible

    Accessibility of
    processor Very Limited Most ALL
    features

    EE 260 Lecture 2: Introduction to Arduino


    Software: Arduino IDE
    • Free software!
    • Download from!
    • http://arduino.cc/en/Main/Software
    • Available for Mac, Windows, Linux

    EE 260 Lecture 2: Introduction to Arduino
