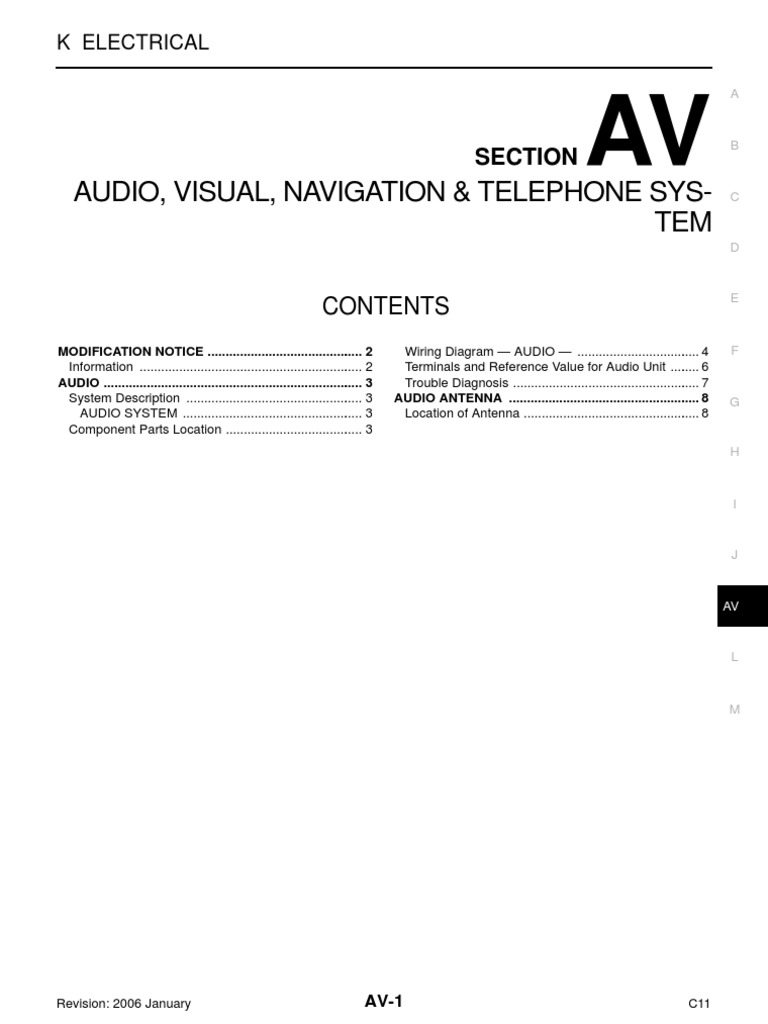

AUDIO, VISUAL, NAVIGATION & TELEPHONE SYSTEM

K ELECTRICAL

AUDIO, VISUAL, NAVIGATION & TELEPHONE SYS-

SECTION AV B

TEM
D

CONTENTS
MODIFICATION NOTICE ............................................ 2
Information ............................................................... 2
AUDIO ......................................................................... 3
System Description .................................................. 3
AUDIO SYSTEM ................................................... 3
Component Parts Location ....................................... 3
E
Wiring Diagram — AUDIO — ................................... 4 F
Terminals and Reference Value for Audio Unit ......... 6
Trouble Diagnosis ..................................................... 7
AUDIO ANTENNA ...................................................... 8 G
Location of Antenna .................................................. 8
H

AV

Revision: 2006 January AV-1 C11

 MODIFICATION NOTICE

MODIFICATION NOTICE PFP:00000

Information GKS003M2

Wiring diagram has been changed. (Tweeter has been added.)

Revision: 2006 January AV-2 C11

 AUDIO

AUDIO PFP:28111
A
System Description GKS000O9

AUDIO SYSTEM
For details of audio system operation procedure, refer to owner's manual. B
Component Parts Location GKS000OA

AV

SKIB7282E
L

Revision: 2006 January AV-3 C11

 AUDIO

Wiring Diagram — AUDIO — GKS000OB

LHD MODELS

TKWT4765E

Revision: 2006 January AV-4 C11

 AUDIO

RHD MODELS
A

AV

TKWT4766E

Revision: 2006 January AV-5 C11

 AUDIO

Terminals and Reference Value for Audio Unit GKS000OD

Terminal
Signal Condition
(Wire color)
Item input/ Reference value
output Ignition
+ – Operation
switch

2 (W) 3 (BR) Audio signal front LH Output ON Receive audio signal

SKIB3609E

4 (W) 5 (R) Audio signal rear LH Output ON Receive audio signal

SKIB3609E

7 (L) Ground ACC power supply Input ACC – Battery voltage

9 (V)*1 Lighting switch ON Approx. 12 V

*2
Ground Illumination signal Input ON
(GR) Lighting switch OFF Approx. 0 V

12 (SB)*1
11 (G) Audio signal front RH Output ON Receive audio signal
(R)*2

SKIB3609E

13 (LG) 14 (GR) Audio signal rear RH Output ON Receive audio signal

SKIB3609E

19 (BR) Ground Battery power supply Input OFF – Battery voltage

Antenna amp. ON
41 Ground Output ON – Approx. 12 V
signal
42 – Antenna signal – – – –
*1: Except for Australia
*2: For Australia

Revision: 2006 January AV-6 C11

 AUDIO

Trouble Diagnosis GKS000OE

A
● The majority of the audio malfunctions are the result of outside causes (bad cassette, electromagnetic
interference, etc.). Check the symptoms below to diagnose the malfunction.
● The vehicle itself can be a source of noise if noise prevention parts or electrical equipment is malfunction-
ing. Check if noise is caused and/or changed by engine speed, ignition switch turned to each position, and B
operation of each piece of electrical equipment, and then determine the cause.
Symptom Check item
C
● Audio unit power supply circuit
Audio system does not work properly.
● Audio unit
No sound can be heard from all speakers. Audio unit D
● Open or short in audio signal circuit between audio unit and
speaker
● Front door speaker E
No sound can be heard from one or several speakers.
● Rear door speaker
● Tweeter
● Audio unit F
● Antenna amp. ON signal
● Antenna feeder
G
No sound can be heard from radio or noise is caught. ● Antenna amp.
● Antenna
● Audio unit H
NOTE:
Noise resulting from variations in field strength, such as fading noise and multi-path noise, or external noise
from trains and other sources. It is not a malfunction. I
● Fading noise: This noise occurs because of variations in the field strength in a narrow range due to moun-
tains or buildings blocking the signal.
● Multi-path noise: This noise results from the waves sent directly from the broadcast station arriving at the J
antenna at a different time from the waves that reflect off of mountains or buildings.

AV

Revision: 2006 January AV-7 C11

 AUDIO ANTENNA

AUDIO ANTENNA PFP:28200

Location of Antenna GKS000OJ

SKIB7298E

Revision: 2006 January AV-8 C11
