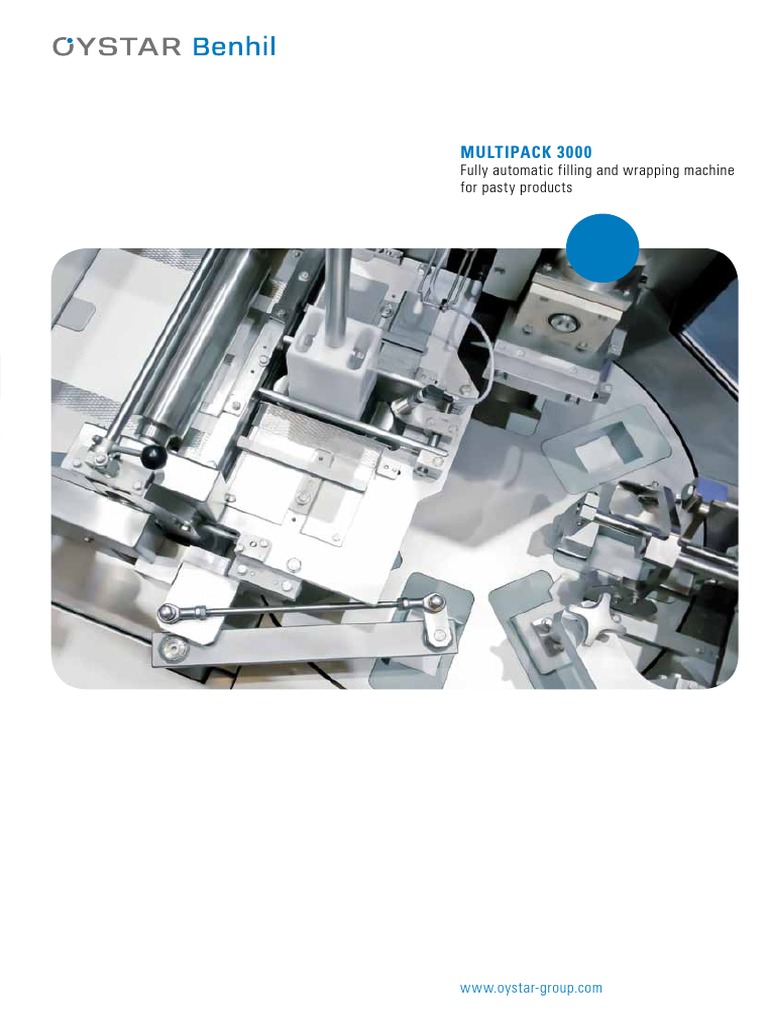

MULTIPACK 3000

Fully automatic filling and wrapping machine

for pasty products

www.oystar-group.com
The most flexible one worldwide:
Filling and Wrapping Machine Multipack 3000

With a speed of up to 100 packets per minute and an extraordinary range of filling weights
between 50 and 1000 g, the single-cell machine Multipack 3000 offers the highest flexibility
worldwide for wrapping pasty type products. This machine can be equipped with a CIP
cleanable dosing system which fulfills industry standard hygienic requirements. In common
with all the other OYSTAR Benhil filling and wrapping machines, the Multipack 3000 is
characterized by exceptional filling accuracy, extremely high reliability, and a long service life.

Multipack 3000 – all advantages at a glance

• The Multipack 3000 which combines 100 years’ experience in the design and manufacture
of filling and wrapping machines with the latest control and manufacturing technologies,
provides ultimate operating convenience and a most robust machine concept

• The Multipack 3000 has an output of up to 100 packets per minute, with an outstanding
filling accuracy, and an efficiency of almost 100 %. These features result in highest producti-
vity and vastly improve the machine user’s competitive edge

• Size flexibility within the weight range of 50 –1000 g with very short change-over times

• The servo-driven wrapping material advance system plus the ability to integrate all current
date coders guarantee precise wrapper registration and artwork centering

• Reduced cleaning intervals due to CIP cleanable dosing and CIP cleanable product feed
systems (optional)

• The modular machine concept allows easy and low-cost conversion and retrofitting
of individual modules

• Computer-optimized drive cams ensure quiet and gentle machine movements

• Several product feed options are available: Direct feed from the upstream equipment
with corresponding signal exchange, trough with separately driven feed worms, and product
hopper with or without press worm

• Packet folding with distinctive, sharp edges due to filling level control at the dosing station
and stepless adjustment of pressure at the calibrating station

• At a later stage the Multipack 3000 can be adapted for different wrapping materials
and packet sizes for all types of bottom and length side folds by simple replacement of
the individual folders or of the complete folding station

• Standard packet shapes: brick / cube, optional also rolls, round, oval, and triangular
shapes possible

• Centralized lubrication (optional) and the use of numerous maintenance-free components

considerably reduce greasing requirements

• Ease of operation and maintenance due to best access to all machine parts
Product area Wrapper feeding system Wrapper bag forming and dosing
 4 5 6 7 8
12
13
11

9
3
7
2 14
1 3 15
10
8

20 10 19 4 5 6 18 17 16

1 Wrapping material reel 6 Folding plunger 11 Switch cabinet 16 Discharge conveyor belt
2 Wrapping material buffer store 7 Dosing 12 Product feed 17 Turntable
3 Adhesive tape detection 8 Calibrating station 13 Compensating piston 18 Discharge unit
4 Scanning mark detection 9 Operating panel 14 Cell 19 Safety guarding
5 Wrapper advance 10 Wrapper brake 15 Folding 20 Cutting strip

2370 mm
980 mm
810 mm
2100 mm

2600 mm

1780 mm

2620 mm
3270 mm
Technical Details
Fill product Butter, margarine, edible fats, fresh cheese, other pasty products
Product feed Direct feed from the upstream equipment, product hopper, or trough with feed worms OYSTAR Benhil delivery program
Dosing range 50 –1000 g • Fully automatic filling and wrapping
Wrapping material Parchment, aluminium laminated foil, plastic coated papers, other materials machines
on request • Fully automatic tub filling and closing
Folding Bottom or length side fold
machines
Wrapper registration Photo-electric, for wrapper with printed scanning marks
• Cartoners and case packers
Date coding By laser printer, inkjet, thermal transfer printer
• Reconditioned machines
Nominal output Up to 100 packets/min., depending on the fill product
End-of-line packaging By downstream fully automatic or semi-automatic case packer
Mode of operation Wrapping material unwinding, date coding, cutting, bag forming, product dosing
and filling, packet closing, calibrating, discharge
Equipment Main servo-drive, servo-driven wrapping material advance and dosing,
corrosion-resistant materials in the filling area
Special equipment CIP cleanable dosing unit, wrapping material pre-unwinding, inkjet, several
folding options for various products, discharge conveyor, USDA execution
Machine control Rockwell ControlLogix with touch screen operating panel
