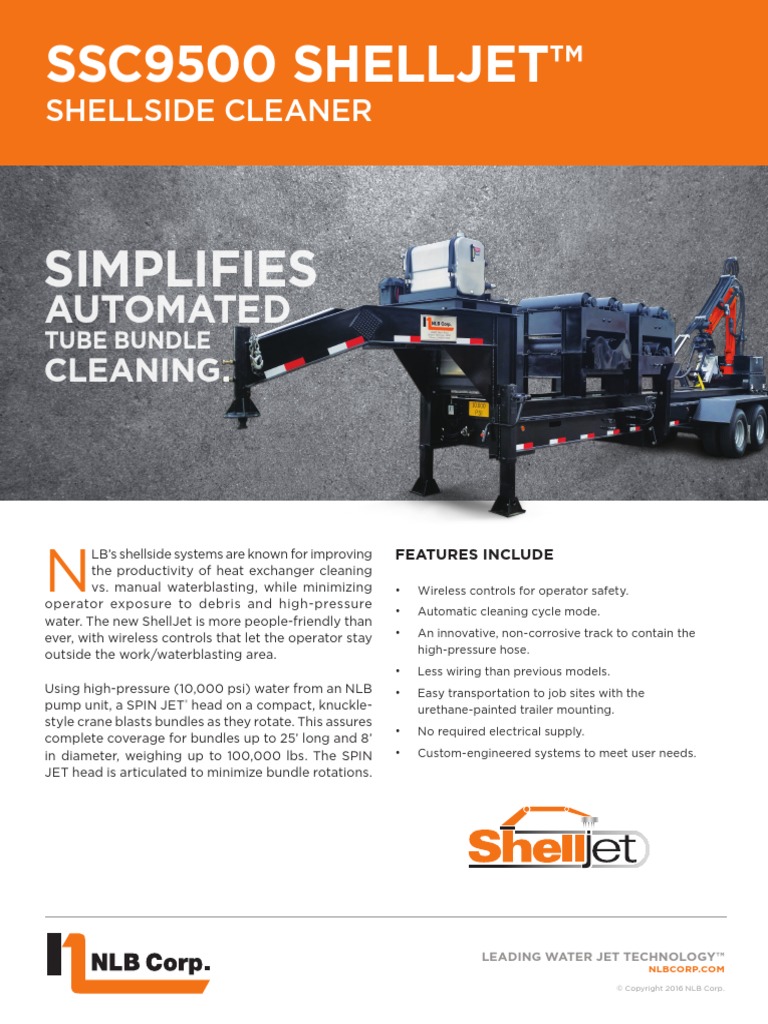

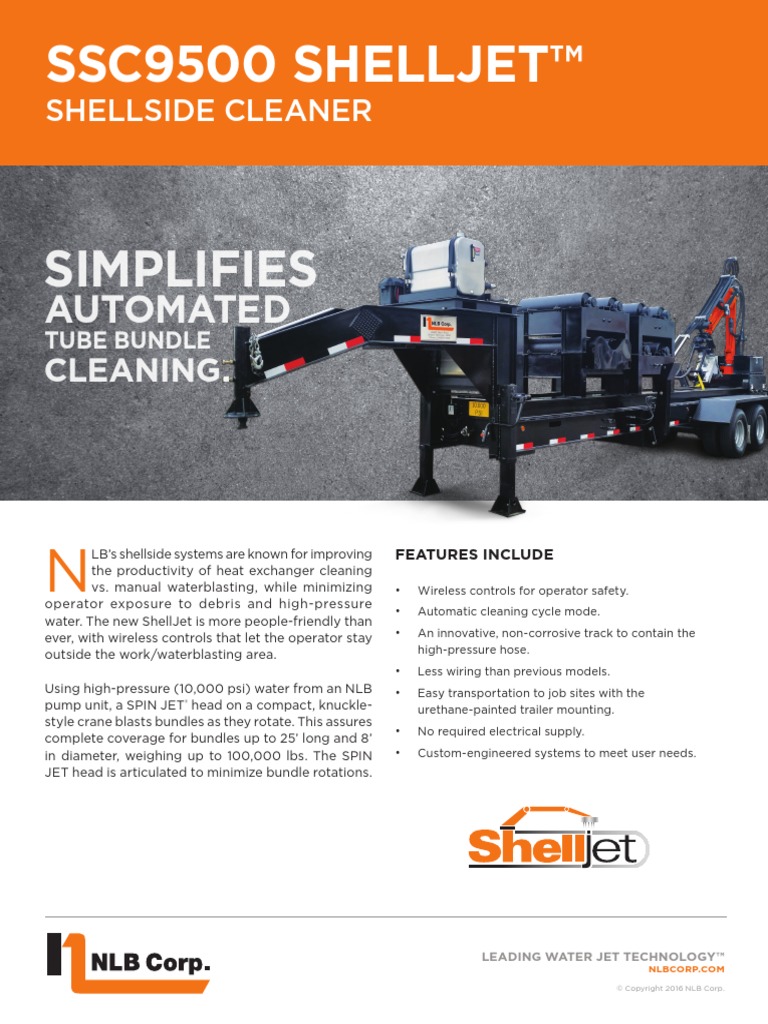

SSC9500 SHELLJET™

SHELLSIDE CLEANER

SIMPLIFIES
AUTOMATED
TUBE BUNDLE
CLEANING.

N
LB’s shellside systems are known for improving FEATURES INCLUDE
the productivity of heat exchanger cleaning
vs. manual waterblasting, while minimizing • Wireless controls for operator safety.
operator exposure to debris and high-pressure
• Automatic cleaning cycle mode.
water. The new ShellJet is more people-friendly than
ever, with wireless controls that let the operator stay • An innovative, non-corrosive track to contain the
outside the work/waterblasting area. high-pressure hose.
• Less wiring than previous models.
Using high-pressure (10,000 psi) water from an NLB • Easy transportation to job sites with the
pump unit, a SPIN JET® head on a compact, knuckle- urethane-painted trailer mounting.
style crane blasts bundles as they rotate. This assures
• No required electrical supply.
complete coverage for bundles up to 25’ long and 8’
in diameter, weighing up to 100,000 lbs. The SPIN • Custom-engineered systems to meet user needs.
JET head is articulated to minimize bundle rotations.

LEADING WATER JET TECHNOLOGY™

NLBCORP.COM

© Copyright 2016 NLB Corp.

SHELLJET™ SHELLSIDE CLEANER ACCESSORIES

UNIT FEATURES INCLUDE

• Compact knuckle-style crane with 16.6’ rack positions
the cleaning head over the bundles and makes it easy
to load and unload the rollers.
• Elevated rollers simplify use with NLB’s ATL-5015 and
have open bottoms and guarded drives.
• Engine controls and fuel tank are low-mounted on
unit for easy access. CHARACTERISTICS
• Reduced size and weight allow for Class B transport ShellJet™

license operation. Overall Length 38 ft 6 in (11.75m)

Width (outriggers retracted) 7 ft 6 in (2.3 m)

Width (outriggers extended) 12 ft 2 in (3.7 m)

Height (crane stowed for travel) 12 ft (3.1 m)

Deck Length 30 ft (9.1 m)

Deck Height 40 in (1 m)

Tongue Weight 3,560 lbs (1,615 kg)

Weight 15,320 lbs (6,950 kg)

Key Specifications

Cleaning Reach (from edge of trailer) 14 ft 2 in (4.32 m)

Bundle Length 25 ft max (7.62 m)

Bundle Diameter 2 ft - 8 ft (0.61 m - 2.4 m)

Bundle Weight 100,000 lb MAX (45,360 kg)

Water Flow Rate 140 gpm (530 lpm)

Maxium Operating Pressure 10,000 psi (700 bar)

The patented SPIN JET head is articulated, for maximum
coverage with the fewest possible bundle rotations. SPIN JET Rotation Speed 400-600 rpm

Roller Assemblies

Overall Length 55-3/8 in (1.4 m)


ALL UNITS ARE CERTIFIED AND Overall Width 43-3/4 in (1.1. m)
FACTORY TESTED BEFORE SHIPMENT
Specifications subject to change without notice. Overall Height 28-7/8 in (0.73 m)

Length of Roller 40 in (1 m)

Weight (Driver Roller) 1,146 lbs (520 kg)

Weight (Idler Roller) 1,030 lbs (467 kg)

Hydraulic Power Unit (For Crane)

Operating Pressure 2,500 psi (175 bar)

Maximum Pressure 3,000 psi (200 bar)

22 gpm @ 3,000 rpm

Maximum Flow Rate
(83 lpm @ 3,000 rpm)
