Thermodyne Techonlogies Pvt .Ltd.

No. 18, Ayodhya Colony, Velachery, Chennai-42

Customer TEC-B1738 Document Name Electrical load list
Consultant - Document No SD-ES-24
Date 16.07.18 Rev. No. 2
Prepared by Ilaya Date 01.11.18
Checked by Gopi Sheet 1 of 2

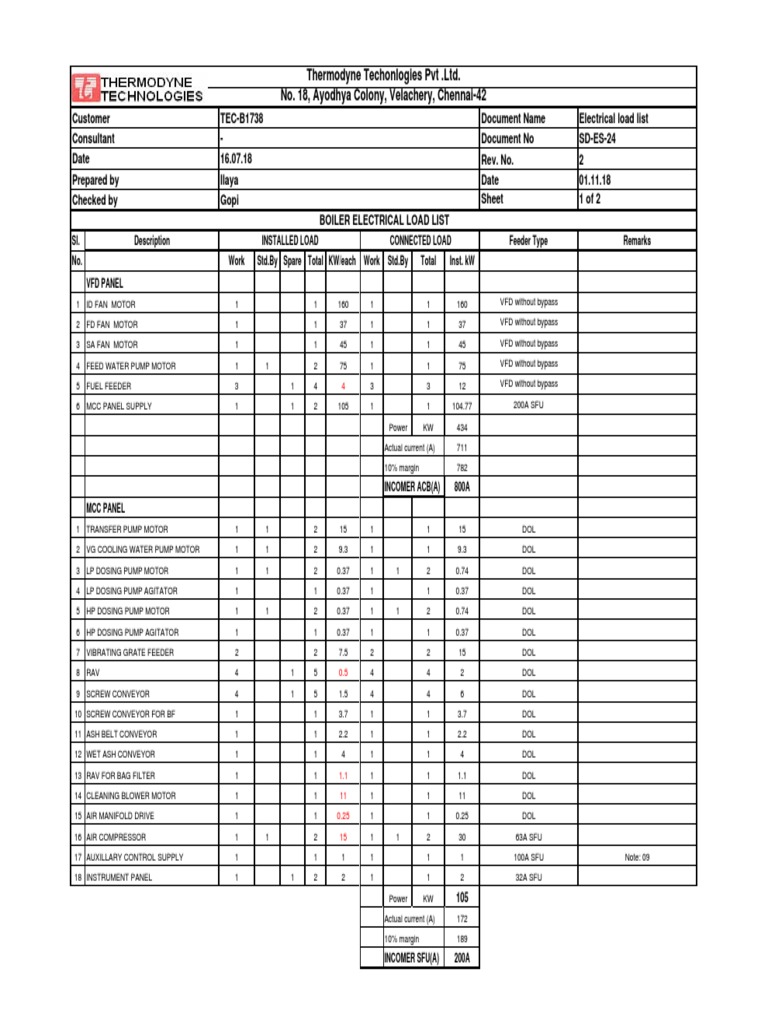

BOILER ELECTRICAL LOAD LIST
Sl. Description INSTALLED LOAD CONNECTED LOAD Feeder Type Remarks
No. Work Std.By Spare Total KW/each Work Std.By Total Inst. kW
VFD PANEL
1 ID FAN MOTOR 1 1 160 1 1 160 VFD without bypass

2 FD FAN MOTOR 1 1 37 1 1 37 VFD without bypass

3 SA FAN MOTOR 1 1 45 1 1 45 VFD without bypass

4 FEED WATER PUMP MOTOR 1 1 2 75 1 1 75 VFD without bypass

5 FUEL FEEDER 3 1 4 4 3 3 12 VFD without bypass

6 MCC PANEL SUPPLY 1 1 2 105 1 1 104.77 200A SFU

Power KW 434
Actual current (A) 711
10% margin 782
INCOMER ACB(A) 800A
MCC PANEL
1 TRANSFER PUMP MOTOR 1 1 2 15 1 1 15 DOL
2 VG COOLING WATER PUMP MOTOR 1 1 2 9.3 1 1 9.3 DOL
3 LP DOSING PUMP MOTOR 1 1 2 0.37 1 1 2 0.74 DOL
4 LP DOSING PUMP AGITATOR 1 1 0.37 1 1 0.37 DOL
5 HP DOSING PUMP MOTOR 1 1 2 0.37 1 1 2 0.74 DOL
6 HP DOSING PUMP AGITATOR 1 1 0.37 1 1 0.37 DOL
7 VIBRATING GRATE FEEDER 2 2 7.5 2 2 15 DOL
8 RAV 4 1 5 0.5 4 4 2 DOL
9 SCREW CONVEYOR 4 1 5 1.5 4 4 6 DOL
10 SCREW CONVEYOR FOR BF 1 1 3.7 1 1 3.7 DOL
11 ASH BELT CONVEYOR 1 1 2.2 1 1 2.2 DOL
12 WET ASH CONVEYOR 1 1 4 1 1 4 DOL
13 RAV FOR BAG FILTER 1 1 1.1 1 1 1.1 DOL
14 CLEANING BLOWER MOTOR 1 1 11 1 1 11 DOL
15 AIR MANIFOLD DRIVE 1 1 0.25 1 1 0.25 DOL
16 AIR COMPRESSOR 1 1 2 15 1 1 2 30 63A SFU
17 AUXILLARY CONTROL SUPPLY 1 1 1 1 1 1 100A SFU Note: 09
18 INSTRUMENT PANEL 1 1 2 2 1 1 2 32A SFU
Power KW 105
Actual current (A) 172
10% margin 189
INCOMER SFU(A) 200A
 Notes:
1 VFD panel shall be provided with 800A ACB incomer. Purchaser to terminate necessary power cable at the inlet of VFD from PCC.
2 Power supply shall be 440V+/-10%,60Hz+/-5% and control supply shall be 230V+/-10%,60Hz+/-5% respectively.
3 VFD for fans shall be of variable torque application.
4 VFD for fuel feeders shall be of constant torque application.
5 The ambient temperature considered is 50°C.
6 ACB shall have under voltage, short circuit, ground fault protection to ensure safety of the system.
7 MCC panel shall be with IP-54 protection class.
8 MCC & VFD panel shall have control transformer to feed 230V AC control supply.
9 Auxillary control supply shall have 3 nos of 10A MCB with 32A SFU.
