Barcode
Barcode

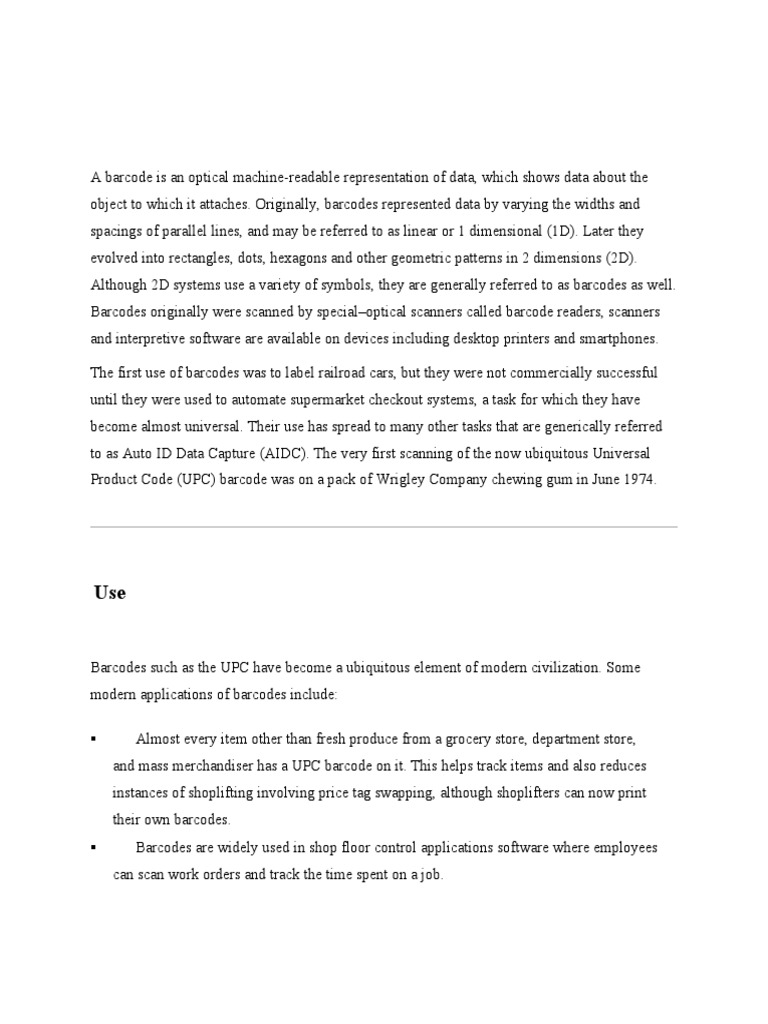

The first use of barcodes was to label railroad cars, but they were not commercially successful
until they were used to automate supermarket checkout systems, a task for which they have
become almost universal. Their use has spread to many other tasks that are generically referred
to as Auto ID Data Capture (AIDC). The very first scanning of the now ubiquitous Universal
Product Code (UPC) barcode was on a pack of Wrigley Company chewing gum in June 1974.
Use
Almost every item other than fresh produce from a grocery store, department store,
and mass merchandiser has a UPC barcode on it. This helps track items and also reduces
instances of shoplifting involving price tag swapping, although shoplifters can now print
their own barcodes.
Barcodes are widely used in shop floor control applications software where employees
can scan work orders and track the time spent on a job.
Retail chain membership cards (issued mostly by grocery stores and specialty "big box"
retail stores such as sporting equipment, office supply, or pet stores) use bar codes to
uniquely identify a consumer. Retailers can offer customized marketing and greater
understanding of individual consumer shopping patterns. At the point of sale, shoppers can
get product discounts or special marketing offers through the address or e-mail address
provided at registration.
When used on patient identification, barcodes permit clinical staff to instantly access
patient data, including medical history, drug allergies, etc.
Document Management tools often allow for barcoded sheets to facilitate the separation
and indexing of documents that have been imaged in batch scanning applications.
The tracking of item movement, including rental cars, airline luggage, nuclear
waste, mail,express mail and parcels.
Tracking the organization of species in biology. The barcode assigned is based on the
CO1 gene.
Since 2005, airlines use an IATA-standard 2D barcode on boarding passes (BCBP), and
since 2008 2D barcodes sent to mobile phones enable electronic boarding passes.
Recently, researchers placed tiny barcodes on individual bees to track the insects' mating
habits.
Barcoded entertainment event tickets allow the holder to enter sports arenas, cinemas,
theatres, fairgrounds, transportation, etc. This can allow the proprietor to identify duplicate or
fraudulent tickets more easily.
They can track the arrival and departure of vehicles from rental facilities.
Barcodes can integrate with in-motion checkweighers to identify the item being weighed
in aconveyor line for data collection
Some 2D barcodes embed a hyperlink to a web page. A capable cellphone might be used
to read the barcode and browse the linked website, which can help a shopper find the best
price for an item in the vicinity.
In the 1970s and 1980s, software source code was occasionally encoded in a barcode and
printed on paper. Cauzin Softstrip and Paperbyte[14] are barcode symbologies specifically
designed for this application.
The 1991 Barcode Battler computer game system, used any standard barcode to generate
combat statistics.
In 1992 the Veterans Health Administration developed Bar Code Medication
Administration system (BCMA).
In the 21st century many artists started using barcodes in art, such as Scott
Blake's Barcode Jesus, as part of the post-modernism movement.
Today, barcodes are issued by GS1, the most widely used supply chain standards system
in the world.
Symbologies
The mapping between messages and barcodes is called a symbology. The specification of a
symbology includes the encoding of the single digits/characters of the message as well as the
start and stop markers into bars and space, the size of the quiet zone required to be before and
after the barcode as well as the computation of a checksum.
Continuous vs. discrete: Characters in continuous symbologies usually abut, with one
character ending with a space and the next beginning with a bar, or vice versa. Characters in
discrete symbologies begin and end with bars; the intercharacter space is ignored, as long as
it is not wide enough to look like the code ends.
Two-width vs. many-width: Bars and spaces in two-width symbologies are wide or
narrow; how wide a wide bar is exactly has no significance as long as the symbology
requirements for wide bars are adhered to (usually two to three times wider than a narrow
bar). Bars and spaces in many-width symbologies are all multiples of a basic width called
the module; most such codes use four widths of 1, 2, 3 and 4 modules.
Some symbologies use interleaving. The first character is encoded using black bars of varying
width. The second character is then encoded, by varying the width of the white spaces between
these bars. Thus characters are encoded in pairs over the same section of the barcode.Interleaved
2 of 5 is an example of this.
The most common among the many 2D symbologies are matrix codes, which feature square or
dot-shaped modules arranged on a grid pattern. 2-D symbologies also come in circular and other
patterns and may employ steganography, hiding modules within an image (for
example, DataGlyphs).
Linear symbologies are optimized for laser scanners, which sweep a light beam across the
barcode in a straight line, reading a slice of the barcode light-dark patterns. Stacked symbologies
are also optimized for laser scanning, with the laser making multiple passes across the barcode.
In the 1990s development of charge coupled device (CCD) imagers to read barcodes was
pioneered by Welch Allyn. Imaging does not require moving parts, like a laser scanner does. In
2007, linear imaging had begun to supplant laser scanning as the preferred scan engine for its
performance and durability.
2-D symbologies cannot be read by a laser as there is typically no sweep pattern that can
encompass the entire symbol. They must be scanned by an image-based scanner employing a
CCD or other digital camera sensor technology.
Barcode verifiers are primarily used by businesses that print and use barcodes. Any trading
partner in the supply chain can test barcode quality. It is important to "grade" a barcode to ensure
that any reader in the supply chain can successfully interpret a bar code with a low error rate.
Retailers levy large penalties for non-compliant barcodes.
Barcode verifiers work like a readers, but instead of simply decoding a barcode, a verifier
performs a series of eight tests. Each test is graded from 0.0 to 4.0 (F to A). The lowest of the 8
grades is the scan grade. For most applications a 2.5 (C) is the minimum acceptable grade.
Compared with a reader, a verifier measures a barcode. The measurement must be repeatable and
consistent. Doing so requires constant conditions such as distance, illumination angle, sensor
angle and verifier aperture. In comparison, a reader must interpret a barcode as reliably as
possible over a wide range of conditions.
This standard defines the quality requirements for barcodes and Matrix Codes (also called
Optical Codes).
As of 2011 the ISO workgroup JTC1 SC31 was developing a DPM quality standard :
ISO/IEC TR 29158.
International standards are available from the International Organisation for Standardization
(ISO).
These standards are also available from local/national standardisation organisations, such
as ANSI, BSI, DIN, NEN and others.
Benefits
Besides sales and inventory tracking, barcodes are very useful in logistics.
When a manufacturer packs a box for shipment, a Unique Identifying Number (UID) can
be assigned to the box.
A database can link the UID to relevant information about the box; such as order number,
items packed, qty packed, destination, etc.
The information can be transmitted through a communication system such as Electronic
Data Interchange (EDI) so the retailer has the information about a shipment before it arrives.
Shipments that are sent to a Distribution Center (DC) are tracked before forwarding.
When the shipment reaches its final destination, the UID gets scanned, so the store knows the
shipment's source, contents, and cost.
Barcode scanners are relatively low cost and extremely accurate compared to key-entry, with
only about 1 substitution error in 15,000 to 36 trillion characters entered. The exact error rate
depends on the type of barcode.
Types of barcodes
Linear barcodes
Continuous
Bar
Symbology or Uses
widths
discrete
Worldwide retail, GS1-approved -
U.P.C. Continuous Many
International Standard ISO/IEC 15420
Worldwide retail, GS1-approved -
EAN 8, EAN 13 Continuous Many
International Standard ISO/IEC 15420
A matrix code, also known as a 2D barcode or simply a 2D code, is a two-dimensional way of
representing information. It is similar to a linear (1-dimensional) barcode, but has more data
representation capability.
Symbology Notes
Compact Matrix
From Syscan Group, Inc.
Code
d-touch readable when printed on deformable gloves and stretched and distorted
DataGlyphs From Palo Alto Research Center (also known as Xerox PARC).
High Capacity
Developed by Microsoft; licensed by ISAN-IA.
Color Barcode
JAGTAG From JAGTAG, Inc. Optimized for use with mobile device cameras.
High density code, used both for data heavy applications (10K – 1 MB) and
PaperDisk camera phones (50+ bits). Developed and patented by Cobblestone
Software.
ShotCode Circular barcodes for camera phones by OP3. Originally from High Energy
Magic Ltd in name Spotcode. Before that probably known as TRIPCode.
Barcode systems provide an array of benefits, including operational efficiency, better customer
service, and improved visibility of key business information to management.
Speed
A bar code label of twelve characters can be wanded in approximately the time it takes a
keyboard operator to make two keystrokes.
Accuracy
For every 1,000 characters typed by a keyboard operator, there are an average of ten keying
errors. For an Optical Character Reader (OCR), there is one error in every 10,000 reads. With
wands, barcode systems approach one error in every 3,000,000 characters, and with laser
technology, they approach one error in 70 million entries.
Data Integrity
Portable number of substitution errors per 3,400,000 characters.
Ease of Implementation
Operators of bar code scanners can learn to use the equipment effectively in less than 15
minutes. System costs are lower than other means of data entry because of the existence of
interfacing hardware and software. Barcode labels can cost less than a penny apiece, are easily
read by thousands of commonly available devices, and can be printed universally.
Cost Effectiveness
Barcode systems have a demonstrated payback period of six to eighteen months, and they
provide the highest level of reliability in a wide variety of data collection applications. Barcode
systems create value not only by saving time, but also by preventing costly errors.
What is the standard for your company's data? Information is your most valuable asset, so you
need the most reliable data management systems available for your budget. Wrong information
in your supply chain or operations can create unacceptable risks, lost business and higher
operating expenses. Protect your organization by ensuring data accuracy and availability.
What benefits can you expect from the application of barcoding? From the receiving dock to the
shipping door, barcode data collection provides direct benefits to labor productivity, production
control, operational costs, customer service, space requirements and inventory management.
Whether you receive shipments with barcodes applied by suppliers or you need to print and
apply labels for internal use, barcodes provide a way to monitor the flow of inputs. Labels
identify the item, purchase order number, supplier, lot number, date of delivery, and more. This
information is then used to create a receiving and purchasing record which becomes part of the
material's history throughout its cycle, thereby providing lot traceability.
When shipping packages, barcode labels are often mandatory. Barcode label software can
integrate with your database systems to provide convenient, efficient generation of barcode
labels. Once in transit, barcode labels provide an effective means of tracking packages and
collecting proof of delivery.
Manage Inventory Effectively
The most valuable characteristic of barcodes in inventory control is keeping track of parts,
supplies and materials that you purchase, stock, and consume. Knowing what you have, and
where to find it, prevents costly disruptions, saves money in purchasing, and increases sales
revenue.
The application of bar coding to fixed assets was one of this technology's first uses. By attaching
a label to capital equipment, office furniture, computers and other fixtures, you can keep an
account of what you own, calculate depreciation easily, conduct physical inventories, and
perform preventative maintenance.
Circulating assets include equipment, tools, files and other valuable inventory that changes hands
within an organization. By tracking who has custody of each asset, inefficiency and losses can be
minimized.
Virtually any data collection process that currently runs on clipboard and paper can be managed
with barcodes and mobile computers, creating a leap in productivity and accuracy. Whether you
run a factory or a hospital, grow crops or harvest timber, effective management depends upon
timely, accurate information.
The key to deciding between these two technologies is determining which fits the requirements
and budget of your business most accurately.
Symbology
Both laser scanners and digital imagers are programmed to decode specific symbologies, or the
“language,” of barcodes. The symbology used in the application can help determine which
scanning technology will provide the most benefit. The use of 2-dimensional (2D) symbologies
is on the rise in many markets, making digital imagers a better choice. However, for applications
that don’t require reading 2D barcodes, laser scanners are a cost-effective option.
Laser Scanners
Symbol LS2208
Laser scanners provide excellent scanning productivity and accuracy; this allows operators to
achieve high productivity in high-throughput areas of business. Laser scanners are capable of
decoding barcodes over wide ranges and can achieve 50% more range than digital imagers.
Because laser scanning technology has been refined, scanners are less expensive than
comparable digital imagers. Although laser scanners are incapable of reading 2D symbologies,
they are capable of reading a 2D-like symbology, PDF417. Laser scanners offer a number of
advantages for a multitude of applications and should be considered the technology of choice for:
While laser scanners prove to be advantageous in certain applications, other markets are better
suited for digital imagers or a combination of both technologies.
Digital Imagers
In addition to 1D barcodes, digital imagers (also known as area imagers) can decode 2D
barcodes. 2D barcodes can be encoded with significantly more information than 1D barcodes,
making digital imagers beneficial to transportation, logistics, and tracking applications. Area
imagers enable omni-directional reading of barcodes, eliminating the need to accommodate the
scanning device. In addition to reading one and two-dimensional barcodes, high performance
digital imagers can capture and transfer images, enabling signature capture and the scanning of
documents. Area imagers have the capability of reading Direct Part Marking (DPM), a method of
permanently marking a product. DPM is growing in popularity and allows a product to be
tracked throughout its life. Digital imagers offer many advantages in certain applications, but
area imagers are not to be confused with linear imagers. Although data is captured in a similar
way, linear imagers aren’t capable of decoding entire images or 2D barcodes as an area imager
can. Area imagers offer significantly more benefits and are the only choice for 2D barcode
applications. Area imagers have proven to be beneficial in the following areas:
When used in appropriate markets, laser scanners and digital imagers both deliver numerous
benefits. At times, the combination of the two technologies may even be the correct decision.
Both are powerful technologies that will increase productivity, improve efficiency, and reduce
operational costs. When choosing a data capture technology, businesses must apply a careful
analysis of the capabilities and advantages of each technology. Recognizing which technology,
laser scanners or digital imagers, provides the most benefits for your business applications is the
key.
Comparison of Barcode Printers
A number of different print technologies are available to print barcodes. These technologies
roughly break down into two categories: impact and non-impact printing techniques. Impact
printing includes dot matrix and drum (or formed character) printers. Non-impact printing
includes thermal direct, thermal transfer, electrostatic (laser printers), laser etching and ink jet
printers.
There are four basic types of barcode printers: Dot Matrix, Inkjet, Laser, and Thermal. Barcodes
can be printed on documents, or more frequently, adhesive labels, tags or other media, even ID
bracelets.
Dot Matrix
Dot matrix print technology is a longstanding method of producing barcodes on-site. The
barcode image is produced by hundreds of dots printed in a matrix to make the series of lines and
spaces commonly referred to as a barcode.
Advantages
Limitations
Barcodes are low to medium density and may not match up to a users standard
Reusable ribbons can produce illegible barcodes resulting in lower read rates.
Ink saturation can result in bleeding on the paper resulting in image distortion
Though many types of material can be printed on, often these labels are not durable, nor
can they be water or chemical resistant.
Printing of single labels results in a great loss of media and is inefficient
No graphics capability
Speed is suffered when trying to produce best ink coverage for optimal readability.
Ink Jet
Ink Jet printing is usually used in high production settings where production of barcodes and
human readable fonts need to be reproduced at high rates of speed.
Advantages:
Direct ink jet printing requires only one step to finish the carton or readable material,
where other forms may require adhesion of a label to the finished product
A favorite on high-speed production lines due to its ability to mark “on the fly”
Limitations:
System installation is very costly as this method is designed for high-volume barcode
printing – not for individual or batch printing
Requires constant supervision to prevent inkjet clogging and maintain proper print
quality
Material use is restricted due to possible bleeding on certain materials
Printing on dark backgrounds, such as corrugated cardboard, result in hard to read
barcodes. Scanning devices must be chosen carefully to ensure proper readability
Laser
A laser printer works much like a photo copier. Charging particles of the paper that then attract
ions from the ink. These two particles are then bonded together by the heat and pressure of the
drum.
Advantages
Print high-quality text and graphics on paper documents and can double as a document
printer when not being used to print barcodes.
Density and resolution are relatively high, allowing the production of scanable barcodes
at any wavelength when read with an infrared scanner
Limitations
Thermal
Direct thermal printing is an older technology designed for use with copier and fax machines that
utilizes chemically coated paper. It has since been transformed into a highly successful
technology for barcoding. The direct thermal printhead consists of a long, linear array of tiny
resistive heating elements (roughly 100-300/in.) that are arranged perpendicular to the flow of
the paper. Each printhead element locally heats an area directly below it on the paper. The
image is produced by rows of dots caused by chemical reactions that are formed as the media
passes beneath the active edge of the printhead.
Advantages
Limitations
Thermal Transfer:
Thermal Transfer printers use the same basic technology as direct thermal printers, but replace
chemically coated paper with a non-sensitized face stock and a special, inked ribbon. A durable,
polyester ribbon film coated with dry thermal transfer ink is placed between the thermal
printhead and label. The thermal printhead transfers the ink onto the label surface, where it cools
and anchors to the media surface. The polyester ribbon is then peeled away, leaving behind a
stable, passive image.
Advantages
Crisp, high-definition text, graphics, and barcodes for maximum readability and
scanability
Produces long life scanability
Produce batch or single print labels with minimum waste
Long-term maintenance is low compared to dot-matrix, inkjet, and laser
Print on a high variety of media stock
High durability
Limitations
Supply costs slightly higher than Direct Thermal as Thermal transfer requires ribbon
replacement, though their printhead lasts longer
Ribbon can be wasteful if little is printed from it
Poor candidate for recycling
Ribbon and Media MUST be compatible
There are many options to consider when choosing a barcode scanner. It is not as simple as
picking the cheapest reader. Though cost savings maybe a large consideration, choosing the
cheapest scanner may force you to buy another scanner in the long run. Depending on your work
environment, you'll need a scanner with an appropriate IP Rating, so it doesn't fail due to use or
abuse.
Handheld vs. Hands-free Scanners
Hands-free scanners are more efficient when it is easier to bring the barcode to the scanner rather
than the scanner to the barcode. Such examples of this are Point-of-Sale (POS) applications, or
automated assembly lines. Handheld scanners are a better fit with large, bulky items, or when
you have to scan multiple items in different locations. Most applications use handheld scanners.
Laser scanners are generally more expensive than CCD scanners, but can often be more efficient
in their scanning ability. They can be designed to read barcodes from a great distance, allowing
workers to scan items on the top shelf of a warehouse without having to move closer to the item.
These scanners are also a better option when the barcode is not on a flat, hard surface as CCD
scanners are used in close contact situations. Laser Scanners have different options for the
distance you need to scan, most come in standard, long range, and extra-long range capabilities.
A situation for a CCD scanner may be a bright location, typically outside, where placing the
scanner directly over the barcode will block out most outside light giving a quicker and more
accurate read. Imaging technology will take a picture of the barcode and then read the barcode
from that image. Though imaging technology may be slower out of the gate, when the quality of
a barcode decreases, the read rate for imagers increases as the imager will look over the entire
height of the barcode to find a complete strand automatically.
Heat and light will cause thermal labels to darken. Dirt, oil or grease will cause bad reads unless
infrared scanners are used which can detect high-carbon inks below the smears and stains that
occur on factory floors. Remember, too, that if you laminate or otherwise protect the label, this
will affect your choice of scanner. In addition, ambient light can also curtail the effectiveness of
fixed beam readers. For these conditions you would require a high density laser scanner, or an
imager, as they both will read poor quality barcodes with great accuracy.
Nine Factor to Consider When Selecting Barcode Labels
Consumable media is a critical component of your printing system. Having the correct labels for
your application can improve accuracy, lower material handling costs, and make your warehouse
operation more efficient. With that said picking out the right labels can be a difficult procedure.
But, if you remember the nine letters in B.A.R.C.O.D.I.N.G.you shouldn't have a problem.
B - Barcode Scanner: What kind of scanning device will you be using to read your barcodes.
Labels can have different light absorbing characteristics, which can improve the performance
and efficiency of your scanner.
A - Attach: What surface will your labels be attached to? Smooth, rough, grooved, curved, or
dirty surfaces can all AFFECT your label selection.
R - Rate: How many labels are you printing per minute? Per day? Per week? Per year? Labels
have many different materials and qualities, so the kind of labels will be one factor in
determining the final cost.
C - Clock: How long must the label last? What is the shelf-life of the product the label is on? Is it
a mailing label to be used once or an asset label that needs to be on a fixed asset for life? This
factor will not only determine the kind of label, but possibly the kind of printer!
O - Operating Environment: One of the most important considerations is the operating
environment the labels will be exposed to. Will the label be exposed to extreme heat or cold,
dryness or wetness, light, extreme handling, or chemicals. If so, there is a label for you, and
Barcoding.com can be your supplier.
D - Do-it-yourself: Did you know that you do not have to buy a printer for every label
application? Some applications, like tracking Fixed Assets with RioScan's Fixed Asset software,
require only pre-printed labels.
I - Inches: It is a matter of inches! The simple question, "how big is my label?" is the first
consideration. Choosing a label with a common size, or "stock size" can help reduce costs.
Labels can come as small as 1/8" x ½" or as large as 11" x 17".
N - Need: What exactly is you labeling need? For example, some barcoding applications occur
on tags that hang from an item, rather than stick to it. There are many different ways to barcode
on item such as hanging tags, ID cards, metal tags, and direct print. Make sure that labels will
suit your needs best.
G - Glue: The type of glue used to adhere the label to your surface is very important. Do you
want your label to be permanently adhered to the surface or you do want it to be removable?
Should your label leave behind a tamper-indication if is played with or is it important for the
label to leave behind little to no residue when it is removed? These are all important questions
and viable options for your labels program!
BAR HEIGHT
For hand-held readers, bar height is at least one-quarter of an inch or 15 percent of the entire
code's length, whichever is greater.
"X" DIMENSION
The "X" dimension is the width of the narrowest element of the barcode. Other elements of the
code are multiples of the "X" dimension.
CHARACTER DENSITY
Density refers to the number of characters which can be encoded in a given unit of length and is
vitally important to the eventual application of a barcode.
CONTINUOUS/DISCRETE
Barcode symbologies are either continuous or discrete. Continuous symbologies use the
intercharacter gap as a character, whereas discrete symbologies do not.
FIRST PASS READ RATE
The first read rate is the ratio of the number of successful reads to the number of attempted reads.
RIBBON FACTORS
The principal rule to remember with ribbons is that the ribbon you use in the office will probably
not meet the specifications or requirements of the bar coding environment.
LAMINATES
In many ways, the specifications which apply to paper also apply to laminates. Laminates should
not interfere with the scanning ability of the barcode reader.
ADHESIVES
Adhesives vary with each application. Some require labels to permanently affixed to an item,
such as a piece of capital equipment.
Barcode reader
A handheld barcode scanner
