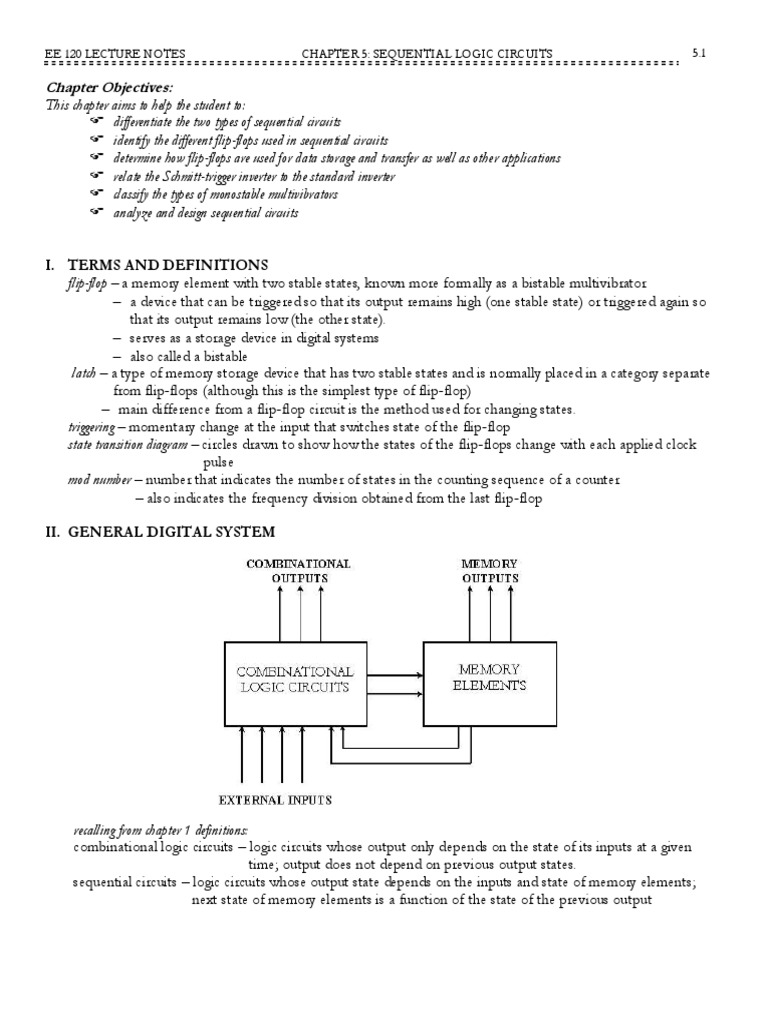

EE 120 LECTURE NOTES CHAPTE R 5: SEQUENTIAL LOGIC CIRCUITS 5.

Chapter Objectives:
This chapter aims to help the student to:
 differentiate the two types of sequential circuits
 identify the different flip-flops used in sequential circuits
 determine how flip-flops are used for data storage and transfer as well as other applications
 relate the Schmitt-trigger inverter to the standard inverter
 classify the types of monostable multivibrators
 analyze and design sequential circuits

I. TERMS AND DEFINITIONS

flip-flop – a memory element with two stable states, known more formally as a bistable multivibrator
– a device that can be triggered so that its output remains high (one stable state) or triggered again so
that its output remains low (the other state).
– serves as a storage device in digital systems
– also called a bistable
latch – a type of memory storage device that has two stable states and is normally placed in a category separate
from flip-flops (although this is the simplest type of flip-flop)
– main difference from a flip-flop circuit is the method used for changing states.
triggering – momentary change at the input that switches state of the flip-flop
state transition diagram – circles drawn to show how the states of the flip-flops change with each applied clock
pulse
mod number – number that indicates the number of states in the counting sequence of a counter
– also indicates the frequency division obtained from the last flip-flop

II. GENERAL DIGITAL SYSTEM

recalling from chapter 1 definitions:

combinational logic circuits – logic circuits whose output only depends on the state of its inputs at a given
time; output does not depend on previous output states.
sequential circuits – logic circuits whose output state depends on the inputs and state of memory elements;
next state of memory elements is a function of the state of the previous output
EE 120 LECTURE NOTES CHAPTE R 5: SEQUENTIAL LOGIC CIRCUITS 5.2

III. TYPES OF SEQUENTIAL CIRCUITS

1. SYNCHRONOUS SEQUENTIAL CIRCUIT

- system whose behavior can be defined from the knowledge of its signals at discrete instances of time
- clocked sequential circuit that changes state at the clock pulse transition

2. ASYNCHRONOUS SEQUENTIAL CIRCUIT

- system that depends upon the order in which its input signals change and can be affected anytime
- faster but is more complicated and prone to malfunction

IV. FLIP-FLOP CIRCUITS

1. GENERAL DESCRIPTION

output states:

SET – also called HIGH or 1 state wherein

RESET – also called LOW or 0 state wherein

2. RS LATCH (SR LATCH OR SC LATCH)

logic symbol truth table (active high)

R S
0 0 no change
0 1 1 0
1 0 0 1
1 1 invalid

a) NOR-Gate Latch
logic diagram truth table

S R
1 0 1 0
0 0 1 0
0 1 0 1
0 0 0 1
1 1 0 0
EE 120 LECTURE NOTES CHAPTE R 5: SEQUENTIAL LOGIC CIRCUITS 5.3

b) NAND-Gate Latch

logic diagram truth table

S R
1 0 0 1
1 1 0 1
0 1 1 0
1 1 1 0
0 0 1 1

c) Latch Waveforms:

NOR-gate latch waveforms: NAND-gate latch waveforms:

 NAND-gate latch is active low whereas the NOR-gate latch is active high.
d) Alternate representation of NAND-gate latch:

logic diagram

block diagram
EE 120 LECTURE NOTES CHAPTE R 5: SEQUENTIAL LOGIC CIRCUITS 5.4

e) Applications:
(1) switch debouncing circuit using NAND latch
mechanical switch

switch debouncing circuit

(2) light beam interruption detector alarm using NOR latch

EE 120 LECTURE NOTES CHAPTE R 5: SEQUENTIAL LOGIC CIRCUITS 5.5

3. CLOCK SIGNAL
– used to control change of states of flip-flops in synchronous systems

a) Modes of Triggering
(1) Level Triggering
- flip-flops change during pulse duration
(a) Positive-Level Triggering
- accepts an input at logic 1 of the clock pulse
(b) Negative Level Triggering
- accepts an input at logic 0 of the clock pulse

(2) Edge Triggering

- flip-flops change during pulse transition
(a) Positive-Edge Triggering
- accepts an input during the positive-going edge
- also called “positive-going transition” or PGT
(b) Negative-Edge Triggering
- accepts an input during the negative-going edge
- also called “negative-going transition” or NGT

4. CLOCKED (GATED) FLIP-FLOPS

PGT activated FF

NGT activated FF
EE 120 LECTURE NOTES CHAPTE R 5: SEQUENTIAL LOGIC CIRCUITS 5.6

a) Clocked SR flip-flop
- modified SR latch providing control input that determines when the state of the circuit is to be changed.

block diagram logic diagram

 NAND gates 1 & 2 represent a NAND latch

and NAND gates 3 & 4 represent the pulse
steering circuit
truth tables

S R CLK
0 0 No change
0 1 0
1 0 1
1 1 invalid

alternate representation of an edge-triggered SR flip-flop

Edge detector circuit:

PGT NGT
EE 120 LECTURE NOTES CHAPTE R 5: SEQUENTIAL LOGIC CIRCUITS 5.7

b) Clocked JK flip-flop
- controls the flip-flop in the same way that the SR flip-flop does, with the exception that it does not
produce an ambiguous output when both inputs are high.

block diagram logic diagram

truth tables

J K CLK
0 0 No change
0 1 0
1 0 1
1 1 toggle

alternate representation of an edge-triggered SR flip-flop

 NAND gates 1 & 2 represent a NAND latch and NAND

gates 3 & 4 represent the pulse steering circuit
EE 120 LECTURE NOTES CHAPTE R 5: SEQUENTIAL LOGIC CIRCUITS 5.8

c) Clocked D flip-flop
- eliminates undesirable condition brought about by the indeterminate state (R=S=1) by ensuring that R
and S are never high at the same time.
block diagram truth tables

logic diagram

D CLK
0 0
1 1

D FF implemented using SC FF D FF implemented using JK FF

d) Clocked T flip-flop
-single input version of the JK flip-flop
- designation „T‟ comes from the ability of the flip-flop to „toggle‟
block diagram
truth tables

T CLK
0 no change
1 toggle

logic diagram
EE 120 LECTURE NOTES CHAPTE R 5: SEQUENTIAL LOGIC CIRCUITS 5.9

clocked FF waveforms:

5. ASYNCHRONOUS INPUTS
- operates independently from synchronous inputs (S, R, J, K, D, T) and clock input
- overrides synchronous inputs
- designations for asynchronous inputs: DC SET and DC CLEAR
– DC SET, DIRECT SET (SD) or PRESET (PRE): sets flip-flop
– DC CLEAR, DIRECT RESET (RD) or CLEAR (CLR): resets flip-flop

SET CLR FF RESPONSE

0 0 not used
0 1 Q=1
1 0 Q=0
1 1 Clocked operation

 Q will respond to J, K and CLK if

SET=CLEAR=1
EE 120 LECTURE NOTES CHAPTE R 5: SEQUENTIAL LOGIC CIRCUITS 5.10

asynchronous FF waveforms:

6. MASTER-SLAVE FLIP-FLOP (PULSE-TRIGGERED)

- data is entered into the flip-flop at the leading edge of the clock pulses, but the output does not reflect the
input state until the trailing edge
- does not allow data to change while the clock pulse is active
- has largely been replaced by edge-triggered devices
EE 120 LECTURE NOTES CHAPTE R 5: SEQUENTIAL LOGIC CIRCUITS 5.11

V. DATA STORAGE AND TRANSFER

1. SYNCHRONOUS DATA TRANSFER

2. ASYNCHRONOUS DATA TRANSFER

3. PARALLEL DATA TRANSFER

Parallel Data Transfer from Register X to Register Y

EE 120 LECTURE NOTES CHAPTE R 5: SEQUENTIAL LOGIC CIRCUITS 5.12

4. SERIAL DATA TRANSFER: SHIFT REGISTERS

Four-Bit Shift Register

Serial Data Transfer Between Registers

X2 X1 X0 Y 2 Y 1 Y 0  Data is transferred one bit at a time for

1 0 1 0 0 0 every clock pulse.
0 1 0 1 0 0
0 0 1 0 1 0
0 0 0 1 0 1
EE 120 LECTURE NOTES CHAPTE R 5: SEQUENTIAL LOGIC CIRCUITS 5.13

5. MICROCOMPUTER APPLICATION

VI. FREQUENCY DIVISION AND COUNTING

JK flip-flop wired as a 3-bit Binary Counter
