    17BCE0764 SUMANTO PAL

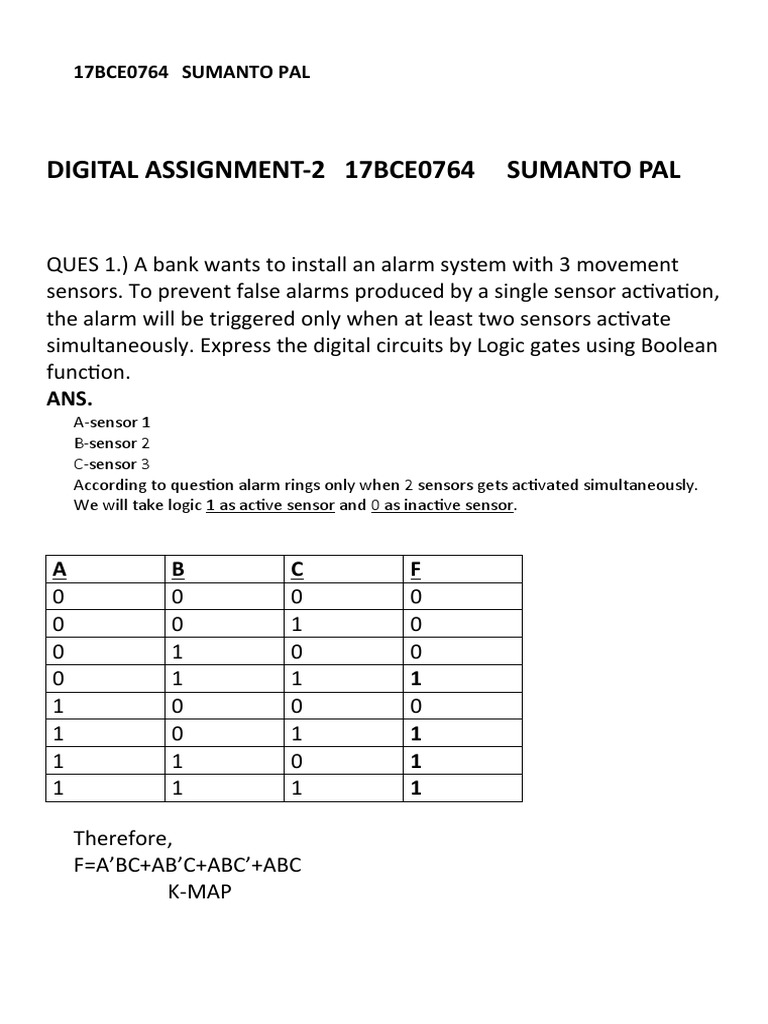

    DIGITAL ASSIGNMENT-2 17BCE0764 SUMANTO PAL

    QUES 1.) A bank wants to install an alarm system with 3 movement


    sensors. To prevent false alarms produced by a single sensor activation,
    the alarm will be triggered only when at least two sensors activate
    simultaneously. Express the digital circuits by Logic gates using Boolean
    function.
    ANS.
    A-sensor 1
    B-sensor 2
    C-sensor 3
    According to question alarm rings only when 2 sensors gets activated simultaneously.
    We will take logic 1 as active sensor and 0 as inactive sensor.

    A B C F
    0 0 0 0
    0 0 1 0
    0 1 0 0
    0 1 1 1
    1 0 0 0
    1 0 1 1
    1 1 0 1
    1 1 1 1

    Therefore,
    F=A’BC+AB’C+ABC’+ABC
    K-MAP
    17BCE0764 SUMANTO PAL

    LOGIC CIRCUIT
