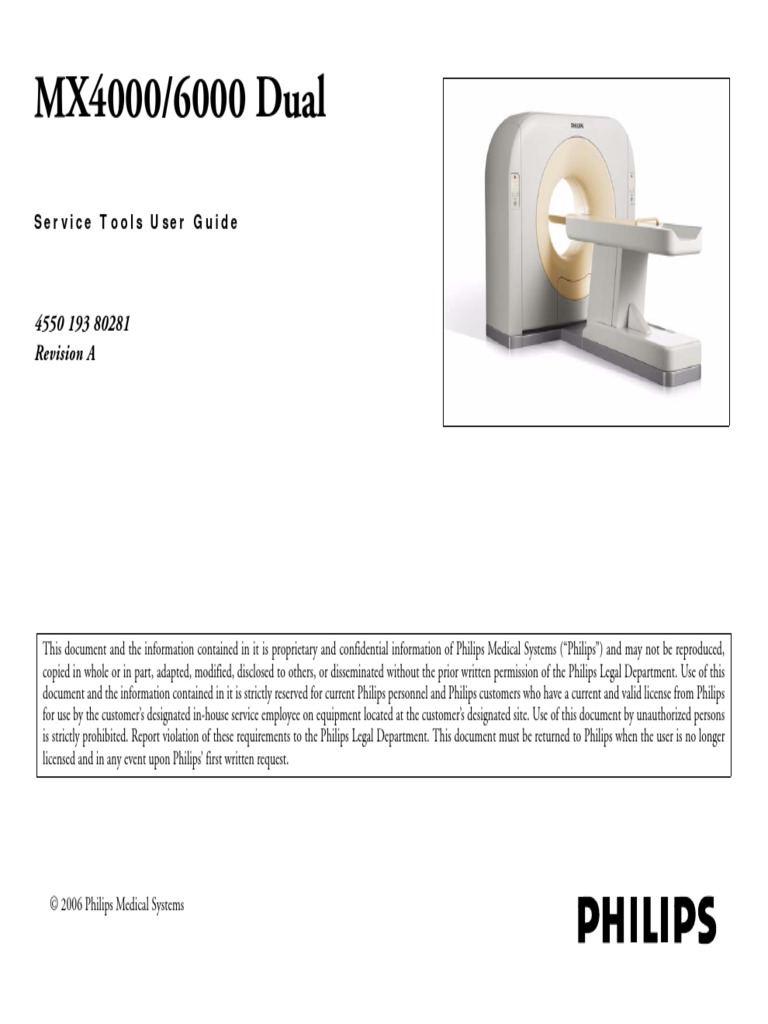

MX4000/6000 Dual: 4550 193 80281 Revision A

MX4000/6000 Dual
Service Tools User Guide
4550 193 80281

Revision A
This document and the information contained in it is proprietary and confidential information of Philips Medical Systems (“Philips”) and may not be reproduced,
copied in whole or in part, adapted, modified, disclosed to others, or disseminated without the prior written permission of the Philips Legal Department. Use of this
document and the information contained in it is strictly reserved for current Philips personnel and Philips customers who have a current and valid license from Philips
for use by the customer’s designated in-house service employee on equipment located at the customer’s designated site. Use of this document by unauthorized persons
is strictly prohibited. Report violation of these requirements to the Philips Legal Department. This document must be returned to Philips when the user is no longer
licensed and in any event upon Philips’ first written request.
© 2006 Philips Medical Systems

Philips Medical Systems
© 2006 KONINKLIJKE PHILIPS ELECTRONICS N. V. ALL RIGHTS RESERVED.
Warranty Disclaimer
PHILIPS PROVIDES THIS DOCUMENT WITHOUT WARRANTY OF ANY KIND, EITHER IMPLIED OR EXPRESSED,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE.
Limitation of Liability
PHILIPS HAS TAKEN CARE TO ENSURE THE ACCURACY OF THIS DOCUMENT. HOWEVER, PHILIPS ASSUMES NO
LIABILITY FOR ERRORS OR OMISSIONS AND RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE
TO ANY PRODUCTS HEREIN TO IMPROVE RELIABILITY, FUNCTION, OR DESIGN. PHILIPS MAY MAKE IMPROVEMENTS
OR CHANGES IN THE PRODUCT(S) OR PROGRAM(S) DESCRIBED IN THIS DOCUMENT AT ANY TIME.
Symbol Descriptions
Attention symbol Radiation warning symbol
Laser warning symbol Biohazard warning symbol
Magnetism warning symbol Projectile warning symbol
Electrical warning symbol Do not touch

Revision History
ECO # Revision Date Comments

H2013458 A May 2006 New Release
This document was prepared by the CT PMG Haifa Service Innovation Department.
For any additions, corrections, or suggestions, contact:
CT PMG Haifa Customer Support Department
Email: _1HFA_Support_e2@philips.com
Safety Information
To the User of This Manual
The user of this manual is directed to read and carefully review the instructions, warnings and cautions contained herein prior to beginning installation or service activities.
While you may have previously installed or serviced equipment similar to that described in this manual, changes in design, manufacture or procedure may have occurred
which significantly affect the present installation or service.
Installation and Environment

Except for installations requiring certification by the manufacturer per federal standards, see that a radiation protection survey is made by a qualified expert in accordance
with NCRP 102, section 7, as revised or replaced in the future. Perform a survey after every change in equipment, workload, or operating conditions which might
significantly increase the probability of persons receiving more than the maximum permissible dose equivalent.
Diagnostic Imaging Systems - Mechanical-electrical Warning

All of the moveable assemblies and parts of this equipment should be operated with care and routinely inspected in accordance with the manufacturer’s recommendations
contained in the equipment manuals.
Only properly trained and qualified personnel should be permitted access to any internal parts. Live electrical terminals are deadly; be sure line disconnects are opened and
other appropriate precautions are taken before opening access doors, removing enclosure panels, or attaching accessories.
Do not under any circumstances, remove the flexible high tension cables from the x-ray tube housing or high tension generator and/or the access covers from the generator
until the main and auxiliary power supplies have been disconnected. Failure to comply with the above may result in serious or fatal bodily injuries to the operator or those
in the area.
Electrical-grounding Instructions
The equipment must be grounded to an earth ground by a separate conductor. The neutral side of the line is not to be considered the earth ground. On equipment
provided with a line cord, the equipment must be connected to properly grounded, three-pin receptacle. Do not use a three-to-two pin adapter.
Diagnostic Imaging Systems - Radiation Warning

X-ray and Gamma-rays are dangerous to both operator and others in the vicinity unless established safe exposure procedures are strictly observed.
The useful and scattered beams can produce serious or fatal bodily injuries to any persons in the surrounding area if used by an unskilled operator. Adequate precautions
must always be taken to avoid exposure to the useful beam, as well as to leakage radiation from within the source housing or to scattered radiation resulting from the
passage of radiation through matter.
Those authorized to operate, participate in or supervise the operation of the equipment must be thoroughly familiar and comply completely with the current established
safe exposure factors and procedures described in publications, such as: Subchapter J of Title 21 of the Code of Federal Regulations, "Diagnostic X-ray Systems and Their
Major Components", and the national council on radiation protection (NCRP) no. 102, "Medical X-ray And Gamma-ray Protection For Energies Up To 10 Mev-
equipment Design and Use", as revised or replaced in the future.
Those responsible for planning of x-ray and gamma-ray equipment installations must be thoroughly familiar and comply completely with NCRP no. 49, "Structural
Shielding Design and Evaluation For Medical Of X-rays and Gamma-rays of Energies Up to 10 Mev", as revised and replaced in the future. Failure to observe these
warnings may cause serious or fatal bodily injuries to the operator or those in the area.
Add additional safety information as needed
Contents
MX4000/6000 Dual Service Tools ....................................................................................................... 1
Overview .................................................................................................................................................................. 1
Automatic Calibration ............................................................................................................................................... 2
Corr. Reg. (Corrective Registry)............................................................................................................................... 2
Filtration Image (Sinograph)..................................................................................................................................... 3
Procedure ........................................................................................................................................................... 3
Channel Mask .......................................................................................................................................................... 6
Scan Evaluation ....................................................................................................................................................... 7
Hardware Test.......................................................................................................................................................... 8
Hardware Test Interface ..................................................................................................................................... 8
Equipment........................................................................................................................................................... 9
Control ................................................................................................................................................................ 9
Gantry Test ......................................................................................................................................................... 9
Patient Table Test............................................................................................................................................... 10
Collimator Test.................................................................................................................................................... 11
H.V. Test ............................................................................................................................................................. 12
DAS..................................................................................................................................................................... 13
Data Analyse ............................................................................................................................................................ 14
Auto Verify................................................................................................................................................................ 14
System Log .............................................................................................................................................................. 15
Setting ...................................................................................................................................................................... 15
System setting .................................................................................................................................................... 16
User Manage ...................................................................................................................................................... 17
Modify password ................................................................................................................................................. 17
ID Generator ....................................................................................................................................................... 18
Display Setting .................................................................................................................................................... 19
Record ................................................................................................................................................................ 22
LanguageSetting................................................................................................................................................. 22
DICOM Config..................................................................................................................................................... 22
Co ....................................................................................................................................................................... 23
Access Manager ................................................................................................................................................. 25
IP Manager ......................................................................................................................................................... 25
Firewall Setup ..................................................................................................................................................... 25
Scan Status .............................................................................................................................................................. 25
CSIP Level 1 © 2006 Koninklijke Philips Electronics N.V All Rights Reserved Refer to Front Cover i
MX4000/6000 Dual Service Tools User Guide Overview
MX4000/6000 Dual Service Tools
Overview
To access the service tools, click Daily Service Advanced

Service from the main application
window.
The service tools for the MX4000/6000
Dual are organized in two groups:
• Daily Service—tools for the CT
Technologist and service engineer
NOTE For instructions on Daily

Service tools, refer to the
MX4000/MX6000 Dual
Instructions for Use
• Advanced—diagnostic and
troubleshooting tools for the service
engineer only
Click on an Advanced icon to jump to the specific service tool description

and explanation ----->
CSIP Level 1 © 2006 Koninklijke Philips Electronics N.V All Rights Reserved Refer to Front Cover 1
MX4000/6000 Dual Service Tools User Guide Automatic Calibration
Automatic Calibration
Follow the instructions in the MX4000/6000 Dual Calibration Manual for full automatic calibration.
Corr. Reg. (Corrective Registry)
The purpose of this function is to establish a new Patient ID

for performing manual scans to be used in Data Analysis.
1 Click Corr. Regg.; the Patient ID dialog opens.
2 Type in name and click Register.
3 Click Space to open an information window that
indicates free space on the hard disk in MB or number
of images.
Figure 1:
4 Click Exit to close the dialog.
MX4000/6000 Dual Service Tools User Guide Filtration Image (Sinograph)
Filtration Image (Sinograph)

The Filtration Image application is used to determine if artifacts displayed on images are caused by an improperly
performed or corrupted Phantom Calibration. The application recreates the image with or without selected calibration
data.
Procedure
1 Click Filt.Image; the Sinograph window opens.
Figure 2:
The parameters for selection are described in Table 1.

Table 1:
Parameter Value Note

Patient ID Identification Choose the target patient ID for analyzing
Scan No. (air) Scan No. Input (air) Scan No. under the identification, or input 0 if no such scan No. exists.
(Water Phantom) Input Scan No. to be analyzed under the identification. If it is set to “0”, the system
Scan No.
Scan No. will adopt the default background data
NONE For displaying original scan data without calibration.
Sensitive (Air) For displaying the scan data that have only undertaken sensitivity calibration.
For displaying the scan data that have undertaken sensitivity and harden
Harden
calibration.
Data calibration
For displaying the scan data that have undertaken calibration of sensitivity, harden
Water
and Water Phantom calibration.
For displaying the scan data that have undertaken all calibrations and Water
All
Phantom calibration.
Window level 50 For selecting window level to be displayed
Window width 100 For selecting window width to be displayed
Filter Choose whether to add filtration parameters to the data or not.
Select which slice of data to be displayed.(A,B, mean of A and B, Difference
Slice A slice/B slice
between A and B)
2 Set Data calibration to NONE. This reconstructs the image without calibration data.
3 Click Confirm. The image opens on the screen (see Figure 3).
The horizontal green cross hair on the image represents the detector number (0–720 from top to bottom).
The vertical green cross hair represents the sampling (1024) from left to right.
Artifacts on the image without the application of calibration data indicate that the cause is due to a hardware or
software problem and not due to a corrupted calibration.
Module Detector
Detector # in Module
Figure 3:
4 To close the image view, right-click on the image and select EXIT (see Figure 3).
5 If there are no artifacts, repeat the procedure and set Data calibration to Sensitive (Air Calibration).
If artifacts appear, we can assume that the problem occurs as a result of Air Calibration.
6 Repeat the procedure using the remaining Data calibration options until artifacts appear.
7 Click Exit to close the Filt.Image dialog.
8 If, after the test, the conclusion is that a specific calibration is the cause of the artifacts, repeat the calibration.
Refer to the MX4000/6000 Dual Calibration Manual for instructions.
MX4000/6000 Dual Service Tools User Guide Channel Mask
Channel Mask
This tool allows you to disable (mask) a single channel (detector) or range of channels so that they are removed from
the reconstruction process.
NOTE In case of a bad module, you must replace the entire DAS assembly.
1 Click Chan.Mask. The Channel Mask dialog opens.

2 Click Channel Mask.
3 Select Slice A or B.
4 Enter the channel number or range in the Start channel
and End channel fields.
NOTE If bad channels are discovered during the Bad

Channel Test, their numbers are
automatically inserted into the Start channel
and End channel fields.
5 From the Operation drop-down list, select Mask and

click Confirm.
Figure 4:
The selected channels are added to the Masked
channel list.
Remove mask the selected channels as follows:

1 Enter the channel number or range in the Start channel and End channel fields.
2 From the Operation drop-down list, select Delete and click Confirm.
The selected channels are removed to the Masked channel list.
MX4000/6000 Dual Service Tools User Guide Scan Evaluation
Scan Evaluation
Scan Evaluation is used when running the Impulse Response and Slice Width tests on the Manual Performance check
(refer to the MX4000/6000 Dual Performance Manual V1.0 for instructions). Starting from Software V1.2 the procedure
is fully Automatic and there is no need for this step.
MX4000/6000 Dual Service Tools User Guide Hardware Test
Hardware Test
The Hardware Test is used for manual control of the different system component. This tool can be used for
troubleshooting different hardware problems without the use of the Gantry controls or the CT-Box.
Hardware Test Interface

Click a red area for a detailed explanation of the specific function.
Figure 5:
Equipment
Enables selection of the desired system component for testing.
Control
There are two Test functions:
• Status - retrieves present status information of the system. The results are listed in the Test Information field at the
bottom of the Hardware Test dialog.
• Command - sends the requested hardware test command via the CAN Bus. The results are listed in the Test
Information field at the bottom of the Hardware Test dialog.
After selecting, click Confirm to execute the function.
No. exposures - produces a report of the number of times the X-ray exposure was activated from system installation or
replacement of X-ray Tube to the present.
Gantry Test
The Gantry test enables manual motion control checks of the rotation and tilt at different parameters.
Figure 6:
Command Command Parameter Parameter Range

Rotation Rotation speed 0.8–10 sec.
Stop rotation Stop Rotor position 0°–360°
+Tilt Tilt angle 0°–30°
- Tilt Tilt angle 0°–30°
Patient Table Test

The Couch test enables manual motion control checks of the Patient Table:
• Horizontal position
• Horizontal speed
• Height
• Zero the Patient Table Position
Figure 7:

Patient Table position 0–16000 (0.1mm)
Horizontal movement
Patient Table speed 1–100 mm/sec
Vertical movement Patient Table height 0–550mm
Reset Reset Patient Table horizontal position
Collimator Test
The Collimator test enables manual thickness setting of the:
• A-Plane (Pre-collimator)
• P-Plane (Post-collimator)
The Filtering ruler applies the following:

• Empty (no filter)
• Head
• Body
NOTE Only one component can be tested at one time.
Figure 8:

A-Plane (Pre-collimator) Upper shutter thickness
P-Plane (Post-collimator) Lower shutter thickness
H.V. Test
The H.V. test enables testing of the HV system with different parameters as listed in the table below.
Figure 9:

X-ray voltage kV 140, 130, 120, 110, 100, 80
Set H.V. parameters X-ray current mA 10–200
Filament current
Reset H.V. registers
AC contactor on
AC contactor off
Rotating-anode on
Rotating-anode off
Large focal spot
Small focal spot
X-ray voltage kV
Filament on X-ray current mA
Filament current
Filament off
X-ray on
DAS
The DAS test is a quick method for testing the DAS system determining module failure.
Figure 10:
• Connect ITS (Internal Test Sample) - Select this option and perform a scan. The data sent to the DAS I/O board will
come from Internal Raw data programmed into the DAS boards instead of the scan information passed through the
detectors. If the problem in the data channels still exists, then the problem lies in data channels themselves (DAS
board or DAS motherboard); if the problem disappears, then the problem lies in the detector modules.
• Disconnect ITS - Returns the system to normal scan acquisition

Connect ITS
Disconnect ITS
WARNING MAKE SURE TO SELECT DISCONNECT ITS BEFORE YOU RETURN THE SYSTEM TO
THE CUSTOMER.
MX4000/6000 Dual Service Tools User Guide Data Analyse
Data Analyse
Explanation and procedures will be added in the next revision.
Auto Verify
Auto Verify runs the auto-performance test which include:
• Acceptance
• Constancy
• Performance
Refer to the MX4000/6000 Dual Performance Manual for instructions.
MX4000/6000 Dual Service Tools User Guide System Log
System Log
The System Log opens the current log file in the Error Log Viewer for analysis and system troubleshooting.
Setting
The Setting menu includes different functions that control system behavior and allow the user to set access rights,
passwords, etc.
This section explains the different functions.
Figure 11:
MX4000/6000 Dual Service Tools User Guide Setting
System setting
The System setting dialog contains many variables that can be configured. It is highly recommended to retain the
factory default values for these variables except for the following:
• Modifying the Image Rotation Angle
• Modifying the Laser Location
Modifying the Image Rotation Angle

Figure 13 shows an example of a scanned
image that is skewed to an angle of 1°.
The following procedure enables modification of
the image rotation angle.
1 In the Software parameter Setting area, Move
the slider under Adjust angle for imaging
or,
type in a value in the Degrees field under the
slider.
Figure 12:
2 Click Confirm and then click Exit.
Figure 13:
Modifying the Laser Location

The default position of the lateral laser marker is on the
right side of the Gantry. This procedure enables the
positioning of the lateral laser marker on the left side of the
Gantry.
1 In the Laser Location area (bottom left-hand side of the
System setting dialog, select either left or right side for
laser marker location. Figure 14:
2 Click Confirm and then click Exit.
User Manage
The User Manage function enables addition or deletion of logon User names.
CAUTION Do not modify any users in this dialog.
Modify password
The Modify password function enables modification of logon passwords.
CAUTION Do not modify any passwords in this dialog.
ID Generator
The ID Generator creates the identity format for an
anonymous Patient ID (see Figure 16). The Patient ID
string is composed of four variables (see example in
Figure 15), each of which is configurable according to
hospital convention.
1 2 34 3
Figure 15:
4
The variables strings are as follows:
1 An ID string of letters or words
2–4 String of letters or words, or Date in configurable Figure 16:
format, or Number (consecutive with start and end
range)
To modify the ID format:

1 Click Setting next to the variable and change according to desired format.
2 Click Confirm to save the new settings and close the dialog.
Display Setting
Display Setting enables you to configure the information displayed on the image and to set up the image information
layout according to hospital convention. While the Surview or Axial images are displayed, user can set the template of
displaying corresponding text information.
Edit an existing display template or add a new template as follows:
1 Click Display Setting; the Layout Setup window opens. The image is displayed and shows parameter positioning
(see Figure 17).
Figure 17:
To creat a new template:
1 Click New; the Create Template dialog opens. The Create Template and Edit Template (shown in Figure 18) dialogs
are similar.
2 Give the new template a name (unique name of the template, it can't be the same as other templates).
3 Follow the instructions on page page 21 for creating the template.
4 Click Save to save the current modifications, or OK to exit the interface and save current modifications, or Cancel to
exit the interface without saving the current modifications.
To edit the current default template,

1 Click Edit; the Edit Template dialog opens (see Figure 18).
2 Add or modify parameters (texts) as follows (refer to interface descriptions in Figure 18):
a Select a name for new display.
b Select the location of the text from the Parameter position selector.
c Add desired parameter from the Available parameter list by dragging the text to the left pane.
d Organize the vertical text display by moving the selected texts Up/ Down.
NOTE Click "Remove" to remove the text from display
e Repeat the same procedure above for the rest of the display corners (RT, LB, RB).
f Click Font to modify display font type and size.
g Click Save and then click OK twice to confirm and to save the updated setting and exit the utility.
Parameters position
selector
• LT = Left Top Font Selector
for Image
• RT = Right Top
Display
• LB = Left Bottom
• RB = Right Bottom
Horizontal Parameter
positioning
Drag an item with the mouse
to the left or right to change Available
the horizontal order Parameter
List
Parameter listed at selected Drag an item
position with the
mouse to the
selected
information list
Figure 18:
— Maximum Width—Sets the maximum width of one information string to display; the unit is character.
— Move Up—Moves the selected line in the selected information list one line upwards.
— Move Down—Moves the selected line in the selected information list one line downwards.
— Add—Adds a new line in the selected information list. This line is blank at first; the user can add string in it
anytime.
— Remove—Delete a line being selected in the selected information list.
Record
The Record function allows the user record auto-voice messages in the local language.
LanguageSetting
LanguageSetting enables the user to select the system interface language. The user has a choice of either English or
Chinese. Follow the procedure to set up the language during system installation or after re-installing the application
software.
Change the system interface language as follows:
1 Click LanguageSetting; the LanguagesSetting dialog
opens.
2 Select the language setting from the drop-down list and
click OK (see Figure 19).
Figure 19: Select Language Dialog Box
DICOM Config
DICOM Config is the interface used to set up the MX4000/6000 Dual network installation and configuration.
Full instructions for network setup are included in the MX4000/6000 Dual Network Installation and Configuration
Manual.
Co
The Co function lists the service and options license keys and available options for the system.
Enter the service license key as follows:
1 Select the Cooperate info tab.
1 Follow the service contract between the customer and
Philips request procedure for a service key.
2 Enter the User's ID code for generation of a new
Service key.
3 Type the new service key in the New lease code field
and click Confirm.
4 Click Exit to return to the main screen.
Figure 20: Service License
1 If necessary to re-enter the options license key because of computer or hard disk replacement, click Select Module.
2 Read the license key from the label shown in Figure 21 and Figure 22.
Figure 21: Option License Label ROW Configuration Figure 22: Option License Label China Configuration
3 In the Module ID field, type in the license key; the

options that are enabled by the option key (purchased
by the customer) are activated in the Module List.
Figure 23: Options License
MX4000/6000 Dual Service Tools User Guide Scan Status
Access Manager
The Access Manager allows the administrator to enable
or disable specific functions for each specific logon user.
To activate this function, you must log on as administrator.
Figure 24:
IP Manager
The IP Manager function is used for setup of the local IP to the hospital network.
Firewall Setup
Firewall Setup opens the Windows XP firewall application. Set up the firewall according to the hospital IT policy.
Scan Status
Explanation and procedures will be added in the next revision.

MX4000/6000 Dual: 4550 193 80281 Revision A

Uploaded by

Document Information

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

MX4000/6000 Dual: 4550 193 80281 Revision A

Uploaded by

Copyright:

Available Formats

MX4000/6000 Dual

Service Tools User Guide

4550 193 80281

© 2006 Philips Medical Systems

Attention symbol Radiation warning symbol

Laser warning symbol Biohazard warning symbol

Magnetism warning symbol Projectile warning symbol

Electrical warning symbol Do not touch

ECO # Revision Date Comments

Installation and Environment

Diagnostic Imaging Systems - Mechanical-electrical Warning

Diagnostic Imaging Systems - Radiation Warning

MX4000/6000 Dual Service Tools

To access the service tools, click Daily Service Advanced

NOTE For instructions on Daily

Click on an Advanced icon to jump to the specific service tool description

Corr. Reg. (Corrective Registry)

The purpose of this function is to establish a new Patient ID

Filtration Image (Sinograph)

The parameters for selection are described in Table 1.

Parameter Value Note

1 Click Chan.Mask. The Channel Mask dialog opens.

NOTE If bad channels are discovered during the Bad

5 From the Operation drop-down list, select Mask and

Remove mask the selected channels as follows:

Hardware Test Interface

After selecting, click Confirm to execute the function.

Command Command Parameter Parameter Range

Patient Table Test

Command Command Parameter Parameter Range

The Filtering ruler applies the following:

Command Command Parameter Parameter Range

Command Command Parameter Parameter Range

Command Command Parameter Parameter Range

Refer to the MX4000/6000 Dual Performance Manual for instructions.

Modifying the Image Rotation Angle

Modifying the Laser Location

2 Click Confirm and then click Exit.

CAUTION Do not modify any users in this dialog.

CAUTION Do not modify any passwords in this dialog.

To modify the ID format:

To edit the current default template,

Figure 19: Select Language Dialog Box

Figure 20: Service License

3 In the Module ID field, type in the license key; the

Figure 23: Options License

You might also like
