CARAMOAN COMMUNITY COLLEGE

Cadong, Caramoan, Camarines Sur

Detailed Lesson Plan in Carpentry

I. CONTENT: Carpentry

II. TOPIC: Marking and Measuring Tools

III. OBJECTIVES:

At the end of the lesson the students must be able to:

1. Identify the different kinds of marking and measuring tools.

2. Recognize the difference between marking tools and measuring tools.

References:

Fajardo, M. B. (2000). Simplified Methods on Building Construction

CARPENTRY – art and trade of cutting, working, and joining timber. The
term includes both structural timberwork in framing and items such as doors,
windows, and staircases.

IV. LESSON PROPER

Teachers Activity Students Activity

A. Preliminary/Routinary Activities

Good morning class! (The students will stand and greet back)
Good morning ma’am

Let us Pray. Ms. Ana kindly lead the (Student’s will rise and say their
prayer. prayer.)
In the name … AMEN.

Before we sit down please arrange your (The students will arrange their seats
seats and pick up the pieces of dirt and pick up the dirt.).
under your chairs.

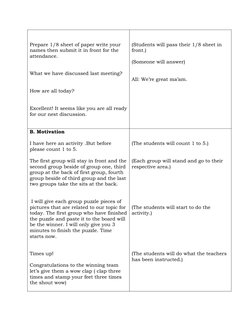

Prepare 1/8 sheet of paper write your (Students will pass their 1/8 sheet in
names then submit it in front for the front.)
attendance.
(Someone will answer)

What we have discussed last meeting?

All: We’re great ma’am.

How are all today?

Excellent! It seems like you are all ready

for our nest discussion.

B. Motivation

I have here an activity .But before (The students will count 1 to 5.)
please count 1 to 5.

The first group will stay in front and the (Each group will stand and go to their
second group beside of group one, third respective area.)
group at the back of first group, fourth
group beside of third group and the last
two groups take the sits at the back.

I will give each group puzzle pieces of

pictures that are related to our topic for (The students will start to do the
today. The first group who have finished activity.)
the puzzle and paste it to the board will
be the winner. I will only give you 3
minutes to finish the puzzle. Time
starts now.

Times up! (The students will do what the teachers

has been instructed.)
Congratulations to the winning team
let’s give them a wow clap ( clap three
times and stamp your feet three times
the shout wow)

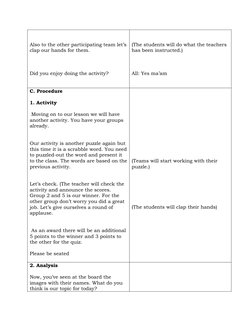

Also to the other participating team let’s (The students will do what the teachers
clap our hands for them. has been instructed.)

Did you enjoy doing the activity? All: Yes ma’am

C. Procedure

1. Activity

Moving on to our lesson we will have

another activity. You have your groups
already.

Our activity is another puzzle again but

this time it is a scrabble word. You need
to puzzled-out the word and present it
to the class. The words are based on the (Teams will start working with their
previous activity. puzzle.)

Let’s check. (The teacher will check the

activity and announce the scores.
Group 2 and 5 is our winner. For the
other group don’t worry you did a great
job. Let’s give ourselves a round of (The students will clap their hands)
applause.

As an award there will be an additional

5 points to the winner and 3 points to
the other for the quiz.

Please be seated

2. Analysis

Now, you’ve seen at the board the

images with their names. What do you
think is our topic for today?


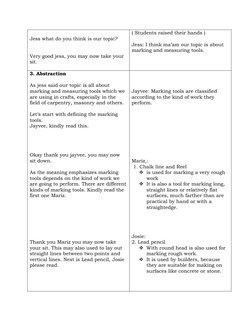

Jess what do you think is our topic?
Very good jess, you may now take your
sit.
3. Abstraction
As jess said our topic is all about
marking and measuring tools which we
are using in crafts, especially in the
field of carpentry, masonry and others.
Let’s start with defining the marking
tools.
Jayvee, kindly read this.
Okay thank you jayvee, you may now
sit down.
As the meaning emphasizes marking
tools depends on the kind of work we
are going to perform. There are different
kinds of marking tools. Kindly read the
first one Mariz.
Thank you Mariz you may now take
your sit. This may also used to lay out
straight lines between two points and
vertical lines. Next is Lead pencil, Josie
please read.
( Students raised their hands )
Jess: I think ma’am our topic is about
marking and measuring tools.
Jayvee: Marking tools are classified
according to the kind of work they
perform.
Mariz :
1. Chalk line and Reel
 is used for marking a very rough
work
 It is also a tool for marking long,
straight lines or relatively flat
surfaces, much farther than are
practical by hand or with a
straightedge.
Josie:
2. Lead pencil
 With round head is also used for
marking rough work.
 It is used by builders, because
they are suitable for making on
surfaces like concrete or stone.

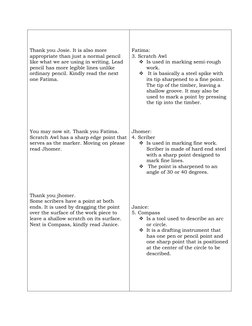

Thank you Josie. It is also more
appropriate than just a normal pencil
like what we are using in writing. Lead
pencil has more legible lines unlike
ordinary pencil. Kindly read the next
one Fatima.
You may now sit. Thank you Fatima.
Scratch Awl has a sharp edge point that
serves as the marker. Moving on please
read Jhomer.
Thank you jhomer.
Some scribers have a point at both
ends. It is used by dragging the point
over the surface of the work piece to
leave a shallow scratch on its surface.
Next is Compass, kindly read Janice.
Fatima:
3. Scratch Awl
 Is used in marking semi-rough
work.
 It is basically a steel spike with
its tip sharpened to a fine point.
The tip of the timber, leaving a
shallow groove. It may also be
used to mark a point by pressing
the tip into the timber.
Jhomer:
4. Scriber
 Is used in marking fine work.
Scriber is made of hard end steel
with a sharp point designed to
mark fine lines.
 The point is sharpened to an
angle of 30 or 40 degrees.
Janice:
5. Compass
 Is a tool used to describe an arc
or circle.
 It is a drafting instrument that
has one pen or pencil point and
one sharp point that is positioned
at the center of the circle to be
described.

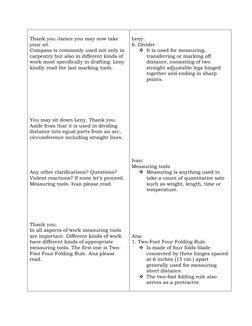

Thank you Janice you may now take
your sit.
Compass is commonly used not only in
carpentry but also in different kinds of
work most specifically in drafting. Leny
kindly read the last marking tools.
You may sit down Leny, Thank you.
Aside from that it is used in dividing
distance into equal parts from an arc,
circumference including straight lines.
Any other clarifications? Questions?
Violent reactions? If none let’s proceed.
Measuring tools. Ivan please read.
Thank you.
In all aspects of work measuring tools
are important. Different kinds of work
have different kinds of appropriate
measuring tools. The first one is Two-
Foot Four Folding Rule. Ana please
read.
Leny:
6. Divider
 It is used for measuring,
transferring or marking off
distance, consisting of two
straight adjustable legs hinged
together and ending in sharp
points.
Ivan:
Measuring tools
 Measuring is anything used to
take a count of quantitative sate
such as weight, length, time or
temperature.
Ana:
1. Two-Foot Four Folding Rule.
 Is made of four folds blade
connected by three hinges spaced
at 6 inches (15 cm.) apart
generally used for measuring
short distance.
 The two-foot folding rule also
serves as a protractor.

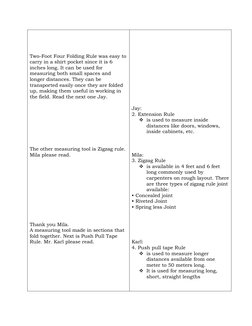

Two-Foot Four Folding Rule was easy to
carry in a shirt pocket since it is 6
inches long. It can be used for
measuring both small spaces and
longer distances. They can be
transported easily once they are folded
up, making them useful in working in
the field. Read the next one Jay.
The other measuring tool is Zigzag rule.
Mila please read.
Thank you Mila.
A measuring tool made in sections that
fold together. Next is Push Pull Tape
Rule. Mr. Karl please read.
Jay:
2. Extension Rule
 is used to measure inside
distances like doors, windows,
inside cabinets, etc.
Mila:
3. Zigzag Rule
 is available in 4 feet and 6 feet
long commonly used by
carpenters on rough layout. There
are three types of zigzag rule joint
available:
• Concealed joint
• Riveted Joint
• Spring less Joint
Karl:
4. Push pull tape Rule
 is used to measure longer
distances available from one
meter to 50 meters long.
 It is used for measuring long,
short, straight lengths

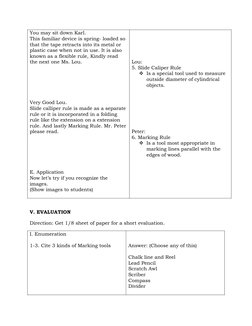

You may sit down Karl.
This familiar device is spring- loaded so
that the tape retracts into its metal or
plastic case when not in use. It is also
known as a flexible rule, Kindly read
the next one Ms. Lou. Lou:
5. Slide Caliper Rule
 Is a special tool used to measure
outside diameter of cylindrical
objects.

Very Good Lou.

Slide calliper rule is made as a separate
rule or it is incorporated in a folding
rule like the extension on a extension
rule. And lastly Marking Rule. Mr. Peter
please read. Peter:
6. Marking Rule
 Is a tool most appropriate in
marking lines parallel with the
edges of wood.

E. Application
Now let’s try if you recognize the
images.
(Show images to students)

V. EVALUATION

Direction: Get 1/8 sheet of paper for a short evaluation.

I. Enumeration

1-3. Cite 3 kinds of Marking tools Answer: (Choose any of this)

Chalk line and Reel

Lead Pencil
Scratch Awl
Scriber
Compass
Divider

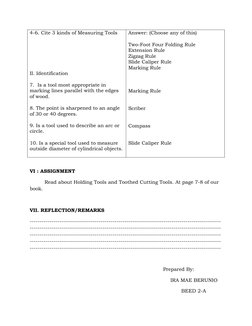

4-6. Cite 3 kinds of Measuring Tools Answer: (Choose any of this)

Two-Foot Four Folding Rule

Extension Rule
Zigzag Rule
Slide Caliper Rule
Marking Rule
II. Identification

7. Is a tool most appropriate in

marking lines parallel with the edges Marking Rule
of wood.

8. The point is sharpened to an angle Scriber

of 30 or 40 degrees.

9. Is a tool used to describe an arc or Compass

circle.

10. Is a special tool used to measure Slide Caliper Rule

outside diameter of cylindrical objects.

VI : ASSIGNMENT

Read about Holding Tools and Toothed Cutting Tools. At page 7-8 of our
book.

VII. REFLECTION/REMARKS

-------------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------------

Prepared By:

IRA MAE BERUNIO

BEED 2-A
