Ch4 EY Data Visualization Slides

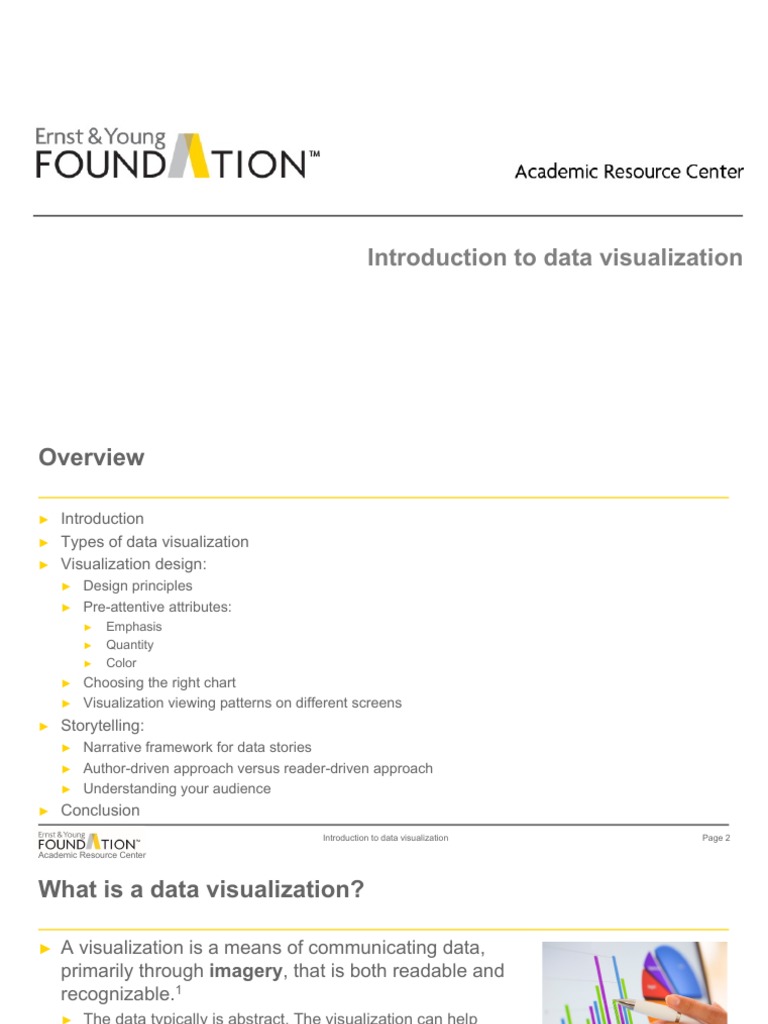

Introduction to data visualization
Overview
► Introduction
► Types of data visualization
► Visualization design:
► Design principles
► Pre-attentive attributes:
► Emphasis
► Quantity
► Color
► Choosing the right chart
► Visualization viewing patterns on different screens
► Storytelling:
► Narrative framework for data stories
► Author-driven approach versus reader-driven approach
► Understanding your audience
► Conclusion
Introduction to data visualization Page 2
Academic Resource Center

What is a data visualization?
► A visualization is a means of communicating data,

primarily through imagery, that is both readable and
recognizable.1
► The data typically is abstract. The visualization can help
transform the invisible to be visible.
► Images serve as the primary means to communicate the data,
but also can be accompanied by other communication means,
such as text.
► In terms of being readable and recognizable, the visualization must provide a way to learn
something about the data
► Data visualization also can be described as blending the art of design with the science
of data.
► For instance, while the data that you show might be complete and accurate, many other design
elements need to be considered to best engage your audience.
1 "What is Visualization? A definition," EagerEyes website,https://eagereyes.org/criticism/definition-of-visualization, accessed June 30, 2017.
1

Introduction
Which chart does a better job of helping you understand the data and why?

Introduction
Many times, when you hear about data

visualization, you also hear about storytelling. That
is because the most effective visualizations
incorporate a storytelling approach.
Why? There are three main reasons.
► Memorable: Stories will make it easier for the audience to connect and remember the
information you are trying to convey.
► Relatable: Stories lead to emotional coupling. Both the storyteller and the audience go
through and relate to the same experience.
► Lead to action: Research shows that storytelling can engage parts of the brain that lead to
action.

Introduction
► Data visualization can be a very

powerful way to transform data into
actionable insights and these skills are
becoming increasingly important.
► This module will help develop your skills
and provide you with an understanding of
basic visualization design and
storytelling principles and frameworks.

Types of data visualization
There are two main types of data visualization: exploratory and explanatory.
Exploratory:
► Allows the audience to explore data for further analyses
► Is conducted for a problem that has not been clearly defined
Exploratory visualization is what we do to understand the data, e.g., to develop

and assess a hypothesis or question or find a pattern in the data.

Exploratory data visualization
Anscombe’s quartet
Set 1 Set 2 Set 3 Set 4
Mean (x) 9.00 9.00 9.00 9.00
Mean (y) 7.50 7.50 7.50 7.50
Variance (x) 11.00 11.00 11.00 11.00
Variance (y) 4.13 4.13 4.12 4.12
Correlation 0.82 0.82 0.82 0.82
Intercept 3.00 3.00 3.00 3.00
Slope 0.50 0.50 0.50 0.50
Source: https://en.wikipedia.org/wiki/Anscombe%27s_quartet

Exploratory data visualization
Anscombe’s quartet
"Anscombe's quartet,"
Wikipedia website,
https://en.wikipedia.org/wiki/Ans
combe%27s_quartet, accessed
June 30, 2017.

Explanatory data visualization
► Explains what the audience needs to know

► Shows specific relationships in data, such as link between causes and
results

Explanatory data visualization
解释性数据可视化
Images sourced from

Wikipedia at
https://en.wikipedia.org/
wiki/John_Snow,
accessed June 30, 2017.

Visualization design
► Design principles
► Pre-attentive attributes:
► Emphasis
► Quantity
► Color
► Choosing the right chart

Tufte’s principles of graphical excellence
Gestalt psychology is a philosophy of the

mind of the Berlin School of Experimental
Psychology.
形底原则
Gestalt principles describe how our mind

organizes individual visual elements
into groups to make sense of an entire
visual.
"How to Use the Gestalt Principles for Visual Storytelling #PoDV," FusionBrew:
The FusionCharts Blog, http://www.fusioncharts.com/blog/2014/03/how-to-use-
the-gestalt-principles-for-visual-storytelling-podv/, accessed June 30, 2017.
You can use these principles to
highlight important patterns and de-
emphasize non-important patterns.

Gestalt principles: proximity
You see the dots that are closer to each other as part of the same group so you
see three rows of dots instead of four columns of dots because they are closer
horizontally than vertically.

Gestalt principles: similarity
You see similar-looking objects as part of the same group.

Gestalt principles: enclosure
You group the first four and last four dots as two rows instead of eight dots.

Gestalt principles: connection
You group the connected dots as belonging to the same group.

Gestalt principles: symmetry
You see three pairs of symmetrical brackets rather than six individual brackets.
[ ]{ }[ ]

Gestalt principles: continuity
You see one continuous path instead of three arbitrary ones.

Gestalt principles: closure
You automatically close the square and circle instead of seeing three
disconnected paths.

Gestalt principles: figure and ground
You either notice the two faces or the vase. Whichever you notice becomes the
figure and the other the background.

Tufte’s principles
► Edward Tufte is an American statistician and professor emeritus of political

science, statistics and computer science at Yale University. He is known as a
pioneer in the field of data visualization and has written four books about
information design.
► Tufte’s principles highlight that “excellence in statistical graphics consists of
complex ideas communicated with clarity, precision and efficiency.”1
1
E.R. Tufte. The Visual Display of Quantitative Information, 2nd Edition.
Graphics Press, Cheshire, CT 2001

Tufte principles: data-to-ink ratio
Tufte believes you should show the data and essentially maximize the data-to-ink ratio. This
essentially means you should remove all non-data ink and redundant data ink, often referred
to as chart junk. The idea here is that less can be more.

Tufte principles: data-to-ink ratio
Remove backgrounds
the color of the bar chart can represent different items ,ie.country
remove the 'number of responses' and 'country'
lighten the most important labels ,using different color to emphasize
so it's a lot easier for audience to focus on important data

Pre-attentive attributes
► Good design leverages pre-attentive processing

in our brains. Pre-attentive processing is tuned
to detect a specific set of visual attributes, which
results in certain elements standing out — all
without conscious thought.
► Visual tools that aid in pre-attentive processing
include:
► Emphasis
► Quantity
► Color

Emphasis: form
The form, position, motion or color within your design can emphasize your data.
Let’s first look at how you can emphasize through form.

Emphasis: position

Emphasis: motion

Emphasis: color

Quantity
When comparing quantity, there is a range of visual tools that can be used.
However, the level of accuracy relative to the type of visualization is important to
understand. Color, through hue, saturation or density, is the least accurate way to
compare quantity, while position is the most accurate, as shown in this chart.
easily to see which bar is

more than the other

Color: no color overload
Using color can be a very effective way to make data stand out; however, often
color is not used effectively. Use color to emphasize information creating overload.
too many categories

try not to include too
much information

Color: be consistent and effective when using color
Keep in mind that color can represent categories, so be consistent in how you use color so your
audience isn’t confused.
As you can see in this example, the same yellow color is used for two different fiscal years.
As a reminder, color can be used to emphasize information. In the example provided, yellow is
used to highlight the most relevant data because it is more bold in compared with the other colors.

Color: cater the color for your audience
red means deficit or loss,
► Conveys meaning
► Red and green considerations:
► Cultural differences
► Color blindness
► Brand considerations

Color: understand color context
► As mentioned previously, colors can show quantities and a range of colors is

effective for this purpose. Additionally, darker hues should denote larger
quantities.
► Many visualization tools provide pre-assigned color palettes that have been
well thought out to improve visualizations. ,darker color means larger amount

Choosing the right chart
There is a wide variety of charts that you can use for your data visualizations.
Charts can include graphs or plots, diagrams, tables or maps.
Each chart has a different functionality to show the data you are trying to convey
more effectively.
Comparisons Proportions Relationships Hierarchy
Concepts Location Part of a whole Distribution
How things work Processes and methods Movement and flow Patterns
Range Data over time Text analysis Reference (lookup)

The Data Visualisation Catalogue project provides a tool that can help you look
up different types of charts by type and function. Image provided with copyright permission by Severino Ribecca at
datavizcatalogue.com.

This is a flowchart tool by that

helps you to decide what type
of chart to use.
Image provided with copyright permission by Andrew Abela.

Visualization viewing patterns
F pattern Z pattern

Storytelling
► As mentioned in the introduction, it is very important to apply storytelling

techniques to your data visualization to make it memorable, relatable and
lead to action.
► View this brief video to hear more about the Persuasion and the Power of
Story by Jennifer Aaker:
https://www.youtube.com/watch?v=AL-PAzrpqUQ, accessed June 30, 2017.
Source: https://futureofstorytelling.org/

Narrative framework for data stories
Visual design
How you show
your story
Interactivity
Messaging
How you
How you tell
engage your
your story
audience

How you tell your story: story arc

Author-driven versus reader-driven approach
Best for Best for

explanatory exploratory
visualizations visualizations
strong sequence

Author-driven approach
https://www.youtube.com/watch?v=jbkSRLYSojo

Reader-driven approach
https://www.gapminder.org/

Understanding your audience

Conclusion
► The analytics mindset includes the

ability to interpret and share the
results of data analytics techniques
with stakeholders.
► Data visualizations are a very
powerful way to interpret and share
results!
► What you learned in this module about
effective design principles of data
visualizations, storytelling principles,
and frameworks for data visualizations
and more should improve your ability
and strengthen your analytics mindset.

EY | Assurance | Tax | Transactions | Advisory
About EY
EY is a global leader in assurance, tax, transaction and advisory
services. The insights and quality services we deliver help build trust
and confidence in the capital markets and in economies the world over.
We develop outstanding leaders who team to deliver on our promises
to all of our stakeholders. In so doing, we play a critical role in building
a better working world for our people, for our clients and for our
communities.
EY refers to the global organization, and may refer to one or more, of
the member firms of Ernst & Young Global Limited, each of which is a
separate legal entity. Ernst & Young Global Limited, a UK company
limited by guarantee, does not provide services to clients. For more
information about our organization, please visit ey.com.
About the Ernst & Young Academic Resource Center
The Ernst & Young Academic Resource Center (EYARC) is an
innovative collaboration between faculty and professionals to support
higher education. The EYARC develops and provides free curriculum
resources and other educational support to address leading-edge
issues impacting the accounting profession. The EYARC is yet another
example of the commitment of the global EY organization and the
Ernst & Young Foundation to the academic community. The
Ernst & Young Foundation is a 501(c)(3) tax exempt corporation
associated with Ernst & Young LLP, which funds the Foundation,
together with its present and former partners, principals and staff.
© 2017 Ernst & Young Foundation (US).

All Rights Reserved.
SCORE No. 04563-171US
www.ey.com/us/arc

Ch4 EY Data Visualization Slides

Uploaded by

Document Information

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Ch4 EY Data Visualization Slides

Uploaded by

Copyright:

Available Formats

Introduction to data visualization

Academic Resource Center

► A visualization is a means of communicating data,

Academic Resource Center

Introduction to data visualization Page 4

Academic Resource Center

Many times, when you hear about data

Why? There are three main reasons.

Introduction to data visualization Page 5

Academic Resource Center

► Data visualization can be a very

Introduction to data visualization Page 6

Academic Resource Center

Exploratory visualization is what we do to understand the data, e.g., to develop

Introduction to data visualization Page 7

Academic Resource Center

Set 1 Set 2 Set 3 Set 4

Mean (x) 9.00 9.00 9.00 9.00

Mean (y) 7.50 7.50 7.50 7.50

Variance (x) 11.00 11.00 11.00 11.00

Variance (y) 4.13 4.13 4.12 4.12

Correlation 0.82 0.82 0.82 0.82

Intercept 3.00 3.00 3.00 3.00

Slope 0.50 0.50 0.50 0.50

Introduction to data visualization Page 8

Academic Resource Center

Introduction to data visualization Page 9

Academic Resource Center

► Explains what the audience needs to know

Introduction to data visualization Page 10

Academic Resource Center

Images sourced from

Introduction to data visualization Page 11

Academic Resource Center

Introduction to data visualization Page 12

Academic Resource Center

Gestalt psychology is a philosophy of the

Gestalt principles describe how our mind

Introduction to data visualization Page 13

Academic Resource Center

Introduction to data visualization Page 14

Academic Resource Center

You see similar-looking objects as part of the same group.

Introduction to data visualization Page 15

Academic Resource Center

Introduction to data visualization Page 16

Academic Resource Center

You group the connected dots as belonging to the same group.

Introduction to data visualization Page 17

Academic Resource Center

Academic Resource Center

You see one continuous path instead of three arbitrary ones.

Introduction to data visualization Page 19

Academic Resource Center

Introduction to data visualization Page 20

Academic Resource Center

Introduction to data visualization Page 21

Academic Resource Center

► Edward Tufte is an American statistician and professor emeritus of political

Introduction to data visualization Page 22

Academic Resource Center

Introduction to data visualization Page 23

Academic Resource Center

Introduction to data visualization Page 24
