CE 325 Module 3

30 /1 0 /2 0 2 1

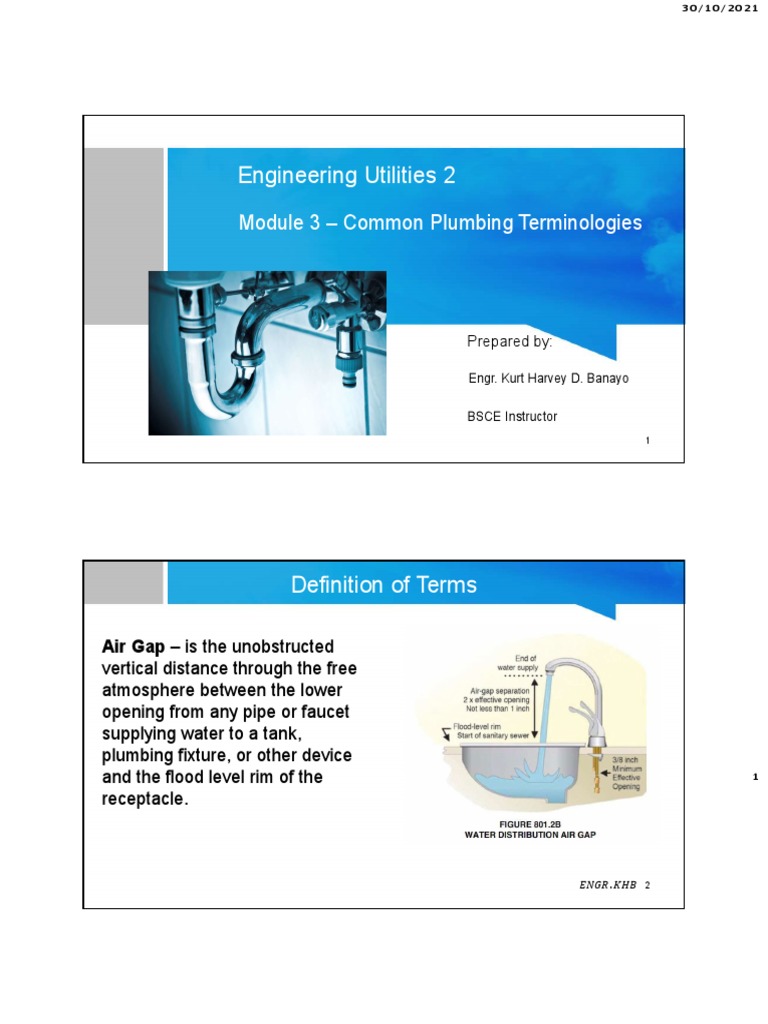

Engineering Utilities 2
Module 3 – Common Plumbing Terminologies
Prepared by:
Engr. Kurt Harvey D. Banayo
BSCE Instructor
1
Definition of Terms
Air Gap – is the unobstructed

vertical distance through the free
atmosphere between the lower
opening from any pipe or faucet
supplying water to a tank,
plumbing fixture, or other device
and the flood level rim of the 1
receptacle.
𝐸𝑁𝐺𝑅. 𝐾𝐻𝐵 2
30 /1 0 /2 0 2 1
Definition of Terms
Back Flow – is the flow of water,

or other liquid mixture, or
substances into the distributing
pipes of a potable supply of water
from any source, other than its
intended source.
Definition of Terms
Back Siphonage – refers to the back flow of used contaminated or

polluted water from a plumbing fixture or vessel into a water supply
pipe due to a negative pressure in such a pipe.
Back Pressure Flow – refers to the back flow of used contaminated or

polluted water from a plumbing fixture or vessel into a water supply
pipe due to a positive pressure in such a pipe. 2
30 /1 0 /2 0 2 1
Definition of Terms
Battery of Fixture – refers to any group of two or more similar
adjacent fixtures which discharges into a common horizontal waste
pipe or soil branch.
Definition of Terms
Bib – is synonymous with faucet,

tap, plug etc., the word faucet is
preferred.
3
30 /1 0 /2 0 2 1
Definition of Terms
Blind Flange – is a flange that
closes the end of a pipe. There is
no opening for the passage of
water.
Definition of Terms
Blow Off – is a safety device to

control sudden increases in
pressure. A gas blowoff line is
provided as a safety measure in
case of a surge in pressure.
Periodically, the valve controlling 4
the gas blowoff line is opened to
permit the gas pressure within
the line to blow out the
accumulated liquids.
30 /1 0 /2 0 2 1
Definition of Terms
Branch – is any part of piping

system other than the main riser
or stack.
Branch Vent – is a vent

connecting one or more
individual vents with a vent stack
or stack vent.
Definition of Terms
Branch Interval – is the length

of a soil or waste stack
corresponding in general to a
storey height but in no case less
than 2.40 meters within which
the horizontal branches from one 5
floor or storey of a building are

connected to the stack.
30 /1 0 /2 0 2 1
Definition of Terms
Calking – is plugging an opening

with oakum, lead or other
materials, that are pounded into
the place or opening.
Definition of Terms
Circuit Vent – is a branch vent

that serves two to no more than
eight traps, and extends from the
front of the last fixture connection
of a horizontal branch to the vent
stack. 6
30 /1 0 /2 0 2 1
Definition of Terms
Continuous Vent – is a vertical vent that is a continuation of the drain
to which the vent connects.
Definition of Terms
Combination Fixtures – is a fixture combining one sink and tray or a two
or three compartment sink or tray in one vent.
30 /1 0 /2 0 2 1
Definition of Terms
Combination Waste and Vent

System – is a specially designed
system of waste piping embodying the
horizontal wet venting of one or more
sinks or floor drains by means of a
common waste and vent pipe
adequately sized to provide free
movement of air above the flow line of
the drain.
Definition of Terms
Common Vent – is a drain

from two or three fixtures
connected to a single vent. It
is also called a dual vent. 8
30 /1 0 /2 0 2 1
Definition of Terms
Cross connection - is a point in

a plumbing system where the
potable (drinking) water supply is
connected to a non-potable
source. Pollutants or
contaminants can enter the
drinking water system through
uncontrolled cross connections
when back flow occurs.
Definition of Terms
Dead End – is the extended

portion of a pipe that is closed at
one end permitting the
stagnation of water or air therein. 9
30 /1 0 /2 0 2 1
Definition of Terms
Developed Length – is the

length along the center of the
pipe and fitting.
Definition of Terms
Diameter – refers to the twice the radius of a pipe.
10
30 /1 0 /2 0 2 1
Definition of Terms
Drainage System – includes

all piping within the public or
private premises that
conveys sewage, rainwater,
or other liquid waste, to a
legal point of disposal. It
does not include the mains of
public sewer system private
or public sewerage treatment
or disposal plant.
Definition of Terms
Dry Vent – is a vent that does not carry water or water borne wastes.
11
30 /1 0 /2 0 2 1
Definition of Terms
Effective Opening – is
the minimum cross
sectional area at the point
of water supply discharge,
measured or expressed in
terms of diameter of a
circle.
Definition of Terms
Existing Work – shall

apply to that portion of a
plumbing system that has
been installed and
approved prior to the
contemplated addition, 12
alteration or correction.
30 /1 0 /2 0 2 1
Definition of Terms
Fixture Branch – is a pipe connecting several fixtures.
Fixture Drain – is the drain from the trap of a fixture to the

junction of that drain with any other drain pipe.
Definition of Terms
Fixture Supply – is a
water supply pipe
connecting the fixture with
the fixture branch. 13
30 /1 0 /2 0 2 1
Definition of Terms
Fixture Units – is a quantity

in terms of which the load
producing effects on the
plumbing system of different
kinds of plumbing fixtures
are expressed on some
arbitrarily chosen scale.
Definition of Terms
Fixture Unit Flow Rate – is the total discharge flow in gallons per
minute of a sample fixture divided by 7.5 gallons that provides the
flow rate of that particular plumbing fixture as a unit of flow.
Fixtures are rated as multiples of this unit of flow.
One cubic foot of water is roughly 7.48 gallons.

14
30.48 𝑐𝑚 1 𝑚𝐿 1𝐿 1 𝑔𝑎𝑙
1 𝑓𝑡 = 7.48 𝑔𝑎𝑙
1 𝑓𝑡 1 𝑐𝑚 1000 𝑚𝐿 3.785 𝐿
30 /1 0 /2 0 2 1
Definition of Terms
Flood Level – is a device located inside the tank for the purpose of
maintaining water level for effective flushing of the water closet.
Flood Level is composed of

three components:
1. Filler Valve
2. Filler Float
3. Overflow Tube
Definition of Terms
Ferrule – a metallic sleeve

called or otherwise joined to
an opening in pipe into which
a plug is screwed that can be
removed for the purpose of
15
cleaning or examining the
interior of a pipe.
30 /1 0 /2 0 2 1
Definition of Terms
Flush Valve – is a device located at the bottom of the tank for

flushing water closets and similar fixtures.
Definition of Terms
Flushometer Valve – is a
device which discharges a
predetermined quantity of
water to the fixture for
16
flushing purposes activated
by direct water pressure.
30 /1 0 /2 0 2 1
Definition of Terms
Group Vent – is
a branch vent that
performs its
function for two or
more traps.
Definition of Terms
Horizontal Pipe – is any pipe or fitting which makes an angle of more
than 45 degrees with the vertical.
17
30 /1 0 /2 0 2 1
Definition of Terms
Invert – is the lowest portion of the inside of any pipe or conduit that is
not vertical.
Definition of Terms
Liquid Waste – is the

discharge from any
fixture, appliance or
appurtenance in
connection with a
plumbing system which
does not receive fecal 18
matter.
30 /1 0 /2 0 2 1
Definition of Terms
Looped Vent – is the

same as Circuit Vent
except that it loops back
and connects with a
stack vent instead of a
vent stack.
Definition of Terms
The vent stack usually runs
parallel with the soil/waste
stack and may either extend up
through the roof or connect to a
stack vent.
The stack vent performs a

similar function to the vent 19
stack with the biggest

difference being the stack
vent is a direct extension of the
waste/soil stack and must
reach outside air. 𝐸𝑁𝐺𝑅. 𝐾𝐻𝐵 38
30 /1 0 /2 0 2 1
Definition of Terms
Main – is the principal artery of the system to which branches may be
connected.
Main Sewer – is a sewer line or system
directly controlled by public authority.
Main Vent – is
the principal
artery of the
venting system
to which vent
branches may
be connected.
Definition of Terms
Plumbing Fixtures – are

installed receptacles, devices or
appliances which are supplied
with water, or which receives or
discharges liquid borne waste,
with or without discharge into 20
drainage system which maybe

directly or indirectly connected.
30 /1 0 /2 0 2 1
Definition of Terms
Plumbing System – includes

the water supply distribution
pipes, plumbing fixtures, and
traps, soil, waste and vent
pipes, house drain and house
sewer including their respective
connections, devices and
appurtenances within the
property lines of premises, and
water treating or water using
equipment.
Definition of Terms
Re-Vent Pipe – (sometimes

called individual vent) is that
part of the vent pipeline which
connects directly with an
individual waste or group of
21
wastes underneath or back of
the fixture, and extend either to
the main or branch vent pipe.
30 /1 0 /2 0 2 1
Definition of Terms
Riser – is a water supply pipe

which extend vertically one full
storey or more to convey water
to branches or fixtures.
Definition of Terms
Rough-in – is the installation of

all parts of the plumbing system
which can be completed prior to
the installation of fixtures. This
includes drainage, water
22
supply, vent piping and the
necessary fixture supports.
30 /1 0 /2 0 2 1
Definition of Terms
Public Sewer –
is a common
sewer directly
controlled by
public authorities
where all
abutters have
equal rights of
connection.
Definition of Terms
Sanitary Sewage – is the sewage

containing human excrement and
liquid household waste. It is also
called domestic sewage.
Sanitary Sewer – is a sewer
intended to receive sanitary
23
sewage with or without industrial
wastes and without the admixture
of surface water, storm water or
drainage.
30 /1 0 /2 0 2 1
Definition of Terms
Secondary Branch – is any

branch in a building drain other
than the primary branch.
Sewerage of Sewage Work –

is a comprehensive term
including all construction or
collection, transportation,
pumping, treatment and final
disposition of sewerage.
Definition of Terms
Siamese Connection – is a Y
connection used on fire lines so
that two lines of hose maybe
connected to a hydrant or to the
24
same nozzle.
30 /1 0 /2 0 2 1
Definition of Terms
Standpipe – is a vertical pipe

usually used for the storage of
water, frequently under
pressure.
Definition of Terms
Side Vent – is a vent connecting to the

drain pipe through a fitting at an angle
not greater than 45 degrees to the
vertical. 25
30 /1 0 /2 0 2 1
Definition of Terms
Soil Pipe – is any pipe that conveys the discharge of water
closets or fixture having similar functions, with or without the
discharge from other fixtures, to the building drains (house
drain) or building sewer (house sewer).
Definition of Terms
Stack – is the vertical main of a

system of soil, waste or vent
pipe.
26
30 /1 0 /2 0 2 1
Definition of Terms
Stack Vent – is the extension of

a soil or waste stack above the
highest horizontal drain
connected to the stack. It is
sometimes called waste vent or
soil vent.
Stack Venting – is a method of
venting a fixture or fixtures
through the soil or waste stack.
Definition of Terms
Subsoil Drain – are

underground drain pipes that
receive subsurface or seepage
water only and convey it to a 27
place of disposal.
30 /1 0 /2 0 2 1
Definition of Terms
Sump – a pit or receptacle at a

low point to which the liquid
waste are drained.
Definition of Terms
Trap – is a fitting or device so

designed as to provide when
properly vented a liquid seal
that will prevent the back
passage of air without materially 28
affecting the flow of sewage
through it.
30 /1 0 /2 0 2 1
Definition of Terms
Trap Seal – is the maximum

vertical depth of liquid that trap
will retain, measured between
the crown weir and top of the
dip of the trap.
Definition of Terms
Vent Stack – is a vertical pipe

installed primarily for the
purpose of providing circulation
of air to different parts of the 29
drainage system.
30 /1 0 /2 0 2 1
Definition of Terms
Vent System – is a pipe or

pipes installed to provide a flow
or circulation of air within the
plumbing system to protect trap
seals siphoning and back
pressure.
Definition of Terms
Vertical Pipe – is a pipe

installed in a vertical position or
at an angle of not more than 45
degrees with the vertical.
30
30 /1 0 /2 0 2 1
Definition of Terms
Waste Pipe – is a pipe that

conveys liquid waste from
fixture that is free of fecal
matter.
Definition of Terms
Water Distribution Pipe– is a

pipe that conveys water from
the water service pipe to the
plumbing fixtures and other
water outlets.
Water Service Pipe– is a pipe 31

from the water main or other
source of water supply to the
building served.
30 /1 0 /2 0 2 1
Definition of Terms
Water Supply System –

consists of the water service
pipe, the water distribution pipe,
and the necessary connecting
pipes, fittings, control valves,
and all appurtenances in or
adjacent to the building or
premises.
Definition of Terms
Wet Vent – is a vent that

receives the discharge from
wastes other than the water
closet.
32
30 /1 0 /2 0 2 1
Thank you! :)
-El Professor
65
33

CE 325 Module 3

Uploaded by

Document Information

Original Description:

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

CE 325 Module 3

Uploaded by

Copyright:

Available Formats

30 /1 0 /2 0 2 1

Engr. Kurt Harvey D. Banayo

Air Gap – is the unobstructed

Back Flow – is the flow of water,

Back Siphonage – refers to the back flow of used contaminated or

Back Pressure Flow – refers to the back flow of used contaminated or

Bib – is synonymous with faucet,

Blow Off – is a safety device to

Branch – is any part of piping

Branch Vent – is a vent

Branch Interval – is the length

floor or storey of a building are

Calking – is plugging an opening

Circuit Vent – is a branch vent

Combination Waste and Vent

Common Vent – is a drain

Cross connection - is a point in

Dead End – is the extended

Developed Length – is the

Drainage System – includes

Existing Work – shall

Fixture Branch – is a pipe connecting several fixtures.

Fixture Drain – is the drain from the trap of a fixture to the

Fixture Units – is a quantity

One cubic foot of water is roughly 7.48 gallons.

Flood Level is composed of

Ferrule – a metallic sleeve

Flush Valve – is a device located at the bottom of the tank for

Liquid Waste – is the

Looped Vent – is the

The stack vent performs a

stack with the biggest

Plumbing Fixtures – are

drainage system which maybe

Plumbing System – includes

Re-Vent Pipe – (sometimes

Riser – is a water supply pipe

Rough-in – is the installation of

Sanitary Sewage – is the sewage

Secondary Branch – is any

Sewerage of Sewage Work –

Standpipe – is a vertical pipe

Side Vent – is a vent connecting to the

Stack – is the vertical main of a

Stack Vent – is the extension of

Subsoil Drain – are

Sump – a pit or receptacle at a

Trap – is a fitting or device so

Trap Seal – is the maximum

Vent Stack – is a vertical pipe

Vent System – is a pipe or

Vertical Pipe – is a pipe

Waste Pipe – is a pipe that

Water Distribution Pipe– is a

Water Service Pipe– is a pipe 31

Water Supply System –

Wet Vent – is a vent that

You might also like
