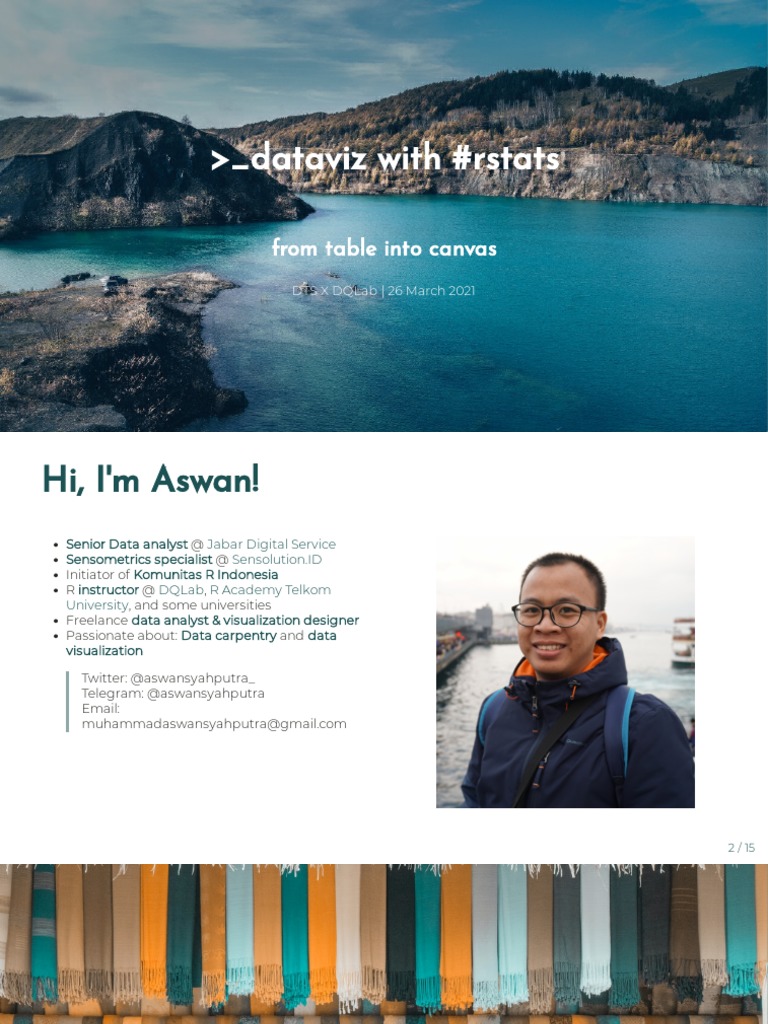

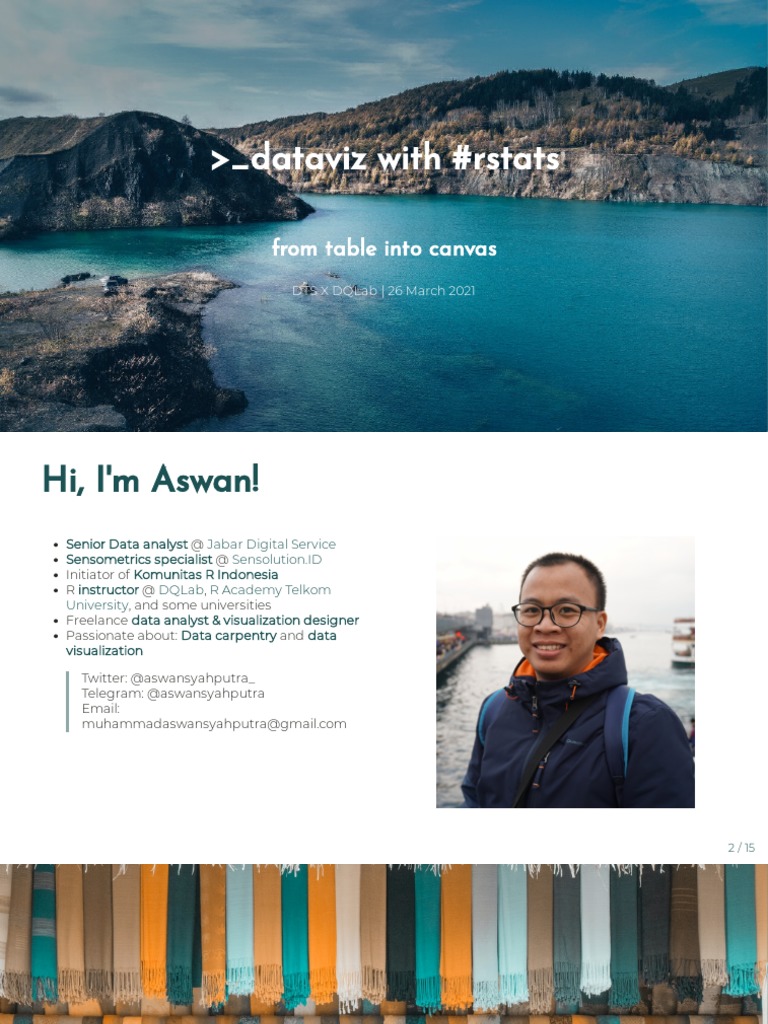

    >_dataviz with #rstats

    from table into canvas


    DTS X DQLab | 26 March 2021
    Hi, I'm Aswan!
    Senior Data analyst @ Jabar Digital Service
    Sensometrics specialist @ Sensolution.ID
    Initiator of Komunitas R Indonesia
    R instructor @ DQLab, R Academy Telkom
    University, and some universities
    Freelance data analyst & visualization designer
    Passionate about: Data carpentry and data
    visualization

    Twitter: @aswansyahputra_
    Telegram: @aswansyahputra
    Email:
    muhammadaswansyahputra@gmail.com

    2 / 15
    Grammar of graphics
    3 / 15
    "In order to build, rst we need to
    deconstruct."

    4 / 15
    Elements of graphics

    5 / 15
    Elements of graphics
    1. Data
    2. Mapping
    3. Statistic
    4. Scales
    5. Geometries
    6. Facets
    7. Coordinates
    8. Theme

    5 / 15
    Elements of graphics
    1. Data
    2. Mapping
    3. Statistic
    4. Scales
    5. Geometries
    6. Facets
    7. Coordinates
    8. Theme

    5 / 15
    The devil is in the detail
    6 / 15
    7 / 15
    8 / 15
    COVID-19 in Jakarta

    library(tidyverse)
    library(lubridate)
    library(slider)
    library(scales)

    load("data/cov_jakarta.rda")

    9 / 15
    COVID-19 in Jakarta

    library(tidyverse) cov_jakarta
    library(lubridate)
    library(slider)
    ## # A tibble: 306 x 4
    library(scales)
    ## date newcase death recovered
    load("data/cov_jakarta.rda") ## <date> <int> <int> <int>
    ## 1 2020-03-01 2 0 0
    ## 2 2020-03-02 2 0 0
    ## 3 2020-03-03 2 0 0
    ## 4 2020-03-04 2 0 0
    ## 5 2020-03-05 0 1 0
    ## 6 2020-03-06 0 0 0
    ## 7 2020-03-07 0 2 0
    ## 8 2020-03-08 0 0 0
    ## 9 2020-03-09 0 1 0
    ## 10 2020-03-10 0 0 0
    ## # … with 296 more rows

    9 / 15
    7-th day ampli cation factor preparation

    cov_jakarta_a7 <- cov_jakarta ## # A tibble: 306 x 4


    ## date newcase death recovered
    cov_jakarta_a7 ## <date> <int> <int> <int>
    ## 1 2020-03-01 2 0 0
    ## 2 2020-03-02 2 0 0
    ## 3 2020-03-03 2 0 0
    ## 4 2020-03-04 2 0 0
    ## 5 2020-03-05 0 1 0
    ## 6 2020-03-06 0 0 0
    ## 7 2020-03-07 0 2 0
    ## 8 2020-03-08 0 0 0
    ## 9 2020-03-09 0 1 0
    ## 10 2020-03-10 0 0 0
    ## # … with 296 more rows

    9 / 15
    7-th day ampli cation factor preparation

    cov_jakarta_a7 <- cov_jakarta %>% ## # A tibble: 306 x 4


    transmute( ## date infected infected_lastweek a7
    date, ## <date> <int> <int> <dbl>
    infected = cumsum(newcase), ## 1 2020-03-01 2 NA NA
    infected_lastweek = dplyr::lag(infected, 7), ## 2 2020-03-02 4 NA NA
    a7 = infected / infected_lastweek, ## 3 2020-03-03 6 NA NA
    a7 = slide_dbl(a7, mean, .before = 1, .after = 1 ## 4 2020-03-04 8 NA NA
    ) ## 5 2020-03-05 8 NA NA
    ## 6 2020-03-06 8 NA NA
    cov_jakarta_a7 ## 7 2020-03-07 8 NA NA
    ## 8 2020-03-08 8 2 NA
    ## 9 2020-03-09 8 4 2.44
    ## 10 2020-03-10 8 6 1.44
    ## # … with 296 more rows

    9 / 15
    7-th day ampli cation factor preparation

    cov_jakarta_a7 <- cov_jakarta %>% ## # A tibble: 306 x 4


    transmute( ## date infected infected_lastweek a7
    date, ## <date> <int> <int> <dbl>
    infected = cumsum(newcase), ## 1 2020-03-01 2 NA NA
    infected_lastweek = dplyr::lag(infected, 7), ## 2 2020-03-02 4 NA NA
    a7 = infected / infected_lastweek, ## 3 2020-03-03 6 NA NA
    a7 = slide_dbl(a7, mean, .before = 1, .after = 1 ## 4 2020-03-04 8 NA NA
    ) ## 5 2020-03-05 8 NA NA
    ## 6 2020-03-06 8 NA NA
    ## 7 2020-03-07 8 NA NA
    cov_jakarta_a7
    ## 8 2020-03-08 8 2 NA
    ## 9 2020-03-09 8 4 2.44
    ## 10 2020-03-10 8 6 1.44
    ## # … with 296 more rows

    9 / 15
    7-th day ampli cation factor visualization

    cov_jakarta_a7 ## # A tibble: 306 x 4


    ## date infected infected_lastweek a7
    ## <date> <int> <int> <dbl>
    ## 1 2020-03-01 2 NA NA
    ## 2 2020-03-02 4 NA NA
    ## 3 2020-03-03 6 NA NA
    ## 4 2020-03-04 8 NA NA
    ## 5 2020-03-05 8 NA NA
    ## 6 2020-03-06 8 NA NA
    ## 7 2020-03-07 8 NA NA
    ## 8 2020-03-08 8 2 NA
    ## 9 2020-03-09 8 4 2.44
    ## 10 2020-03-10 8 6 1.44
    ## # … with 296 more rows

    9 / 15
    7-th day ampli cation factor visualization

    cov_jakarta_a7 %>%
    ggplot(aes(date, a7))

    9 / 15
    7-th day ampli cation factor visualization

    cov_jakarta_a7 %>%
    ggplot(aes(date, a7)) +
    geom_col(fill = "#136F63", alpha = 0.8, colour = "

    9 / 15
    7-th day ampli cation factor visualization

    cov_jakarta_a7 %>%
    ggplot(aes(date, a7)) +
    geom_col(fill = "#136F63", alpha = 0.8, colour = "
    geom_hline(yintercept = 1, colour = "#D72638", typ

    9 / 15
    7-th day ampli cation factor visualization

    cov_jakarta_a7 %>%
    ggplot(aes(date, a7)) +
    geom_col(fill = "#136F63", alpha = 0.8, colour = "
    geom_hline(yintercept = 1, colour = "#D72638", typ
    scale_x_date(
    breaks = "1 month",
    labels = label_date(format = "%b"),
    expand = c(0.005, 0.005)
    )

    9 / 15
    7-th day ampli cation factor visualization

    cov_jakarta_a7 %>%
    ggplot(aes(date, a7)) +
    geom_col(fill = "#136F63", alpha = 0.8, colour = "
    geom_hline(yintercept = 1, colour = "#D72638", typ
    scale_x_date(
    breaks = "1 month",
    labels = label_date(format = "%b"),
    expand = c(0.005, 0.005)
    ) +
    labs(
    x = NULL,
    y = "A7",
    title = "Silent transmission in Jakarta",
    subtitle = "Red line segment indicates 7-day per
    caption = "Data source: covid.19.go.id"
    )

    9 / 15
    7-th day ampli cation factor visualization

    cov_jakarta_a7 %>%
    ggplot(aes(date, a7)) +
    geom_col(fill = "#136F63", alpha = 0.8, colour = "
    geom_hline(yintercept = 1, colour = "#D72638", typ
    scale_x_date(
    breaks = "1 month",
    labels = label_date(format = "%b"),
    expand = c(0.005, 0.005)
    ) +
    labs(
    x = NULL,
    y = "A7",
    title = "Silent transmission in Jakarta",
    subtitle = "Red line segment indicates 7-day per
    caption = "Data source: covid.19.go.id"
    ) +
    theme_xaringan()

    9 / 15
    7-th day ampli cation factor visualization

    cov_jakarta_a7 %>%
    ggplot(aes(date, a7)) +
    geom_col(fill = "#136F63", alpha = 0.8, colour = "
    geom_hline(yintercept = 1, colour = "#D72638", typ
    scale_x_date(
    breaks = "1 month",
    labels = label_date(format = "%b"),
    expand = c(0.005, 0.005)
    ) +
    labs(
    x = NULL,
    y = "A7",
    title = "Silent transmission in Jakarta",
    subtitle = "Red line segment indicates 7-day per
    caption = "Data source: covid.19.go.id"
    ) +
    theme_xaringan() +
    theme(
    panel.grid.major.x = element_blank(),
    panel.grid.minor = element_blank(),
    axis.text.x = element_text(size = rel(0.5))
    )

    9 / 15
    Adding annotation (1)

    cov_jakarta_a7_plot

    9 / 15
    Adding annotation (1)

    cov_jakarta_a7_plot +
    annotate(
    geom = "label",
    x = min(cov_jakarta$date),
    y = 1,
    label = "A7 = 1.0",
    fontface = "italic",
    size = 4,
    colour = "#D72638",
    alpha = 0.8
    )

    9 / 15
    Adding annotation (1)

    cov_jakarta_a7_plot +
    annotate(
    geom = "label",
    x = min(cov_jakarta$date),
    y = 1,
    label = "A7 = 1.0",
    fontface = "italic",
    size = 4,
    colour = "#D72638",
    alpha = 0.8
    ) +
    geom_curve(
    x = as.Date("2020-04-16"),
    xend = as.Date("2020-04-9"),
    y = 5,
    yend = subset(cov_jakarta_a7, date == "2020-04-9
    arrow = arrow(length = unit(0.07, "inch")),
    size = 0.025,
    color = "gray40",
    curvature = 0.3
    )

    9 / 15
    Adding annotation (1)

    cov_jakarta_a7_plot +
    annotate(
    geom = "label",
    x = min(cov_jakarta$date),
    y = 1,
    label = "A7 = 1.0",
    fontface = "italic",
    size = 4,
    colour = "#D72638",
    alpha = 0.8
    ) +
    geom_curve(
    x = as.Date("2020-04-16"),
    xend = as.Date("2020-04-9"),
    y = 5,
    yend = subset(cov_jakarta_a7, date == "2020-04-9
    arrow = arrow(length = unit(0.07, "inch")),
    size = 0.025,
    color = "gray40",
    curvature = 0.3
    ) +
    annotate(
    geom = "label",
    x = as.Date("2020-04-16"),
    y = 5,
    label = "First PSBB\n(9 April)",
    size = 5,
    colour = "gray30",
    alpha = 1
    ) 9 / 15
    Adding annotation (2)

    cov_jakarta_a7_plot

    9 / 15
    Adding annotation (2)

    cov_jakarta_a7_plot +
    annotate(
    geom = "text",
    x = as.Date("2020-08-31"),
    y = 12,
    label = str_wrap("A7 is the ratio of total confi
    fontface = "italic",
    size = 3.5,
    colour = "gray30"
    )

    9 / 15
    Adding annotation (2)

    cov_jakarta_a7_plot +
    annotate(
    geom = "text",
    x = as.Date("2020-08-31"),
    y = 12,
    label = str_wrap("A7 is the ratio of total confi
    fontface = "italic",
    size = 3.5,
    colour = "gray30"
    ) +
    geom_segment(
    x = as.Date("2020-04-9"),
    xend = as.Date("2020-04-9") + 7,
    y = 2,
    yend = 2,
    arrow = arrow(length = unit(0.05, "inch"), type
    size = 0.025,
    colour = "#D72638"
    )

    9 / 15
    Adding annotation (2)

    cov_jakarta_a7_plot +
    annotate(
    geom = "text",
    x = as.Date("2020-08-31"),
    y = 12,
    label = str_wrap("A7 is the ratio of total confi
    fontface = "italic",
    size = 3.5,
    colour = "gray30"
    ) +
    geom_segment(
    x = as.Date("2020-04-9"),
    xend = as.Date("2020-04-9") + 7,
    y = 2,
    yend = 2,
    arrow = arrow(length = unit(0.05, "inch"), type
    size = 0.025,
    colour = "#D72638"
    ) +
    coord_cartesian(clip = "off")

    9 / 15
    Some practical tips
    10 / 15
    11 / 15
    12 / 15
    13 / 15
    Learn from re-viz, demo time!
    14 / 15
    Thank you!

    Contact me!
    muhammadaswansyahputra@gmail.com

    15 / 15
