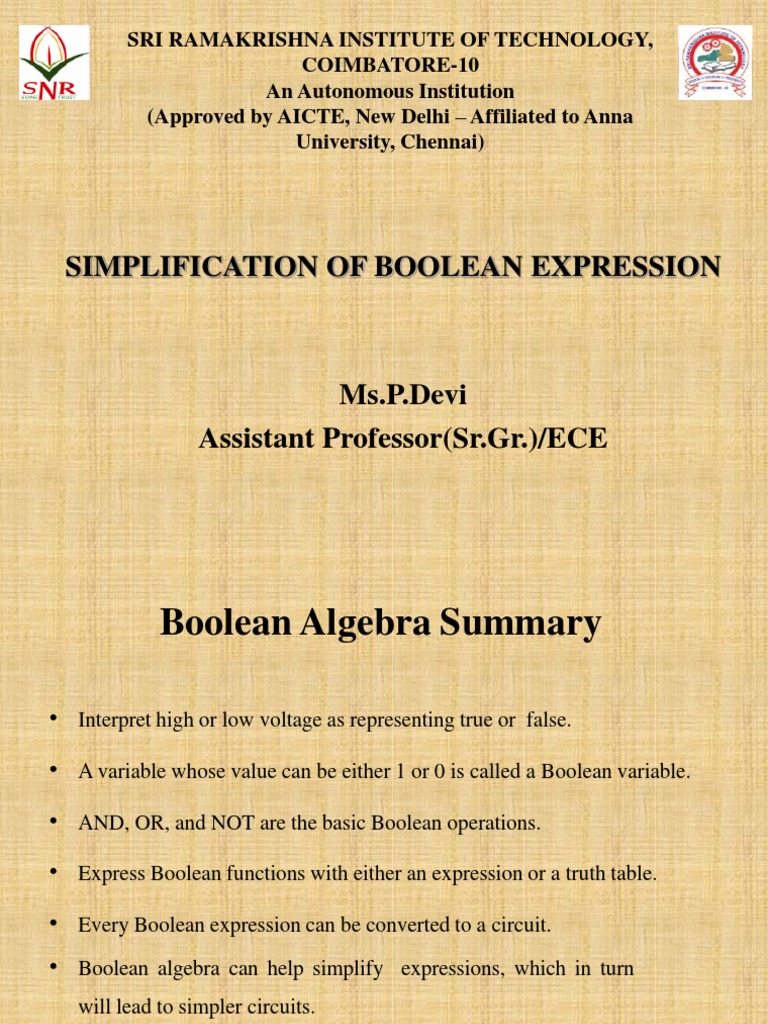

SRI RAMAKRISHNA INSTITUTE OF TECHNOLOGY,

COIMBATORE-10
An Autonomous Institution
(Approved by AICTE, New Delhi – Affiliated to Anna
University, Chennai)

SIMPLIFICATION OF BOOLEAN EXPRESSION

Ms.P.Devi
Assistant Professor(Sr.Gr.)/ECE
 Boolean Algebra Summary

• Interpret high or low voltage as representing true or false.

• A variable whose value can be either 1 or 0 is called a Boolean variable.
• AND, OR, and NOT are the basic Boolean operations.
• Express Boolean functions with either an expression or a truth table.
• Every Boolean expression can be converted to a circuit.
• Boolean algebra can help simplify expressions, which in turn
will lead to simpler circuits.

2
 Boolean Algebra Summary
• Recall that the two binary values have different names:
– True/False
– On/Off
– Yes/No
– 1/0
• Use 1 and 0 to denote the two values.
• The three basic logical operations are:
– AND
– OR
– NOT
• AND is denoted by a dot (·).
• OR is denoted by a plus (+).
• NOT is denoted by an overbar ( ¯ ), a single quote mark (') after, or (~) before
the variable
 Boolean Algebra Summary
• Examples:
– is read “Y is equal to A AND B.”
– is read “z is equal to x OR y.”
– is read “X is equal to NOT A.”

Tabular listing of the values of a function for all possible

combinations of values on its arguments
Example: Truth tables for the basic logic operations:

AND OR NOT
X Y Z = X·Y X Y Z = X+Y X Z= X
0 0 0 0 0 0 0 1
0 1 0 0 1 1 1 0
1 0 0 1 0 1
1 1 1 1 1 1
 Boolean Operator Precedence
• The order of evaluation is:

• Parentheses
• NOT
• AND
• OR

• Consequence: Parentheses appear around OR expressions

• Example: F = A(B + C)(C + D)

 Boolean Algebra Postulates
• Commutative Law
x•y=y•x x+y=y+x

• Identity Element
x•1=x x+0=x
x’•1 = x ’ x’+ 0 = x ’

• Complement
x • x’ = 0 x + x’ = 1
 Boolean Algebra Theorems
Theorem 1
– x•x=x x+x=x

• Theorem 2
– x•0=0 x+1=1

• Theorem 3: Involution
– ( x’ )’ = x (x)=x
 Boolean Algebra Theorems
• Theorem 4:
– Associative: ( x • y ) • z = x • ( y • z )
(x+y)+z=x+(y+z)
– Distributive :
x•(y+z)=(x•y)+(x•z)
x+(y•z)=(x+y)•(x+z)

• Theorem 5: DeMorgan
– ( x • y )’ = x’ + y’ ( x + y )’ = x’ • y’
– x •y ) = x + y (x+y) = x•y

• Theorem 6: Absorption
– x•(x+y)=x x+(x•y)=x
 Truth Table to Verify DeMorgan’s

X + Y =X·Y X · Y = X + Y
X Y X·Y X+Y X Y X+Y X · Y X·Y X+Y
0 0 0 0 1 1 1 1 1 1
0 1 0 1 1 0 0 0 1 1
1 0 0 1 0 1 0 0 1 1
1 1 1 1 0 0 0 0 0 0
• Generalized DeMorgan’s Theorem:
X1 + X2 + … + Xn = X1 · X2 · … · Xn
X1 · X2 · … · Xn = X1 + X2 + … + Xn
 Logic Gates
• In the earliest computers, switches were opened and closed by magnetic
fields produced by energizing coils in relays. The switches in turn
opened and closed the current paths.

• Later, vacuum tubes that open and close current paths electronically
replaced relays.

• Today, transistors are used as electronic switches that open and close
current paths.
 Logic Gate Symbols

• Logic gates have special symbols:

X X
Z= X·Y Z= X+Y X Z= X
Y Y
AND gate OR gate NOT gate or
inverter
 Boolean Functions
• A Boolean function is a function whose arguments, as well as the function itself,
assume values from a two-element set ({0, 1)}).
• Example: F(x, y) = x ’ y ’ + xyz + x’y

• After finding the circuit inputs and outputs, you can come up with either an
expression or a truth table to describe what the circuit does.
• You can easily convert between expressions and truth tables.
Find the circuit’s
inputs and outputs

Find a Boolean Find a truth table

expression for for the circuit
the circuit
 Boolean Functions
• Boolean Expression/Function x y z F

Example: F (x, y) = x + y’z

0 0 0 0
0 0 1 1
• Truth Table
0 1 0 0
All possible combinations of input variables
0 1 1 0

Logic Circuit
1 0 0 1
1 0 1 1
x F 1 1 0 1
y
z 1 1 1 1
 Logic Diagrams and Expressions
Truth Table Logic Equation/Boolean Function
X YZ F = X + Y ×Z
0 0 0 0 F =X +Y Z
0 0 1 1
0 1 0 0 Logic Circuit
0 1 1 0 X
1 0 0 1
Y F
1 0 1 1
1 1 0 1 Z
1 1 1 1

• Boolean equations, truth tables and logic diagrams

• describe the same function!
Truth tables are unique, but expressions and logic diagrams are not. This
gives flexibility in implementing functions.
 Boolean Functions Exercise

• The truth table for the function:

F (X, Y, Z ) = X Y + Y Z is:
X Y Z XY Y YZ F=XY+YZ
0 0 0 0 1 0 0
0 0 1 0 1 1 1
0 1 0 0 0 0 0
0 1 1 0 0 0 0
1 0 0 0 1 0 0
1 0 1 0 1 1 1
1 1 0 1 0 0 1
1 1 1 1 0 0 1
Draw the logic circuit for the boolean function above.
 Converting from Truth Table to Boolean
Function
• In designing digital circuits, the designer often begins with a truth table describing
what the circuit should do.

• The design task is largely to determine what type of circuit will perform the
function described in the truth table.

• While some people seem to have a natural ability to look at a truth table and
immediately envision the necessary logic gate or relay logic circuitry for the task,
there are procedural techniques available for the rest of us.

• Here, Boolean algebra proves its utility in a most dramatic way!

 Converting from Truth Table to Boolean
Function

• This problem will be solved by showing that any Boolean function can be
represented by a Boolean sum of Boolean products of the variables and their
complements or the product of sums.
• There are two ways to convert from truth tables to Boolean functions:
1. Using Sum of Products /Minterms
2. Using Product of Sums /Maxterms
 Converting from Truth Table to
Boolean Function
• Minterm A B C Minterm
– Product (AND function) 0 0 0 0 m0 ABC
– Contains all variables
1 0 0 1 m1 ABC
– Evaluates to ‘1’ for a specific
2 0 1 0 m2 ABC
combination
3 0 1 1 m3 ABC
Example
4 1 0 0 m4
A B C ABC
5 1 0 1 m5
A=0 (0) • (0) • (0) ABC
6 1 1 0 m6
B=0 ABC
7 1 1 1 m7 ABC
C=0 1 • 1 • 1=1
 Converting from Truth Table to
Boolean Function
• Maxterm A B C Maxterm
– Sum (OR function) 0 0 0 0 M0 A+ B + C
– Contains all variables
1 0 0 1 M1 A + B + C
– Evaluates to ‘0’ for a specific
2 0 1 0 M2 A + B + C
combination
3 0 1 1 M3 A + B + C
Example
4 1 0 0 M4 A + B + C
A B C
5 1 0 1 M5 A + B + C
A=1 (1) • (1) • (1)
6 1 1 0 M6 A + B + C
B=1
7 1 1 1 M7 A + B + C
C=1 0 • 0 • 0=0
 Converting from Truth Table to Boolean Function

• Truth Table to Boolean Function

A B C F F = ABC + ABC + ABC + ABC

0 0 0 0
0 0 1 1
0 1 0 0
0 1 1 0
1 0 0 1
1 0 1 1
1 1 0 0
1 1 1 1
Using Minterms
 Converting from Truth Table to Boolean Function

• Truth Table to Boolean Function

F = ( A + B + C) ( A + B + C) ( A + B + C) ( A + B + C)

A B C F
0 0 0 1
0 0 1 0
0 1 0 1
0 1 1 1
1 0 0 0
1 0 1 0
1 1 0 1
1 1 1 0 Using Maxterms
 Converting from Truth Table to Boolean Function

• Sum of Minterms A B C F F
0 0 0 0 0 1
F = ABC + ABC+ ABC + ABC
1 0 0 1 1 0
F = m1 + m4 + m5 + m7
2 0 1 0 0 1
F =  (1,4,5,7)
3 0 1 1 0 1
•Product of Maxterms 4 1 0 0 1 0
F = ABC + ABC + ABC + ABC 5 1 0 1 1 0
F = ABC + ABC + ABC + ABC 6 1 1 0 0 1
7 1 1 1 1 0
F = A B C • ABC • ABC • ABC
F = ( A + B + C)( A + B + C)( A + B + C)( A + B + C)
F = M 0 M 2 M 3 M 6
F =  (0,2,3,6)
NAND & NOR IMPLEMENTATION
Two-level Logic using NAND Gates
• Replace minterm AND gates with NAND gates
• Place compensating inversion at inputs of OR
gate
 Two-level Logic using NAND Gates
(cont’d)
• OR gate with inverted inputs is a NAND gate
– de Morgan's: A' + B' = (A • B)'
• Two-level NAND-NAND network
– Inverted inputs are not counted
– In a typical circuit, inversion is done once and
signal distributed
 Two-level Logic using NOR Gates
• Replace maxterm OR gates with NOR gates
• Place compensating inversion at inputs of AND
gate
 Two-level Logic using NOR Gates
(cont’d)
• AND gate with inverted inputs is a NOR gate
– de Morgan's: A' • B' = (A + B)'
• Two-level NOR-NOR network
– Inverted inputs are not counted
– In a typical circuit, inversion is done once and
signal distributed
 Two-level Logic using NAND and NOR
Gates
• NAND-NAND and NOR-NOR networks
– de Morgan's law: (A + B)' = A' • B'
(A • B)' = A' + B'
– written differently: A + B = (A' • B')’
(A • B) = (A' + B')'
• In other words ––
– OR is the same as NAND with complemented inputs
– AND is the same as NOR with complemented inputs
– NAND is the same as OR with complemented inputs
– NOR is the same as AND with complemented inputs
OR OR AND AND

NAND NAND NOR NOR

 Conversion Between Forms
• Convert from networks of ANDs and ORs to networks of
NANDs and NORs
– Introduce appropriate inversions ("bubbles")
• Each introduced "bubble" must be matched by a
corresponding "bubble"
– Conservation of inversions
– Do not alter logic function
• Example: AND/OR to NAND/NAND
A A
NAND
B B
Z NAND Z
C C
NAND
D D
 Conversion Between Forms (cont’d)
• Example: verify equivalence of two forms
A A
NAND
B B
Z NAND Z
C C
NAND
D D

Z = [ (A • B)' • (C • D)' ]'

= [ (A' + B') • (C' + D') ]'
= [ (A' + B')' + (C' + D')' ]
= (A • B) + (C • D) ✓
 Conversion Between Forms (cont’d)
• Example: map AND/OR network to NOR/NOR
A
network
B
Z
C
D

A \A
NOR NOR
\B
B
Z NOR Z
C
\C
D NOR NOR
\D
Step 1 Step 2
conserve conserve
"bubbles" "bubbles"
 Conversion Between Forms (cont’d)
• Example: verify equivalence of two forms
\A
A NOR
\B
B
Z
C NOR Z

D \C
NOR
\D

Z = { [ (A' + B')' + (C' + D')' ]' }'

={ (A' + B') • (C' + D') }'
= (A' + B')' + (C' + D')'
= (A • B) + (C • D) ✓
Karnaugh Maps (K maps)
 What are Karnaugh maps?

• Karnaugh maps provide an alternative way of simplifying logic circuits.

• Instead of using Boolean algebra simplification techniques, you can

transfer logic values from a Boolean statement or a truth table into a
Karnaugh map.

• The arrangement of 0's and 1's within the map helps you to visualise the
logic relationships between the variables and leads directly to a simplified
Boolean statement.
 Karnaugh maps

• Karnaugh maps, or K-maps, are often used to simplify logic problems with 2, 3
or 4 variables.

Cell = 2n ,where n is a number of variables

For the case of 2 variables, we form a map consisting of 22=4 cells as shown in
Figure
A A A
0 1 0 1 0 1
B B B
0 A+ B A + B 0 00 10 0 AB AB
0 2

A+ B A + B 01 11
1 1
1 3
1
A B AB
Maxterm Minterm
 Karnaugh maps

• 3 variables Karnaugh map

Cell = 23=8

AB
C 00 01 11 10
0 2 6 4
0
A B C A BC ABC AB C
1 3 7 5
1 A B C A BC ABC AB C
 Karnaugh maps

• 4 variables Karnaugh map

AB
CD 00 01 11 10
0 4 12 8
00
1 5 13 9
01
3 7 15 11
11

2 6 14 10
10
 Karnaugh maps

• The Karnaugh map is completed by entering a '1‘(or ‘0’) in

each of the appropriate cells.

• Within the map, adjacent cells containing 1's (or 0’s) are
grouped together in twos, fours, or eights.
 Example

2-variable Karnaugh maps are trivial but can be used to introduce the
methods you need to learn. The map for a 2-input OR gate looks like this:
A
0 1
B
A
Y 0 1
B A
1 1 1
A B Y
0 0 0
B
0 1 1
1 0 1
A+B
1 1 1
 Example

AC
A B C Y
0 0 0 1 AB
C 00 01 11 10
0 0 1 1
0 1 0 0 0 1 1 1
0 1 1 0
1 0 0 1 1 1 1
1 0 1 1
1 1 0 1
1 1 1 0 B
B + AC
Plotting Functions on the
K-map

SOP Form
 Canonical SOP Form

Three Variable Example

F = ABC + ABC + ABC + ABC

using shorthand notation
F = m6 + m3 + m1 + m5

F ( A, B, C ) =  m (1,3,5,6 )
Three-Variable K-Map Example
Plot 1’s (minterms) of switching function

ab
c 00 01 11 10

0 1

1 1 1 1

F ( a, b, c ) =  m (1,3,5,6 )
Three-Variable K-Map Example
Plot 1’s (minterms) of switching function

ab
c 00 01 11 10
ab
bc
0 1

1 1 1 1

F ( a, b, c ) = ab + bc
 Guidelines for Simplifying Functions

• Each square on a K-map of n variables has n logically adjacent squares.

(i.e. differing in exactly one variable)

• When combing squares, always group in powers of 2m , where m=0,1,2,….

• In general, grouping 2m variables eliminates m variables.

• Group as many squares as possible. This eliminates the most variables.

• Make as few groups as possible. Each group represents a separate product

term.

• cover each minterm at least once. However, it may be covered more than
once.
 Four Variable K –Map Example

• Use a K-Map to simplify the following Boolean expression

F ( a, b, c, d ) =  m ( 0, 2,3,6,8,12,13,15)
 Four-variable K-Map
ab
cd 00 01 11 10

00 1 1 1
01 1
11
1 1
10 1 1
F ( a, b, c, d ) =  m ( 0, 2,3,6,8,12,13,15)
 Four-variable K-Map
ab
cd 00 01 11 10

00 1 1 1
01 1
11
1 1
10 1 1
F =  m ( 0, 2,3,6,8,12,13,15)
 Four-variable K-Map
ab
cd 00 01 11 10

00 1 1 1
01 1
11
1 1
10 1 1

F = abd + abc + acd + abd + acd

 Example

• Use a K-Map to simplify the following Boolean expression

F ( a, b, c, d ) =  m ( 0, 2, 6,8,12,13,15 )
+ d ( 3,9,10 )
D=Don’t care (i.e. either 1 or 0)
 Four-variable K-Map
ab
cd 00 01 11 10

00 1 d 1 1
01 1 d
11
d 1
10 1 1
F ( a, b, c, d ) =  m ( 0, 2,6,8,12,13,15) + d (3, 4,9 )
 Four-variable K-Map
ab
cd 00 01 11 10

00 1 d 1 1
01 1 d
11
d 1
10 1 1

F = ac + ad + abd
Five variable K-map- F ( a, b, c, d , e )

Use two four variable K-maps

A=1

A=0
Use Two Four-variable K-Maps

A=0 map A=1 map

bc bc
de 00 01 11 10 de 00 01 11 10

00 00

01 01

11 11

10 10
 Five variable example
F ( a, b, c, d , e ) =  m ( 5,7,13,15, 21, 23, 29,31)
Use Two Four-variable K-Maps
A=0 map A=1 map
bc bc
de 00 01 11 10 de 00 01 11 10

00 00

01 1 1 01 1 1
11
1 1
11
11
10 10

F2 = a ( ce )
F1 = a ( ce )

F = F1 + F2 = a ( ce ) + a ( ce ) = ce
Plotting Functions on the
K-map

POS Form
PoS Optimization
• Maxterms are grouped to find minimal PoS
expression 00 01 yz11 10
0 x +y+z x+y+z’ x+y’+z’ x+y’+z
x
1 x’ +y+z x’+y+z’ x’+y’+z’ x’+y’+z
PoS Optimization
• F(W,X,Y,Z)= ∏ M(0,1,2,4,5)
yz
00 01 11 10

0 x +y+z x+y+z’ x+y’+z’ x+y’+z

x
1 x’ +y+z x’+y+z’ x’+y’+z’ x’+y’+z

F(W,X,Y,Z)= Y . (X + Z)
yz
00 01 11 10

0 0 0 1 0
x
1 0 0 1 1
PoS Optimization from SoP
F(W,X,Y,Z)= Σm(0,1,2,5,8,9,10)
= ∏ M(3,4,6,7,11,12,13,14,15)

F(W,X,Y,Z)= (W’ + X’)(Y’ + Z’)(X’ + Z)

0

0 0 0 Or,

0 0 0 0 F(W,X,Y,Z)= X’Y’ + X’Z’ + W’Y’Z

0 Which one is the minimal one?

SoP Optimization from PoS
F(W,X,Y,Z)= ∏ M(0,2,3,4,5,6)
= Σm(1,7,8,9,10,11,12,13,14,15)

1 F(W,X,Y,Z)= W + XYZ + X’Y’Z

1 1 1 1

1 1 1 1
