Cummins: Fault Code: 132 PID: P091 SPN: 091 Fmi: 3 or 4
Cummins: Fault Code: 132 PID: P091 SPN: 091 Fmi: 3 or 4
CUMMINS
DESCRIPTION

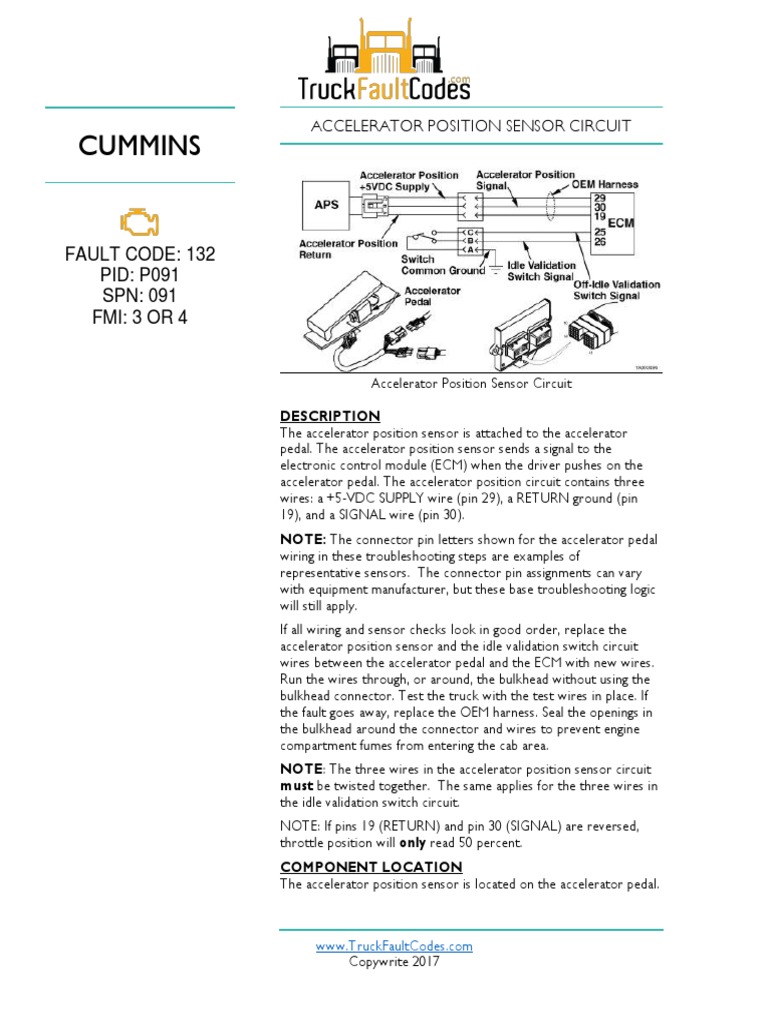

The accelerator position sensor is attached to the accelerator
pedal. The accelerator position sensor sends a signal to the
electronic control module (ECM) when the driver pushes on the
accelerator pedal. The accelerator position circuit contains three
wires: a +5-VDC SUPPLY wire (pin 29), a RETURN ground (pin
19), and a SIGNAL wire (pin 30).
NOTE: The connector pin letters shown for the accelerator pedal
wiring in these troubleshooting steps are examples of
representative sensors. The connector pin assignments can vary
with equipment manufacturer, but these base troubleshooting logic
will still apply.
If all wiring and sensor checks look in good order, replace the
accelerator position sensor and the idle validation switch circuit
wires between the accelerator pedal and the ECM with new wires.
Run the wires through, or around, the bulkhead without using the
bulkhead connector. Test the truck with the test wires in place. If
the fault goes away, replace the OEM harness. Seal the openings in
the bulkhead around the connector and wires to prevent engine
compartment fumes from entering the cab area.
NOTE: The three wires in the accelerator position sensor circuit
must be twisted together. The same applies for the three wires in
the idle validation switch circuit.
NOTE: If pins 19 (RETURN) and pin 30 (SIGNAL) are reversed,
throttle position will only read 50 percent.
COMPONENT LOCATION
The accelerator position sensor is located on the accelerator pedal.
www.TruckFaultCodes.com
Copywrite 2017
TROUBLESHOOTING STEPS
Step 1A) Turn key switch OFF and disconnect the OEM harness from the accelerator position sensor.
Inspect the OEM harness and the accelerator position sensor connector pins for the following:
• Loose connector
• Corroded pins
• Bent or broken pins
• Pushed back or expanded pins
• Moisture in or on the connector
• Missing or damaged seals
• Dirt or debris in or on the connector
• Connector shell broke
• Wire insulation damage
• Damaged locking tab connector
No damaged pins?
Step 1B) Turn key switch OFF and disconnect the OEM harness from the accelerator position sensor.
Check for an open or short circuit between pins in the accelerator position sensor. Measure the resistance
from pin C (pin A) to pin A (pin C) on the sensor side of the accelerator position sensor when the accelerator
pedal is released and when it is depressed.
NOTE: Install the 6-pin Part No. 3824892, or the 3-pin, Part No. 3823255, repair connector onto the
accelerator position sensor.
NOTE: The pin letters shown above are for the integrated sensor switch (ISS) and letters shown in brackets
are for pedals with separate idle validation and accelerator sensors.
Step 1D) Turn key switch OFF and disconnect the OEM harness from the accelerator position sensor.
Check for a short circuit to ground in the sensor +5- VDC supply. Measure the resistance from pin C (pin A)
on the sensor side of the accelerator position sensor to engine block ground. NOTE: Install the 6-pin, Part
No. 3824892, or the 3-pin, Part No. 3823255, repair connector into the accelerator position sensor.
NOTE: The pin letters shown above are for the integrated sensor switch (ISS) and the letters shown in
brackets are for pedals with separate idle validation and accelerator sensor.
www.TruckFaultCodes.com
Copywrite 2017
More than 100k ohms?
Step 1E) Turn key switch OFF and disconnect the OEM harness from the accelerator position sensor.
Check for a short circuit to ground in the SIGNAL wire. Measure the resistance from pin B (pin B) on the
sensor side of the accelerator position sensor to engine block ground. NOTE: Install the 6-pin, Part No.
3824892, or the 3-pin, Part No. 3823255, repair connector into the accelerator position sensor.
NOTE: The pin letters shown above are for the integrated sensor switch (ISS) and the letters shown in
brackets are for pedals with separate idle validation and accelerator sensor.
www.TruckFaultCodes.com
Copywrite 2017
Step 2A) Turn key switch OFF and disconnect the OEM harness from the ECM. Inspect the harness and the
ECM connector pins for the following:
• Loose connector
• Corroded pins
• Bent or broken pins
• Pushed back or expanded pins
• Moisture in or on the connector
• Missing or damaged seals
• Dirt or debris in or on the connector pins
• Connector shell broke
• Wire insulation damage
• Damaged locking tab connector
No damaged pins?
Step 2B) Turn key switch OFF and disconnect the OEM harness from the accelerator position sensor.
Disconnect the OEM harness from the ECM. Check for an open circuit in the SUPPLY, SIGNAL, and
RETURN wires of the OEM harness. Measure the resistance from pin 29 of the OEM harness connector to
pin C (pin A) on the harness side of the accelerator position sensor. Measure the resistance from pin 30 of
the OEM harness connector to pin B (pin B) on the harness side of the accelerator position sensor.
Measure the resistance from pin 19 of the OEM harness connector to pin A (pin C) on the harness side of
the accelerator position sensor.
NOTE: The pin letters shown above are for the integrated sensor switch (ISS) and the letters shown in
brackets are for pedals with separate idle validation and accelerator sensor.
Step 2D) Turn key switch OFF and disconnect the OEM harness from the accelerator position sensor.
Disconnect the OEM harness from the ECM. Check for a short circuit between the accelerator position
SIGNAL wire and any other signal in the OEM harness. Measure the resistance from pin 30 to all other pins
in OEM harness connector.
Step 2F) Turn key switch OFF and disconnect the OEM harness from the accelerator position sensor.
Disconnect the OEM harness from the ECM. Check for a short circuit to ground of the accelerator position
sensor SIGNAL circuit. Measure the resistance from pin 30 of the OEM harness connector to engine block
ground.
Step 4A) Connect all components and disable the fault code. Turn key switch ON, and depress the
accelerator pedal to full position. Release the pedal, and turn key switch OFF. Verify that Fault Code 131 or
132 is inactive.
Fault Code 131 or 132 inactive?
Step 4B) Connect all components and turn key switch ON. Clear the inactive fault codes using the
diagnostic tool.
All fault codes cleared?
